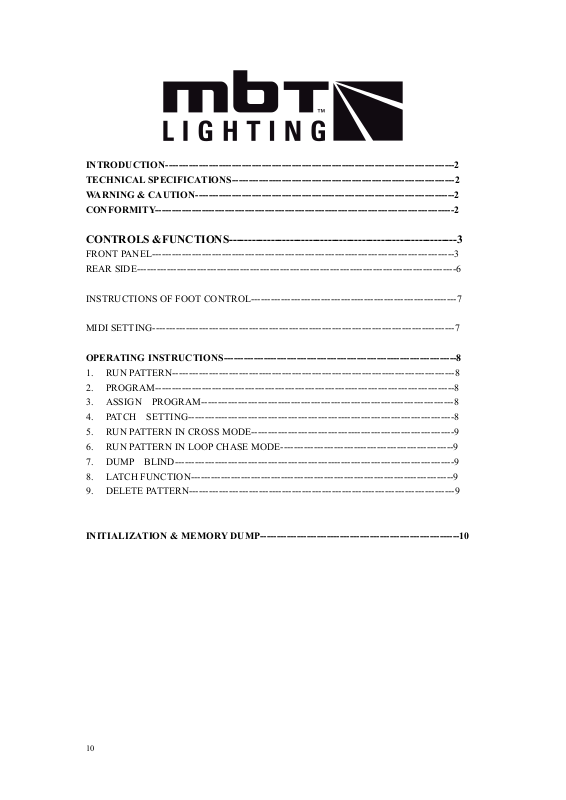

MBT Lighting CX1603 User Manual

10

INTRODUCTION---------------------------------------------------------------------------------------2

TECHNICAL SPECIFICATIONS-------------------------------------------------------------------2

WARNING & CAUTION------------------------------------------------------------------------------2

CONFORMITY------------------------------------------------------------------------------------------2

CONTROLS &FUNCTIONS------------------------------------------------------------3

FRONT PANEL-------------------------------------------------------------------------------------------3

REAR SIDE------------------------------------------------------------------------------------------------6

INSTRUCTIONS OF FOOT CONTROL--------------------------------------------------------------7

MIDI SETTING-------------------------------------------------------------------------------------------7

OPERATING INSTRUCTIONS----------------------------------------------------------------------8

1. RUN PATTERN-------------------------------------------------------------------------------------8

2. PROGRAM------------------------------------------------------------------------------------------8

3. ASSIGN PROGRAM----------------------------------------------------------------------------8

4. PATCH SETTING--------------------------------------------------------------------------------8

5. RUN PATTERN IN CROSS MODE-------------------------------------------------------------9

6. RUN PATTERN IN LOOP CHASE MODE----------------------------------------------------9

7. DUMP BLIND------------------------------------------------------------------------------------9

8. LATCH FUNCTION-------------------------------------------------------------------------------9

9. DELETE PATTERN--------------------------------------------------------------------------------9

INITIALIZATION & MEMORY DUMP------------------------------------------------------------10

10

INTRODUCTION:

The SRC-173 is a 16 channel programming console with MIDI & DMX interface. The SRC-173 features

including:60 built-in patterns & 30 variable programs with 99 steps at most, MANUAUAUTO/AUDIO/TAP

SYNC/CROSS modes. Specially, the SRC-173 is incorporated with PEROM to guarantee data security. Before

operating your unit, please read this manual thoroughly and retain it for future reference.

TECHNICAL SPECIFICATIONS:

POWER INPUT---------------------------------------------------------------------------------------DC 12~20V, 250mA min

DMX OUTPUT------------------------------------------------------------------------------------------------3 Pin female XLR

AUDIO INPUT------------------------------------------------------------------------------------------------------100mV-1vpp

MIDI INTERFACE----------------------------------------------------------------------------------------5 Pin multiple socket

ACCESSORY--------------------------------------------------------------------------------------(Optional)Foot controller×1

DIMENSIONS---------------------------------------------------------------------------------------------482×177.5X72.7mm

WEIGHT-----------------------------------------------------------------------------------------------------------------------2.3kg

WARNING!

To prevent fire or shock hazard, do not expose this unit to rain or moisture. Be careful not to initialize your unit

frequently, it does harm to your memory. Use recommended AC/DC adaptor

CAUTION! No user serviceable parts inside do not attempt repairs. In the event your unit should fail, contact

your local authorized dealer.

CONFORMITY: This product complies to EN 50081-1/EN 55022 pr EN 55103-1 (EMC emission) and EN

50082-1/EN 61000-4-2 pr EN 55103-2(EMC immunity).

10

CONTROLS & FUNCTIONS

FRONT PANEL

1. Channel indicators

2. Channel fader

Controls the level in ASSIGN PROGRAM mode or the channels in MANUAL mode.

3. LATCH button(CH.9~CH.16)

It functions as ASSIGN LATCH or channel LATCH in manual mode.

4. FLASH button (CH.1~CH.16)

It functions as ASSIGN FLASH or channel FLASH in MANUAL mode.

SHIFT+FLASH button

Changes the BLIND setting in chase mode and when BLIND ENABLE indicator is lit.

5. MASTER fader

It functions as a master fader for fader 1 to fader 8 or in chase mode and CROSS FUNCTION as a master for

the pattern and the patterns are executed step by step by moving the MASTER fader.

6. M indicator

Indicating the MASTER status for fader 1 to fader 8.

7. A & B indicators

Indicating the MASTER status of two neighboring steps in cross mode.

8. LEVEL knob

This knob functions as a master for the pattern in chase mode.

9. SPEED/FADE TIME knob

This knob controls the chasing speed from 10 steps/second to 1 step/5 minutes and time from 0.1 second to 5

minutes in chase mode.

10. AUDIO knob

This knob controls the sensitivity of music rhythms in audio chase mode.

11. LCD

It shows the present operating mode and program options.
