MBS THERMO PELLET Instructions Manual

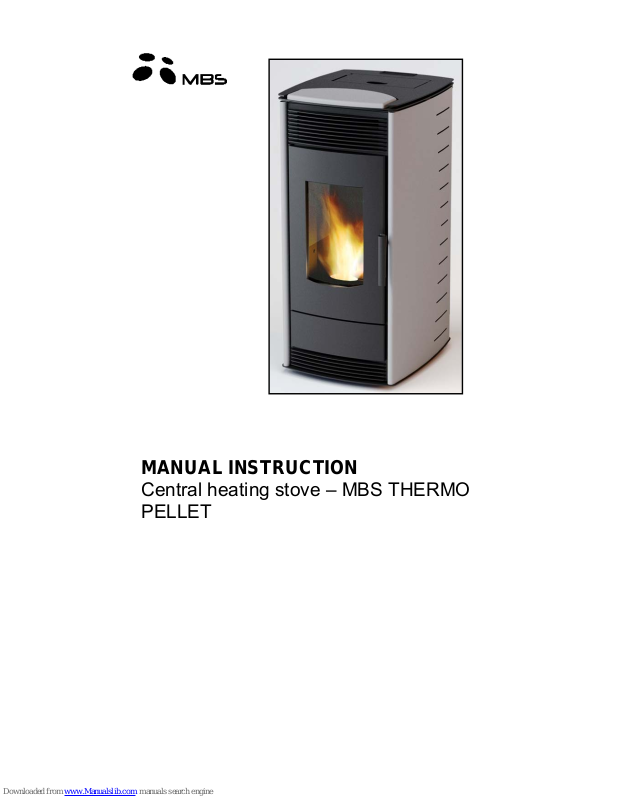

MANUAL INSTRUCTION
Central heating stove – MBS THERMO
PELLET
Central heating stove - MBS Thermo Pellet
DEAR CUSTOMER,
We appreciate your trust dedicated to us and your determination to buy our
product.
You made a good choice, since this stove has technical characteristics which place
it into top class, and you will be assured of it during exploitation.
Please, carefully read this manual before you start to use his stove, since you will
find tips and tricks for proper handling.
We believe that you will be one of the millions of satisfied customers of our
products.
A.D. „Milan Blagojević“ Smederevo
Central heating stove - MBS Thermo Pellet
Contents:
General comments.............................................................................1
Pellet..................................................................................................2
Package.............................................................................................2
Assembly of the stove........................................................................3
Operation...................……..........…………………..............................4
Cleaning and maintenance.........….................………………………...4
Technical data....................................................................................5
Integral parts of the stove...................................................................6
Handling..............................................................................................7
• 1. Power........................................................................................8
• 2. Settings up of heating intensity (heating power)……………….10
• 3. Setting up of desired temperature...........................................10
• 4. Achieving of temperature during operation..............................10
• 5. Turning off................................................................................11
• 5.1. Remote control.......................................................................11
• 6. Setting up of the time and date on the display.........................12
• 7. Programming.............................................................................14
• 7.1. Daily programming................................................................14
• 7.2. Weakly programming............................................................16
• 7.3. Weekend programming.........................................................18
• 8. Alarms.......................................................................................20
Warranty statement.............................................................................22
Central heating stove - MBS Thermo Pellet
GENERAL COMMENTS
- Read and study contents of this instructions and observe the same during
assembly and usage of the stove;
- Children and persons with reduced psycho-physical abilities should not handle the
stove;
- Do not allow pets in the vicinity of the stove;
- During operation, stove emits heat. Do not make contact with hot parts of stove
(glass, smoke exhaust, door) since there is danger of burns. Do not allow children
to touch hot part of stove. Do not open firebox door during operation;
- Ash from ashtray should be removed when stove and ash are cold;
- Firebox and internal parts of the stove are to be cleaned when it is disconnected
from electric current and cold, as well as ash;
- Use only original spare parts delivered by manufacturer;
- Use pellet as exclusive fuel. Pellets must be of quality high-calory woods, dry,
cylindrical, glossy and compact;
- Stove is to be exclusively used for heating;
- During mounting, draft of the chimney must be within allowed limits (2-12Pa);
- Provide continuous intake of clean air in the room in which stove combusts pellet;
- Device is made of material which may be recycled;
- Stove which is not going to be used again should be properly disposed. Dispose it
of to the proper place, in accordance with recommendations for removal of used
electrical and electronic devices. Cut of power cable prior to disposal. Observe
actual environmental laws;
- Do not disconnect stove by pulling out cable from the plug. Observe instructions
given in the part "Handling";
- During first use of the stove, combustion products may occur from protective cover
and humidification of color from installed parts, thus ventilate the room;
- Stove is leaned on adjustable legs which should be adjusted in order to make stove
stable and with no slopes;
- All reclamations, evaluated as defects or weakly functioning, please report to
factory or authorized service by phone or in written. At the end of these instructions
there are phone numbers of technical services. Any defect of the stove is to
remedied exclusively by factory or authorized service; If unauthorized persons
perform servicing or any other repairs on the stove as self-initiative, owner of the
stove will loose right to service guaranteed by the manufacturers guarantee;
- Stove is equipped with device for igniting the pellets, thus it is not allowed to carry
out ignition in any other way then described (see "Handling" - "Operation").
In case of non-observance of instruction manual, manufacturer will not bear any liability for
damage on the stove.
1
Central heating stove - MBS Thermo Pellet
PELLET
Description
Pellet is the product obtained by pressing sawdust and cuttings of dry, high-calory
wood. During pressing, additional binders are not allowed. As clean product of
biomass, pellets are CO
2
neutral, i.e. do not contribute to effect of green house.
Wood as basic ingredient of pellet is renewable source of energy and fuel of the
future.
Characteristics:
- By combustion of pellet, only 1% of ash occurs;
- Energy value is approx. 5kWh/kg;
- 2kg of pellet is approx. 1l of fuel oil;
- Combustion of pellet emits CO
2
equal to the amount used by the wood during
its growth;
- 1m
3
of pellet has mass of approx. 640kg.
How to recognize quality pellet:
- Pellet must have cylindrical shape, we recommend pellet 5 to 7mm in diameter
of 10 to 25 mm length;
- Cylindrical surface must be glossy;
- Pellet must be without dust and dirt;
- Humidity must be less then 10%;
- Package must be hermetically closed, since pellet absorbs water;
- By sinking into vessel with water, quality pellet will fall to the bottom;
- Avoid pellet of poor quality wood, wooden residues with additions of seedoil
rape and binding agents.
PACKAGE
Package of the stove is to be removed during mounting, i.e. prior to operation. All
materials may be recycled. Packing material (plastic bags, parts of polystyrenestyropor etc.) should be kept out of reach of children, since it is potential source of
danger.
Plastic parts of package are to be disposed of to proper areas, do not burn them.
Pay attention to safety since wooden parts of package are joint with nails, thus
during disassembly and disposing of wooden bars injuries may happen.
2
Central heating stove - MBS Thermo Pellet
ASSEMBLY OF THE STOVE
During assembly of the stove, observe regulations related to safety and
environment. Provide room in which stove will be mounted with sufficient
combustion air.
Connect stove to the power 230V, 50Hz. Connection spot must be done pursuant
to the requirements of electricity distributor and valid regulations. Power cable must
be without damages, may not cross over heat areas of the stove, neither over other
devices which may melt or damage the cable.
Prior to mounting of the stove, check if chimney is performed in accordance with
regulations, are there any disturbances in the chimney or any cracks. Remove all
irregularities prior to operation. Stove may not be installed in direct vicinity of
wooden elements, cooling devices or plastic parts of furniture and other
inflammable materials since during its operation (at the combustion of fuel) it
achieves very high working temperature which is distributed at the exterior of the
stove.The least distance between stove and surrounding inflammable elements is,
on back side 20 cm, lateral 20 cm, front 80 cm. If surface on which stove will be
placed is of inflammable material (wood, warm floor, laminate...) it is necessary to
place protection made of metal sheet which covers gabarites of the base: lateral 10
cm, front 30 cm.
Stove is to be connected with chimney via smoke exhaust pipes via connection at
the back of stove, in order to provide adequate sealing and flow of smoke from the
stove towards chimney. Flue pipes may not be too deeply installed into the
chimney to avoid reduction of area of cross section thus preventing draft in the
chimney.
Prior to installation of the stove check draft of chimney since it is one of key factors
of proper operation of the stove. Draft depends on accuracy of chimney and
meteorological conditions. One of most simple aspects for checking of draft in
chimney is using candle flame, as displayed on fig. 1. Put candle flame to
connection opening of chimney and if it sways towards opening, draft is
satisfactory (fig, 1b).
Central heating stove - MBS Thermo Pellet
Weak swaying of flame is indicator of weak draft (fig. 1a).
If chimney draft is weak, check accuracy of chimney. Chimney should be located
in interior of the building, abnd if it is in external walls of building, we recommend
insulation.
Default of chimney may be:
1. weakly installed windshield,
2. foreign body or bulges inside,
3. cracks of chimney,
4. accumulated tar,
5. weak sealing of connections and cleaning opening,
6. too deep installed smoke exhaust pipe,
7. fireplace without door or some other opening on the chimney
8. weak sealing of connection an cleaning apertures.
Chimney on which stove is connected may not include other devices.
Connection of the stove to the central heating system
Following diagram should be only as sample for connection of oven to the central
heating system. Installation should be carried out by expert – electrician. During
installation, take care of regulations which are valid for given region or country.
Mounting and checking of mounted elements should be carried out by specialized
person.
4
Central heating stove - MBS Thermo Pellet
UJ
230V 50Hz
RA RA RA RA
OV
T
EP
SM
P
V
V
ODVOD VODE
DOVOD VODE
KV
V
M
Diagram 1.
UJ – Managing unit
OV – automatic exhaust valve (should be installed one more valve at the highest
point of the heating system)
T – Thermometer
SM – Safety manometer
EP – expansion vessel
V – Valve
M – Manometer
RA – Radiator
K – Safety valve “caleffi 544 ½”
P – Pump
530,5
120,5
430,5
120,5
485
181,5
Diagram 2.
5
Central heating stove - MBS Thermo Pellet
OPERATION
- During first operation, there is combustion of protective agents which used to
be there during manufacture and storage of stove elements, and evaporation
of color by which stove parts are protected against corrosion. Thus, please
ventilate the room in terms of removal of undesired scents.
- During first operation, we recommend presence of expert within 30 min, thus
he can assure observance of all requirements for proper and safe operation of
the stove.
- Check if stove is properly connected to the electric current, with chimney, on
safe distance of inflammable materials, supplied with quality pellet and provide
stove with supply of fresh air for combustion. On the back side of stove in
lower left part, there is switch with marks 0 and 1 (fig. 2. pos. 16). When you
confirm observance of all prerequisites for operation of the stove, turn on
electric power by turning the switch into position 1, and follow further
instructions ion ther part "Handling".
Cleaning and maitenance:
During cleaning, turn off the stove form the main power;
Clean the stove exclusively when cold;
Glass on the stove is to be cleaned with wet mop. If necessary, use water
and soft detergents, but only when glass is cold. Abrasive agents will
damage glass so do not use them. Pay attention to, after cleaning of glass
surfaces, remove humidity and prior to operation provide it dry;
Colored and enameled parts are not to be cleaned with abrasive agents
since it will remove protective cover. Use solution of water and detergent.
Take wet mop or sponge and slightly clean unclean parts, rinse them with
water after washing and dry surfaces which are covered with color or
enameled electrostatically. Do not allow water to penetrate to electric parts
of the stove;
Regularly, after usage, when stove and ash got cold, clean ash from the
firebox. Use vacuum devices for cleaning of firebox;
Regularly empty ashtray, only when stove is turned off;
Pay attention that vessel for combustion of pellets is always clean, and
openings for draft are always passable.
Once a month, clean area behind ashtray by removing the closure (fig.2a).
Closure is to be removed by unscrewing 4 screws. Use vacuum cleaner to
clean chamber. Prior to operation, return closure to its place and secure it.
It is also necessary to remove closure of smoke gases (fig. 2b) which is
located below majolica (ceramic plate) and which is secured wth two
locknuts, and use handle to elevate and low lower
6
Loading...
