MBQuart WR1-CD Installation Manual

Operation

and Installation

Manual

LOUD

MUTE

SUB.W

OPEN

S-MOD

IPOD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

ST

WR1-CD

AM / FM Stereo Receiver

with CD Player

Please carefully read all of the information in this manual. Familiarity with operation and installation procedures will help you obtain the best possible performance from your new AM/FM Stereo Receiver with CD Player.

2

Button Locations and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Remote Control Button Locations and Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

General Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

AM/FM Radio Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Sound Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

Disc Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

CD Operation (Compact Disc). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-13

MP3 Disc Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14

CD Changer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15

Sirius Satellite Radio Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Sirius Satellite Radio Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-20

IPOD Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-22

AUX Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Setup Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Speaker Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Auxiliary Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Input Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

CAUTION! THIS MARINE CD PLAYER IS A CLASS 1 LASER PRODUCT. THIS UNIT USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION IF EXPOSED DIRECTLY. BE SURE TO OPERATE THE MOBILE CD PLAYER AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. PLEASE REFER SERVICING TO A QUALIFIED TECHNICIAN.

CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANUFACTURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL.

3

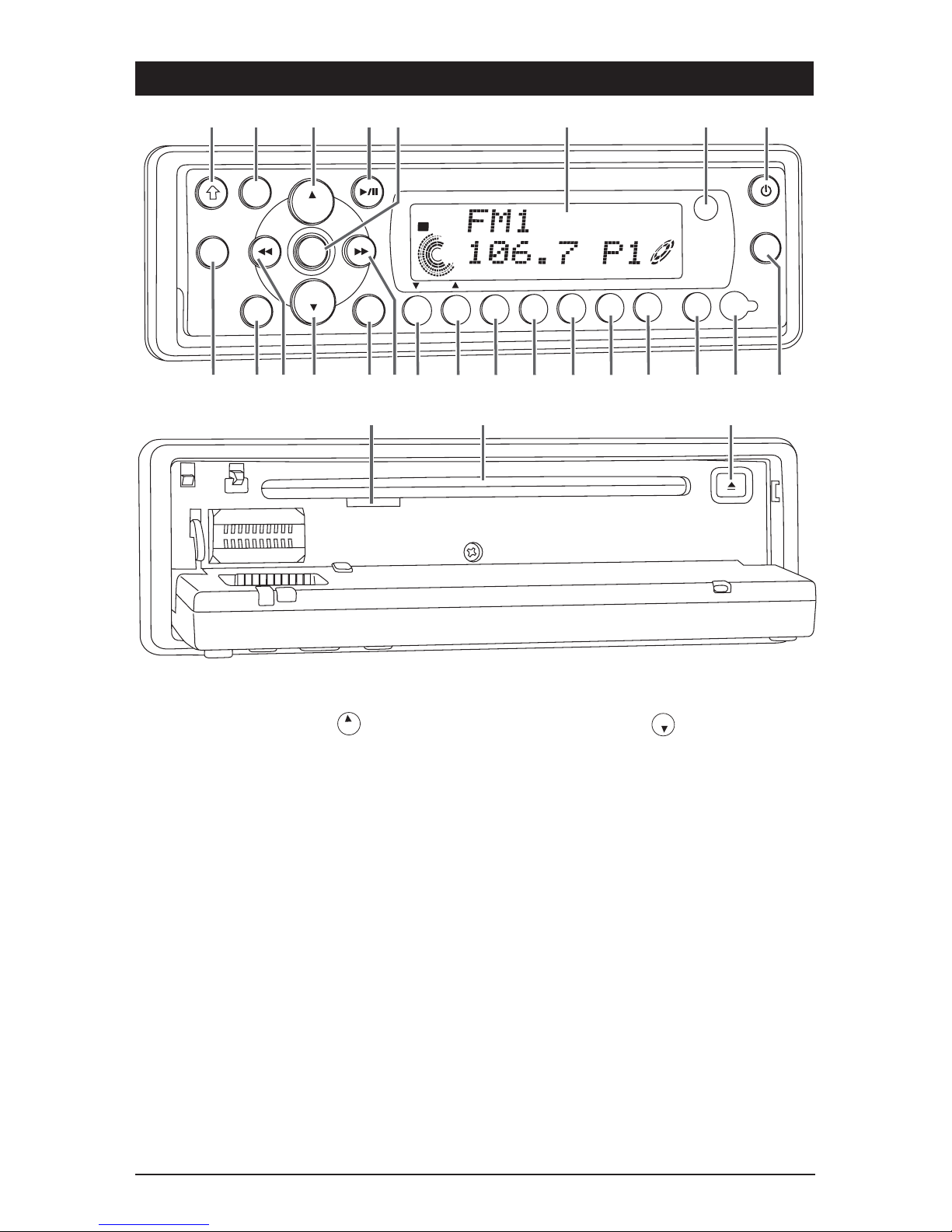

1. Power On/Off and Display Dimmer: Press to turn the unit On or Off. Press and hold to dim the dis-

play. Press and hold again to restore display’s illumination.

2. Volume Control: Press the button to increase the volume, and press the button to decrease

the volume.

3. CD Play/Pause and Mute Button: CD and CD Changer Mode: Press to pause disc play, press again to resume play. Radio, Sirius Satellite Radio and Auxiliary Audio Input Modes: Press to mute volume level. Press

again to restore.

4. Enter/Band and Loud Button: Radio: Press to select AM1, AM2, FM1, FM2 and FM3 radio bands.

Loudness: Press and hold button until “LOUD ON” appears in the display to boost high and low tones

at low volume levels. To deactivate press and hold again until “LOUD OFF” appears in the display.

IPOD Mode: See "IPOD Operation" for more information.

5. Infrared Eye: Receives the signals from the optional remote control.

6. Open Button: Press to fold down the front panel to access the CD player slot and disc eject button.

7. Display Area: This area displays all function information for the radio, CD player, auxiliary audio and

IPOD modes.

8. Equalizer Button: Press to choose between preset sound equalization settings.

9. Display Button (DISP): Press to display information. CD and CD Changer Mode: Press to display track information.

10. Setup Button: Press to access Bass, Treble, Balance, Fader and Subwoofer controls. Press and hold

for 10 seconds to access Beep Confirmation, Default Volume and AM/FM Tuning System.

LOUD

MU E

SUB.W

OPEN

S-MOD

IPOD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

S

T

2

3

4 5

6 7

8

1

9

11

10

121314151617

1920 2

1818

21

22

VO

L

VOL

23 24 25

4

11. ASM Button (Automatic Station Memory): Radio Mode: Press and hold for automatic station memory storing. Press and release for scanning

memorized stations.

12. Multi-Function Button #6: Radio Mode: Press and hold until a beep is heard to store a radio station into memory #6 (CH6).

Press and release when recalling preset radio station #6

13. Multi-Function Button #5:

Radio Mode: Press and hold until a beep is heard to store a radio station into memory #5 (CH5).

Press and release when recalling preset radio station #5.

CD Mode: Press to preview each track on the CD for 10 seconds. Press again to cancel. CD Changer Mode: Press to preview each track on the CD for 10 seconds. Press and hold to preview

each track on every loaded CD for 10 seconds. Press again to cancel.

14. Multi-Function Button #4:

Radio Mode: Press and hold until a beep is heard to store a radio station into memory #4 (CH4).

Press and release when recalling preset radio station #4.

CD Mode: Press to play all the tracks on the CD in random order. Press again to cancel. CD Changer Mode: Press to play all the tracks on the CD in random order. Press and hold to play

every loaded CD in random order. Press again to cancel.

15. Multi-Function Button #3: Radio Mode: Press and hold until a beep is heard to store a radio station into memory #3 (CH3).

Press and release when recalling preset radio station #3.

CD Mode: Press to repeat a CD track. Press again to cancel. CD Changer Mode: Press to repeat a CD track. Press and hold to repeat the entire disc. Press again

to cancel.

16. Multi-Function Button #2: Radio Mode: Press and hold until a beep is heard to store a radio station into memory #2 (CH2).

Press and release when recalling preset radio station #2.

CD Changer Mode: Push to change to a higher number disc in the CD changer.

17. Multi-Function Button #1: Radio Mode: Press and hold until a beep is heard to store a radio station into memory #1 (CH1).

Press and release when recalling preset radio station #1.

CD Changer Mode: Push to change to a lower number disc in the CD changer.

18. T

une/Track Buttons:

Radio Mode: Press either button and the tuner will scan to the next strong station and stop. Then

press and hold either button until “MANUAL” appears in the display, then release. Again, press either button until the desired radio station appears in the display. CD and CD Changer Mode: Press to

change the track to a lower or higher track.

19. Mode Button:

Press to change the play source: Radio, CD and Auxiliary Audio Input. Depending on what other input sources are connected (IPOD, Sirius and CD Changer) these play sources will also appear in the display.

20. Menu Button: Sirius Mode: See "Sirius Satellite Radio Operation" for more information. IPOD Mode: See "IPOD Operation" for more information.

21. Mono/Stereo Button: Changes FM radio reception from Mono to Stereo.

22. Audio Input Jack: Plug in a device with a 3.5mm audio/input plug. The WR1-CD will not control the

device, it just allows the audio to be played through the system.

(See Auxiliary Input Operation, page 22, for more information).

23. Eject Button: Press to eject the loaded disc.

24. Disc Slot: To play a disc, insert a disc into the slot with the label facing up.

25. Power Indicator: Lights up when the unit has power.

5

DIM

ENT BND

LOUD

MUTE

VOLUME

RPT

SHFSCN

DIR / CAT

S MOD

IPOD MENU

1

35

6

2

7

4

9

80

MODE

MENU

OK

DVD

SETUP

SUB T

TITLE

AUDIO

DVD

MENU

1

19

3 2

2

18

17

20

4

12

16

13 14

15

18

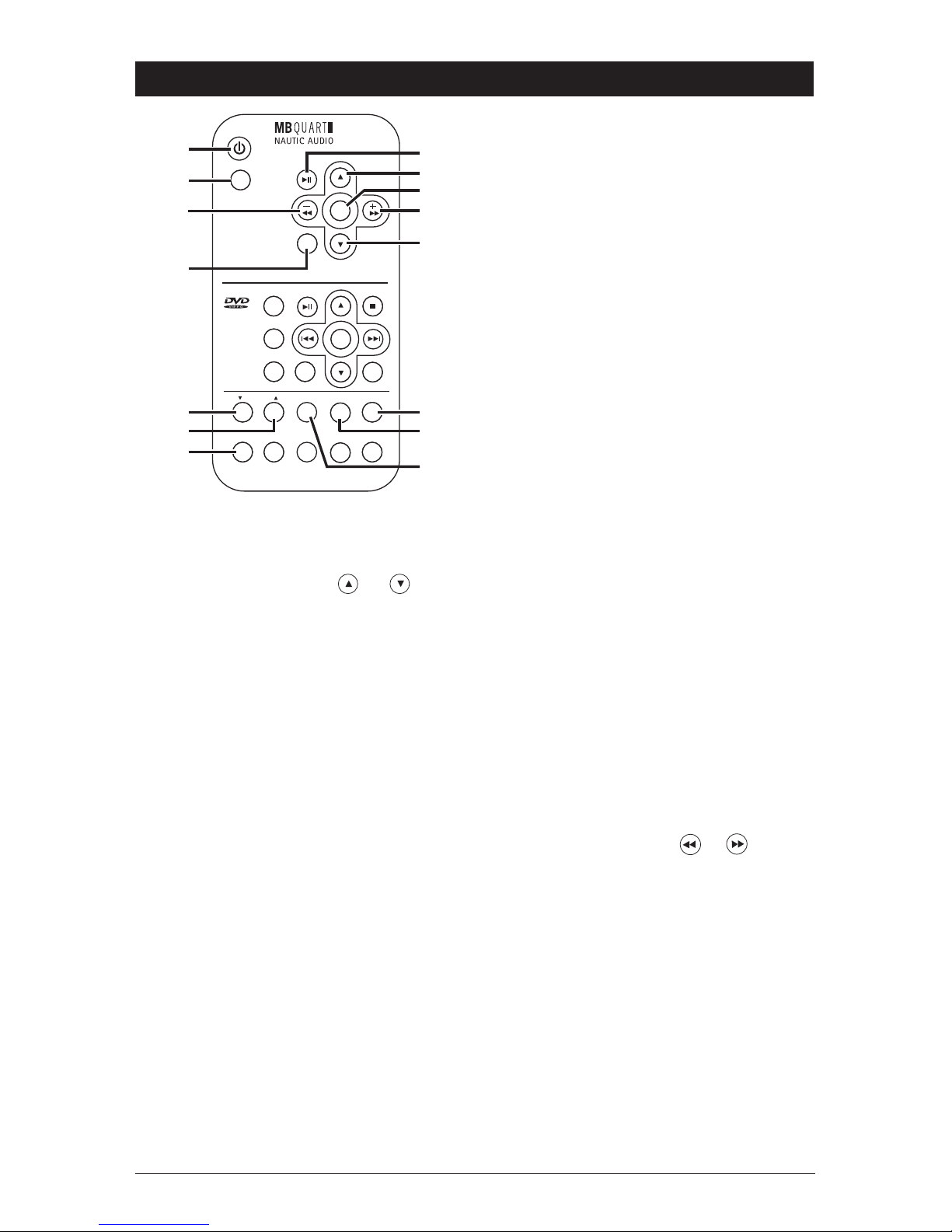

1. Power On/Off and Display Dimmer: Press to

turn the unit On or Off. Press and hold to dim the display. Press and hold again to restore.

2. Volume Control: Press the and buttons

to increase and decrease the volume.

3. CD Play/Pause and Mute Button: CD and CD Changer Mode: Press to pause

disc play, press again to resume play.

Radio, Sirius Satellite Radio and Auxiliary Audio Input Modes: Press to mute volume level.

4. Enter/Band and Loud Button: Radio: Press to select AM1, AM2, FM1, FM2

and FM3 radio bands.

Loudness: Press and hold button until “LOUD

ON” appears in the display. To deactivate,

press and hold again until “LOUD OFF” appears.

IPOD Mode: See "IPOD Operation" for more

information.

12. Multi-Function Button #6: Radio Mode: Press and hold until a beep is

heard to store a radio station into memory #6 (CH6). Press and release when recalling preset radio station #6.

13. Multi-Function Button #5: Radio Mode: Press and hold until a beep is

heard to store a radio station into memory #5 (CH5). Press and release when recalling preset radio station #5.

CD Mode: Press to preview each track on the

CD for 10 seconds. Press again to cancel.

CD Changer Mode: Press to preview each

track on the CD for 10 seconds. Press and hold to preview each track on every loaded CD for 10 seconds. Press again to cancel.

14. Multi-Function Button #4: Radio Mode: Press and hold until a beep is

heard to store a radio station into memory #4 (CH4). Press and release when recalling preset radio station #4.

CD Mode: Press to play all the tracks on the

CD in random order. Press again to cancel.

CD Changer Mode: Press to play all the tracks

on the CD in random order. Press and hold to play every loaded CD in random order. Press again to cancel.

15. Multi-Function Button #3: Radio Mode: Press and hold until a beep is

heard to store a radio station into memory #3 (CH3). Press and release when recalling preset radio station #3.

CD Mode: Press to repeat a CD track. Press

again to cancel.

CD Changer Mode: Press to repeat a CD track.

Press and hold to repeat the entire disc. Press again to cancel.

16. Multi-Function Button #2: Radio Mode: Press and hold until a beep is

heard to store a radio station into memory #2 (CH2). Press and release when recalling preset radio station #2.

CD Changer Mode: Push to change to a higher

number disc in the CD changer.

17. Multi-Function Button #1: Radio Mode: Press and hold until a beep is

heard to store a radio station into memory #1 (CH1). Press and release when recalling preset radio station #1.

CD Changer Mode: Push to change to a lower

number disc in the CD changer.

18. Tune/Track Buttons: Radio Mode: Press and the tuner will scan to

the next strong station and stop. Press and hold until “MANUAL” appears in the display then release. Then press or until the desired radio station is tuned-in.

CD and CD Changer Mode: Press to change

the track to a lower or higher track

19. Mode Button:

Press to change the play source: Radio, CD and Auxiliary Audio Input. Depending on what other input sources are connected (IPOD, Sirius and CD Changer) these play sources will also appear in the display.

20. Menu Button: Sirius Mode: See "Sirius Satellite Radio

Operation" for more information.

IPOD Mode: See "IPOD Operation" for more

information.

6

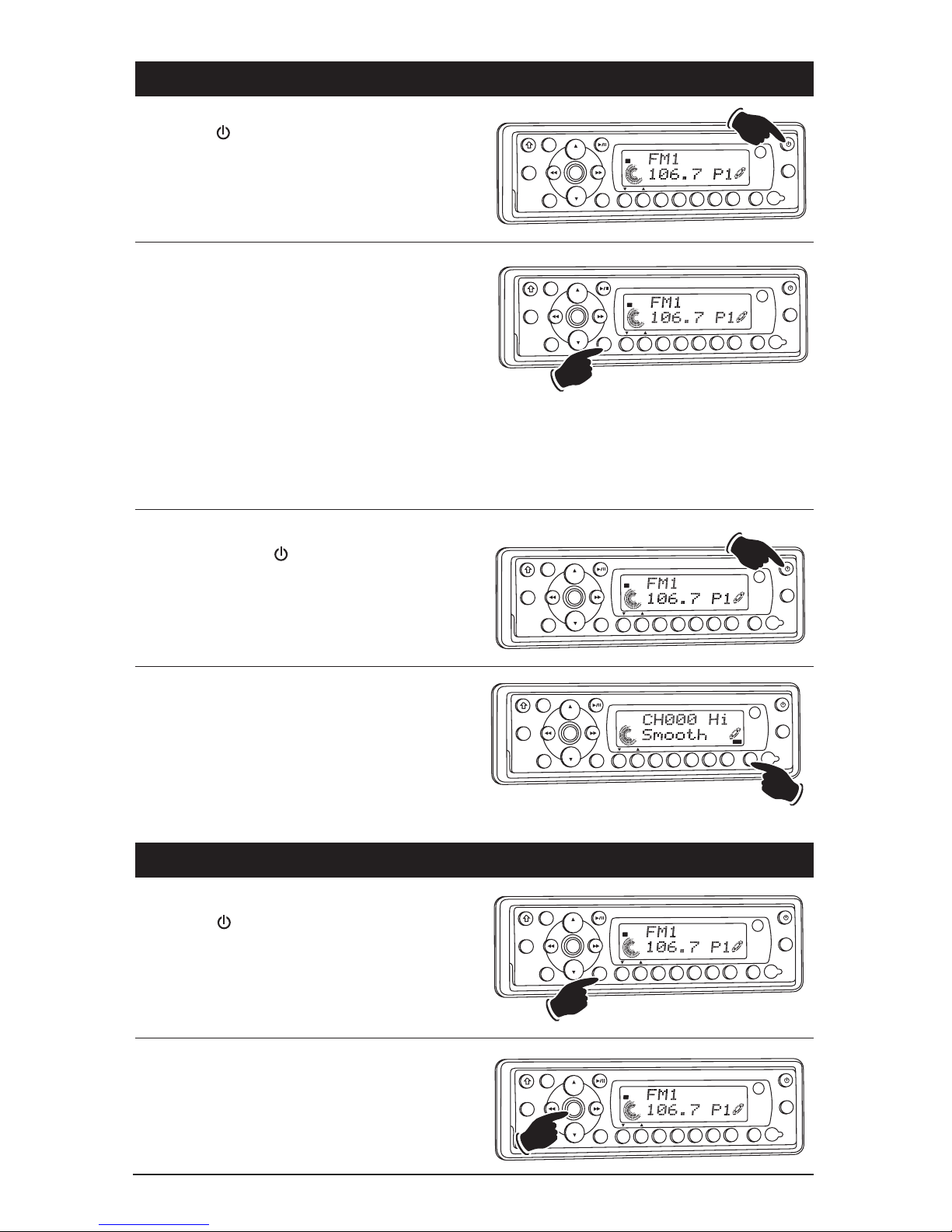

Selecting the AM or FM Band:

Press the ENT BND button repeatedly and select from FM1, FM2, FM3, AM1 or AM2.

Power On/Off:

Press the button to turn the unit On and Off.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

T

Selecting a Play Source:

To select a play source, press the MODE button until the desired source appears in the display:

AM1, AM2, FM1, FM2 or FM3

(AM and FM Radio),

SIRIUS (Satellite Radio Input, if connected),

CD (Built-in CD Player),

CD-CH (CD Changer, if connected),

AUX IN (Auxiliary Audio Input) and

IPOD (IPOD Input, if connected).

Dimming the Display:

Press and hold the button to dim the brightness of the display. Press and hold again to restore the brightness of display.

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

ST

Hold

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D R/CAT

RPT

SHF

SCN

S

T

Display Selection:

Press the DISP button to display the information according to the mode selected.

Example: Press the DISP button in the Sirius Radio mode to display SONG-TITLE _> ARTIST NAME _> CATEGORY _> SONG-TITLE .

CA

T

E

GORY

SAT

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

OUD

MUTE

SUBW

O EN

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

SETUP

EQ

D R/CAT

RPT

SHF

SCN

ST

Power On/Off:

Press the button to turn the unit On.

Selecting the Play Source:

Press the MODE button until “AM1, AM2, FM1, FM2 or FM3” appears in the display.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

ETUP

EQ

DIR CAT

RPT

SHF

SCN

S

T

7

Manually Tuning in a Radio Station:

Press and hold either the or button until “MANUAL” appears in the display then release. Then press the or again until the desired radio station appears in the display.

S

T

OUD

MUTE

SUBW

O EN

S-M

I OD

DIM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

VOL

ENT BND

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

Lower

Frequency

Higher

Frequency

Tuning in a Radio Station Using Seek:

Press and release either the or button and the tuner will scan-up to the next strong station and stop seeking, then start playing.

OUD

MUTE

SUBW

O EN

S-

I OD

DIM

AUX

IN

ASM

D SP

MONO

6

5

4

3

2

1

VOL

ENT BND

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

S

T

Lower

Frequency

Higher

Frequency

Memorizing Radio Stations:

1. Press the ENT BND button to select either the

FM1, FM2, FM3, AM1 or AM2 radio band.

2. Tune-in the desired radio station.

3. To store the station press and hold any of the six radio station recall buttons until you hear a beep.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

ST

Radio Station Recall Buttons

Memorized Radio Station Indicator

Recalling Memorizing Radio Stations:

1. Press the ENT BND button to select either the FM1, FM2, FM3, AM1 or AM2 radio band.

2. Press and release one of the six radio station recall buttons to select the memorized radio station.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D R/CAT

RPT

SHF

SCN

S

T

FM Stereo Operation:

If the stereo signal should become weak, press the MONO button until “MONO” appears in the display for Mono reception. Press the button again and “ST” appears in the display for stereo reception.

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

ST

Stereo Indicator

Tuning-In a Radio Station Using Tuner Scanning:

Press the MENU button and “TSCAN” appears in the display. The tuner will search for the next strong station, play for 5 seconds then scan for the next strong station. To cancel this function press the MENU button again.

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

ST

8

Bass:

1. Select the Bass mode (BAS) by pressing the

SETUP button.

2. Increase the Bass by pressing the button. Decrease the Bass by pressing the button.

3. Control reverts back to volume control after 5 seconds.

Volume:

Increase the volume by pressing the button.

Decrease the volume by pressing the button.

Bass, Treble, Balance, Fader and Subwoofer Controls

Select the desired sound mode by pressing the SETUP button. The modes will be displayed in the following order: Bass, Treble, Balance, Fader, Subwoofer Line Level Output and Subwoofer Cutoff Frequency.

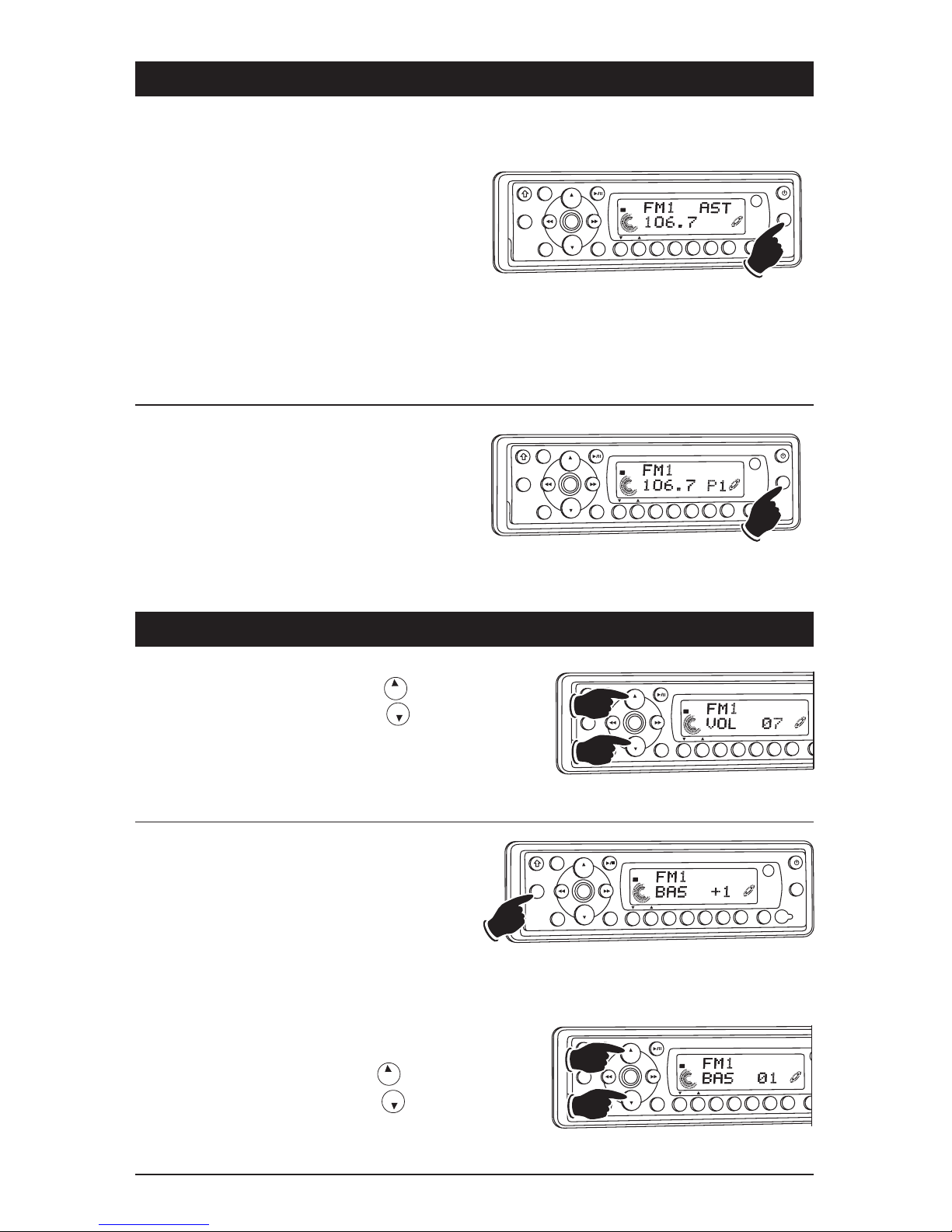

Automatically Store Radio Stations:

1. Press the ENT BND button to select either the

FM1, FM2, FM3, AM1 or AM2 radio band.

2. Press and hold the ASM button until “AST”

appears in the display. The tuner will search for the strongest stations and store them into memory. The new stations will replace stations that were previously stored in the current band. Note: After the new stations are stored into memory the tuner will start scanning the newly memorized stations.

3. When a desired station is reached, press the

ASM button to stop scanning.

Scanning Stored Radio Stations:

1. Press the ENT BND button to select either the

FM1, FM2, FM3, AM1 or AM2 radio band.

2. Press the ASM button and the tuner will scan

for preset stations stored in the current band and pause for 5 seconds at each station. When a desired station is reached, press the ASM button again to stop scanning.

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

D

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

ST

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

UX

N

ASM

D

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

S

T

Hold

OUD

MUTE

D

MONO

6

5

4

3

2

1

MODE

OL

VOL

ENT BND

SETUP

DIR CAT

RPT

SHF

SCN

S

T

Increase

Decrease

VOL

VO

L

VOL

ST

OUD

MUTE

DI

MONO

6

5

4

3

2

1

MODE

OL

VOL

ENT BND

SETUP

D RCAT

RPT

SHF

SCN

Increase

Decrease

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D R/CAT

RPT

SHF

SCN

ST

9

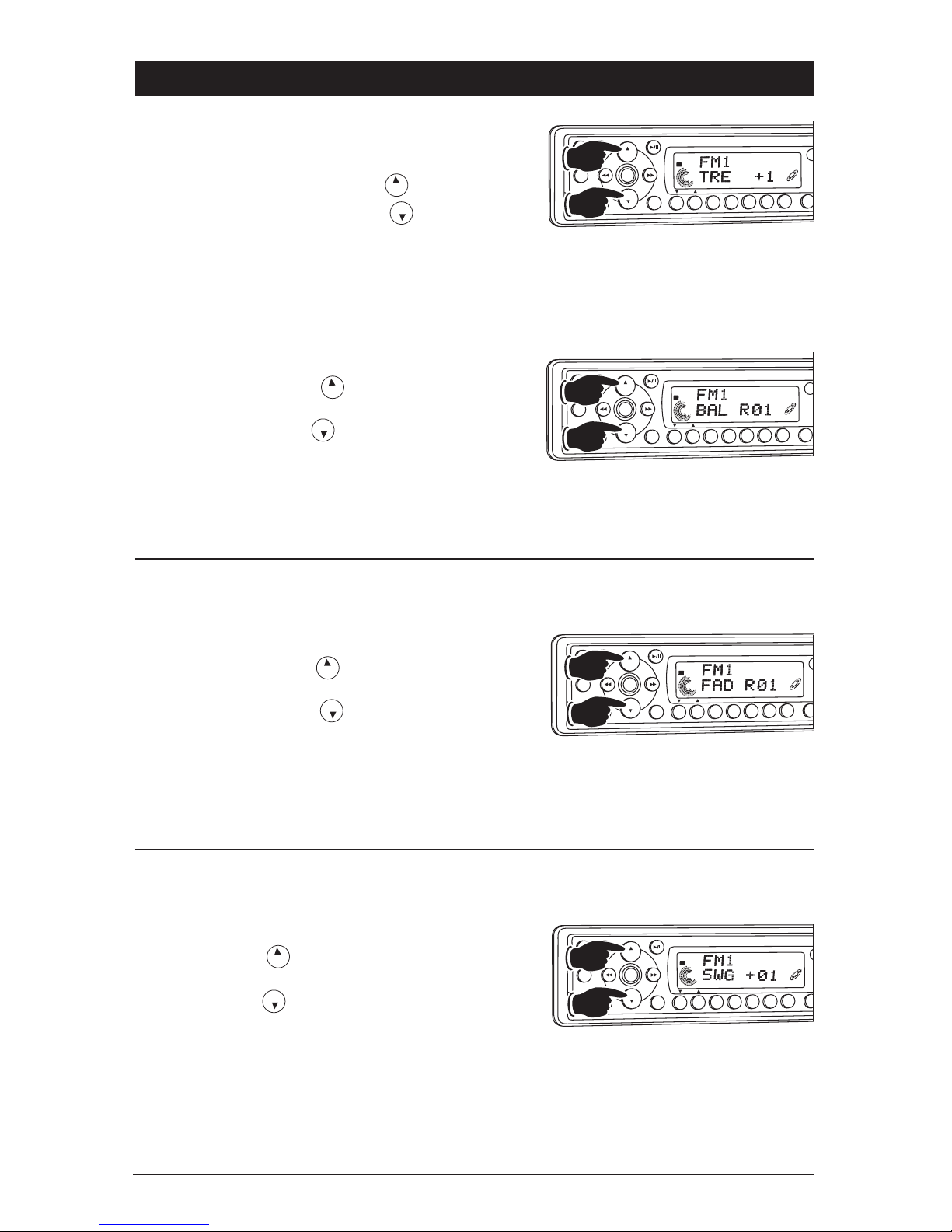

Treble:

1. Select the Treble mode (TRE) by pressing the

SETUP button.

2. Increase the Treble by pressing the button. Decrease the Tr eble by pressing the button.

3. Control reverts back to volume control after 5 seconds.

VO

L

VOL

ST

OUD

MUTE

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

SETUP

DIR/CAT

RPT

SHF

SCN

Increase

Decrease

Balance:

1. Select the Balance mode (BAL) by pressing the

SETUP button.

2. To adjust the amount of sound output to the Right speakers press the button.

To adjust the amount of sound output to the Left speakers press the button.

BAL 00 = Equal sound right and left speakers. BAL R12 = Right speakers only. BAL L12 = Left speakers only.

3. Control reverts back to volume control after 5 seconds.

VOL

S

T

OUD

MUTE

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

SETUP

DIR/CAT

RPT

SHF

SCN

Right

Left

Fader:

1. Select the Fader mode (FAD) by pressing the

SETUP button.

2. To adjust the amount of sound output to the Rear speakers press the button.

To adjust the amount of sound output to the Front speakers press the button.

FAD 00 = Equal sound front and rear speakers. FAD R12 = Rear speakers only. FAD F12 = Front speaker only.

3. Control reverts back to volume control after 5 seconds.

VOL

ST

OUD

MUTE

DIS

MONO

6

5

4

3

2

1

MODE

OL

VOL

ENT BND

SETUP

D R/CAT

RPT

SHF

SCN

Rear

Front

Subwoofer Line Level Output (SWG):

1. Select the Subwoofer Line Level Output mode

(SWG) by pressing the SETUP button.

2. To adjust the Subwoofer Line Level Output higher press the button.

To adjust the Subwoofer Line Level Output lower press the button.

SWG 00 = No gain. SWG -12 = Minimum level. SWG +12 = Maximum level.

3. Control reverts back to volume control after 5 seconds.

Note: If subwoofer output is turned Off, Subwoofer

Line Level Output mode is not accessi

ble. See

Subwoofer Output (page 10) for more informa

tion.

VOL

OUD

MUTE

D

S

MONO

6

5

4

3

2

1

MODE

OL

VOL

ENT BND

SETUP

DIR CAT

RPT

SHF

SCN

Higher

Lower

ST

Subwoofer Output:

Press and hold the EQ button to turn subwoofer output On and Off. “SUBW ON” appears in the display when the subwoofer is On and “SUBW OFF” appears when the subwoofer output is Off. “SW” permanently appears in the display when the subwoofer output in On.

Hold

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

DISP

MONO

6

5

4

3

1

MODE

VOL

VO

ENT BND

MENU

SETUP

EQ

D RCA

RPT

SHF

SCN

ST

SW

“SW” Subwoofer On Indicator

Loud:

To boost high and low tones at low volume levels, press and hold the ENT BND button until “LOUD ON” appears in the display. To deselect, press and hold the ENT BND button again until “LOUD OFF” appears in the display.

ST

Hold

OUD

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SC

LOUD

Loud On Indicator

Mute:

Press and release the MUTE button to mute the volume level. If a CD is playing the MUTE button will pause the disc. Press the MUTE button again to restore the volume or resume playing the disc.

S

T

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D R/CAT

RPT

SHF

SC

10

Equalizer (EQ):

Press the EQ button to choose between the preset equalizer settings: Rock, Pop, Classic, Vocal,

Flat and Jazz as indicated in the display area.

ST

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR CAT

RPT

SHF

SCN

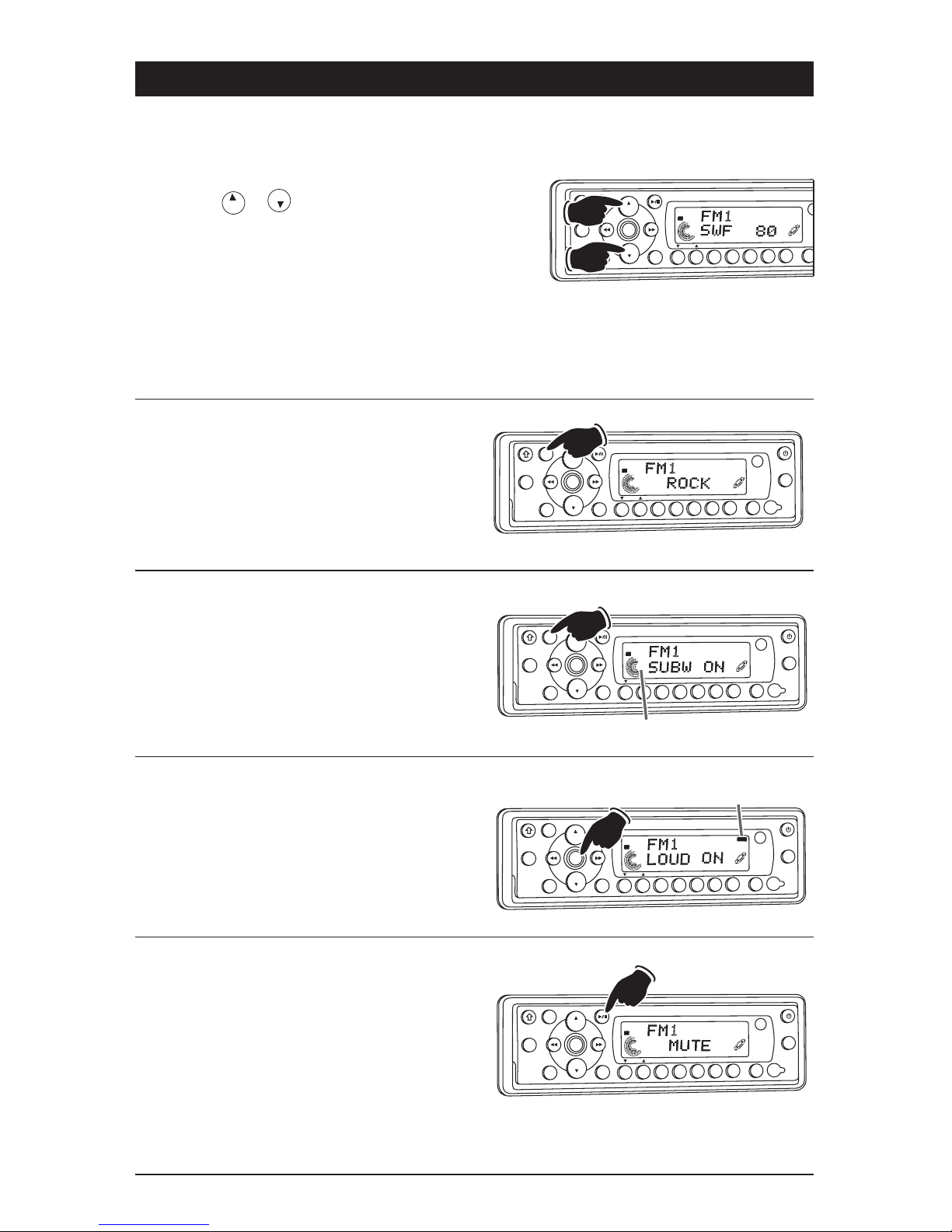

Subwoofer Cutoff Frequency (SWF):

1. Select the Subwoofer Cutoff Frequency mode

(SWF) by pressing the SETUP button.

2. To adjust the Subwoofer Cutoff Frequency press the or button.

SWF 160 = Low Pass 160Hz SWF 120 = Low Pass 120Hz SWF 80 = Low Pass 80Hz

3. Control reverts back to volume control after 5 seconds.

Note: If subwoofer output is turned Off, Subwoofer

Cutoff Frequency mode is not accessi

ble. See

Subwoofer Output (page 10) for more informa

tion.

ST

OUD

MUTE

D S

P

MONO

6

5

4

3

2

1

MODE

OL

VOL

ENT BND

SETUP

D RCAT

RPT

SHF

SCN

Higher

Lower

VOL

VO

L

11

Disc Formats Supported by this Player:

CD

12cm disc

MP3

12cm disc

Label side up

Do not touch the underside of the disc

Do not bend

Wipe the disc from the center toward the outside edge

Disc Handling:

• Dirt, dust, scratches and warping disc will cause non operation.

•Do not place stickers on disc or scratch disc.

• Do not warp discs.

• A disc should always be kept in its case when not

in use to prevent damage.

• Do not place discs in the following places: Direct sunlight, Dirty, dusty and damp areas, Near car heaters, Car seats or dashboard.

Disc Cleaning:

Use a dry soft cloth to wipe the disc surface. If the disc is quite dirty, use a soft cloth slightly moist with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become scratched somewhat

(although

not enough to make it unusable) depending on handling and conditions in the usage environment.

Preparing New Discs with Rough Spots:

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc.Remove the rough edges in advance by using a ball point pen or pencil as shown. To do this, press the side of the pen or pencil against the inside and outside edges of the disc.

Rough spots on outside edge

Rough spots on inside edge

Ball point pen or pencil

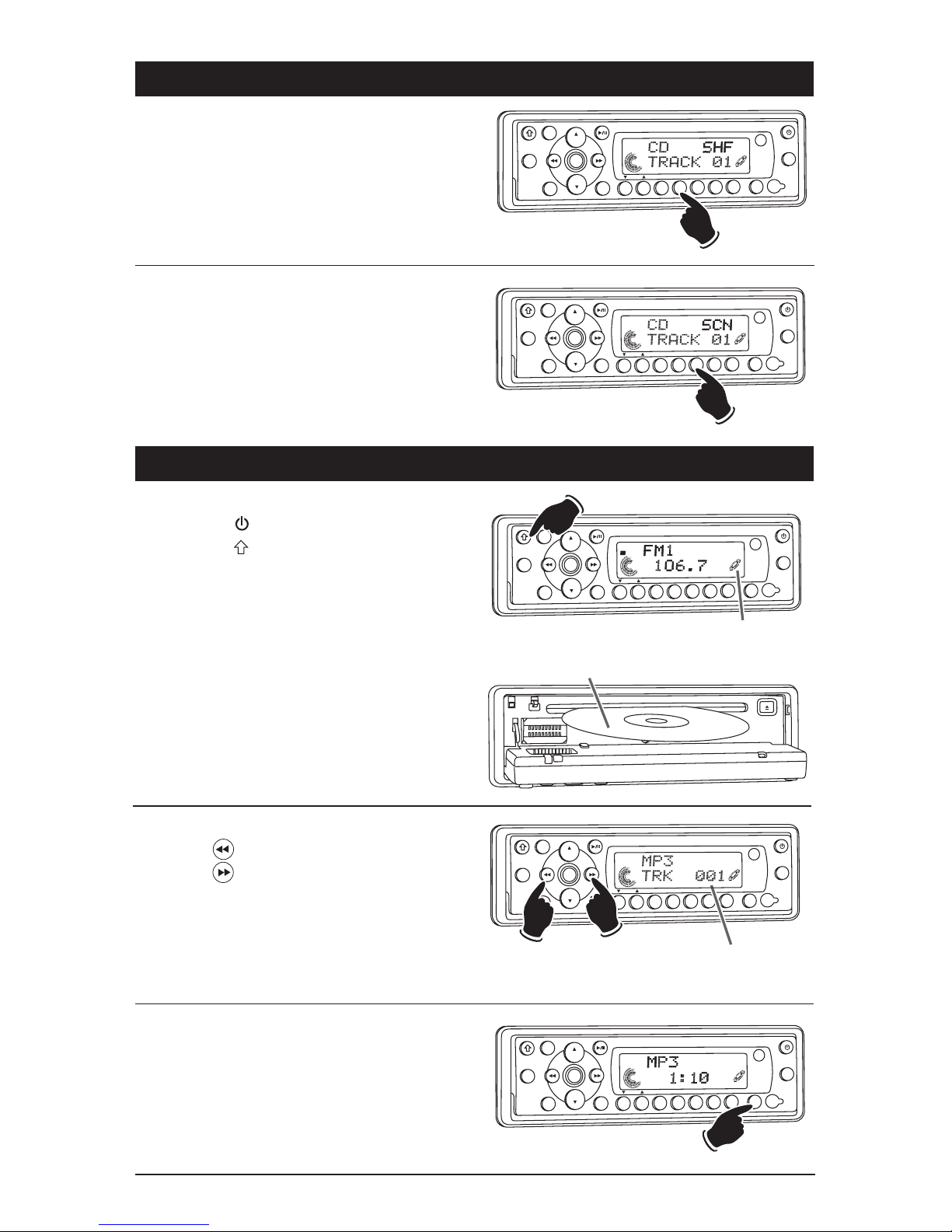

General Operations:

1. Press the button to turn the unit On.

2. Press the button to fold down the front

panel to access the CD player slot.

3. Gently insert the disc into the slot with the

label side up. The unit will automatically load the disc.

Note: If a CD does not auto-load, DO NOT FORCE it into the slot, as you may already have

a CD loaded as indicated by the disc icon.

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT

BND

MENU

SETUP

EQ

DIR CAT

RPT

SHF

SCN

ST

Inserted Disc Icon

Label Side Up

12

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCA

RPT

SHF

SCN

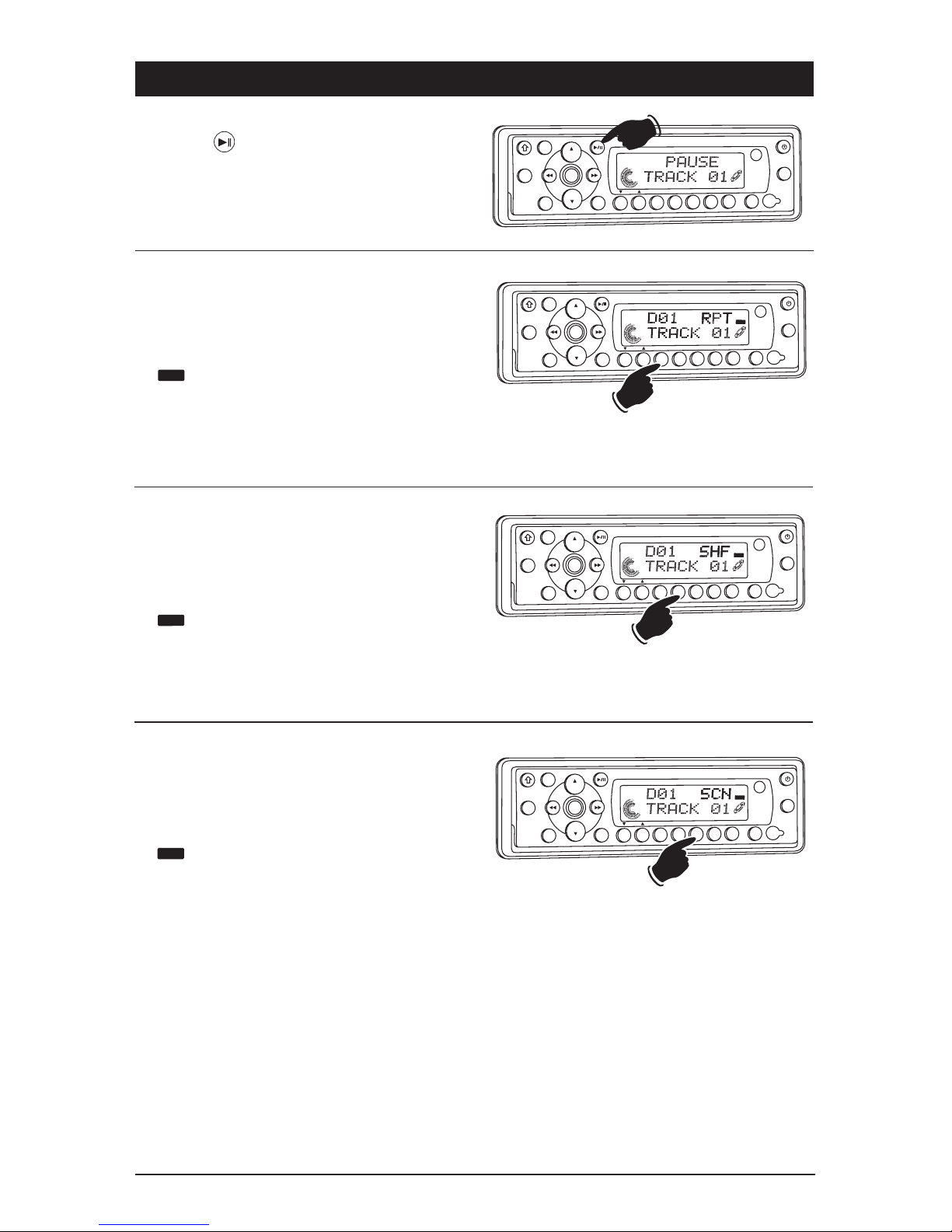

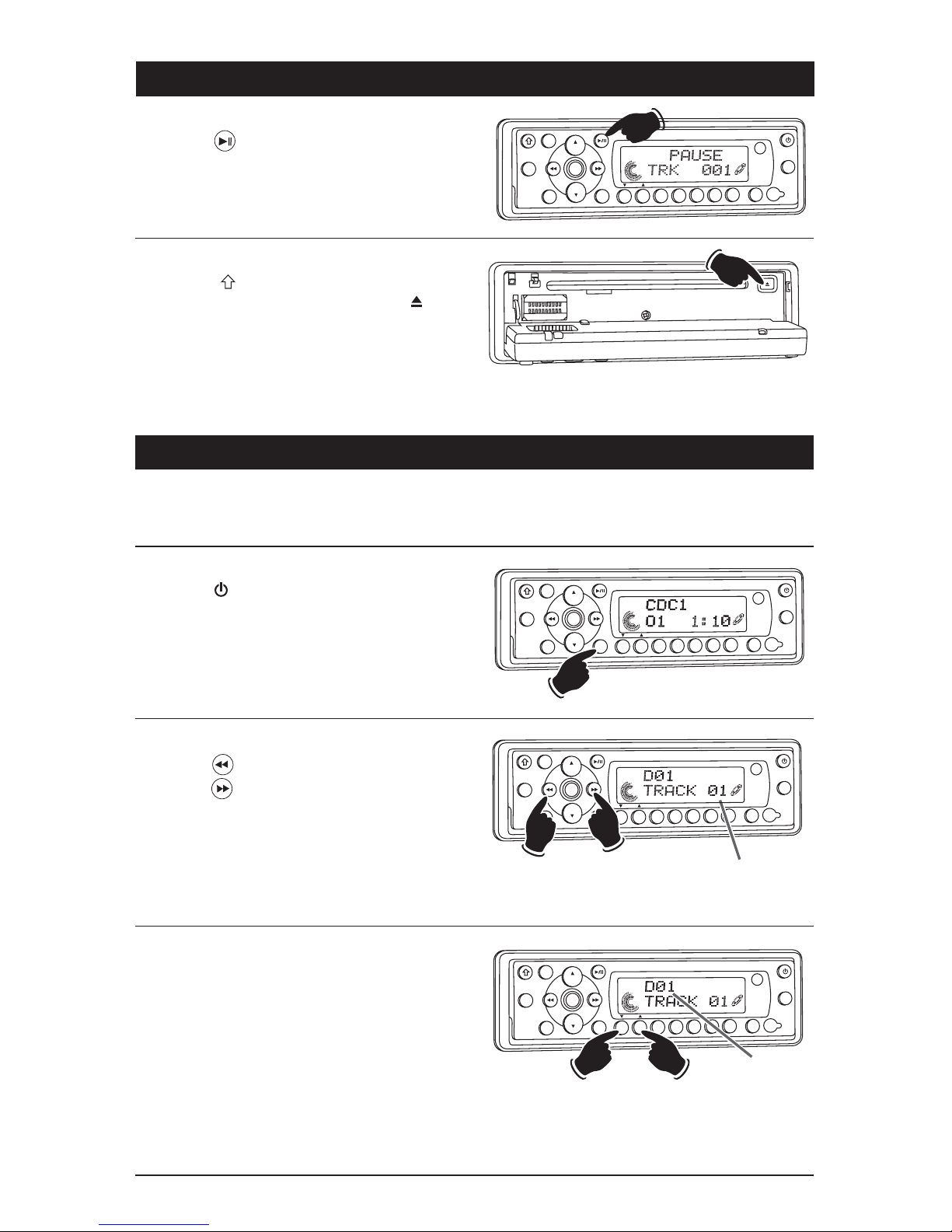

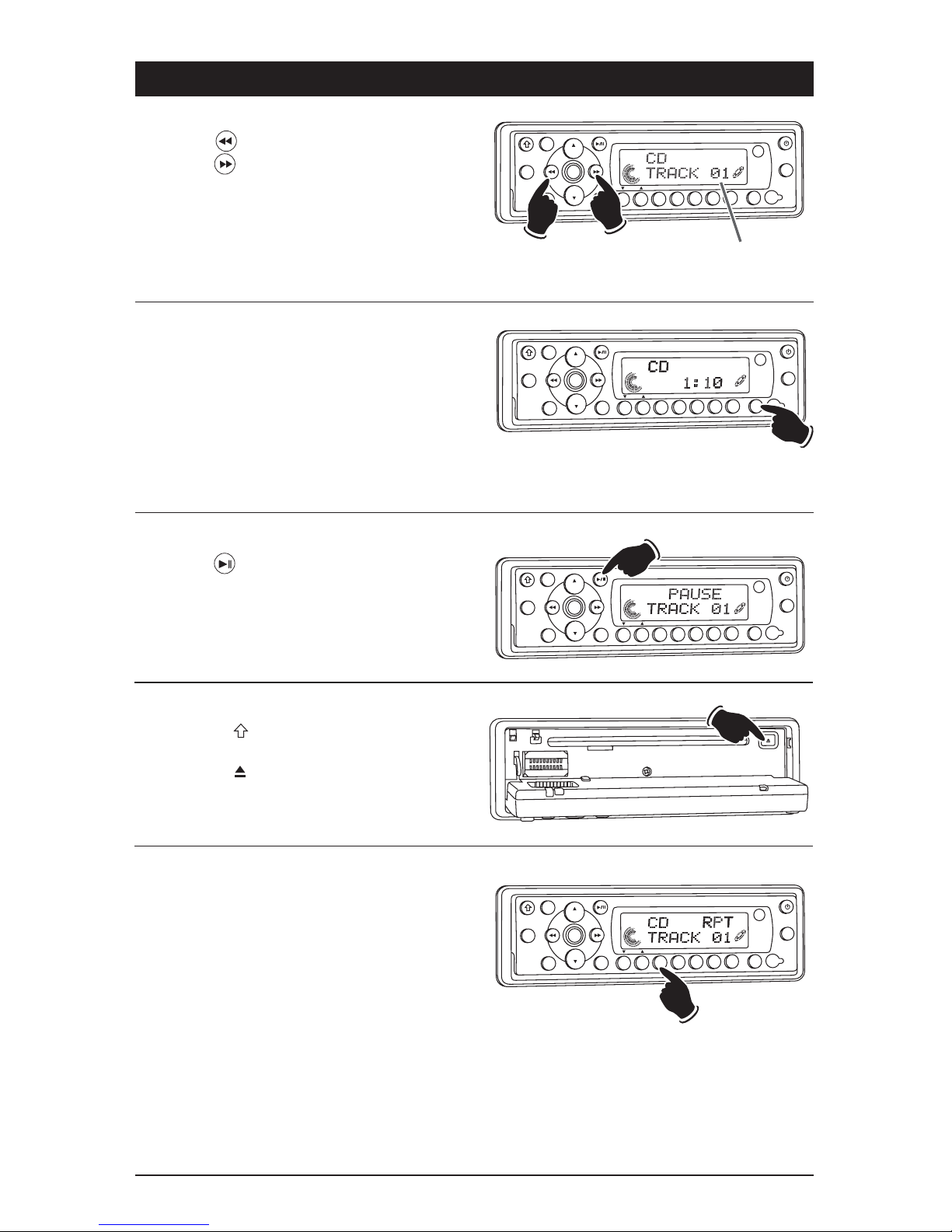

Pausing a CD:

Press the button to pause the disc, press it again to resume play.

Ejecting a CD:

1. Press the button to fold down the front

panel to access the disc slot.

2. Press the button to eject a disc.

Repeating a CD Track:

Select the desired track to repeat, then press the RPT button once and “RPT” appears in the display. This track will now play repeatedly. Press the RPT button one more time and “RPT” will disappear from the display. The entire CD will now be repeated.

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

CD Track Selection:

Press the button to select a lower track. Press the button to select a higher track. The track number will appear in the display.

Track

Number

Lower

Track

Higher

Track

OUD

MUTE

SUBW

O EN

S-M

I OD

DIM

AUX

IN

ASM

D SP

ONO

6

5

4

3

2

1

VOL

ENT

BND

SETUP

EQ

DIR/CAT

R

SHF

SCN

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

N

ASM

DIS

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D R/CAT

RPT

SHF

SCN

Display Selection:

Press the DISP button to display the elapse time. Press again to display track number.

13

Preview CD Tracks:

Press the SCN button until “SCN” appears in the display. Each track on the disc will play for 10 seconds. To cancel this feature press the SCN button until “SCN” disappears from the display.

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

ETUP

EQ

DIR CAT

RPT

SHF

SCN

Random CD Track Play Order:

Press the SHF button until “SHF” appears in the display. The tracks on the disc will play in a random order. To cancel this feature press the SHF button again.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D R/CAT

RPT

SHF

SCN

General Operations:

1. Press the button to turn the unit On.

2. Press the button to fold down the front

panel to access the disc player slot.

3. Gently insert the disc into the slot with the

label side up. The unit will automatically load the disc.

Note: If a disc does not auto-load, DO NOT FORCE into the slot, as you may already have a

disc loaded.

Disc Track Selection:

Press the button to select a lower track. Press the button to select a higher track. The track number will appear in the display.

Track

Number

Lower

Track

Higher

Track

OUD

MUTE

SUBW

O EN

S-M

I OD

DIM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

VOL

ENT BND

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

Display Selection:

Press the DISP button to display the following MP3 disc information: DIR NAME, TITLE, ARTIST and ALBUM.

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR CAT

RPT

SHF

SCN

S

T

Inserted Disc Icon

Label Side Up

14

Load CDs into Changer:

Insert the CD magazine into the external CD changer.

Power On/Off:

Press the button to turn the unit On.

Selecting the Play Source:

Press the MODE button until “CDC” appears in the display.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT

BND

MENU

SETUP

EQ

D R/CAT

RPT

SHF

SCN

CD Track Selection:

Press the button to select a lower track. Press the button to select a higher track.

The track number will appear in the display.

Track

Number

Lower

Track

Higher

Track

OUD

MUTE

SUBW

O EN

S-M

I OD

DIM

AUX

IN

ASM

D SP

NO

6

5

4

3

2

1

VOL

ENT BND

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

CD Disc Selection:

Press the 1 button to select a lower disc in the CD changer. Press the 2 button to select a higher disc in the CD changer. The disc number will appear in the display.

Disc

Number

Lower

Disc

Higher

Disc

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

DISP

MONO

5

4

3

2

1

MODE

VOL

ENT

BND

MENU

SETUP

EQ

D RCA

RPT

SHF

SC

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

Pausing a Disc:

Press the button to pause the disc. Press it again to resume play.

Ejecting a Disc:

Press the button to fold down the front panel to access the disc slot. Press the button to eject the disc.

Repeating a Track/ Random Track Play Order/Preview Tracks:

(See CD Operation for details)

15

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

Pausing a CD:

Press the button to pause the disc. Press it again to resume play.

Repeating a CD Track or Disc:

Select the desired track to be repeated. Then press

the RPT button and “RPT” will appear in the display. This track will play repeatedly.

Press and hold the RPT button. “RPT” and

will appear in the display. The disc will

now play repeatedly.

To cancel either function, press the RPT button

again.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D R/CAT

RPT

SHF

SCN

D-D R

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

Preview CD Tracks or Disc:

Press the SCN button and “SCN” will appear in

the display. Each track on the current disc will play for 10 seconds.

Press and hold the SCN button and “SCN” and

will appear in the display. The first track

on every loaded disc will play for 10 seconds.

To cancel either function, press the SCN button

again.

D DIR

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR CAT

RP

SHF

SCN

Random CD Track or Disc Play Order:

Press the SHF button and “SHF” will appear in

the display. The tracks on this disc will play in random order.

Press and hold the SHF button and “SHF” and

will appear in the display. The tracks on all

the discs will play in random order.

To cancel either function, press the SHF button

again.

D-DIR

16

Note: If your Sirius tuner is not activated, call 1-888-539-7474 to activate. The Sirius Tuner ID Number

(ESN) is required during the activation process. Following the instructions below to access the Sirius Tuner ID Number (ESN):

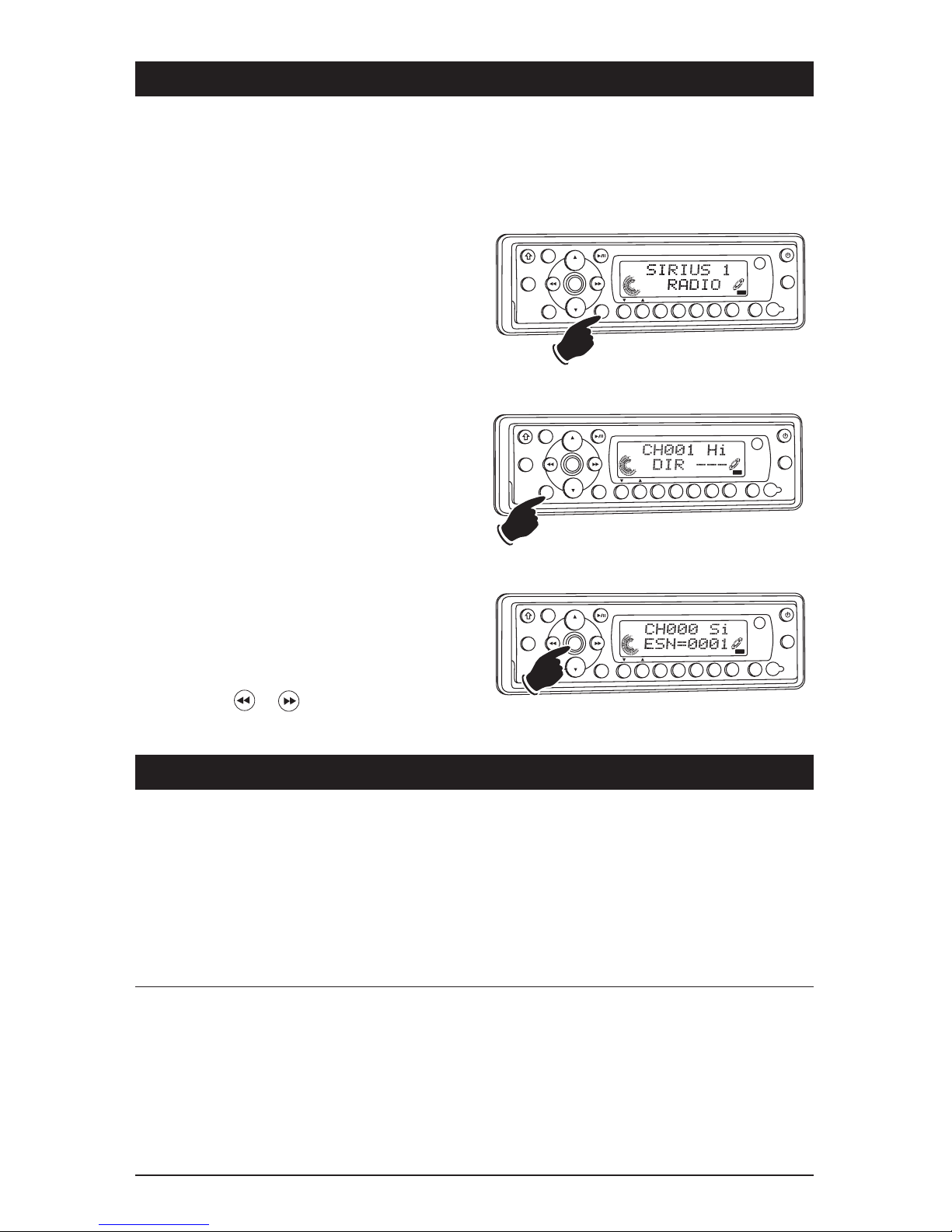

Accessing your Sirius Tuner ID Number (ESN):

1. Press the MODE button until “SIR1 RADIO”

appears in the display area.

2. Press the MENU button until “DIR - - -”

appears in the display area.

3. Press the ENT BND button until “ESN = 00..”

appears in the display area. The ESN number will scroll across the display.

SAT

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

ETUP

EQ

DIR CAT

RPT

SHF

SCN

SAT

OUD

MUTE

SUBW

O EN

S MOD

I OD ME

DM

AUX

N

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

SAT

OUD

MUTE

SUBW

O EN

S M

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

SETUP

EQ

DIR CAT

RPT

SHF

SCN

Please note that satellite radio signal may be blocked by trees, buildings or other obstacles.

Channel Selection Modes:

Channels are selected by the following methods:

• Manual Tu ning: Use the Manual Tuning method to scan thru the channels.

• Direct Tuning: Use the Direct Tuning methods when you know the desired channel.

• Category Tuning: Use the Category Tuning method when you know what category you want to scan

for a channel.

For details, see the following operation descriptions:

Information display during reception:

ANTENNA ERROR: When an antenna issue exists.

ACQUIRING SIGNAL: When a channel is being tuned-in (no signal is yet received).

INVALID CHANNEL: A channel without a broadcast has been selected, or the receiver may not be activated.

CALL 888-539-SIRIUS TO SUBSCRIBE: A channel not covered by your contract or the Sirius tuner is not

activated. Call Sirius Service Center 1-888-539-7474, or visit them online at

www.siriusradio.com.

4. Press the or button to exit.

17

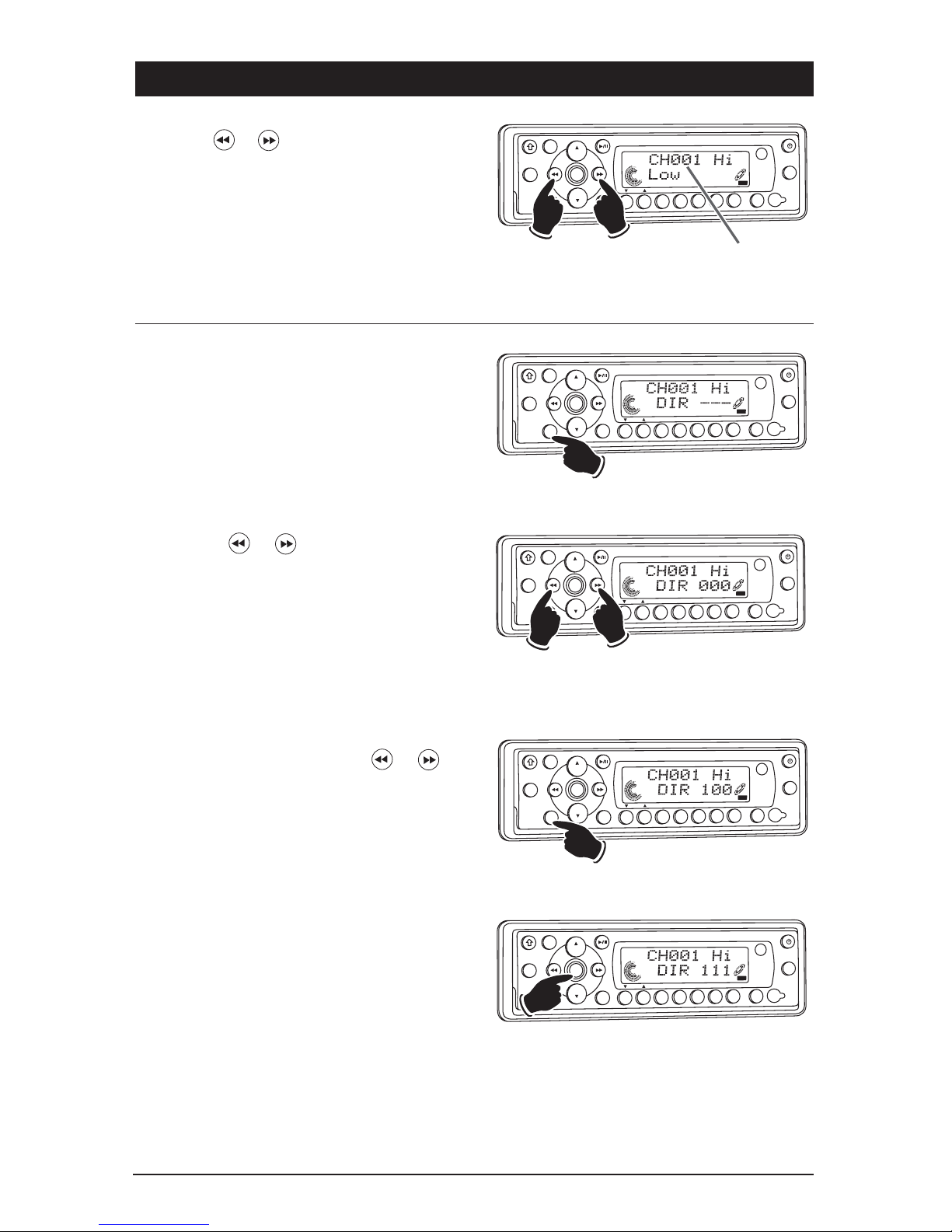

Manual Tuning:

Press the or button until the desired channel appears in the display.

SO

NG

-T

T E

SA

T

OUD

MUTE

SUBW

O EN

S M

I OD M

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

VOL

ENT BND

SE UP

EQ

DIR CAT

RPT

SHF

SC

Lower

Channel

Higher

Channel

Number

Direct Tuning:

1. Press the MENU button until “DIR - - -”

appears in the display.

SAT

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D R/CAT

RPT

SHF

SCN

2. Press the or button to select the first number of the desired channel.

SAT

OUD

MUTE

SUBW

O EN

S-M

I OD

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

VOL

ENT BND

ETUP

EQ

DIR CAT

RPT

SHF

SCN

Lower

Number

Higher

Number

3. Press the MENU button to select the next

number of the channel. Use the or buttons to select the desired number. Repeat this procedure for the third number.

SAT

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MEN

ETUP

EQ

DIR/CAT

RPT

SHF

SCN

4. Press the ENT BND button and the channel

will start playing.

S

A

T

OUD

MUTE

SUBW

O EN

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT

ND

SETUP

EQ

D R/CAT

RPT

SHF

SCN

18

CATE

G

OR

SAT

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

ETUP

EQ

DIR CAT

RP

HF

SCN

Category

Mode “Flashes”

SONG-TT E

CATEG

O

R

SAT

OUD

MUTE

SUBW

O EN

S-MO

I OD M

DIM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

VOL

ENT BND

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

Higher Channel

in Category

Lower Channel

in Category

CA

TEGO

R

SAT

OUD

MUTE

SUBW

O EN

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

ETUP

EQ

DIR/CAT

RPT

SHF

SCN

Switching the Display:

Press the DISPLAY button to cycle through the following display modes: SONG-TITLE _>ARTIST NAME _>CATEGORY _> SONG-TITLE …

Display Modes

CATEGOR

SAT

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RP

SHF

SCN

S

O

NG-T T E

ARTST NAME

3. Press the 1 or 2 button to select the

desired category.

4. Press the or button to select the

desired channel inside the category.

5. Press the ENT BND button and the channel

will start playing.

Category Tuning:

1. Press the MENU button and “CATEGORY”

starts flashing in the display.

2. Press the DISP button until only a flashing “CATEGORY” appears in the bottom of the display. “SONG-TITLE” or “ARTIST NAME” will not appear in the display.

CATEGOR

SAT

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

DIS

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

Category Mode Only in Display

19

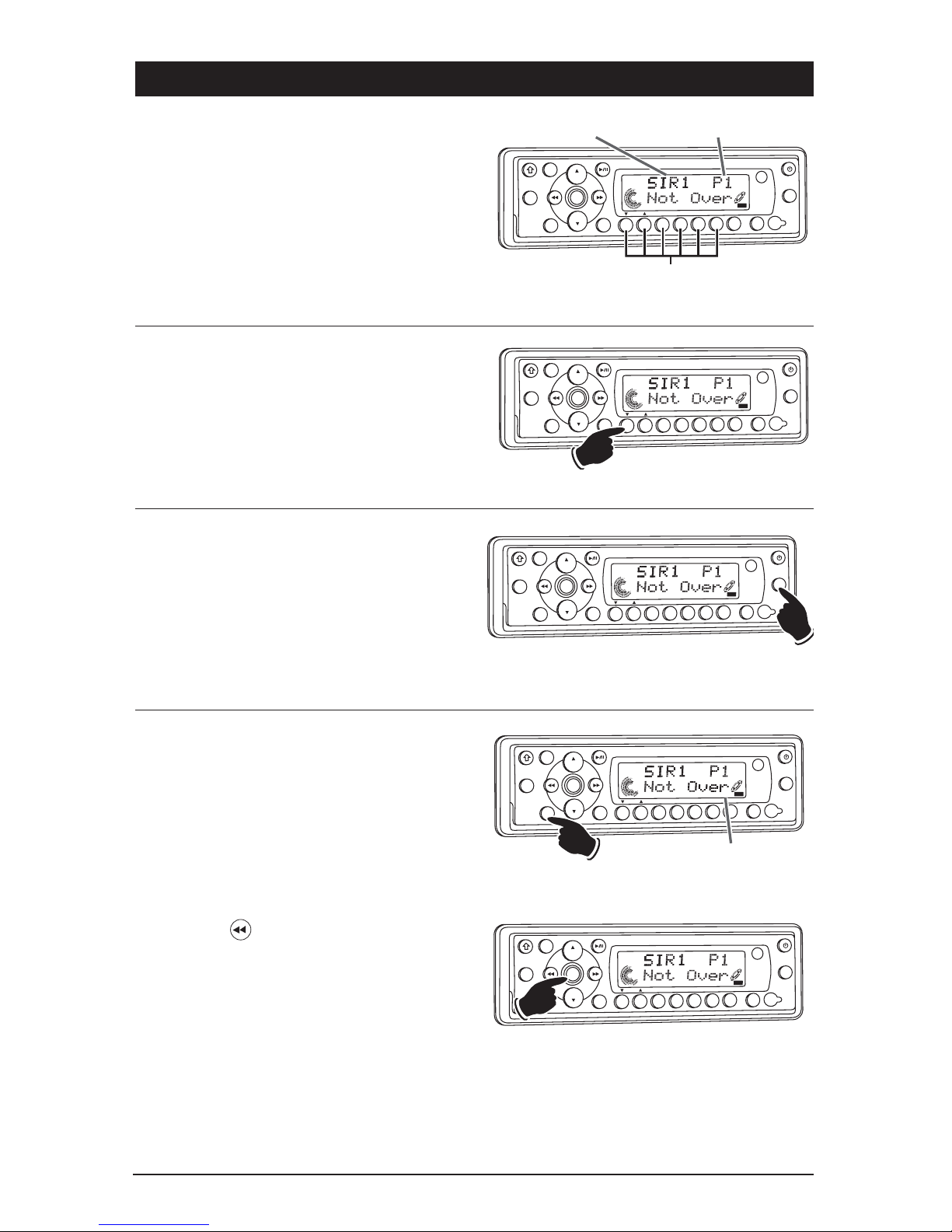

Memorizing a Preset Channel:

1. Press the ENT BND button to select either the

SIRIUS 1, SIRIUS 2 or SIRIUS 3 Sirius band. Each band can memorize 6 channels for a total of 18 channels.

2. Tune-in the desired Sirius channel.

3. To store the channel press and hold anyone of

the six channel recall buttons until you hear a beep.

Recalling Memorizing Sirius Channel:

1. Press the ENT BND button to select either the

SIRIUS 1, SIRIUS 2 or SIRIUS 3 band.

2. Press and release the Sirius channel recall

button 1, 2, 3, 4, 5 or 6 to select the memorized channel.

SAT

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D R/CAT

RPT

SHF

SCN

S

O

NG

TI

T E

Sirius Channel Recall Buttons

SA

T

S

ONG

-

TT

E

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR CAT

RPT

SHF

SCN

Preset Channel

Sirius Band

Scanning Stored Sirius Channels:

1. Press the ENT BND button to select either the

SIRIUS 1, SIRIUS 2 or SIRIUS 3 band.

2. Press the ASM button and the tuner will scan

for preset channels stored in the current band, and pause for 5 seconds at each channel. When a desired channel is reached, press the ASM button again to stop scanning.

SAT

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

SON

G

-TT E

Skipping Sirius Channel: You can program the

radio to skip a Sirius channel you do not want.

1. Tune to the channel to be skipped (see Sirius

Satellite Radio Operation for more details).

2. Press the MENU button until “SKIP” appears

in the display.

3. Press the ENT BND button until “SKIP” flashes

in the display.

4. Press the button to tune in the next higher

channel.

5. Wait 10 seconds and “SKIP” disappears from

the display. The channel will now be skipped.

SAT

S

KI

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

N

ASM

D SP

NO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

Skip Indicator

S

ONG TIT

E

SAT

S

K

I

OUD

MUTE

SUBW

O EN

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

SETUP

EQ

DIR CAT

RPT

SHF

SCN

S

O

NG

-T

IT E

20

Reinstating a Skipped Sirius Channel:

1. Tune to a channel next to a skipped channel.

(Example: If channel 2 is skipped, tune to channel 3, CH003.)

2. Press the MENU button until “SKIP” appears

in the display.

3. Tune-in the skipped channel. (Example: Press

the button and “CH002” appears in the display). Note: “SKIP” will be flashing in the display on all skipped channels.

4. Press the ENT BND button until “SKIP” stops

flashing.

5. Wait 10 seconds and “SKIP” disappears from

the display. The channel has now been reinstated.

SAT

SKI

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

D SP

ONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SE UP

EQ

DIR CAT

RPT

SHF

SCN

Skip Indicator

SONG-TI

T E

S

AT

SKI

OUD

MUTE

SUBW

O EN

DM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

SETUP

EQ

D RCAT

RPT

SHF

SCN

SONG-TT

E

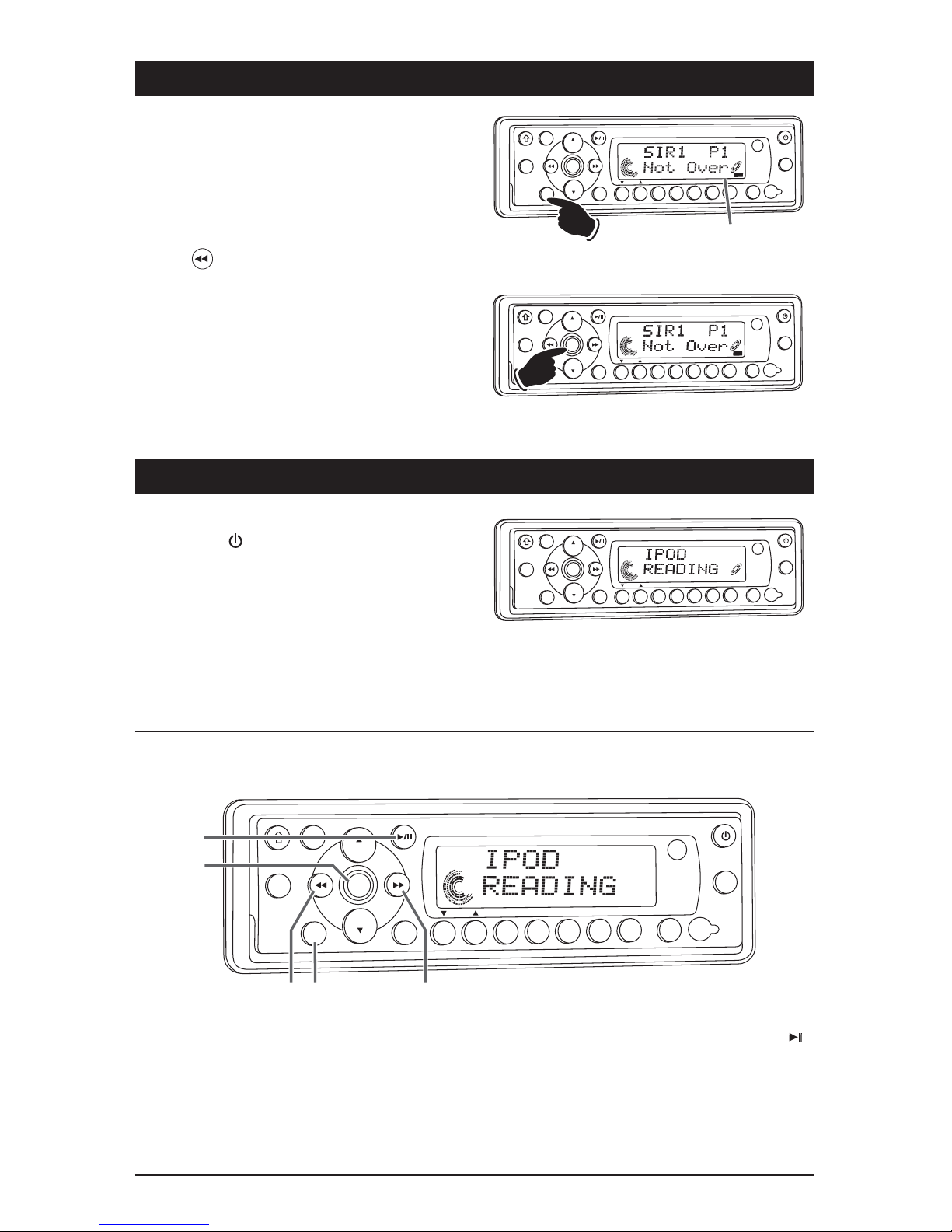

General Operations:

1.

Press the button to turn the unit On.

2. Connect an IPOD to the cable attached to the

WR1-CD.

3. The unit will automatically switch to the IPOD

mode and start playing.

Note: The IPOD controls will become inoperable, and the WR1-CD now controls the IPOD.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

LOUD

MUTE

SUB.W

OPEN

S-MO

IPOD ME U

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

DIR/CAT

RPT

SHF

SCN

3 4

1

2

1. Menu Button: Same operation as the MENU

button on an IPOD.

2. Next and Previous Button: Press these buttons

to scroll through the menu items, which is the same operation as the IPOD’s Click Wheel.

3. Play/Pause Button: Same operation as the

button on an IPOD.

4. ENT BND Button: Same operation as the Center

Select button on an IPOD.

IPOD Mode Button Location and Functions:

21

OUD

MUTE

SUBW

O EN

S MOD

I OD

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR CAT

RPT

SHF

SCN

OUD

MUTE

SUBW

O EN

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

SETU

EQ

DIR CAT

RPT

SHF

SCN

Song Title

OUD

MUTE

SUBW

O EN

S MO

I OD

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

VOL

ENT BND

SETUP

EQ

DIR CAT

RPT

SHF

SCN

or

OUD

MUTE

SUBW

O EN

I

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

VOL

ENT BND

SETUP

EQ

D R/CAT

RPT

SHF

SCN

or

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SE UP

EQ

DIR CAT

RPT

SHF

SCN

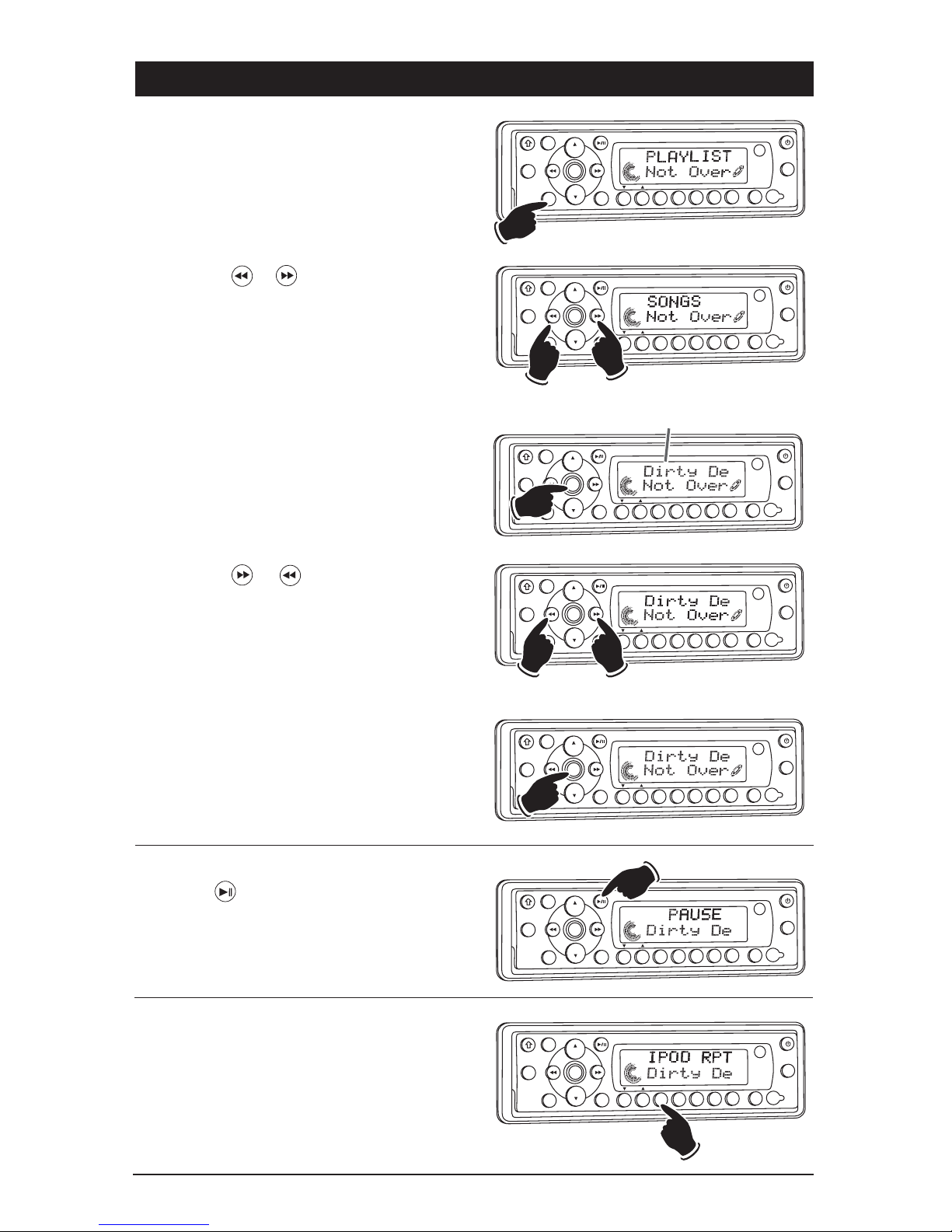

Pausing a Track:

Press the button to pause the track. Press it again to resume play.

Repeating a Track:

Select the desired track to repeat, then press the RPT button once and “RPT” appears in the display. This track will play repeatedly. To cancel this function, press the RPT button one more time and “RPT” will disappear from the display.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

Browse for a Song:

1. Press the MENU button until PLAYLIST

appears in the display.

2. Press the or button to select the

“SONGS” menu.

3. Press the ENT BND button to activate the

“SONG” menu.

4. Press the or button to select the

desired song from the menu.

5. Press the ENT BND button to start playing the

selected song.

OUD

MUTE

SUBW

O EN

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

SETUP

EQ

D R/CAT

RPT

SHF

SCN

22

Preview Tracks:

Press the SCN button until “SCN” appears in the display. Each track on the IPOD will now play for 10 seconds. To cancel this feature press the SCN button until “SCN” disappears from the display.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

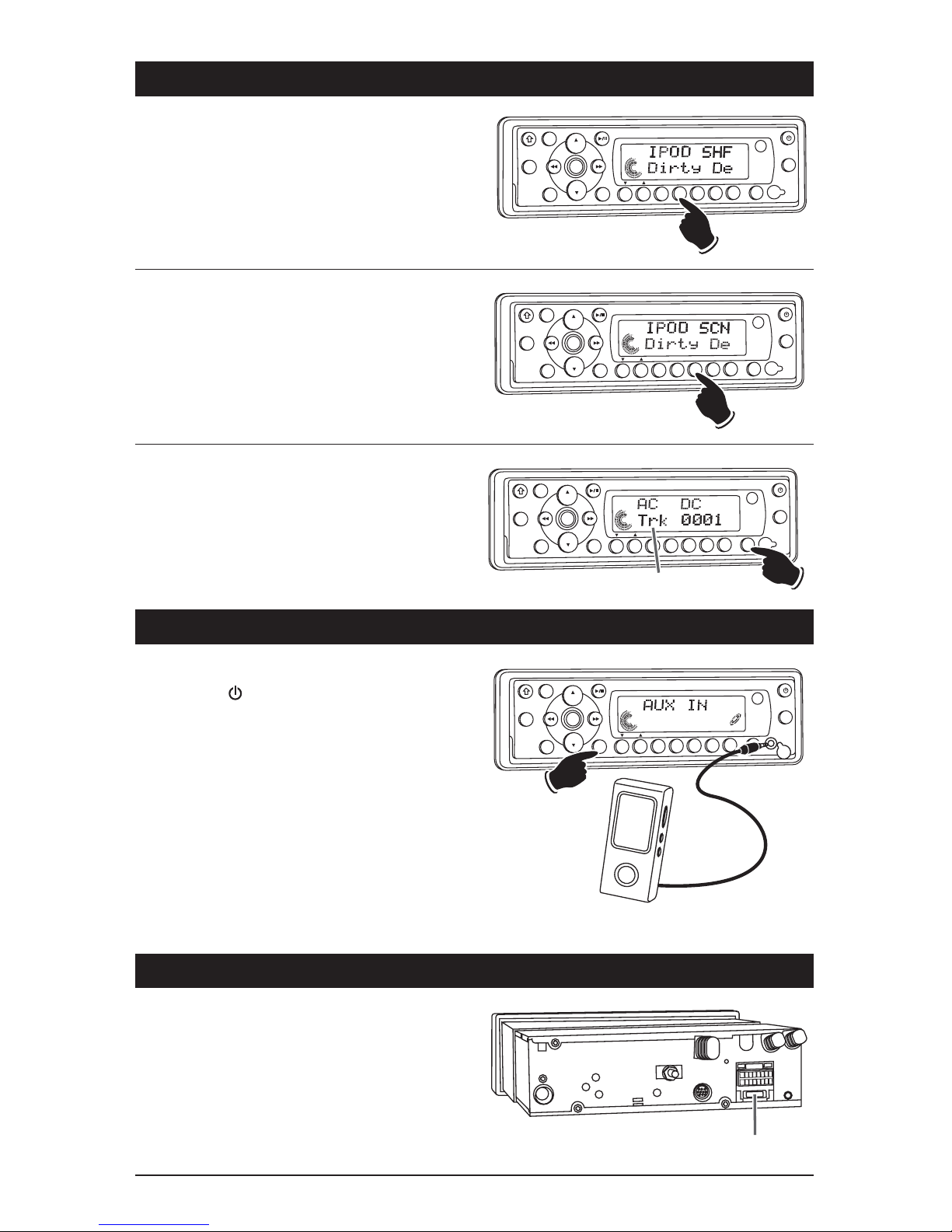

Random Order Track Play :

Press the SHF button until “SHF” appears in the display. The tracks on the IPOD will now play in a random order. To cancel this feature, press the SHF button until “SHF” disappears from the display.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D R/CAT

RPT

SHF

SCN

Display Selection:

Press the DISP button to display the following track information: Track, Elapse Time and Song Title.

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

N

ASM

D SP

MONO

6

5

4

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

R

SHF

SCN

Display Modes

Selecting an Auxiliary Audio Play Source:

1.

Press the button to turn the unit On.

2. Press the MODE button until “AUX” appears in

the display.

3. Refer to the audio device’s owners manual for

proper operation.

Note 1: The WR1-CD will not control the auxiliary source, but it can adjust the sound controls.

Note 2: Only connect ONE auxiliary input source to either the front 3.5mm or the rear RCA inputs. DO NOT connect an auxiliary source to both the front and rear inputs.

OUD

MUTE

SUBW

O EN

S MOD

I OD MENU

DM

AUX

ASM

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR CAT

RPT

SHF

SCN

If the fuse should blow, check that the wiring is correct. If the wiring is correct, replace the fuse with the same amperage rating as the original (15 amp).

15 Amp Fuse

23

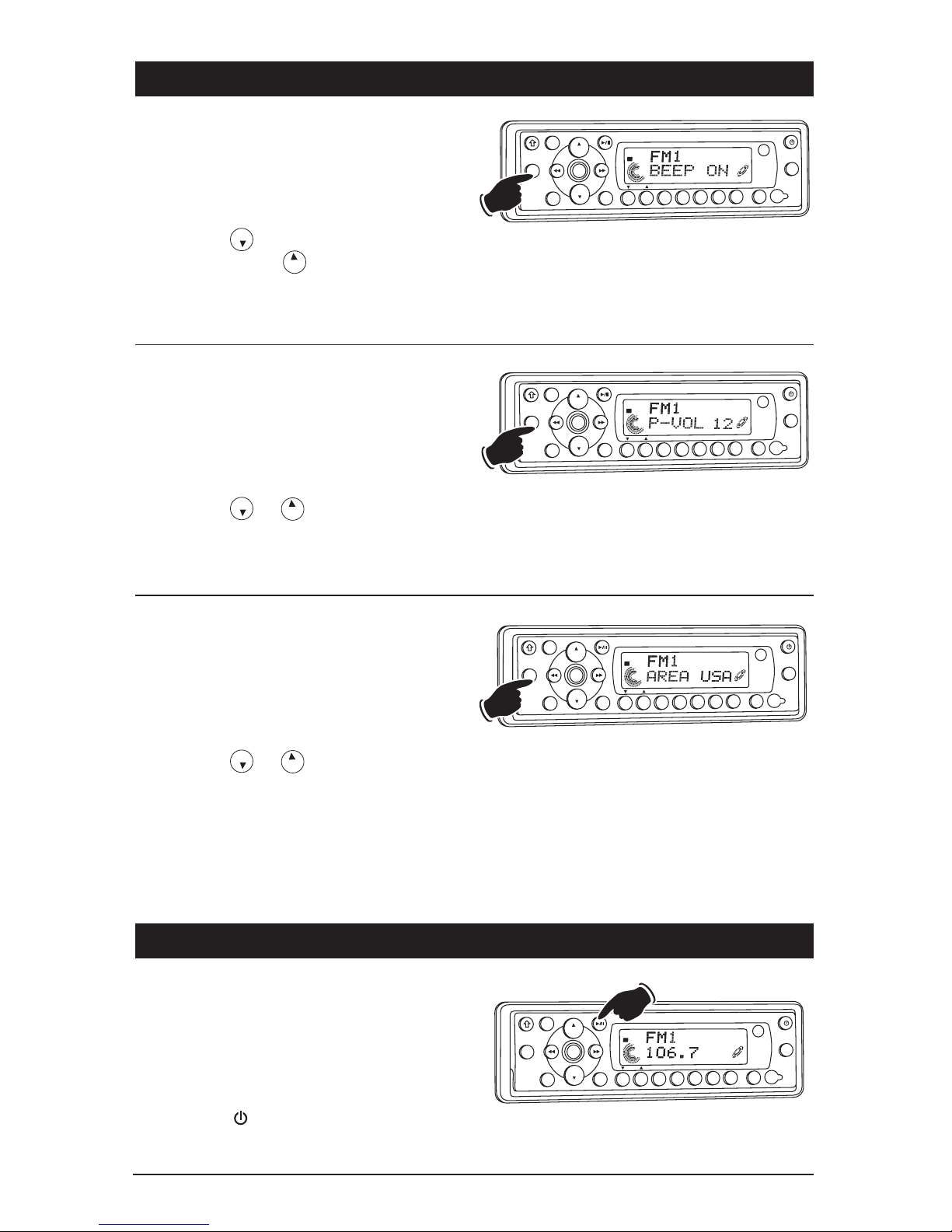

Button Beep On and Off Confirmation:

Follow the instructions below to turn On or Off the button when pressed beep confirmation.

1. Press and hold the SETUP button approxi-

mately 10 seconds until “BEEP ON” appears in the display.

2. Press the button for beep confirmation

Off, and press the button for beep confirmation On.

3. Wait 5 seconds, and the unit will return to the

last display mode.

VOL

Primary Volume:

Follow the instructions below to adjust the initial start-up volume level.

1. Press and hold the SETUP button approxi-

mately 10 seconds until “BEEP ON” appears in the display. Press the SETUP button again until “P-VOL 12” appears in the display.

2. Press the or button to adjust the pri-

mary volume.

3. Wait 5 seconds and the unit will return to last

display mode.

VO

L

VOL

Area Radio Frequency Adjustment:

Follow the instructions below to change the area configuration.

1. Press and hold the SETUP button approximate-

ly 10 seconds until “BEEP ON” appears in the display. Press the SETUP button two more times until “AREA USA” appears in the display.

2. Press the or button to adjust the

area.

Note:

If operating the unit in the USA do not change the area. “AREA OCE” = Australia and New Zealand. “AREA EUR” = Europe.

3. Wait 5 seconds and the unit will return to last

display mode.

VO

L

VOL

ST

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DM

AUX

N

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

ETUP

EQ

DIR CAT

RPT

SHF

SCN

ST

OUD

MUTE

SUBW

O EN

S MOD OD MENU

DM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

ST

OUD

MUTE

SUBW

O EN

S MOD

OD MENU

DM

AUX

IN

ASM

DISP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

D RCAT

RPT

SHF

SCN

OUD

MUTE

SUBW

O EN

S-MOD

I OD MENU

DIM

AUX

IN

ASM

D SP

MONO

6

5

4

3

2

1

MODE

VOL

ENT BND

MENU

SETUP

EQ

DIR/CAT

RPT

SHF

SCN

T

Hold

Revert to Factory Settings:

1. Press the MODE button until “AM1, AM2,

FM1, FM2 or FM3” appears in the display.

2. Press and hold the MUTE button until the unit

turns off. The radio has now reverted back to factory settings.

3. Press the button the turn the unit on.

24

Mounting

Sleeve

Metal Strap

Dashboard

Washer

Nut

Sheet Metal Screw

Trim

Ring

Removal

Keys

Removing the Unit from Dashboard

1. Remove the metal strap holding the back of the radio chassis.

2. Remove trim ring from radio.

3. Insert the removal keys into the small slots on the left and right side of chassis panel.

4. Push the removal keys until they engage the release levers.

5. Pull the unit out.

Removing the Face Plate:

1. Press the button to fold down the front panel.

2. Pull on the corner of the face plate to remove.

Reinstalling the Face Plate:

1. To reinstall the face plate, insert the corner of the face plate into the radio housing.

2. Insert the other corner until it snaps in.

3. Fold up face plate.

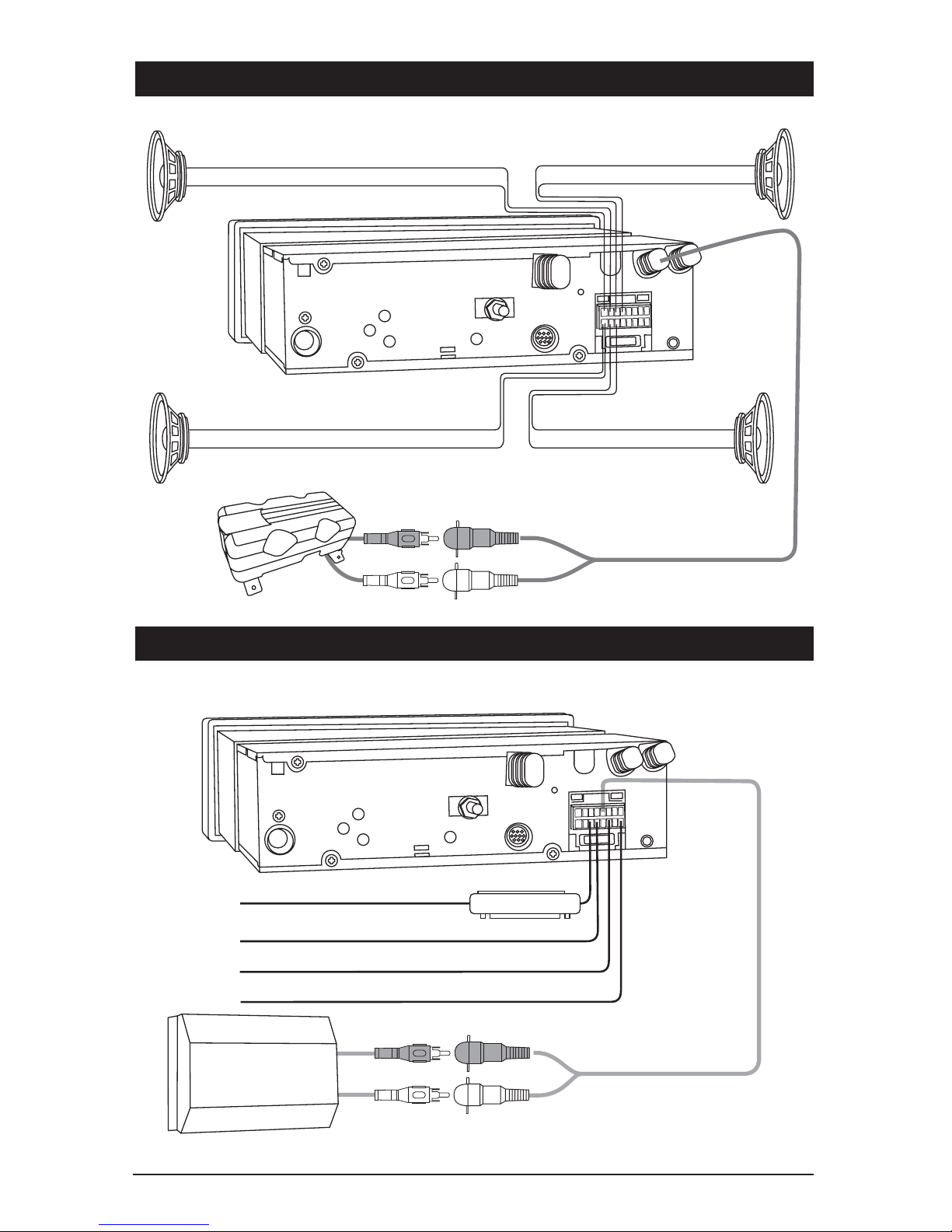

Red Wire (+) to 12 Volt Ignition

Black Wire Ground

This unit for use only with a 12 Volt DC power source with a negative ground.

2-Channel

Audio Output

Amplifier (Optional)

Yellow Wire (+) to 12 Volt Constant

Rear

Line Out

Gray Cable

Blue Wire Amplifier Control

_

+

White/Black Wire

White Wire

Left Front Speaker

_

+

Gray/Black Wire

Gray Wire

Right Front Speaker

_

+

Green/Black Wire

Green Wire

Left

Rear Speaker

Powered Subwoofer

(Optional Model: LS-SUB-75)

_

+

Violet/Black Wire

Violet Wire

Right

Rear Speaker

Subwoofer Output (Mono)

Green Cable

25

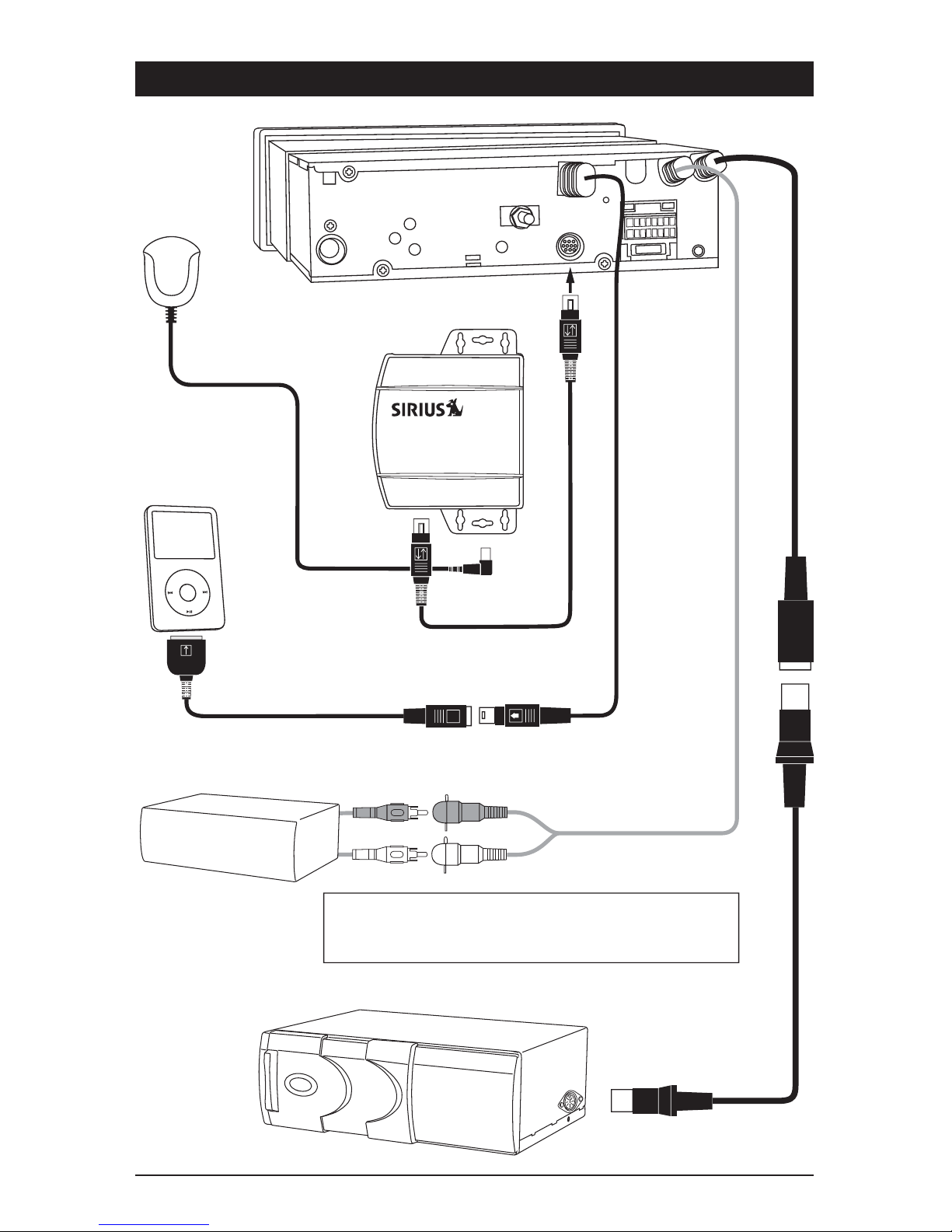

IPOD

(Optional)

ME

N

U

iPod Cable (Optional)

Sirius

Antenna

(Optional)

Sirius Receiver

(Optional)

CD Changer

(Optional)

External Audio Source

(Optional)

Rear Auxiliary Audio Input

Yellow Cable

WARNING! Only connect ONE Auxiliary Audio Input source to either the front 3.5mm or the rear RCA inputs. DO NOT connect an auxiliary source to both the front and rear inputs.

26

27

External Automotive

Type Antenna

(Optional)

Wired Remote Controller

(Optional Model: WRC-P1, WRC-S1, WRC-S2)

Infrared Remote Eye

(Optional)

WR1-CD-UM Rev. B

6-25-08

LIMITED WARRANTY

This warranty will be honored only in U.S.A.

MB Quart offers to the original purchaser a one (1) year warranty period from date of purchase. Except as specified below, this warranty covers all defects in material and workmanship in this component. The following are not covered by the warranty:

1. Any product which is not distributed in the U.S.A. by TriStar Distributing or which is not purchased in the U.S.A. from an authorized TriStar Distributing dealer.

2. Any product on which the serial has been defaced, modified or removed,

3. Damage, deterioration or malfunction resulting from:

a. Any shipping damage (claims must be presented to the carrier). b. Installation or removal of the product. c. Accident, acts of nature, misuse, abuse, neglect, unauthorized product modification or failure

to follow instructions supplied with the product. d. Repair or attempted repair by anyone not authorized by TriStar Distributing. e. Any other cause that does not relate to a product defect.

If within the one-year warranty period your MB Quart marine product should fail, please contact the dealer where the product was purchased to obtain authorization for warranty service. You must include a copy of the original dated sales receipt as proof of warranty coverage. All warranty service returns must be shipped freight prepaid. We will pay the return shipping charges, if repairs are covered by the warranty and we are shipping within the United States.

After the warranty period if your MB Quart Marine Product ever needs service, please call 1-800-621-2278 and ask for the service department, to determine if the repairs are feasible.

LIMITATION OF IMPLIED WARRANTIES ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

EXCLUSION OF DAMAGES TriStar Distributing liability for any defective product is limited to the repair or replacement of the product at our discretion. TriStar Distributing shall not be liable for:

1. Installation or removal, damage to other property caused by any defects in components, damages based upon inconvenience, loss of use of the product; or any other damages, whether incidental, consequential or otherwise.

2. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

This warranty gives you specific rights, and you may have other

rights, which may vary from state to

state.

If a problem develops during or after the Limited Warranty Period; or if you have any questions regarding the operation of the product, you should contact Tr iStar Distributing warranty department.

TriStar Distributing

58263 Charlotte Avenue

Elkhart, Indiana 46517

800-621-2278
