MX-1 Main Diagram..............................................................................................................................................5
MX-1 Connecting Low Level RCA Cables to Amplifier........................................................................................6
MX-1 Connecting High Level Speaker Wires (with factory amp)........................................................................7
MX-1 Connecting High Level Speaker Wire (no factory amp)............................................................................8
MX-2 Main Diagram............................................................................................................................................10
MX-2 Connecting Low Level RCA Cables to Amplifier......................................................................................11
MX-2 Connecting High Level Speaker Wires (no factory amp)........................................................................12
MX-3 Main Diagram............................................................................................................................................14
MX-4 Main Diagram............................................................................................................................................16
MX-4 Connecting High Level Speaker Wires and Low Level RCA Cables.......................................................17
Trouble Shooting a System................................................................................................................................18
The contents of this manual may not be reproduced or copied without the written consent of MAXXSONICS USA, Inc.
MX OEM ACCESSORY OVERVIEW
Maxxsonics OEM Accessories are the answer for getting more power and better sound from an existing car audio
system when it is improbable, impractical and sometimes just impossible to change an aftermarket head unit. The
following is a brief description of each MX OEM Accessory. More detailed information is included in each models’
individual section.
*MX-1 & MX-2 models feature Maxxsonics’ innovative Audio Signal Sense. This feature allows for the MX Controller
to turn on when speaker audio signal is detected by the unit. This feature will then send signal to the amplifier in line
automatically turning the unit on as well. Audio Signal Sense has a 60 second window from the time that signal
ceases to when the MX Controller and amplifier power down. This feature is included so that your controller and
amplifier do not power down in between tracks or while changing discs etc. (Both MX-1 & MX-2 feature Audio Signal
Sense as well as standard Remote wire capabilities.)
MX-1 Premium High-to-Low Level Converter:
Easily add an aftermarket amplifier to any OEM radio system with this deluxe line-level controller that converts factory
high-level speaker wires into unbalanced low-level (RCA) outputs.
MX-2 Deluxe High-to-Low Level Converter:
Conveniently converts a stock head unit’s speaker wire signal (high level) into an RCA (low level) signal for use with an
aftermarket amplifier.
MX-3 Bass Controller:
Working in conjunction with an aftermarket radio and amplifier, the Bass Controller takes the designated radio
subwoofer or full-range stereo output from the radio and processes the low frequency bass notes. In turn, this
enhances the bass response, increases linearity, buffers unwanted transient noise and improves the frequency range
for overall improved bass quality.
MX-4 Add-A-Sub High-to-Low Level Converter
This unique Controller provides the ideal way to add more bass without changing an entire OEM radio system.
MX OEM ACCESSORY SETUP
To test speaker channel voltage, first you'll need a DMM set to measure AC voltage. Play a musical track on the radio.
Turn the volume up to maximum undistorted level (by ear). Measure at the speaker or the wire. Dial your interface box
accordingly.
1
INSTALLATION
ASSEMBLE TOOLS AND ACCESSORIES:
Wire Cutters/Crimpers/Strippers
Digital Multi-Meter
Supplied Screws
Supplied Allen Wrench
Small Flathead Screwdriver
Wrench For Battery Post
PLAN YOUR SYSTEM LAYOUT:
Prior to installing your MX-1, be sure that you have identified a good mounting location that will allow for easy access
to make adjustments. Determine the best routes for your wires and lay them out before permanent installation.
IMPORTANT GUIDELINES:
- Read the entire manual prior to attempting the installation.
- Run all RCA’s so that they are far from any high current wires.
- Always inspect an area prior to drilling. Avoid cutting or drilling into electrical wires, fluid lines and gas tanks.
- All power wires connected to the front battery should have the appropriate fuse in line within 12” of the battery
terminal.
- The ground connection integrity to the chassis is very important. The best way to achieve a good, solid electrical
and mechanical contact is to use a large round crimp lug, crimped and soldered to the ground wire. Then scrape
or sand the paint off of the vehicle chassis, slightly larger than the ground lug, at the connection point. Drill a
clearance hole in the chassis, the same size as the lug hole, and use a bolt, spring washer and nut to securely
fasten the ground lug. Use petroleum jelly to coat the bolt/lug connection to prevent oxidization with time.
PLACEMENT AND MOUNTING:
In most applications, mounting the MX-1 module close to the amplifier is ideal. Once the mounting location is
determined, mark the 4 mounting holes with a marker. Prior to pre-drilling the holes, ensure that there are dangers
on the other side of the metal. Once the holes have been pre-drilled, clean the metal shavings from the area and
mount the MX-1 into location.
Drill With Phillips Bit
1/8” Diameter Heat Shrink Tubing
18 Gauge Power Wire(Application Appropriate Length)
18 Gauge Ground Wire(Application Appropriate Length)
18 Gauge Remote Wire(Application Appropriate Length)
40V 4V
SUBWOOFER
INPUT
LEVEL
HIGH LEVEL
F & R INPUT
CONTROL
+10 dB100Hz0dB30Hz
BOOST
BANDWIDTH FREQUENCY
PARAMETRIC BASS EQ
4 CH MONO / HIGH LEVEL
SUBWOOFER
INPUT MODE
SELECTOR
LOW PASS
24 dB/OCT
MX-1
LINE LEVEL
CONVERTER
200Hz15Hz
FRONT HIGH
PASS FILTER
12 dB/OCT
FILTER
250Hz35Hz
200Hz15Hz
REAR HIGH
PASS FILTER
12 dB/OCT
SUBSONIC
24 dB/OCT
1V 9V
35Hz15Hz
SUBWOOFER
OUTPUT
FILTER
LEVEL
CLIPPING CONTROL
GREEN: PRE-CLIP
YELLOW: SOFT CLIP
RED: HARD CLIP
4V 9V40V 4V
FRONT & REAR
STEREO OUTPUT
LEVEL
2
MX-1 FEATURE DESCRIPTIONS
SUBWOOFER INPUT LEVEL:
Variable from 40Volts to 4Volts. This control is used to match the output signal level from your headunit.
PARAMETRIC BASS EQ:
An incredible feature that allows for you to select a specific frequency, select a level of boost, and determine
how wide the span of the boost will be.
- BOOST:
Variable from 0dB to +10dB. At 0, the PARAMETRIC BASS EQ is OFF.
- BANDWIDTH:
Variable from Narrow(all the way to the Left) to Wide(all the way to the Right). Narrow will focus on your
selected FREQUENCY of BOOST and bleed into less frequencies. As you turn the potentiometer to the right,
you increase the range of frequencies being boosted above and below your selected BOOST FREQUENCY.
- FREQUENCY:
Variable from 30Hz to 100Hz. Use your potentiometer to select the center FREQUENCY to be boosted with the
PARAMETRIC BASS EQ feature.
LOW PASS FILTER:
Variable from 35Hz to 250Hz. This filter features a 24dB per Octave roll off. This means that the LOW PASS
FILTER has a steep cut-off and allows for very precise tuning. The LOW PASS FILTER allows frequencies below
your selected setting to pass thru while cutting out frequencies above your selected setting.
SUBSONIC FILTER:
Variable from 15Hz to 35Hz. This filter features a 24dB per Octave roll off. This means that the SUBSONIC
FILTER has a steep cut-off and allows for very precise tuning. The SUBSONIC FILTER allows frequencies above
your setting to pass thru while cutting out damaging and unwanted frequencies below your selected setting.
SUBWOOFER OUTPUT LEVEL:
Variable from 1Volt to 9Volts. This control is used to adjust signal output voltage to your amplifier. Use caution
when adjusting the signal output to be provided to your amplifier as you can damage your amplifier if you provide
more signal than your amplifier is rated to handle.
3
MX-1 FEATURE DESCRIPTIONS
HIGH LEVEL FRONT(F) & REAR(R) INPUT CONTROL:
Variable from 40Volts to 4Volts. This control is used to match the output signal level from your headunit to your
Front and Rear speakers.
SUBWOOFER INPUT MODE SELECTOR:
This switch allows for your to select 4 CH MONO to sum the input signal from the Front and Rear channels
when a factory subwoofer is not present for signal or HIGH LEVEL when a factory subwoofer output is available
for signal.
FRONT HIGH PASS FILTER:
Variable from 15Hz to 200Hz. This filter features a 12dB per Octave roll off. This means that the FRONT HIGH
PASS FILTER has a gradual roll-off and allows for smooth cutoff. The FRONT HIGH PASS FILTER allows
frequencies above your selected setting to pass thru while cutting out frequencies below your selected setting
for the front speakers.
REAR HIGH PASS FILTER:
Variable from 15Hz to 200Hz. This filter features a 12dB per Octave roll off. This means that the REAR HIGH
PASS FILTER has a gradual roll-off and allows for smooth cutoff. The REAR HIGH PASS FILTER allows
frequencies above your selected setting to pass thru while cutting out frequencies below your selected setting
for the rear speakers.
FRONT & REAR STEREO OUTPUT LEVEL:
Variable from 4Volts to 9Volts. This control is used to adjust signal output voltage to your amplifier. Use caution
when adjusting the signal output to be provided to your amplifier as you can damage your amplifier if you
provide more signal than your amplifier is rated to handle.
CLIPPING CONTROL: While adjusting the headunit, MX-1, or amplifiers, the CLIPPING CONTROL LED may
illuminate in one of the following colors to alert you of an existing condition. These indicators give the user a
chance to identify incorrect settings or high distortion before it is damaging to the equipment allowing them to
correct the volume or settings.
- GREEN: Indicates a Pre-Clip condition, which is safe and normal operation.
- YELLOW: Indicates a Soft-Clip condition, which is safe and normal operation, but you are close to a hard clip.
- RED: Indicates a Hard-Clip condition which is potentially damaging to the MX-1, amplifiers, speakers and
subwoofers in the system. Evaluate and adjust crossovers and Levels so that this condition is not present.
4

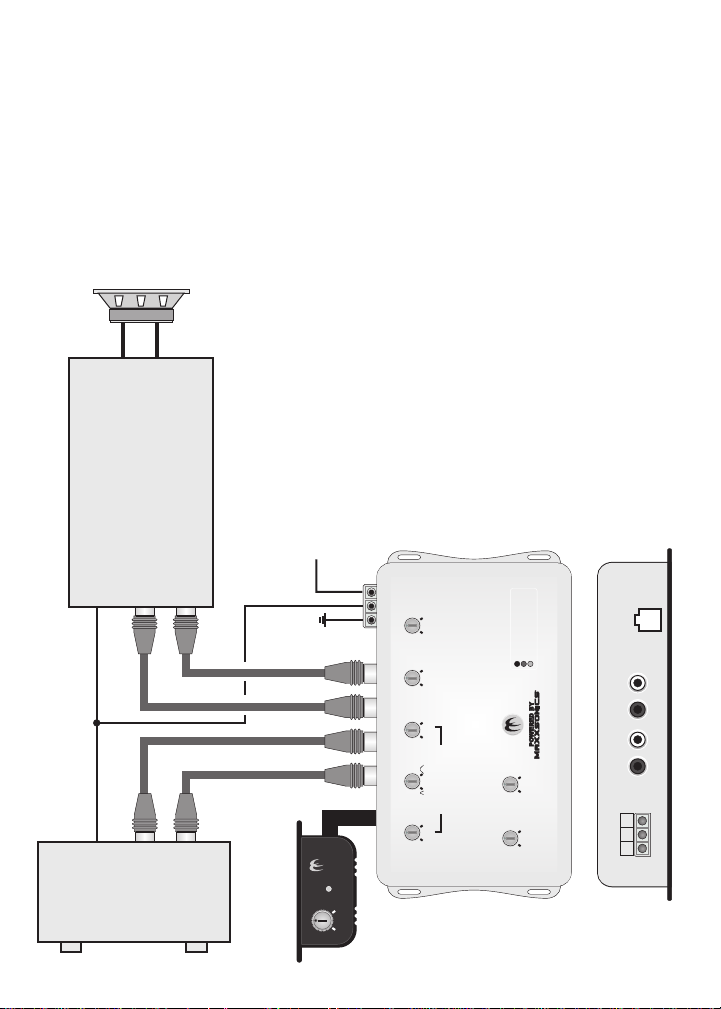

MX-1 Main Diagram
Speakers
_
_
_
+
+
+
_
+
+
_
BALANCED
Subwoofer
Aftermarket Amplifier
FRONT REAR SUB
Right / Left Right / Left Right / Left
REMOTE INPUT
output
Remote
+ 12 volts
Optional
remote
input
Low Level RCA Outputs
LEVEL
OUTPUT
1V 9V
SUBWOOFER
35Hz15Hz
250Hz35Hz
+10 dB100Hz0dB30Hz
40V 4V
GREEN: PRE-CLIP
YELLOW: SOFT CLIP
RED: HARD CLIP
CLIPPING CONTROL
FILTER
24 dB/OCT
SUBSONIC
FILTER
24 dB/OCT
LOW PASS
MX-1
LINE LEVEL
CONVERTER
BANDWIDTH FREQUENCY
PARAMETRIC BASS EQ
BOOST
INPUT
LEVEL
SUBWOOFER
LINE OUTPUT
L
R
L
R
L
PRE-AMP OUTPUT
FRONT REAR SUBWOOFER
R
-
BAT
IN
REM
+
BAT
POWER
OUT
REM
LEVEL
4V 9V40V 4V
FRONT & REAR
STEREO OUTPUT
200Hz15Hz
12 dB/OCT
REAR HIGH
PASS FILTER
200Hz15Hz
12 dB/OCT
FRONT HIGH
PASS FILTER
SPEAKER WIRE INPUT
R/F L/F R/R L/R SUB RADIO
+ - + - + - + - + -
CONTROL
MXR-1 REMOTE
High Level Speaker Wires
SUBWOOFER
INPUT MODE
SELECTOR
4 CH MONO / HIGH LEVEL
+ + + +
Ground
L/R R/R L/F R/F
HIGH LEVEL
F & R INPUT
CONTROL
High Level Speaker Wire Outpus
Factory Radio
GREEN: PRE-CLIP
YELLOW: SOFT CLIP
RED: HARD CLIP
MXR-1
VOLUME
MIN MAX
BASS REMOTE
