MBM AJ 700 Air-Feed
Floor Model Jogger
Instruction Manual
Air Paper Jogger
AJ-700
Operation Manual
Keep this manual at hand where it can be referenced at any time.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
June 25, 2004
Introduction
Thank y
Please carefully read this Operation Manual for use.
Be sure to read “Safety Instructions” before use.
Keep this Operation Manual in a specific place for handy reference.
1. Safety
2. Precautions before Use ..................................................................................................
3.
4.
5.
ou for purchasing this product.
T
able of contents
Instructions
Components and Functions ...........................................................................................
How to Use....................................................................................................................
How to Jog big size paper (A3SR, Ledger size and etc.) ............................................
(Be sure to observe these).................................................................... 3
5
6
8
10
6. T
roubleshooting........................................................................................................... 12
7. Daily
7.
8. Specif
Maintenance.......................................................................................................
Other Matters to Note..................................................................................................
ications ..............................................................................................................
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
12
13
13
2
1. Safety Instructions (Be sure to observe these)
The following explains what must be observed for preventing bodily injury of user or
others, and damage to property.
Safety Instructions
Definition of Symbols and Notes
In this manual, the following words and symbols denote possible danger.
Danger
This sy
persons. Disregarding these instructions may cause severe damage to health
and even serious injury.
Caution
This
Disregarding these instructions may lead to minor injury or damage to
property.
mbol stands for immediate danger threatening the life and health of
symbol stands for an endangering situation that may occur.
Note
This
symbol stands for notes, operational hints, and other useful information.
They are convenient for exploiting the machine’s functional abilities.
Danger
Do not place receptacles containing water on the
machine.
If water is spilled, it may cause fire or an
electrical shock.
Do not touch any revolving part of the machine
with a hand, or reach a hand into the machine.
It may cause a bodily injury.
Do not dismantle, remodel, or repair the machine.
It may cause fire, electrical shock, or bodily injury.
If repair is required, contact your dealer.
Do not put any foreign object, such as metal,
or inflammable thing inside the machine.
It may cause fire or an electrical shock.
Do not remove the machine cover, back
cover, etc.
There are parts with very high in voltage that
may cause an electrical shock.
Do not use any other voltage than AC100V.
Doing so could cause fire or an electrical
shock.
Do not put the machine close to heating
equipment.
The machine cover or the coating of power code
melts. It may cause fire, electrical shock, or
bodily injury.
Do not use inflammable spray inside or near
the machine for cleaning or the like.
As gas, which fills the interior, it may ignite
and cause a fire or explosion.
3
Danger
Apply the power supply of the designated
voltage, and independently use the wall outlet
with a proper rated current specified in the
serial plate.
If the outlet is used concurrently with other
equipment, the branched part of the outlet could
overheat and cause fire.
Should any foreign substance, such as metal,
water, etc., get inside the machine, be sure to
turn off the power first, and then disconnect
the power plug from the outlet.
If the machine is used as it is, it may cause fire or
an electrical shock.
Contact your dealer immediately.
When disconnecting the power plug from the
outlet, be sure to grip the plug itself.
Pulling the power cord may damage the cord,
which could cause a fire or an electrical shock.
Be sure to turn off the power first and pull the
power plug from the outlet when cleaning the
machine.
The machine may be operated by mistake, causing
a bodily injury.
If dust is on prongs or prong fitting part of the
power plug, wipe the dust off with a dry cloth.
It may cause fire.
Do not do anything that may damage the
power cord or power plug.
(Do not scratch, process, forcibly bend, twist, or pull
it, or place heavy object on it, or bundle it.)
Doing so could cause a fire or an electrical shock.
Do not unplug the power plug with wet hands.
It may cause an electrical shock.
Be sure to connect a ground wire.
If an electric leak occurs, it may cause fire or an
electrical shock.
Caution
When the jogger will not be used for several
days, such as during consecutive holidays,
etc., be sure to unplug the power cord from
the outlet for safety’s sake.
Due to deteriorated insulation, it may cause an
electric fire.
Do not place the machine in a humid place or
where it could get wet.
Doing so could cause the insulation to deteriorate
and cause an electrical shock or fire.
Place the machine on a level and stable table
or floor with enough space,
otherwise the machine may fall, which could result
in bodily injury.
Be sure to remove the power plug from the
outlet when moving the machine,
otherwise it may damage the cord, causing fire or
an injury.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
4
Toll Free: 1-800-944-4573
Local: 503-640-5920
2. Precautions before Use
2-1 Power Supply
Use the designated voltages specified in the serial plate so as to assure operations under
constantly stable conditions.
As for the power plug, insert it directly into the wall outlet.
2-2 Environment for Use
Use this machine in the following environment.
y A place not exposed to direct sunlight.
y A place where there is little dust and dirt.
y A place where there is little vibration.
y A place where there is little salt.
y A place where there are no special chemicals.
2-3 Conditions for storage
Keep this machine in storage under the following environment.
y A place not exposed to direct sunlight.
y A place where there is little dust and dirt.
y A place where there is little vibration.
yA place where there is little salt.
y A place where there are no special chemicals.
2-4 Maintenance
In order to maintain proper performance of the product, do not lubricate part of the
machine or apply grease to it (except where otherwise noted in this manual).
If any abnormality is found, contact your dealer.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
5

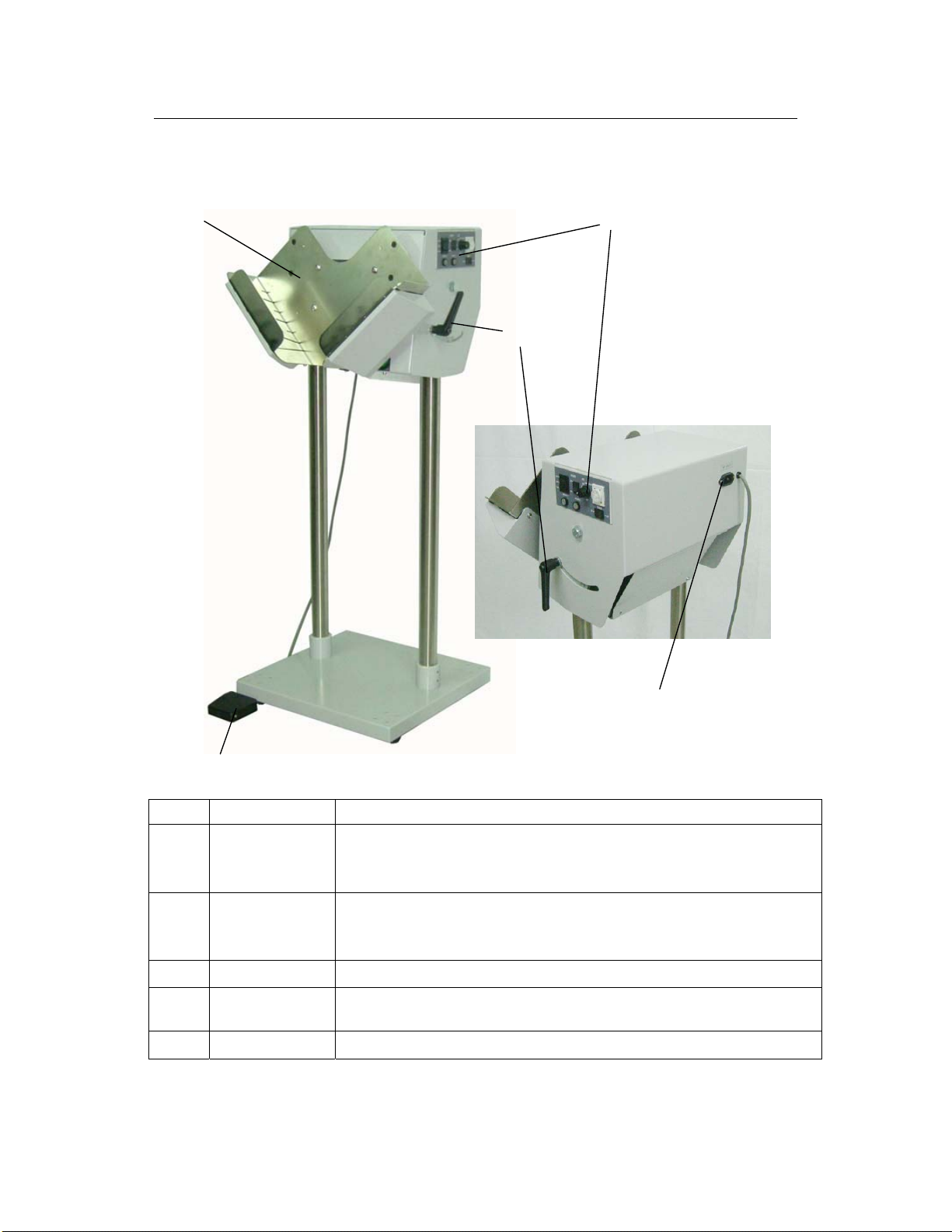

3. Components and Functions
3-1 Machine body
① ③
②
⑤
④
No. Name Function
Paper tray vibrates to jog paper.
Paper tray
①
② Fixing lever
Operation Panel
③
Foot switch
④
⑤ Power cord

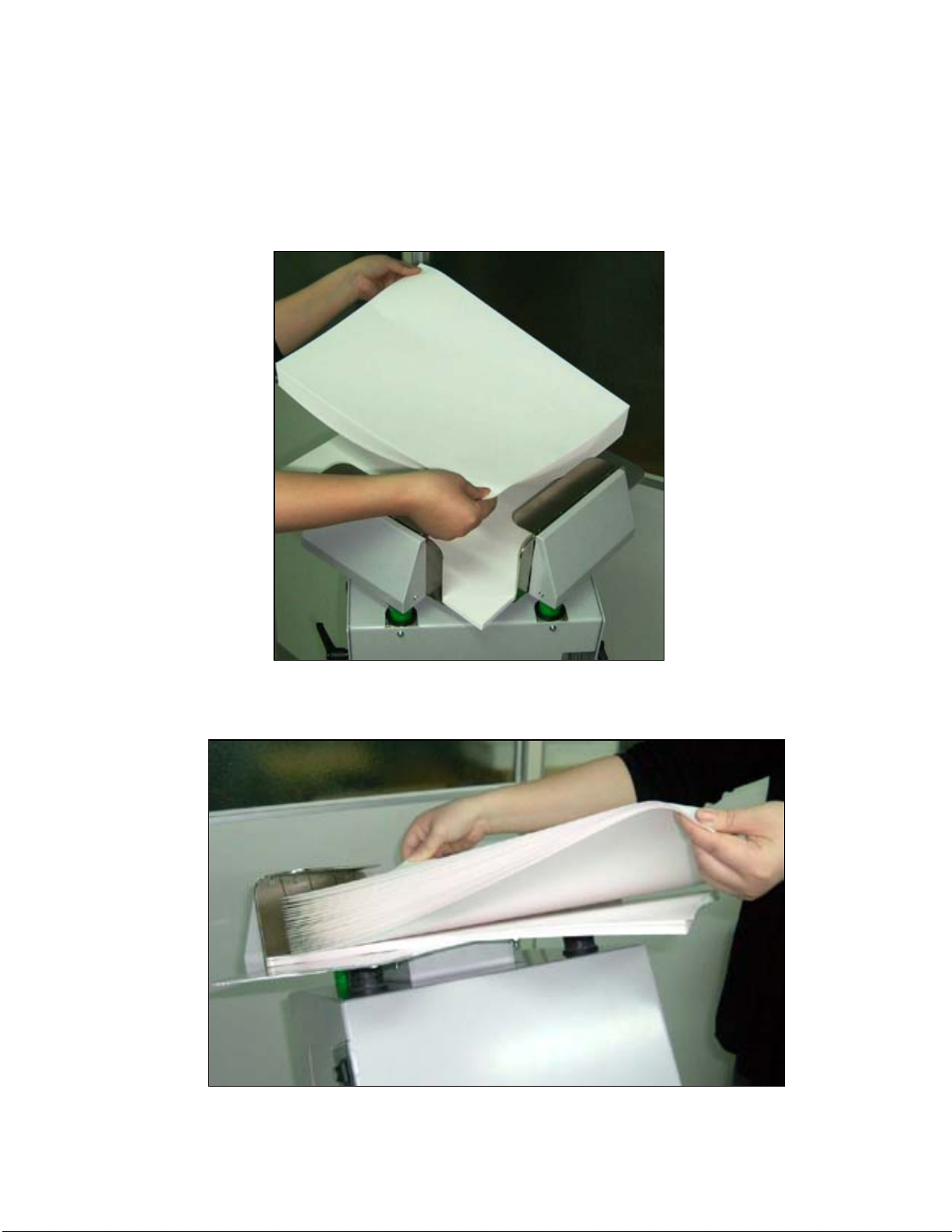

Set the paper to be jogged in the tray holding the upper part of the paper with its
corner down.
This lever is used for fixing the paper tray.
While supporting the paper tray with one hand, loosen the lever and adjust the
tilting angle of the tray, and fasten the lever when the position is determined.
This panel is used to switch on and off the foot operation, vibration, air, timer.
When the foot switch is on, if the foot switch is stepped on, the paper tray
vibrates.
Insert the cord into an outlet of the designated voltage.
6

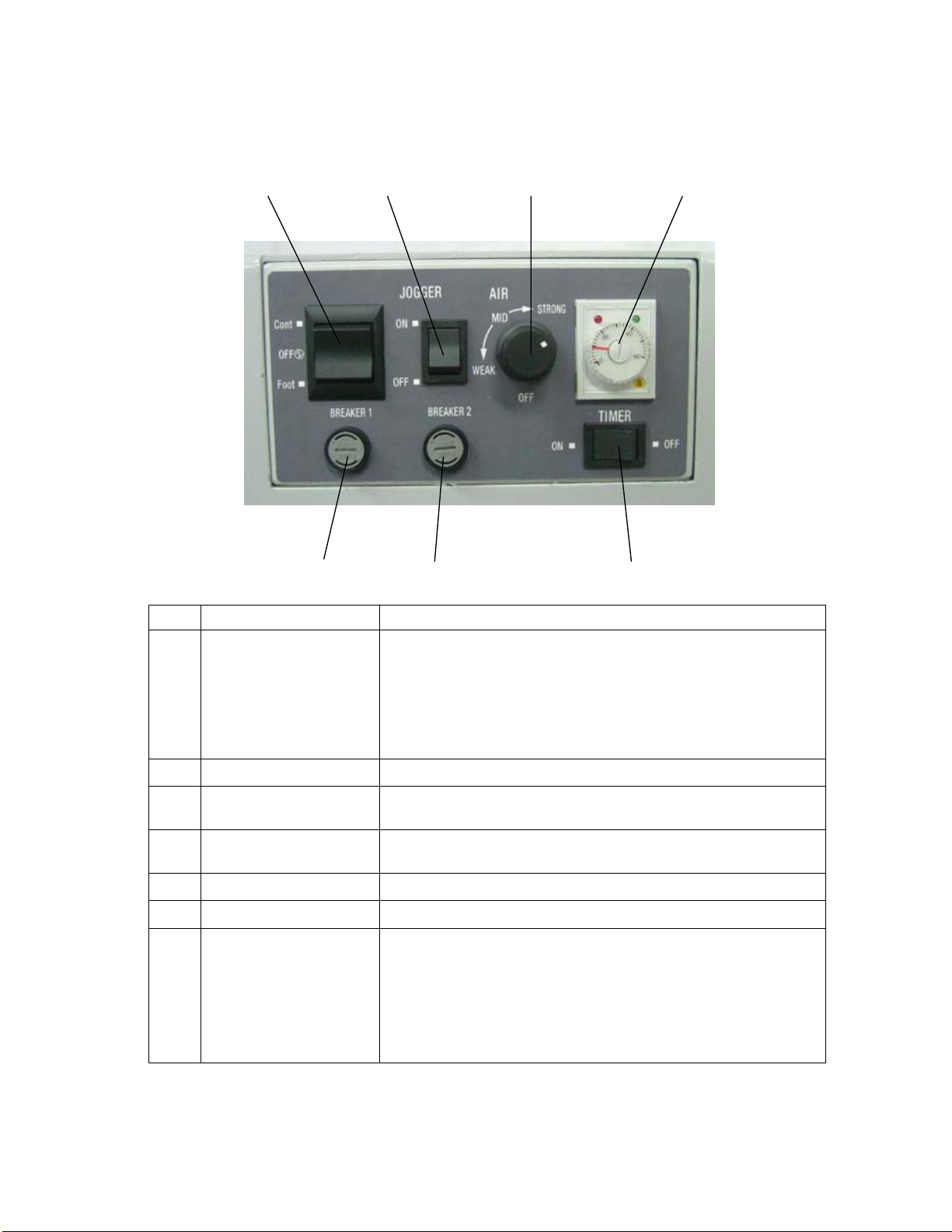

3-2 Operation Panel
No. Name Function
Power switch
①
(Cont/OFF/Foot Operation)
JOGGER switch
②
Air adjustment knob
③
④ Timer adjustment knob
⑤ Breaker 1 (5A)
Breaker 2 (10A)
⑥
⑦ TIMER switch
② ③ ④
①
⑤ ⑥ ⑦
If “Cont” is set, by stepping on the foot pedal, continuous operation can
be switched between on and off.
If “Foot” is set, the power is on and only when the foot pedal is stepped
on, the machine operates, and the timer adjustment knob can be used.
Note: When the job is finished or suspended, be sure to set “OFF”
in the middle position.
When “ON” is set, the paper tray jogs.
As it is turned clockwise, the air gets stronger, and when it is turned
counterclockwise to the extreme, “OFF” is set.
Jogging from 0 to about 60 seconds as well as air operation time can be
adjusted.
When the circuit for jogger has abnormal, the fuse blows.
When the circuit for air is abnormal, the fuse blows.
When the switch is set to “OFF”, the timer adjustment knob will not work.
When the switch is “ON”, it works.
If the foot pedal is stepped on once, air and jogger will stop when the
set time has expired.
If the foot pedal is continuously stepped on, air only will stop when
the set time has expired.
7
4. How to Use

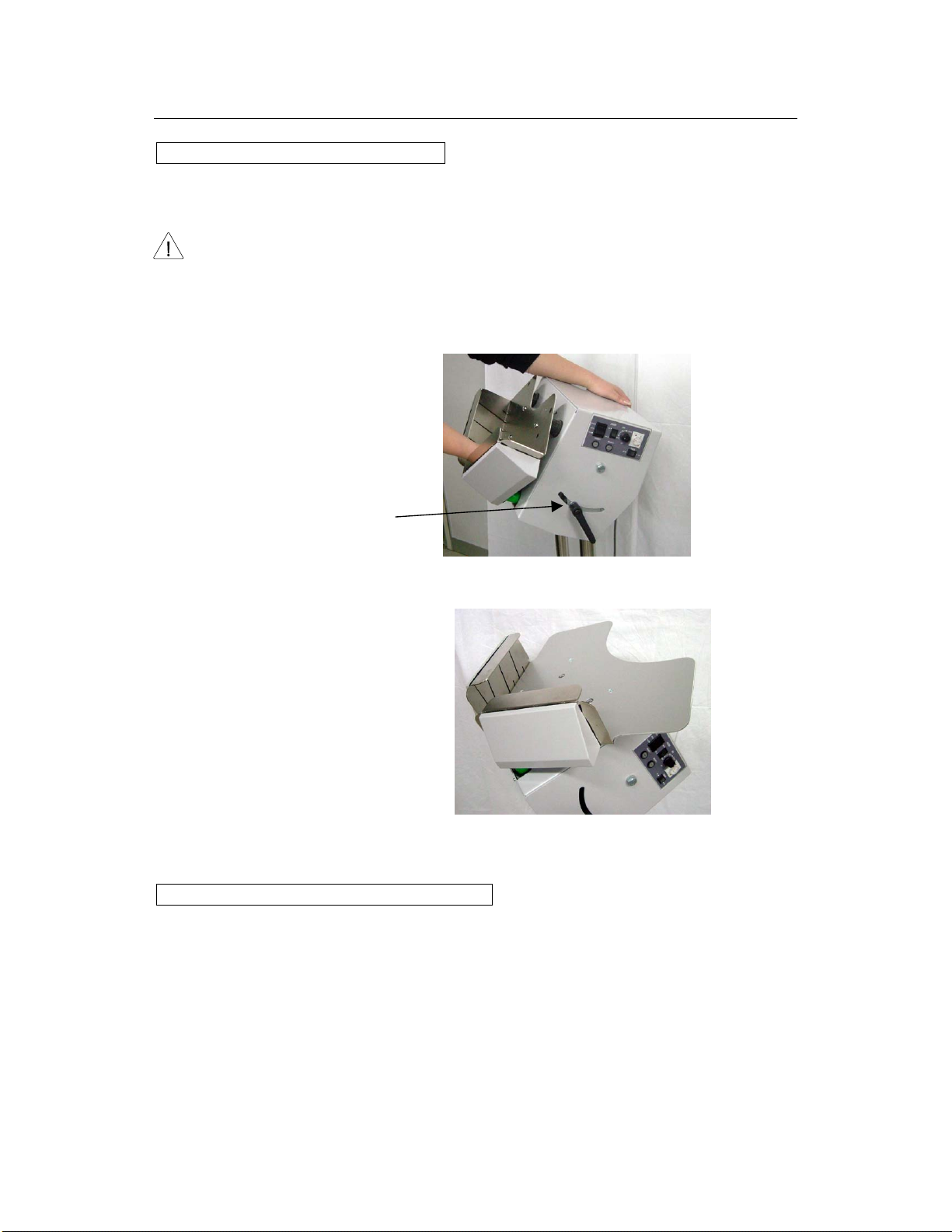

Paper tray tilting angle adjustment
y Holding the lower center of the paper tray head’s front face, loosen the fixing lever to
adjust the tilting angle. Then tighten it at an appropriate position.
y When adjusting the tilting angle, be sure to turn the switch off and hold the lower center
of the paper tray head’s front face.
If the part indicated with an arrow in the following photo is held, it may cause bodily
injury.
Fasten the fixing lever tightly so that it may not be loosened while the machine is in use.
y
Do not hold this part.
y In general, for thick paper, the tilting angle is adjusted vertically and for thin paper, it is
adjusted horizontally.
r thin paper
Fo
How to use the AIR and JOGGER switch
y
When the AIR switch is set to “ON”, air blows out from the paper tray while the
machine is operating. When the JOGGER switch is “ON”, the paper tray vibrates.
y Both AIR and JOGGER switches should normally be set to "ON" for jogging. When
only AIR switch is set "ON", air blow without jogging is effective for just loosening a
stack of papers or drying ink.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
8
Toll Free: 1-800-944-4573
Local: 503-640-5920
How to Use the TIMER
(1) Set the TIMER switch to ON.
(2) Turn the dial for operating time adjustment and set the desired time.
(The scale of TIMER time, which is just for indication, can be selected between 0 and
60 seconds. Set it while checking jogging irregularity).
(3) While the power switch is set at “Foot” operation, air blow and jogging operation
start when the foot switch is stepped on once, and they will stop when the set time has
passed.
If the foot switch is continuously stepped on, air blow only will stop when the set
time has come, and when the foot switch is taken off, the jogging operation will also
stop.
Adjust it depending on the conditions.
How to Jog neatly
y Step on the foot switch briefly to take advantage of strong and weak vibration. If
operation time is adjusted using the TIMER, the job can be repeated in the optimal
time.
y In case paper before jogging is loosened by letting air in, make the thickness of the
paper loaded at once less than 60 mm (24”).
y Also, when jogging collated paper, make the thickness less than 60 mm (24”).

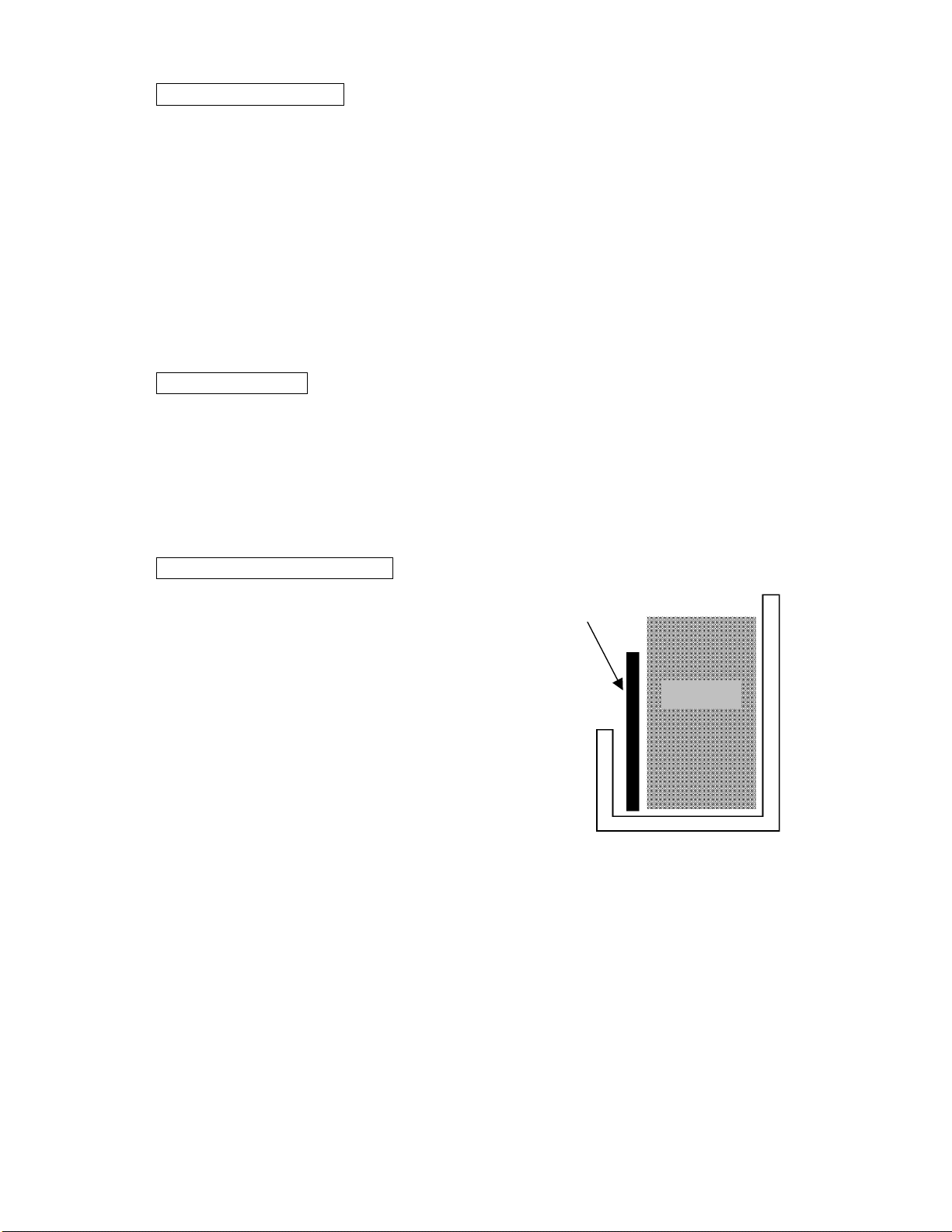

How to Use the Paper Guide
Use the paper guide when the paper
y
bends and is hard to handle.
Paper guide
Paper
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
9
Paper tray

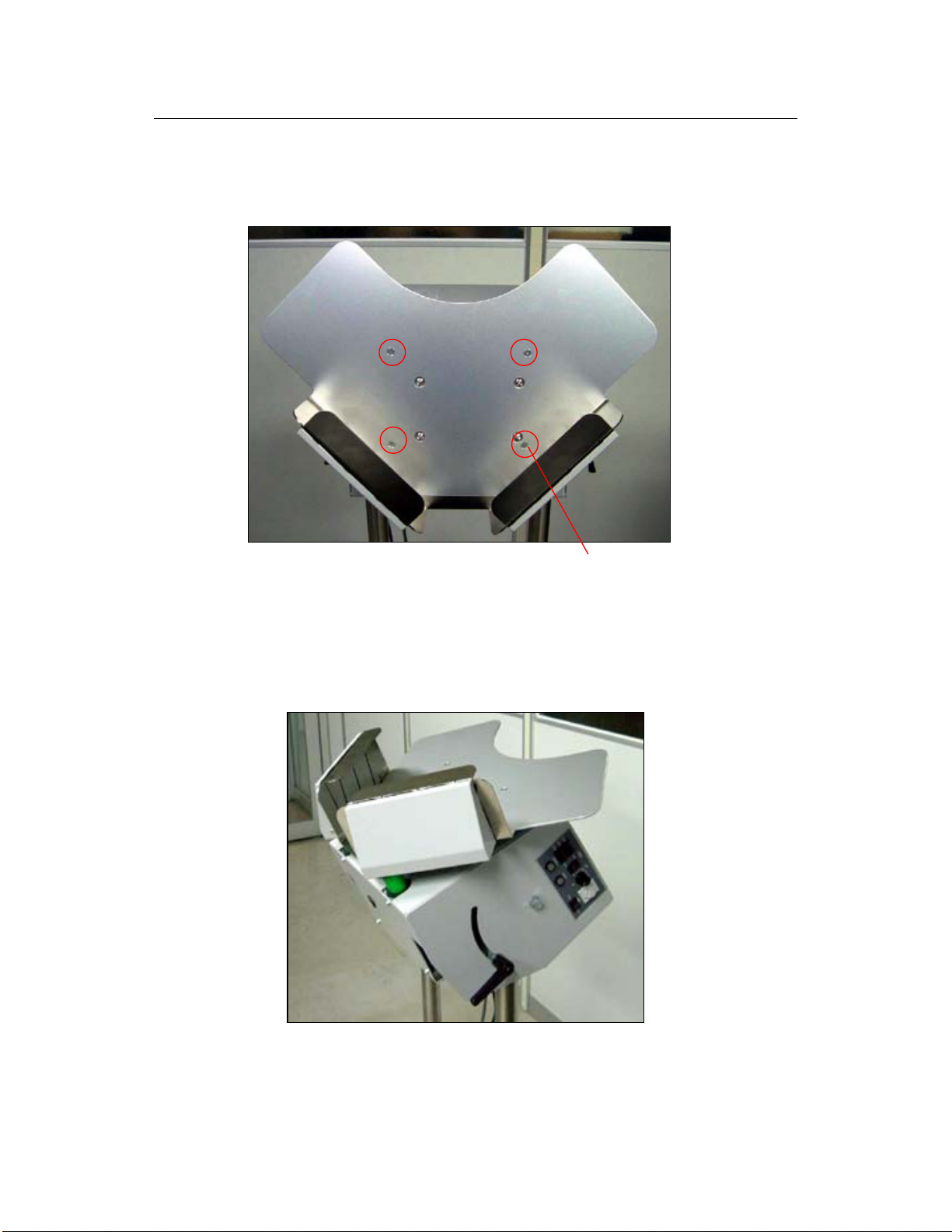

How to Jog big size paper
5.
(1) When big size paper such as A3SR or ledger size will be jogged, install the attached
A3 guide.
(A3SR, Ledger size and etc.)
Fasten the countersunk screws at the four locations.
(2) In order to prevent the paper from being bent, adjust the paper tray horizontally.
10
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
(3) When using the paper tray while setting it horizontally, load sheets of paper little by
little (If the paper is loaded in mass, the tray receives the weight all at once, which
makes it difficult to jog the paper properly).
* Loosen the paper so as to let air in it.
11
6. Troubleshooting
Troubles Check this Adjust/Amend this
Paper is irregularly
jogged.
Air blow is weak.
No air is discharged.
No vibration is
made.
(1) Is the paper size non-standard? Jog it while loosening it by hand.
(2) Does the paper have static electricity? Put some space between the sheets by
hand.
(3) Is too much paper loaded? Reduce the volume of paper used at
one time.
(1) Is air adjustment knob set to “Weak”? Turn the adjustment knob to “Strong”.
(2) Is any paper scrap or the like stuck in
air inlet or outlet?
y If the trouble is not resolved in spite of the above measures, blower maintenance
may be required. Contact your dealer.
(1) Is the AIR switch set to “OFF”? Set the AIR switch to “ON”.
(2) Is the fuse 2 blown out? Replace the fuse.
y
If the fuse blows again, the cause may be located within the machine. Contact
your dealer.
(1) Is the JOGGER switch set to “OFF”? Set the JOGGER switch to “ON”.
(2) Is the fuse 2 blown out? Replace the fuse.
y If the fuse is blown again, a cause may be located within the machine. Contact
your dealer.
Clean the inlet and outlet.
7. Daily Maintenance
y
Clean the air outlet in the paper tray so that it will not gather paper slips or dust.
y Clean the air inlet filter (located on the left side of the machine) on a regular basis.
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
12
8. Other Matters to Note
y
When moving the machine, be sure to hold the machine while paying attention to the entire
balance instead of holding the paper tray or the upper part of the stand only.
y Do not apply a strong force, such as pushing or pulling, to the paper tray. Doing so might
damage it.
y “OFF” and “Foot” on the power switch are in the same position when it is just switched, but
in case “Foot” operation is set, the machine operates when the Foot switch is stepped on.
Be careful about these conditions.
y Do not place heavy objects on the machine. The object may fall, causing a bodily injury.
Since loosening is made by blowing air, dust or the like may get in the user’s eyes. It is
y
recommended that safety glasses, etc., be worn when operating this machine.
9. Specifications
Product name Jogger (with air loosening device) stand type
Model AJ-700
Jogging Method Unbalance weight adjustment method
Jogged paper size Max: A3SR
320
Min: B6
128
Functions Operation time adjustment
Air b
Vibration switch ON/OFF function
Dimension 460 (W) × 395 (D) × 1025 (H) mm
(19” (W)
* when the paper tray is vertically placed.
Mass (Weight) 34.8kg (approx. 77 lbs.)
Power supply 120VAC/50 - 60 H2 or 230V/50 - 60 H2
[Accessories]
Operation Manual, paper guide
× 450 mm (approx. 12.5” × 17.5”)
× 187 mm (approx. 5.0” × 7.4”)
low adjustment
× 16.5” (D) × 41.3” (H))
Specifications and appearance are subject to change without prior notice due to continual
im
provements.
13
MyBinding.com
5500 NE Moore Court
Hillsboro, OR 97124
Toll Free: 1-800-944-4573
Local: 503-640-5920
Loading...
