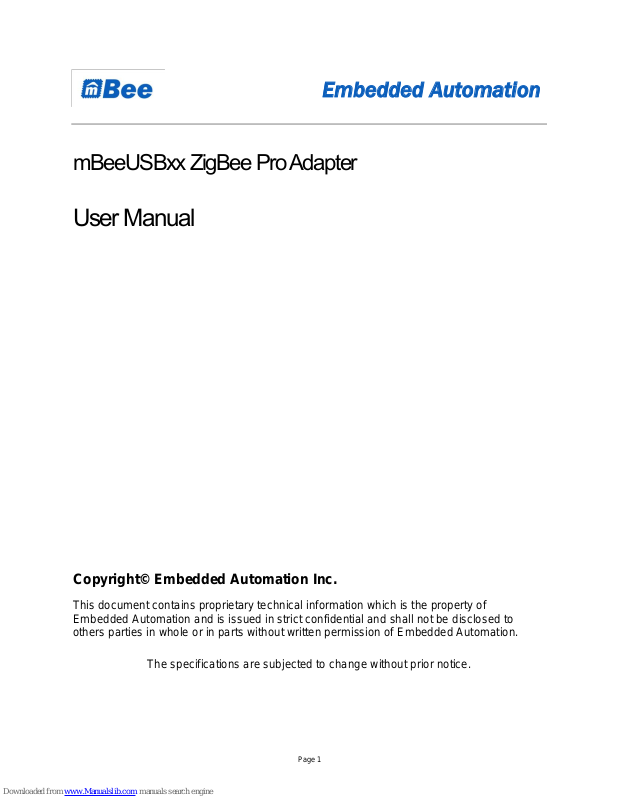

Embedded Automation
mBeeUSBxx ZigBee Pro Adapter
User Manual
Copyright© Embedded Automation Inc.
This document contains proprietary technical information which is the property of
Embedded Automation and is issued in strict confidential and shall not be disclosed to
others parties in whole or in parts without written permission of Embedded Automation.
The specifications are subjected to change without prior notice.
Page 1
Page 2
mBee USBxx ZigBee Pro Adapter User Manual
Table of Contents
REVISION HISTORY .................................................................................................................................................................. 3
PRODUCT SPECIFICATIONS ................................................................................................................................................. 4
OVERVIEW ..................................................................................................................................................................4
APPLICATIONS ............................................................................................................................................................4
FEATURES ..................................................................................................................................................................5
ELECTRICAL SPECIFICATIONS .....................................................................................................................................5
*Preliminary release subject to change without notice Page 2
Page 3
Revision History
Revision
Date
Changes
V1.00.00
April 2011
Initial public document
mBee USBxx ZigBee Pro Adapter User Manual
*Preliminary release subject to change without notice Page 3
Page 4
Product Specifications

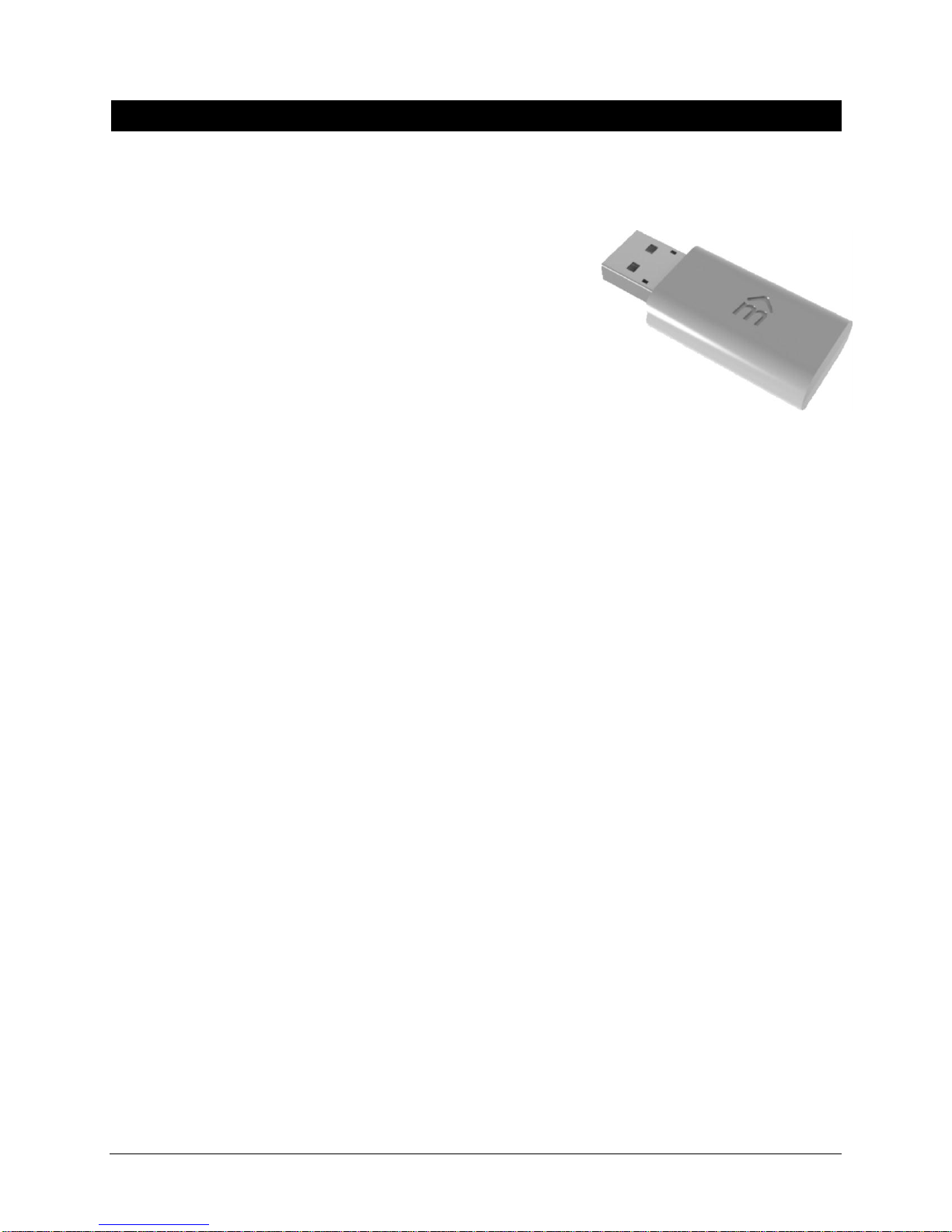

Figure 1 USB Adapter
Overview
The ZiBbee RF adapter mBee USBxx offered by
Embedded Automation is low power, 2.4GHz
ISM band transceiver, based on the TI CC2530
single chip in combination of Ti CC2591 high
power front end is ZigBee Pro / IEEE 802.15.4
solution.
The mBee USBxx is available for all Zigbee
profiles such ZigBeeSE, ZigBeeRF4CE and other
custom network types. Contact sales for more
information ([email protected]).
The adapter is designed to work with computer systems equipped with at least
one available usb port. The drivers and configuration software is provided by
Embedded Automation to configure the adapter and the Zigbee network.
mBee USBxx ZigBee Pro Adapter User Manual
Applications
Healthcare applications
Home/Building Automation
AMR – Automatic Meter Reading
Industrial Control
Wireless Alarms and Security
*Preliminary release subject to change without notice Page 4
Page 5
mBee USBxx ZigBee Pro Adapter User Manual
Parameter
Min
Max
Unit
Supply voltage
-0.3
5.6
V
Storage temperature
-40
85
℃
Operating temperature
-10
50
℃
Parameter
DC Values
Support Voltage
2.0 to 3.6 V DC
RX Current
28 mA
TX Current
36 mA
PM1
110 uA
PM2
0.8 uA
PM3
0.5 uA
Parameter
Performance Values
Channels Capacity
16
RF Data rate
250 Kbps
Maximum Power out
16 dBm
Receiver Sensitivity
-96 dBm
Outdoor range
150 m
Features
High performance and low power 8051 microcontroller core
2.4GHz IEEE 802.15.4 compliant RF transceiver
Excellent receiver sensitivity and interference robustness.
AES security coprocessor
FTDI Virtual Com
Electrical Specifications
Absolute Maximum Rating
*Operating the module at the absolute maximum will permanently damage the module
DC Characteristics
Performance
*Preliminary release subject to change without notice Page 5
