Discman 2 / 18 V

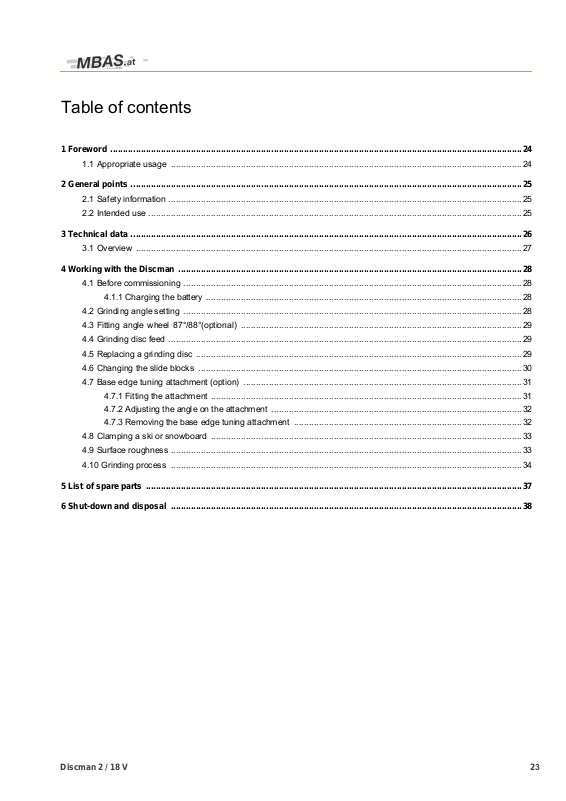

Table of contents

1 Foreword .................................................................................................................................................................... 24

1.1 Appropriate usage ............................................................................................................................................ 24

2 General points ............................................................................................................................................................ 25

2.1 Safety information ............................................................................................................................................. 25

2.2 Intended use ..................................................................................................................................................... 25

3 Technical data ............................................................................................................................................................ 26

3.1 Overview .......................................................................................................................................................... 27

4 Working with the Discman ......................................................................................................................................... 28

4.1 Before commissioning ....................................................................................................................................... 28

4.1.1 Charging the battery .............................................................................................................................. 28

4.2 Grinding angle setting ....................................................................................................................................... 28

4.3 Fitting angle wheel 87°/88°(optional) ................................................................................................................ 29

4.4 Grinding disc feed ............................................................................................................................................. 29

4.5 Replacing a grinding disc .................................................................................................................................. 29

4.6 Changing the slide blocks ................................................................................................................................. 30

4.7 Base edge tuning attachment (option) ............................................................................................................... 31

4.7.1 Fitting the attachment ............................................................................................................................ 31

4.7.2 Adjusting the angle on the attachment .................................................................................................... 32

4.7.3 Removing the base edge tuning attachment ........................................................................................... 32

4.8 Clamping a ski or snowboard ............................................................................................................................ 33

4.9 Surface roughness ............................................................................................................................................ 33

4.10 Grinding process ............................................................................................................................................ 34

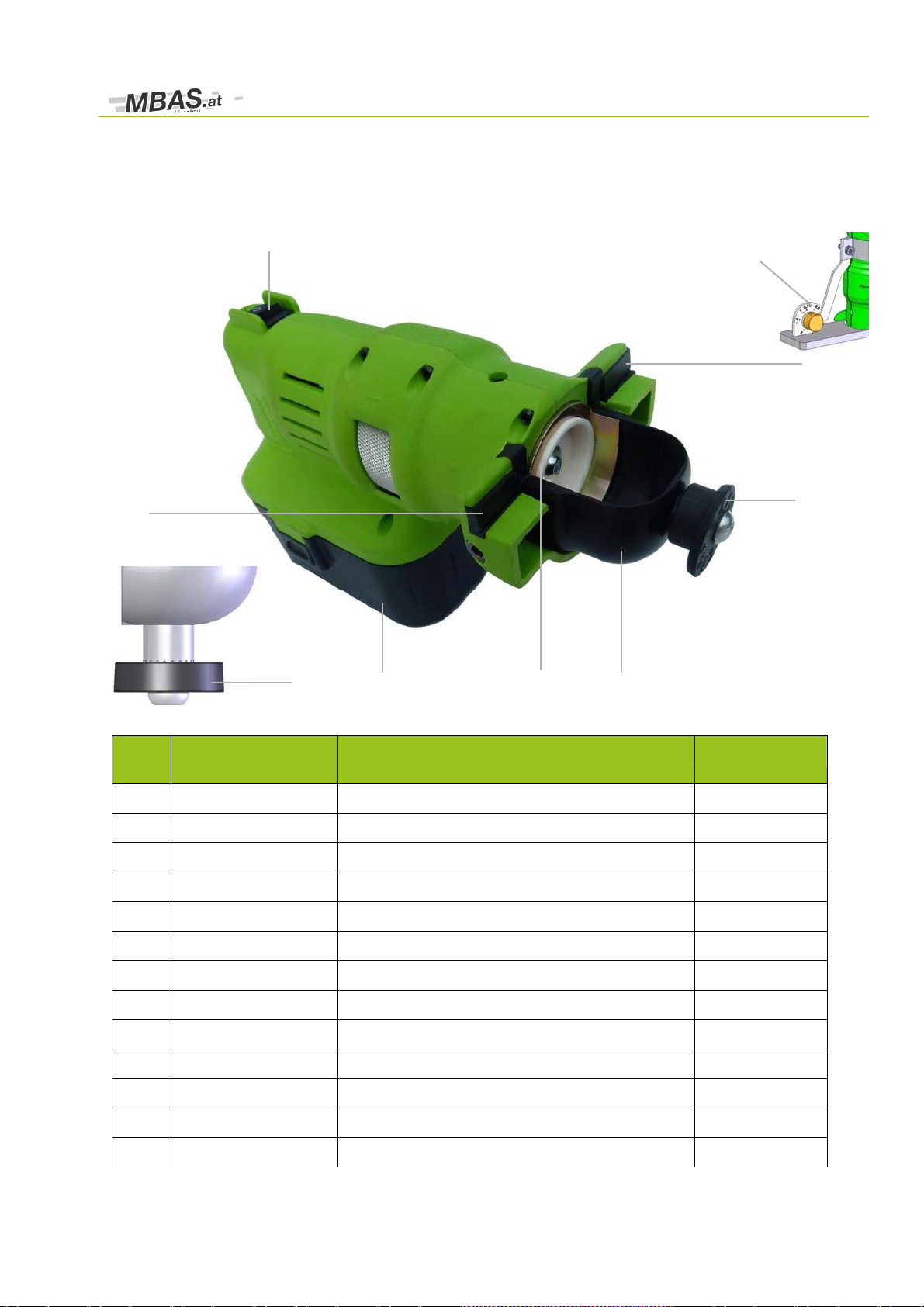

5 List of spare parts ...................................................................................................................................................... 37

6 Shut-down and disposal ............................................................................................................................................ 38

23

24

Discman 2 / 18 V

1 Foreword

This operating manual must be read by operating personnel and those responsible for machine maintenance before initial
use and serves as a supplement to the training documentation.

Damage caused by failure to follow the instructions herein will not be covered by the warranty. The user of this machine is
legally bound to observe the accident prevention regulations of the country in question.

Furthermore, this operating manual shall be treated confidentially. Only authorized persons shall be allowed access to it.
It shall only be entrusted to third parties on written permission from MBAS.

All documents are protected under copyright. Distribution, reproduction and utilization of documents and parts thereof, as
well as communication of its contents, are not permitted unless authorized expressly and in writing.

Infringements are liable to prosecution and will result in damage claims. MBAS shall retain all rights to exercise industrial
property rights.

1.1 Appropriate usage

The device was manufactured exclusively for normal use for ski service work (appropriate usage). Any other use is con­sidered inappropriate. The manufacturer is not liable for any damage resulting from inappropriate use. The user takes full
responsibility in such cases.

Appropriate usage also includes following the operating, maintenance and service stipulations set out by the manufacturer.
You must also observe applicable accident prevention regulations and other generally accepted safety and occupational
health regulations.

Any changes to the device by the user renders manufacturer liability null and void with regards to any resulting damages.

We constantly try to improve our products and therefore reserve the right to make any changes or improvements we feel are
appropriate. We are, however, not obligated to extend these changes or improvements to already delivered machines or
devices.

All images, dimensions and weight specifications in the instructions are non-binding.

Original operating manual

© Copyright 2005 by

MBAS ::: A-3352 St.Peter/AuDorf 6

Tel. [phone]

e-mail: [email protected]

or: Alfred Schachermayer

Aut

Design: Martina Zeppetzauer

Discman 2 / 18 V

2 General points

2.1 Safety information

When using battery-powered tools, you must observe basic safety precautions, including the following, to avoid the risk of
fire, battery leaks and injury to persons.

Please read these operating instructions, and in particular the safety instructions carefully before using
the Discman!

Do not operate the device near flammable materials.

Do not touch rotating parts during operation!

Always wear suitable work clothes when operating the device:

close-fitting upper clothing
protective gloves made from suitable material
protective goggles
dust protection for the nose and mouth
wear a hair net if appropriate

Make sure the room is well ventilated.

Protect the device and charger against moisture and rain!

Keep the device and charger in a place that is inaccessible to children!

The device may be operated only with all safeguards and covers attached.

Remove the battery from the device

if it is not in use.
before maintenance work.
when replacing accessories such as the grinding disc.

Keep the device clean and check the charger cable regularly for signs of damage.

If the device is damaged, have it repaired by an approved customer service point only!

Replace damaged grinding discs immediately!

The device must only be used with original MBAS spare parts/consumables. Any use of foreign material shall be at
the risk of the operator and will invalidate the warranty for the device.

The device corresponds to operating mode S 2 and has a operating ratio of 60% 30 min. In other words, after 18 minutes
of grinding, you must switch off the device for 12 minutes.

If the battery is used under extreme conditions (e.g. heat) battery fluid can escape. If this battery fluid comes into contact
with parts of the body, immediately wash it off with plenty of water and consult a doctor.

Follow national regulations for disposing of used batteries!

2.2 Intended use

The device must only be used for grinding the side and base edges of skis or snowboards.

Failure to follow these instructions releases MBAS from any and all liability for damage incurred.

25

26

Discman 2 / 18 V

3 Technical data

Type

Discman

Rechargeable nickel metal hydride battery

18V/2200mAh

Charger

240V/50Hz/18V or
110V/60Hz/18V

Discman weight

0.85 kg

Battery weight

0.82 kg

Total weight

1.67 kg

Grinding speed

19000 rpm

Grinding disc

35 mm

Edge angle

85° - 90°

Noise emission

The permanent sound pressure level is approx. 78 dB(A) for an
average grinding process.

Permissible ambient temperature

+ 10 to 40 °C

Battery charge time

Approx. 1 hour

Discman 2 / 18 V

3.1 Overview

1 3

4

2

4

10

1) Main switch
Switches the device on and off

2) Knurled nut

3) Drill hole

4) Guiding blocks

5) Grinding disc clamping screws

6) Grinding disc

7) Angle adjuster clamping screw

8) Angle adjuster

9) Battery

10) Battery release spring

14

9

5

13

8
7

11

6

12

11) MINUS direction of rotation lift grinding disc

12) PLUS direction of rotation lower grinding disc

13) Sleeve on side edge grinding device

14) Angle wheels

27

28

Discman 2 / 18 V

4 Working with the Discman

4.1 Before commissioning

Before you start working remove the locking bolt and the Allen key from the device.

4.1.1

Charging the battery

Charge the battery before you use the edge grinder for the first time; the battery will not reach full power
until it has been recharged multip le times.

Switching off the Discman.
To remove, press the lock and pull out the battery.
Insert the battery into the charger.
Plug in the charger and insert the terminals on the battery in line with

the labels on the charger.
The control lamp [2] shows green when the battery is slotted into the

charger.
While the battery is charging, the control lamp [1] additionally

2

1

flashes red.

Control lamp [2] shows green, and control lamp [1] shows red when

the battery is fully charged (approx. 1 hour).
After charging the battery, unplug the charger.
If you want to charge multiple batteries, you must leave a 15 minute

break between charging sessions.

4.2 Grinding angle setting

1

0 = 90°

To set the grinding angle, release screw [1].
Turn the angle adjuster [2] manually to the desired position.

Turning by one number is equivalent to changing the angle by one
degree. The angle adjuster latches every 0.5 degrees.

Hand-tighten the screw [1] with an Allen key.

2

3.5 = 86.5°

Discman 2 / 18 V

Only hand-tighten the screw [1] with the Allen key!

4.3 Fitting angle wheel 87°/88°(optional)

1) Shim ring

2) Angle wheel with label for Discman

3) Screw

1

2

3

4.4 Grinding disc feed

Turning the knurled nut in PLUS direction [1] moves the
grinding disc towards the steel edge to be ground.

Fit and tighten the parts in this order.

4.5 Replacing a grinding disc

1

2

1

1) With the device switched on, turn the knurled nut to the stop in
MINUS direction.

2) Remove the battery.

3) Remove the angle adjuster and screw.

3

29

30

Discman 2 / 18 V

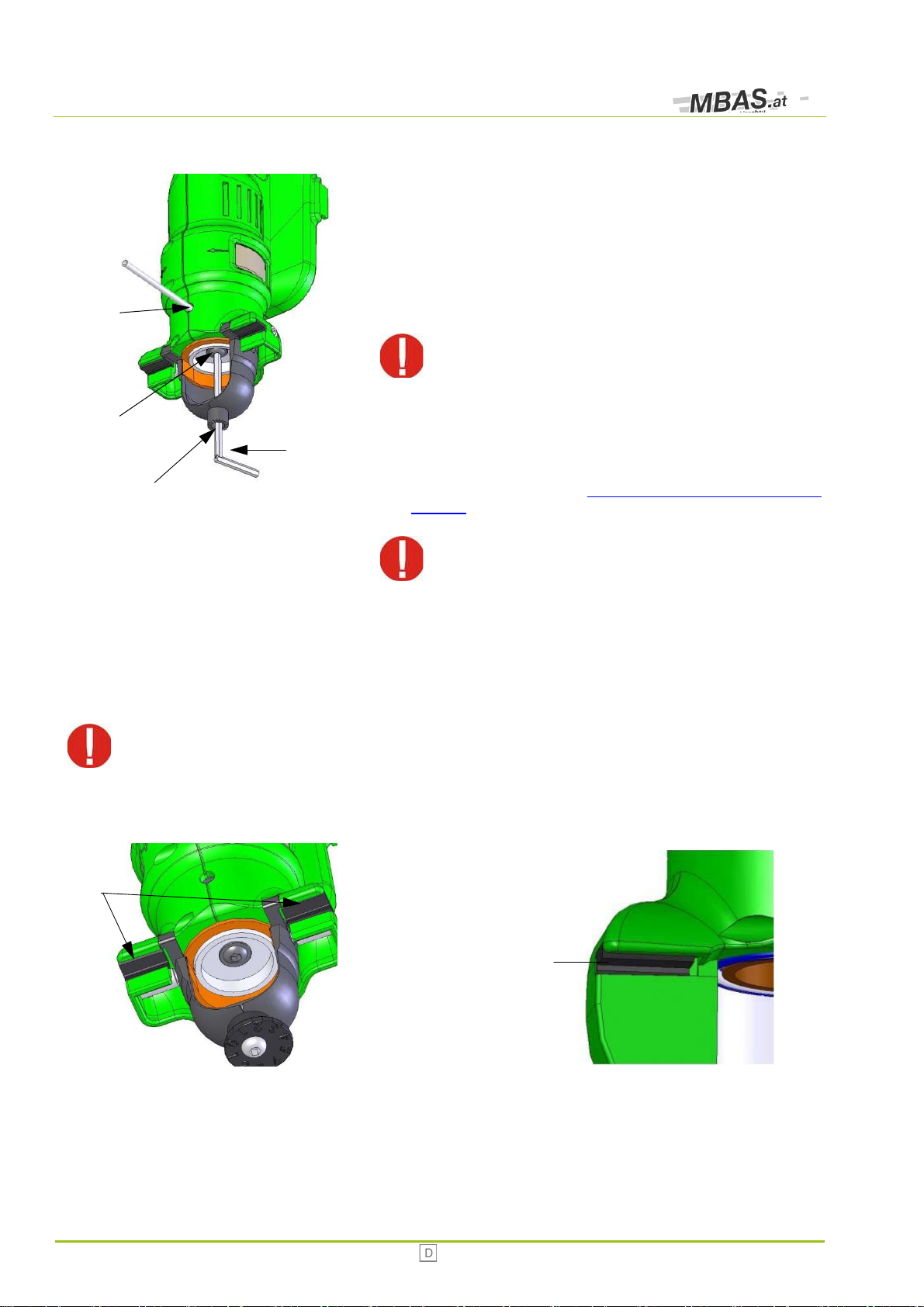

4

4) Insert the positioning bolt in the drill hole.

5) Insert the Allen key through the hole in the angle adjuster into the
clamping screw.

6) Turn the grinding disc until the positioning bolt latches into place.

7) Release the grinding disc clamping screws and remove.

8) Remove the grinding disc and support card and clean the guide
sleeve with a brush.

Do not use compressed air!

7/8/9

6

5

9) Push on a new grinding disc with support carton and hand-tighten
the clamping screw. Check the grinding disc for correct seating.

10) Remove the positioning bolt.

11) Adjusting the grinding angle (see chapt. 4.2 Grinding angle setting,

page 28).

Only hand-tighten the screw with the Allen key!

4.6 Changing the slide blocks

1) Push out the slide blocks on the left and right with a screwdriver.

2) Push in the new slide blocks until they are flush with the housing.

Whenever you change an abrasive disc, you should also replace the sliding bocks to guarantee grinding of
precise edge angles.

1

2

Discman 2 / 18 V

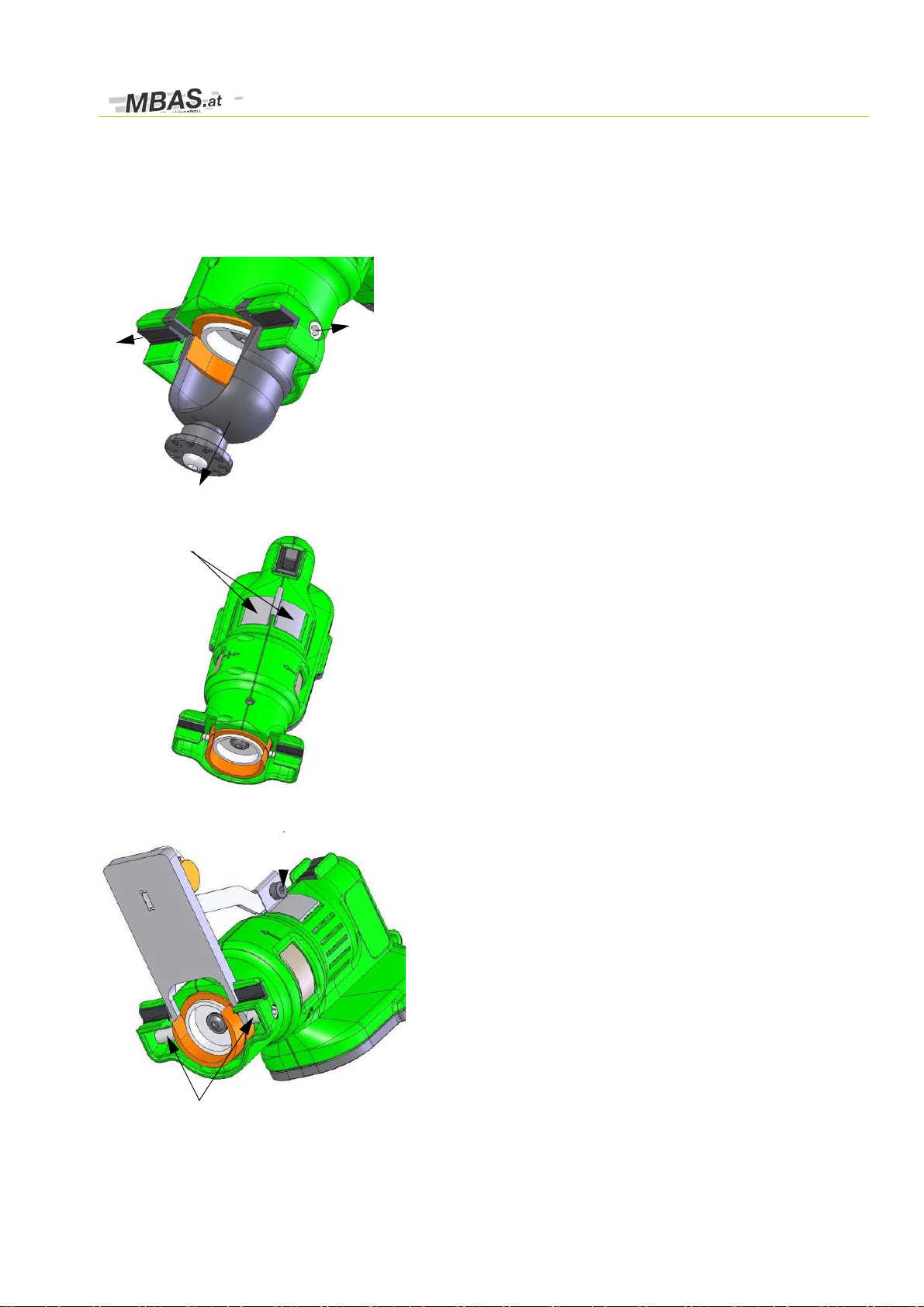

4.7 Base edge tuning attachment (option)

4.7.1

Fitting the attachment

1) Loosen and remove the fitting screw.

2) Remove the cap in downward direction.

1

1

2

3) Attach the spring clip to the first ventilation slot on one side as shown

3

in the figure, then push the spring clip onto the other side until the
spring clip latches into place on the other side.

4

4) Push on the support plate as shown and fasten the screws.

4

31

32

Discman 2 / 18 V

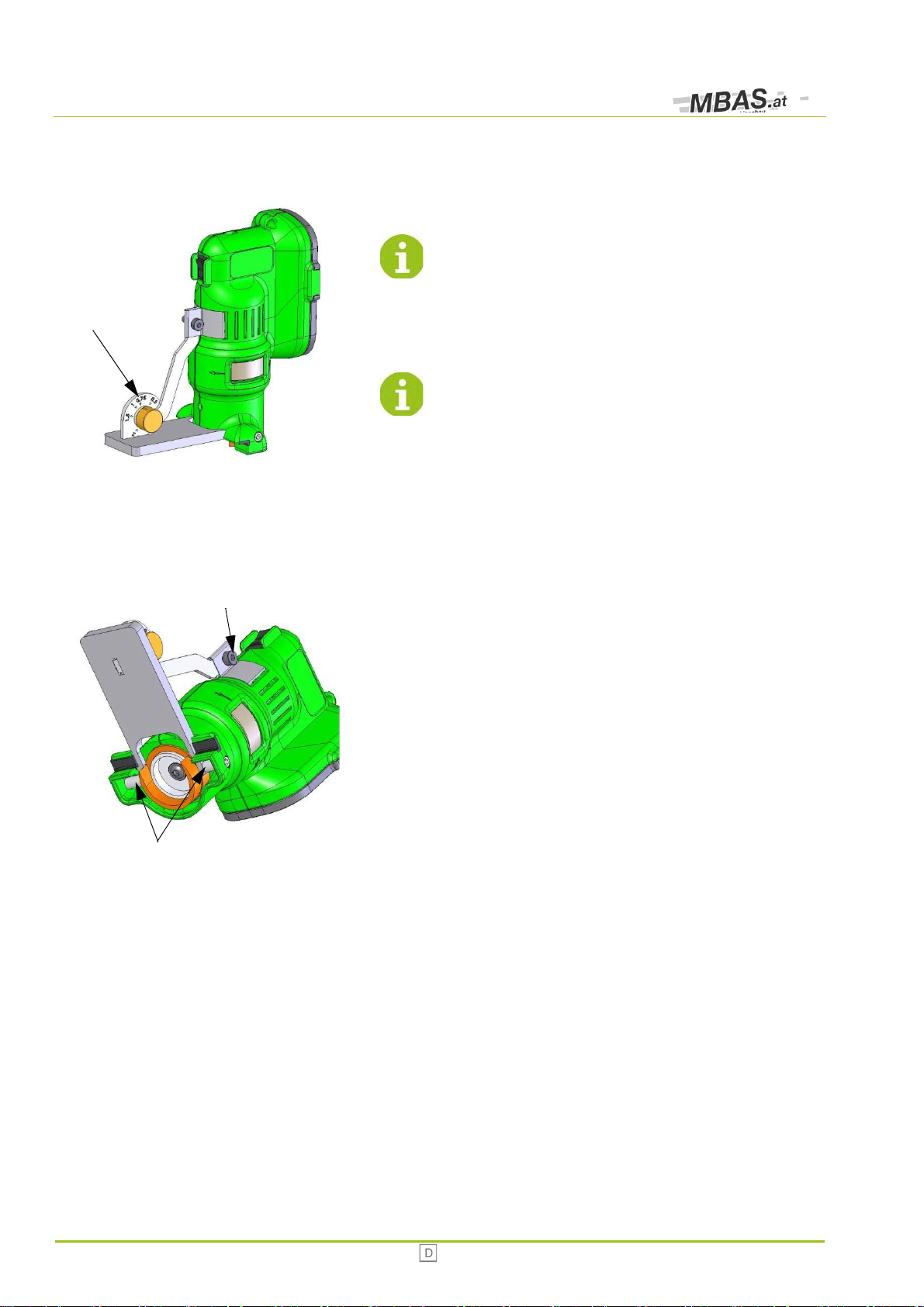

4.7.2

Adjusting the angle on the attachment

1) The notch shows the support plate angle on the scale.

Make sure that the screws are fastened after completing
setting work.

1

4.7.3

Removing the base edge tuning attachment

1

The deviation of the angle setting can be up to 0.5°.

Check the grinding angle.

Check the grinding results on disused skis or snowboards.
We accept no responsibility for operator error during
grinding!

When grinding the base edge, clamp the ski tightly and make sure that
the Discman can slide freely (ski tightener, ski brake).

1) When removing the base edge tuning attachment, only release the
screws (the spring clip remains on the Discman).

1

Discman 2 / 18 V

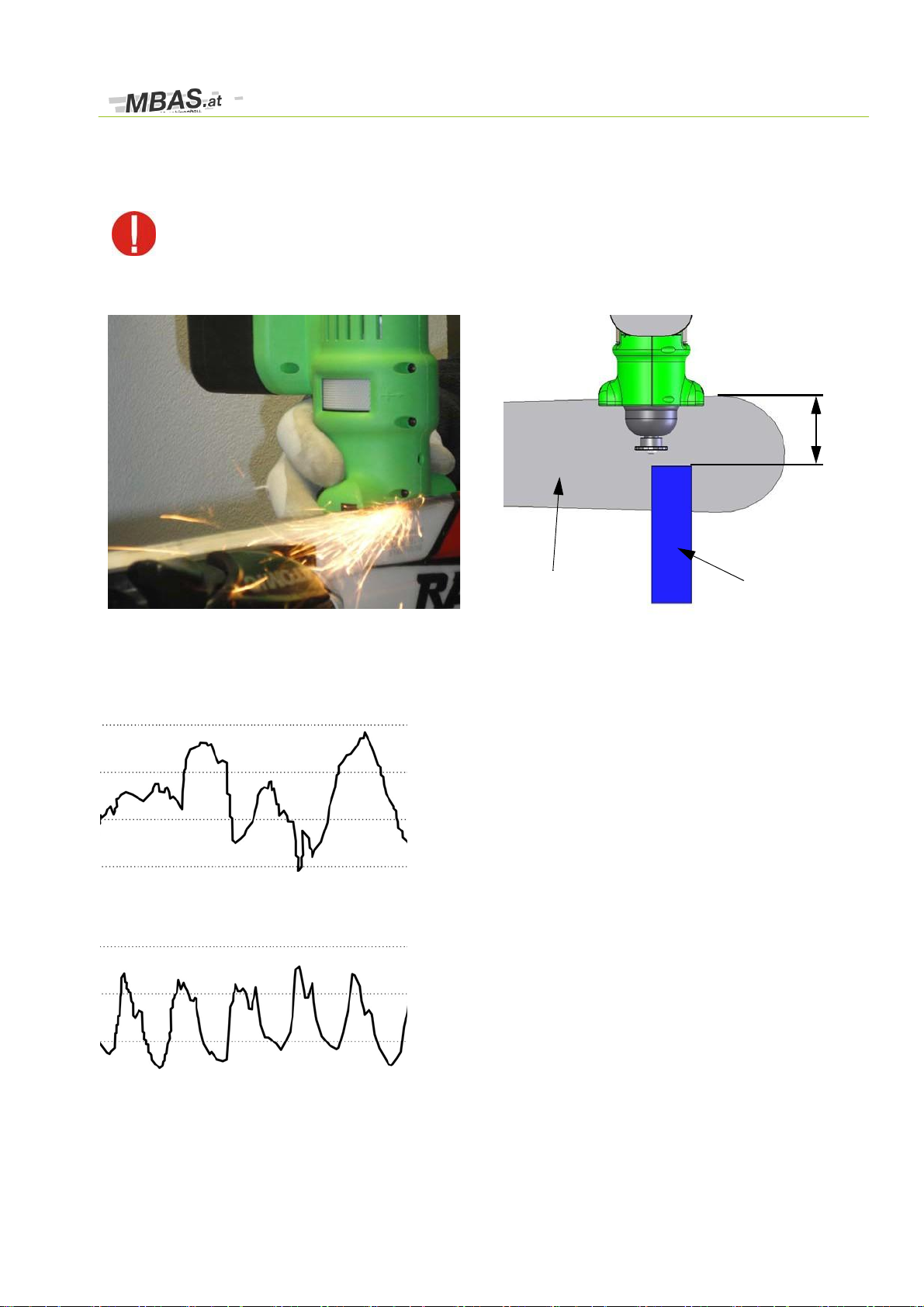

4.8 Clamping a ski or snowboard

Clamp the ski or snowboard to be tuned upright, firmly and safely in a ski tightener!

Minimum distance 62 mm

4.9 Surface roughness

2 μm

1 μm

0 μm

-1 μm

2 μm

1 μm

0 μm

Ski or snowboard

Ski tightener

Filed with a flat file

RZ=2.66 μm

Rmax=3.20 μm

Processed with Discman and K150 abrasive disc (gray abrasive
disc)

RZ=2.11 μm

Rmax=2.22 μm

-1 μm

33

34

Discman 2 / 18 V

1 μm

0 μm

-1 μm

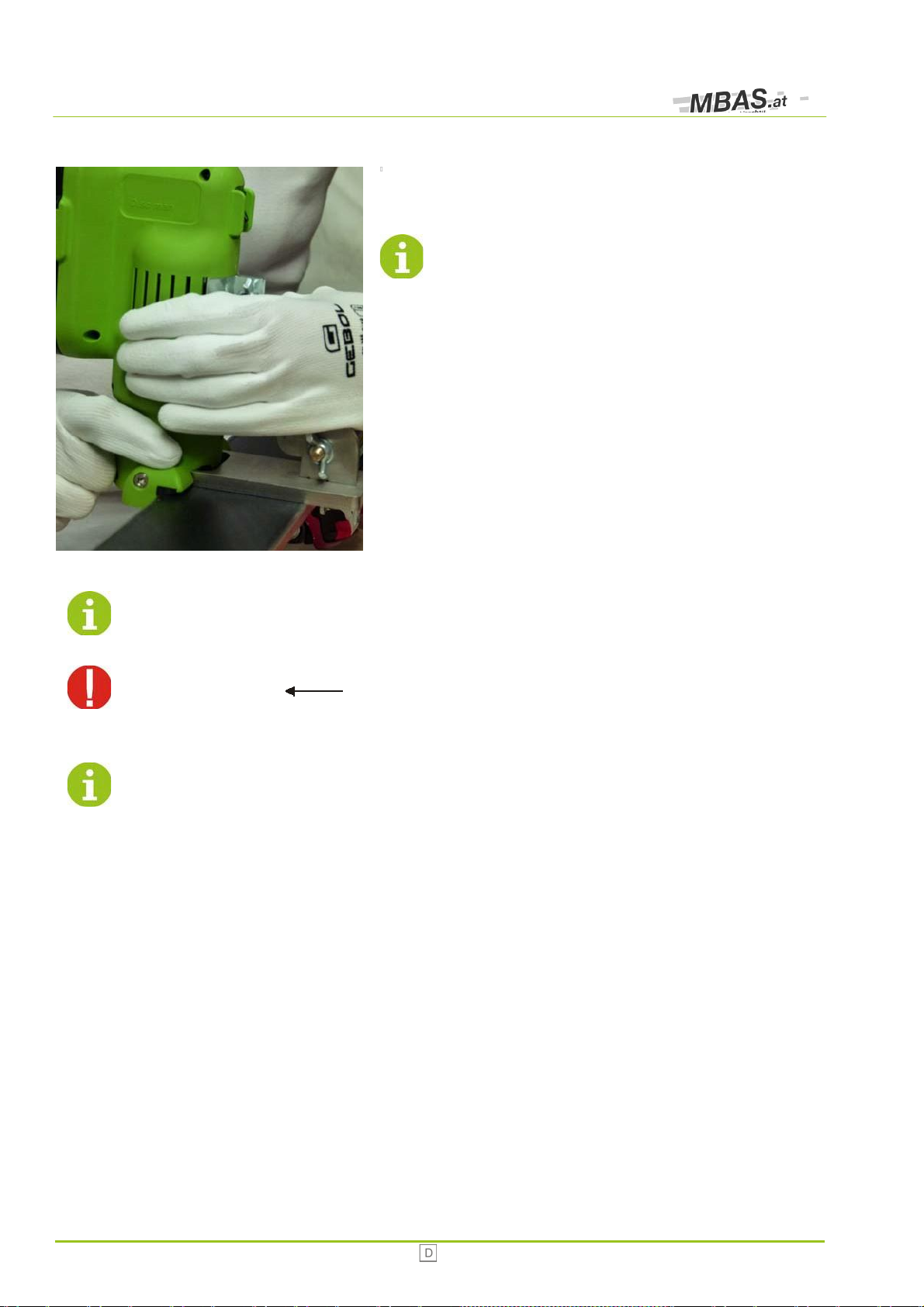

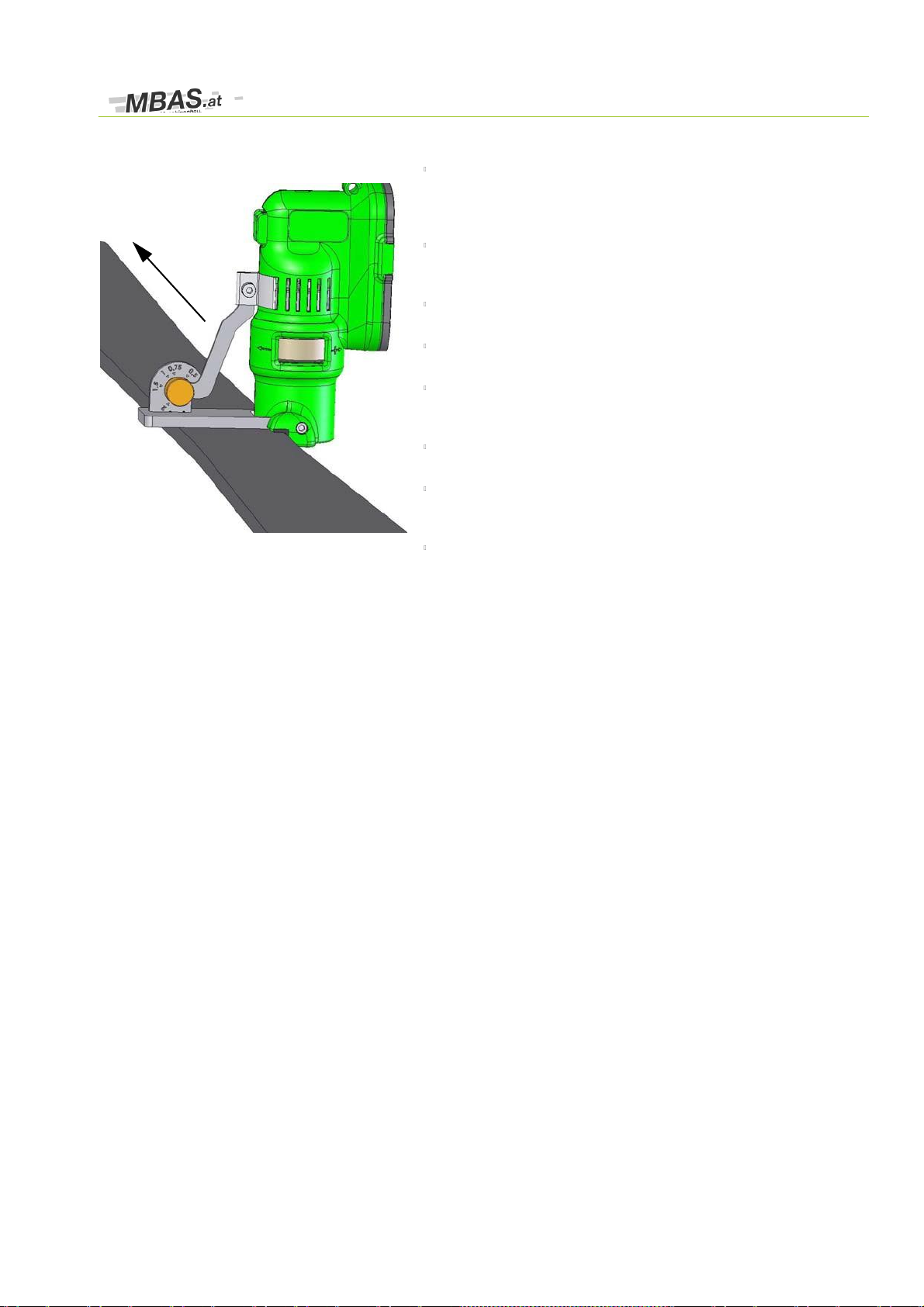

4.10 Grinding process

We recommend testing the Discman on disused skis or snowboards.
Above all, after fitting the base edge tuning attachment, you should test the Discman on disused skis or
snowboards.

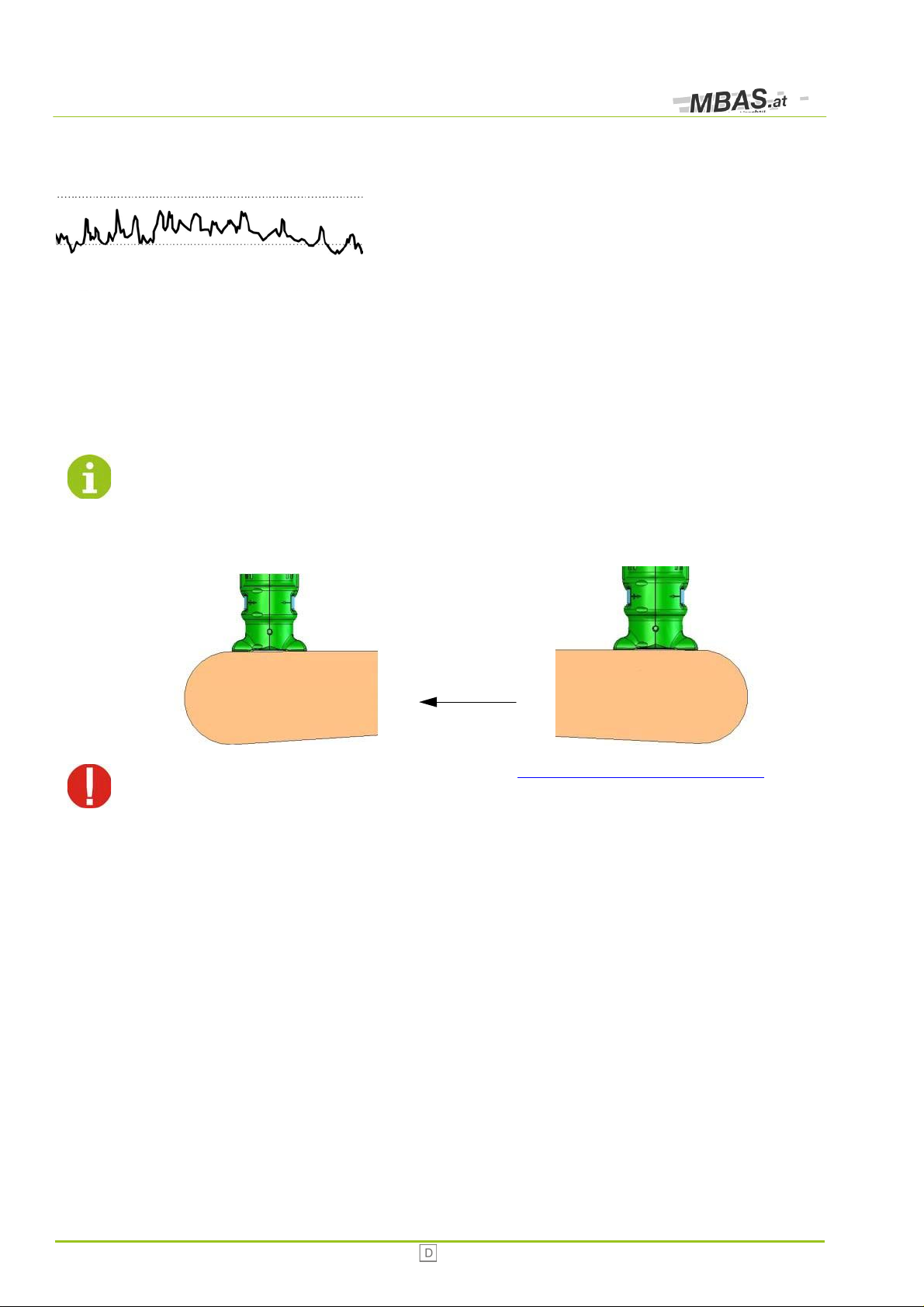

Processed with Discman and K240 abrasive disc (orange abrasive
disc)

RZ=0.94 μm

Rmax=1.14 μm

Grinding direction

Lift off

before start of radius

Please read these operating instructions, and in particular chapt. 2.1 Safety information, page 25 carefully
before using the Discman!
Before grinding, check the sliding blocks for wear and tight seating; replace if needed!
If the grinding disc is applied too heavily there is a risk of excessive heat development!
Always grind side edges before waxing to avoid wax clogging the grinding disc!
Before grinding use a side plane to remove protruding materials from the side edges!

Lower

before start of radius

Discman 2 / 18 V

Before lowering the edge tuning device onto a piece of winter sports
equipment, make sure that the grinding disc does not protrude
beyond the slide blocks to avoid the Discman grinding the steel
edge in an uncontrolled manner when switched on.

Lower the Discman onto the ski or snowboard with the slide blocks
and angle adjuster and push against the ski or snowboard with slight
pressure.

Switch on the edge tuning device and turn the knurled nut counter­clockwise until you see sparks appear.

Switch off the Discman, lift off the ski and check the grinding angle
again.

Again lower the edge tuner onto the ski or snowboard with the slide
blocks and angle adjuster and push against the ski or snowboard
with slight pressure.

After switching on the Discman move the device manually from one
end of the ski or snowboard to the other.

During grinding, you can turn the knurled nut to move in the grinding
stone in case of insufficient material removal, or move out the
grinding stone in case of excessive material removal.

In working position the Discman is in stable state of balance; due to
this ergonomic handling, no force is required to move the edge
tuner; instead apply slight contact pressure and push or pull gently.

35

36

Discman 2 / 18 V

When tuning the base edge, place your hand on the base edge
tuning attachment as shown to ensure that the base edged is
ground evenly.

The slower the feed speed, the finer the surface!

Make sure that the Discman does not tilt when tuning the
base edge!

After each ski or snowboard change, you must switch off the edge tuner and turn back the grinding disc
with the knurled nut (in direction) so that the Discman does not grind the steel edge in an un­controlled way when switched on.

For consistently good tuning quality, always remove the swarf that occurs after base edge grinding!

Discman 2 / 18 V

5 List of spare parts

Item
No.

Part number

Designation

Notes

1

Main switch

4

Guiding blocks

1 pairs

6

Grinding set (gray K150 disc + sliding blocks)

d35x14 K150

6

Polishing set (orange K240 disc + sliding blocks)

8

Angle adjuster

9

Replacement battery

18V

Allen key

Positioning bolt

Charger 240V/50Hz/18V

Charger 110V/60Hz/18V

Cleaning brush

135 mm

12

Side edge grinding device

13

Angle wheel 87°

1

14

4

8

4

13

9

6

12

DM 1058

DM 1015

DM 1016

DM 1051

DM 1020

DM 1059

DM1052

DM 1024

DM 1027

DM 1053

DM 1054

DM 1055

37

38

Discman 2 / 18 V

Item
No.

Part number

Designation

Notes

13

Angle wheel 88°

14

Base edge tuning attachment

Engine

DM 1056

DM 1014

DM 1057

6 Shut-down and disposal

Risk of injury!

Disconnect the machine from the mains supply or any external drive prior to shutting down and dismantling. Use
only suitable tools for dismantling.

When shutting down the machine dismantle and dispose of all machine parts properly. Clean all oily and
greasy components prior to disposal.
Oil and grease should never be allowed to pollute the environment.
Ensure that all disposal regulations specific to your country are adhered to!

Dismantle the machine properly into its individual components.

Clean oily and greasy components.

Dispose of components by material group (steel, plastic, electrical and electronic components, etc.).

Dispose of oil and grease in an environmentally friendly manner.

Konformitätserklärung
Declaration of Conformity
Certificat de conformité
Declaración de conformidad
Dichiarazione di conformità

Discman 2 / 18 V

Kantenschleifgerät

Edge grinder

EG-Maschinenrichtlinie 2006/42/EG

EG-EMV-Richtlinie 2004/108/EG

Hiermit erklären wir, dass das Produkt

We hereby declare that this product

Par la présente nous certifions que le dit produit

Por la presente declaramos que el producto

Con la presente dichiariamo che il prodotto

folgender(-en) einschlägigen Bestimmung(en) entspricht:

conforms to the following regulations:

correspond à la (aux) spécification(s) suivante(s):

corresponde a la(s) siguiente(s) directiva(s) competente(s):

è conforme alla(e) seguente(i) disposizione(i):

Dokumentations-Bevollmächtigte:
Person authorised to compile the technical file:
Personne autorisée à constituer le dossier technique:
Persona facultada para elaborar el expediente técnico:
Persona autorizzata a costituire il fascicolo tecnico:

A-3352 St.Peter/Au Dorf 6

Tel.: [phone]

F

ax: [phone]

E-mail: [e-mail]

MBAS

www.mbas.at

No.: DM1000

Alfred Schachermayer
MBAS
A-St.Peter/Au,Dorf 6

St.Peter/Au, am 31.10.2012

Discman 2 / 18 V 195

Konformitätserklärung
Conformiteitsverklaring
Konformitetsförklaring
Vaatimustenmukaisuusvakuutus
Overensstemmelseserklæring

Discman 2 / 18 V

Kantenschleifgerät

Edge grinder

EG-Maschinenrichtlinie 2006/42/EG

EG-EMV-Richtlinie 2004/108/EG

Hiermit erklären wir, dass das Produkt

Hierbij verklaren wij, dat het product

Härmed förklarar vi att produkten

Tällä lomakkeella ilmoitamme, että tuote

Herved erklærer vi, at produktet

folgender(-en) einschlägigen Bestimmung(en) entspricht:

voldoet aan de volgende richtlijnen:

uppfyller följande entydiga krav:

vastaa seuraavia asianmukaisia säädöksiä:

er i overensstemmelse med følgende relevante bestemmelser:

Dokumentations-Bevollmächtigte:
Degene die gemachtigd is het technische documenten samen te stellen:

Person som är behörig att ställa samman den tekniska dokumentationen:
Henkilö, joka on valtuutettu kokoamaan teknisen eritelmän:
Person, der har bemyndigelse til at udarbejde det tekniske dossier:

A-3352 St.Peter/Au Dorf 6

MBAS

Tel.: [phone]

Fax: [phone]

E-mail: [email protected]

www.mbas.at

No.: DM1000

Alfred Schachermayer
MBAS
A-St.Peter/Au,Dorf 6

St.Peter/Au, am 31.10.2012

196 Discman 2 / 18 V

Konformitätserklärung
Prohláení o shodČ
Izjava o sukladnosti
MegfelelĘségi nyilatkozat
Deklaracja zgodnoĞci

Discman 2 / 18 V

Kantenschleifgerät

Edge grinder

EG-Maschinenrichtlinie 2006/42/EG

EG-EMV-Richtlinie 2004/108/EG

Hiermit erklären wir, dass das Produkt
Tímto prohlaujeme, e produkt
Ovime izjavljujemo da proizvod
Kijelentjük, hogy a termék
Niniejszym oświadczamy, że produkt

folgender(-en) einschlägigen Bestimmung(en) entspricht:
odpovídá následujícím přísluným ustanovením:
odgovara sljedećim relevantnim odredbama:
megfelel a következő vonatkozó rendelkezéseknek:
spełnia poniższe, obowiązujące przepisy:

Dokumentations-Bevollmächtigte:
Osoba pověřená sestavením technické dokumentace:
Osoba ovlatena za sastaviti tehničku dokumentaciju:
A vonatkozó műszaki dokumentáció összeállítására jogosult személy:
Osoba upoważniona do przygotowania dokumentacji technicznej:

A-3352 St.Peter/Au Dorf 6

MBAS

Tel.: [phone]

Fax: [phone]

E-mail: [email protected]

www.mbas.at

Alfred Schachermayer
MBAS
A-St.Peter/Au,Dorf

No.: DM1000

6

St.Peter/Au, am 31.10.2012

Discman 2 / 18 V 197

Konformitätserklärung
Atitikties deklaracija
AtbilstƯbas deklarƗcija
Vastavusdeklaratsioon
Samsvarserklæring

Discman 2 / 18 V

Kantenschleifgerät

Edge grinder

EG-Maschinenrichtlinie 2006/42/EG

EG-EMV-Richtlinie 2004/108/EG

Hiermit erklären wir, dass das Produkt
Pareikiame, kad gaminys
Ar o mēs deklarējam, ka izstrādājums
Käesolevaga deklareerime meie, et masin
Hermed erklærer vi, at produktet tilsvarer

folgender(-en) einschlägigen Bestimmung(en) entspricht:
atitinka visas ias jam taikytinas nuostatas:
atbilst ādam(-iem) attiecīgajam(-iem) noteikumam(-iem):
vastab järgmis(t)ele harmoneeritud standardi(te)le:
de følgende gjeldende bestemmelser:

Dokumentations-Bevollmächtigte:
asmuo, įgaliotas sudaryti techninę bylą:
Persona, kura ir pilnvarota sastādīt tehnisko lietu:

Isik, kes on volitatud koostama tehnilist dokumentatsiooni
En person, som har fullmakt til å utferdige den tekniske dokumentasjonen

A-3352 St.Peter/Au Dorf 6

MBAS

Tel.: [phone]

Fax: [phone]

E-mail: [email protected]

www.mbas.at

No.: DM1000

Alfred Schachermayer
MBAS
A-St.Peter/Au,Dorf

6

198

St.Peter/Au, am 31.10.2012

Konformitätserklärung
Declara܊ia de conformitate
ɞɟɤɥɚɪɚɰɢɹɬɚ ɡɚ ɫɴɨɬɜɟɬɫɬɜɢɟ
Uygunluk Beyan
ɋɟɪɬɢɮɢɤɚɬ ɫɨɨɬɜɟɬɫɬɜɢɹ

Discman 2 / 18 V

Kantenschleifgerät

Edge grinder

EG-Maschinenrichtlinie 2006/42/EG

EG-EMV-Richtlinie 2004/108/EG

Hiermit erklären wir, dass das Produkt
Prin prezenta declarăm că produsul
С настоящото декларираме, че продуктът
Aşağda ad geçen ürünün
Данным подтверждаем, что нижеуказанный продукт

folgender(-en) einschlägigen Bestimmung(en) entspricht:
corespunde următoarei (următoarelor) prevederi relevante:
е в съответствие със следната (ите) разпоредба (и):
geçerli hükümlere uygun olduğunu beyan ediyoruz:
соответствует следующим стандартам:

Dokumentations-Bevollmächtigte:
Persoana autorizată pentru întocmirea cărţii tehnice:
Лице, оторизирано да съставя техническите досие докцменти

Teknik dosyay hazrlamakla yetkili olan kişi
Лицо, уполномоченное для составления технической документации:

A-3352 St.Peter/Au Dorf 6

MBAS

Tel.: [phone]

Fax: [phone]

E-mail: [email protected]

www.mbas.at

Alfred Schachermayer
MBAS
A-St.Peter/Au,Dorf 6

No.: DM1000

St.Peter/Au, am 31.10.2012

Discman 2 / 18 V 199
