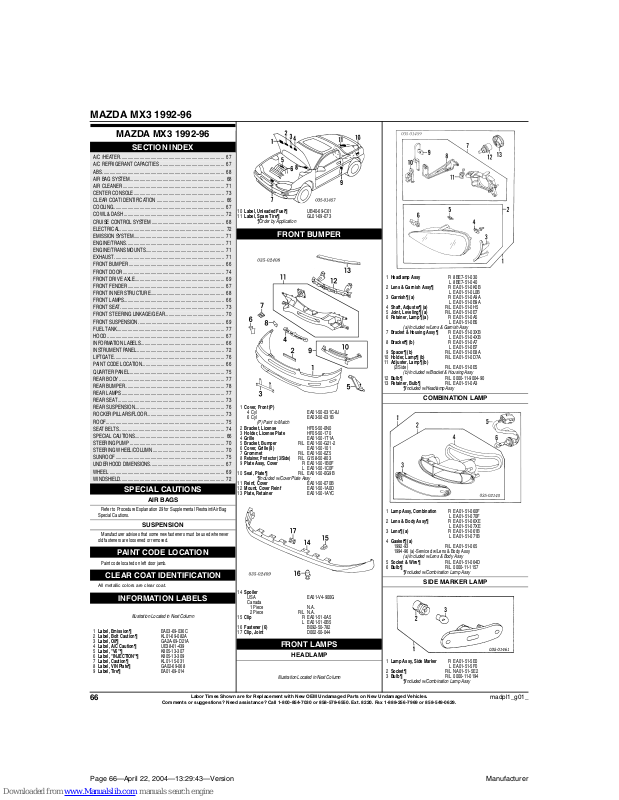

MAZDA MX3 1992-96
SPECIAL CAUTIONS
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag
Special Cautions.
SUSPENSION
Manufacturer advises that some new fasteners must be used whenever
old fasteners are loosened or removed.
PAINT CODE LOCATION
Paint code located on left door jamb.
CLEAR COAT IDENTIFICATION
All metallic colors are clear coat.
INFORMATION LABELS
Illustration Located in Next Column
1
Label, Emission¶
EA03-69-036C
2
Label, Bolt Caution¶
KL01-69-082A
3
Label, Oil¶
GA2A-69-D21A
4
Label, A/C Caution¶
UE38-61-439
5
Label, "V6"¶
K805-13-307
6
Label, "INJECTION"¶
K805-13-309
7
Label, Caution¶
KL01-15-031
8
Label, VIN Plate¶
GA02-69-068
9
Label, Tire¶
EA01-69-014
10
Label, Unleaded Fuel¶
UB40-69-C61
11
Label, Spare Tire¶
GL01-69-073
¶Order by Application
FRONT BUMPER
1
Cover, Front (P)
4 Cyl EA01-50-031C-8J
6 Cyl EA03-50-031B
(P) Paint to Match
2
Bracket, License
HF05-50-0N0
3
Holder, License Plate
HF05-50-170
4
Grille
EA01-50-1T1A
5
Bracket, Bumper
R/L EA01-50-G21-2
6
Cover, Grille (8)
EA01-50-101
7
Grommet
R/L EA01-50-0Z5
8
Retainer, Protector (3/Side)
R/L G158-50-803
9
Plate Assy, Cover
R EA01-50-1B0F
L EA01-50-1C0F
10
Seal, Plate¶
R/L EA01-50-0G9B
¶Included w/Cover Plate Assy
11
Reinf, Cover
EA01-50-070B
12
Mount, Cover Reinf
EA01-50-1A0D
13
Plate, Retainer
EA01-50-1AYC
14
Spoiler
USA EA01-V4-900G
Canada
1 Piece N.A.
2 Piece R/L N.A.
15
Clip
R EA01-51-0A5
L EA01-51-0B5
16
Fastener (6)
B092-50-782
17
Clip, Joint
D002-50-044
FRONT LAMPS
HEADLAMP
Illustration Located in Next Column
1
Headlamp Assy
R 8BE7-51-030
L 8BE7-51-040
2
Lens & Garnish Assy¶
R EA01-51-0K0B
L EA01-51-0L0B
3
Garnish¶ (a)
R EA01-51-0A9A
L EA01-51-0B9A
4
Shaft, Adjuster¶ (a)
R/L EA01-51-0H5
5
Joint, Leveling¶ (a)
R/L EA01-51-0E7
6
Retainer, Lamp¶ (a)
R EA01-51-0A5
L EA01-51-0B5
(a) Included w/Lens & Garnish Assy
7
Bracket & Housing Assy¶
R EA01-51-03XB
L EA01-51-04XB
8
Bracket¶ (b)
R EA01-51-0A7
L EA01-51-0B7
9
Spacer¶ (b)
R/L EA01-51-0E8A
10
Holder, Lamp¶ (b)
R/L EA01-51-0D7A
11
Adjuster, Lamp¶ (b)
(2/Side) R/L EA01-51-0E5
(b) Included w/Bracket & Housing Assy
12
Bulb¶
R/L 0000-11-9004-90
13
Retainer, Bulb¶
R/L EA01-51-0A3
¶Included w/Headlamp Assy
COMBINATION LAMP
1
Lamp Assy, Combination
R EA01-51-060F
L EA01-51-070F
2
Lens & Body Assy¶
R EA01-51-06XE
L EA01-51-07XE
3
Lens¶ (a)
R EA01-51-061B
L EA01-51-071B
4
Gasket¶ (a)
1992-93 R/L EA01-51-065
1994-96 (a)-Serviced w/Lens & Body Assy
(a) Included w/Lens & Body Assy
5
Socket & Wire¶
R/L EA01-51-064D
6
Bulb¶
R/L 0000-11-1157
¶Included w/Combination Lamp Assy
SIDE MARKER LAMP
1
Lamp Assy, Side Marker
R EA01-51-5E0
L EA01-51-5F0
2
Socket¶
R/L NA01-51-5E2
3
Bulb¶
R/L 0000-11-0194
¶Included w/Combination Lamp Assy
SECTION INDEX
A/C /HEATER ...................................................................................... 67
A/C REFRIGERANT CAPACITIES ..................................................... 67
ABS..................................................................................................... 68
AIR BAG SYSTEM.............................................................................. 68
AIR CLEANER .................................................................................... 71
CENTER CONSOLE........................................................................... 73
CLEAR COAT IDENTIFICATION ........................................................ 66
COOLING............................................................................................ 67
COWL & DASH................................................................................... 72
CRUISE CONTROL SYSTEM ............................................................ 68
ELECTRICAL...................................................................................... 72
EMISSION SYSTEM........................................................................... 71
ENGINE/TRANS ................................................................................. 71
ENGINE/TRANS MOUNTS................................................................. 71
EXHAUST ........................................................................................... 71
FRONT BUMPER ............................................................................... 66
FRONT DOOR.................................................................................... 74
FRONT DRIVE AXLE.......................................................................... 69
FRONT FENDER................................................................................ 67
FRONT INNER STRUCTURE............................................................. 68
FRONT LAMPS................................................................................... 66
FRONT SEAT...................................................................................... 73
FRONT STEERING LINKAGE/GEAR................................................. 70
FRONT SUSPENSION ....................................................................... 69
FUEL TANK......................................................................................... 77
HOOD ................................................................................................. 67
INFORMATION LABELS..................................................................... 66
INSTRUMENT PANEL ........................................................................ 72
LIFTGATE........................................................................................... 76
PAINT CODE LOCATION.................................................................... 66
QUARTER PANEL .............................................................................. 75
REAR BODY....................................................................................... 77
REAR BUMPER.................................................................................. 78
REAR LAMPS..................................................................................... 77
REAR SEAT ........................................................................................ 73
REAR SUSPENSION.......................................................................... 76
ROCKER/PILLARS/FLOOR................................................................ 73
ROOF.................................................................................................. 75
SEAT BELTS....................................................................................... 74
SPECIAL CAUTIONS.......................................................................... 66
STEERING PUMP .............................................................................. 70
STEERING WHEEL/COLUMN ........................................................... 70
SUNROOF .......................................................................................... 75
UNDERHOOD DIMENSIONS............................................................. 67
WHEEL ............................................................................................... 69
WINDSHIELD...................................................................................... 72
Page 2
MAZDA MX3 1992-96
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
67
madpl1_g01_
Page 67—April 22, 2004—13:29:45—Version Manufacturer
HOOD
1
Panel, Hood
EAY1-52-310B
2
Insulator
EA03-68-601C
3
Seal, Front
EA01-56-750
4
Deflector
R EA01-56-730B
L EA01-56-740B
5
Seal, Rear
B481-56-760
6
Hinge
R EA01-52-410B
L EA01-52-420B
7
Cushion
R/L EA01-56-78XC
Spacer, Rear
R EA01-56-76XA
L EA01-56-76ZA
8
Bumper, Rubber
R/L LA01-56-786A
9
Latch
EA01-56-620D
10
Cable, Release
EA01-56-720A
11
Rod, Prop
EA01-56-650
12
Holder, Rod
G144-52-518C
13
Emblem Assy
BB1H-51-730
Emblem¶
BB1H-51-731
Clip, Emblem¶ (2)
LA01-51-958
¶Included w/Emblem Assy
COOLING
1
Radiator Assy
4 Cyl
Man Trans 92-93 B69J-15-200
94-96 B6DC-15-200
Auto Trans 92-93 B66T-15-200C
94-96 B6DD-15-200B
6 Cyl
Man Trans K801-15-200D
Auto Trans 92-93 K802-15-200E
94 K835-15-200
2
Mount, Radiator¶
4 Cyl
1992-93
Man Trans R/L K804-15-202
Auto Trans R/L K802-15-202
1994-96 R/L B6DD-YV-SK1
6 Cyl R/L K801-15-202
3
Cap, Radiator¶
4 Cyl D316-15-205
6 Cyl 92-93 KF01-15-205
94 KL61-15-205
¶Included w/Radiator Assy
4
Hose, Rad Upper
4 Cyl B66S-15-186
6 Cyl K801-15-18X
5
Hose, Rad Lower
4 Cyl B66S-15-185
6 Cyl 92-93 K805-15-18Y
94 K834-15-185
6
Blade, Fan
4 Cyl
Man Trans E358-15-140
Auto Trans FEH5-15-140
6 Cyl
Man Trans K801-15-140
Auto Trans K802-15-140
7
Shroud, Fan
4 Cyl
Man Trans B66S-15-210
Auto Trans B66T-15-210
6 Cyl K801-15-210
8
Motor, Fan
4 Cyl
Man Trans B66S-15-150
Auto Trans B66T-15-150
6 Cyl K801-15-150
9
Tank Assy, Coolant
K801-15-350A
Cap, Tank¶
K801-15-355
¶Included w/Coolant Tank Assy
10
Pump, Water
4 Cyl 92-93 B3C7-15-010A
94-96 8ABB-15-010A
6 Cyl 92-93 8AK2-15-010
94 8AK2-15-010
Pulley, Water Pump
4 Cyl B3C7-15-131
6 Cyl 92-93 KL01-15-131
94 KL47-15-131
Belt, Drive-See Electrical Section
A/C REFRIGERANT CAPACITIES
A/C R-12 Refrigerant Capacity
1992-93: 28 Ozs (1.75 Lbs)
A/C R-134a Refrigerant Capacity
1994-96: 26.5 Ozs (1.65 Lbs)
A/C /HEATER
1
Condenser
EA01-61-480A
2
Bracket, Condenser
R/L EA01-61-47Y
3
Fan, Condenser
4 Cyl EA01-61-710A
6 Cyl EA03-61-710A
4
Pipe, Receiver/Drier
EA70-61-465
5
Pipe, Condenser
EA70-61-464
6
Receiver/Drier
EA70-61-500
7
Tube, Receiver/Drier
92-93 EA70-61-466
94-96 EA70-61-466
8
Tube, Evaporator
92-93 EA01-61-467A
94-96 EA70-61-467
9
Hose, Pressure
4 Cyl 92-93 EA76-61-461
94-96 EA76-61-461
6 Cyl 92-93 EA03-61-461A
94 EA70-61-461
10
Hose, Suction
4 Cyl 92-93 EA01-61-462A
94-96 EA76-61-462
6 Cyl 92-93 EA03-61-462A
94 EA70-61-462
11
Compressor
4 Cyl 92-93 EA01-61-450
94-96 EA76-61-450C
6 Cyl 92-93 EA03-61-450
94 EA70-61-450C
Illustration Located in Next Column
12
Evaporator Assy
92-93 BR70-61-520B
94-96 EA70-61-520
13
Core, Evaporator¶
BR70-61-J10A
14
Valve, Expansion¶
92-93 BR70-61-J14
94-96 BC1M-61-J14
15
Thermostat¶
BR70-61-J20
16
Case, Evaporator Upper¶
BR70-61-J01
17
Case, Evaporator Lower¶
BR70-61-J02
¶Included w/Evaporator Assy
18
Heater Assy
4 Cyl 92-93 EA01-61-130A
94-96 EA76-61-130
6 Cyl 92-93 EA03-61-130A
94 EA70-61-130
19
Core, Heater¶
4 Cyl BR70-61-A10
6 Cyl EA29-61-A10
20
Linkage, Temp¶
BR70-61-A20
21
Linkage, Mode¶
BR70-61-A30
22
Case, Heater¶
R/L EA01-61-A01-2
¶Included w/Heater Assy
23
Blower Assy
92-93 EA77-61-140
94 EA70-61-140
24
Fan & Motor, Blower (a)
BR70-61-B10
25
Resistor (a)
BR70-61-B15
26
Case, Blower Upper (a)
BR70-61-B01
27
Case, Blower Lower (a)
BR70-61-B02
(a) Included w/Blower Assy
FRONT FENDER
1
Fender Assy
R EAY1-52-100
L EAY1-52-200
2
Brkt, Lamp¶
R EA01-52-241
L EA01-52-251
¶Included w/Fender Assy
3
Shield, Splash
R EA01-56-131B
L EA01-56-141B
4
Clip, Shield (3/Side)
R/L B455-56-135
5
Rivet, Shield (2/Side)
R/L B455-56-143
6
Grommet (2/Side)
R/L B455-56-145
Emblem
"GS" R/L EA29-51-761-60
UNDERHOOD DIMENSIONS
Illustration Located in Next Column
Page 3
MAZDA MX3 1992-96
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
68
madpl1_g01_
Page 68—April 22, 2004—13:29:46—Version Manufacturer
UNDERHOOD DIMENSIONS Cont’d
FRONT INNER STRUCTURE
FRONT
1
Support Assy, Radiator
E040-53-100
2
Bar, Upper Tie¶
E040-53-150
3
Bar, Lower Tie¶
EA01-53-160A
4
Crossmember, Lower¶
EA01-53-170A
5
Panel, Side¶
R E040-53-120
L E040-54-120
6
Extension, Upper¶
R EA01-53-130B
L EA01-54-130B
7
Bracket, Lower¶
R EA01-53-17Y
L EA01-54-17Y
¶Included w/Radiator Support Assy
8
Member, Upper
E040-56-17Y
9
Mount, Radiator
EA01-56-180B
10
Insulator, Mount-Serviced w/Rad Mount Assy
11
Bracket, Side
92-93 R EA01-53-32ZA
L EA01-54-325A
94-96 R E040-53-32Z
L E040-54-32Z
12
Support, Latch
EA01-53-35XB
SIDE
1
Apron Assy
R EA01-53-200
L EA01-54-200
2
Panel, Apron¶
R EA01-53-210C
L EA01-54-210C
3
Rail Assy, Front¶
R EA01-53-300A
L EA01-54-300
4
Bolt, Rail Mtg¶ (a)
92-93 R/L B455-53-319
94-96 R/L B456-53-319
¶Included w/Apron Assy
(a) Included w/Front Rail Assy
5
Reinf, Apron
R B481-53-281D
L B481-54-281D
6
Bracket, Front
R EA01-53-335
L EA01-54-335
7
Bracket, ABS
B603-54-39ZB
8
Hook, Tie-Down
R EA01-53-36XA
L EA01-54-36XA
9
Cover, Under
EA01-56-121A
10
Shield, Eng Front Splash
EA01-56-310A
11
Shield, Eng Rear Splash
4 Cyl B455-56-321B
6 Cyl E018-56-321
12
Extension, Splash Shield
Right
4 Cyl BC1D-56-114
6 Cyl EA07-56-114A
Left
w/ABS B603-56-115
w/o ABS B455-56-115
Mudguard¶
R E016-51-840A-PZ
L E016-51-850A-PZ
¶Black listed, Order by Application
D2 Creek Blue MC; PT Chaste White; PZ Brilliant Black;
SQ Blaze Red; 29 Sparkle Green M; 3L Silver Stone Metallic
13
Tray, Battery
Man Trans EA01-56-040A
Auto Trans EA02-56-040B
14
Bolt, Battery Hold
R B180-56-034A
L B455-56-034
15
Hold-Down, Battery
B465-56-03XA
16
Box, Battery
PN41-18-591A
17
Duct, Cooling
K801-18-596
18
Inlet, Duct
K806-18-596A
ABS
Illustration Located in Next Column
1
Sensor, Front ABS
R E042-43-70XA
L E042-43-73XA
2
Sensor, Rear ABS
R B603-43-72YJ
L E042-43-71Y
3
Clip, Sensor Harness
(4/Side) R/L B530-43-636
4
Hydraulic Unit, ABS
B603-43-7A0E
5
Mount, Hydraulic Unit
92-93 B603-43-7A6
94-96 GA2G-43-7A6
6
Brkt, Mounting
B603-43-310F
7
Band, Wire
B603-43-CG1
8
Retainer, Bracket
E020-41-35X
Box, ABS Cont
92-93 EA01-67-650A
94-96 EA70-67-650B
AIR BAG SYSTEM
1
Sensor, Front
R EA70-57-K2XE
L EA70-57-K2YD
2
Sensor, Center
EA70-57-K1XB
3
Sensor, Inner
EA70-57-K40
4
Bracket, Front Sensor
USA R EA90-57-KX0C
L EA90-57-KY0C
Canada-Serviced w/Front Sensor
5
Bracket, Center Sensor
EA70-57-KX3A
6
Bracket, Inner Sensor
EA70-57-KX1
7
Module Unit, Diagnostic
EA70-67-7F0A
8
Module Assy, Driver Air Bag
EA70-57-K00D
9
Switch, Horn¶
BC1M-57-K0Z
¶Included w/Driver Air Bag Module Assy
10
Module, Pass Air Bag
EA70-K7X-02
Clockspring¶-See Steering Wheel/Column Section
¶Serviced w/Combination Switch
CRUISE CONTROL SYSTEM
Illustration Located in Next Column
1
Actuator Assy, Cruise
EA01-66-310A
2
Bracket, Actuator¶
EA01-66-3A1
3
Bracket, Cable¶
EA01-66-3A2A
4
Guide, Cable¶
BR70-66-3A8A
¶Included w/Cruise Actuator Assy
5
Cable
4 Cyl EA76-66-311
6 Cyl BR70-66-311E
6
Control, Cruise
EA01-66-320A
7
Block, Main Fuse
4 Cyl EA01-66-760
6 Cyl EA03-66-760
Page 4
MAZDA MX3 1992-96
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
69
madpl1_g01_
Page 69—April 22, 2004—13:29:48—Version Manufacturer
WHEEL
1
Wheel, Steel
14x5-1/2JJ" 9965-A9-554
Cover Assy, Wheel
2 1992-93
To 2-1-92 EA25-37-170A
From 2-1-92 EA01-37-170
3 1994-96 EA70-37-170
4
Emblem¶ (a)
EA25-37-172B
¶Included w/Wheel Cover Assy
(a) Order by Application
Wheel Assy, Aluminum
514x5JJ"
To 2-1-92 8BE3-37-600
From 2-1-92 8BE5-37-600
15x6JJ"
6 1992-93
To 2-1-92 8BE4-37-600
From 2-1-92
GS, Base Model 8BE6-37-600
GS Special Edition 8BE9-37-600
7 1994 9965-B2-605
Emblem
8 1992-93¶ (a) EA30-37-192B
9 1994-96 EA02-37-192
¶Included w/Aluminum Wheel Assy
(a) Order by Application
Wheel, Spare
10 14x4TX" 9965-18-4040
11 15x4TX" 9965-23-4050
Stem, Valve¶
9963-60-4130
¶Order by Application
Nut, Lug
Steel Wheels 0603-26-161A
Alloy Wheels B002-37-160A
FRONT SUSPENSION
Illustration Located in Next Column
1
Rotor, Brake
R/L BB7E-33-25XD
2
Nut, Lock
R/L GJ21-33-042B
3
Hub
R/L B01A-33-060A
4
Ring, Bearing Snap
R/L B21M-33-048
5
Bearing, Wheel
R/L B455-33-047D-MV
6
Knuckle Assy
w/ABS R EA07-33-020E
L EA07-33-030E
w/o ABS R EA03-33-020E
L EA03-33-030E
7
Shield, Splash¶
R B01A-33-261B
L B01A-33-271B
¶Included w/Knuckle Assy
8
Seal, Wheel Bearing
R/L G304-33-065
9
Rotor, ABS
4 Cyl 92-93 R/L B613-33-471B
94-96 R/L B603-33-471
6 Cyl R/L B613-33-471B
Sensor, ABS-See Anti-Lock Brake System Section
10
Caliper, Brake
R BRY4-33-98ZR
L BRY4-33-99ZR
11
Arm Assy, Lower Control
R E016-34-300H
L E016-34-350H
12
Ball Joint¶
92-93 R/L E016-34-550
94-96 R/L BTDA-34-550
13
Bushing, Mounting¶
To 6-94 R EA01-34-46XA
L EA01-34-46YA
From 6-94 R BC1F-34-46X
L BC1F-34-46Y
14
Bushing, Lower Arm¶
R/L EA01-34-470
¶Included w/Lower Control Arm Assy
15
Bolt, Lower Arm
R/L B455-34-113
16
Strut¶
4 Cyl R E026-34-700D
L E026-34-900D
6 Cyl
w/ABS R E026-34-700D
L E026-34-900D
w/o ABS R E026-34-700D
L E026-34-900D
17
Spring, Coil¶
R/L EA06-34-011C
¶Order by Application
18
Bumper, Stopper
To 8-94 R/L B481-34-111A
From 8-94 R/L B455-34-111B
19
Cover, Lever
R/L B481-34-015
20
Seat, Spring Lower
R/L B455-34-012
21
Seat, Spring Upper
R/L B455-34-340A
22
Bushing, Mounting
R/L B455-34-38XB
23
Insulator, Mounting
R/L B455-34-380D
24
Bar, Stabilizer
4 Cyl E016-34-151
6 Cyl EA03-34-151B
25
Bracket, Stabilizer
To 6-94 R/L B461-34-155A
From 6-94 R/L BC1D-34-155B
26
Bushing, Stabilizer
4 Cyl R/L B459-34-156A
6 Cyl R/L EA03-34-156
27
Link, Stabilizer
R/L EA03-34-170A
28
Crossmember, Suspension
4 Cyl EA01-34-800G
6 Cyl EA03-34-800H
29
Reinf, Crossmember
6 Cyl B01C-34-H90
FRONT DRIVE AXLE
1
Shaft Assy, Axle
4 Cyl
1992-93 R FZ25-25-400A
L F025-25-600G
1994-96
Right
w/ABS
Man Trans FA10-25-50X
Auto Trans FA07-25-50X
w/o ABS
Man Trans F063-25-500R-0E
Auto Trans F063-25-500R-0E
Left
w/ABS F029-25-60XA
w/o ABS F025-25-600G
6 Cyl
1992-93
w/ABS R F035-25-50X
L F035-25-600A
w/o ABS R F036-25-500
L F036-25-600B
1994
Man Trans
w/ABS R GA07-25-50XA
L F035-25-60XA
w/o ABS R GA06-25-500A
L F036-25-600B
Auto Trans R FF01-25-500A
L F016-25-600B
2
Joint Set, Outer¶
4 Cyl
1992-93 R F025-22-510B
L F025-22-610B
1994-96
Right
w/ABS
Man Trans FA10-22-510
Auto Trans FA07-22-510
w/o ABS
Man Trans FA09-22-510C
Auto Trans F063-22-510C
Left
w/ABS F029-22-610B
w/o ABS F025-22-610B
6 Cyl
1992-93
w/ABS R F035-22-510A
L F035-22-610A
w/o ABS R F036-22-510A
L F036-22-610A
1994
Man Trans
w/ABS R GA07-22-510A
L F035-22-610A
w/o ABS R GA06-22-510A
L F036-22-610A
Auto Trans R FF01-22-510A
L F016-22-510A
3
Boot Kit, Outer¶ (a)
4 Cyl
1992-93 R/L BS10-V9-050-9U
1994-96 R/L BS10-V9-050-9U
6 Cyl
1992-93 R/L BS40-V9-050-9U
1994
Man Trans R/L BS40-V9-050-9U
Auto Trans R/L BS40-V9-050-9U
(a) Included w/Outer Joint Set
4
Joint Set, Inner¶
4 Cyl 92-93 R/L FZ02-22-520A
94-96 R F061-22-520
L FZ02-22-520A
6 Cyl
Page 5
MAZDA MX3 1992-96
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
70
madpl1_g01_
Page 70—April 22, 2004—13:29:49—Version Manufacturer
FRONT DRIVE AXLE Cont’d
1992-93 R F035-22-520
L F035-22-620A
1994
Man Trans R/L F065-22-520
Auto Trans R F015-22-520
L F015-22-620B
5
Boot Kit, Inner¶ (a)
4 Cyl 92-93 R/L F061-22-540-9U
94-96 R/L F061-22-540-9U
6 Cyl
1992-93 R/L F037-22-540-9U
1994
Man Trans R/L F037-22-540-9U
Auto Trans R/L F015-22-540
(a) Included w/Inner Joint Set
6
Damper¶
4 Cyl 92-93 L F002-25-411B
¶Included w/Axle Shaft Assy
7
Shaft Assy, Intermediate
4 Cyl
Man Trans F055-25-700B
Auto Trans F056-25-700C
6 Cyl
1992-93 G562-25-700B
1994
Man Trans GA09-25-700C
Auto Trans FA01-25-700A
8
Seal, Inner¶
4 Cyl G560-25-744
6 Cyl 92-93 G560-25-744
94 G569-25-744
9
Bearing¶
4 Cyl 9960-68-2064
6 Cyl 92-93 9960-68-2064
94 569-25-155
10
Brkt, Intermediate Shaft¶
4 Cyl
Man Trans F055-25-741A
Auto Trans F056-25-741A
6 Cyl 92-93 G564-25-741B
94 G569-25-741B
11
Seal, Outer¶
4 Cyl G560-25-742
6 Cyl 92-93 G560-25-742
94 G569-25-742
¶Included w/Intermediate Shaft Assy
FRONT STEERING LINKAGE/GEAR
1
Gear Assy
4 Cyl EA01-32-110R-0J
6 Cyl EA04-32-110R-0E
2
Rack, Steering¶
4 Cyl BR71-32-119
6 Cyl E018-32-119
3
Rod, Inner Tie¶
4 Cyl R E016-32-25X
L E016-32-24X
6 Cyl R/L E018-32-250A
4
Boot, Dust¶
4 Cyl R/L B456-32-125
6 Cyl R/L E018-32-125
5
Pinion¶
4 Cyl
To 4-93 BR71-32-380
From 4-93 BR72-32-380
6 Cyl EA04-32-380
6
Pipe, Pressure¶
4 Cyl BR71-32-451
6 Cyl EA04-32-45X
7
Pipe, Return¶
4 Cyl BR71-32-451
6 Cyl EA04-32-45YA
8
Pipe, Crossover¶
4 Cyl BR71-32-481
6 Cyl 92-93 EA04-32-480
94 EA04-32-480A
9
Bracket, Gear Mount¶
4 Cyl R/L B456-32-134-3
6 Cyl R E018-32-133A
L E018-32-134
10
Bushing, Gear Mount¶
4 Cyl R B595-32-123
L B456-32-124
6 Cyl R E018-32-123A
L E018-32-124
¶Included w/Gear Assy
11
End, Tie Rod
R/L 8AB2-32-280
STEERING PUMP
Pump Assy, Steering
4 Cyl B456-32-600G
6 Cyl EA03-32-600D
Pulley, Pump¶
4 Cyl-Serviced w/Strg Pump Assy
6 Cyl E018-32-620
¶Included w/Steering Pump Assy
Reservoir, Pump
4 Cyl BR71-32-690D
6 Cyl EA03-32-690A
Bracket, Pump Mount
4 Cyl B25D-32-680
6 Cyl EA03-32-660
Support, Pump
4 Cyl B456-32-614
6 Cyl EA03-32-609
Hose, Pressure
4 Cyl BR71-32-49YC
6 Cyl EA04-32-490E
Hose, Return
4 Cyl EA01-32-684A
6 Cyl G563-32-684
Tube, Cooling
4 Cyl EA01-32-5L0B
6 Cyl EA03-32-5L0B

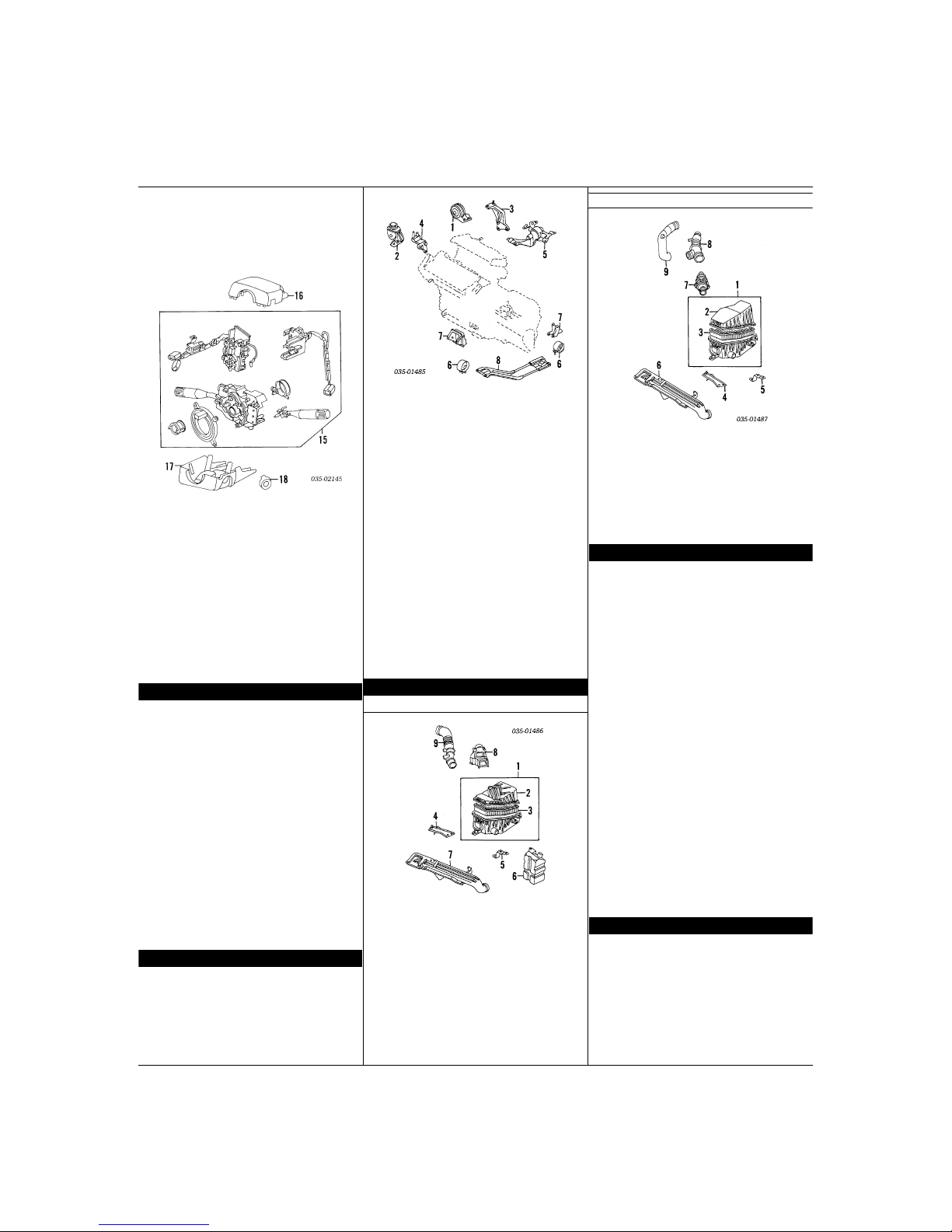

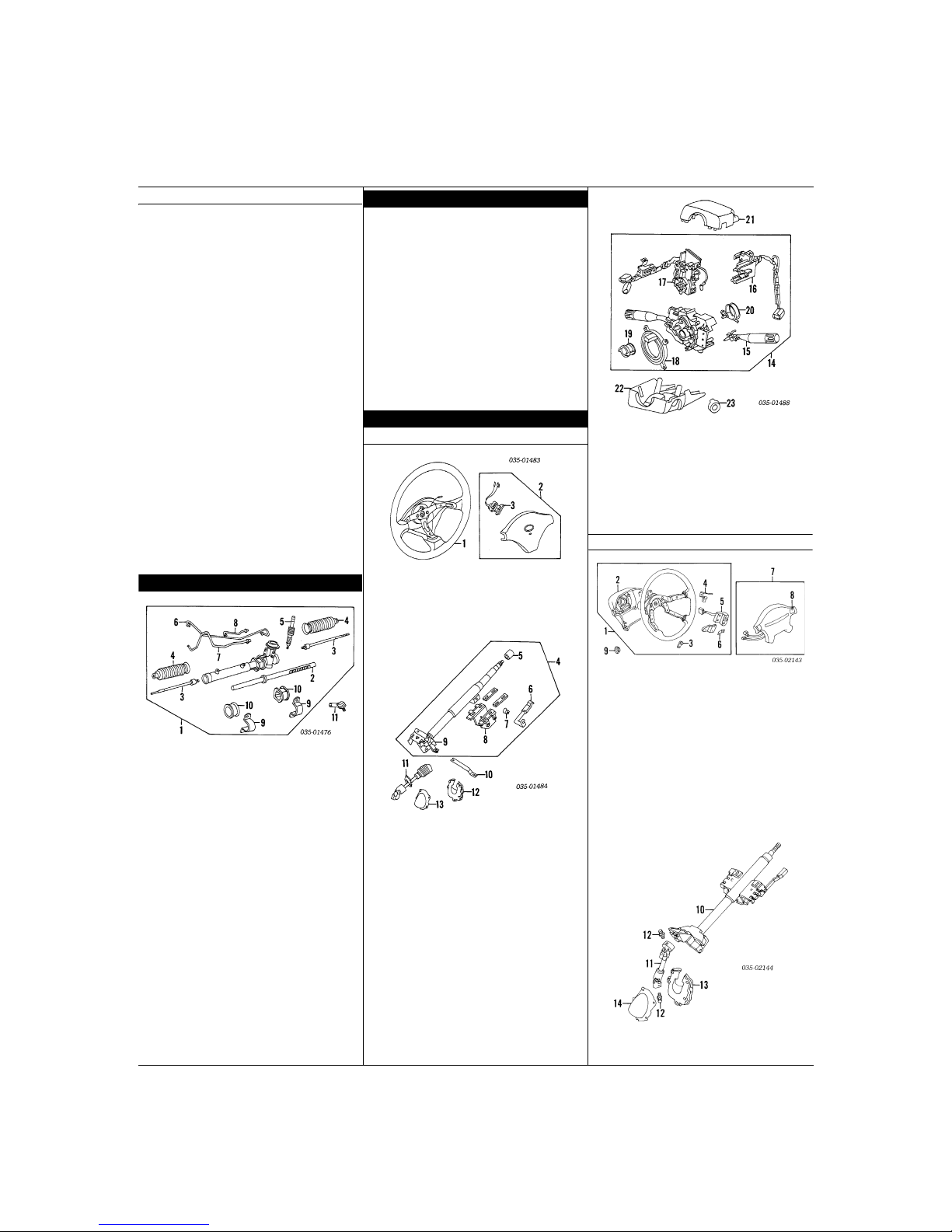

STEERING WHEEL/COLUMN
1992-93
1
Wheel, Steering
w/Cruise Control EA02-32-980A
w/o Cruise Control EA01-32-980A
2
Pad Assy, Horn
w/Cruise Control EA02-32-800A
w/o Cruise Control EA01-32-800
3
Switch, Cruise Control¶
BR70-66-3D1C
¶Included w/Horn Pad Assy
4
Column Assy
w/Tilt BR71-32-100G
w/o Tilt BR70-32-100E
5
Bushing (Tilt Column)¶
B001-32-071
6
Lever (Tilt Column)¶
B456-32-171
7
Retainer (Tilt Column)¶
B456-32-172
8
Bracket, Upper (Tilt Column)¶
BS07-32-175A
9
Bracket, Lower (Tilt Column)¶
BR71-32-140
¶Included w/Column Assy
10
Bracket, Support (Tilt Column)
BR71-32-104A
11
Shaft, Lower
EA01-32-090B
12
Cover, Lever
EA01-32-215A
13
Retainer, Cover
BR70-32-210E
Illustration Located in Next Column
14
Switch Assy, Combination
Base Model EA01-66-120
GS Model
w/Cruise Control EA04-66-120
w/o Cruise Control EA02-66-120
15
Lever, Wiper Switch¶
Base Model EA01-66-128
GS Model EA02-66-128
16
Switch, Wiper¶
EA25-66-135
17
Switch, Lamp¶
EA01-66-122
18
Ring, Switch¶
EA04-66-SP0
19
Cam, Turn Signal¶
w/Cruise Control EA04-66-126
w/o Cruise Control BR70-66-126
20
Clamp¶
BR70-66-124
¶Included w/Combination Switch Assy
21
Cover, Upper
EA01-60-220A
22
Cover, Lower
EA01-60-230A
23
Grommet, Key Cylinder
LA01-60-261
Lock Assy, Ignition
Man Trans EA01-76-290A
Auto Trans EA02-76-290A
Switch, Ignition¶
B455-66-151A
¶Included w/Ignition Lock Assy
1994-96
1
Wheel Assy, Steering
USA
w/Cruise Control BC1E-32-980
w/o Cruise Control BC1D-32-980G
Canada
w/Cruise Control
w/Air Bag N.A.
w/o Air Bag N.A.
w/o Cruise Control
w/Air Bag N.A.
w/o Air Bag N.A.
2
Cover, Wheel¶
BC1D-32-049
3
Bracket, Upper¶
BC1D-32-750
4
Bracket, Lower¶
9927-60-806
5
Switch, Cruise Control¶
BC1E-66-3D1A
6
Clip, Switch¶
2667-15-303A
¶Included w/Steering Wheel Assy
7
Module, Air Bag-See Air Bag System Section
Clockspring-Serviced w/Combination Switch
8
Switch, Horn-See Air Bag System Section
9
Cap
BC1D-32-9L1
10
Column
USA EA70-32-100B
Canada
Page 6
MAZDA MX3 1992-96
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
71
madpl1_g01_
Page 71—April 22, 2004—13:29:51—Version Manufacturer
w/Air Bag N.A.
w/o Air Bag N.A.
11
Shaft, Lower
USA EA70-32-090
Canada
w/Air Bag N.A.
w/o Air Bag N.A.
12
Bolt, Shaft (2)
B455-32-099A
13
Cover, Lever
EA01-32-215A
14
Retainer, Cover
BR70-32-210E
15
Switch, Combination
Base Model EA71-66-120B
GS Model EA70-66-120B
16
Cover, Upper
BC1D-60-221A
17
Cover, Lower
BC1D-60-230A
18
Grommet, Key Cylinder
LA01-60-261
Lock Assy, Ignition
USA
Man Trans EA70-76-290C
Auto Trans EA71-76-290C
Canada
Man Trans
w/Air Bag N.A.
w/o Air Bag N.A.
Auto Trans
w/Air Bag N.A.
w/o Air Bag N.A.
Switch, Ignition¶
USA FD01-66-151A
Canada
w/Air Bag N.A.
w/o Air Bag N.A.
¶Included w/Ignition Lock Assy
ENGINE/TRANS
Pulley, Crankshaft
4 Cyl 92-93 B587-11-401A
94-96 B6BF-11-401A
6 Cyl K801-11-400B
Cover, Timing
4 Cyl
1992-93
Upper (Assy) B630-10-510B
Lower (Assy) B630-10-500D
1994-96
Upper B6BF-10-511A
Center B6BF-10-521
Lower B660-10-501E
6 Cyl R KL01-10-500E
L KL01-10-510C
Seal, Timing Cover
4 Cyl
Upper
1992-93 (a) B630-10-512A
1994-96 B6BF-10-540B
Lower
1992-93 (b) B630-10-502B
1994-96-Serviced w/Lower Timing Cover Assy
6 Cyl KL01-10-530F
(a) Included w/Upper Timing Cover Assy
(b) Included w/Lower Timing Cover Assy
Pan, Eng Oil
4 Cyl 92-93 B366-10-400A
94-96 B6BF-10-400A
6 Cyl KL01-10-400
Sealant, Eng Oil Pan
8527-77-739
ENGINE/TRANS MOUNTS
Illustration Located in Next Column
Mount, Eng Upper
14 Cyl
1992-93 BR70-39-060B
1994-96
Man Trans B456-39-040C
Auto Trans EA76-39-060
2 6 Cyl EA03-39-060A
Bracket, Eng Upper
3 4 Cyl 92-93 B461-39-030C
94-96 BC1D-39-030D
4 6 Cyl EA03-39-030
5
Mount, Trans Upper
4 Cyl
Man Trans B596-39-100B
Auto Trans B599-39-100A
6 Cyl
Man Trans EA03-39-100B
Auto Trans 92-93 EA04-39-100C
94 EA71-39-100A
6
Mount, Eng Lower
4 Cyl
1992-93 R B456-39-040C
L B455-39-050B
1994-96
Man Trans R B456-39-040C
L B455-39-050B
Auto Trans R EA77-39-040A
L EA77-39-050
6 Cyl R EA03-39-040
L EA03-39-050
7
Bracket, Eng Lower
Man Trans
4 Cyl R B455-39-010B
L B455-39-020A
6 Cyl R BR74-39-010C
L EA03-39-020A
Auto Trans R B458-39-010F
L EA03-39-020A
8
Member, Eng Mounting
4 Cyl B455-39-800D
6 Cyl EA03-39-800C
AIR CLEANER
4 CYL
1
Cleaner Assy, Air
92-93 B66S-13-320
94-96 B6CK-13-320
2
Cover, Air Cleaner¶
92-93 B66S-13-Z01
94-96 B6CK-13-Z01
3
Element, Air Cleaner¶
K801-13-Z40-9U
¶Included w/Air Cleaner Assy
4
Bracket, Front
K801-20-210
5
Bracket, Rear
K801-20-220
6
Resonator
K801-13-19XB
7
Duct, Air Intake¶
92-93 K801-13-200C
94-96 K834-13-200B
¶Add'l Parts &/or Dealer Contact Required
8
Meter, Air Flow
92-93 B6S7-13-210R-0A
94-96 B6BF-13-215
9
Hose, Air Flow Meter
92-93 B66S-13-220
94-96 B6BF-13-220C
6 CYL
1
Cleaner Assy, Air
92-93 K801-13-320C
94 K834-13-320
2
Cover, Air Cleaner¶
92-93 K801-13-Z01
94 K834-13-Z01
3
Element, Air Cleaner¶
K801-13-Z40-9U
¶Included w/Air Cleaner Assy
4
Bracket, Front
K801-20-210
5
Bracket, Rear
K801-20-220
6
Duct, Air Intake
92-93 K801-13-200C
94 K834-13-200B
7
Meter, Air Flow
JE50-13-210R-00
8
Hose, Air Flow Meter
K801-13-220D
9
Duct, Resonator
92-93 K801-13-18XA
94 K834-13-18X
EXHAUST
Manifold, Exhaust
4 Cyl 92-93 B67K-13-450A
94-96 B6CK-13-451A
6 Cyl R KL01-13-4F0B
L K802-13-450C
Shield, Heat
4 Cyl 92-93 B67K-13-390B
94-96 B6CK-13-390D
6 Cyl
1992-93 R KL02-13-390A
L KL02-13-390A
1994
w/Calif Emission R KL50-13-3K0A
L KL50-13-390A
w/o Calif Emission R KL02-13-390A
L KL02-13-390A
Pipe, Front Exhaust
4 Cyl 92-93 BP04-40-500B
94-96 B6H7-40-500C
6 Cyl
1992-93 K801-40-500B
1994
w/Calif Emission K817-40-500
w/o Calif Emission K801-40-500B
Converter, Catalytic
4 Cyl
1992-93 B69T-20-600A
1994-96
w/Calif Emission B6DE-20-600B
w/o Calif Emission B6DC-20-600C
6 Cyl
1992-93 K802-20-600
1994
w/Calif Emission K834-20-600
w/o Calif Emission K802-20-600
Resonator
4 Cyl 92-93 B685-40-300B
94-96 B6G3-40-300C
6 Cyl K804-40-300D
Muffler
4 Cyl 92-93 B6E5-40-100A
94-96 B6G2-40-100A
6 Cyl
Man Trans K801-40-100D
Auto Trans K801-40-100D
EMISSION SYSTEM
Canister, Vapor
BP01-13-970
Bracket, Vapor Canister
B6S7-13-961
Valve, EGR
4 Cyl B6BF-20-300
6 Cyl K801-20-300A
Solenoid, EGR Control¶
4 Cyl B6BF-18-74X
6 Cyl 92-93 K801-18-740
94 K801-20-300A
¶Add'l Parts &/or Dealer Contact Required
Control Unit, EFI¶
4 Cyl
1992-93
Man Trans B66S-18-881R
Auto Trans B66T-18-881R
Page 7
MAZDA MX3 1992-96
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
72
madpl1_g01_
Page 72—April 22, 2004—13:29:52—Version Manufacturer
EMISSION SYSTEM Cont’d
1994-96
Man Trans ZPB9-18-881R
Auto Trans ZPC0-18-881R
6 Cyl 92-93 K801-18-881R
94 ZPC3-18-881R
¶Remanufactured Part. Contact Dealer for Core Charge & Exchange
Information
ELECTRICAL
ALTERNATOR
Alternator Assy¶
4 Cyl 92-93 B66S-18-300R-00
94-96 Z505-18-300R-00
6 Cyl KL11-18-300R-00
¶Remanufactured Part. Contact Dealer for Core Charge & Exchange
Information
Pulley, Alternator¶
4 Cyl B3C7-18-W10
6 Cyl K801-18-W11
¶Included w/Alternator Assy
Bracket, Alternator Mount
4 Cyl-Serviced w/Eng Upper Bracket
6 Cyl KL05-18-371B
Bracket, Alternator Adjust
4 Cyl BP01-18-361
6 Cyl KL01-18-360
Belt, Drive
4 Cyl B6BF-18-381-9U
6 Cyl K805-18-381B
BATTERY
Battery¶
0000-80-0035-WB
¶Order by Application
HORN
Horn
FB03-66-790A
IGNITION/FUEL
Coil, Ignition
B6S7-18-10XA
Module, Control¶
4 Cyl EA01-67-580
6 Cyl EA02-67-580
¶Order by Application
WINDSHIELD
1
Glass, Windshield
Mazda
Base Model EA01-63-901A
GS Model EA02-63-901A
2
Dam, Windshield
3120mm B481-50-894
3880mm J001-50-899A
4500mm GA7B-50-895
3
Moulding Assy, Surround
E040-50-601B
4
Clip, Moulding¶
R GA7B-50-6A6
L GA7B-50-6A7
¶Included w/Surround Moulding Assy
5
Spacer
R/L B455-50-891A
6
Retainer Assy, Glass
R EA01-50-G3X
L EA01-50-G3Y
7
Seal, Retainer¶-Serviced w/Glass Retainer Assy
¶Included w/Glass Retainer Assy
8
Protector, Moulding Side
R/L GA2A-50-6B2
9
Protector, Moulding Upper
To 8-1-91 GA2A-50-6B1
From 8-1-91 E016-50-6B1
Moulding, Inside Garnish
1992-93¶ R EA01-68-160A-06
L EA01-68-170A-06
1994-96 R EA17-68-160-06
L EA17-68-170-06
¶Gray listed, Order by Application
06 Gray; 28 Taupe
Mirror, Rear View
EA01-69-220
Cover, Mirror
M001-69-225A-00
Visor, Sun¶
w/Sunroof 92-93 R EA05-69-270C-07
L EA05-69-320C-07
94-96 R EA21-69-270C-07
L EA72-69-320-07
w/o Sunroof 92-93 R EA01-69-270C-07
L EA01-69-320C-07
94-96 R EA17-69-270C-07
L EA70-69-320-07
¶Gray listed, Order by Application
07 Gray; 28 Taupe
WIPER SYSTEM
1
Blade, Wiper
R NC11-67-330-9U
L BJ0E-67-330-9U
2
Arm, Wiper
R EA02-67-321
L EA01-67-321
3
Cap, Wiper Arm
R/L LA01-67-395C
4
Link Assy, Wiper
EA01-67-360B
5
Arm, Wiper Link¶
R BS34-67-362
L BS34-67-361
6
Pivot, Wiper¶
R EA02-67-363A
L BR71-67-364
¶Included w/Wiper Link Assy
7
Motor, Wiper
EA25-67-340
8
Tank Assy, Washer
B455-67-480A
9
Tank, Washer¶
B455-67-481A
10
Cap, Tank¶
B455-67-483
11
Pump, Washer¶
S084-76-672
12
Switch, Level¶-Not Serviced
¶Included w/Washer Tank Assy
Nozzle, Washer
R/L GA6B-67-510
COWL & DASH
1
Grille Assy, Cowl
EA01-50-790C
2
Protector, Grille¶
EA01-50-794A
3
Cap¶ (3)
M001-50-795B
¶Included w/Cowl Grille Assy
4
Plate, Baffle
R BS34-56-191A
L BS34-56-192A
5
Panel, Cowl Front
B481-70-62YC
6
Panel, Dash Upper
92-93 EA01-53-510D
94-96 EA70-53-510
7
Panel, Dash Lower
92-93 EA01-53-400
94-96 EA70-53-400B

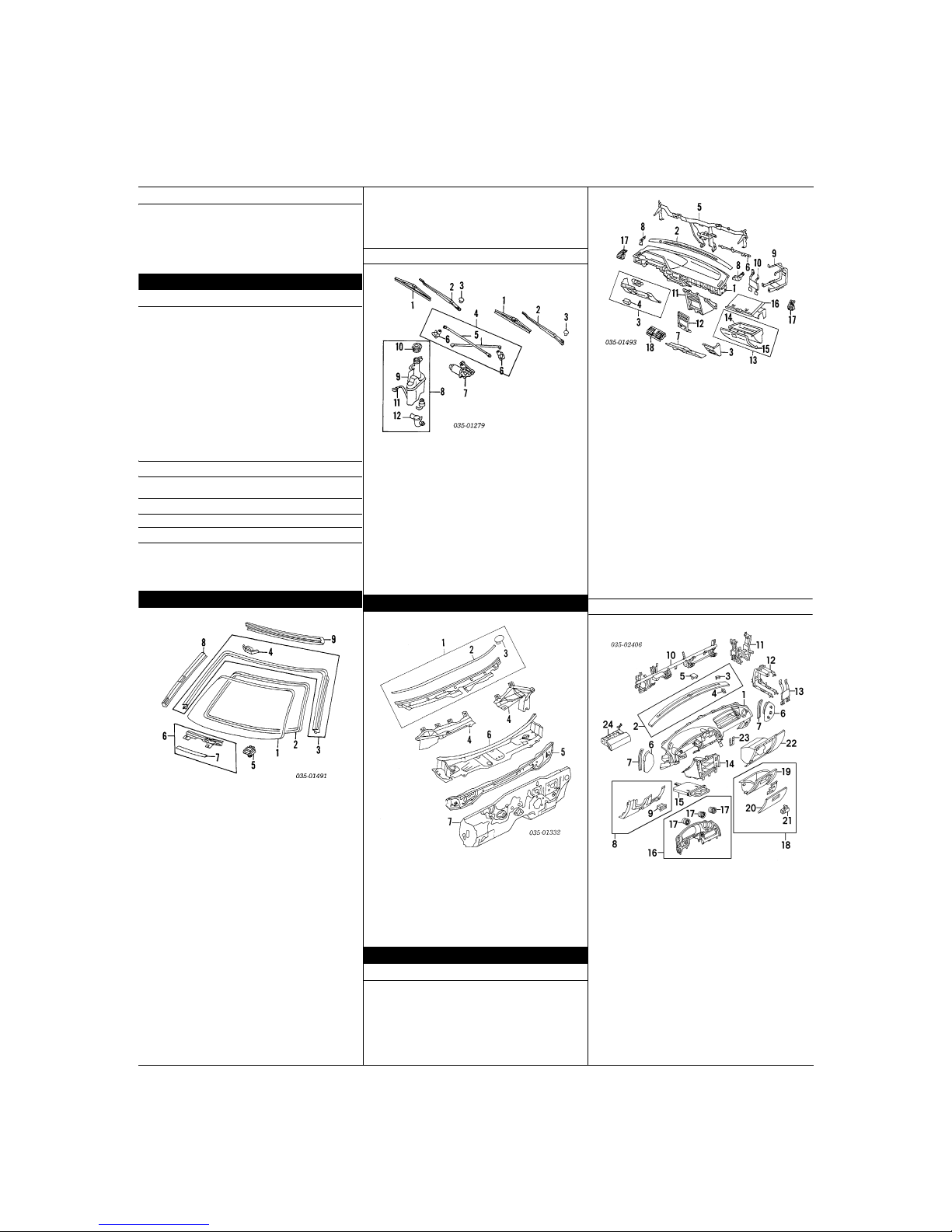

INSTRUMENT PANEL
1992-93
Illustration Located in Next Column
1
Panel, Instrument¶
BS34-60-350H-02
2
Garnish, Upper
EA01-60-720A-02
3
Pad Assy, Lower
EA01-64-280-02
4
Louver, Lower Pad¶ (a)
FB01-64-850
¶Black listed, Order by Application
02 Black; 26 Taupe
(a) Included w/Lower Pad Assy
5
Crossmember, Inst Panel
EA01-60-420E
6
Reinforcement, Inst Panel
BR70-60-430
7
Cover, Under Dash
BR70-64-520A
8
Bracket, Inst Panel
R BR70-60-56X
L BR70-60-58X
9
Frame, Upper
BR70-60-610
10
Frame, Lower
BR70-60-620
11
Panel, Center Lower¶
EA01-64-270A-02
¶Black listed, Order by Application
02 Black; 26 Taupe
12
Panel, Finish
EA01-55-210A
13
Glove Box Assy¶
BR70-64-030A-02
¶Black listed, Order by Application
02 Black; 26 Taupe
14
Glove Box (a)
BR70-64-161A
15
Lid, Glove Box (a)
BR70-64-041-02
(a) Included w/Glove Box Assy
16
Cover, Glove Box
BR70-64-110
17
Grille, Vent Side¶
R B481-64-730A-00
L B481-64-830A-00
18
Grille, Vent Center¶
B481-64-930B-00
¶Black listed, Order by Application
00 Black; 26 Taupe
1994-96
1
Panel, Instrument
USA EA70-60-350E
Canada
w/Air Bag N.A.
w/o Air Bag N.A.
2
Garnish Assy, Upper
EA01-60-720A-02
3
Cover, Hole¶
B455-60-731-02
4
Spring¶ (11)
H260-64-343
¶Included w/Upper Garnish Assy
5
Cover, Center Hole
EA01-55-574-02
6
Panel, Side
R EA70-64-950B
L EA70-64-960B
7
Cover, Side Panel
R B481-64-912A
L B481-64-922A
8
Pad Assy, Lower
EA71-64-280
9
Louver, Lower Pad¶
BC1D-64-293A
¶Included w/Lower Pad Assy
10
Crossmember, Inst Panel
USA EA70-60-420B
Canada
w/Air Bag N.A.
w/o Air Bag N.A.
11
Bracket, Right Side
EA70-60-450B
12
Frame, Upper
BR70-60-610
Page 8
MAZDA MX3 1992-96
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
73
madpl1_g01_
Page 73—April 22, 2004—13:29:54—Version Manufacturer
13
Frame, Lower
BR70-60-620
14
Panel, Center Lower
EA70-64-270B
15
Holder, Cup
BC1D-64-39XC
16
Hood Assy, Meter
EA70-55-420A
17
Grille, Ventilator¶ (3)
EA71-64-930
¶Included w/Meter Hood Assy
18
Glove Box Assy
EA70-64-030E-02
19
Glove Box¶
EA70-64-030E-02
20
Lid, Glove Box¶
EA70-64-041A
21
Lock, Glove Box¶
BC1D-64-090C-02
¶Included w/Glove Box Assy
22
Cover, Glove Box
EA70-64-260C
23
Striker, Glove Box
BC1D-64-101
24
Module, Air Bag-See Air Bag System Section

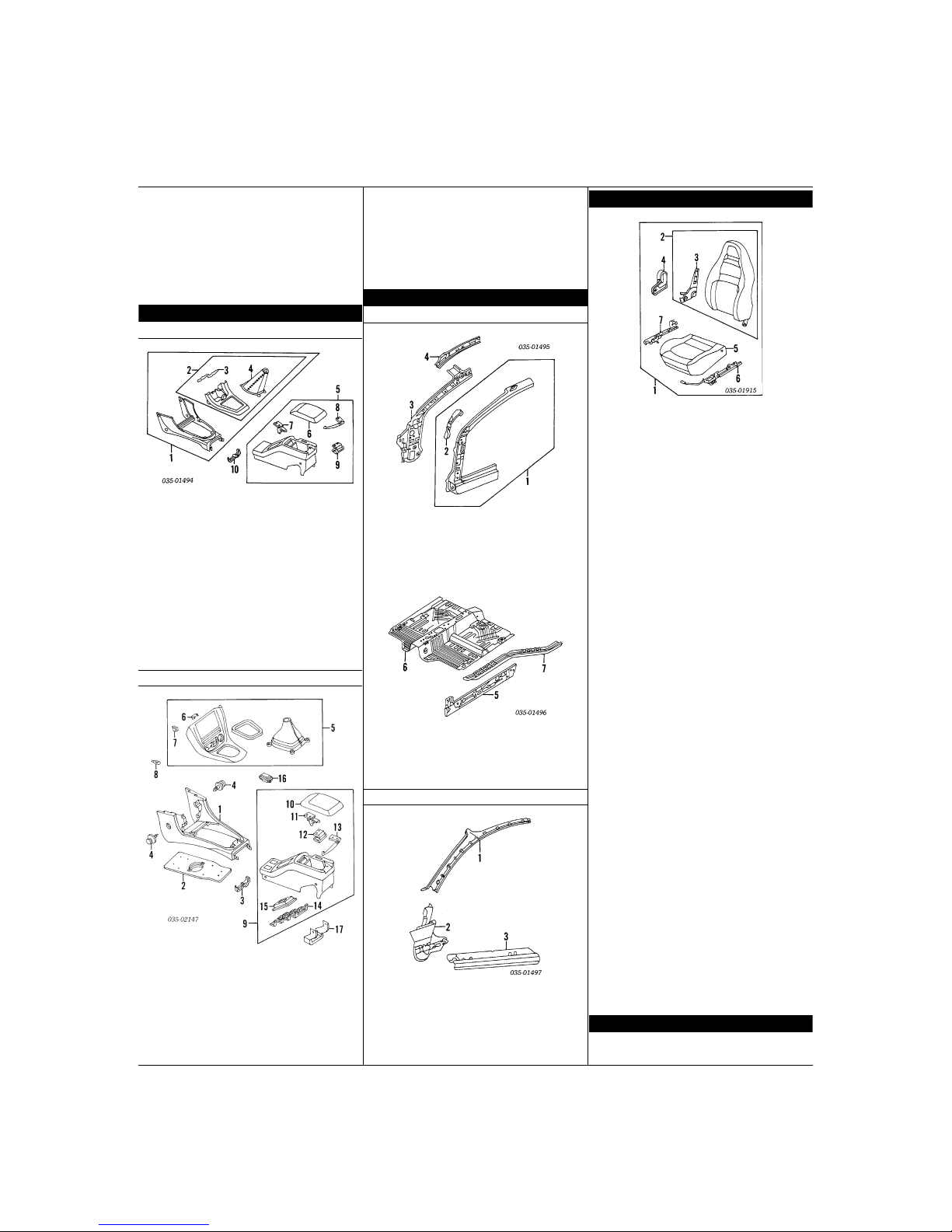

CENTER CONSOLE
1992-93
1
Console Assy, Front¶
Man Trans EA01-64-320A-02
Auto Trans B482-64-320E-02
¶Black listed, Order by Application
02 Black; 26 Taupe
2
Panel Assy, Center (a)
Man Trans EA01-55-220A
Auto Trans B482-55-220E
3
Plate (a) (b) (2)
FC01-55-257
4
Boot, Shift (a) (b)
Man Trans EA01-64-330A
(a) Included w/Front Console Assy
(b) Included w/Center Panel Assy
5
Console Assy, Rear (a)
EA01-64-420E-02
6
Lid, Console¶ (a)
EA01-64-450B-02
7
Lock, Console¶ (a)
EA01-64-45YB-00
8
Limiter, Lid¶ (a)
EA25-64-45ZC
9
Hinge, Lid¶ (a)
EA01-64-45XB-00
¶Included w/Rear Console Assy
(a) Black listed, Order by Application
00 Black; 26 Taupe
10
Bracket, Console
B455-64-326
1994-96
1
Console, Front
EA70-64-320A
2
Insulator, Console
Man Trans B455-68-643B
3
Bracket, Front Console
B455-64-326
4
Fastener, Front Console
R/L GJ21-68-885B-02
5
Panel Assy, Center
Man Trans EA70-55-210A
Auto Trans EA71-55-210A
Spring, Center Panel¶
6 Type A J001-55-219
7Type B
Man Trans (6) GA2A-64-343B
Auto Trans (8) GA2A-64-343B
¶Included w/Center Panel Assy
8
Bulb, Center Panel
0000-11-0074
9
Console Assy, Rear
EA25-64-420C-02
10
Lid, Console¶
EA01-64-450B-02
11
Lock, Console Lid¶
EA01-64-45YB-00
12
Hinge, Lid¶
EA01-64-45XB-00
13
Stopper, Lid¶
EA25-64-45ZC-00
14
Plate, Lid¶
EA25-64-433
15
Boot, Rear Console¶
EA25-64-432
¶Included w/Rear Console Assy
16
Cover, Hole
G188-55-225A
17
Bracket, Rear Console
EA25-64-426
ROCKER/PILLARS/FLOOR
SHEET METAL
1
Pillar Assy, Outer Hinge
R EAY1-70-210A
L EAY1-71-210A
2
Brace, Pillar¶
R EA01-70-290
L EA01-71-290
¶Included w/Outer Hinge Pillar Assy
3
Pillar, Inner Hinge
R EAY1-70-24X
L EAY1-71-24X
4
Rail, Roof-See Roof Section
Antenna
0000-81-930B-CR
5
Panel, Inner Rocker
R EA01-53-950B
L EA01-54-950B
6
Pan, Front Floor
92-93 BR70-53-600D
94-96 EA70-53-600
7
Rail, Front
92-93 R BR70-53-660C
L BR70-54-660B
94-96 R EA01-53-660
L EA01-54-660
INTERIOR TRIM
1
Mldg, Inside Garnish-See Windshield Section
2
Panel, Side Kick
R EA01-68-371A-02
L EA01-68-391A-02
3
Plate, Scuff
R/L EA01-68-710A-02
FRONT SEAT
1
Seat Assy¶
USA
4 Cyl 92-93 R EA01-57-100J-02
L EA01-57-150G-02
94-95 R EA70-57-100B-02
L EA70-57-150B-02
6 Cyl
1992-93 R EA03-57-100H-02
L EA03-57-150F-02
1994 R EA71-57-100B
L EA71-57-150B
Canada
1992-93
Base Model R/L N.A.
GS Model R/L N.A.
2
Back Assy, Seat¶ (b)
USA
4 Cyl 92-93 R EA01-88-130C-02
L EA01-88-180C-02
94-95 R EA71-88-130-02
L EA71-88-180-02
6 Cyl R EA70-88-130-02
L EA70-88-180-02
Canada
1992-93
Base Model R/L N.A.
GS Model R/L N.A.
1994
4 Cyl R EA71-88-130-02
L EA71-88-180-02
6 Cyl R EA70-88-130-02
L EA70-88-180-02
1995-96 R EA71-88-130-02
L EA71-88-180-02
¶Black/Blue listed, Order by Application
02 Black/Blue; 26 Dark Taupe
3
Adjuster, Recline (a) (b)
1992-93 R EA01-88-101
L BR70-88-151
1994-96 R EA70-88-101
L EA70-88-155
(a) Included w/Seat Back Assy
4
Cover, Adjuster¶ (b)
R BR70-88-127B-02
L BR70-88-177B-02
5
Cushion Assy, Seat¶ (b)
USA
4 Cyl 92-93 R EA01-88-110A-02
L EA01-88-160A-02
94-95 R EA71-88-110-02
L EA71-88-160-02
6 Cyl 92-93 R EA03-88-110-02
L EA03-88-160-02
94 R EA70-88-110-02
L EA70-88-160-02
Canada
1992-93
Base Model R/L N.A.
GS Model R/L N.A.
1994
4 Cyl R EA71-88-110-02
L EA71-88-160-02
6 Cyl R EA70-88-110-02
L EA70-88-160-02
1995-96 R EA71-88-110-02
L EA71-88-160-02
¶Blue/Black listed, Order by Application
02 Blue/Black; 26 Dark Taupe
6
Adjuster, Outer Slide (b)
1992-93 R EA01-88-152
L EA03-88-103
1994-96 R E040-88-152
L EA71-88-103
7
Adjuster, Inner Slide (b)
1992-93 R EA01-88-153
L EA03-88-102
1994-96 R EA70-88-153
L EA71-88-102
(b) Included w/Seat Assy
REAR SEAT
Page 9
MAZDA MX3 1992-96
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
74
madpl1_g01_
Page 74—April 22, 2004—13:29:55—Version Manufacturer

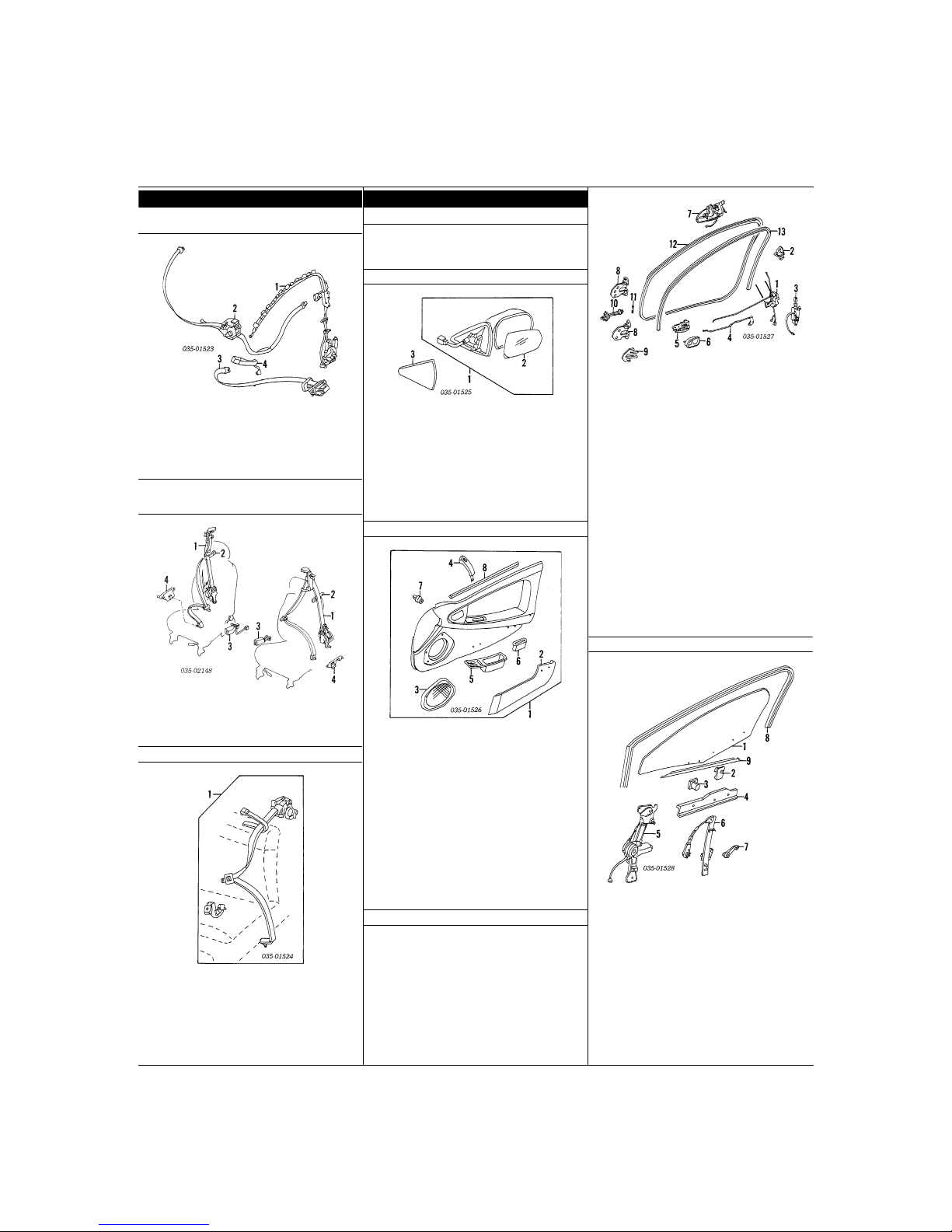

SEAT BELTS
FRONT
USA 1992-93
1
Retractor, Shoulder Belt
R EA01-57-930D
L EA01-57-990D
2
Belt Set, Shoulder¶
EA01-57-920B-00
3
Belt, Lap¶
R EA01-57-940A-00
L EA01-57-980A-00
4
Buckle, Lap Belt¶
R EA01-57-620A-00
L EA01-57-680A-00
¶Black listed, Order by Application
00 Black; 27 Taupe
FRONT
USA 1994-95
CANADA 1992-96
1
Belt, Seat
R EA70-57-630D-00
L EA70-57-690E-00
2
Plate, Seat Belt
R/L BJ83-57-985A
3
Buckle, Seat Belt
R E040-57-620C
L E040-57-680A
4
Bracket, Seat Belt
R/L EA70-57-925A
REAR
1
Belt, Rear Seat¶
92-93 R EA01-57-710-02
L EA70-57-770A-02
94-95 R EA70-57-710B-02
L EA70-57-770A-02
¶Black listed, Order by Application
02 Black; 27 Taupe
Bracket, Seat Belt
R EA01-57-71X
L EA01-57-78X
FRONT DOOR
SHEET METAL
Shell Assy, Door
R EAY1-58-020A
L EAY1-59-020A
Panel, Door Repair¶
R EA01-58-031D
L EA01-59-031D
¶Included w/Door Shell Assy
EXTERIOR TRIM
1
Mirror Assy, Rear View¶
R EA01-69-120B-PZ
L EA01-69-180B-PZ
¶Black listed, Order by Application
D2 Creek Blue MC; J4 Passion Rose;
PT Chaste White; PZ Brilliant Black;
SQ Blaze Red; UF Clear White;
Z1 Bluish Green Metallic; 3L Silver Stone Metallic
4R Passion Yellow Mica; 6C Mighty Gray;
6M Elegant Beige; 6V Raspberry Metallic
2
Glass, Mirror (a)
R EA01-69-123
L DB18-69-183
(a) Included w/Rear View Mirror Assy
3
Garnish, Interior
R EA01-69-111B
L EA01-69-123
INTERIOR TRIM
1
Panel Assy, Trim¶
1992-93 R EA03-68-420F-02
L EA03-68-450G-02
1994-96
w/Pwr Windows R EA70-68-420B-02
L EA70-68-450B-02
w/o Pwr Windows R EA71-68-420B-02
L EA71-68-450B-02
2
Pocket, Door¶ (a)
R EA01-68-4C1A-02
L EA01-68-4N1A-02
3
Grille, Speaker¶ (a)
R EA01-68-4H0-02
L EA01-68-4W0-02
¶Black listed, Order by Application
02 Black; 26 Dark Taupe
4
Handle, Right Pull (a)
EA01-68-D60A-00
Bezel, Left Pull (a)
5 w/Pwr Windows EA01-68-4L6-00
6 w/o Pwr Windows LA01-68-D71-00
7
Clip, Panel (a) (8/Side)
R/L G350-68-AB1
8
Weatherstrip, Inner (a)
R EA01-58-821
L EA01-59-821
(a) Included w/Trim Panel Assy
Speaker, Radio
R/L 0000-81-102B
HARDWARE
Illustration Located in Next Column
1
Latch, Door
w/Pwr Locks 92-93 R EA03-58-310B
L EA03-59-310C
94-96 R EA19-58-310C
L EA19-59-310D
w/o Pwr Locks 92-93 R EA01-58-310B
L EA01-59-310A
94-96 R EA17-58-310C
L EA17-59-310D
2
Striker
R/L B092-58-361A
3
Actuator, Pwr Lock
R EA03-58-350A
4
Pivot, Lock
R EA01-58-39YA
L EA01-59-39YA
5
Handle, Inner
R EA01-58-330E-02
L EA01-59-330F-02
6
Bezel, Inner Handle
R EA01-58-303-02
L EA01-59-303-02
7
Handle, Outer¶
R GA5R-58-410G-PZ
L EA01-59-410G-PZ
¶Black listed, Order by Application
D2 Creek Blue MC; J4 Passion Rose;
PT Chaste White; PZ Brilliant Black;
SQ Blaze Red; UF Clear White;
Z1 Bluish Green Metallic; 3L Silver Stone Metallic
4R Passion Yellow Mica; 6C Mighty Gray;
6M Elegant Beige; 6V Raspberry Metallic
29 Sparkle Green M.
8
Hinge, Door
Upper R H432-58-210A
L H432-59-210A
Lower R EA01-58-240C
L EA01-59-240C
9
Shim, Hinge
R/L B092-58-201A
10
Check, Door
R/L EA01-58-270B
11
Pin, Check
92-93 R/L B455-58-265
94-96 R/L BC1D-58-265
12
Weath erst rip, Door
R EA01-58-760D
L EA01-59-760D
13
Welt, Door¶
R EA01-68-911B-02
L EA01-68-912B-02
¶Black listed, Order by Application
02 Black; 26 Taupe
GLASS & PARTS
1
Glass, Front Door
Mazda R EA01-58-511A
L EA01-59-511A
2
Grommet (2/Side)
R/L EA01-58-502
3
Clip, Holder (2/Side)
R/L DA97-58-514A
4
Holder, Glass
R EA01-58-512
L EA01-59-512
5
Regulator, Power¶
R EA05-58-560D
L EA05-59-590A
6
Regulator, Manual
R EA01-58-560B
L EA01-59-560B
¶Add'l Parts &/or Dealer Contact Required
7
Handle, Regulator
92-93 R/L B092-58-580-00
94-96 R/L S084-58-580A-00
8
Run, Glass
R EAY1-58-60X
L EAY1-59-60XA
9
Moulding, Belt
R EA01-50-640C
L EA01-50-650C
Page 10
MAZDA MX3 1992-96
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

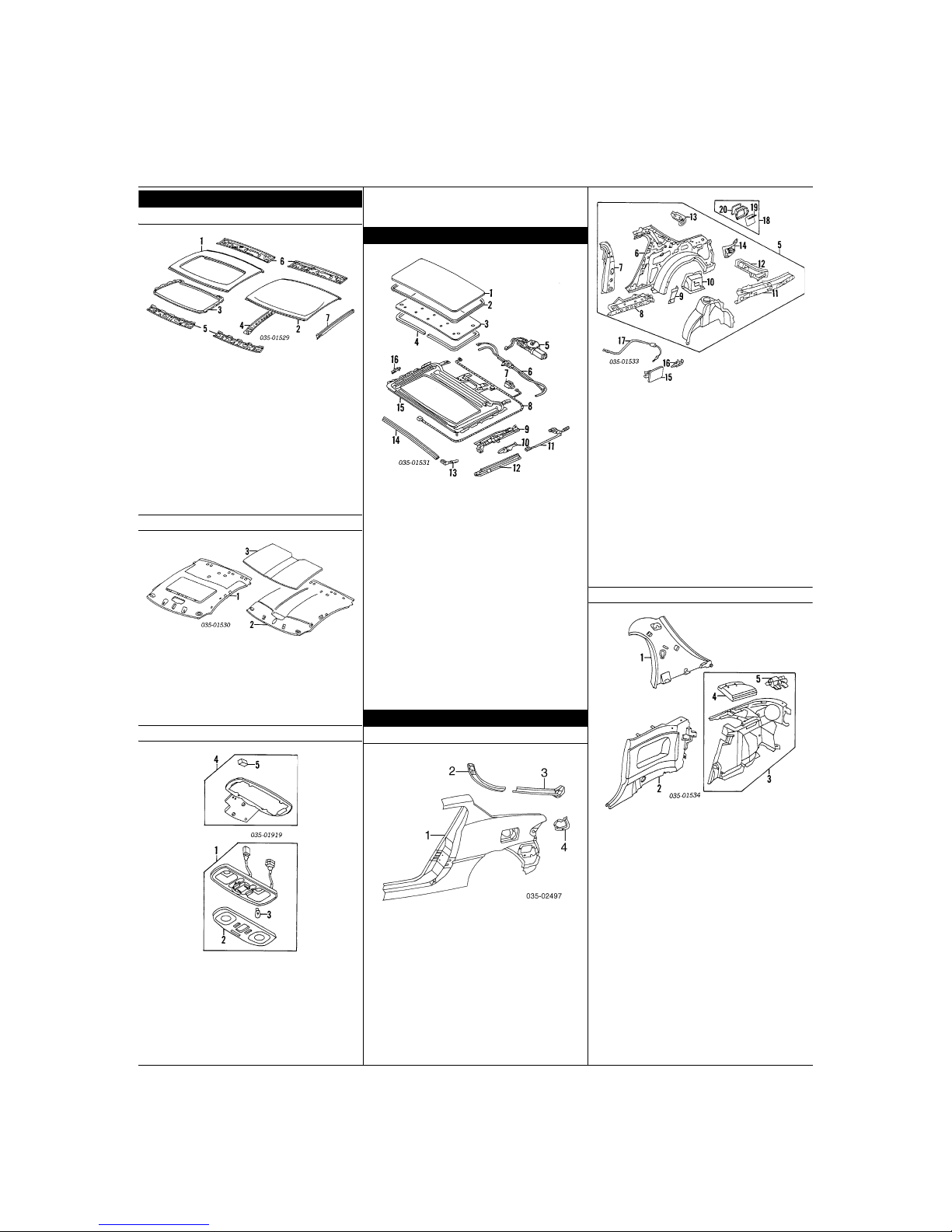

75
madpl1_g01_
Page 75—April 22, 2004—13:29:57—Version Manufacturer
ROOF
SHEET METAL
Panel, Roof
1 w/Sunroof EA05-70-601G
2 w/o Sunroof EA01-70-601F
Reinforcement, Roof
3 w/Sunroof EA05-70-630
4 w/o Sunroof EA01-70-661A
5
Panel, Front Header
EA01-70-640
6
Panel, Rear Header
EA01-70-700C
7
Moulding, Roof
1992-93¶ R EA01-50-9H0G-PZ
L EA01-50-9L0G-PZ
1994-96 R EA02-50-9H0G
L EA02-50-9L0H
¶Black listed, Order by Application
J4 Passion Rose; PZ Brilliant Black;
SQ Blaze Red; UF Clear White;
Z1 Bluish Green Metallic; 4R Passion
Yellow Mica; 6C Mighty Gray;
6M Elegant Beige; 6V Raspberry Metallic
INTERIOR TRIM
Headliner¶
1 w/Sunroof 92-93 EA05-68-030E-08
94-96 EA21-68-030E-08
2 w/o Sunroof 92-93 EA01-68-030E-08
94-96 EA17-68-030E-08
3
Insulator, Roof¶
EA01-68-021
Holder, Sun Visor¶
R/L H260-69-261-06
Hook, Hanger¶
EA01-69-531A-06
¶Gray listed, Order by Application
06 Gray; 28 Taupe
OVERHEAD CONSOLE
1
Console Assy, Overhead (a)
w/Sunroof EA05-69-970C-06
w/o Sunroof EA01-69-970C-06
(a) Gray listed, Order by Application
06 Gray; 28 Taupe
2
Lens¶
w/Sunroof EA05-69-973
w/o Sunroof EA01-69-973
3
Bulb¶
0000-11-0194
¶Included w/Overhead Console Assy
4
Bracket Assy, Console
w/Sunroof EA21-69-98X
w/o Sunroof E016-69-981
5
Cushion, Brkt¶ (2)
92-93 GA2L-69-977A
94-95 EA21-69-977
¶Included w/Console Bracket Assy
SUNROOF
1
Panel, Sliding
EA05-69-810A
2
Weatherstrip
To 11-1-91 FB03-69-895C
From 11-1-91 EA05-69-825
3
Trim, Sliding Panel¶
EA05-69-960-08
4
Welt, Trim¶
EA05-69-981A-06
¶Gray listed, Order by Application
06 Gray; 08 Gray; 29 Taupe;
34 Taupe
5
Motor, Sunroof
EA05-69-848
6
Drive Unit, Sunroof
EA05-69-861
7
Relay, Motor
92-93 J005-69-873
94 EA05-69-873
8
Harness, Sunroof
EA05-69-872
9
Slide, Sunroof
R/L E002-69-868-9
10
Guide, Sunroof
92-93 R E002-69-864A
L E002-69-865A
94-96 R/L EA05-69-864-5
11
Rail, Closing
R/L FB03-69-865-6
12
Rail, Guide
92-93 R E002-69-851D
L E002-69-852D
94-96 R/L EA05-69-851-2
13
Link, Deflector
R FB03-69-846B
L FB03-69-847B
14
Deflector
FB03-69-845
15
Frame Assy, Sunroof
EA05-69-840
16
Bracket, Side¶ (2/Side)
R/L FB03-69-849
¶Included w/Sunroof Frame Assy
QUARTER PANEL
SHEET METAL
1
Panel, Outer
R EAY1-70-40X
L EAY1-71-40X
2
Rail, Upper
R EA01-70-442
L EA01-71-442
3
Rail, Lower
R EA01-70-44XB
L EA01-71-44XB
4
Panel, Corner
R EA01-70-481B
L EA01-71-481B
Illustration Located in Next Column
5
Panel Assy, Inner
R EA01-70-100A
L EA01-71-100B
6
Reinf, Inner¶
R EA01-70-11XE
L EA01-71-11XF
7
Pillar, Inner¶
R EAY1-70-140
L EAY1-71-140
8
Reinf, Side¶
R EA01-70-130A
L EA01-71-130A
9
Brace, Wheelhouse¶
R B455-70-152
L B455-71-152
10
Reinf, Susp Housing¶
R EA01-70-121A
L EA01-71-121A
11
Reinf, Lateral¶
R EA01-70-A4X
L EA01-71-A4X
12
Reinf, Upper¶
R EA01-70-13YB
L EA01-71-13YB
13
Brace, Stay¶
R EA01-70-17Y
L EA01-71-17Y
14
Reinf, Corner Panel¶
R EA01-70-11Y
L EA01-71-11Y
¶Included w/Inner Panel Assy
15
Lid, Filler
EA01-42-410
16
Opener, Lid
EA01-56-890D
17
Cable, Opener
BR94-56-880
18
Vent Assy, Pressure Release
R/L E016-51-920G
19
Retainer, Flap¶
R/L E016-51-924
20
Gasket¶
R/L E016-51-922
¶Included w/Pressure Release Vent Assy
INTERIOR TRIM
1
Panel, Upper Trim¶
1992-93 R EA01-68-190C-06
L EA01-68-210C-06
1994-96 R EA17-68-190C-06
L EA17-68-210C-06
¶Gray listed, Order by Application
06 Gray; 28 Taupe
2
Panel, Lower Trim (a)
1992-93
4 Cyl R E016-68-520E-02
L E016-68-550E-02
6 Cyl R EA03-68-520E-02
L EA03-68-550E-02
1994-96 R E041-68-520B-02
L E041-68-550-02
3
Panel Assy, Rear Trim (a)
R EA01-68-850G-02
L EA01-68-870G-02
4
Tray, Side (a) (b)
R EA01-68-J21-02
L EA01-68-J26-02
5
Hinge, Tray (a) (b)
R EA01-68-J22B-02
L EA01-68-J27B-02
(a) Black listed, Order by Application
(b) Included w/Rear Trim Panel Assy
Page 11
MAZDA MX3 1992-96
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

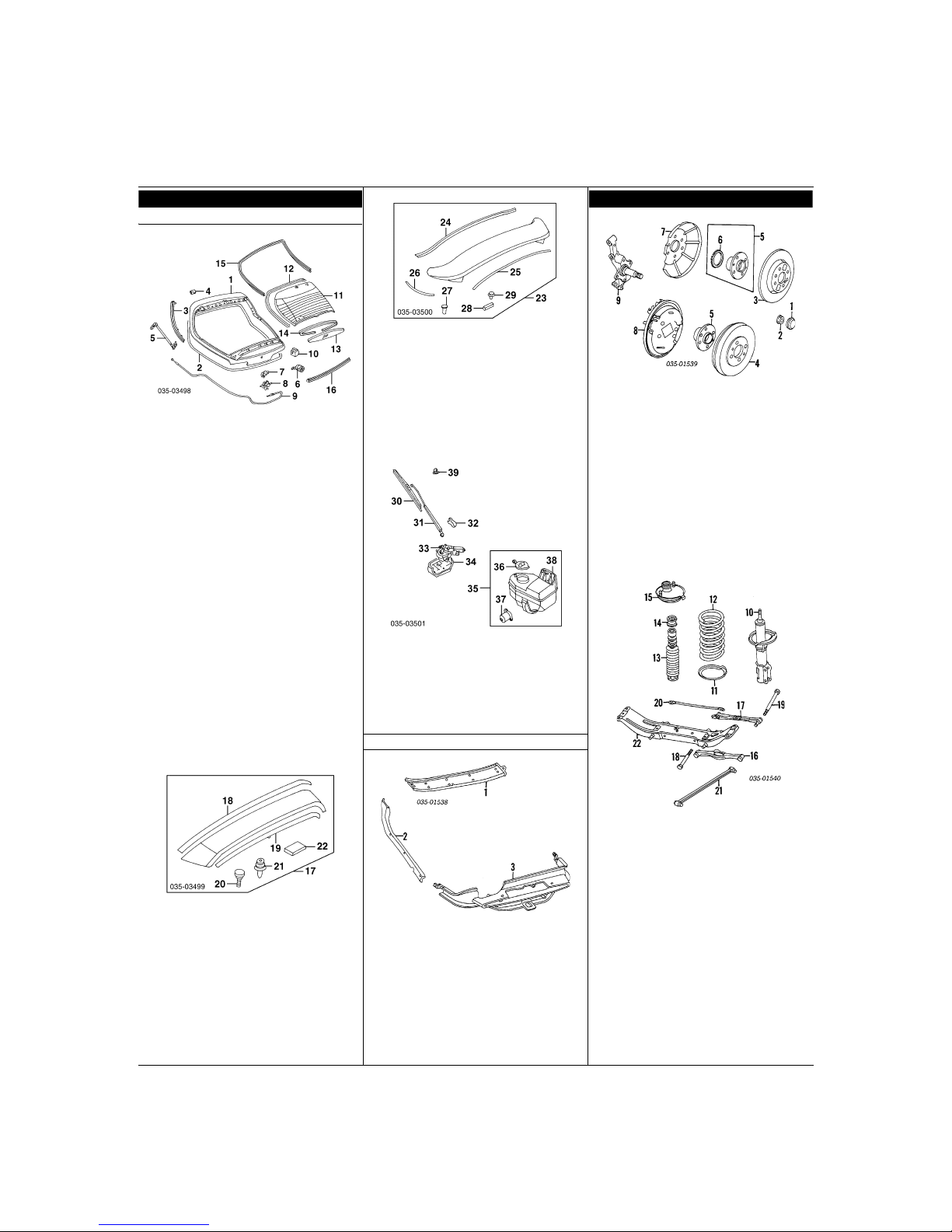

76
madpl1_g01_
Page 76—April 22, 2004—13:29:58—Version Manufacturer
LIFTGATE
SHEET METAL
1
Shell, Liftgate
w/Rear Wiper EAY2-62-020A
w/o Rear Wiper EAY1-62-020A
2
Weatherstrip, Liftgate
EA01-62-761C
3
Seal, Liftgate
R EA01-62-870A
L EA01-63-870A
4
Hinge
R/L EA01-62-210C
5
Stay, Liftgate
USA
4 Cyl
w/Rear Wiper R 8BE1-62-620B
L 8BE1-63-620B
w/o Rear Wiper R/L 8BE4-62-620B
6 Cyl
w/Rear Wiper R 8BE2-62-620B
L 8BE2-63-620B
w/o Rear Wiper R 8BE3-62-620B
L 8BE3-63-620B
Canada
4 Cyl R/L N.A.
6 Cyl R/L N.A.
6
Cylinder w/Keys
EA01-76-260A
7
Striker
EA01-62-361A
8
Latch
EA01-62-310C
9
Cable, Release
EA02-56-870
10
Guide
R EA01-62-681B
L EA01-63-681B
11
Glass, Liftgate Upper
Mazda
w/Rear Wiper EB21-63-930
w/o Rear Wiper EA01-63-930D
12
Dam, Upper Glass
92-93 E016-50-899A
94-95 E016-50-899A
13
Glass, Liftgate Lower
Mazda EA01-63-960C
14
Dam, Lower Glass
GA7B-50-894
Emblem
"MAZDA" EA25-51-711
"MX-3" 92-93 EA25-51-721
94-96 EA25-51-721A
"V6" E018-51-771A
"Precidia"
Canada N.A.
15
Moulding, Upper Reveal
EA01-50-611D
16
Moulding, Lower Reveal
EA01-50-612D
17
Garnish Assy, Liftgate
EA01-50-810B
Protector, Garnish¶
18 Upper EA01-50-813B
19 Lower EA01-50-814
20
Bolt, Garnish¶ (8)
EA01-50-854B
21
Clip, Garnish¶
G043-50-742
22
Cushion, Garnish¶ (4)
EA01-50-818
¶Included w/Liftgate Garnish Assy
Illustration Located in Next Column
23
Spoiler Assy, Rear¶
EA02-V4-920
¶Black listed, Order by Application
D2 Creek Blue MC; J4 Passion Rose;
PT Chaste White; PZ Brilliant Black;
SQ Blaze Red; UF Clear White;
Z1 Bluish Green Metallic; 3L Silver Stone Metallic
4R Passion Yellow Mica; 6C Mighty Gray;
6M Elegant Beige; 6V Raspberry Metallic
29 Sparkle Green M
24
Protector, Upper (a)
EA03-51-966B
25
Protector, Lower (a)
EA03-51-967
26
Protector, Side (a)
R/L EA03-51-968
27
Fastener, Spoiler (a)
GJ21-51-964
28
Cushion (a)
Inner R/L EA03-51-972A
Outer R/L EA03-51-982A
29
Bolt, Spoiler (6)
9983-30-508
(a) Included w/Rear Spoiler Assy
30
Blade, Wiper
EA05-67-330A
31
Arm, Wiper
EA01-67-421A
32
Cover, Arm
B093-76-641
33
Motor, Wiper
EA01-67-450B
34
Cover, Motor¶
EA01-67-459A-02
¶Black listed, Order by Application
35
Tank Assy, Washer
B467-67-480C
36
Cap, Tank¶
UB39-51-815
37
Pump, Washer¶
8532-76-672
38
Tank, Washer¶
B467-67-481C
¶Included w/Washer Tank Assy
39
Nozzle, Washer
EA02-67-510
INTERIOR TRIM
1
Panel, Trim Upper¶
E040-68-930C-00
2
Panel, Trim Side¶
R EA01-68-940E-02
L EA01-68-950E-02
3
Panel, Trim Lower¶
USA
w/Rear Wiper E018-68-960C-02
w/o Rear Wiper EA01-68-960C-02
Canada N.A.
¶Black listed, Order by Application
REAR SUSPENSION
1
Cap, Dust
R/L B455-26-071
2
Nut, Axle
R/L GJ21-33-042B
3
Rotor, Brake
R/L BB4C-26-251C
4
Drum, Brake
R/L D102-26-251
5
Hub Assy
w/ABS R/L B603-26-15XA
w/o ABS R/L B455-26-15XA
6
Ring, Sensor¶
R/L B603-26-471A
¶Included w/Hub Assy
Caliper, Brake
w/Pads R EAY6-26-98ZR
L EAY6-26-99ZR
w/o Pads R/L EAY6-26-98ZR
7
Shield, Splash
R/L B613-26-261A
8
Plate, Backing
R B596-26-280B
L BC1D-26-290A
9
Spindle
4 Cyl R B455-26-111D
L B455-26-115D
6 Cyl
w/ABS R B603-26-111
L B603-26-115B
w/o ABS R B461-26-111B
L B461-26-115B
10
Strut¶
4 Cyl
w/ABS R E026-28-700B
L E026-28-900B
w/o ABS R EA02-28-700B-9U
L EA02-28-900B-9U
6 Cyl
w/ABS R E026-28-700B
L E026-28-900B
w/o ABS R EA02-28-700B-9U
L EA02-28-900B-9U
¶Order by Application
11
Seat, Spring
R/L B455-28-0A3
12
Spring, Coil¶
R/L EA01-28-011
¶Order by Application
13
Boot, Dust
R/L B455-28-111A
14
Stopper, Rubber
R/L B455-28-340A
15
Insulator, Mounting
4 Cyl R/L B595-28-390A
6 Cyl R/L B595-28-390A
16
Link, Front Lateral
R E016-28-620B
L E016-28-630B
17
Link, Rear Lateral
R/L EA01-28-600
Bolt, Lateral Link
18 Front R/L B528-28-112A
19 Rear R/L B455-28-113
20
Rod, Strut
6 Cyl E018-28-671A
21
Link, Trailing
4 Cyl R BR74-28-200A
L BR74-28-250
Page 12
MAZDA MX3 1992-96
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

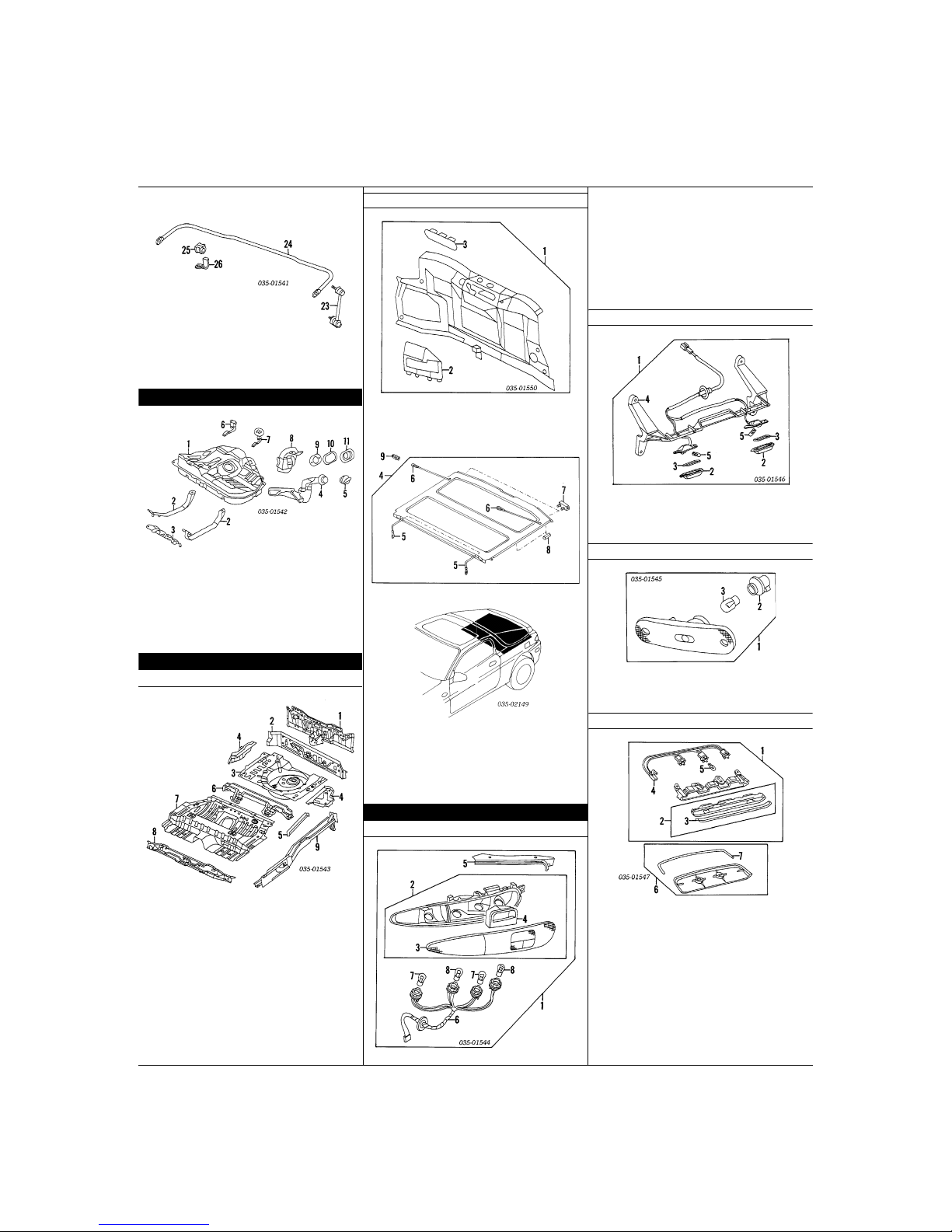

77
madpl1_g01_
Page 77—April 22, 2004—13:30:00—Version Manufacturer
6 Cyl R EA01-28-200
L EA01-28-250
22
Crossmember
E016-28-400A
23
Link, Stabilizer Bar
R/L EA01-28-170B
24
Bar, Stabilizer
4 Cyl EA01-28-151C
6 Cyl EA03-28-151C
25
Bushing, Bar
R/L BW0A-28-156A
26
Bracket, Bushing
R/L E016-28-15YB
FUEL TANK
1
Tank, Fuel
BR93-42-110B
2
Band, Tank Mtg
R B467-42-710F
L BR93-42-720B
3
Insulator, Tank
B455-42-751A
4
Pipe, Filler
EA01-42-210
5
Cap, Filler
GN60-42-250
6
Gauge, Fuel Tank
B475-60-960A
7
Pump, Fuel
B3E7-13-35ZB
8
Protector, Pipe
B467-42-291A
9
Gasket, Pipe
BF71-42-243
10
Seal, Pipe
B455-42-244
11
Cover, Lever
B455-42-242A
REAR BODY
SHEET METAL
1
Panel, Rear Body
EA01-70-750C
2
Panel, Lower
B467-53-940D
3
Pan, Rear Floor
BR93-53-730C
4
Extension, Floor Pan
R B467-53-740F
L B467-54-741C
5
Reinforcement, Side
R B455-53-715A
L B455-54-715A
6
Crossmember, Rear
B467-53-930D
7
Pan, Center Floor
BR93-53-720D
8
Crossmember, Center
B455-53-900F
9
Rail, Frame
R EA01-53-810G
L EA01-54-810F
INTERIOR TRIM
1
Panel Assy, Trim (a)
EA01-68-89XB-02
2
Cover, Jack¶ (a)
B467-68-8S0A-02
3
Cover, Center¶ (a)
B499-68-893-02
¶Included w/Trim Panel Assy
(a) Black listed, Order by Application
4
Cover Assy, Luggage Compartment¶
EA01-68-310C-02
¶Black listed, Order by Application
02 Black; 26 Dark Taupe
5
Strap, Front (a)
R/L B467-68-315
6
Strap, Rear (a)
R/L EA02-68-315
7
Rubber, Cushion (a)
R/L B060-68-318
8
Pad, Cover (a) (2/Side)
R/L B060-68-318
(a) Included w/Luggage Compartment Cover Assy
9
Hanger, Strap
R/L E016-68-301
REAR LAMPS
COMBINATION LAMP
1
Lamp Assy, Combination
R 8BE6-51-150
L 8BE6-51-160
2
Lens & Body Assy¶
R E016-51-170C
L E016-51-180C
3
Lens¶ (a)
R E016-51-151C
L E016-51-161C
4
Housing¶ (a)
R EA01-51-176
L EA01-51-186
(a) Included w/Lens & Body Assy
5
Bezel¶
R EA01-51-174A
L EA01-51-184A
6
Socket & Wire¶
R/L EA01-51-155
7
Bulb, Single Element¶
R/L 0000-11-0194
8
Bulb, Dual Element¶
R/L 0000-11-1157
¶Included w/Combination Lamp Assy
LICENSE LAMP
1
Lamp Assy, License
8BE1-51-270
2
Lens¶
R/L G225-51-274B
3
Gasket¶
R/L G225-51-273
4
Bracket, Lamp¶
R/L EA01-51-261A
5
Bulb¶
R/L 0000-11-0194
¶Included w/License Lamp Assy
SIDE MARKER LAMP
1
Lamp Assy, Side Marker
R EA01-51-5H0
L EA01-51-5J0
2
Socket¶
R/L BW3N-51-584
3
Bulb¶
R/L 0000-11-0194
¶Included w/Side Marker Lamp Assy
HIGH MOUNT STOP LAMP
1
Lamp Assy, Stop
E016-51-580C
2
Lens Assy¶
E016-51-58XB
3
Bezel, Lens¶ (a)
E016-51-589A
(a) Included w/Lens Assy
4
Socket & Wire¶
E016-51-584
5
Bulb¶ (3)
0000-11-0921
¶Included w/Stop Lamp Assy
6
Cover Assy, Lamp (a)
E016-51-58YB-02
(a) Black listed, Order by Application
02 Black; 26 Taupe
7
Gasket¶
E016-51-582B
¶Included w/Lamp Cover Assy
Loading...
