Mazda MX-30 (2021) Owner’s Manual

Page 1

Page 2

A Word to Mazda Owners

Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete customer satisfaction in mind.

To help ensure enjoyable and trouble-free operation of your Mazda, read this manual carefully and follow its recommendations.

Regular servicing of your vehicle by an expert repairer helps maintain both its roadworthiness and its resale value. A world-wide network of Authorised Mazda Repairers can help you with their professional servicing expertise. Their specially trained personnel are best qualiﬁed to service your Mazda vehicle properly and exactly. Also, they are supported by a wide range of highly specialized tools and equipment specially developed for servicing Mazda vehicles. When maintenance or service is necessary, consult an Authorised Mazda Repairer.

We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure and in your full satisfaction with your Mazda product.

Mazda Motor Corporation

HIROSHIMA, JAPAN

Important Notes About This Manual

Keep this manual in the glove compartment as a handy reference for the safe and enjoyable use of your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.

All speciﬁcations and descriptions are accurate at the time of printing. Because improvement is a constant goal at Mazda, we reserve the right to make changes in speciﬁcations at any time without notice and without obligation.

Please be aware that this manual applies to all models, equipment and options. As a result, you may ﬁnd some explanations for equipment not installed on your vehicle.

March 2021(Print2)

Page 3

How to Use This Manual

We want to help you get the most driving pleasure from your vehicle. Your owner's manual, when read from beginning to end, can do that in many ways.

Illustrations complement the words of the manual to best explain how to enjoy your Mazda. By reading your manual, you can ﬁnd out about the features, important safety information, and driving under various road conditions.

You'll ﬁnd several WARNINGs, CAUTIONs, and NOTEs in the manual.

WARNING

A WARNING indicates a situation in which serious injury or death could result if the warning is ignored.

CAUTION

A CAUTION indicates a situation in which bodily injury or damage to your vehicle, or both, could result if the caution is ignored.

NOTE

A NOTE provides information and sometimes suggests how to make better use of your vehicle.

The symbol below in this manual means “Do not do this” or “Do not let this happen”.

The following symbol indicates the ﬁrst operation, such as a push or a turn.

The following symbol indicates the second operation, such as a push or a turn.

The following symbol indicates the location of parts.

The following symbol indicates a change of status.

The following symbol, located on some parts of the vehicle, indicates that this manual contains information related to the part. Please refer to the manual for a detailed explanation.

Page 4

References to left hand and right hand are made as if facing in the same direction the vehicle faces. Although this manual explains a left-hand-drive model, it also applies to right-hand-drive models.

Index: A good place to start is the Index, an alphabetical listing of all information in your manual.

How to Use This Manual

Page 5

Important and Useful Information to Know Before Using the Vehicle

Important and Useful

Information to Know

Before Using the Vehicle

WARNING

Disassembly and modiﬁcation of vehicle parts

Do not disassemble or modify the following parts:

¾Air bags ¾Seat belts ¾Steering wheel ¾Sensors ¾Cameras ¾Headlight units ¾Suspension ¾Front seats ¾Front pillars, side pillars, rear pillars,

and edges

If parts are disassembled or modiﬁed, vehicle systems may not operate normally which could result in serious injury or death. If part replacement or repair is required, consult an Mazda Repairer.

Do not apply stickers or install accessories other than genuine parts to the following parts:

¾Air bags ¾Around the instrument panel ¾Sensors ¾Cameras ¾Window glass ¾Mirrors

If stickers are applied or accessories other than genuine parts are installed to these parts, vehicle systems may not operate normally or the installed parts could be knocked o, which could result in a serious accident. Consult an Mazda Repairer for installation of accessory parts.

Do not remove or move the number plates:

License plates are required by law to be installed to the proper positions.

Do not install non-genuine parts:

If non-genuine wheels and wheel nuts are installed, the vehicle performance might be may loosen and the wheels may come o while driving the vehicle, leading to an accident. Moreover, they may damage the drivetrain parts or constitute an illegal

Do not attempt to diagnose the air bag and pretensioner system circuits using an electrical tester or similar device:

Otherwise, they may not function normally or they may operate incorrectly, which could result in serious injury or death.

aected,

in addition, the nuts

modiﬁcation.

Page 6

Important and Useful Information to Know Before Using the Vehicle

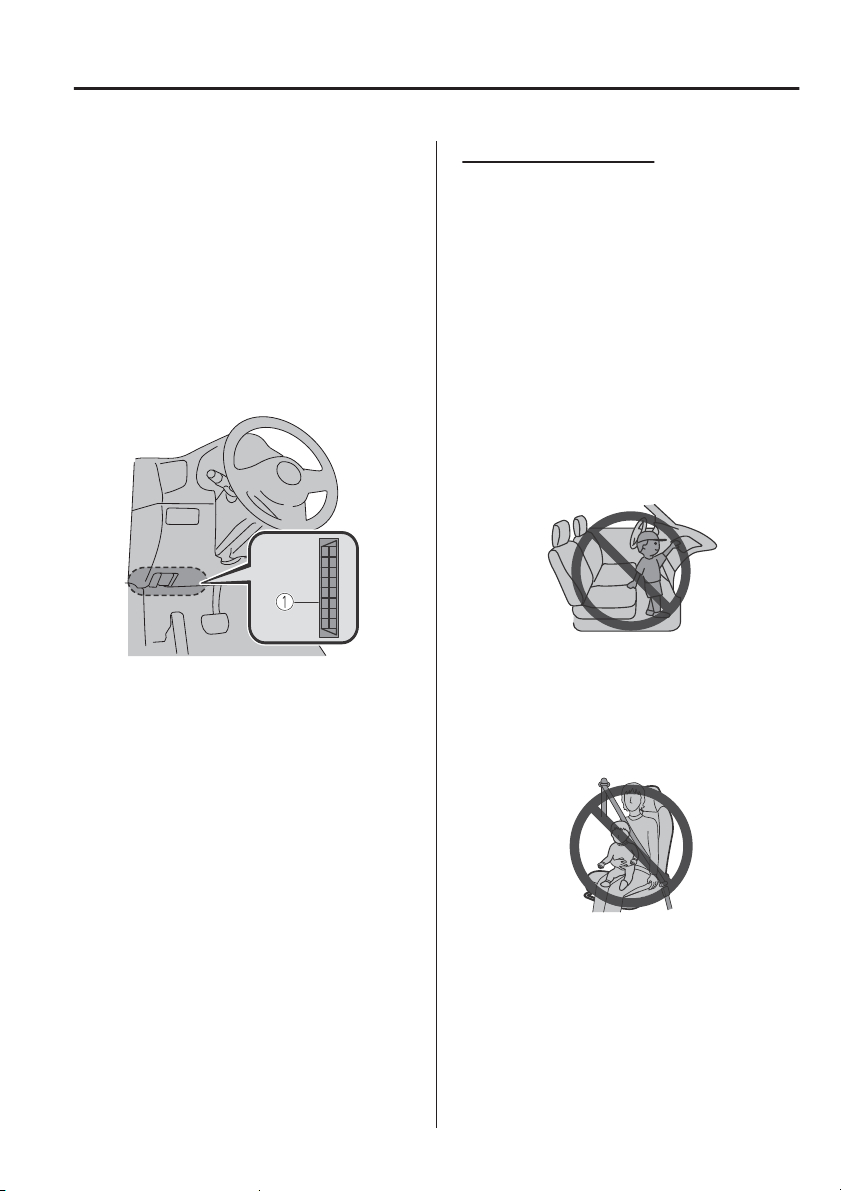

Do not connect any devices other than the specially designed malfunction diagnosis devices for servicing:

The malfunction diagnosis connector is designed exclusively for connecting the specially designed device to perform on-board diagnosis of vehicle malfunctions. If any device other than the malfunction diagnosis device is connected, it may aect the vehicle's electrical devices or lead to damage such as battery depletion.

1. Malfunction diagnosis connector

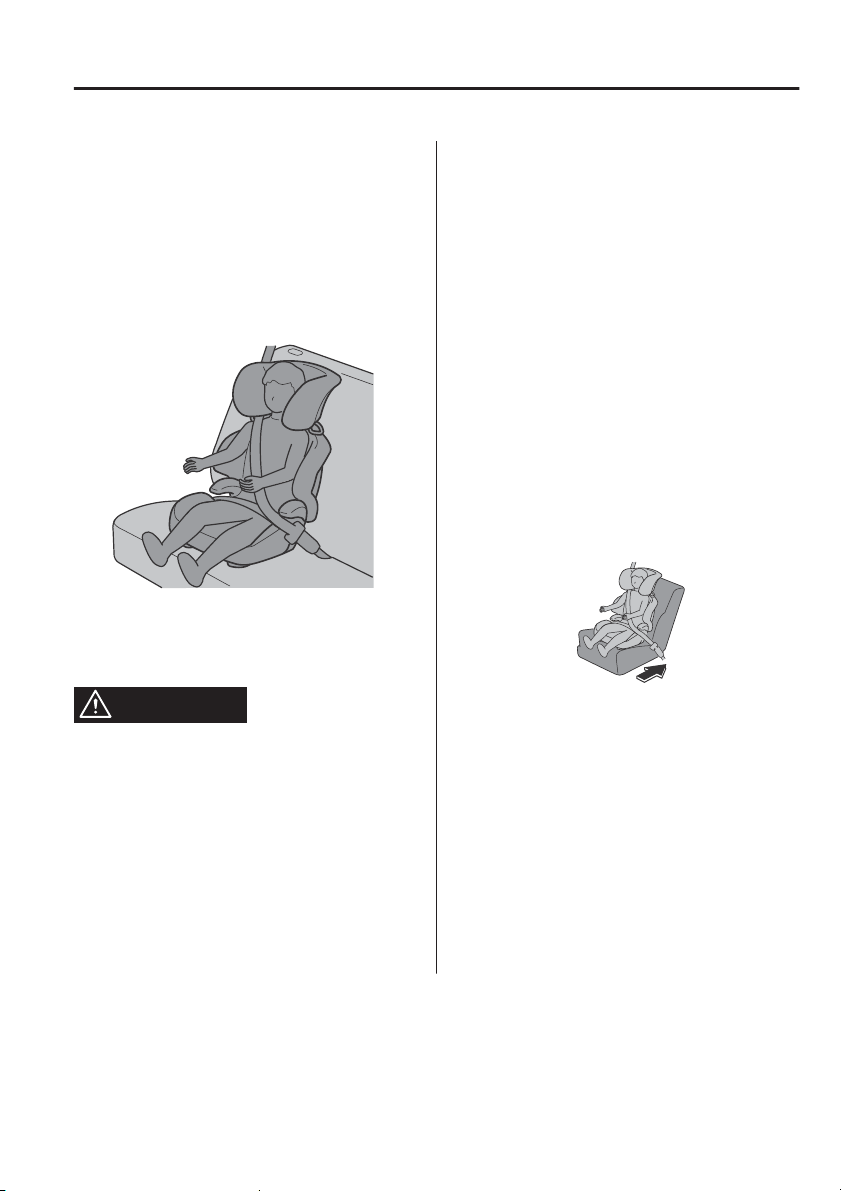

When carrying a child

Seat a child on the rear seat whenever possible and make sure that the seat belt is fastened:

For a child who cannot wear the seat belt correctly because the shoulder belt contacts the neck or face or the lap belt does not ﬁt securely around the pelvis, use a child-restraint system appropriate to the child’s age and body size. Do not allow a child to stand in front of an air bag or sit on the seat incorrectly. Otherwise, the child may receive a strong impact from a deploying air bag which could result in serious injury or death.

In addition, placing a child on a passenger's lap is dangerous. The child cannot be supported during sudden braking or a collision and could be thrown out or crushed, resulting in serious injury or death.

Page 7

Important and Useful Information to Know Before Using the Vehicle

Do not let a child put a hand or head out of the window:

Be careful not to let a child put a hand or head out of the window while driving the vehicle. If the child's hand or head hits something outside the vehicle or sudden braking is applied, it could result in serious injury or death.

Never leave a child alone in the vehicle:

¾Otherwise, an unattended child

could operate equipment, accelerate the vehicle, or cause a ﬁre, resulting in an accident.

¾The temperature inside the cabin

could become extremely hot and cause the child to become dehydrated. If the symptoms worsen, it could cause brain damage or result in serious injury or death.

Luggage

Never hang heavy or sharp objects on the assist grips and coat hooks:

Using a coat hanger when hanging clothing is dangerous as it can be knocked o and hit an occupant in the cabin if a curtain air bag was to deploy, which could result in serious injury or death.

Never hang objects on levers such as the wiper lever, direction indicator lever, or selector lever:

Hanging objects on levers such as the wiper lever, direction indicator lever, or selector lever is dangerous as it the lever could switch to an unintended lever position due to acceleration/ deceleration, vibration, or impact while driving the vehicle, resulting in an accident.

Do not directly load luggage on the roof:

Do not directly load luggage on the roof. Otherwise, the luggage may collapse resulting in an accident.

Do not carry ﬂammable material or hazardous objects:

Do not carry containers ﬁlled with fuel or spray cans. Otherwise, it could lead to an explosion or ﬁre.

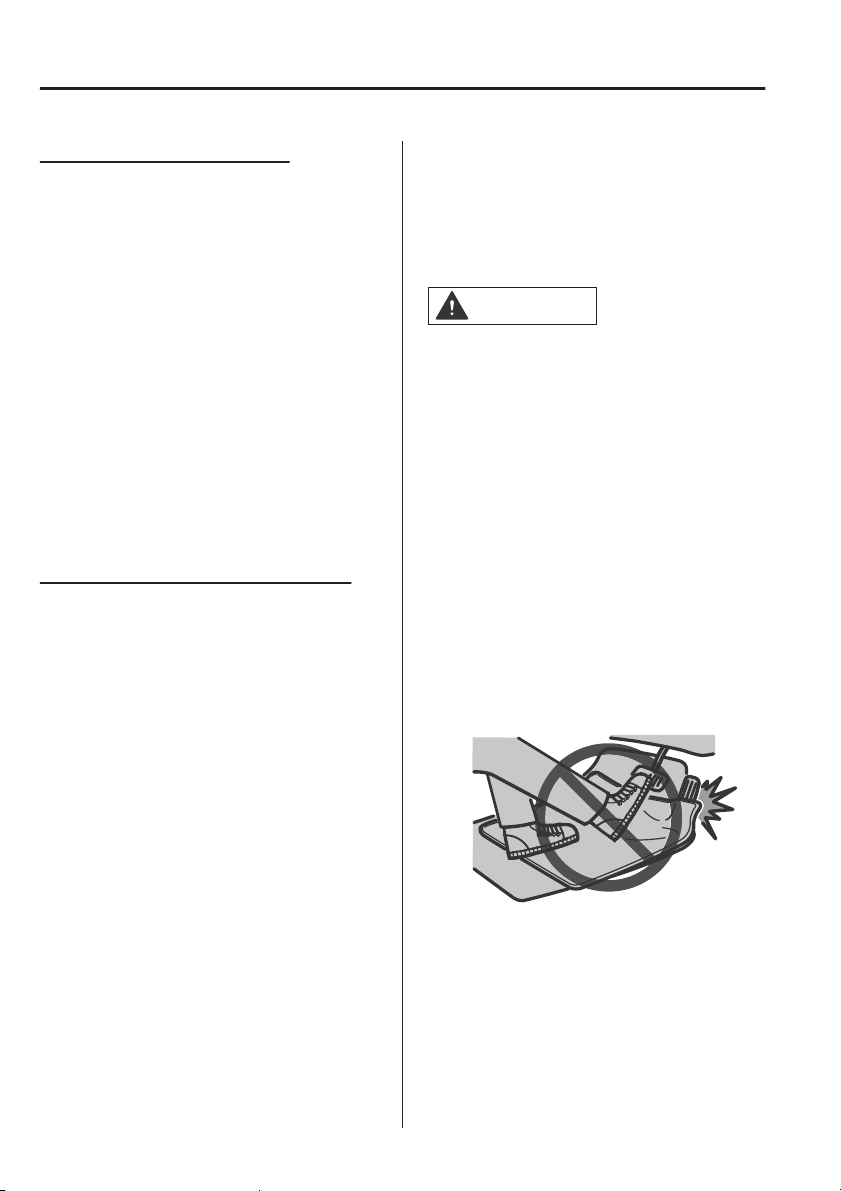

Do not place anything in the driver's foot well:

Placing things in the driver's foot well is dangerous. If something becomes lodged under the brake or accelerator pedal, the pedals cannot be operated correctly, which could lead to an accident.

Driving the vehicle

Do not shift the selector lever to the neutral position while driving:

Otherwise, it will result in the loss of the regenerative braking and could cause an accident.

Carefully drive the vehicle on expressways and slippery roads:

Do not suddenly accelerate or brake, turn the steering wheel abruptly, or use regeneration braking (minus switch (–)) when driving at high speeds or on wet roads, icy roads, or snow-covered roads. Otherwise, the tyres will slip which could lead to an accident. In addition, if the vehicle is driven on wet roads at high speeds, a water ﬁlm between the tyre and the road surface could be formed, resulting in the tyres lifting from the road (hydroplaning phenomenon). Drive the vehicle at a reduced speed.

Page 8

Important and Useful Information to Know Before Using the Vehicle

Do not drive the vehicle on ﬂooded roads:

Do not drive the vehicle on ﬂooded roads as it could cause short circuiting of the electrical/electronic parts or damage the EV system. If the vehicle has been immersed in water, always consult an Mazda Repairer.

Carefully drive the vehicle in strong crosswinds:

If the vehicle moves sideways due to strong crosswinds, gradually decelerate the vehicle while grasping the steering wheel. Be particularly careful of tunnel exits, areas on bridges, and roads carved into mountains where crosswinds occur easily. Otherwise, you may lose control of the vehicle resulting in an accident.

Do not drive with your foot held on the brake pedal:

¾Otherwise, the brake parts will wear

out more quickly.

¾The brakes can overheat and

adversely aect brake performance.

Make various adjustments while the vehicle is stopped:

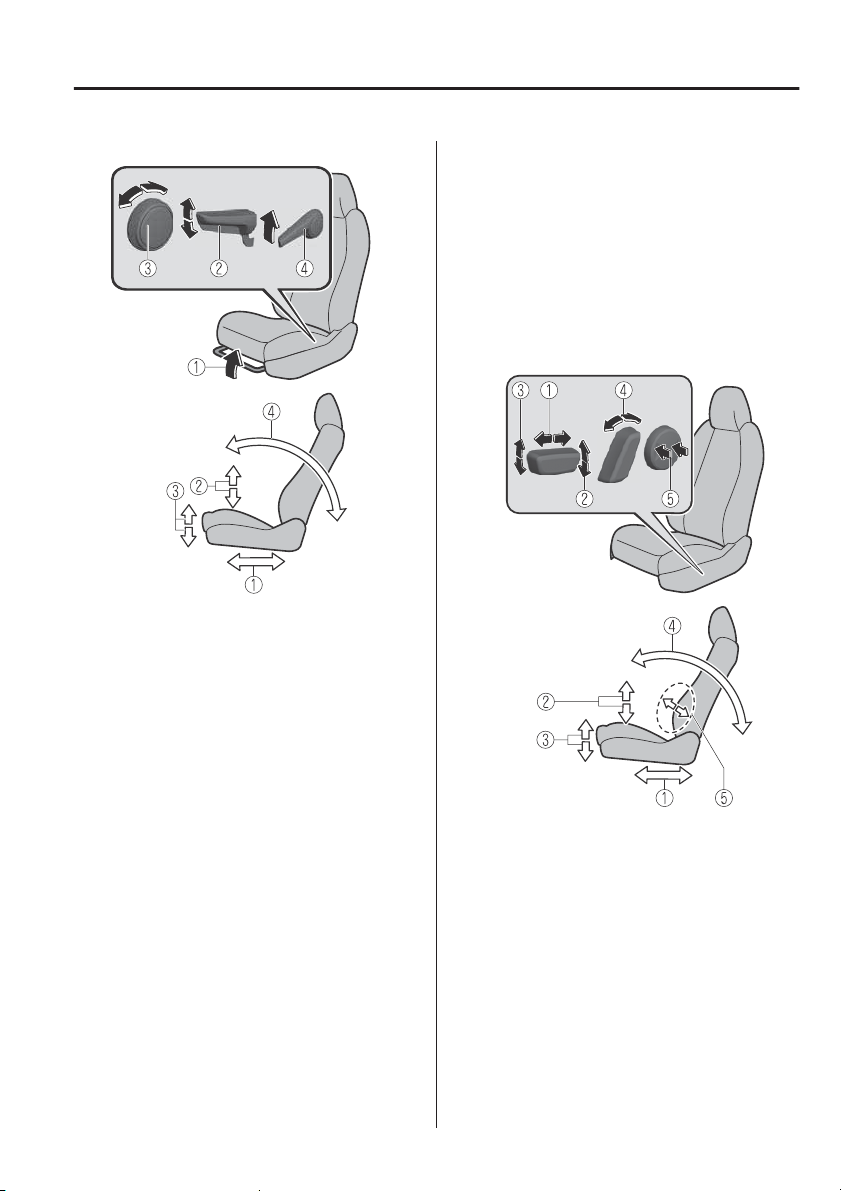

If you try to adjust the seat, steering wheel, or mirrors while driving the vehicle, it could disrupt your driving posture or view and distract your attention from the road ahead, leading to an accident.

Parking the vehicle

Before leaving the vehicle, shift the selector lever to the P position and apply the parking brake:

Not applying the parking brake when parking the vehicle is dangerous as the vehicle may move unexpectedly and result in an accident. Before leaving the vehicle, shift the selector lever to the P position, apply the parking brake, and make sure that the Electric Parking Brake (EPB) indicator light in the instrument cluster turns on. When parking the vehicle on a slope, use wheel blocks if necessary.

When parking under direct sunlight, do not store glasses or lighters in the vehicle:

A lens of a pair of glasses could focus sunlight in one place and cause ignition of vehicle cabin temperature could become hot and cause a lighter to explode which could cause a

Do not nap in the vehicle with the EV system operating:

The selector lever could be shifted unconsciously or the accelerator pedal could be depressed causing the vehicle to move, resulting in an accident.

ﬂammable

objects or the

ﬁre.

Do not recline the seatback excessively:

If your body slides under the seat belt, the seat belt cannot function at its full capacity during emergency braking or in a collision, which could result in a serious accident, injury or death.

Page 9

Important and Useful Information to Know Before Using the Vehicle

What to do after an accident

Always have your vehicle inspected by an Mazda Repairer if the vehicle has been involved in an accident:

If the vehicle has been involved in an accident, and even if the air bags did not deploy in the accident, the air bag-related parts might be damaged by the impact to the vehicle in the accident, and the air bags may not deploy normally, which could result in serious injury or death. If seat belts with the pretensioner system and seat belts with the load-limiter system that have operated (deployed) are used under such a condition, they cannot function at their full capacity which could result in serious injury or death.

Vehicle maintenance and scrapping

When replacing the tyres, replace them with ones of the speciﬁed type and size:

If tyres other than the and size are installed, vehicle systems will not operate normally due to the driving stability being adversely aected, which could lead to an accident.

speciﬁed

type

Always consult an Mazda Repairer when scrapping the vehicle:

The air bag and pretensioner system mechanisms may operate (deploy) unexpectedly, which could result in serious injury or death.

CAUTION

¾Use of Mazda genuine ﬂoor

coverings is recommended. Use the ﬂoor coverings made for the vehicle and do not use an over-sized

covering.

ﬂoor Always heed the following precautions when using coverings.

¾Do not use ﬂoor coverings stacked

on top of each other.

¾Use only ﬂoor coverings secured

ﬁrmly with hooks on the ﬂoor carpet.

Otherwise, the ﬂoor covering may slide or a pedal may get caught on the ﬂoor covering and the pedal operation could be obstructed leading to an accident.

ﬂoor

Adjust the tyre pressures to the speciﬁed value and do not use tyres with worn tyre grooves:

If the vehicle is driven with tyres that are not at the speciﬁed air pressure or with worn tyre grooves, vehicle systems will not operate normally which could cause an accident.

Page 10

Important and Useful Information to Know Before Using the Vehicle

¾Because the brake pads become wet

after driving through water puddles or washing the vehicle, the brake performance could be adversely aected or only the side where the brakes did not get wet will be applied, resulting in loss of steering wheel control. If the brakes do not operate normally, release the accelerator pedal and lightly apply the brakes several times while driving the vehicle to dry the brakes until they return to normal.

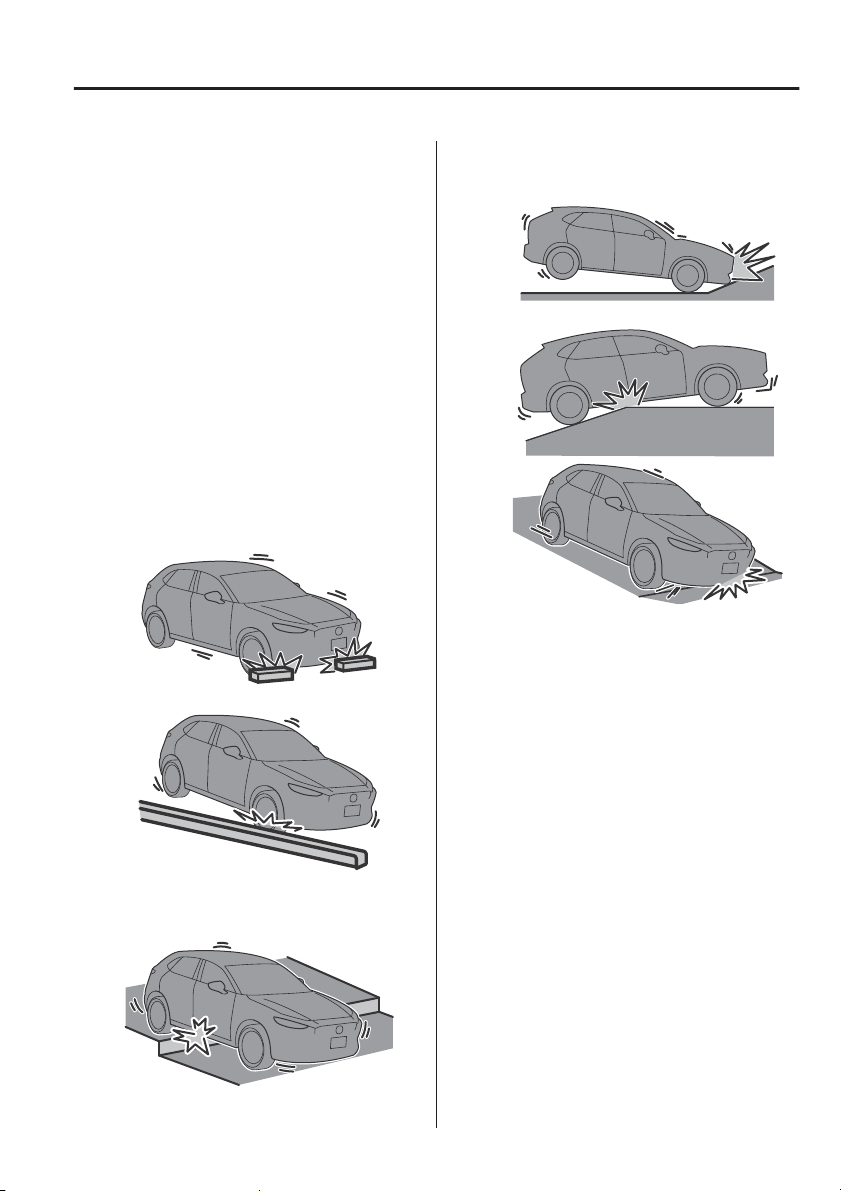

¾Be very careful not to damage the

vehicle's undercarriage, such as the bumpers, when driving under the following conditions:

¾Parking in a parking space with

speed bumps

¾Parking on the shoulder of a road

¾Crossing over dierences in road

level such as at the shoulder of a road

¾Entering/exiting a steep slope such

as at the entrance/exit of a parking lot

¾Driving on bumpy or rutted roads

¾Always start the EV system even

when slightly moving the vehicle. If the vehicle moves on a downslope by the inclination, the steering wheel could lock or the brakes may not operate normally, resulting in an accident.

¾If the steering wheel is kept turned

completely to the left or right for long periods, it could damage the power steering equipment.

¾Apply the parking brake, switch the

power switch OFF, and lock all the doors before leaving the vehicle. In addition, to prevent theft of valuables, do not leave them inside the cabin.

Page 11

Important and Useful Information to Know Before Using the Vehicle

NOTE

If the brake pedal is continuously depressed on a slope, the brakes could overheat and adversely aect brake performance. When driving on downslopes, operate the regeneration braking and the foot brake together.

Always depress the brake pedal with your right foot. Applying the brakes with the left foot could slow your reaction time to an emergency situation resulting in braking operation.

Wear appropriate shoes for driving to avoid your shoe contacting the brake pedal when depressing the accelerator pedal.

Firmly depress the brake pedal to keep the vehicle stopped, and if necessary, apply the parking brake.

Always conﬁrm the safety around the vehicle before starting to drive the vehicle.

After stopping at a before leaving a parking space, always check the safety around the vehicle before starting to drive the vehicle.

If the visibility behind the vehicle is poor while reversing, get out of the vehicle and check the area behind the vehicle for safety.

insucient

light or

trac

Page 12

Table of Contents

Pictorial Index

Interior, exterior views and part

identiﬁcation

of your Mazda.

Essential Safety Equipment

Important information about safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags.

Before Driving

Use of various features, including keys, doors, mirrors and windows.

When Driving

Information concerning safe driving and stopping.

Interior Features

Use of various features for ride comfort, including air-conditioning system and audio system.

Maintenance and Care

How to keep your Mazda in top condition.

If Trouble Arises

Helpful information on what to do if a problem arises with the vehicle.

Customer Information

Important consumer information including warranties and add-on equipment.

Speciﬁcations

Technical information about your Mazda.

Index

Page 13

Page 14

Pictorial Index

Interior, exterior views and part

Interior Overview (Left-Hand Drive

Model).................................... 1-2

Interior Equipment (View

A).........................................1-2

Interior Equipment (View

B)......................................... 1-4

Interior Equipment (View

C).........................................1-5

Interior Equipment (View

D)........................................ 1-6

Interior Equipment (View

E)......................................... 1-7

Interior Overview (Right-Hand Drive

Model).................................... 1-8

Interior Equipment (View

A).........................................1-8

identiﬁcation

Interior Equipment (View

B)....................................... 1-10

Interior Equipment (View

C).......................................1-11

Interior Equipment (View

D).......................................1-12

Interior Equipment (View

E)....................................... 1-13

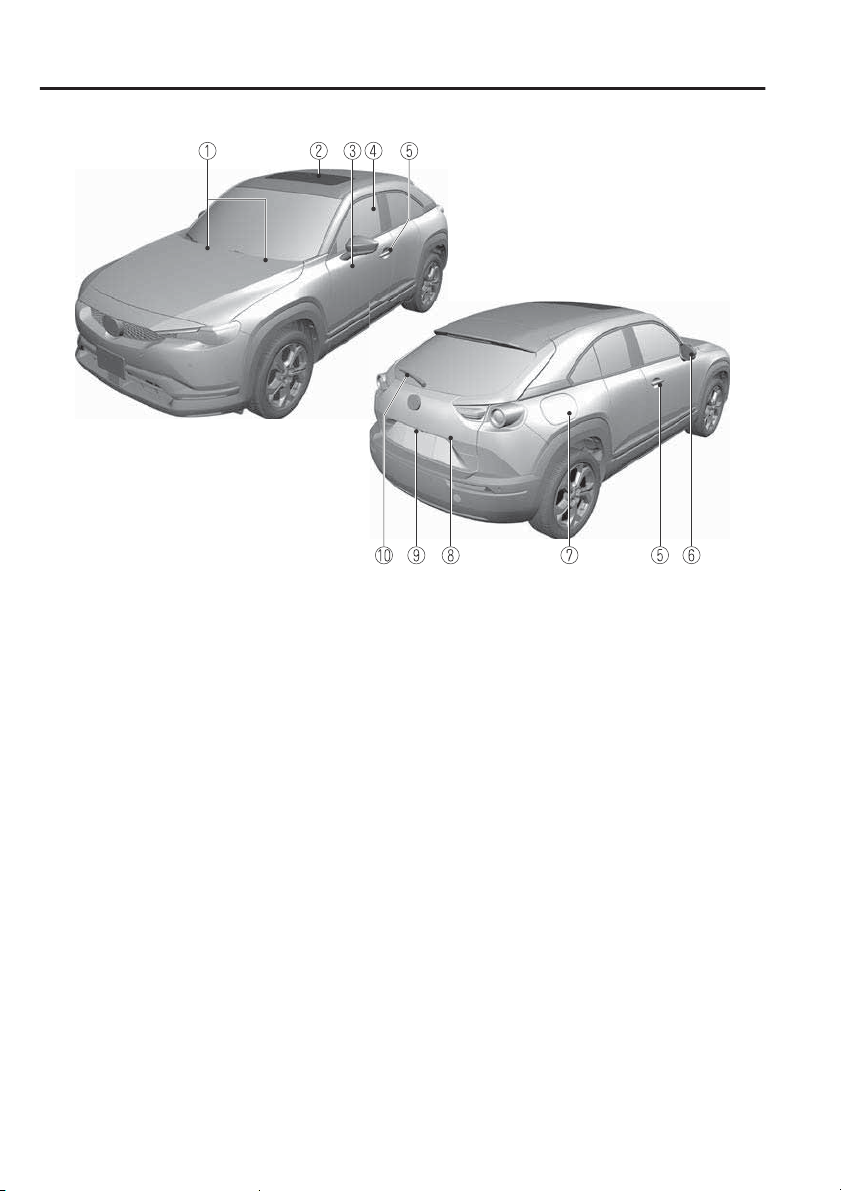

Exterior Overview................... 1-14

of your Mazda.

1-1

Page 15

Pictorial Index

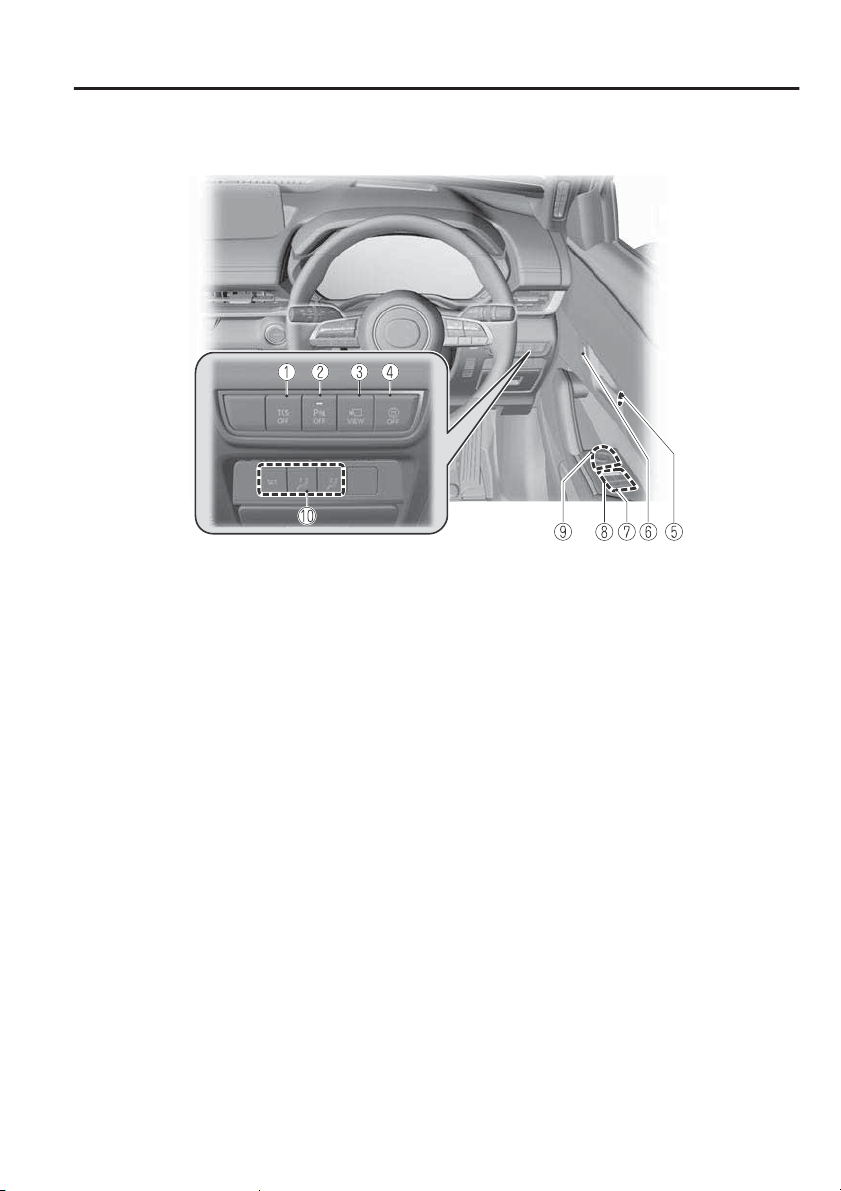

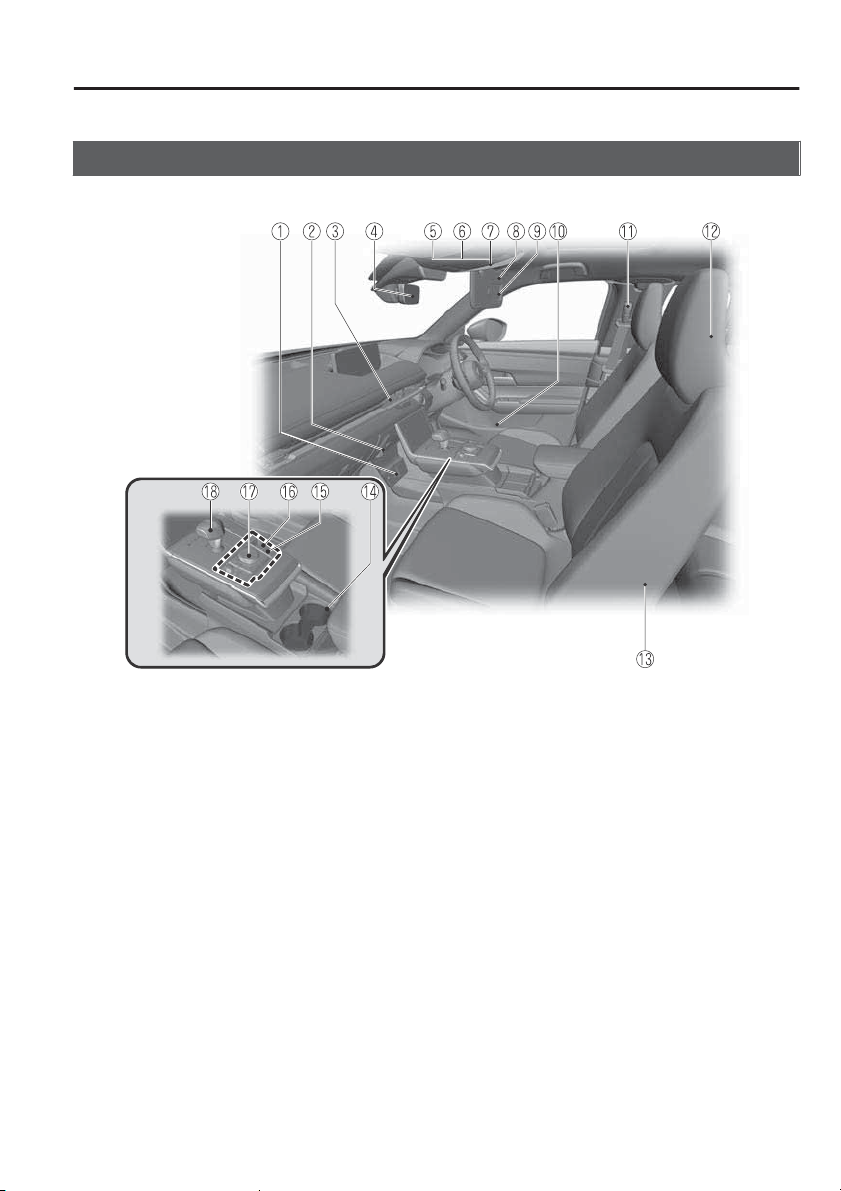

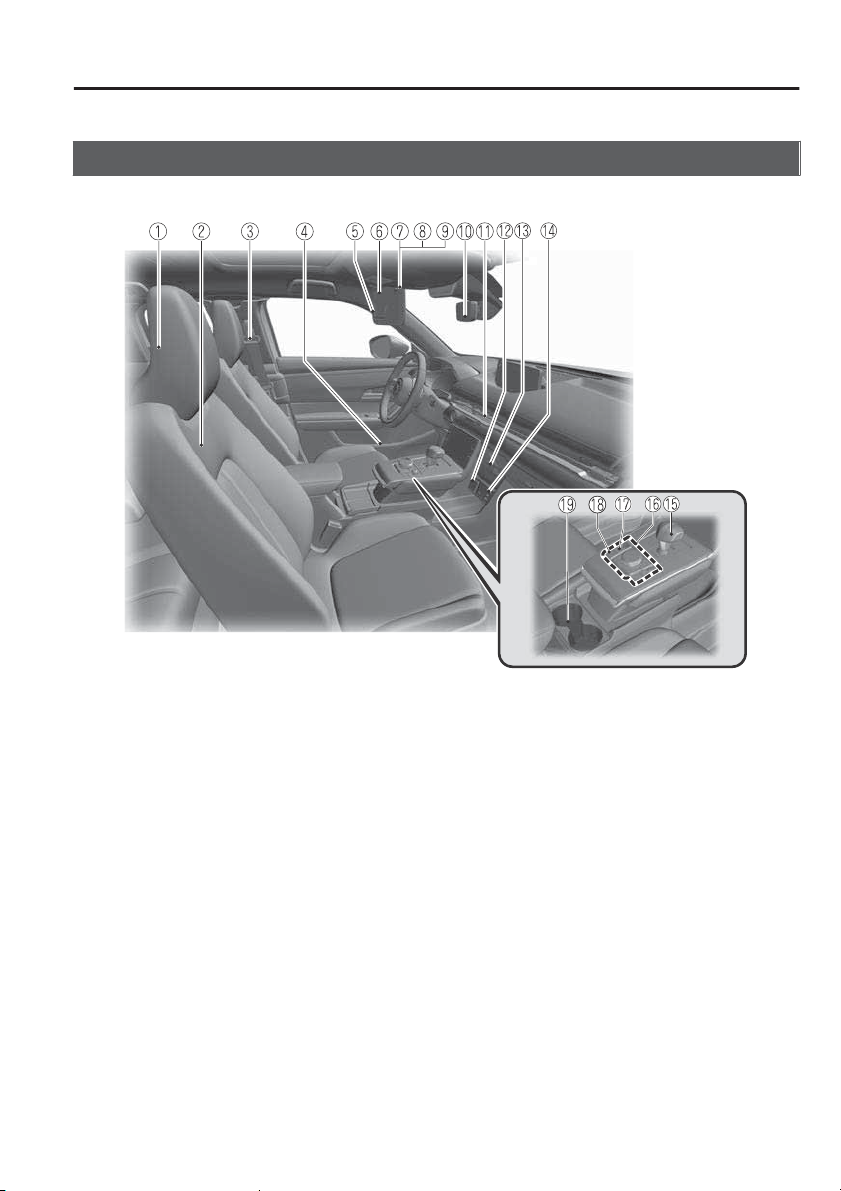

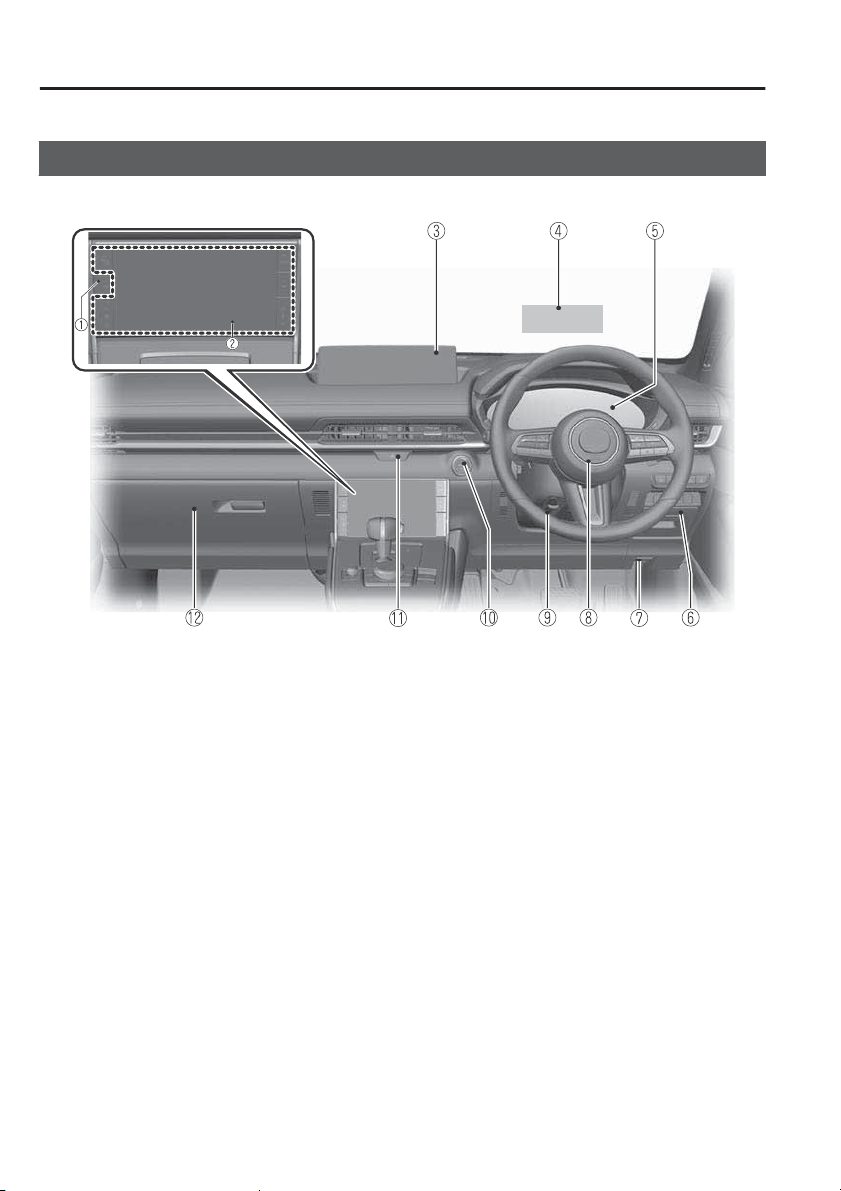

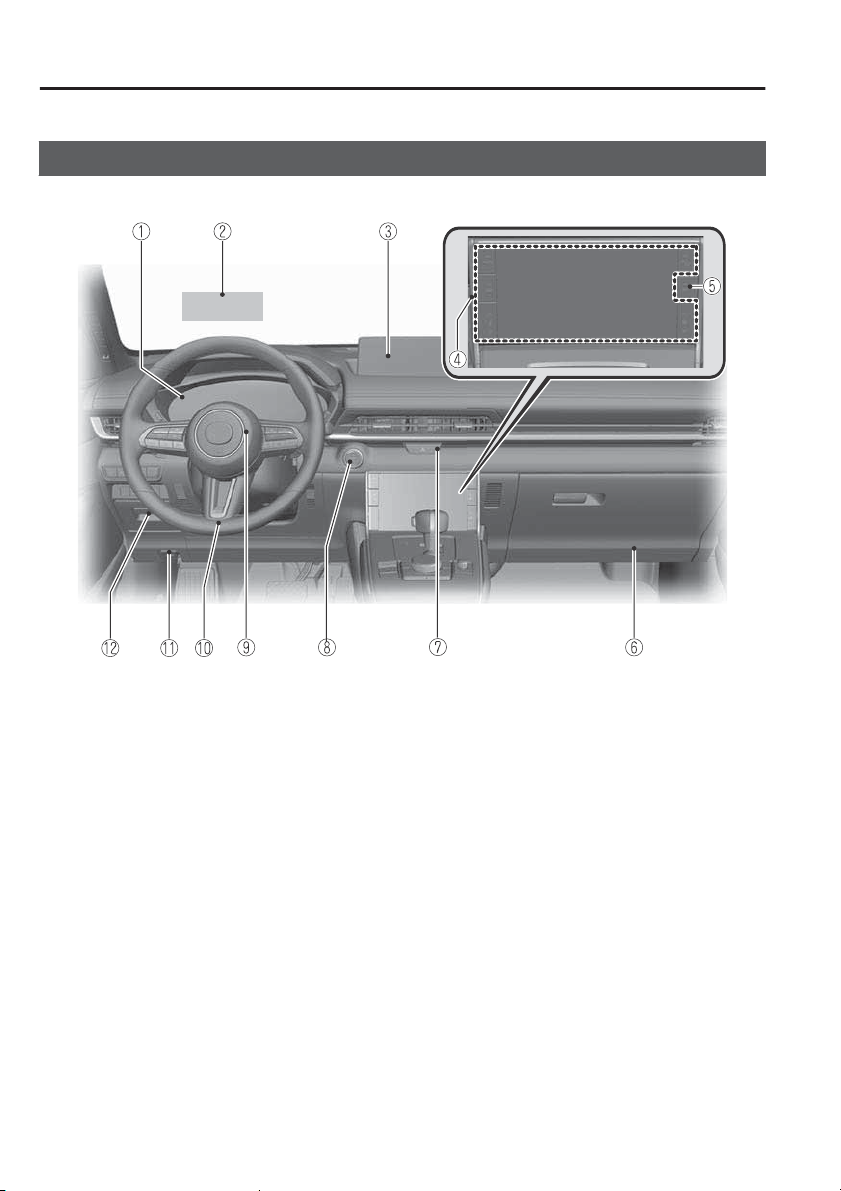

Interior Overview (Left-Hand Drive Model)

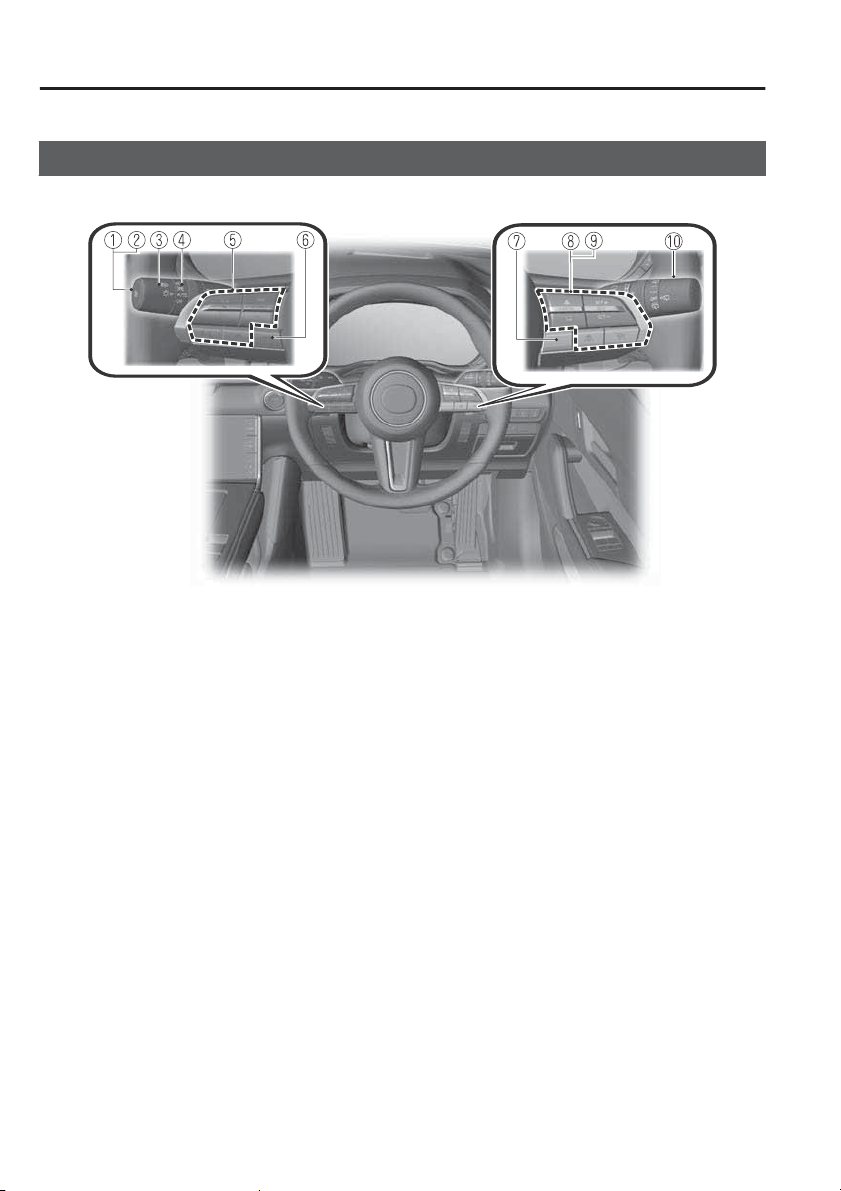

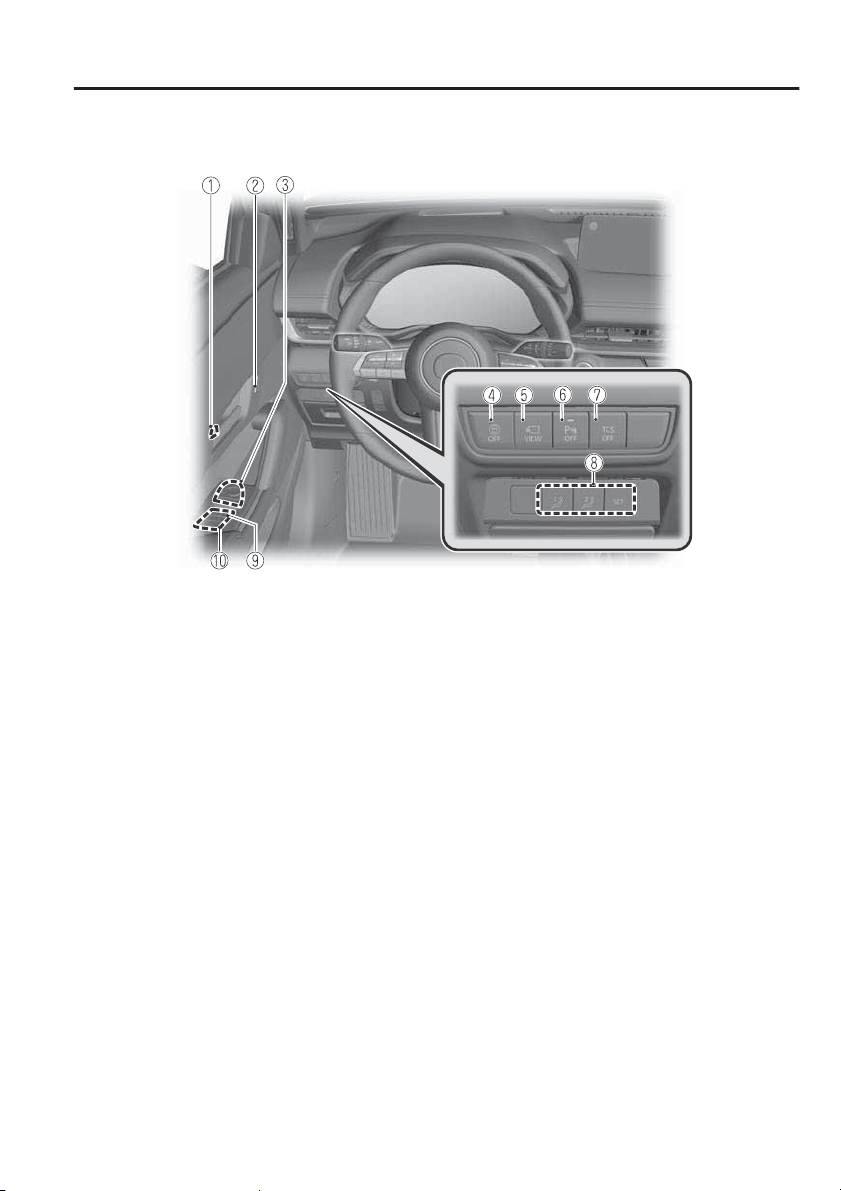

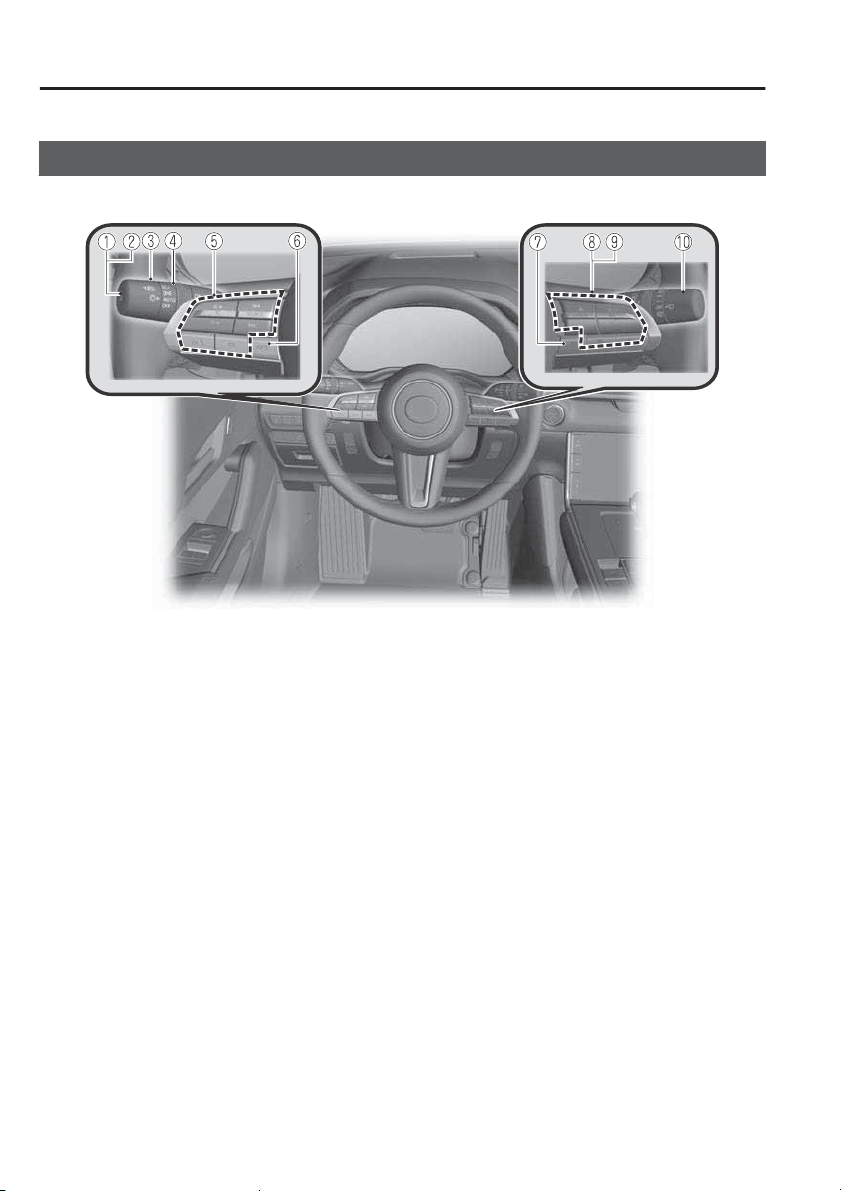

Interior Equipment (View A)

Interior Equipment (View

▼

① High Beam Control System (HBC) switch............................................ page 4-86

② Adaptive LED Headlights (ALH) switch................................................page 4-87

③ Lighting control.................................................................................page 4-38

④ Turn and lane-change signals............................................................. page 4-43

⑤ Audio remote control switches...........................................................page 5-22

⑥ INFO switch......................................................................................page 4-12

⑦ Intelligent Speed Assistance (ISA) LIM switch.................................... page 4-142

⑧ Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go

function) switches...........................................................................page 4-119

⑨ Cruising & Trac Support (CTS) switches..........................................page 4-128

⑩ Wiper and washer lever..................................................................... page 4-44

Atype

1-2

The equipment and installation position varies by vehicle

Page 16

Pictorial Index

Interior Overview (Left-Hand Drive Model)

Interior Equipment (View Atype B)

▼

① Door-lock knob................................................................................ page 3-46

② Door-lock switch.............................................................................. page 3-44

③ Outside mirror switches.....................................................................page 3-51

④ i-ACTIVSENSE OFF switch.................................................................. page 4-72

⑤ 360° view monitor switch................................................................page 4-166

⑥ Parking sensor OFF switch............................................................... page 4-217

⑦ TCS OFF switch................................................................................. page 4-67

⑧ Position memory switches..................................................................page 2-10

⑨ Power window switches.....................................................................page 3-56

⑩ Power window lock switch.................................................................page 3-56

The equipment and installation position varies by vehicle

1-3

Page 17

Pictorial Index

Interior Overview (Left-Hand Drive Model)

Interior Equipment (View B)

▼

① Instrument cluster............................................................................. page 4-10

② Active driving display.........................................................................page 4-27

③ Mazda Connect................................................................................ page 5-14

④ Air-conditioning system.......................................................................page 5-2

⑤ Rear window defogger switch............................................................ page 4-49

⑥ Glove compartment.......................................................................... page 5-43

⑦ Hazard warning ﬂasher switch............................................................page 4-51

⑧ Power switch...................................................................................... page 4-4

⑨ Horn................................................................................................ page 4-51

⑩ Lock release lever................................................................................ page 2-4

⑪ Bonnet release handle....................................................................... page 6-10

⑫ Storage pocket..................................................................................page 5-43

1-4

The equipment and installation position varies by vehicle

Page 18

Interior Overview (Left-Hand Drive Model)

Interior Equipment (View C)

▼

Pictorial Index

① Head restraint................................................................................... page 2-19

② Front seat........................................................................................... page 2-4

③ Seat belt...........................................................................................page 2-26

④ Bottle holder.....................................................................................page 5-41

⑤ Vanity mirror.....................................................................................page 5-34

⑥ Sunvisor........................................................................................... page 5-34

⑦ Overhead light (front)/Map lights...................................................... page 5-35

⑧ Overhead console............................................................................. page 5-43

⑨ Sunroof switch.................................................................................. page 3-59

⑩ Rearview mirror................................................................................ page 3-54

⑪ Vent...................................................................................................page 5-8

⑫ AC power outlet............................................................................... page 5-38

⑬ Accessory sockets..............................................................................page 5-37

⑭ External input terminal.......................................................................page 5-14

⑮ Selector lever.................................................................................... page 4-31

⑯ Commander switch...........................................................................page 5-18

⑰ Electric Parking Brake (EPB) switch......................................................page 4-54

⑱ AUTOHOLD switch........................................................................... page 4-61

⑲ Cup holder.......................................................................................page 5-40

The equipment and installation position varies by vehicle

1-5

Page 19

Pictorial Index

Interior Overview (Left-Hand Drive Model)

Interior Equipment (View D)

▼

① Push knob........................................................................................ page 2-16

② Head restraint...................................................................................page 2-19

③ Rear coat hook..................................................................................page 5-42

④ Overhead light (rear)......................................................................... page 5-35

⑤ Assist grip.........................................................................................page 5-42

⑥ Centre console..................................................................................page 5-44

⑦ Bottle holder.....................................................................................page 5-41

⑧ Rear seat.......................................................................................... page 2-16

⑨ Cup holder.......................................................................................page 5-40

⑩ Armrest............................................................................................ page 2-18

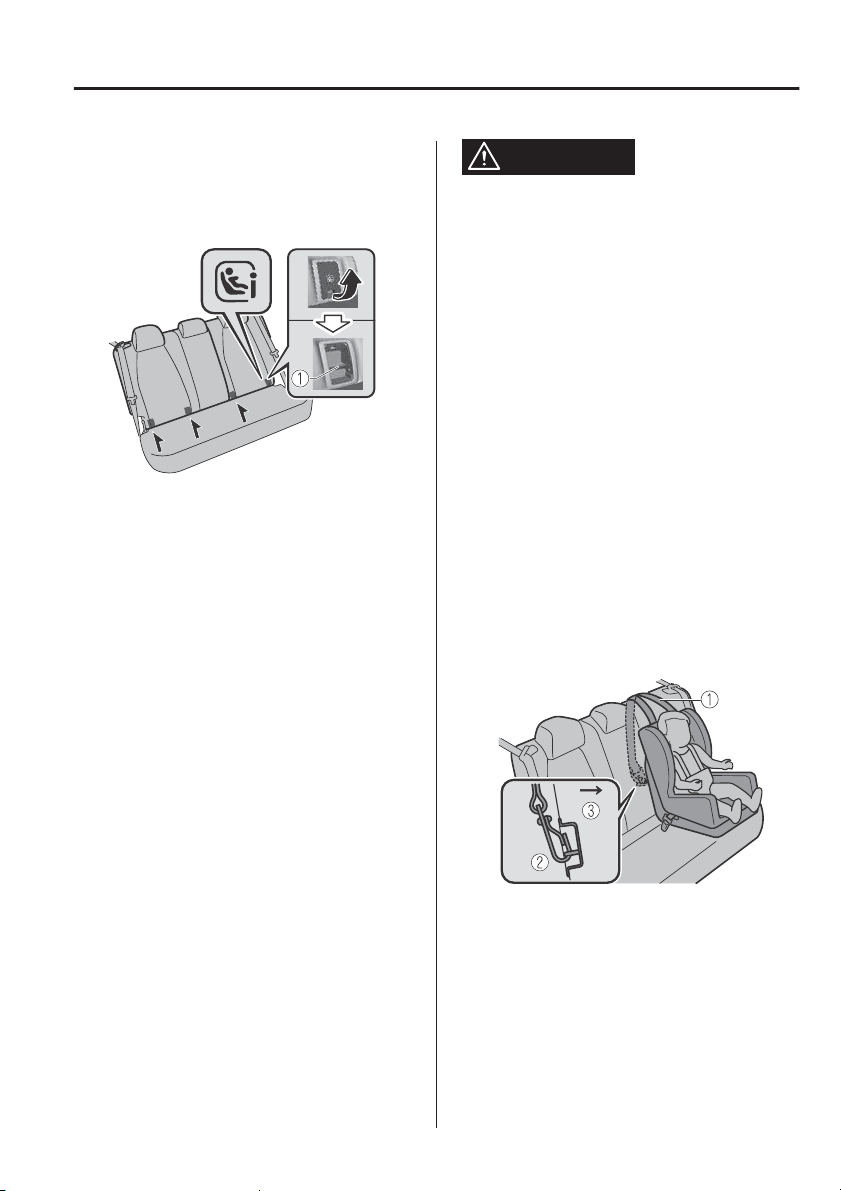

⑪ ISOFIX lower anchors........................................................................ page 2-46

Seat belt........................................................................................... page 2-26

⑫

1-6

The equipment and installation position varies by vehicle

Page 20

Interior Overview (Left-Hand Drive Model)

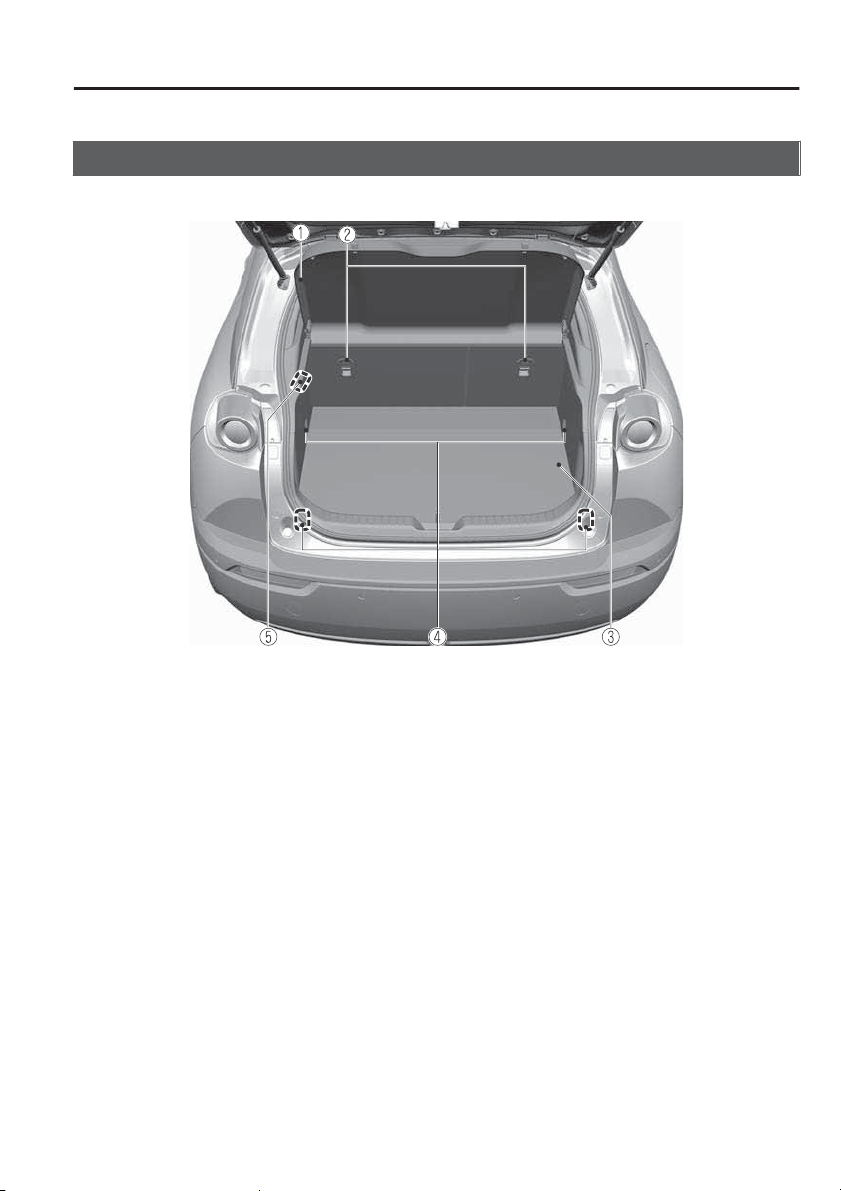

Interior Equipment (View E)

▼

Pictorial Index

① Luggage compartment cover.............................................................. page 3-50

② Anchor brackets................................................................................ page 2-45

③ Cargo sub-compartment................................................................... page 5-44

④ Cargo securing loops.........................................................................page 5-44

⑤ Luggage compartment light................................................................page 5-35

The equipment and installation position varies by vehicle

1-7

Page 21

Pictorial Index

Interior Overview (Right-Hand Drive Model)

Interior Equipment (View A)

Interior Equipment (View

▼

① High Beam Control System (HBC) switch............................................ page 4-86

② Adaptive LED Headlights (ALH) switch................................................page 4-87

③ Turn and lane-change signals............................................................. page 4-43

④ Lighting control.................................................................................page 4-38

⑤ Audio remote control switches...........................................................page 5-22

⑥ INFO switch......................................................................................page 4-12

⑦ Intelligent Speed Assistance (ISA) LIM switch.................................... page 4-142

⑧ Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go

function) switches...........................................................................page 4-119

⑨ Cruising &

⑩ Wiper and washer lever..................................................................... page 4-44

Support (CTS) switches..........................................page 4-128

Trac

Atype

1-8

The equipment and installation position varies by vehicle

Page 22

Pictorial Index

Interior Overview (Right-Hand Drive Model)

Interior Equipment (View Atype B)

▼

① TCS OFF switch................................................................................. page 4-67

② Parking sensor OFF switch............................................................... page 4-217

③ 360° view monitor switch................................................................page 4-166

④ i-ACTIVSENSE OFF switch.................................................................. page 4-72

⑤ Door-lock knob................................................................................ page 3-46

⑥ Door-lock switch.............................................................................. page 3-44

⑦ Power window lock switch.................................................................page 3-56

⑧ Power window switches.....................................................................page 3-56

⑨ Outside mirror switches.....................................................................page 3-51

⑩ Position memory switches..................................................................page 2-10

The equipment and installation position varies by vehicle

1-9

Page 23

Pictorial Index

Interior Overview (Right-Hand Drive Model)

Interior Equipment (View B)

▼

① Rear window defogger switch............................................................ page 4-49

② Air-conditioning system.......................................................................page 5-2

③ Mazda Connect................................................................................ page 5-14

④ Active driving display.........................................................................page 4-27

⑤ Instrument cluster............................................................................. page 4-10

⑥ Storage pocket..................................................................................page 5-43

⑦ Bonnet release handle....................................................................... page 6-10

⑧ Horn................................................................................................ page 4-51

⑨ Lock release lever................................................................................ page 2-4

⑩ Power switch...................................................................................... page 4-4

⑪ Hazard warning ﬂasher switch............................................................page 4-51

⑫ Glove compartment.......................................................................... page 5-43

1-10

The equipment and installation position varies by vehicle

Page 24

Interior Overview (Right-Hand Drive Model)

Interior Equipment (View C)

▼

Pictorial Index

① External input terminal.......................................................................page 5-14

② Accessory sockets..............................................................................page 5-37

③ Vent...................................................................................................page 5-8

④ Rearview mirror................................................................................ page 3-54

⑤ Overhead light (front)/Map lights...................................................... page 5-35

⑥ Overhead console............................................................................. page 5-43

⑦ Sunroof switch.................................................................................. page 3-59

⑧ Sunvisor........................................................................................... page 5-34

⑨ Vanity mirror.....................................................................................page 5-34

⑩ Bottle holder.....................................................................................page 5-41

⑪ Seat belt...........................................................................................page 2-26

⑫ Head restraint................................................................................... page 2-19

⑬ Front seat........................................................................................... page 2-4

⑭ Cup holder.......................................................................................page 5-40

⑮ AUTOHOLD switch........................................................................... page 4-61

⑯ Electric Parking Brake (EPB) switch......................................................page 4-54

⑰ Commander switch...........................................................................page 5-18

⑱ Selector lever.................................................................................... page 4-31

The equipment and installation position varies by vehicle

1-11

Page 25

Pictorial Index

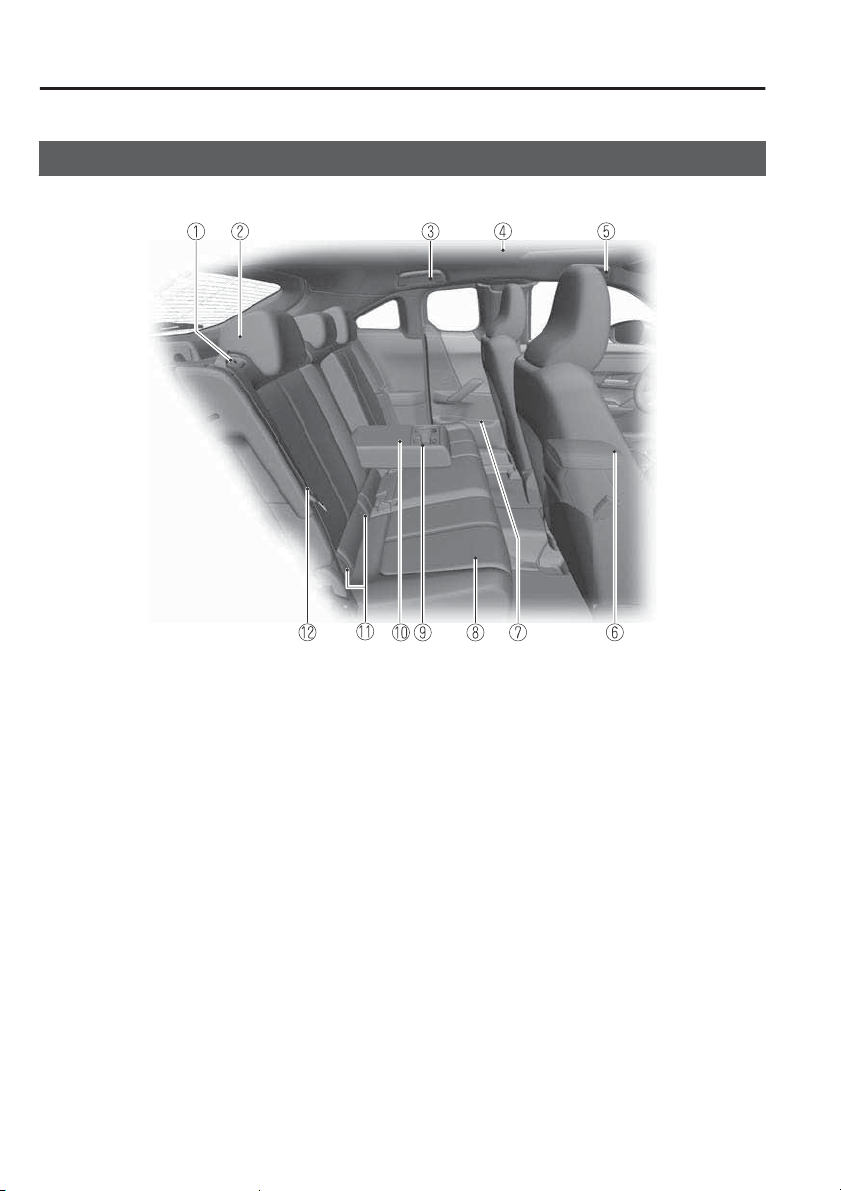

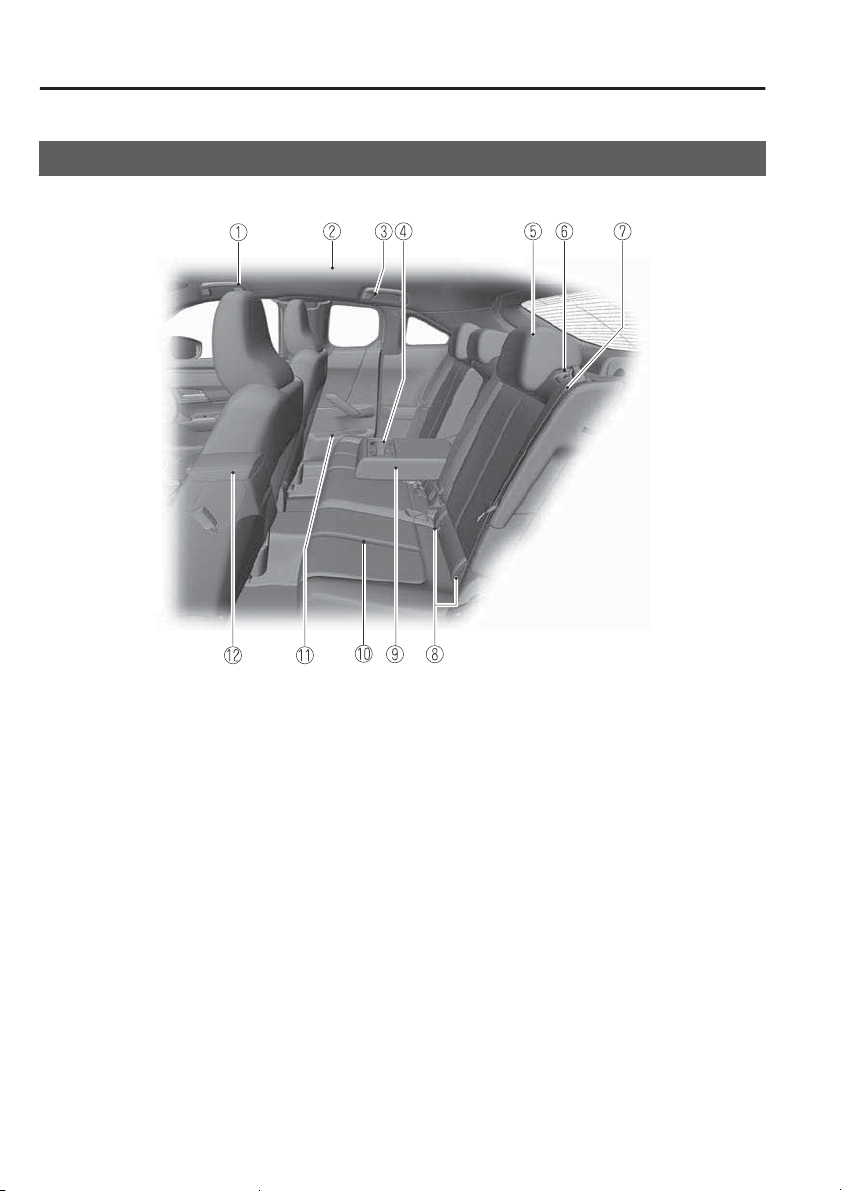

Interior Overview (Right-Hand Drive Model)

Interior Equipment (View D)

▼

① Assist grip.........................................................................................page 5-42

② Overhead light (rear)......................................................................... page 5-35

③ Rear coat hook..................................................................................page 5-42

④ Cup holder.......................................................................................page 5-41

⑤ Head restraint...................................................................................page 2-19

⑥ Push knob........................................................................................ page 2-16

⑦ Seat belt........................................................................................... page 2-26

⑧ ISOFIX lower anchors........................................................................ page 2-46

⑨ Armrest............................................................................................ page 2-18

⑩ Rear seat.......................................................................................... page 2-16

⑪ Bottle holder.....................................................................................page 5-41

⑫ Centre console..................................................................................page 5-44

1-12

The equipment and installation position varies by vehicle

Page 26

Interior Overview (Right-Hand Drive Model)

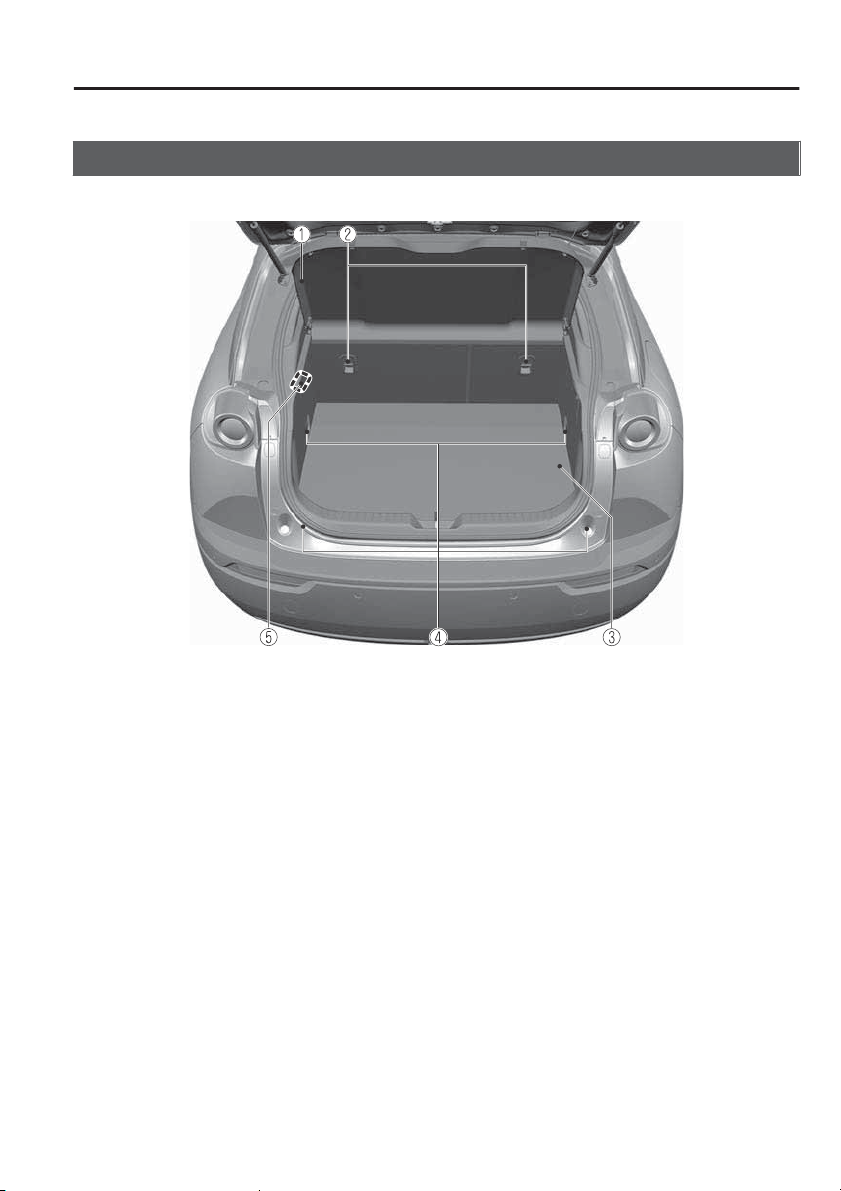

Interior Equipment (View E)

▼

Pictorial Index

① Luggage compartment cover.............................................................. page 3-50

② Anchor brackets................................................................................ page 2-45

③ Cargo sub-compartment................................................................... page 5-44

④ Cargo securing loops.........................................................................page 5-44

⑤ Luggage compartment light................................................................page 5-35

The equipment and installation position varies by vehicle

1-13

Page 27

Pictorial Index

Exterior Overview

① Windscreen wiper blades...................................................................page 6-16

② Sunroof............................................................................................ page 3-58

③ Door................................................................................................page 3-39

④ Window........................................................................................... page 3-56

⑤ Touch sensor.....................................................................................page 3-42

⑥ Outside mirror..................................................................................page 3-51

⑦ Charge lid.........................................................................................page 3-19

⑧ Liftgate............................................................................................. page 3-48

⑨ Electric liftgate opener....................................................................... page 3-48

⑩ Rear window wiper blade..................................................................page 6-20

1-14

The equipment and installation position varies by vehicle

Page 28

Essential Safety Equipment

Important information about safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags.

Seats....................................... 2-2

Seat Precautions.................... 2-2

Front Seat..............................2-4

Rear Seat.............................2-16

Head Restraints................... 2-19

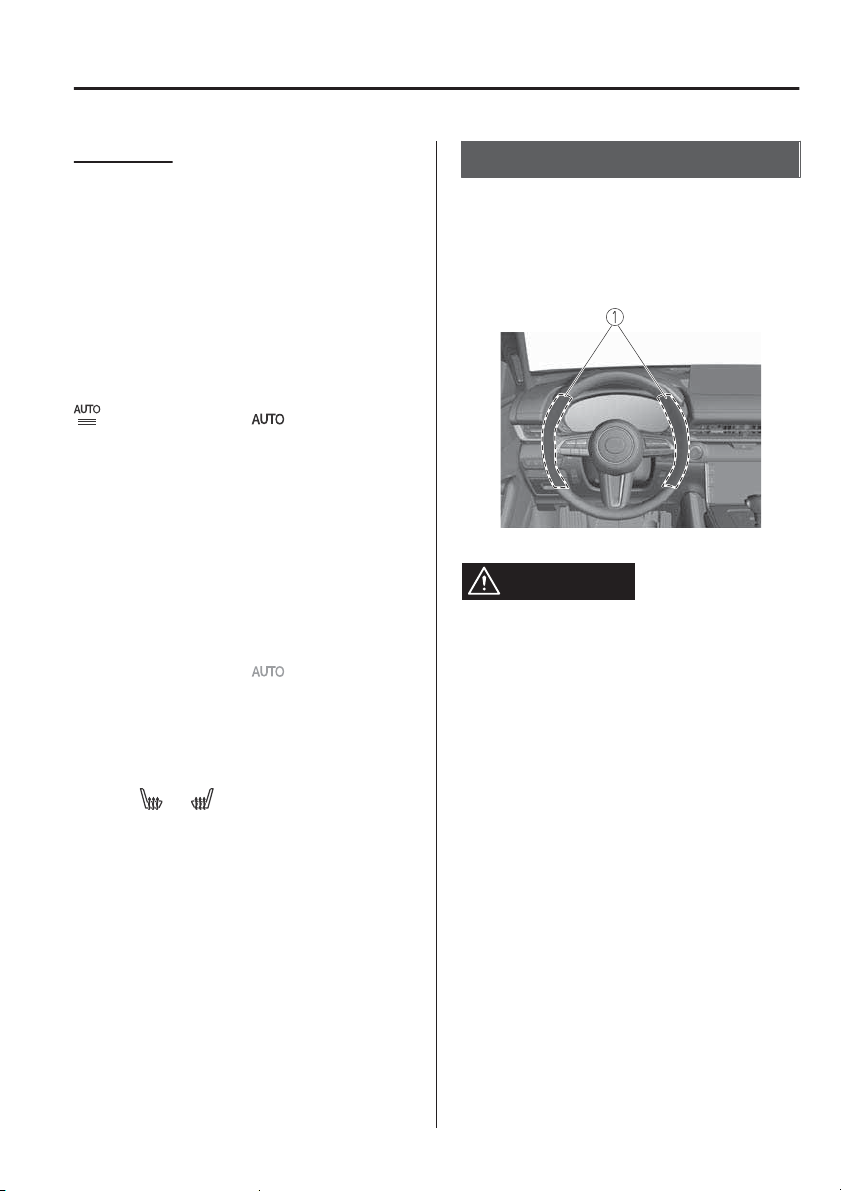

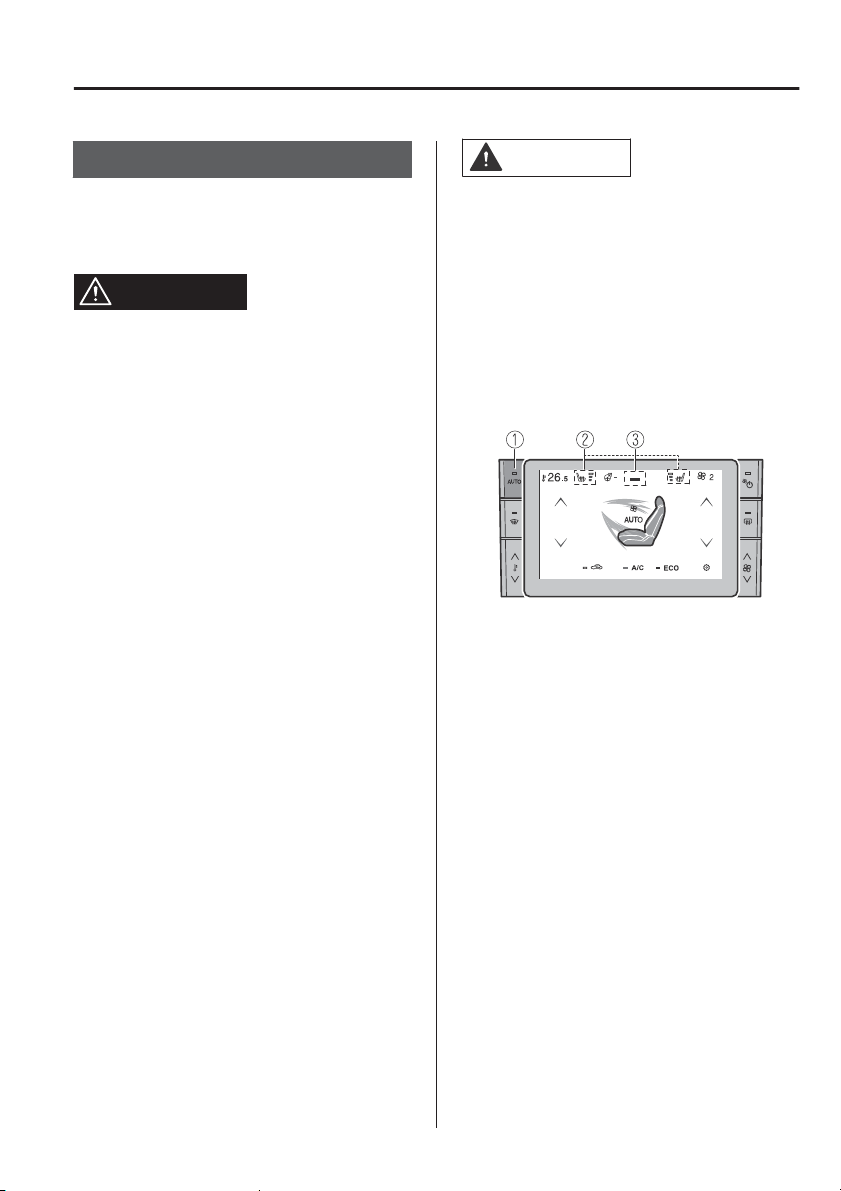

Seat Warmer/Heated Steering

Wheel................................... 2-21

Seat Warmer Heated Steering Wheel

Seat Belt Systems.................... 2-26

Seat Belt Precautions............2-26

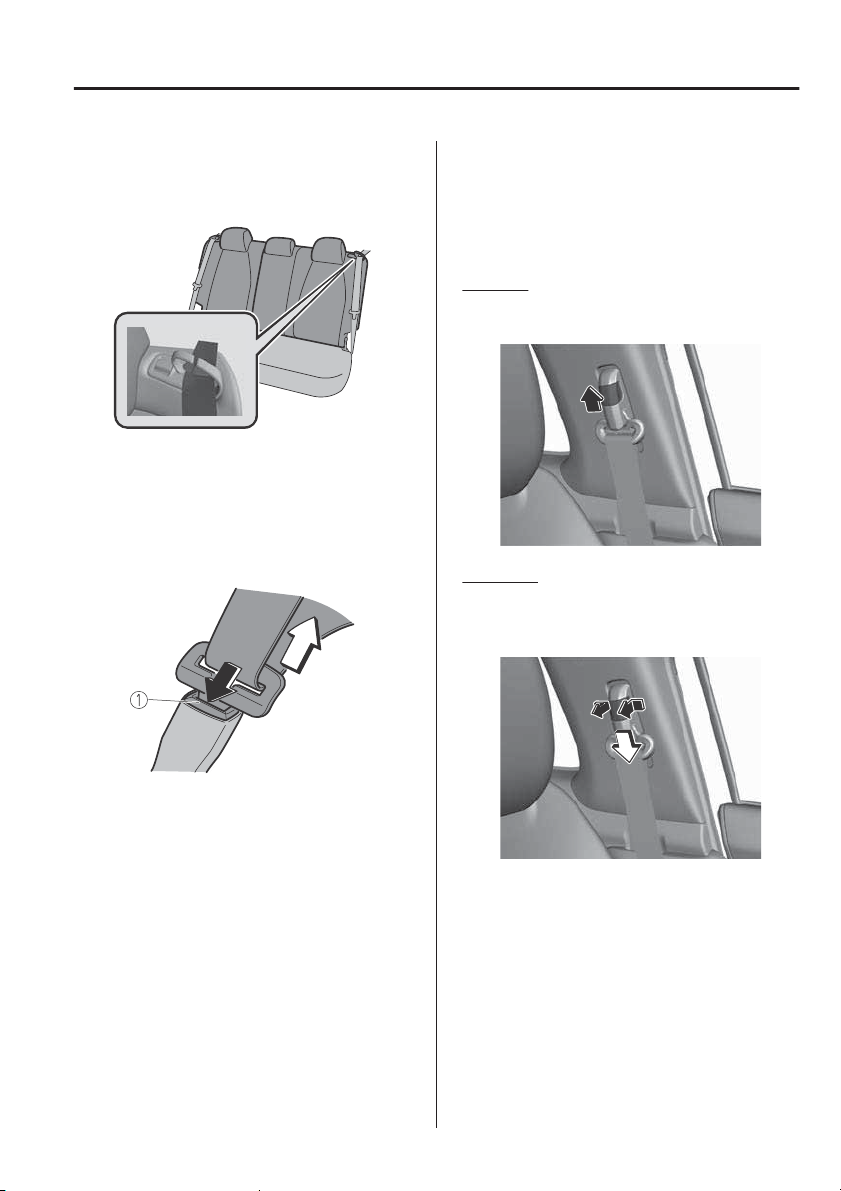

Seat Belt..............................2-28

Seat Belt Warning Systems.... 2-30

Seat Belt Pretensioner and Load

Limiting Systems.................. 2-30

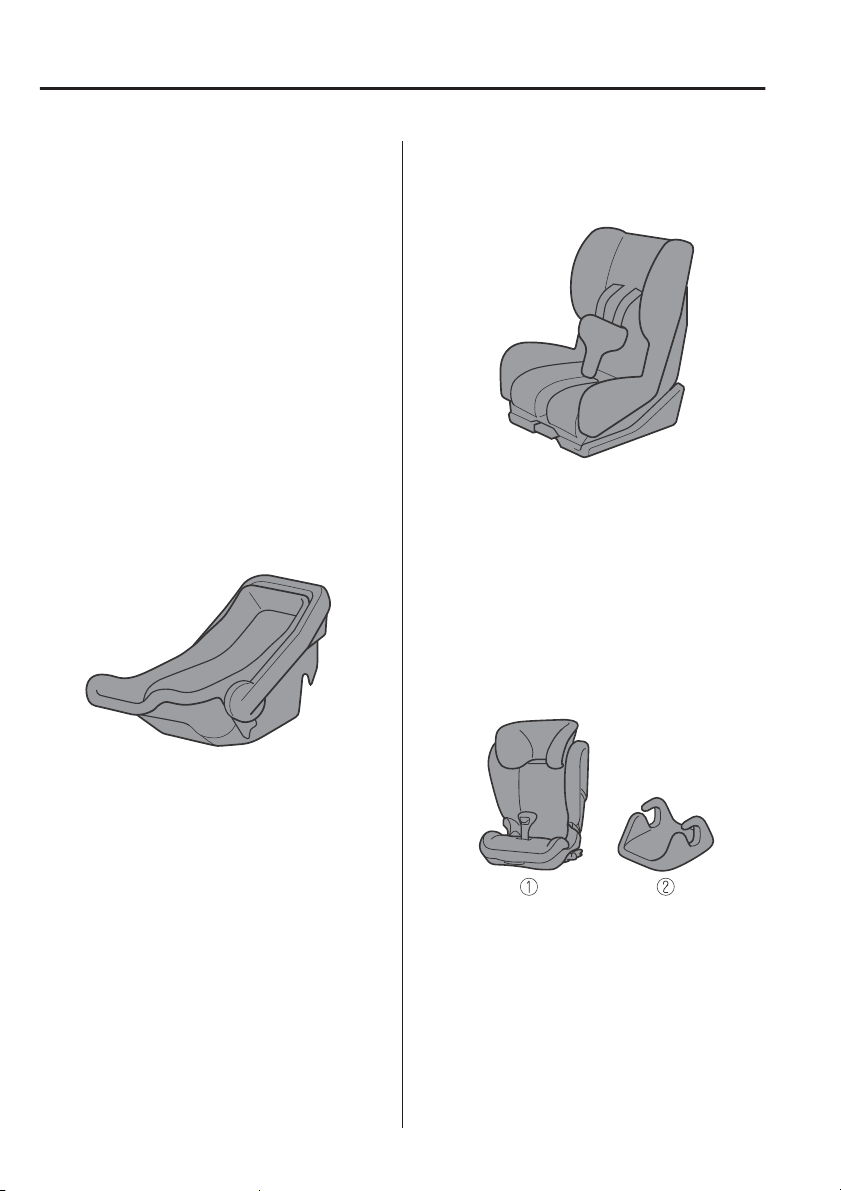

Child Restraint........................2-33

Child-Restraint Precautions..........

.......................................... 2-33

...................... 2-21

........2-23

Child-Restraint System

Installation.......................... 2-37

Child-Restraint System Suitability for Various Seat Positions

Table...................................2-42

Installing Child-Restraint

Systems...............................2-45

SRS Air Bags........................... 2-49

Supplementary Restraint System

(SRS) Precautions.................2-49

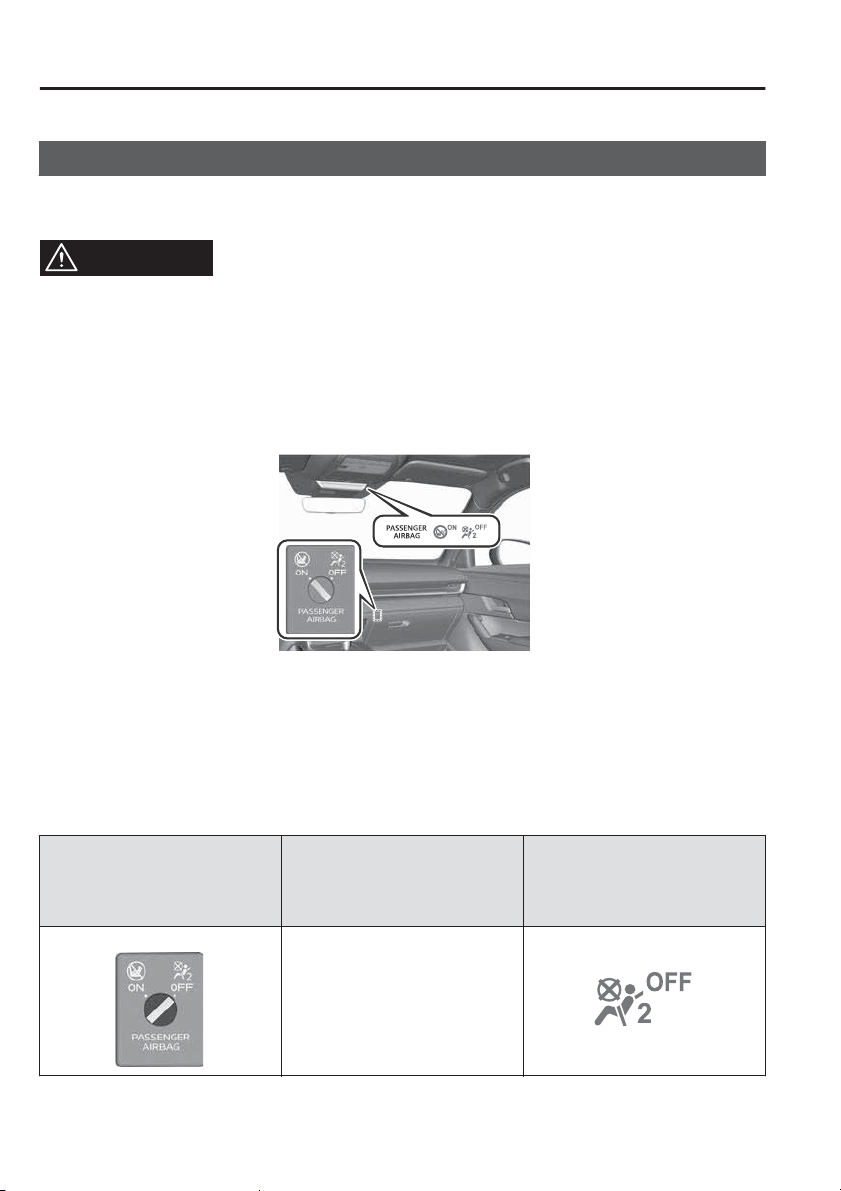

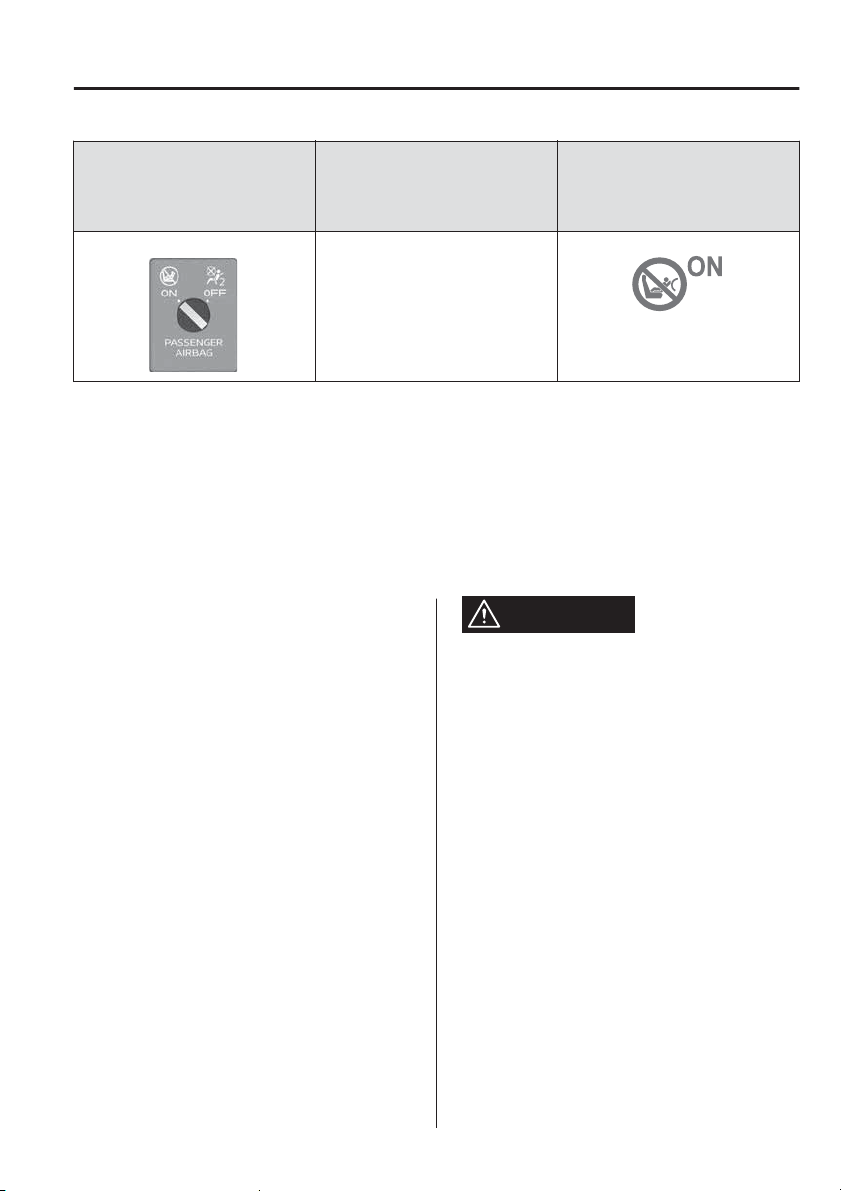

Front Passenger Air Bag

Deactivation Switch............. 2-54

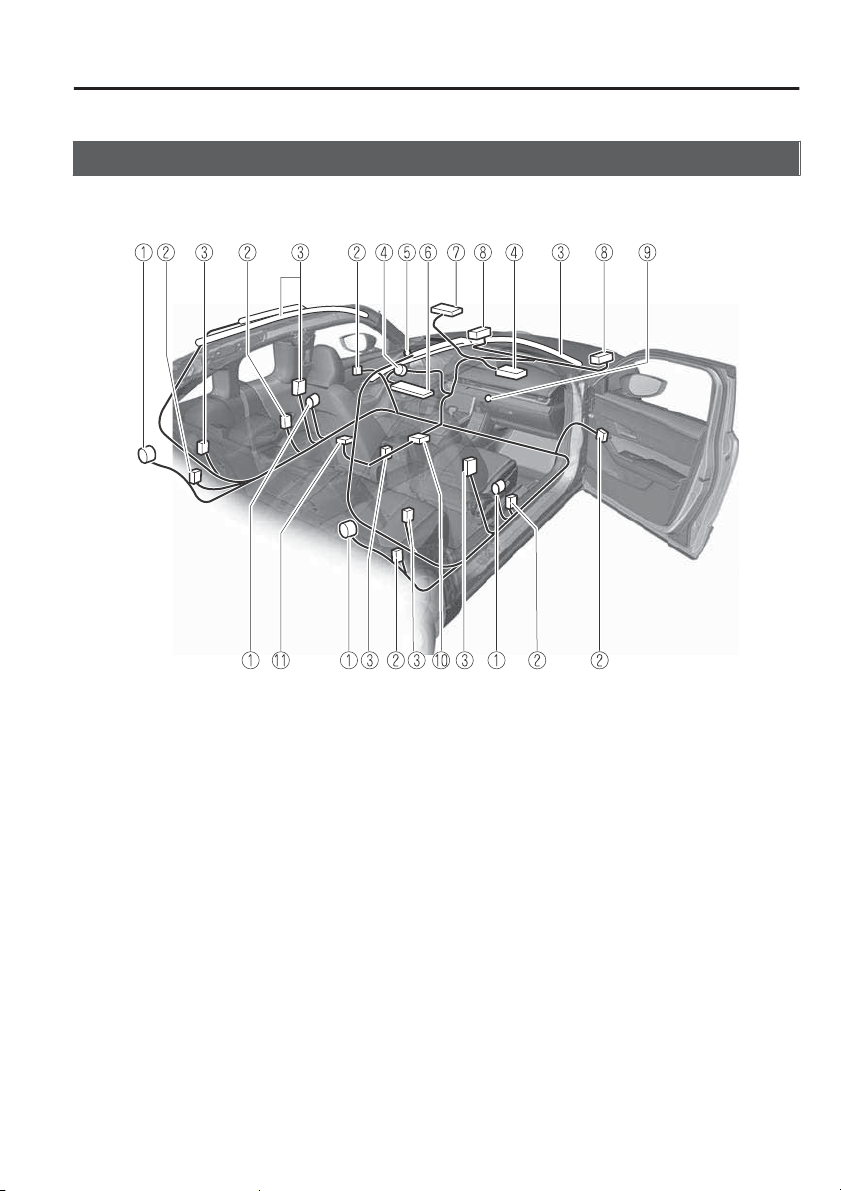

Supplementary Restraint System

Components....................... 2-57

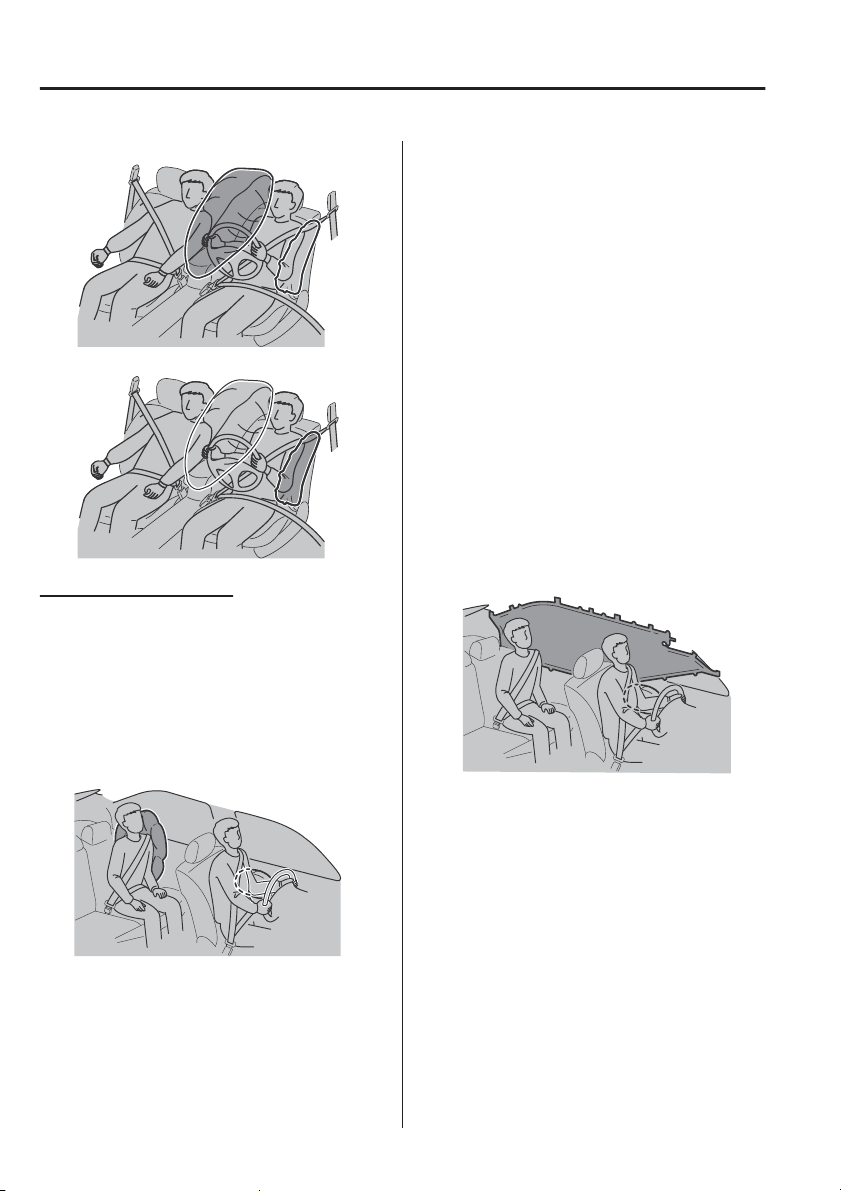

How the SRS Air Bags

Work.................................. 2-58

SRS Air Bag Deployment

Criteria............................... 2-62

Limitations to SRS Air Bag.....2-65

Constant Monitoring............2-66

*Some models.

2-1

Page 29

Essential Safety Equipment

Seats

Seat Precautions

▼

WARNING

Make sure the adjustable components of a seat are locked in place:

Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop or collision, the seat or seatback could move, causing injury. Make sure the adjustable components of the seat are locked in place by attempting to slide the seat forward and backward and rocking the seatback.

Never allow children to adjust a seat:

Allowing children to adjust a seat is dangerous as it could result in serious injury if a child's hands or feet become caught in the seat.

Do not drive with the seatback unlocked:

All of the seatbacks play an important role in your protection in a vehicle. Leaving the seatback unlocked is dangerous as it can allow passengers to be ejected or thrown around and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After adjusting the seatback at any time, even when there are no other passengers, rock the seatback to make sure it is locked in place.

Adjust a seat only when the vehicle is stopped:

If the seat is adjusted while the vehicle is being driven, the seating posture may become unstable and the seat could move unexpectedly resulting in injury.

Do not modify or replace the front seats:

Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts is dangerous. The front seats contain air bag components essential to the supplementary restraint system. Such modiﬁcations could damage the supplementary restraint system and result in serious injury. Consult an expert repairer (we recommend an Authorised Mazda Repairer) if there is any need to remove or reinstall the front seats.

Do not drive with damaged front seats:

Driving with damaged front seats, such as seat cushions torn or damaged down to the urethane, is dangerous. A collision, even one not strong enough to inﬂate the air bags, could damage the front seats which contain essential air bag components. If there was a subsequent collision, an air bag may not deploy which could lead to injuries. Always have an expert repairer (we recommend an Authorised Mazda Repairer) inspect the front seats, front seat belt pretensioners and air bags after a collision.

2-2

Page 30

Essential Safety Equipment

Seats

Do not drive with either front seats reclined:

Sitting in a reclined position while the vehicle is moving is dangerous because you do not get the full protection from seat belts. During sudden braking or a collision, you can slide under the lap belt and suer serious internal injuries. For maximum protection, sit well back and upright.

Do not place an object such as a cushion between the seatback and your back:

Putting an object such as a cushion between the seatback and your back is dangerous because you will be unable to maintain a safe driving posture and the seat belt cannot function at its full capacity in a collision, which could result in a serious accident, injury or death.

Do not place objects under the seat:

The object could get stuck and cause the seat to not be result in an accident.

Do not stack cargo higher than the seatbacks:

Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden braking or a collision, objects can ﬂy around and become projectiles that may hit and injure passengers.

Make sure luggage and cargo is secured before driving:

Not securing cargo while driving is dangerous as it could move or be crushed during sudden braking or a collision and cause injury. Additionally, if the air bags deploy, the cargo may scatter which could result in serious injury or death.

securely, and

ﬁxed

Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving:

Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up on the folded seatback while the vehicle is moving is particularly dangerous. In a sudden stop or even a minor collision, a child not in a proper seat or child-restraint system and seat belt could be thrown forward, back or even out of the vehicle resulting in serious injuries or death. The child in the baggage area could be thrown into other occupants and cause serious injury.

CAUTION

¾When operating a seat, be careful

not to put your hands or the moving parts of the seat or on the side trim to prevent injury.

¾When moving the seats, make sure

there is no cargo in the surrounding area. If the cargo gets caught it could damage the cargo.

¾(Manual Seat)

When moving the seats forward and rearward or returning a rear-reclined seatback to its upright position, make sure you hold onto the seatback with your hand while operating. If the seatback is not held, the seat will move suddenly and could cause injury.

¾When inserting your hand under the

seat to clean the cabin or pick up something you dropped under the seat, be careful not to hurt yourself. If you contact the moving parts and surrounding parts around the seat rail, seat frame, and the bottom of the seat, it could result in injury.

ﬁngers

near

2-3

Page 31

Essential Safety Equipment

Seats

NOTE

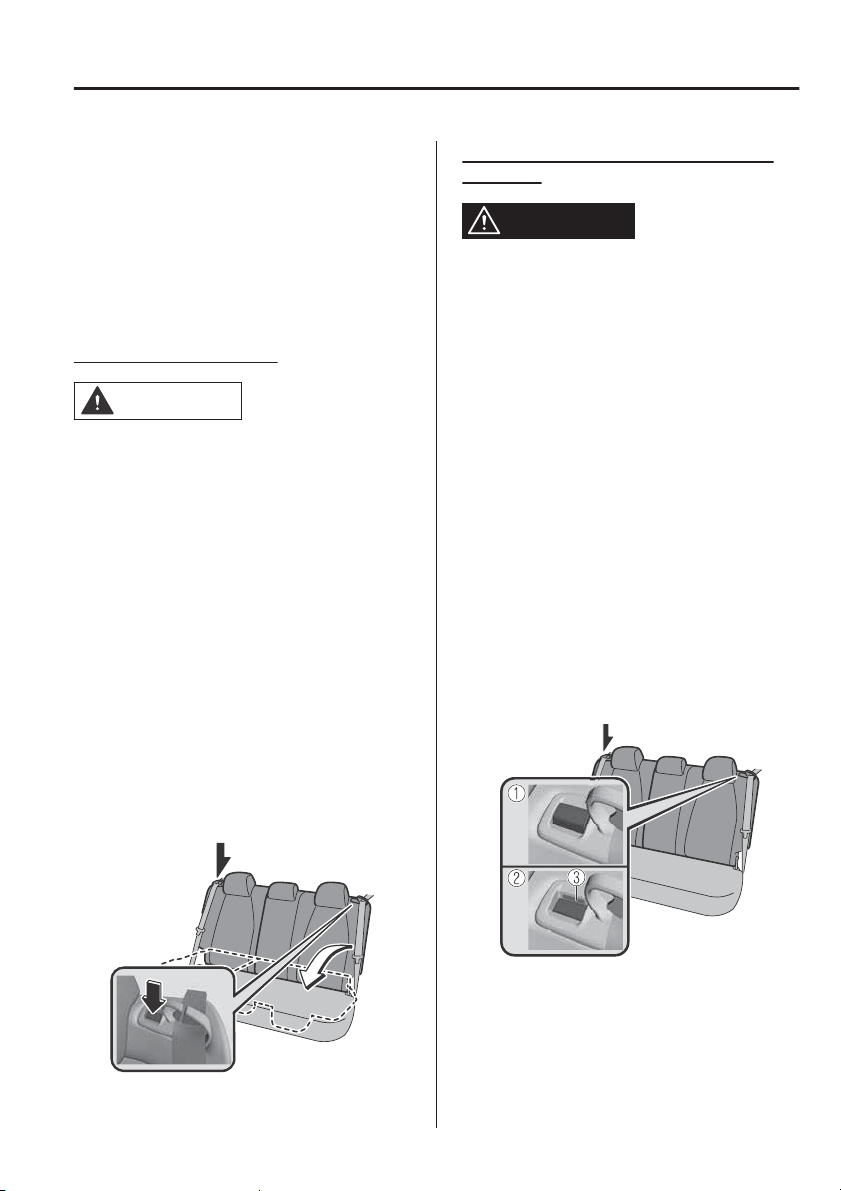

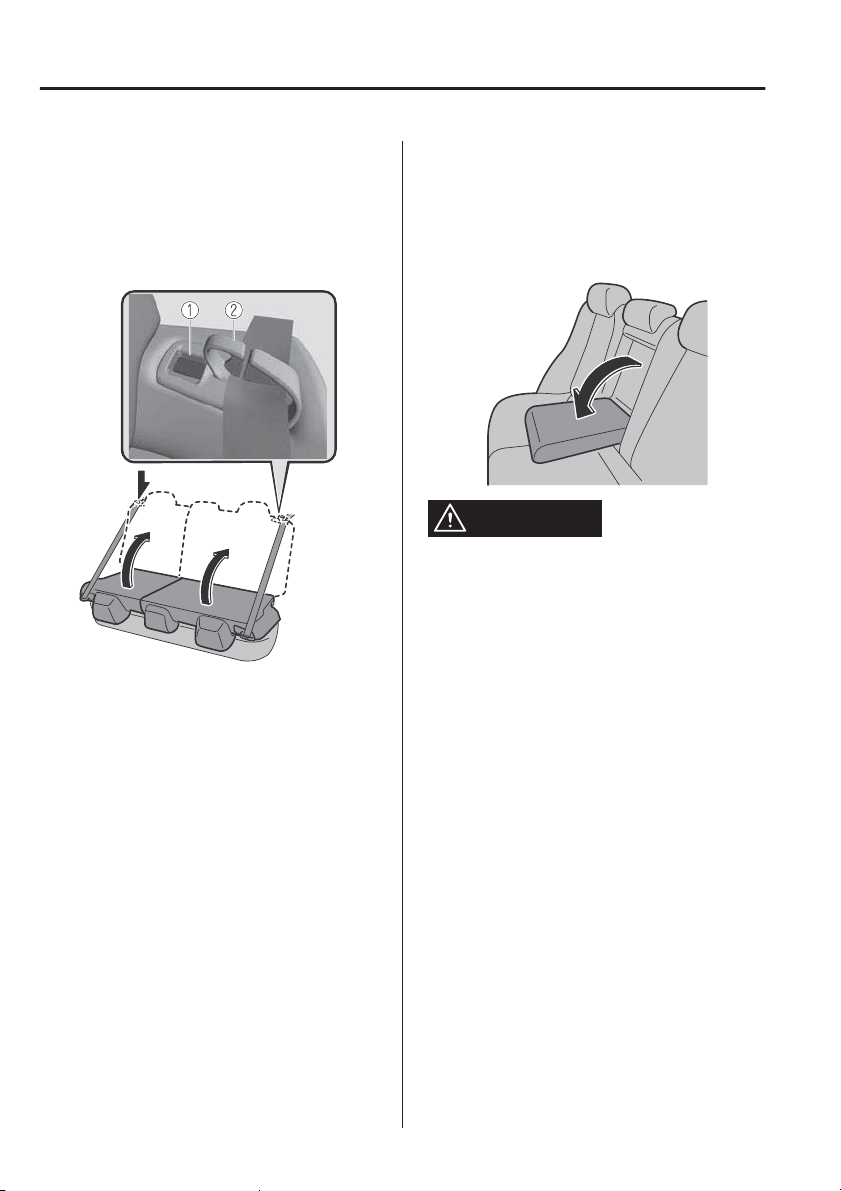

When returning a rear seat to its original position, place the seat belt in its normal position. Verify that the seat belt pulls out and retracts.

(Power Seat)

The seat-bottom power adjustment is operated by motors. Avoid extended operation because excessive use can damage the motors.

To prevent the battery from running down, avoid using the power adjustment when the EV system is stopped. The adjuster uses a large amount of electrical power.

Do not use the switch to make more than one adjustment at a time.

Front Seat

Adjusting the Driver's Seat

▼

Using the driving position set up procedure recommended by Mazda allows you to maintain a relaxed posture, drive the vehicle for longer periods without feeling tired, and make quick operations naturally. Also, you can be assured of a clear view in the forward direction to help you drive more safely and comfortably. The adjustments for the driving position recommended by Mazda are done using the following procedures.

1. Moving the steering wheel and seat to their default positions.

2. Adjusting the seatback angle.

3. Adjusting the seat position forward and back.

4. Adjusting the seat height.

5. Adjusting the height on the front edge of the seat bottom.

6. Adjusting the steering wheel position.

7. Adjusting the head restraint position.

2-4

Page 32

Essential Safety Equipment

Seats

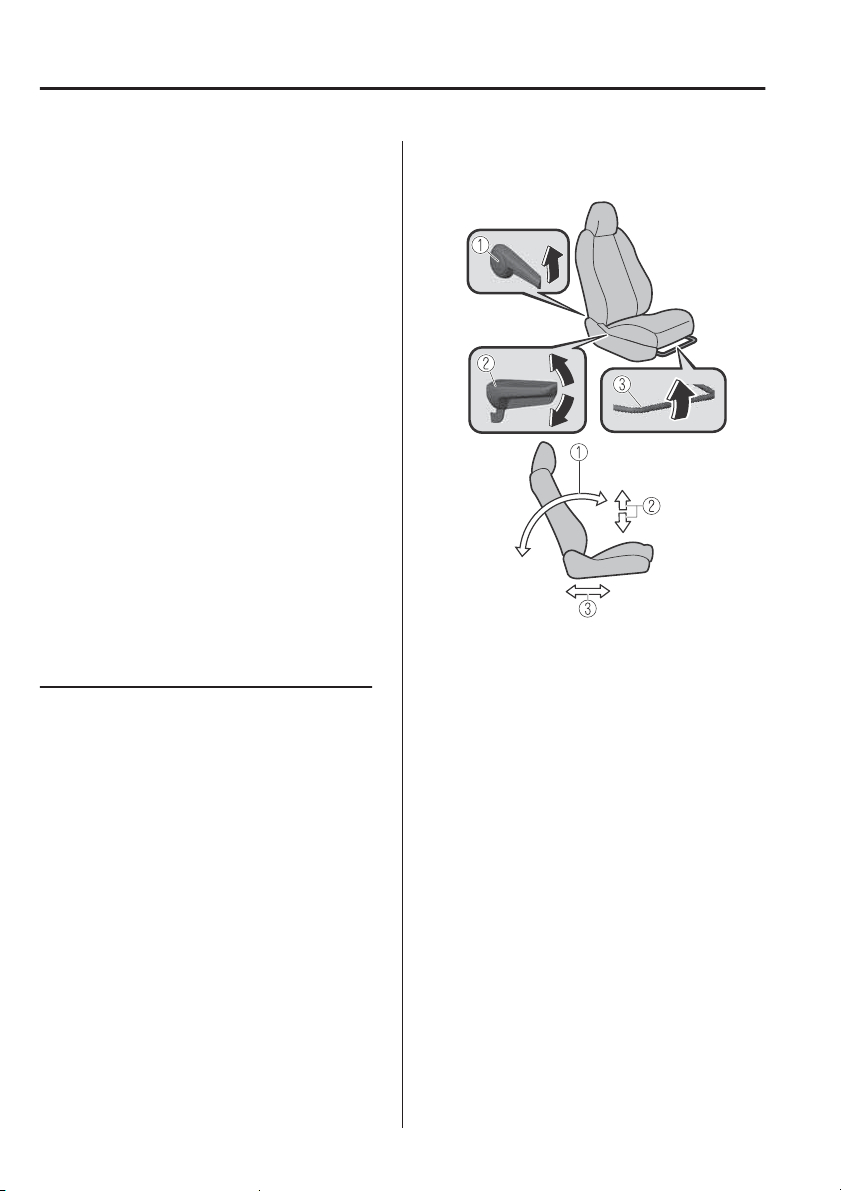

Manual seat

1. Seat Slide To move a seat forward or backward, raise the lever and slide the seat to the desired position and release the lever. Make sure the lever returns to its original position and the seat is locked in place by attempting to push it forward and backward.

2. Height Adjustment To adjust the seat height, move the lever up or down.

3. Height Adjustment for Front Edge

of Seat Bottom

To adjust the height for front edge of the seat bottom, rotate the dial to the desired position.

4. Seat Recline To change the seatback angle, lean forward slightly while raising the lever. Then lean back to the desired position and release the lever. Make sure the lever returns to its original position and the seatback is locked in place by attempting to push it forward and backward.

Power seat

1. Seat Slide To slide the seat, move the slide lifter switch on the outside of the seat to the front or back and hold it. Release the switch at the desired position.

2. Height Adjustment To adjust the seat height, move the slide lifter switch up or down.

3. Height Adjustment for Front Edge

of Seat Bottom

To adjust the front height of the seat bottom, raise or lower the front of the slide lifter switch.

2-5

Page 33

Essential Safety Equipment

Seats

4. Seat Recline To change the seatback angle, press the front or rear side of the reclining switch. Release the switch at the desired position.

5. Lumbar Support Adjustment To increase the seat ﬁrmness, press and hold the front part of the switch to the desired position, then release it. Press the rear part of the switch to decrease ﬁrmness.

Before making adjustments to the driving position recommended by Mazda

Before making adjustments, move the steering wheel and seat to their default positions.

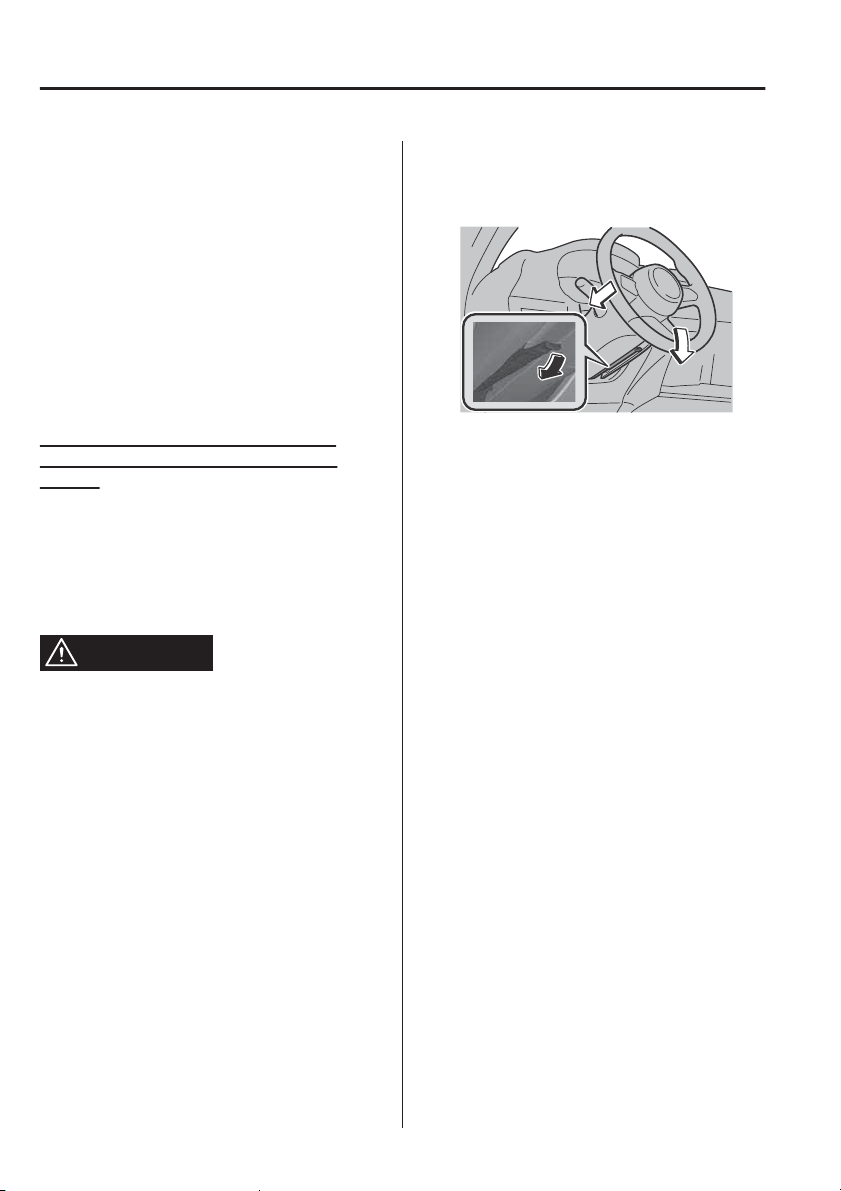

How to move the steering wheel to its default position

WARNING

After adjusting the steering wheel position, make sure it is securely locked by trying to move it up and down:

Driving with the steering wheel not securely locked in position is dangerous. If the steering wheel moves unexpectedly while driving, you could lose control of the steering resulting in an accident.

1. Lower the lever. Move the steering wheel to the lowest position, and then push it down and all the way back.

How to move a driver’s seat to its default position

1. Slide the seat all the way back.

2. Lower the seat to its lowest height.

3. Lower the front edge of the seat bottom to its lowest height.

4. Sit squarely in the seat and rest your back against the seatback.

2-6

Page 34

Essential Safety Equipment

Seats

Seat adjustment procedure for the driving position recommended by Mazda

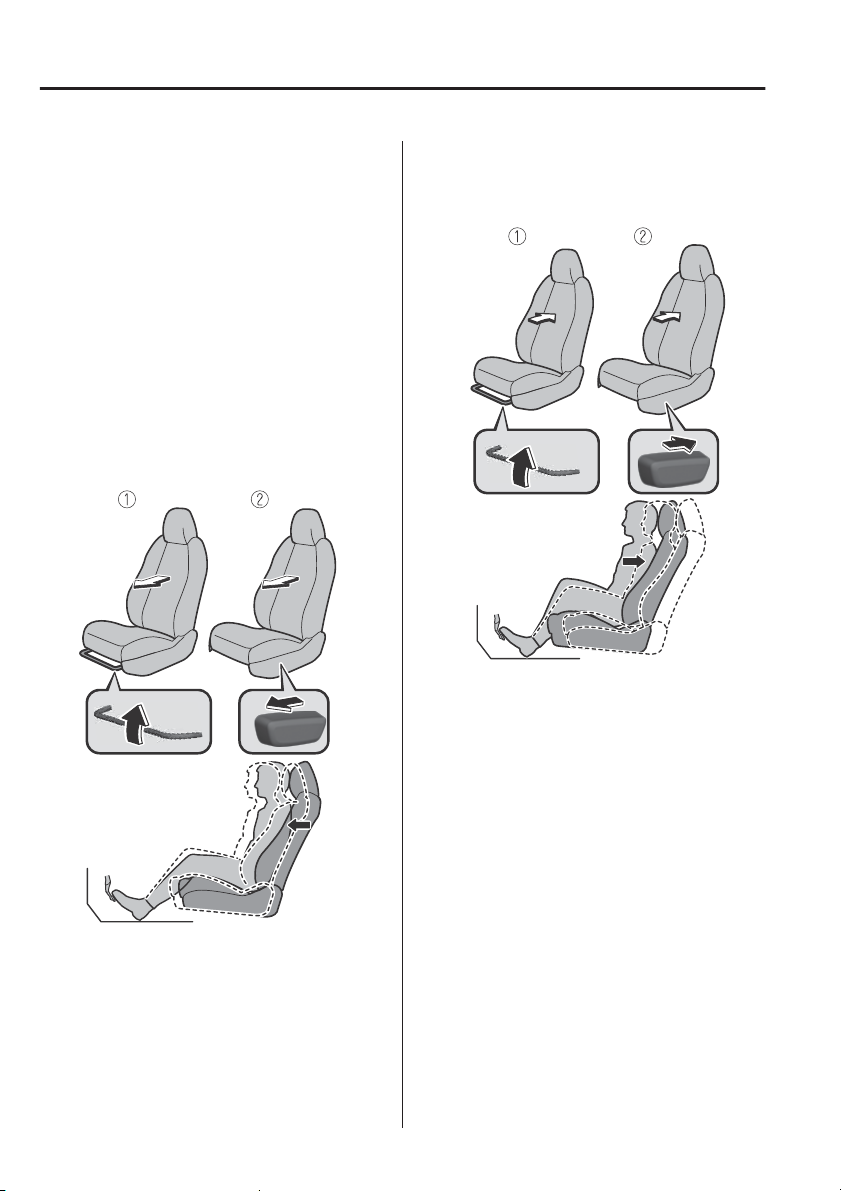

Adjusting the seatback angle (reclining)

Adjust the seatback to the angle providing a comfortable seated posture.

1. With your posture slightly slouched, move the seatback forward to the angle where your waist feels slightly cramped.

2. Move the seatback backward to a comfortable seated posture without any feeling of cramping in your waist.

1. Manual Seat

2. Power Seat

1. Manual Seat

2. Power Seat

2-7

Page 35

Essential Safety Equipment

Seats

Adjusting the seat position forward and back (sliding)

Adjust the seat to the position best for operating the accelerator and brake pedals.

1. Place your left foot on the footrest, your right foot between the accelerator and brake pedals, and position your heel to the position allowing easy switching between the pedals.

2. With your heel set on the your right foot on the brake pedal and move the seat forward as far as possible until you feel a slight cramping in your ankle.

ﬂoor,

set

3. With your right foot set on the brake pedal, move the seat back until you no longer feel cramping in your ankle.

1. Manual Seat

2. Power Seat

4. With your heel set on the make sure you can move your foot between the brake pedal and accelerator pedal smoothly.

5. Depress the accelerator pedal completely with your heel set on the ﬂoor and make sure that your ankle does not feel over-stretched.

ﬂoor,

1. Manual Seat

2. Power Seat

2-8

Page 36

Essential Safety Equipment

Seats

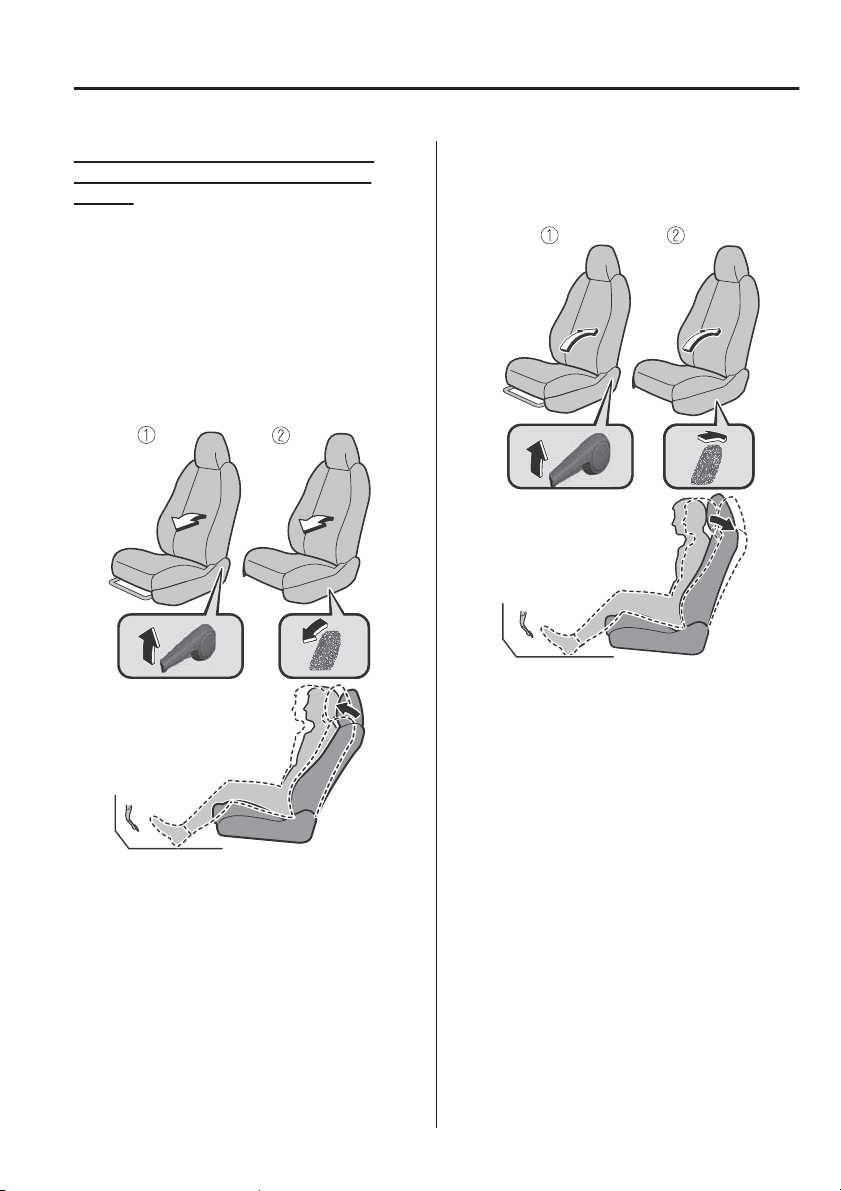

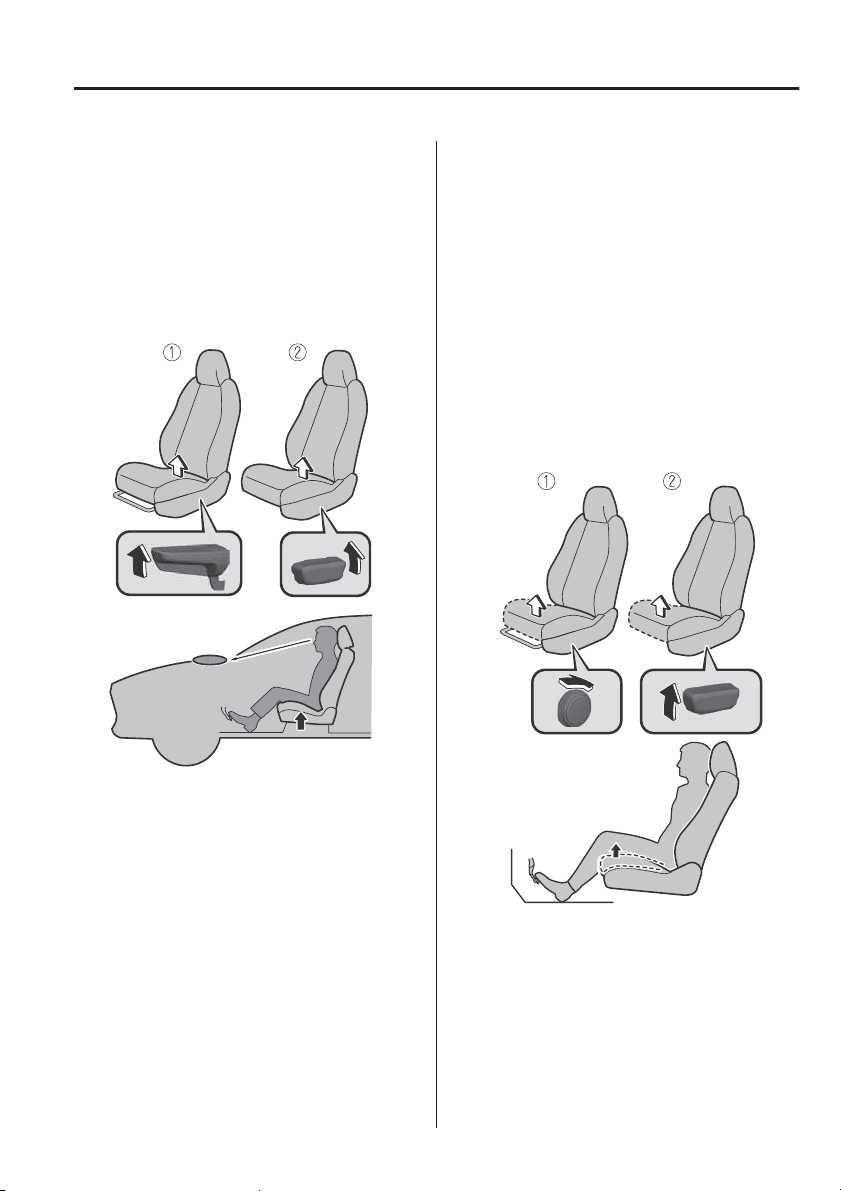

Adjusting the seat height

Adjust the seat height to a position where you have a clear forward view and you can drive the vehicle easily.

1. With your back resting against the seatback, raise the seat to the height where you can see the rear edge area of the bonnet surface from the windscreen.

Adjusting the height on the front edge of the seat bottom

Adjust the height on the front edge of the seat bottom to the position where the back of your knees contacts the front edge of the seat bottom.

1. With your right foot set on the accelerator pedal, adjust the height on the front edge of the seat bottom so that the back of your knees lightly contacts the front edge of the seat bottom.

2. Depress the accelerator pedal and make sure that you no longer feel cramping in the back of your knees.

1. Manual Seat

2. Power Seat

1. Manual Seat

2. Power Seat

2-9

Page 37

Essential Safety Equipment

Seats

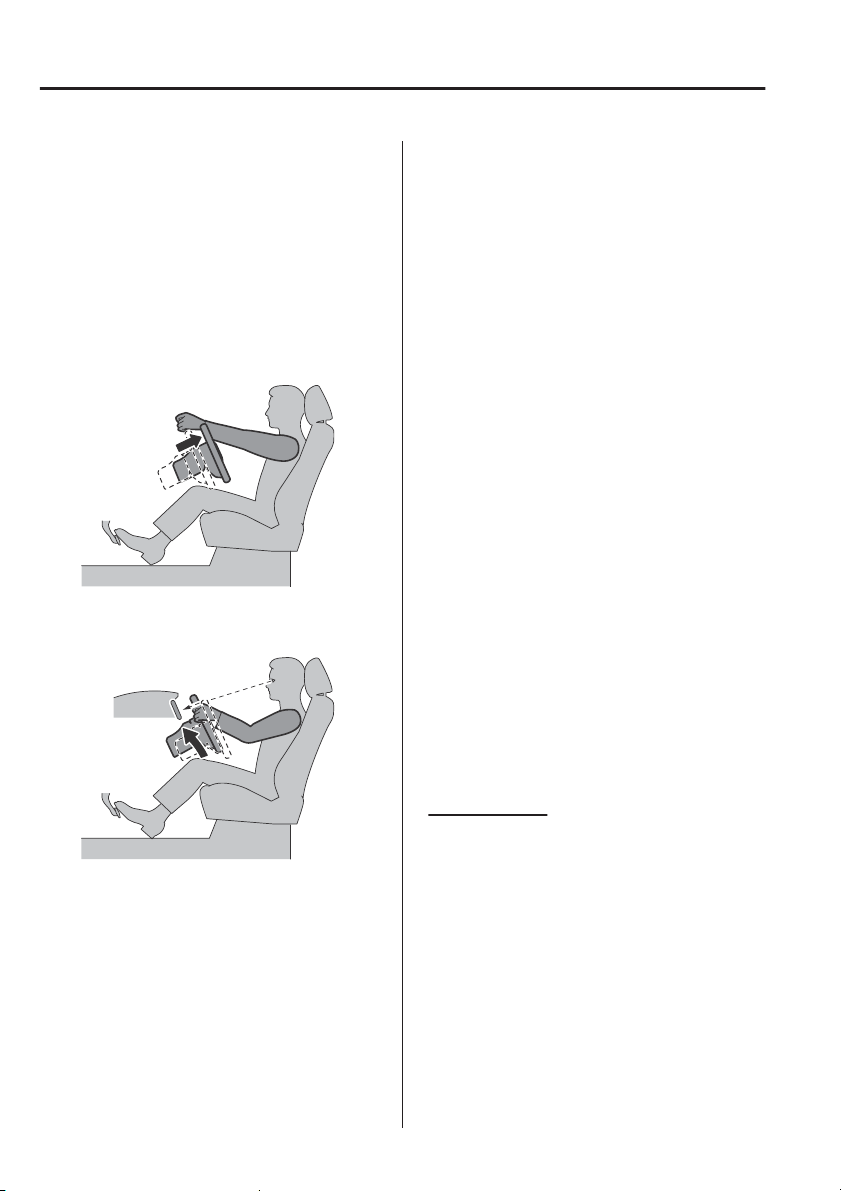

Adjusting the steering wheel position

Adjust the steering wheel to the position where it can be operated easily and the gauges can be viewed easily.

1. With your back resting against the seatback, extend both arms, place them on the top of the steering wheel, and pull the steering wheel towards you to the position of your wrists.

2. Adjust the steering wheel height so that the gauges can be viewed easily.

3. Raise the lever to securely lock the steering wheel.

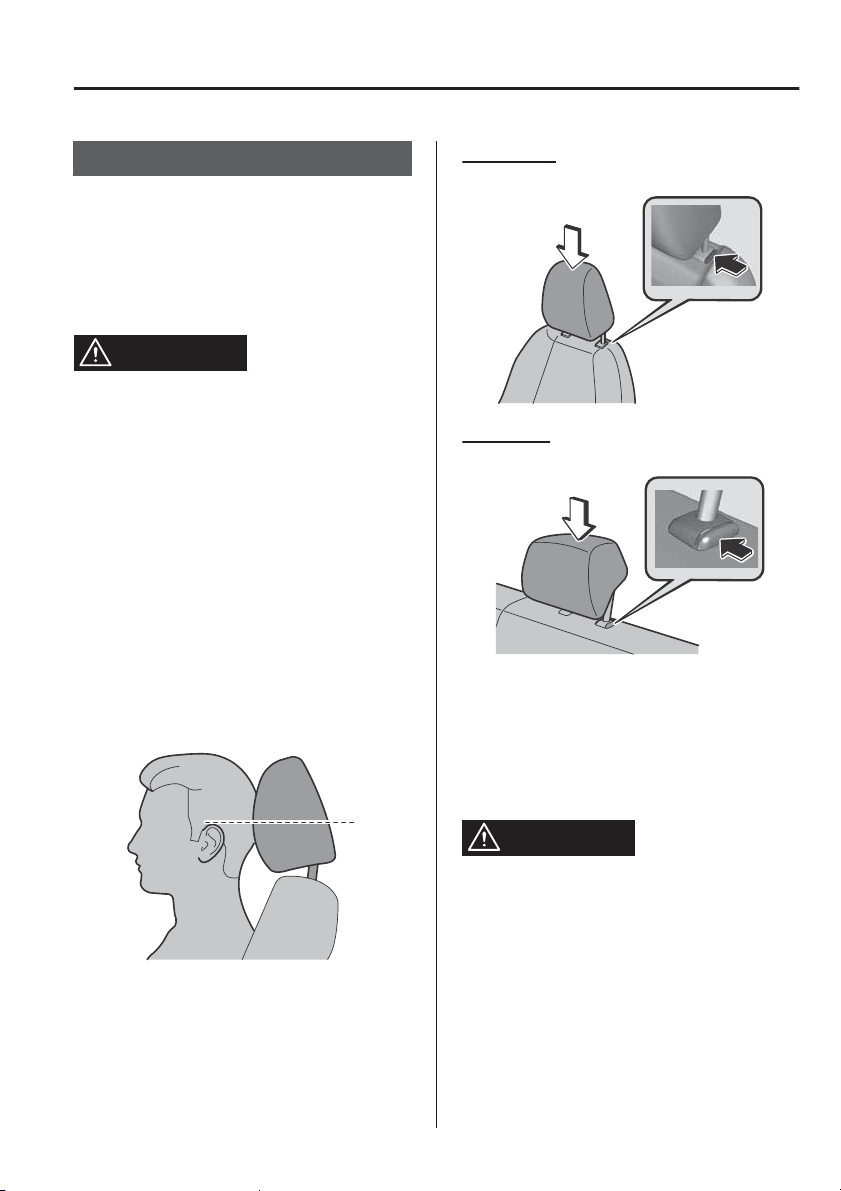

Adjusting the head restraint position

To prevent shock to the head and neck, adjust the head restraints to their correct positions. Refer to Height Adjustment on page 2-19.

Driving Position Memory (Power

▼

Seat)

The desired driving position can be called up after programming the position. The following driving positions can be programmed.

Driver’s seat position (seat slide, height adjustment, front edge of seat bottom, seat recline) Refer to Adjusting the Driver's Seat on page 2-4.

Active driving display (display position, brightness level, display information) Refer to Active Driving Display on page 4-27.

Outside mirror angle Refer to Outside Mirrors on page 3-51.

A driving position can be programmed to the following parts.

Position memory switch

Transmitter used for vehicle

NOTE

Lumbar support adjustment cannot be programmed.

Programming

1. Make sure the parking brake is on.

2. Make sure the selector lever is in the P position.

3. Switch the power switch ON.

4. Adjust the following parts to the desired conditions.

Driver's seat

Active driving display

Outside mirrors

2-10

Page 38

Essential Safety Equipment

Seats

5. Press the SET switch continuously until a sound is activated.

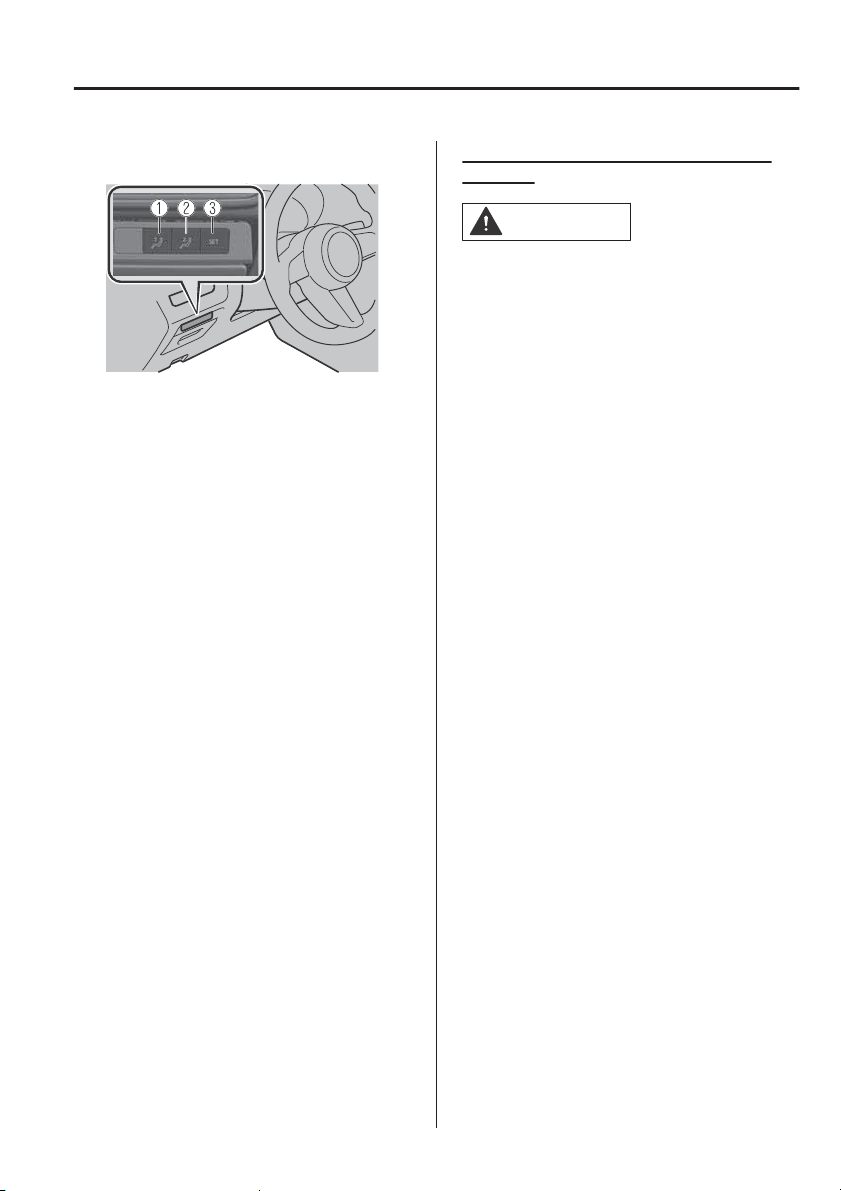

1. 1 switch

2. 2 switch

3. SET switch

6. Do the following operation within 5 seconds after the sound is activated to programme the driving position.

Programming to a position memory switch

Press the switch you want to programme, either 1 or 2 switch.

Programming to the transmitter

Press the unlock switch on the transmitter.

A sound is activated when the operation is completed correctly.

NOTE

If you do not perform the operation correctly, a sound indicating that the programming has failed is activated.

If the angle of the outer mirrors only changes a little, the angle of the outer mirrors may not have been programmed correctly.

If the angle of the outer mirrors is adjusted close to the limits of its range of motion, the driving position can be successfully programmed, but it may fail when calling up the programmed driving position.

Calling up the programmed driving position

CAUTION

Do not place the bottom of the seat while the seat memory function is operating. The seat moves automatically while the seat memory function is operating and

or hands could get pinched and

ﬁngers injured.

NOTE

When adjustment of the driving position is not necessary, a sound is not activated.

The driving position adjustment is cancelled in the following cases:

The seat adjustment switch on the driver's seat is operated.

The angle of the outer mirrors is adjusted.

The SET switch is pressed.

Programming switch 1 or 2 is pressed.

The lock switch or unlock switch on the transmitter is pressed.

The vehicle starts moving.

The active driving display is adjusted.

The selector lever is shifted to a position other than P.

The walk in switch is operated.

Using the position memory switch

1. Make sure the parking brake is on.

2. Make sure the selector lever is in the P position.

3. Switch the power switch ON.

4. Press the programming switch for the driving position you want to call up (switch 1 or 2).

or hands around

ﬁngers

2-11

Page 39

Essential Safety Equipment

Seats

5. A sound is activated when the adjustment to the programmed driving position is completed.

Using the transmitter

1. Unlock the driver's door using one of the following methods.

Touch the sensing area of the door release touch sensor.

Press the unlock switch on the transmitter.

2. When you open the driver's door within 90 seconds after unlocking the doors, the adjustment of the following parts starts.

Driver's seat

Active driving display (When the power switch is switched ON, the adjusted active driving display is activated.)

Outside mirrors

A sound is activated when the adjustment is completed.

Erasing programmed driving positions

Erasing the driving positions programmed to the key

1. Switch the power switch OFF.

2. Press the SET switch continuously until a sound is activated.

3. Press the lock switch on the transmitter within 5 seconds after the sound is activated.

NOTE

If you do not perform the operation correctly, a sound indicating that the programming has failed is activated.

Adjusting the Front Passenger's

▼

Seat

1. Seat Recline To change the seatback angle, lean forward slightly while raising the lever. Then lean back to the desired position and release the lever. Make sure the lever returns to its original position and the seatback is locked in place by attempting to push it forward and backward.

2. Height Adjustment To adjust the seat height, move the lever up or down.

3. Seat Slide To move a seat forward or backward, raise the lever and slide the seat to the desired position and release the lever. Make sure the lever returns to its original position and the seat is locked in place by attempting to push it forward and backward.

2-12

Page 40

Getting in or out of the Rear Seat

▼

Essential Safety Equipment

Seats

CAUTION

WARNING

Do not operate a front seat while an occupant is seated in it:

Folding down the seatback or operating the seat switch while an occupant is seated in the seat is dangerous because the seatback folds down or reclines suddenly, and moves to an unintended position which may aect the driving when operated which could cause an injury.

When returning the operated seat to its sitting position, make sure that the seat is ﬁrmly locked and the red indication on the walk in strap is not visible (Manual seat):

If the vehicle is driven without the seat

locked, the seatback could fold

ﬁrmly down suddenly and cause an accident. In addition, the seat is not locked if the red indication on the walk in strap is visible. Make sure that the seat is ﬁrmly locked and the red indication on the walk in strap is not visible.

¾Be careful of the top of the door

opening when getting in or out of the rear seat. Otherwise, you could hit your head or body, resulting in injury.

¾Lower the head restraint when

operating the front seat. If the seat is operated with the head restraint raised, the head restraint may contact the ceiling of the vehicle causing damage.

This vehicle has freestyle doors with the rear door hinged at its rear and opening in the opposite direction to the front door. While the front door is closed, the rear door cannot be opened. Refer to Freestyle Doors on page 3-47.

Before getting in or out of the rear seat, open the rear door. Change the seatback angle and the forward-back position of the front seat to make it easier to get in or out of the rear seat. Perform the following procedure if necessary.

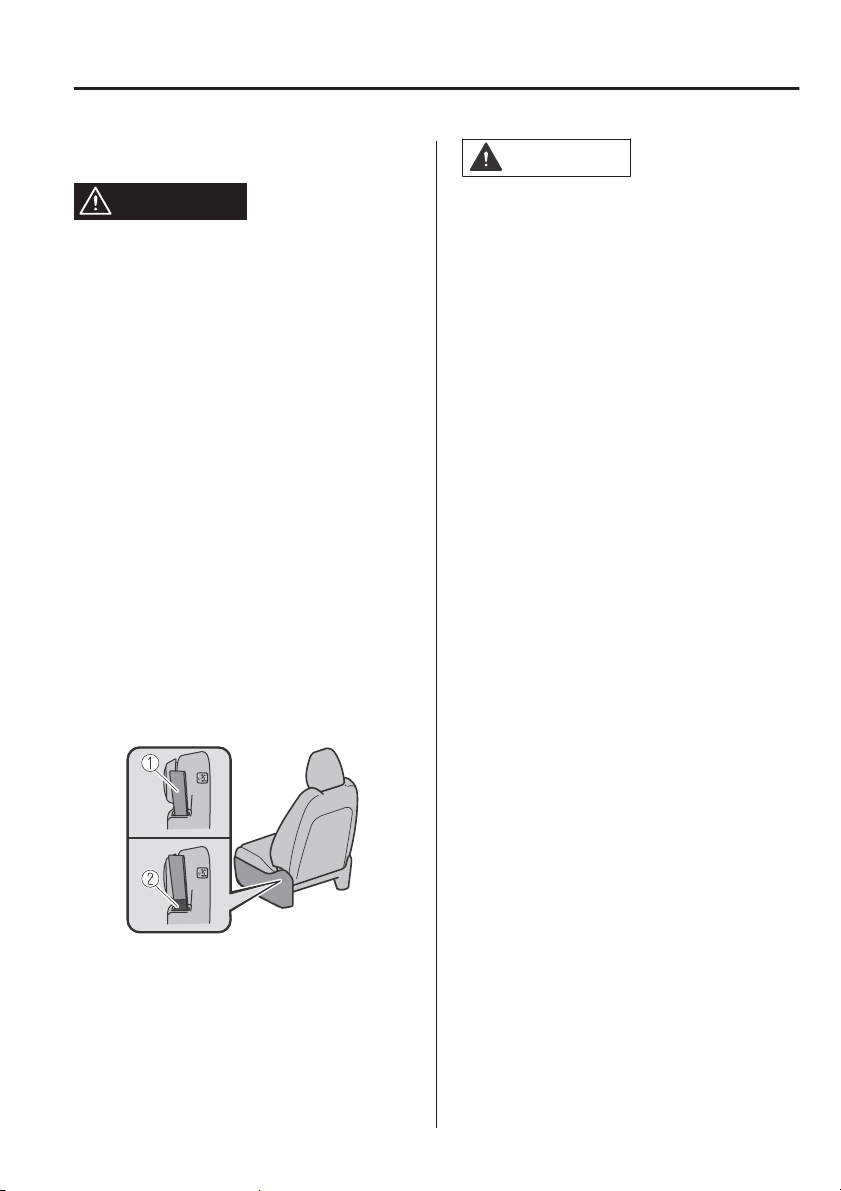

1. Walk in strap

2. Red indication

2-13

Page 41

Essential Safety Equipment

Seats

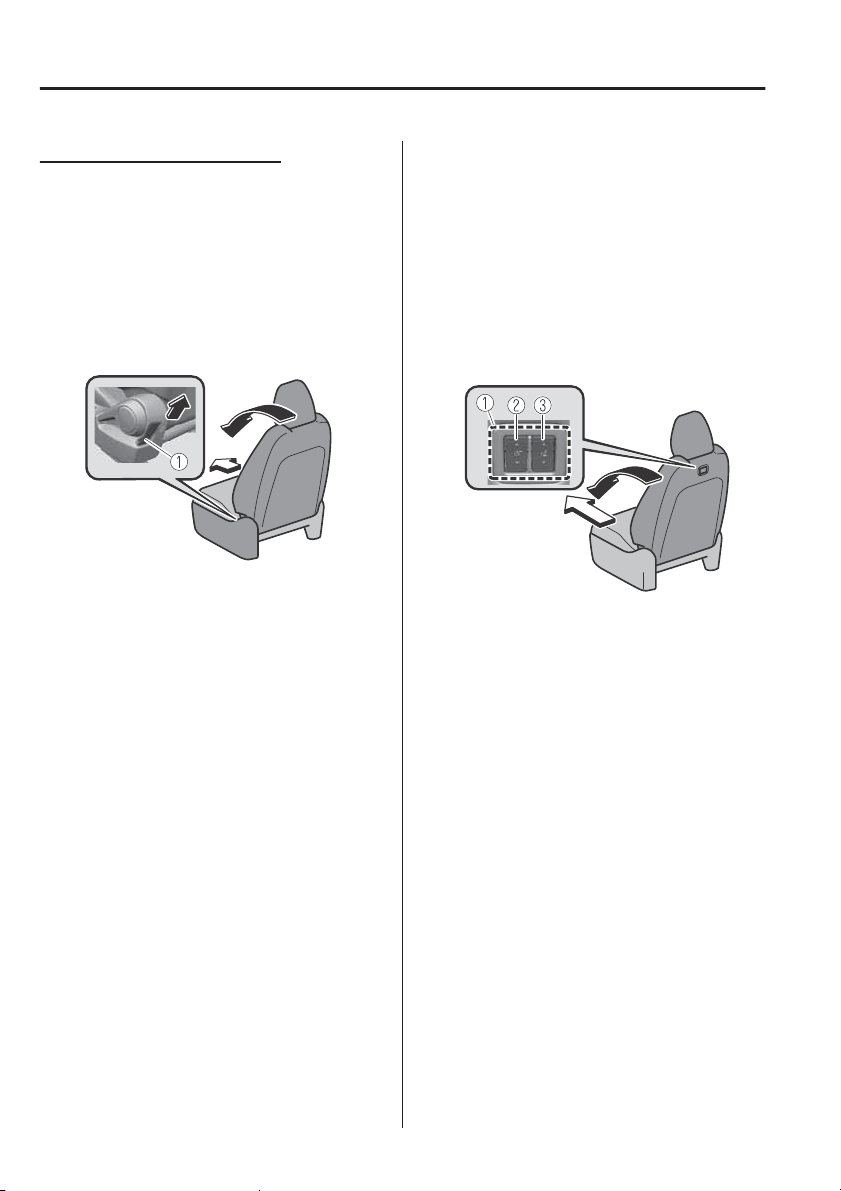

When getting in the vehicle

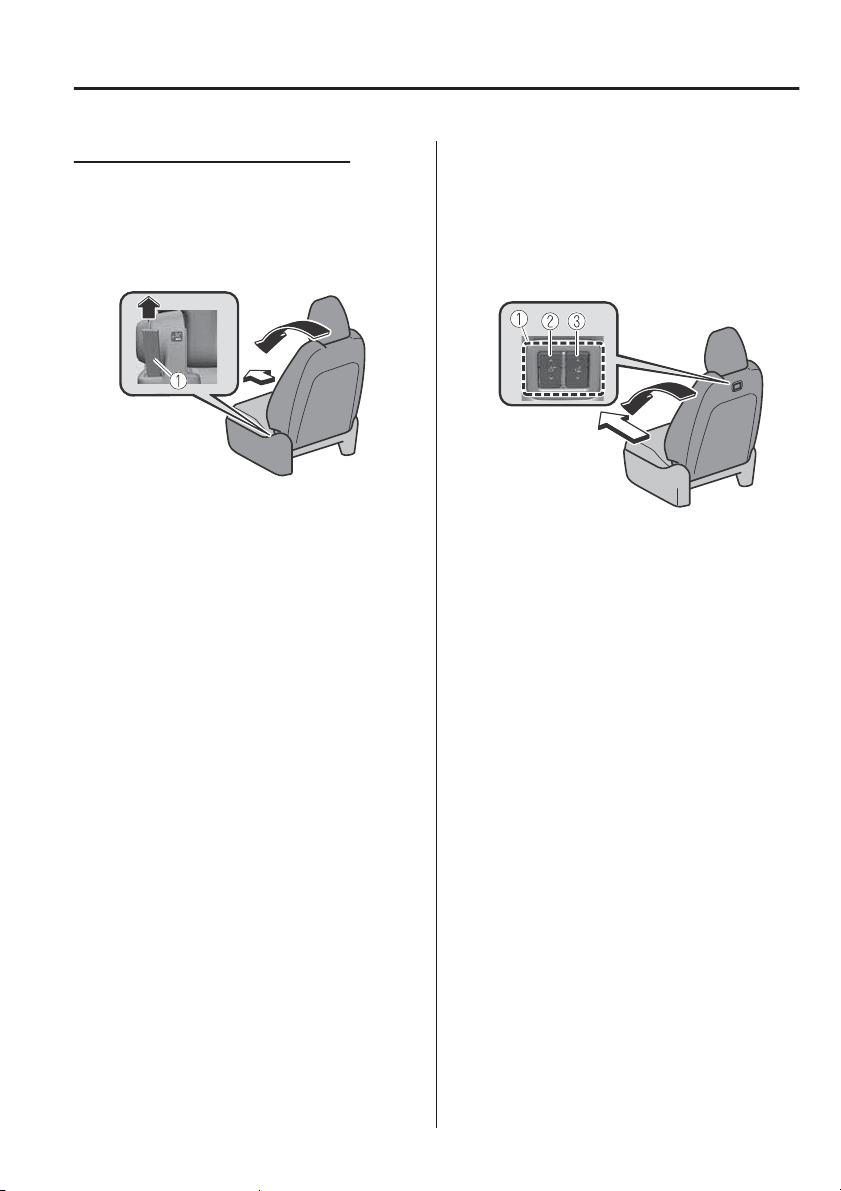

Manual seat

1. Operate the angle adjustment (reclining) lever, forward/back adjustment (sliding) lever on the side of the front seat, or the walk in strap. Pull the walk in strap to fold the seatback forward and slide the seat forward.

1. Walk in strap

2. Slide the seat rearward with the seatback folded forward and then raise the seatback to return the operated front seat to its sitting position after getting in the vehicle.

3. Make sure that the seatback and slide are ﬁrmly locked by attempting to lightly move the front seat forward and back.

Power seat

1. Operate the angle adjustment (reclining) switch, forward/back adjustment (sliding) switch on the side of the front seat, or the walk in switch. The seatback folds forward while the upper side of the angle switch is pressed, and the seat slides forward while the upper side of the slide switch is pressed.

1. Walk in switch

2. Angle switch

3. Slide switch

2. Perform the following procedure to return the operated front seat to its sitting position after getting in the vehicle.

1. Press the lower side of the angle

switch. The seatback reclines while the switch is being pressed.

2. Press the lower side of the slide

switch. The seat slides rearward while the switch is being pressed.

NOTE

After a few seconds have passed since the power switch was switched OFF, the seat cannot be moved even if the walk in switch is operated. The seat can be moved by operating the walk in switch again after a door is opened or closed or the power seat switch is operated.

2-14

Page 42

Essential Safety Equipment

Seats

When getting out of the vehicle

Manual seat

1. The seatback can be folded forward and the seat can be slid forward by pulling the walk in strap on the front seat.

1. Walk in strap

2. Slide the seat rearward with the seatback folded forward and then raise the seatback to return the operated front seat to its sitting position after getting out the vehicle.

3. Make sure that the seatback and slide are ﬁrmly locked by attempting to lightly move the front seat forward and back.

Power seat

1. Press the upper side of the angle switch. The seatback folds forward while the switch is being pressed.

2. Press the upper side of the slide switch. The seat slides forward while the switch is being pressed.

1. Walk in switch

2. Angle switch

3. Slide switch

NOTE

While an occupant is not seated on the driver’s seat, the seat can be moved using the walk in switch.

2-15

Page 43

Essential Safety Equipment

Seats

3. Perform the following procedure to return the operated front seat to its sitting position after getting out the vehicle.

1. Operate the angle adjustment

(reclining) switch on the side of the front seat or the angle switch on the back of the front seat to raise the seatback.

2. Operate the forward/back

adjustment (seat slide) switch on the side of the front seat or the slide switch on the back of the front seat to slide the seat rearward.

Rear Seat

Split Folding

▼

By lowering the rear seatbacks the luggage compartment space can be expanded.

WARNING

Do not drive the vehicle with occupants on folded down seatbacks or in the luggage compartment.

Putting occupants in the luggage compartment is dangerous because seat belts cannot be fastened which could lead to serious injury or death during sudden braking or a collision.

Do not allow children to play inside the vehicle with the seatbacks lowered.

Allowing children to play in the vehicle with the seatbacks folded down is dangerous. If a child enters the luggage compartment and the seatbacks were raised back up, the child may become trapped in the luggage compartment which could lead to an accident.

2-16

Tightly secure cargo in the luggage compartment when it is transported with the seatbacks folded down.

Driving without tightly securing cargo and luggage is dangerous as it could move and become an obstruction to driving during emergency braking or a collision resulting in an unexpected accident.

Page 44

Essential Safety Equipment

Seats

When transporting cargo, do not allow the cargo to exceed the height of the seatbacks.

Transporting cargo stacked higher than the seatbacks is dangerous as visibility to the rear and sides of the vehicle is reduced which could interfere with driving operations and lead to an accident.

Lowering the seatbacks

CAUTION

¾When folding the seatback forward,

always support the seatback with your hand. If it is not supported by a hand, ﬁngers or the hand pressing the push knob could be injured.

¾Check the position of a front seat

before folding a rear seatback. Depending on the position of a front seat, it may not be possible to fold a rear seatback all the way down because it may hit the seatback of the front seat which could scratch or damage the front seat or its pocket. Lower or remove the head restraint on the rear outboard seat if necessary.

Press the push knob to fold down the seatback.

To return the seatback to its upright position:

WARNING

When returning a seatback to its upright position, make sure the 3-point seat belt is not caught in the seatback and the 3-point seat belt is not twisted.

If the seat belt is used while it is twisted and caught in the seatback, the seat belt cannot function at its full capacity, which could cause serious injury or death.

When returning a seatback to its upright position, make sure that it is ﬁrmly locked and the red indication is not visible.

If the red indication is visible behind the push knob, it means the seatback is not locked. If the vehicle is driven without the seatback locked, it could fold down suddenly and cause an accident.

1. Locked position

2. Unlocked position

3. Red indication

2-17

Page 45

Essential Safety Equipment

Seats

1. Make sure that the seat belt passes through the seat belt guide correctly and it is not twisted, then raise the seatback while preventing the seat belt from being caught in the seatback.

1. Red indication

2. Seat belt guide

2. Press the seatback rearward and lock it in place. After returning the seatback to its upright position, make sure it is securely locked.

Armrest

▼

The rear armrest in the centre of the rear seatback can be used (no occupant in the centre seat) or placed upright.

WARNING

Never put your hands and ﬁngers around the moving parts of the seat and armrest:

Putting your hands and ﬁngers around the moving parts of the seat and armrest is dangerous as they could get injured.

2-18

*Some models.

Page 46

Essential Safety Equipment

Seats

Head Restraints

▼

Your vehicle is equipped with head restraints on all outboard seats and the rear centre seat. The head restraints are intended to help protect you and the passengers from neck injury.

WARNING

Always drive with the head restraints installed when seats are being used and make sure they are properly adjusted. In addition, always raise the head restraints on all rear seats when they are being used:

Driving with the head restraints adjusted too low or removed is dangerous. With no support behind your head, your neck could be seriously injured in a collision.

Height Adjustment

▼

Adjust the head restraint so that the centre is even with the top of the passenger's ears.

Front seats

Rear seats

Removal/Installation

▼

To remove the head restraint, pull it up while pressing the stop-catch. To install the head restraint, insert the legs into the holes while pressing the stop-catch.

To raise a head restraint, pull it up to the desired position. To lower the head restraint, press the stop-catch release, then push the head restraint down.

WARNING

Always drive with the head restraints installed when seats are being used and make sure they are properly installed:

Driving with the head restraints not installed is dangerous. With no support behind your head, your neck could be seriously injured in a collision.

2-19

Page 47

Essential Safety Equipment

Seats

After installing a head restraint, try lifting it to make sure that it does not pull out:

Driving with an unsecured head restraint is dangerous as the eectiveness of the head restraint will be compromised which could cause it to unexpectedly detach from the seat.

CAUTION

¾When installing a head restraint,

make sure that it is installed correctly with the front of the head restraint facing forward. If the head restraint is installed incorrectly, it could detach from the seat during a collision and result in injury.

¾The head restraints on each of the

front and rear seats are specialized to each seat. Do not switch around the head restraint positions. If a head restraint is not installed to its correct seat position, the head restraint during a collision will be compromised which could cause injury.

eectiveness

of the

2-20

Page 48

Essential Safety Equipment

Seat Warmer/Heated Steering Wheel

Seat Warmer

▼

The front seats can be warmed up while the EV system is operating.

WARNING

Be careful when using the seat warmer:

The heat from the seat warmer may be too hot for the following people and could cause a low-temperature burn.

¾Infants, small children, elderly

people, and physically challenged people

¾People with delicate skin ¾People who are excessively fatigued ¾People who are intoxicated ¾People who have taken

sleep-inducing medicine such as sleeping pills or cold medicine

Do not use the seat warmer with anything having high moisture-retention ability such as a blanket or cushion on the seat:

The seat may be heated excessively and cause a low-temperature burn.

CAUTION

Do not use organic solvents such as benzene or petrol to clean the seat. It may damage the seat surface and the heater.

NOTE

The seat warmer cannot be used while charging the vehicle.

The seat warmer can be operated on the operation screen of the air conditioner.

1. AUTO switch

2. Seat warmer icon

3. Seat warmer setting icon The seat warmer has manual mode and auto mode.

Do not use the seat warmer even when taking a short nap in the vehicle:

The seat may be heated excessively and cause a low-temperature burn.

Do not place heavy objects with sharp projections on the seat, or insert needles or pins into it:

This could cause the seat to become excessively heated and result in injury from a minor burn.

*Some models.

2-21

Page 49

Essential Safety Equipment

Seat Warmer/Heated Steering Wheel

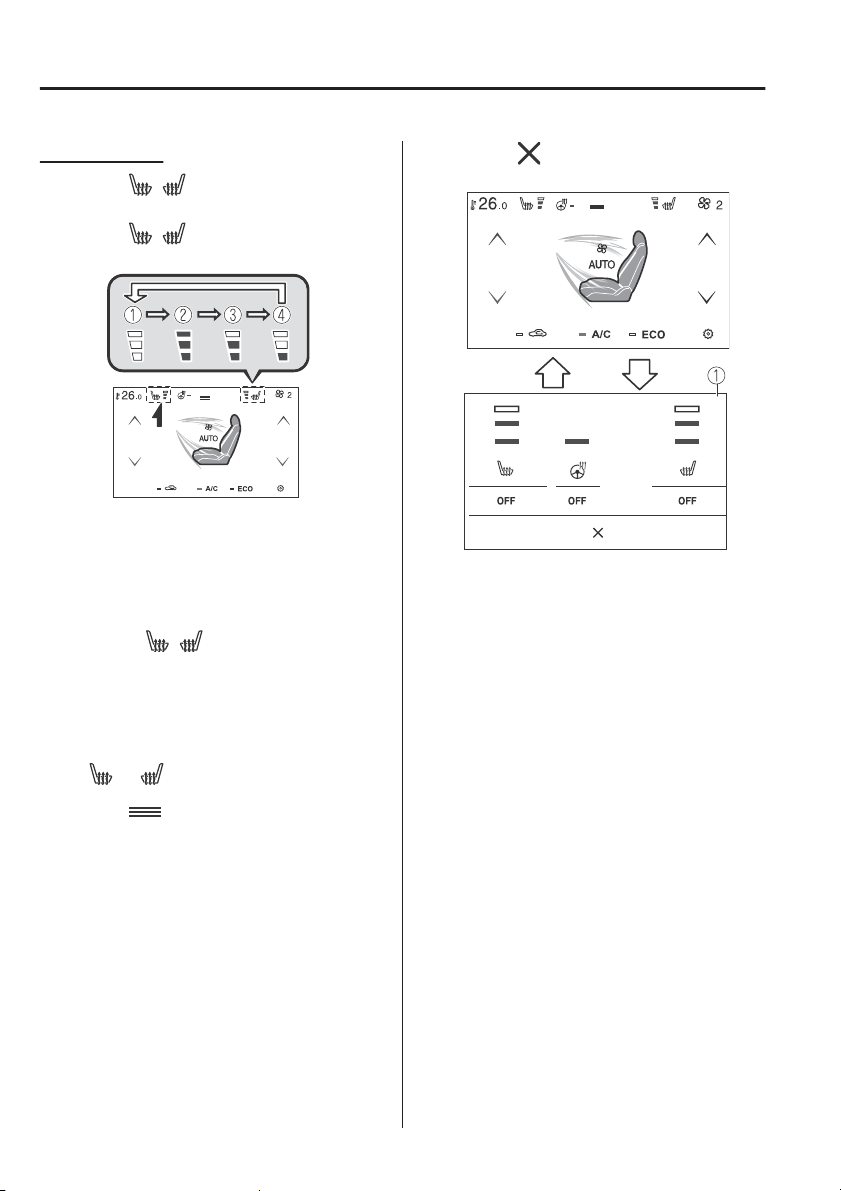

Manual mode

When the , is operated, the seat warmer operates in manual mode.

When the

, is touched or

ﬂicked,

the temperature level changes.

1. OFF

2. High

3. Mid

4. Low

NOTE

When the , is ﬂicked upward, the temperature changes to high. When it is ﬂicked downward, the seat warmer changes to OFF.

The seat warmer does not operate when the EV system stopped even if

the

or is touched or ﬂicked.

When the

is touched or

ﬂicked, the setting screen of the seat warmer can be displayed. When each icon for the setting screen is touched or ﬂicked, the temperature level can also be changed on the setting screen.

When the is touched or ﬂicked, the setting screen can be closed.

1. Setting screen

NOTE

If the EV system stopped while the seat warmer is operating in manual mode, the seat warmer does not turn on automatically the next time the EV system is started. To turn the seat warmer on, touch or ﬂick the icon again.

2-22

Page 50

Essential Safety Equipment

Seat Warmer/Heated Steering Wheel

Auto mode

The seat warmer can be operated in conjunction with auto mode for the air conditioner. Auto mode operates when auto mode is enabled in the Mazda Connect settings. Refer to the Settings section in the Mazda Connect Owner's Manual. Press the AUTO switch to select auto mode. While operating in auto mode, the

is displayed. The (white) for the driver's seat/front passenger's seat is displayed individually on the settings screen. The seat temperature is automatically controlled at 4 levels (High, Mid, Low, and OFF) according to the conditions in the cabin.

NOTE

When auto mode is enabled using Mazda Connect and auto mode is not operating, the

(gray) is displayed on the setting screen of the seat warmer.

If the front passenger’s seat belt is fastened, the front passenger’s seat warmer turns on.

If the or is operated during auto mode, the seat warmer on the side where the icon was operated switches to manual mode. To return to auto mode, press the AUTO switch.

If the power switch is switched OFF while the seat warmer is operating in auto mode, the seat warmer operates in auto mode again the next time the EV system is started.

Heated Steering Wheel

▼

The grips on the left and right of the steering wheel can be warmed up when the power switch is switched ON.

1. Heated position

WARNING

The following types of persons should be careful not to touch the steering wheel. Otherwise, it could cause a low-temperature burn.

¾Infants, small children, elderly

people, and physically challenged people

¾People with delicate skin ¾People who are excessively fatigued ¾People who are intoxicated ¾People who have taken

sleep-inducing medicine such as sleeping pills or cold medicine

*Some models.

2-23

Page 51

Essential Safety Equipment

Seat Warmer/Heated Steering Wheel

NOTE

The steering warmer cannot be used while charging the vehicle.

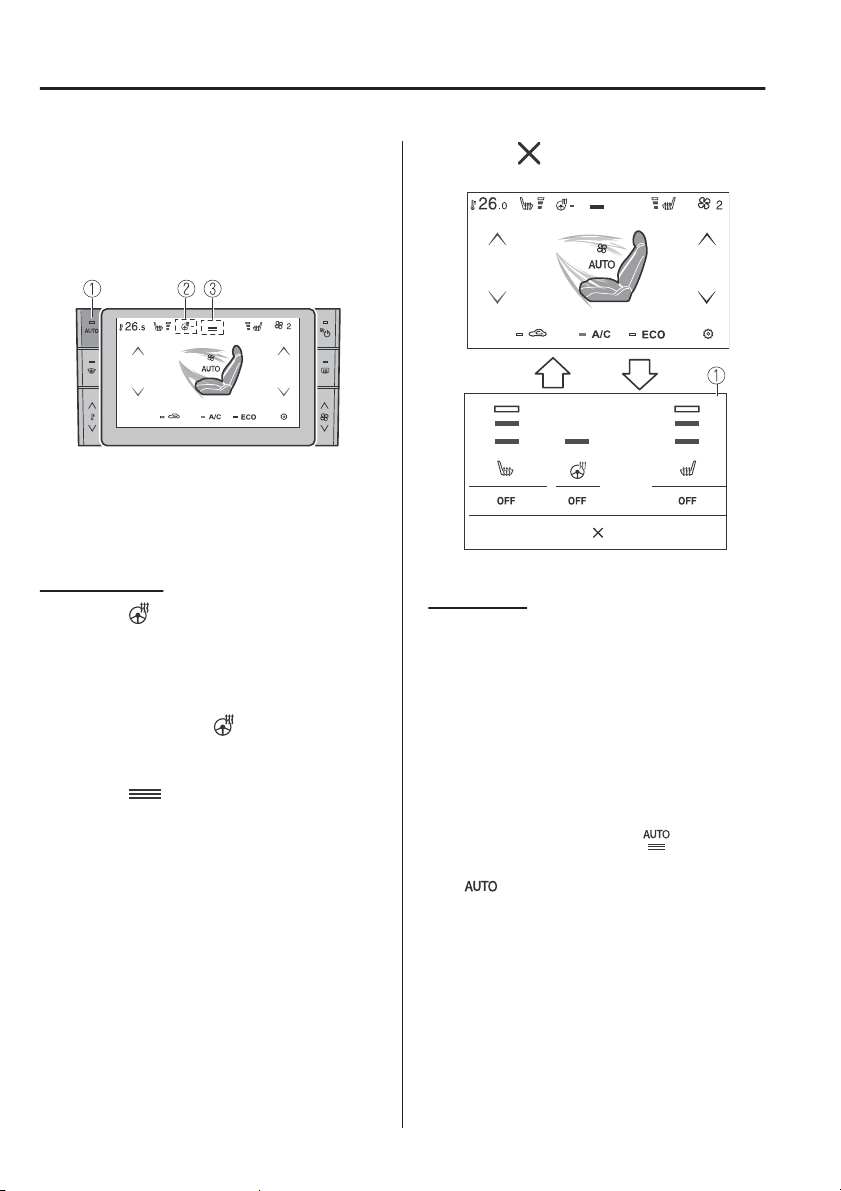

The steering warmer can be operated on the operation screen of the air conditioner.

1. AUTO switch

2. Steering warmer icon

3. Steering warmer setting icon The steering warmer has manual mode and auto mode.

Manual mode

When the is touched or upward, the steering warmer operates for about 30 minutes, and then automatically turns To turn the steering warmer o

manually, touch the downward.

When the downward, the setting screen of the steering warmer can be displayed. When each icon for the setting screen is touched or ﬂicked, the steering warmer can also be switched on the setting screen.

o.

is touched or

ﬂicked

again or ﬂick it

ﬂicked

on/o

When the is touched or ﬂicked, the setting screen can be closed.

1. Setting screen

Auto mode

The steering warmer can be operated in conjunction with auto mode for the air conditioner. Auto mode operates when auto mode is enabled in the Mazda Connect settings. Refer to the Settings section in the Mazda Connect Owner's Manual. Press the AUTO switch to select auto mode.

While in auto mode, the displayed. The settings screen. The steering warmer automatically operates/turns o according to the conditions in the cabin.

(white) is displayed on the

2-24

Page 52

Seat Warmer/Heated Steering Wheel

NOTE

When auto mode is enabled using Mazda Connect and auto mode is not operating, the displayed on the setting screen of the steering warmer.

When the is operated during auto mode, the steering warmer switches to manual mode. To return to auto mode, press the AUTO switch.

If the power switch is switched OFF while the steering warmer is operating in auto mode, the steering warmer operates in auto mode again the next time the power switch is switched ON.

(gray) is

Essential Safety Equipment

2-25

Page 53

Essential Safety Equipment

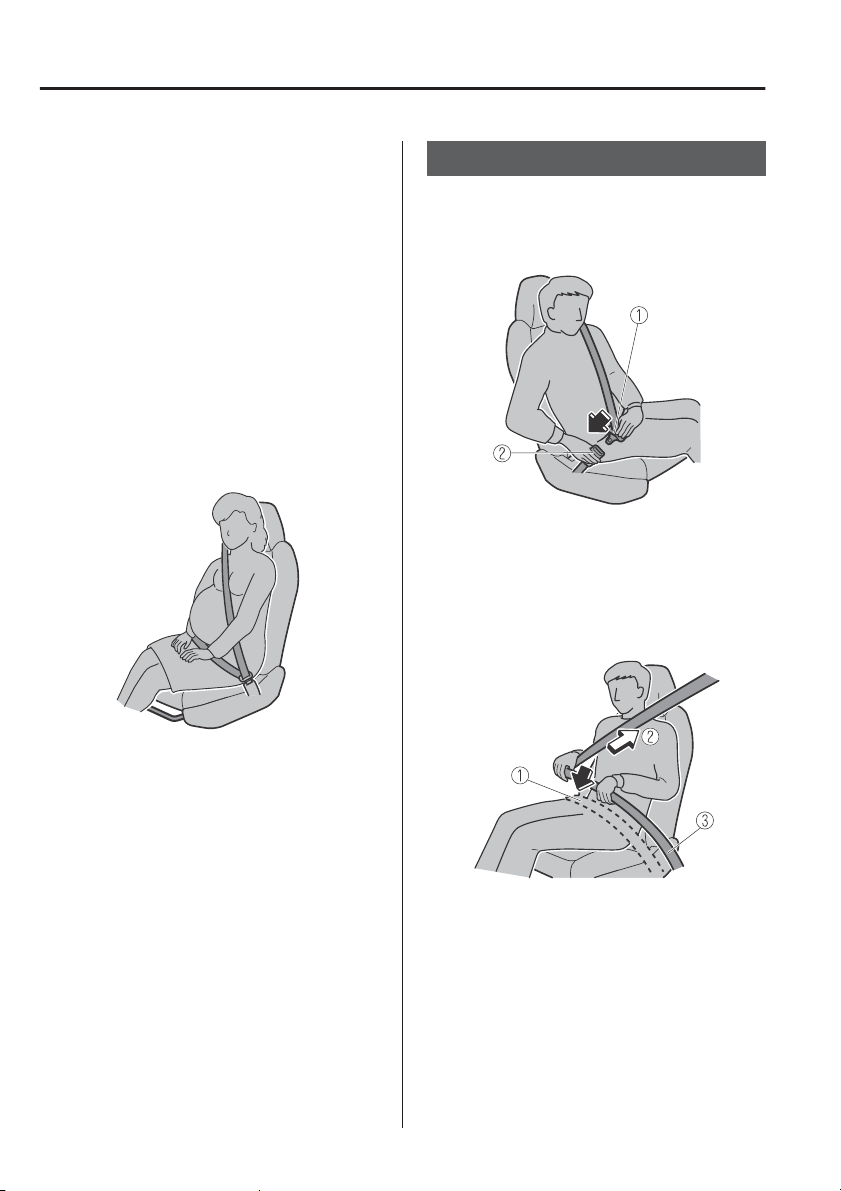

Seat Belt Systems

Seat Belt Precautions

▼

Seat belts help to decrease the possibility of severe injury during accidents and sudden stops. Mazda recommends that the driver and all passengers always wear seat belts. All the seats have lap/shoulder belts. These belts also have retractors with inertia locks that keep them out of the way when not in use. The locks allow the belts to remain comfortable on users, but they will lock in position during a collision.

WARNING

Always wear your seat belt and make sure all occupants are properly restrained:

Not wearing a seat belt is extremely dangerous. During a collision, occupants not wearing seat belts could hit someone or things inside the vehicle or even be thrown out of the vehicle. They could be seriously injured or even killed. In the same collision, occupants wearing seat belts would be much safer.

Do not wear twisted seat belts:

Twisted seat belts are dangerous. In a collision, the full width of the belt is not available to absorb the impact. This puts more force on the bones beneath the belt, which could cause serious injury or death. So, if your seat belt is twisted, you must straighten the seat belt to remove any twists and to allow the full width of the belt to be used.

Never use one seat belt on more than one person at a time:

Using one seat belt for more than one person at a time is dangerous. A seat belt used in this way cannot spread the impact forces properly and the two passengers could be crushed together and seriously injured or even killed. Never use one belt for more than one person at a time and always operate the vehicle with each occupant properly restrained.

Do not operate a vehicle with a damaged seat belt:

Using a damaged seat belt is dangerous. An accident could damage the belt webbing of the seat belt in use. A damaged seat belt cannot provide adequate protection in a collision. Have an expert repairer (we recommend an Authorised Mazda Repairer) inspect all seat belt systems in use during an accident before they are used again.

Have your seat belts changed immediately if the pretensioner or load limiter has been expended:

Always have an expert repairer (we recommend an Authorised Mazda Repairer) immediately inspect the seat belt pretensioners and air bags after any collision. Like the air bags, the seat belt pretensioners and load limiters will only function once and must be replaced after any collision that caused them to deploy. If the seat belt pretensioners and load limiters are not replaced, the risk of injury in a collision will increase.

2-26

Page 54

Essential Safety Equipment

Seat Belt Systems

Positioning the Shoulder Portion of the Seat Belt:

Improper positioning of the shoulder portion of the seat belt is dangerous. Always make sure the shoulder portion of the seat belt is positioned across your shoulder and near your neck, but never under your arm, on your neck, or on your upper arm.

Do not use a front seat belt while seated in a rear seat:

Using a front seat belt, which is stored in the rear door, is dangerous as the seat belt cannot function at its full capacity during sudden braking or in a collision, which could result in serious, injury or death. In addition, using the seat belt in this manner could damage the rear seat belt buckle.

Positioning the Lap Portion of the Seat Belt:

The lap portion of the seat belt worn too high is dangerous. In a collision, this would concentrate the impact force directly on the abdominal area, causing serious injury. Wear the lap portion of the belt snugly and as low as possible.

Instructions for Use of Seat Belt Assemblies:

Seatbelts are designed to bear upon the bony structure of the body, and should be worn low across the front of the pelvis or the pelvis, chest and shoulders, as applicable; wearing the lap section of the belt across the abdominal area must be avoided. Seatbelts should be adjusted as ﬁrmly as possible, consistent with comfort, to provide the protection for which they have been designed. A slack belt will greatly reduce the protection aorded to the wearer.

Care should be taken to avoid contamination of the webbing with polishes, oils and chemicals, and particularly battery acid. Cleaning may safely be carried out using mild soap and water. The belt should be replaced if webbing becomes frayed, contaminated or damaged. It is essential to replace the entire assembly after it has been worn in a severe impact even if damage to the assembly is not obvious. Belts should not be worn with straps twisted. Each belt assembly must only be used by one occupant; it is dangerous to put a belt around a child being carried on the occupant's lap. No modiﬁcations or additions should be made by the user which will either prevent the seat belt adjusting devices from operating to remove slack, or prevent the seat belt assembly from being adjusted to remove slack.

CAUTION

Belt retraction may become dicult if the belts and rings are soiled, so try to keep them clean. For more details about cleaning the seat belts, refer to "Seat Belt Maintenance" (page 6-44).

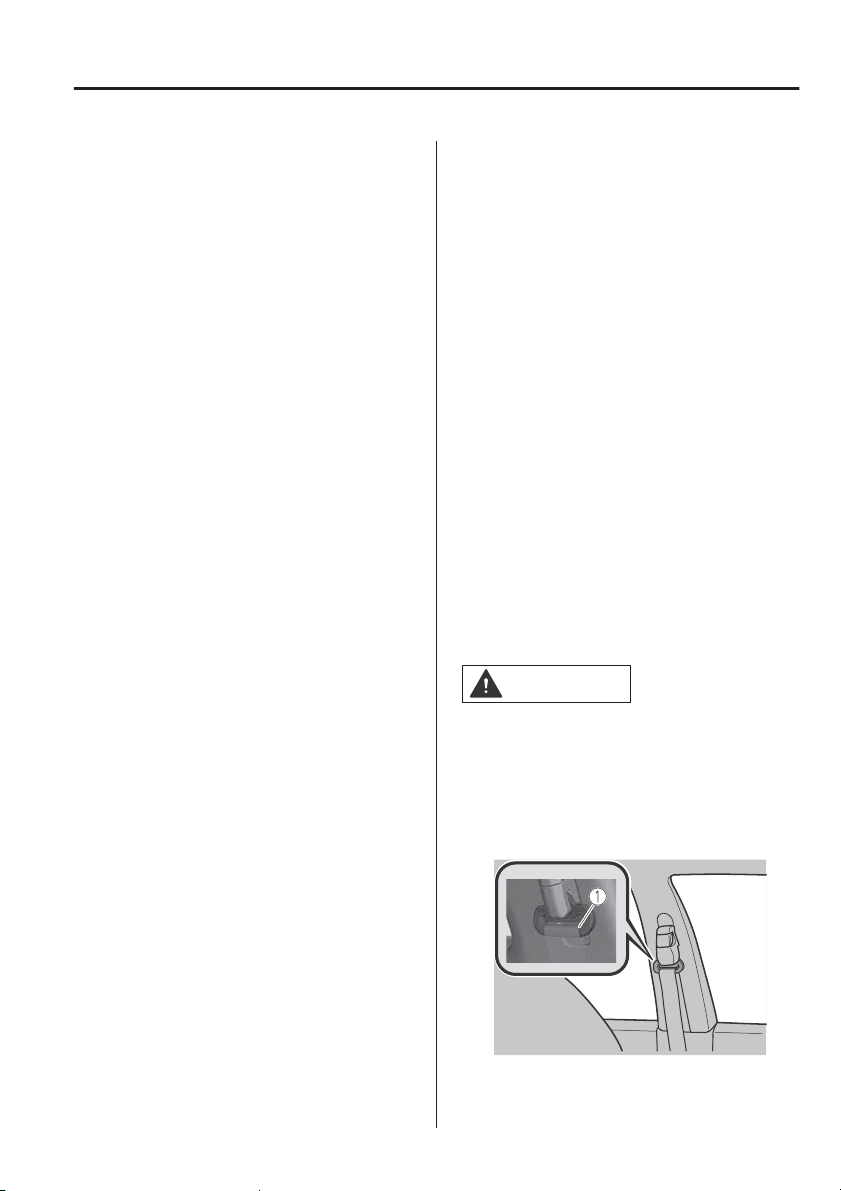

1. Ring

2-27

Page 55

Essential Safety Equipment

Seat Belt Systems

Pregnant Women and Persons with

▼

Serious Medical Conditions

Pregnant women should always wear seat belts. Ask your doctor for recommendations. The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS. The shoulder belt should be worn across your shoulder properly, but never across the stomach area. Persons with serious medical conditions also should wear seat belts. Check with your doctor for any special instructions regarding speciﬁc medical conditions.

speciﬁc

Seat Belt

Fastening the Seat Belt

▼

Insert the seat belt tongue into the buckle.

1. Seat belt tongue

2. Seat belt buckle

Position the lap belt as low as possible, not on the abdominal area, then adjust the shoulder belt so that it ﬁts snugly against your body.

Emergency Locking Mode

▼

When the seat belt is fastened, it will always be in the emergency locking mode. In the emergency locking mode, the belt remains comfortable on the occupant and the retractor will lock in position during a collision. If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it out slowly. If this fails, pull the belt strongly 1 time and loosen, then pull it out again slowly.

2-28

1. Keep low on hip bone

2. Take up slack

3. Too high

Page 56

Essential Safety Equipment

Seat Belt Systems

Before fastening the rear seat belt, make sure that the seat belt passes through the seat belt guide correctly and it is not twisted.

Unfastening the Seat Belt

▼

Depress the button on the seat belt buckle. If the belt does not fully retract, pull it out and check for kinks or twists. Then make sure it remains untwisted as it retracts.

Front Shoulder Belt Adjuster

▼

The front seat belts have a front shoulder belt adjuster. If the seat belt contacts your neck or it slips o the shoulder, adjust the seat belt height.

To raise

To heighten the seat belt, slide the front shoulder belt adjuster upward.

To lowe r

To lower the seat belt, slide the front shoulder belt adjuster downward with the adjuster lever pulled.

1. Button

NOTE

If a belt does not fully retract, inspect it for kinks and twists. If it is still not retracting properly, have it inspected at an expert repairer (we recommend an Authorised Mazda Repairer).

After adjusting, press the front shoulder belt adjuster downward and make sure that it is securely locked.

2-29

Page 57

Essential Safety Equipment

Seat Belt Systems

Seat Belt Warning

Systems

Seat Belt Warning Systems

▼

If it detects that the occupant seat belt is unfastened, the warning light or beep alerts the occupant. Refer to Seat Belt Warning Indication/ Warning Light (Front seat) on page 7-42. Refer to Seat Belt Warning Light (Rear seat) (Red) on page 7-42. Refer to Seat Belt Warning Beep on page 7-49.

Seat belt indicator light (rear seat) (green)

The light turns on when the rear seat belt is fastened while the power switch is switched ON, and it turns o after a certain period.

Seat Belt Pretensioner

and Load Limiting

Systems

Seat Belt Pretensioner and Load

▼

Limiting Systems

For optimum protection, the front seat belts and rear outboard seat belts equipped with pretensioner and load limiting systems. For both these systems to work properly you must wear the seat belt properly.

Pretensioners:

When a collision is detected, the pretensioners deploy simultaneously with the air bags. The pretensioners deploy simultaneously with the air bags when a roll-over is also detected. For deployment details, refer to the SRS Air Bag Deployment Criteria (page 2-62).

The seat belt retractors remove slack quickly as the air bags are expanding. Any time the air bags and seat belt pretensioners have ﬁred they must be replaced. A system malfunction or operation conditions are indicated by a warning. Refer to Air Bag/Seat Belt Pretensioner System Warning Indication/Warning Light on page 7-39.

are

2-30

In addition, the pretensioner system for the front passenger, like the front and side passenger air bag, is designed to only deploy when the front passenger air bag deactivation switch is turned to the ON position.

*Some models.

Page 58

Essential Safety Equipment

Seat Belt Systems

For details, refer to Front Passenger Air Bag Deactivation Switch (page 2-54).

Load limiter:

The load limiting system releases belt webbing in a controlled manner to reduce belt force on the occupant's chest. While the most severe load on a seat belt occurs in frontal collisions, the load limiter has an automatic mechanical function and can activate in any accident mode with sucient occupant movement. Even if the pretensioners have not ﬁred, the load limiting function must be checked by an expert repairer (we recommend an Authorised Mazda Repairer).

WARNING

Wear seat belts only as recommended in this owner's manual:

Incorrect positioning of the seat belts is dangerous. Without proper positioning, the pretensioner and load limiting systems cannot provide adequate protection in an accident and this could result in serious injury. For more details about wearing seat belts, refer to "Fastening the Seat Belt" (page 2-28).

Have your seat belts changed immediately if the pretensioner or load limiter has been expended:

Do not modify the components or wiring, or use electronic testing devices on the pretensioner system:

Modifying the components or wiring of the pretensioner system, including the use of electronic testing devices is dangerous. You could accidentally activate it or make it inoperable which would prevent it from activating in an accident. The occupants or repairers could be seriously injured.

Properly dispose of the pretensioner system:

Improper disposal of the pretensioner system or a vehicle with non-deactivated pretensioners is dangerous. Unless all safety procedures are followed, injury could result. Have an expert repairer (we recommend an Authorised Mazda Repairer) safely dispose of the pretensioner system or scrap a pretensioner system equipped vehicle.

2-31

Page 59

Essential Safety Equipment

Seat Belt Systems

NOTE

The pretensioner system may not operate depending on the type of the collision. For details, refer to the SRS Air Bag Deployment Criteria (page 2-62).

Some smoke (non-toxic gas) will be released when the air bags and pretensioners deploy. This does not indicate a ﬁre. This gas normally has no those with sensitive skin may experience light skin irritation. If residue from the deployment of the air bags or the pretensioner system gets on the skin or in the eyes, wash it o as soon as possible.

on occupants, however,

eect

2-32

Page 60

Essential Safety Equipment

Child Restraint

Child-Restraint

Precautions

Child-Restraint Precautions

▼

Mazda strongly urges the use of child-restraint systems for children small enough to use them. Mazda recommends use of a Mazda genuine child-restraint system or one that complies with the UNR UNR 129 regulation. If you would like to purchase a Mazda genuine child-restraint system, please contact an Authorised Mazda Repairer. Check your local and state or provincial laws for speciﬁc requirements regarding the safety of children riding in your vehicle.

1 UNR stands for United Nations

Regulation.

Whatever child-restraint system you consider, please pick the appropriate one for the age and size of the child, obey the law and follow the instructions that come with the individual child-restraint system.

A child who has outgrown child-restraint systems should sit in the rear and use seat belts.

The child-restraint system should be installed on the rear seat. Statistics conﬁrm that the rear seat is the best place for all children up to 12 years of age-the more so with a supplementary restraint system (air bags).

44 or

A rear-facing child-restraint system should NEVER be used in the front passenger seat with the air bag system activated. The front passenger's seat is also the least preferred seat for other child-restraint systems.

For some models, we have provided a deactivation switch that will disable front passenger air bag inﬂation. Do not switch o the front passenger air bag without reading the “Front Passenger Air Bag Deactivation Switch” (page 2-54).

WARNING

Use the correct size child-restraint system:

For eective protection in vehicle accidents and sudden stops, a child must be properly restrained using a seat belt or child-restraint system depending on age and size. If not, the child could be seriously injured or even killed in an accident.

Follow the manufacturer's instructions and always keep the child-restraint system buckled down:

An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could move causing serious injury or death to the child or other occupants. Make sure any child-restraint system is properly secured in place according to the child-restraint system manufacturer's instructions. When not in use, remove it from the vehicle or fasten it with a seat belt, or latch it down to BOTH ISOFIX anchors, and attach the corresponding tether anchor.

2-33

Page 61

Essential Safety Equipment

Child Restraint

Always secure a child in a proper child-restraint system:

Holding a child in your arms while the vehicle is moving is extremely dangerous. No matter how strong the person may be, he or she cannot hold onto a child in a sudden stop or collision and it could result in serious injury or death to the child or other occupants. Even in a moderate accident, the child may be exposed to air bag forces that could result in serious injury or death to the child, or the child may be slammed into an adult, causing injury to both child and adult.

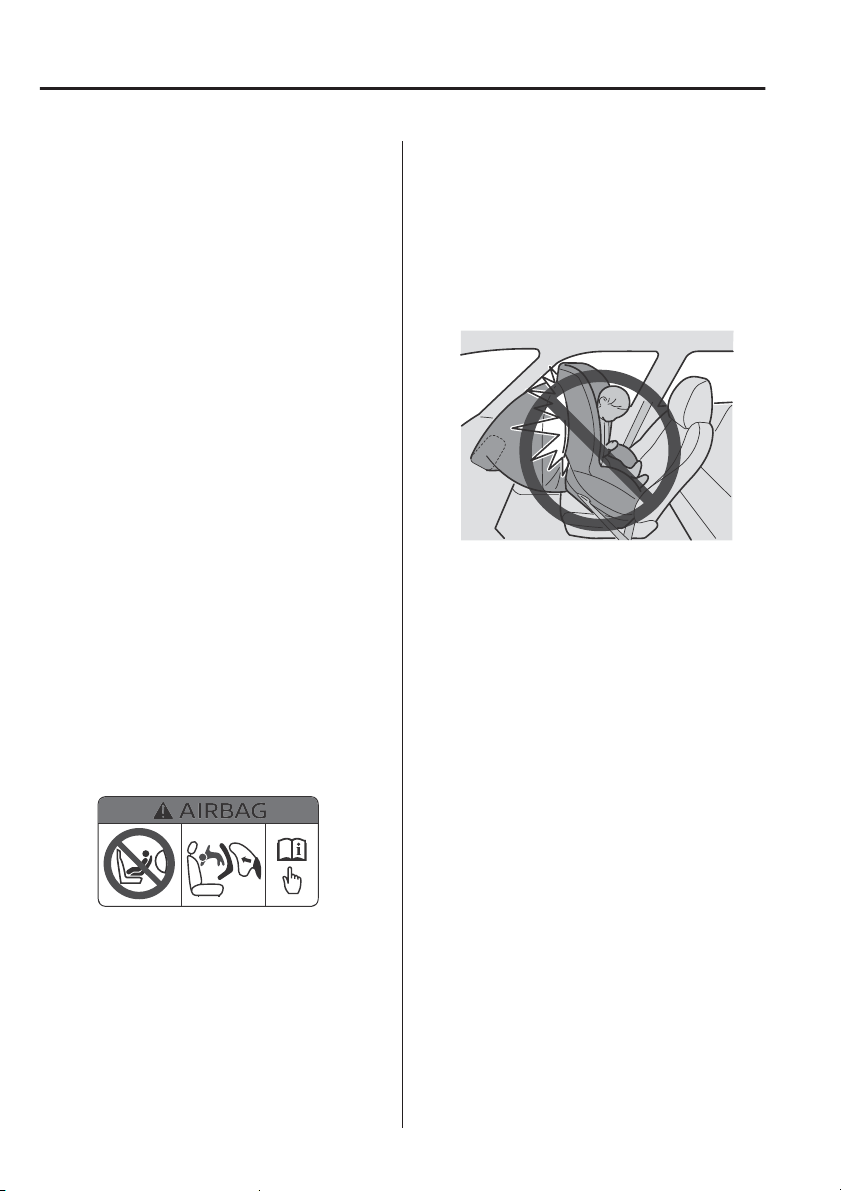

Extreme Hazard! Never use a rear-facing child-restraint system on the front passenger seat with an air bag that could deploy:

NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur. Vehicles with a front passenger air bag have the following warning label. The warning label reminds you not to put a rear-facing child-restraint system on the front passenger seat at any time.

Even in a moderate collision, the child-restraint system can be hit by a deploying air bag and moved violently backward resulting in serious injury or death to the child. When using a rear-facing child-restraint system, always set the front passenger air bag deactivation switch to the OFF position.

Do not install a front-facing child-restraint system on the front passenger seat unless it is unavoidable:

In a collision, the force of a deploying air bag could cause serious injury or death to the child. If installing a front-facing child-restraint system on the front passenger seat is unavoidable, move the front passenger seat as far back as possible and adjust the seat bottom (height adjustable seat bottom) to the highest position at which the seat belt fastening the child-restraint system is securely tightened.

2-34

Page 62

Essential Safety Equipment

Child Restraint

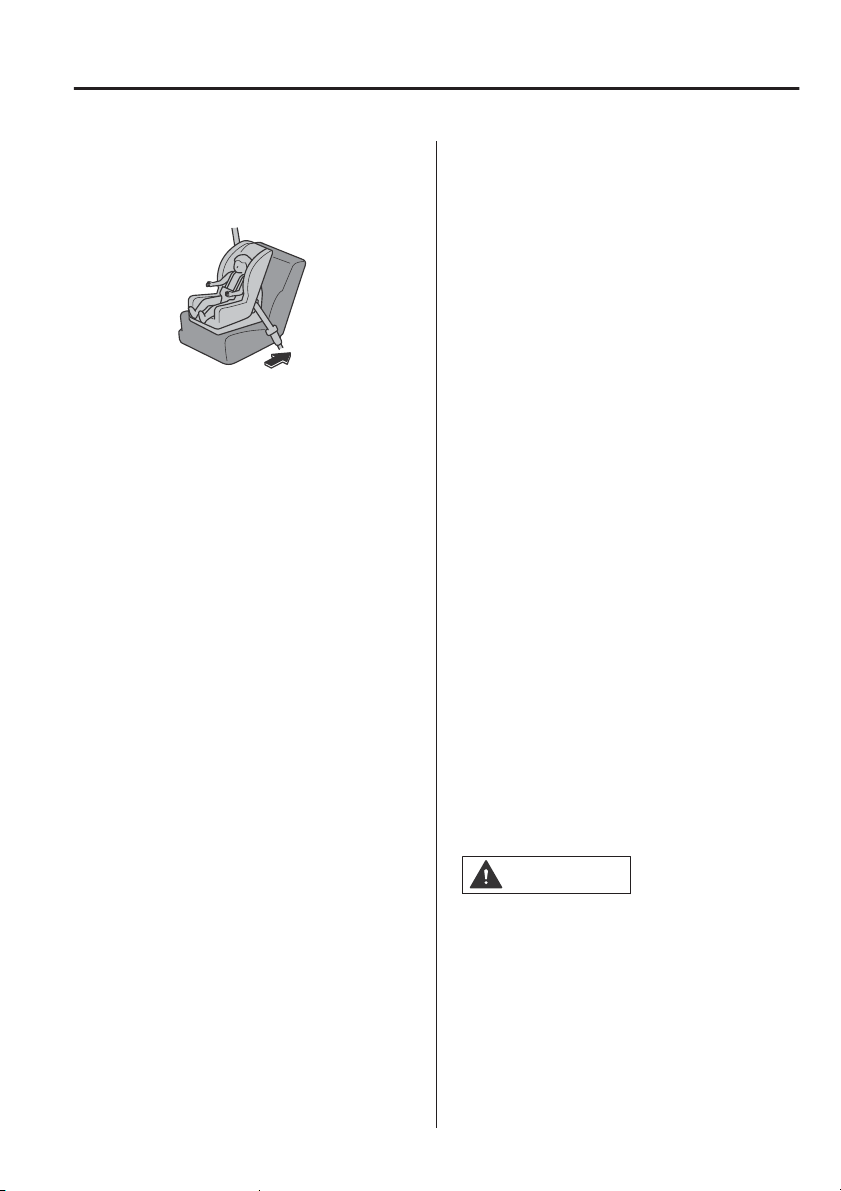

Make sure that the front passenger air bag deactivation switch is in the OFF position. Refer to Front Passenger Air Bag Deactivation Switch (page 2-54).

Do not allow a child or anyone to lean over to or against the side window of a vehicle with side and curtain air bags:

It is dangerous to allow anyone to lean over to or against the side window, the area of the front passenger seat, the front and rear window pillars and the roof edge along both sides from which the side and curtain air bags deploy, even if a child-restraint system is used. The impact of inﬂation from a side or curtain air bag could cause serious injury or death to an out of position child. Furthermore, leaning over to or against the door could block the side and curtain air bags and eliminate the advantages of supplementary protection. Because the front seats are equipped with front air bags, the rear seat is always a better location for children. Take special care not to allow a child to lean over to or against the side window, even if the child is seated in a child-restraint system.

Never use one seat belt on more than one person at a time:

Use the tether and tether anchor only for a child-restraint system:

Child-restraint system anchorages are designed to withstand only those loads imposed by correctly installed child-restraint systems. Under no circumstances are they to be used for adult seat belts, harnesses, or for attaching other items or equipment to the vehicle.

Always remove the head restraint and install child-restraint system (except when installing a booster seat):

Installing a child-restraint system without removing the head restraint is dangerous. The child-restraint system cannot be installed correctly which may result in death or injury to the child in a collision.

CAUTION

A seat belt or child-restraint system can become very hot in a closed vehicle during warm weather. To avoid burning yourself or a child, check them before you or your child touches them.

2-35

Page 63

Essential Safety Equipment

Child Restraint

NOTE

Your Mazda is equipped with ISOFIX anchors for attachment of ISOFIX child-restraint systems on the rear seats. When using these anchors to secure a child-restraint system, refer to “Using ISOFIX Anchor” (page 2-46).

2-36

Page 64

Essential Safety Equipment

Child Restraint

Child-Restraint System Installation

Categories of Child-Restraint Systems

▼

NOTE

When purchasing, ask the manufacturer of the child-restraint system which type of child-restraint system is appropriate for your child and vehicle.

(Europe and countries conforming to the UNR 44 and UNR 129 regulation)

Child-restraint systems are classiﬁed into the following 5 groups according to the UNR 44 and UNR 129 regulation.

Group Age Weight

0 Up to about 9 months old Up to 10 kg (up to 22 lb)

0+ Up to about 2 years old Up to 13 kg (up to 29 lb)

1 About 8 months to 4 years old 9 kg ʊ 18 kg (20 lb ʊ 40 lb)

2 About 3 to 7 years old 15 kg ʊ 25 kg (33 lb ʊ 55 lb) ʊ

3 About 6 to 12 years old 22 kg ʊ 36 kg (48 lb ʊ 79 lb) ʊ

Size Classiﬁcation/

Fixture

ISO/L1

ISO/L2

ISO/R1

ISO/R2

ISO/R3

ISO/R2

ISO/R3

ISO/F2

ISO/F2X

ISO/F3

(Other countries)

Please comply with the legal regulations concerning the use of child-restraint systems in your country.

Child-Restraint System Types

▼

(Europe and countries conforming to the UNR 44 and UNR 129 regulation)

In this owner's manual, explanation of child-restraint systems secured with

NOTE

Installation position is determined by the type of child-restraint system. Always read the manufacturer's instructions and this owner's manual carefully.

seat belts is provided for the following 3 types of popular child-restraint systems: baby seat, child seat, junior seat.

(CRF)

2-37

Page 65

Essential Safety Equipment

Child Restraint

Due to variations in the design of child-restraint systems, vehicle seats and seat belts, all child-restraint systems may not ﬁt all seating positions. Before purchasing a child-restraint system, it should be tested in the speciﬁc vehicle seating position (or positions) where it is intended to be used. If a previously purchased child-restraint system does not ﬁt, you may need to purchase a dierent one that will.

Baby seat

Equal to Group 0 and 0+ of the 44 and

129 regulation.

UNR

(Europe)

Recommended child-restraint system: Britax Römer BABYSAFE 2 i-SIZE and i-SIZE FLEX BASE

UNR

(Europe)

Recommended child-restraint system: Britax Römer Duo Plus

Junior seat

Equal to Group 2 and 3 of the UNR 44 and

129 regulation.

UNR

(Europe)

Recommended child-restraint system: Britax Römer KIDFIX 2 R When using the KIDFIX 2 R, make sure that the lap belt passes through the lap belt guide (SecureGuard). For details on use, refer to the user manual accompanying the KIDFIX 2 R.

Child seat

Equal to Group 1 of the UNR 44 and UNR 129 regulation.

2-38

1. Full booster seat

2. Booster seat

When using a booster seat, always install the vehicle head restraint to the seat where the booster seat is installed.

(Other countries)

Please comply with the legal regulations concerning the use of child-restraint systems in your country.

Page 66

Essential Safety Equipment

Child Restraint

Baby Seat Installation Position

▼

A baby seat is used in the rear-facing position only.

Refer to the table, “Child-Restraint System Suitability for Various Seat Positions” for baby seat installation position (page 2-42).

WARNING

Always install a baby seat in the correct seat position:

Installing a baby seat without ﬁrst consulting the table “Child-Restraint System Suitability for Various Seat Positions” is dangerous. A baby seat installed on the wrong seat position cannot be properly secured. In a collision, the child could hit something or someone in the vehicle and be seriously injured or even killed.

The child-restraint system can be hit by the deploying air bag and knocked out of position. A child in the child-restraint system could be seriously injured or killed. If your vehicle is equipped with a front passenger air bag deactivation switch, always set the switch to the OFF position if installing a rear-facing child-restraint system on the front passenger seat is unavoidable.

Child Seat Installation Position

▼

A child seat is used in front-facing and rear-facing positions depending on the age and size of the child. When installing, follow the manufacturer's instructions in accordance with the appropriate age and size of the child as well as the directions for installing the child-restraint system. Refer to the table, “Child-Restraint System Suitability for Various Seat Positions” for child seat installation position (page 2-42).

Never use a rear-facing child-restraint system on the front passenger seat protected by an air bag:

NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.

2-39

Page 67

Essential Safety Equipment

Child Restraint

Rear-facing type

WARNING

Always install a rear-facing child seat in the correct seat position:

Installing a rear-facing child seat without ﬁrst consulting the table “Child-Restraint System Suitability for Various Seat Positions” is dangerous. A rear-facing child seat installed on the wrong seat position cannot be properly secured. In a collision, the child could hit something or someone in the vehicle and be seriously injured or even killed.

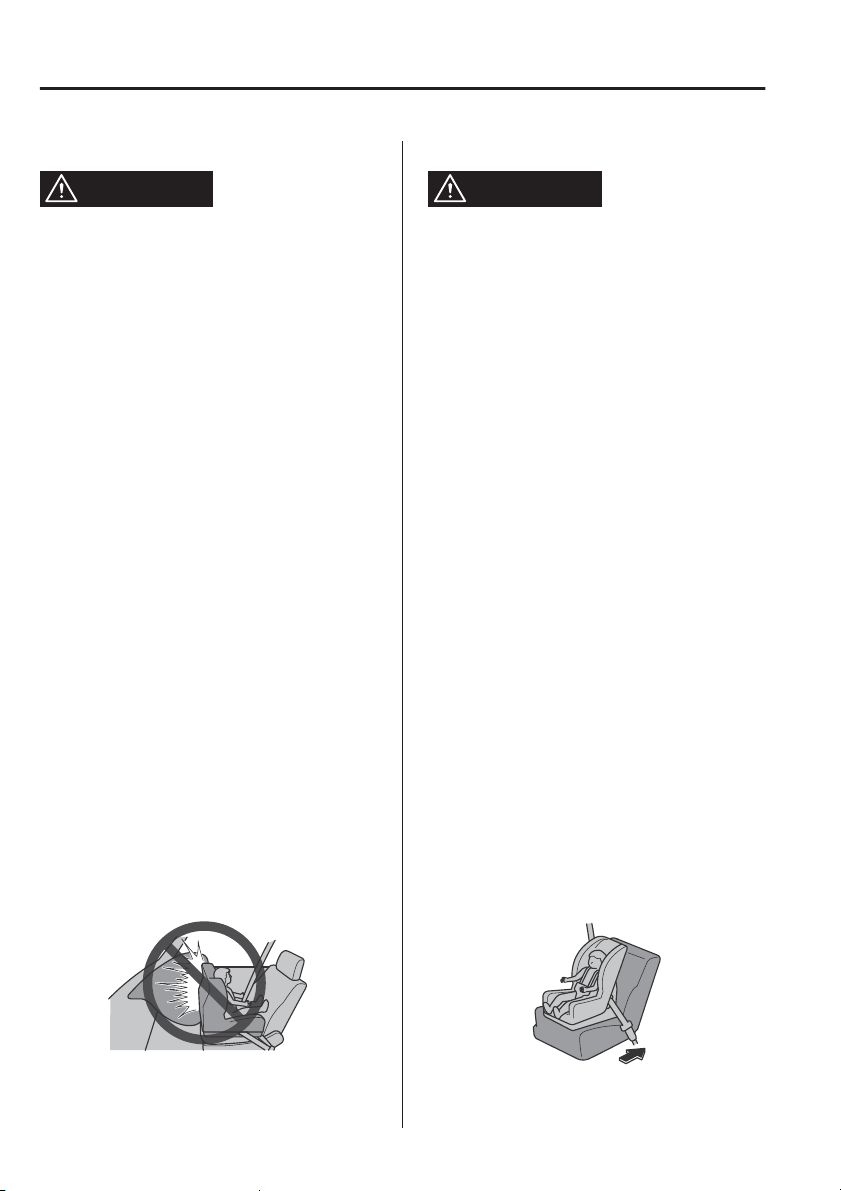

Never use a rear-facing child-restraint system on the front passenger seat protected by an air bag:

NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur. The child-restraint system can be hit by the deploying air bag and knocked out of position. A child in the child-restraint system could be seriously injured or killed. If your vehicle is equipped with a front passenger air bag deactivation switch, always set the switch to the OFF position if installing a rear-facing child-restraint system on the front passenger seat is unavoidable.

Front-facing type

WARNING

Never install a front-facing child seat in the wrong seat position:

Installing a front-facing child seat without ﬁrst consulting the table “Child-Restraint System Suitability for Various Seat Positions” is dangerous. A front-facing child seat installed in the wrong seat position cannot be properly secured. In a collision, the child could hit something or someone in the vehicle and be seriously injured or even killed.

Do not install a front-facing child-restraint system on the front passenger seat unless it is unavoidable:

2-40

Page 68

Essential Safety Equipment

Child Restraint

Junior Seat Installation Position

▼

A junior seat is used in the front-facing position only. We recommend the use of the junior seat with backrest to allow simple adjustment of the shoulder belt position and to give your child the best protection.

Refer to the table, “Child-Restraint System Suitability for Various Seat Positions” for junior seat installation position (page 2-42).

WARNING

Do not install a front-facing child-restraint system on the front passenger seat unless it is unavoidable:

Always install a junior seat in the correct seat position:

Installing a junior seat without ﬁrst consulting the table “Child-Restraint System Suitability for Various Seat Positions” is dangerous. A junior seat installed on the wrong seat position cannot be properly secured. In a collision, the child could hit something or someone in the vehicle and be seriously injured or even killed.

2-41

Page 69

Essential Safety Equipment

Child Restraint

Child-Restraint System Suitability for Various Seat

Positions Table

Child-Restraint System Suitability for Various Seat Positions Table

▼

(Europe and countries conforming to the UNR 16 regulation)

Provided information in the table shows your child-restraint system suitability for various seating position. For installation suitability of other manufacturer child-restraint system, carefully consult the manufacturer's instructions which accompany the child-restraint system. When installing a child-restraint system, the following points must be observed:

Always remove the head restraint before installing a child-restraint system. However, when installing a booster seat, always install the vehicle head restraint to the seat where the booster seat is installed. In addition, always use a tether strap and attach it securely. Refer to Head Restraints on page 2-19.

When installing a child-restraint system to the front passenger seat, adjust the seat slide position as far back as possible. Adjust the seat bottom (height adjustable seat bottom) to the highest position so that the seat belt can securely fasten the child-restraint system. Refer to Adjusting the Front Passenger's Seat on page 2-12.

When it is dicult to install a child-restraint system to the front passenger seat, or the seat belt cannot be secured to the child-restraint system, perform the following operations to adjust the seat holding the child-restraint system so that the seat belt can be secured completely to it.

Move the seat forward or back.

Move the seatback forward or back.

Move the seat upward or downward.

When installing a child-restraint system to the rear seat, adjust the front seat position so that the front seat does not contact the child-restraint system. Refer to Adjusting the Driver's Seat on page 2-4. Refer to Adjusting the Front Passenger's Seat on page 2-12.

A child-restraint system with a support leg cannot be installed on the rear centre seat position.

When installing a child-restraint system equipped with a tether, remove the head restraint. Refer to Head Restraints on page 2-19.

An i-Size child-restraint system refers to a child-restraint system which has acquired i-Size category certiﬁcation for the UNR 129 regulation.

When installing a child-restraint system to the rear seat, refer to the child-restraint system manufacturer's instructions and the Using ISOFIX Anchor on page 2-46.

2-42

Page 70

Essential Safety Equipment

Child Restraint

Seating posi-

tion

Seating position suitable for universal belted (Yes/No)

i-Size seating position (Yes/No)

Largest suitable rearward facing ﬁxture (R1)

Largest suitable rearward facing ﬁxture (R2)

Largest suitable rearward facing ﬁxture (R2X)

Largest suitable rearward facing ﬁxture (R3)

Largest suitable forward facing ﬁxture (F2)

Largest suitable forward facing ﬁxture (F2X)

Largest suitable forward facing ﬁxture (F3)

Largest suitable lateral facing ﬁxture (L1)

Largest suitable lateral facing ﬁxture (L2)

Largest suitable booster ﬁxture (B2)

Passenger

Airbag activat-edAirbag de-acti-

vated

Yes (UF) Yes (U) Yes (U) Yes (U) Yes (U)

No No Yes (i-U) No Yes (i-U)

No No Yes (IL) No Yes (IL)

No No Yes (IUF) No Yes (IUF)

No No No No No

No No Yes (IUF) No Yes (IUF)

Rear (Left) Rear (Centre) Rear (Right)

2-43

Page 71

Essential Safety Equipment

Child Restraint

Seating posi-

tion

Largest suitable booster

ﬁxture

(B3)

Non i-size compatible with a support leg (Yes/No)

Lower ISOFIX anchorages but without Top Tether (Yes/No)

U = Suitable for “universal” category restraints approved for use in this mass group. UF = Suitable for forward-facing “universal” category restraints approved for use in this mass group. IUF = Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group. L = Suitable for particular child restraints given on attached list. These restraints may be of the “speciﬁc vehicle”, “restricted” or “semi-universal” categories. IL = Suitable for particular ISOFIX child restraint systems (CRS) given in the attached list. These ISOFIX CRS are those of the “speciﬁc vehicle”, “restricted” or “semi-universal” categories. i-U = Suitable for i-Size “universal” Child Restraint Systems forward and rearward facing. i-UF = Suitable for forward-facing i-Size “universal” Child Restraint Systems only. Yes = Child-restraint system can be secured on the seat. No = Child-restraint system cannot be secured on the seat, or there is no ﬁxture. X = Child-restraint system cannot be installed.

1 Child restraint system can only be installed in the forward-facing position.

2 A Mazda genuine child-restraint system can be installed. Regarding child-restraint systems which can

be installed, refer to Child-Restraint System Types on page 2-37 or the accessories catalog.

Airbag activat-edAirbag de-acti-

Passenger

Rear (Left) Rear (Centre) Rear (Right)

vated

No No Yes (IUF) No Yes (IUF)

Yes

No No No No No

Yes Ye s No Yes

(Other countries)

Regarding child-restraint systems which can be installed to your Mazda, consult an expert repairer (we recommend an Authorised Mazda Repairer).

A child-restraint system with a support leg cannot be installed on the rear centre seat position.

Please comply with the legal regulations concerning the use of child-restraint systems in your country.

For the CRS which do not carry the ISO/XX size class

identiﬁcation

(A to G), for the applicable mass group, the child seat manufacturer shall indicate the vehicle speciﬁc

ISOFIX child-restraint systems recommended for each position.

2-44

Page 72

Essential Safety Equipment

Child Restraint

Installing Child-Restraint

Systems

Anchor Bracket

▼

Anchor brackets for securing child-restraint systems are equipped in the vehicle. Locate each anchor position using the illustration. To install a child-restraint system, remove the head restraint. Always follow the instruction manual accompanying the child-restraint system.

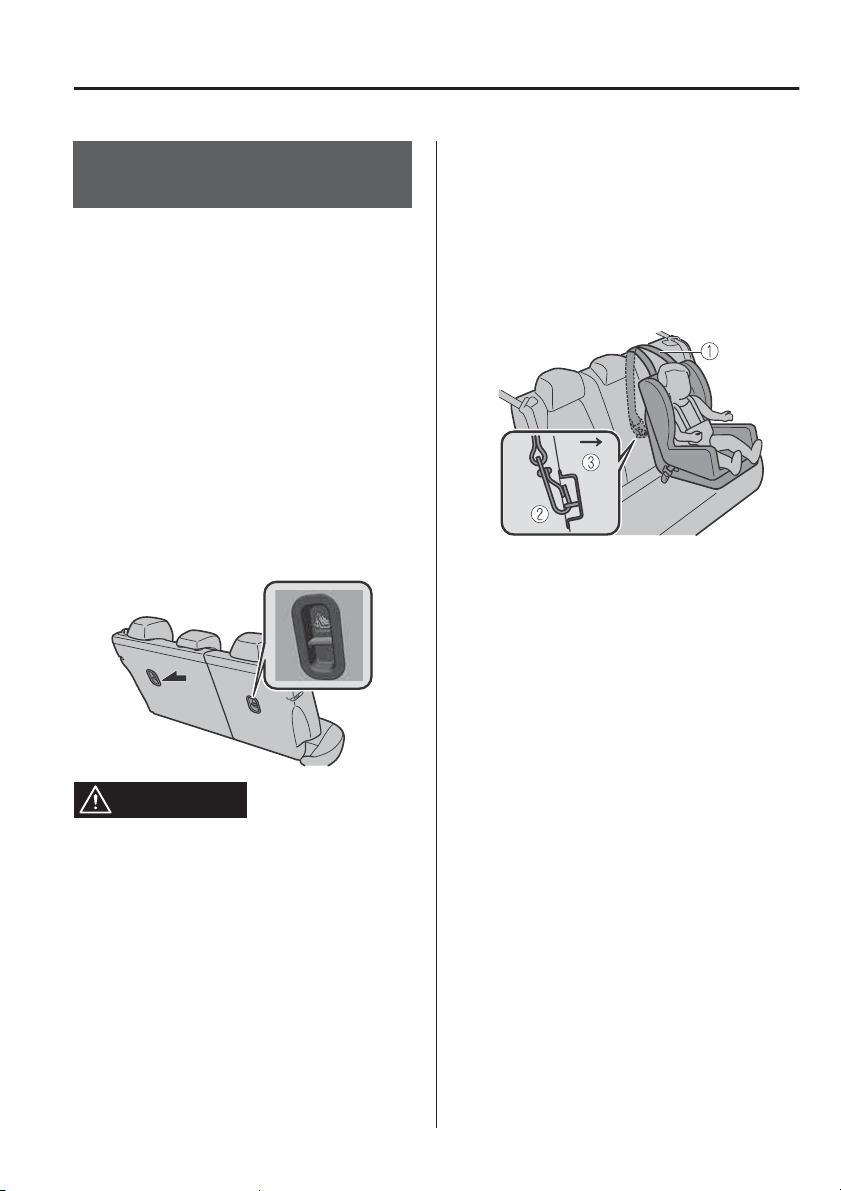

Anchor bracket location

Use the indicated anchor bracket locations when installing a child-restraint system equipped with a tether.

WARNING

Always attach the tether strap to the correct tether anchor position:

Attaching the tether strap to the incorrect tether anchor position is dangerous. In a collision, the tether strap could come o and loosen the child-restraint system. If the child-restraint system moves it could result in death or injury to the child.

Always remove the head restraint and install child-restraint system (except when installing a booster seat):

1. Tether strap

2. Anchor bracket

3. Forward

Always install the head restraint and adjust it to the appropriate position after removing the child-restraint system:

Driving with the head restraint removed is dangerous as impact to the occupant's head cannot be prevented during emergency braking or in a collision, which could result in a serious accident, injury or death. Refer to Head Restraints on page 2-19.

2-45

Page 73

Essential Safety Equipment

Child Restraint

Using the Seat Belt

▼

When installing a child-restraint system, follow the installation instructions included with the product. In addition, remove the head restraint. However, when installing a booster seat, always install the vehicle head restraint to the seat where the booster seat is installed.

Using ISOFIX Anchor

▼

WARNING

Follow the manufacturer's instructions for the use of the child-restraint system:

Make sure the child-restraint system is properly secured:

A child-restraint system that is not secured is dangerous. In a sudden stop or collision, it can become a projectile and hit someone, causing serious injury. When not in use, remove it from the vehicle, put it in the luggage compartment or at least make sure it is securely fastened to the ISOFIX anchors.

Make sure there are no seat belts or foreign objects near or around the ISOFIX anchor-secured child-restraint system:

Not following the child-restraint system manufacturer's instructions when installing the child-restraint system is dangerous. If seat belts or a foreign object prevent the child-restraint system from being securely attached to the ISOFIX anchors and the child-restraint system is installed improperly, the child-restraint system could move in a sudden stop or collision causing serious injury or death to the child or other occupants. When installing the child-restraint system, make sure there are no seat belts or foreign objects near or around the ISOFIX anchors. Always follow the child-restraint system manufacturer's instructions.

1. First, adjust the front seat to allow clearance between the child-restraint system and the front seat. Refer to Adjusting the Driver's Seat on page 2-4. Refer to Adjusting the Front Passenger's Seat on page 2-12.

2. Make sure the seatback is securely latched by pushing it back until it is fully locked.

2-46

Page 74

Essential Safety Equipment

Child Restraint

3. Remove the cover of the child-restraint system's ISOFIX anchors to verify the locations of the ISOFIX anchors.

1. ISOFIX anchor

NOTE

The ISOFIX anchors marking on the cover indicates the position of the ISOFIX anchors for the attachment of a child-restraint system.

Store the removed cover so that it does not get lost.

4. Remove the head restraint. However, when installing a booster seat, always install the vehicle head restraint to the seat where the booster seat is installed. Refer to Head Restraints on page 2-19.

5. Secure the child-restraint system using the ISOFIX anchor, following the child-restraint system manufacturer's instruction.

6. If your child-restraint system came equipped with a tether, that probably means it is very important to properly secure the tether for child safety. Please carefully follow the child-restraint system manufacturer's instructions when installing tethers (page 2-45).

WARNING

Always attach the tether strap to the correct tether anchor position:

Always remove the head restraint and set the tether strap (except when installing a booster seat):

Routing the tether strap on top of the head restraint is dangerous. In a collision the tether strap could slide o the head restraint and loosen the child-restraint system. The child-restraint system could move which may result in death or injury to the child.

1. Tether strap

2. Anchor bracket

3. Forward

2-47

Page 75

Essential Safety Equipment

Child Restraint

Always install the head restraint and adjust it to the appropriate position after removing the child-restraint system:

2-48

Page 76

Essential Safety Equipment

SRS Air Bags

Supplementary Restraint

System (SRS) Precautions

Supplementary Restraint System

▼

(SRS) Precautions

The front and side supplementary restraint systems (SRS) include types of air bags. Please verify the

dierent types of air bags which are equipped on your vehicle by locating the “SRS AIRBAG” location indicators.

These indicators are visible in the area where the air bags are installed. The air bags are installed in the following locations:

The steering wheel hub (driver air bag)

The front passenger instrument panel (front passenger air bag)

Under the instrument panel (driver knee air bag)

The inboard/outboard sides of the driver’s seatback (side air bags (inboard/outboard) for driver)

The outboard side of the front passenger’s seatback (side air bag (outboard) for front passenger)

The outboard sides of the rear seatbacks (side air bags for rear passengers)

The front and rear window pillars, and the roof edge along both sides (curtain air bags)

Some vehicles have a sensor which detects an impending roll-over accident.

dierent

The air bag supplementary restraint systems are designed to provide supplementary protection in certain situations so seat belts are always important in the following ways:

Without seat belt usage, the air bags cannot provide adequate protection during an accident. Seat belt usage is necessary to:

Keep the occupant from being thrown into an inﬂating air bag.

Reduce the possibility of injuries during an accident that is not designed for air bag inﬂation, such as rear impact.

Reduce the possibility of injuries in frontal, near frontal or side collisions or roll-over accidents that are not severe enough to activate the air bags.

Reduce the possibility of being thrown from your vehicle.

Reduce the possibility of injuries to lower body and legs during an accident because the air bags provide no protection to these parts of the body.

Hold the driver in a position which allows better control of the vehicle.

A child who is too small to use a seat belt must be properly secured using a child-restraint system (page 2-33).

Carefully consider which child-restraint system is necessary for your child and follow the installation directions in this Owner's Manual as well as the child-restraint system manufacturer's instructions.

2-49

Page 77

Essential Safety Equipment

SRS Air Bags

WARNING

Seat belts must be worn in air bag equipped vehicles:

Depending only on the air bags for protection during an accident is dangerous. Alone, air bags may not prevent serious injuries. The appropriate air bags can be expected to inﬂate only in the ﬁrst accident, such as frontal, near frontal or side collisions or roll-over accidents that are at least moderate. Vehicle occupants should always wear seat belts.

Children should not ride in the front passenger seat:

Placing a child, 12 years or under, in the front seat is dangerous. The child could be hit by a deploying air bag and be seriously injured or even killed. A sleeping child is more likely to lean against the door and be hit by the side air bag in moderate collision to the front-passenger side of the vehicle. Whenever possible, always secure a child 12 years and under on the rear seats with an appropriate child-restraint system for the child's age and size.

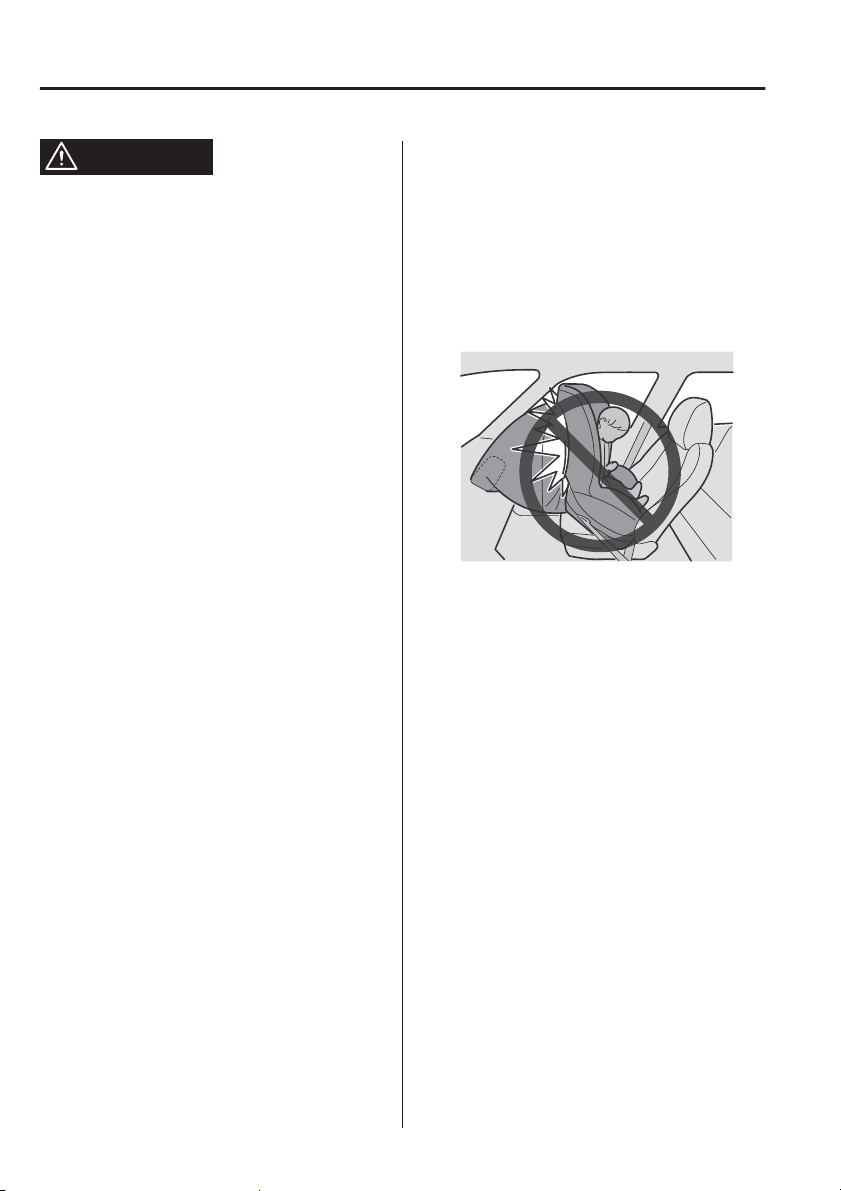

Extreme Hazard! Never use a rear-facing child-restraint system on the front passenger seat with an air bag that could deploy:

NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.

Do not sit too close to the driver and front passenger air bags:

Sitting too close to the driver and front passenger air bag modules or placing hands or feet on them is extremely dangerous. The driver and front passenger air bags force and speed. Serious injuries could occur if someone is too close. The driver should always hold onto only the rim of the steering wheel. The front seat passenger should keep both feet on the ﬂoor. Front seat occupants should adjust their seats as far back as possible and always sit upright against the seatbacks with seat belts worn properly.

inﬂate

with great

2-50

Page 78

Essential Safety Equipment

SRS Air Bags

Sit in the centre of the seat and wear seat belts properly:

Sitting too close to the side air bag modules or placing hands on them, or sleeping up against the door or hanging out the windows is extremely dangerous. The side and curtain air bags inﬂate with great force and speed directly expanding along the door on the side the car is hit. Serious injury could occur if someone is sitting too close to the door or leaning against a window, or if rear seat occupants grab the sides of the front seatbacks. Give the side and curtain air bags room to work by sitting in the centre of the seat while the vehicle is moving with seat belts worn properly.

Do not attach objects on or around the area where air bags deploy:

Attaching objects to the air bags or placing something in the area where the air bags deploy is dangerous. In an accident, an object could interfere with air bag inﬂation and injure the occupants. Furthermore, the bag could be damaged causing gases to release. Always keep the deployment area of the air bag modules free of any obstructions. For example, you should not do any of the following as it may interfere with air bag deployment.

¾Do not put a covering on or lean

anything against areas such as the instrument panel and lower portion of the instrument panel that blocks the passenger front air bag and knee air bags.

¾Do not use seat covers on the front

seats and rear seats equipped with in-seat side air bags.

¾Do not hang any backpacks, bags or

pouches that cover the sides of the seats that block the side air bags.

¾Do not place any objects on the

assist grips. Only hang clothes directly on the coat hooks.

Do not touch the components of the supplementary restraint system after the air bags have inﬂated:

Touching the components of the supplementary restraint system after the air bags have inﬂated is dangerous. Immediately after very hot. You could get burned.

Never install any front-end equipment to your vehicle:

Installation of front-end equipment, such as frontal protection bar (kangaroo bar, bull bar, push bar, or other similar devices), snowplow, or winches, is dangerous. The air bag crash sensor system could be aected. This could cause air bags to unexpectedly, or it could prevent the air bags from accident. Front occupants could be seriously injured.

Do not modify the suspension:

Modifying the vehicle suspension is dangerous. If the vehicle's height or the suspension is modiﬁed, the vehicle will be unable to accurately detect a collision or roll-over accident resulting in incorrect or unexpected air bag deployment and the possibility of serious injuries.

inﬂation,

inﬂating

they are

inﬂate

during an

2-51

Page 79

Essential Safety Equipment

SRS Air Bags

Do not modify a front door or leave any damage unrepaired. Always have an expert repairer (we recommend an Authorised Mazda Repairer) inspect a damaged front door:

Modifying a front door or leaving any damage unrepaired is dangerous. Each front door has a side crash sensor as a component of the supplementary restraint system. If holes are drilled in a front door, a door speaker is left removed, or a damaged door is left unrepaired, the sensor could be adversely aected causing it to not detect the pressure of an impact correctly during a side collision. If a sensor does not detect a side impact correctly, the side and curtain air bags and the seat belt pretensioners may not operate normally which could result in serious injury to occupants.

Do not modify the supplementary restraint system:

Modifying the components or wiring of the supplementary restraint system is dangerous. You could accidentally activate it or make it inoperable. Do not make any modiﬁcations to the supplementary restraint system. This includes installing trim, badges, or anything else over the air bag modules. It also includes installing extra electrical equipment on or near system components or wiring. An expert repairer (we recommend an Authorised Mazda Repairer) can provide the special care needed in the removal and installation of front seats. It is important to protect the air bag wiring and connections to assure that the bags do not accidentally deploy, and that the driver seat slide position sensor is not damaged and the seats retain an undamaged air bag connection.

Do not place luggage or other objects under the front seats:

Placing luggage or other objects under the front seats is dangerous. The components essential to the supplementary restraint system could be damaged, and in the event of a side collision, the appropriate air bags may not deploy, which could result in death or serious injury. To prevent damage to the components essential to the supplementary restraint system, do not place luggage or other objects under the front seats.

Do not operate a vehicle with damaged air bag/seat belt pretensioner system components:

Expended or damaged air bag/seat belt pretensioner system components must be replaced after any collision which caused them to deploy or damage them. Only a trained expert repairer (we recommend an Authorised Mazda Repairer) can fully evaluate these systems to see that they will work in any subsequent accident. Driving with an expended or damaged air bag or pretensioner unit will not aord you the necessary protection in the event of any subsequent accident which could result in serious injury or death.

2-52

Page 80

Essential Safety Equipment

SRS Air Bags

Do not remove interior air bag parts:

Removing any components such as the front seats, front instrument panel, the steering wheel or parts on the front and rear window pillars and along the roof edge, containing air bag parts or sensors is dangerous. These parts contain essential air bag components. The air bag could accidentally activate and cause serious injuries. Always have an expert repairer (we recommend an Authorised Mazda Repairer) remove these parts.

Properly dispose of the air bag system:

Improper disposal of an air bag or a vehicle with live air bags in it can be extremely dangerous. Unless all safety procedures are followed, injury could result. Have an expert repairer (we recommend an Authorised Mazda Repairer) safely dispose of the air bag system or scrap an air bag equipped vehicle.

NOTE

When an air bag deploys, a loud inﬂation noise can be heard and some smoke will be released. Neither is likely to cause injury, however, the texture of the air bags may cause light skin injuries on body parts not covered with clothing through friction.

Should you sell your Mazda, we urge you to tell the new owner of its air bag systems and that familiarization with all instructions about them, from the Owner's Manual, is important.

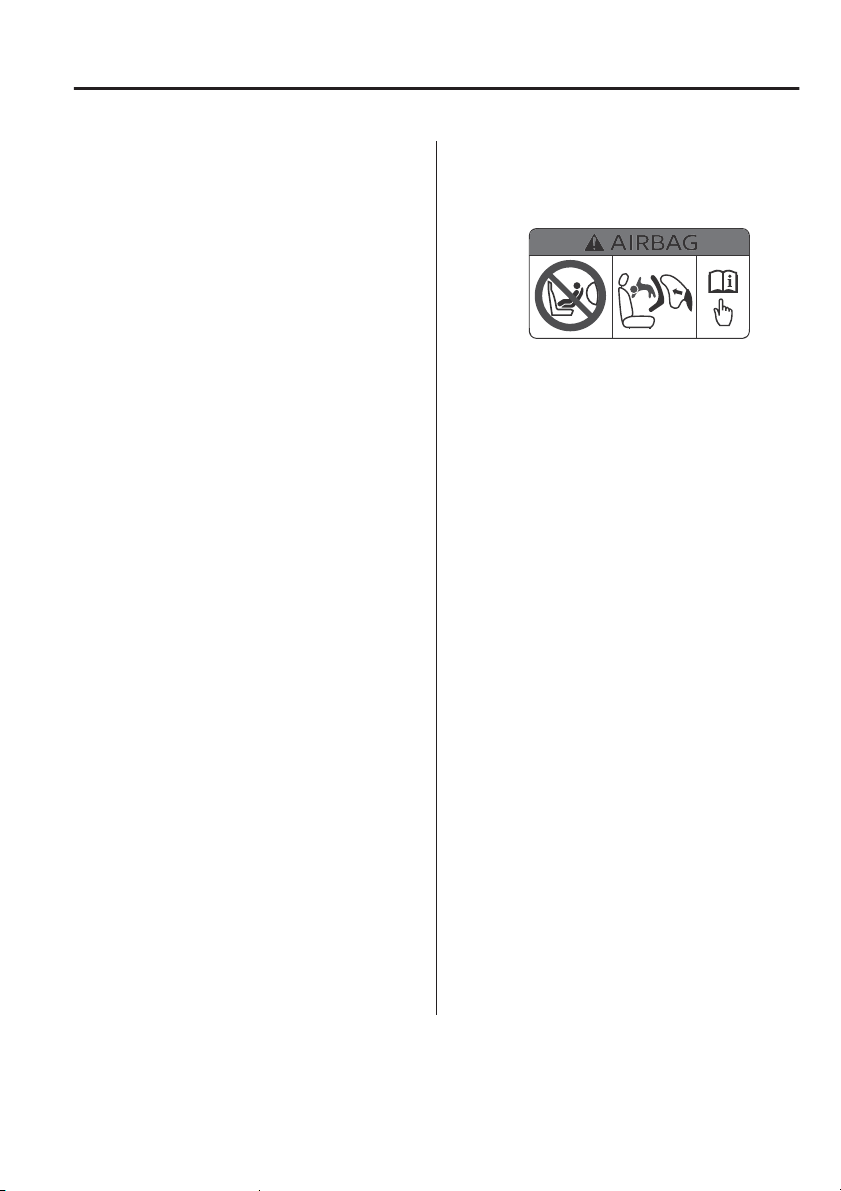

This highly-visible label warns against the use of a rear-facing child-restraint system on the front passenger seat.

2-53

Page 81

Essential Safety Equipment

SRS Air Bags

Front Passenger Air Bag Deactivation Switch

▼

WARNING

Do not deactivate the front passenger air bag unnecessarily:

Unnecessary deactivation of the front passenger air bag is dangerous. If turned o unnecessarily, the front passenger will not receive the added protection of the air bag. Serious injuries or even death could occur. With the exception of installing a child-restraint system on the front passenger seat, do not turn the air bag deactivation switch to the OFF position.

The front passenger air bag deactivation switch should be used to deactivate the front and side air bags for the front passenger and also the front passenger seat belt pretensioner system if installing a child-restraint system on the front passenger seat. When the power switch is switched ON, both front passenger air bag deactivation indicator lights illuminate regardless of the front passenger air bag deactivation switch position. The indicator light turns o after a

speciﬁed

period of time, then

turns on/o depending on the conditions as indicated in the following table.

Front Passenger Seat/Side Air

Front Passenger Air Bag Deacti-

vation Switch

OFF position

Bag, Front Passenger Seat Belt

Pretensioner Operation Condi-

tion

Deactivate

Front Passenger Air Bag Deacti-

vation Indicator Light

2-54

Page 82

Essential Safety Equipment

SRS Air Bags

Front Passenger Seat/Side Air

Front Passenger Air Bag Deacti-

vation Switch

ON position

NOTE

Have the front passenger air bag deactivation switch inspected by an expert repairer (we recommend an Authorised Mazda Repairer) if any of these conditions occur:

The front passenger air bag deactivation indicator light does not illuminate for a speciﬁed

The front passenger air bag deactivation indicator light does not turn o after a

period of time when the power switch is switched ON.

short period of time when the power switch is switched ON (front passenger air bag deactivation switch is in ON position).

Switch Positions

▼

Before driving, always conﬁrm that the front passenger air bag deactivation switch is in the appropriate position using the auxiliary key according to your requirements.

Bag, Front Passenger Seat Belt

Pretensioner Operation Condi-

tion

Ready

WARNING

Do not leave the key in the front passenger air bag deactivation switch:

Unintentional deactivation of the front passenger air bag is dangerous. In an accident, the front passenger will not be properly protected. Serious injuries or even death could occur. To avoid unintentional deactivation, always use the auxiliary key stored in the transmitter body currently being used to operate the front passenger air bag deactivation switch. After deactivating the air bag, put the auxiliary key back into the transmitter body. That way you will not leave the key in the front passenger air bag deactivation switch.

Front Passenger Air Bag Deacti-

vation Indicator Light

Turns o after a short period of

time.

2-55

Page 83

Essential Safety Equipment

SRS Air Bags

NOTE

After operating the front passenger air bag deactivation switch, put the auxiliary key back into the transmitter body.

OFF

Front passenger front air bag, side air bag and front passenger seat belt pretensioners do not operate.

Switching to OFF position

1. Insert the key into the front passenger air bag deactivation switch and turn the key clockwise until the key points to OFF.

2. Remove the key.

3. Make sure the air bag deactivation indicator light remains illuminated when the power switch is switched ON.

The front passenger front and side air bags and also the seat belt pretensioner system will remain deactivated until the front passenger air bag deactivation switch is turned to the ON position.

Front passenger front air bag, side air bag and front passenger seat belt pretensioners operate. Activate the system only when a child-restraint system is not installed on the front passenger seat.

Switching to ON position

1. Insert the key into the front passenger air bag deactivation switch and turn the key anticlockwise until the key points to ON.

2. Remove the key.

3. Make sure the air bag deactivation indicator light remains illuminated when the power switch is switched ON. The air bag deactivation indicator light turns o after a short period of time.

2-56

Page 84

Supplementary Restraint System Components

▼

Essential Safety Equipment

SRS Air Bags

1. Front/Rear seat belt pretensioners (page 2-30)

2. Side crash sensors

3. Side and curtain

4. Driver/Front passenger inﬂators and air bags

5. Air bag/seat belt pretensioner system warning indication/warning light (page 7-39)

6. Driver knee

7. Front passenger air bag deactivation indicator light (page 2-54)

8. Front air bag sensors

9. Front passenger air bag deactivation switch (page 2-54)

10.Roll-over sensor, crash sensors, and diagnostic module (SAS unit)

11.Driver seat slide position sensor (page 2-58)

inﬂators

inﬂator

and air bags

and air bag

2-57

Page 85

Essential Safety Equipment

SRS Air Bags

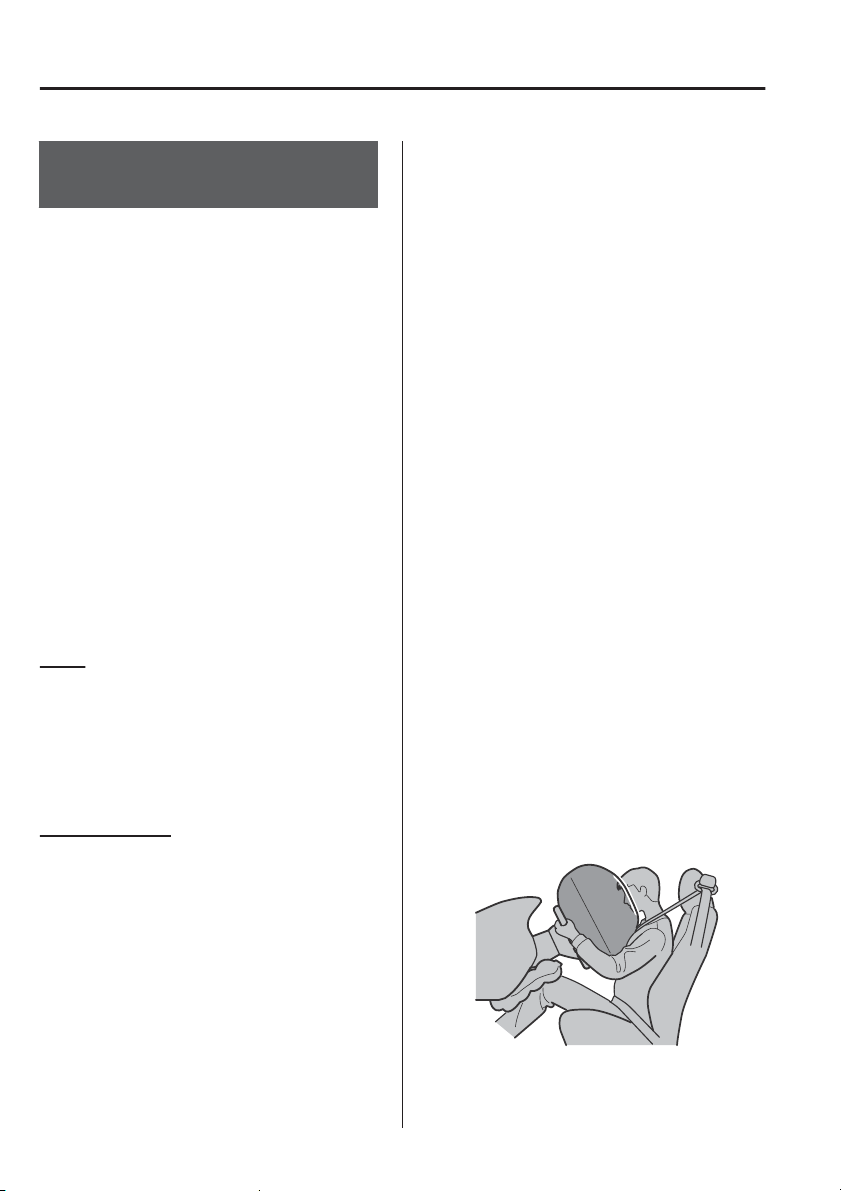

How the SRS Air Bags

Work

How the SRS Air Bags Work

▼

Your Mazda is equipped with the following types of SRS air bags. SRS air bags are designed to work together with the seat belts to help to reduce injuries during an accident. The SRS air bags are designed to provide further protection for passengers in addition to the seat belt functions. Be sure to wear seat belts properly.

Seat Belt Pretensioners

▼

The pretensioners operate dierently depending on what types of air bags are equipped. For more details about seat belt pretensioner operation, refer to the SRS Air Bag Deployment Criteria (page 2-62).

Front

The front seat belt pretensioners are designed to deploy in moderate or severe frontal, near frontal collisions. In addition, the pretensioners operate when a side collision or a roll-over accident is detected.

Rear Outboard

The rear outboard seat belt pretensioners are designed to deploy in moderate or severe frontal, near frontal collisions. In addition, the pretensioners operate when a side collision or a roll-over accident is detected.

Driver Air Bag

▼

The driver's air bag is mounted in the steering wheel. When air bag crash sensors detect a frontal impact of greater than moderate force, the driver's air bag inﬂates quickly helping to reduce injury mainly to the driver's head or chest caused by directly hitting the steering wheel. For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria" (page 2-62). The inﬂation of the driver's dual-stage air bag is controlled in two energy stages depending on the driver's seat position. The driver's seat slide position sensor is located under the driver's seat. The sensor determines whether the driver's seat is forward of or behind a reference position and sends the seat position to the diagnostic module (SAS unit). The SAS unit is designed to control the deployment of the driver's air bag depending on how close the driver's seat is to the steering wheel. During an impact of moderate severity, the driver's air bag deploys with lesser energy, whereas during more severe impacts and when the driver's seat is behind the reference position, it deploys with more energy.

2-58

Page 86

Essential Safety Equipment

SRS Air Bags

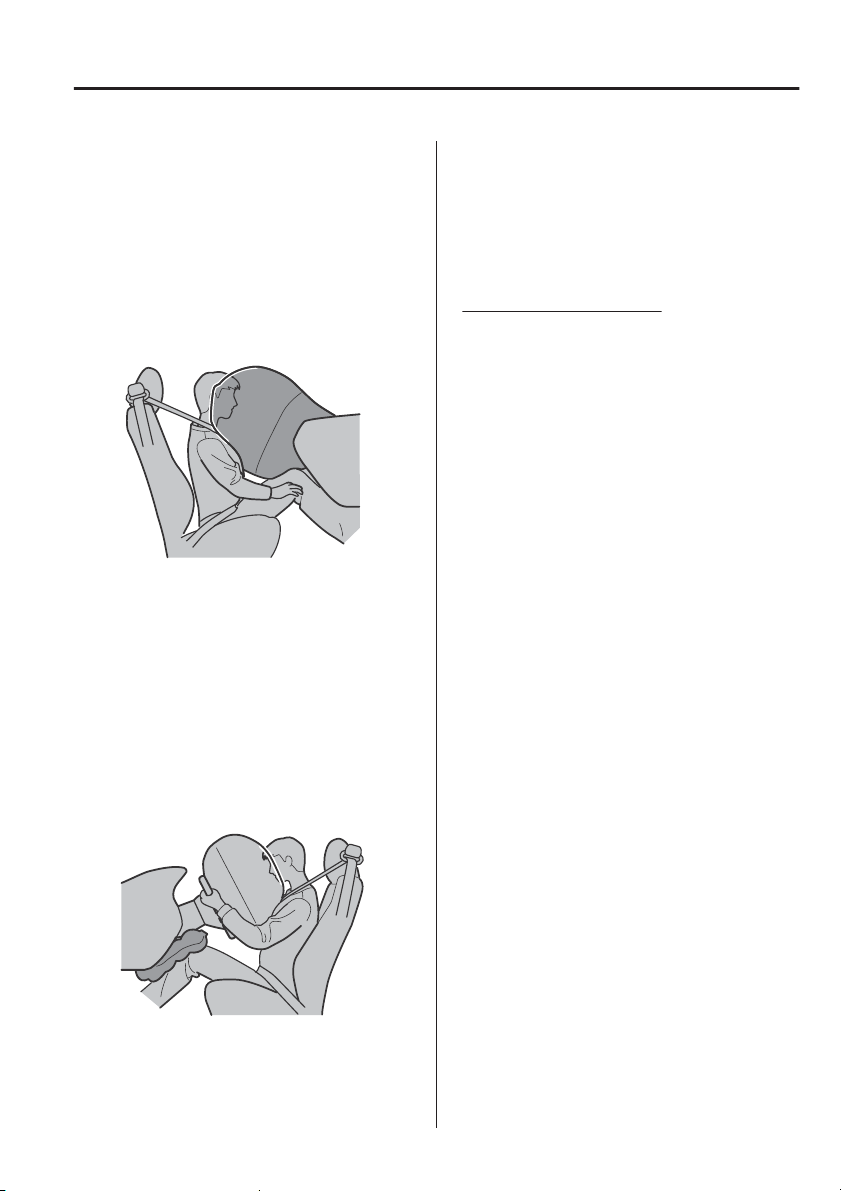

Front Passenger Air Bag

▼

The front passenger air bag is mounted in the front passenger instrument panel. The inﬂation mechanism for the front passenger air bag is the same as the driver's air bag. For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria" (page 2-62).

Driver Knee Air Bag

▼

The knee air bag is equipped under the instrument panel. If the air bag crash sensors receive a frontal impact of greater than moderate force, the knee air bag deploys immediately to reduce impact to the driver's legs. For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria" (page 2-62).

Side Air Bags

▼

There are 3 types of side air bags including the side air bags for the driver and front passenger (inboard/ outboard) and rear passengers (outboard).

Front seat side air bags

The front seat side air bags are installed in the inboard side of the driver’s seatback and in the outboard sides of the driver and front passenger ’s seatbacks. When the air bag crash sensors detect a side impact greater than moderate force, the system side air bag and the side air bag on the outboard side where the vehicle was hit. The side air bags instantaneously to reduce injury to the driver or front passenger’s head and chest caused by directly hitting interior parts such as a door, window or an occupant. For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria" (page 2-62).

inﬂates

the inboard

inﬂate

2-59

Page 87

Essential Safety Equipment

SRS Air Bags

Inboard

Outboard

Rear seat side air bags

The rear seat side air bags are installed in the rear pillars. The rear seat side air bags on the side where the vehicle is hit deploys regardless of whether or not an occupant is seated. For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria" (page 2-62).

Curtain Air Bags

▼

The curtain air bags are mounted in the front and rear window pillars, and the roof edge along both sides. When the air bag crash sensors detect a side impact of greater than moderate force, the curtain air bag inﬂates quickly and helps to reduce injury mainly to the driver and front and rear outboard passengers' heads caused by directly hitting interior parts such as a door or window. For more details about air bag deployment, refer to "SRS Air Bag Deployment Criteria" (page 2-62).

In a side impact:

Greater than moderate impact to one side of the vehicle will cause the curtain air bag on that side only to inﬂate.

Only one side curtain air bag will deploy on the side of the vehicle that receives the force of an impact.

2-60

Page 88

(Vehicles with side air bag (inboard))

Both side curtain air bags will deploy regardless of the side the vehicle receives the impact on.

In a roll-over:

In response to a vehicle roll-over, both curtain air bags inﬂate.

Both curtain air bags will deploy after the roll-over accident is detected.

Warning Light/Beep

▼

A system malfunction or operation conditions are indicated by a warning. Refer to Air Bag/Seat Belt Pretensioner System Warning Indication/Warning Light on page 7-39.

Essential Safety Equipment

SRS Air Bags

2-61

Page 89

Essential Safety Equipment

SRS Air Bags

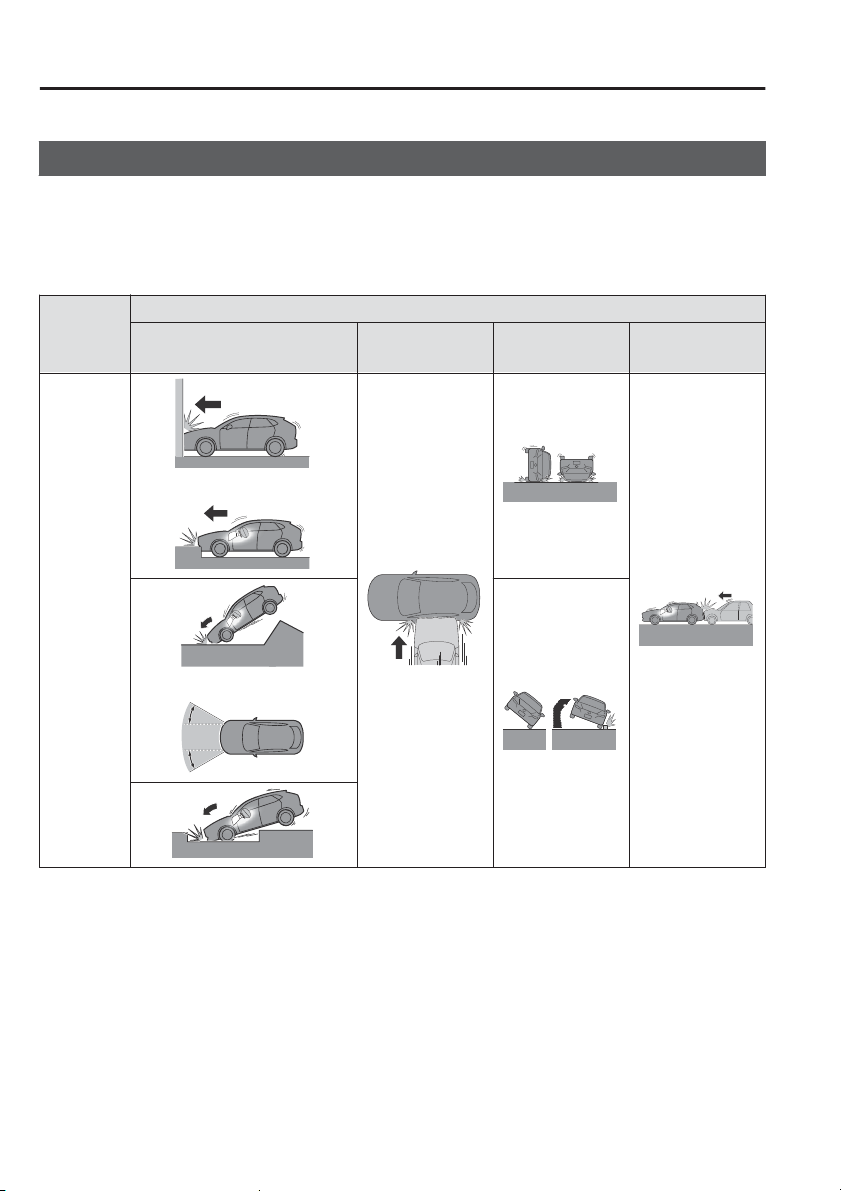

SRS Air Bag Deployment Criteria

▼

This chart indicates the applicable SRS equipment that will deploy depending on the type of collision. (The illustrations are the representative cases of collisions.)

SRS equip-

ment

A severe frontal/near frontal

collision

Types of collision

A severe side col-

lision

A roll-over/near

roll-over

A rear collision

2-62

Page 90

Essential Safety Equipment

SRS Air Bags

SRS equip-

ment

Front seat

belt preten-

sioner

Rear seat

belt preten-

sioner

Driver air

bag

Front pas-

senger air

bag

Knee air

bag

Side air bag

for driver

and front

passenger

(inboard)

Side air

bags for

driver and

front pas-

senger

(outboard)

Side air

bags for

rear pas-

sengers

Curtain air

bag

A severe frontal/near frontal

collision

X ʊʊ

ʊ X ʊ

Types of collision

A severe side col-

lision

A roll-over/near

roll-over

ʊʊ

(impact side

only)

X (both sides)

A rear collision

No air bag and seat belt pretensioner will be activated in a rear collision.

X The SRS air bag equipment deploys in a collision. ʊ:The SRS air bag equipment does not deploy in a collision.

1 The front and side air bags for the front passenger and seat belt pretensioner are designed to deploy

depending on the status of the front passenger air bag deactivation switch.

2 In a roll-over accident, the seat belt pretensioners and the curtain air bags deploy.

3 For vehicles with the side air bag (inboard), the curtain air bags on both sides deploy.

For vehicles without the side air bag (inboard), only the curtain air bag on the side the vehicle receives the impact deploys.

*Some models.

2-63

Page 91

Essential Safety Equipment

SRS Air Bags

NOTE

In a frontal oset collision, the equipped air bags and pretensioners may all deploy depending on the direction, angle, and rate of impact.

2-64

Page 92

Essential Safety Equipment

SRS Air Bags

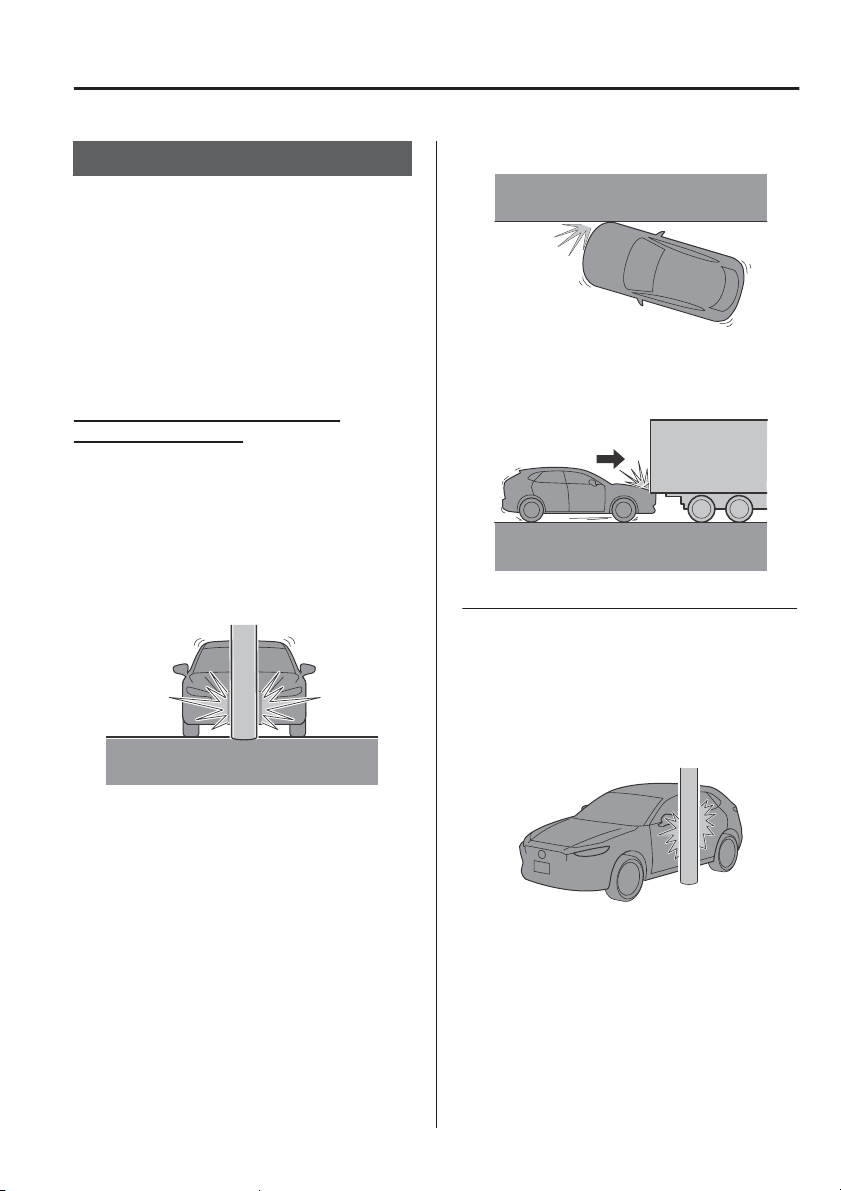

Limitations to SRS Air Bag

▼

In severe collisions such as those described previously in "SRS Air Bag Deployment Criteria", the applicable SRS air bag equipment will deploy. However, in some accidents, the equipment may not deploy depending on the type of collision and its severity.

Limitations to front/near front collision detection:

The following illustrations are examples of front/near front collisions that may not be detected as severe enough to deploy the SRS air bag equipment.

Impacts involving trees or poles

Frontal oset impact to the vehicle

Rear-ending or running under a truck's tail gate

Limitations to side collision detection:

The following illustrations are examples of side collisions that may not be detected as severe enough to deploy the SRS air bag equipment.

Side impacts involving trees or poles

2-65

Page 93

Essential Safety Equipment

SRS Air Bags

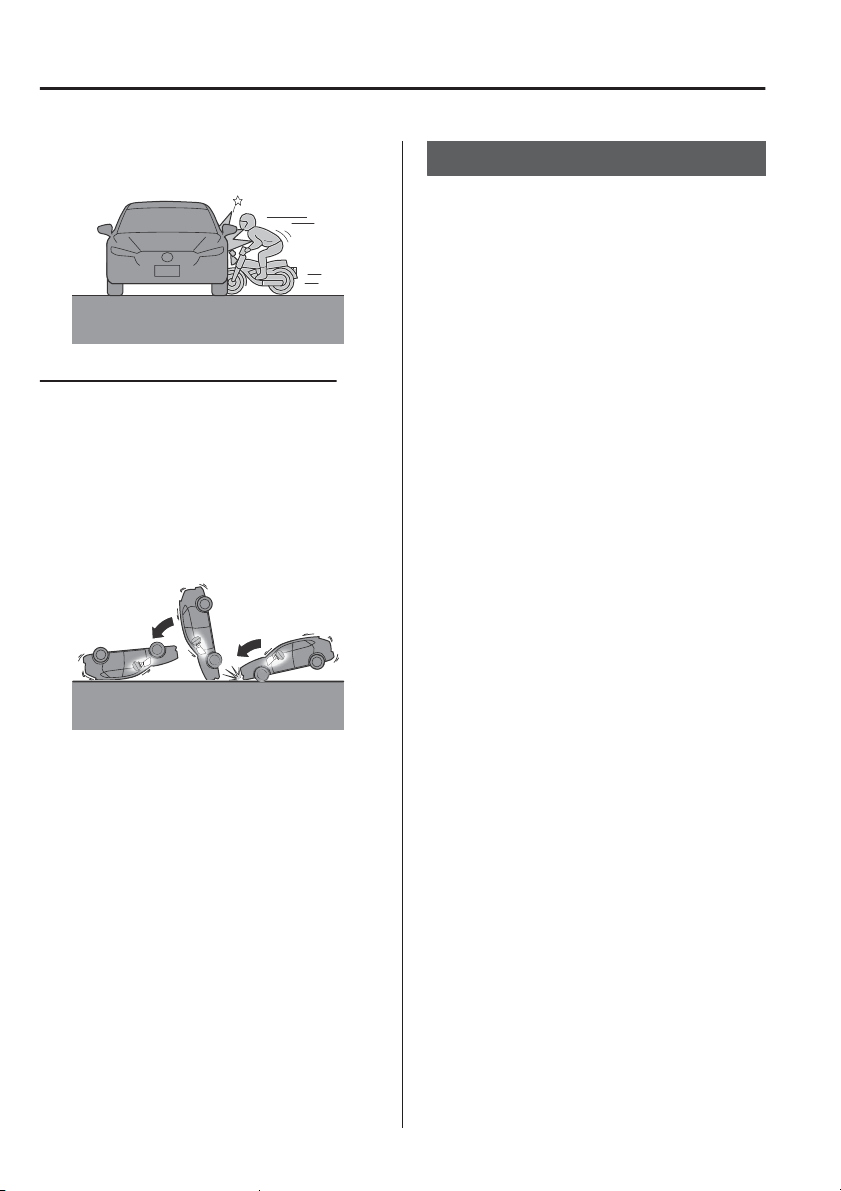

Side impacts with two-wheeled vehicles

Limitations to roll-over detection:

The following illustration is an example of an accident that may not be detected as a roll-over accident. Therefore, the front seat belt pretensioners and curtain air bags may not deploy.

Pitch end over end

Constant Monitoring

▼

The following components of the air bag systems are monitored by a diagnostic system:

Front air bag sensors

Crash sensors, and diagnostic module (SAS unit)

Side crash sensors

Air bag modules

Seat belt pretensioners

Air bag/Seat belt pretensioner system warning light

Related wiring

Driver seat slide position sensor

Front passenger air bag deactivation switch

Front passenger air bag deactivation indicator light

The diagnostic module continuously monitors the system's readiness. This begins when the power switch is switched ON and continues while the vehicle is being driven.

2-66

Page 94

Before Driving

Use of various features, including keys, doors, mirrors and windows.

Electric Vehicles........................3-2

Electric Vehicles.....................3-2

Charging............................. 3-11

Keys...................................... 3-30

Keys....................................3-30

Keyless Entry System.............3-32

Advanced Keyless Entry

System...................................3-37

Advanced Keyless Entry System

Operational Range...............3-38

Doors and Locks..................... 3-39

Door Locks..........................3-39

Liftgate................................3-48

Mirrors.................................. 3-51

Mirrors................................3-51

............................... 3-37

Windows............................... 3-56

Power Windows...................3-56

Sunroof

Security System.......................3-62

Modiﬁcation and Add-

On Equipment.....................3-62

Immobilizer System..............3-62

Theft-Deterrent System

Driving Tips............................ 3-68

Running-In.......................... 3-68

Hazardous Driving............... 3-68

Floor Mat............................ 3-69

Rocking the Vehicle..............3-70

Winter Driving..................... 3-70

Towing.................................. 3-73

Towing Caravans and

Trailers................................ 3-73

..............................3-58

........3-64

*Some models.

3-1

Page 95

Before Driving

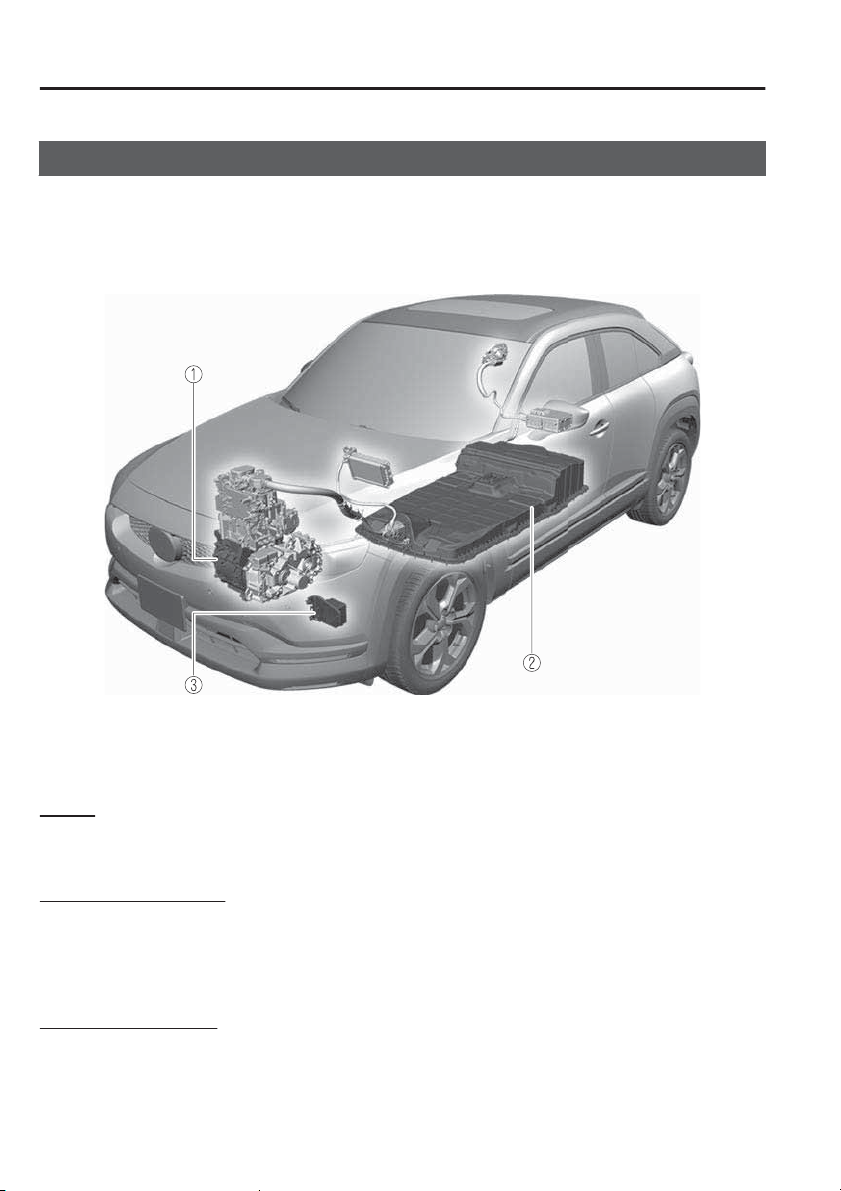

Electric Vehicles

▼

Electric vehicles are driven by motor power using the electrical power stored in the high voltage battery. This vehicle is an eco-friendly vehicle which emits no exhaust gas because fuel is not used.

1. Motor, Regenerative braking

2. High voltage battery

3. Approaching vehicle audible system

Motor

The motor transmits the motor power to the wheels using the electrical power of the high voltage battery.

Regenerative braking

Regenerative braking uses the motor to decelerate the vehicle. Power is generated by the wheels rotating the motor while decelerating and the generated power charges the high voltage battery. Refer to Steering Wheel Paddle on page 3-8.

High voltage battery

The high voltage battery is a large-capacity battery and stores the charged power and the electrical power generated by regenerative braking.

3-2

Page 96

Before Driving

Electric Vehicles

Approaching vehicle audible system

The approaching vehicle audible system approaching using a warning sound while driving at low speeds. Refer to Approaching Vehicle Audible System on page 3-10.

Cautions on Use

▼

An electric vehicle has high voltage areas and high temperature areas. Labels indicating the cautions on use are applied to these areas. Always follow the instructions on the label and use the vehicle correctly.

notiﬁes

WARNING

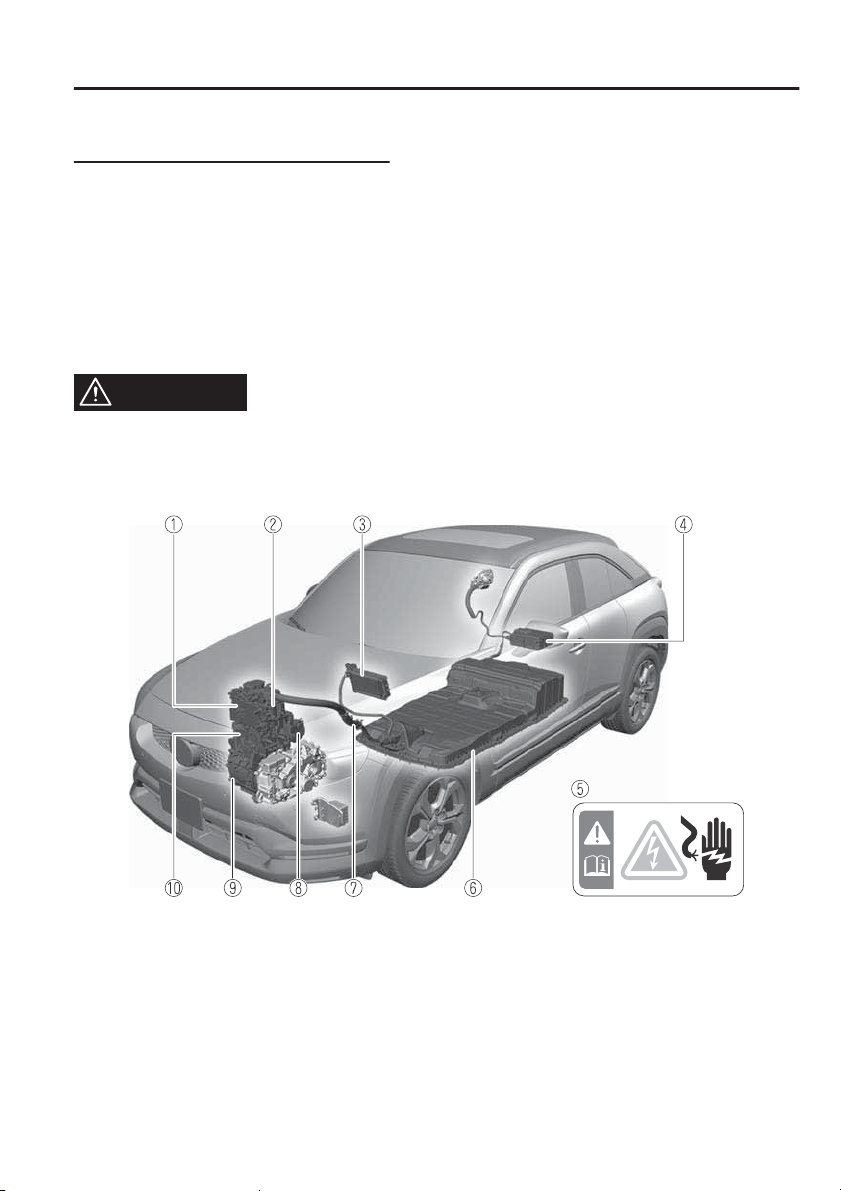

Be very careful of high voltage areas. In addition, do not disassemble, modify, or remove any high voltage parts:

The following areas contain high voltage parts and may cause electrical shock if touched.

pedestrians of the vehicle

1. DCDC Converter

2. Junction Box

3. PTC Heater

4. Onboard Charger

5. Warning Label Example

6. High Voltage Battery

7. High Voltage Lead

8. Electric Compressor

9. Motor

3-3

Page 97

Before Driving

Electric Vehicles

10.Inverter

Be very careful of high temperature areas:

Always follow the instructions on the labels inside the motor compartment. After driving, the motor temperature may be high.

Do not open the bonnet while the EV system or Climate Control Timer is operating or during timer charging, normal charging, or quick charging:

The cooling fan in the motor compartment may rotate suddenly and your hand, clothes, or accessories may touch the fan or become caught, resulting in serious injury or death.

Maintenance and Repairs

▼

For vehicle maintenance or repairs, consult an expert repairer (we recommend an Authorised Mazda Repairer). Technical knowledge and skill are necessary in handling the high voltage battery.

WARNING

To ensure safe and correct handling of the high voltage battery, always heed the following precautions:

¾Do not remove the high voltage

battery.

¾Do not resell, transfer, or modify the

high voltage battery.

¾Do not use the battery on vehicles

other than those equipped with the high voltage battery.

If the high voltage battery is not handled properly, the following may occur which could lead to serious injury or death:

¾Touching an unattended high voltage

battery may cause an electrical shock accident.

¾If the high voltage battery is used on

a vehicle other than one equipped (including

modiﬁed

vehicles) with a high voltage battery, an electrical shock accident, heat generation, smoking, combustion, and explosions, or an electrolyte leakage may occur.

Heed the following instructions to prevent deterioration of the high voltage battery or damage to the high voltage battery.

Do not leave the vehicle for a long time under extremely high or low temperature conditions.

Do not leave the vehicle for 14 days or longer while the high voltage battery is at 0 (zero) charge.

NOTE

The high voltage battery has a certain battery life. The battery life diers depending on how the vehicle is used and the driving conditions.

3-4

Page 98

Before Driving

Electric Vehicles

Scrapping Your Vehicle and

▼

Disposing of the High Voltage Battery

The high voltage battery is collected to prevent accidents involving it. When scrapping your vehicle or replacing the high voltage battery, consult expert repairer (we recommend an Authorised Mazda Repairer). Please cooperate in ensuring that the vehicle's high voltage battery is collected.

WARNING

Appropriate disposal of the high voltage battery:

If the high voltage battery is not collected and disposed of appropriately, such as by leaving it unattended or illegally abandoning it, some other person may touch it which could cause an electrical shock accident leading to serious injury.

Accident Occurs

▼

If the vehicle receives an impact of a certain level or greater in a collision, the EV system stops. In this case, the EV system malfunction warning indication/warning light displays/turns on and the EV system may not start. Contact an expert repairer (we recommend an Authorised Mazda Repairer) immediately.

WARNING

Never touch electrical wiring that may be protruding into or outside of the cabin:

Otherwise, it could result in electrical shock and serious injury.

Never touch any area where electrolyte is visible or electrolyte is leaking from the area:

If any electrolyte from the high voltage battery gets in the eyes or on the skin, it could cause loss of vision or skin reactions. In the unlikely event that electrolyte comes into contact with the eyes or skin, ﬂush with large quantities of water immediately and seek immediate medical attention.

Never approach objects that are on ﬁre or extremely hot:

Electrolyte in the high voltage battery may cause a ﬁre. If the vehicle catches ﬁre, extinguish the ﬁre using a ﬁre extinguisher (type ABC, BC, or C). Only extinguish a

with water when

ﬁre a large amount of water is available such as from a

hydrant. Otherwise,

ﬁre

it could lead to an accident.

Advice for Using Electric Vehicles

▼

Unique sound and vibration occurring with electric vehicles

Electric vehicles have a unique sound and vibration which dier from normal vehicles. The following sounds or vibration may occur, however, this is unique to electric vehicles and it does not indicate a problem.

Motor operation sound.

Operation sound of coolant pump and cooling fan while charging.

Operation sound of regenerative braking.

Relay operation sound when EV system is started or stopped.

Brake system operation sound and vibration.

3-5

Page 99

Before Driving

Electric Vehicles

Operation sound of brake system

Sound can be heard from the front of the vehicle under the following conditions:

The driver's door is opened.

The power switch is switched ON.

The brake pedal is operated.

The brake system operates automatically.

Several minutes have passed since the EV system was stopped.

Vibration of brake pedal

Vibration of the brake pedal might be felt under the following conditions:

The power switch is switched ON.

The brake pedal is operated.

High voltage battery level and temperature

If the high voltage battery level is low or the high voltage battery temperature is low, the vehicle speed may not increase even if the accelerator pedal is depressed because the motor output is restricted. Drive the vehicle following the instructions displayed on the multi-information display.

To Extend Cruising Distance

The electrical power consumption while driving can be reduced and the cruising distance can be extended by doing the following operations.

With the charging connector connected, turn on the air-conditioning system to provide a comfortable temperature in the cabin before driving.

When driving during cold temperatures, use the seat warmer or steering warmer instead of the air-conditioning system.

Adjust the air-conditioning system to a moderate airﬂow and temperature setting.

Refrain from using the defogger under conditions other than when a window is fogged or frozen.

Unload unnecessary cargo to reduce the vehicle weight.

Avoid unnecessary sudden acceleration, rapid acceleration, and rapid deceleration. Instead, perform smooth starts, acceleration, and deceleration.

Try to drive maintaining a constant speed and avoid speeding.

Inspect the tyre pressures regularly and always adjust the tyre pressures to the speciﬁed inﬂation pressure.

By maintaining a sucient distance between vehicles and using the regenerative braking well, more electrical power can be charged to the high voltage battery.

3-6

Page 100

Pointers for Maintaining Long Battery Life

The high voltage battery life changes depending on the vehicle conditions or charging method. For maintaining a long high voltage battery life, be careful of the following:

Charging the high voltage battery

Avoid unnecessary, frequent charging.

Charge the battery normally and avoid quick charging as much as possible.

Only charge the battery with as much power as needed, and do not always fully charge the battery. The maximum charge limit can be set. Refer to Charging Settings on page 3-26.

Parking the vehicle

Do not park the vehicle in a place where the ambient temperature is extremely high or low.

Do not leave the vehicle while the remaining high voltage battery power is extremely low.

If the Excessive Battery Temperature notiﬁcation

is displayed on the centre display after driving the vehicle, select Start.

Before Driving

Electric Vehicles

3-7
