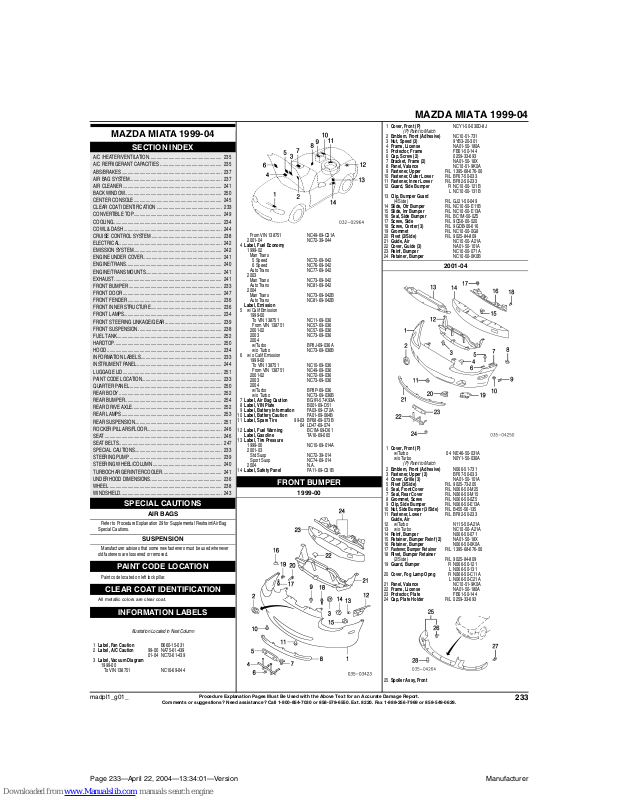

MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
233
madpl1_g01_
Page 233—April 22, 2004—13:34:01—Version Manufacturer
MAZDA MIATA 1999-04
SPECIAL CAUTIONS
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag
Special Cautions.
SUSPENSION
Manufacturer advises that some new fasteners must be used whenever
old fasteners are loosened or removed.
PAINT CODE LOCATION
Paint code located on left lock pillar.
CLEAR COAT IDENTIFICATION
All metallic colors are clear coat.
INFORMATION LABELS
Illustration Located in Next Column
1
Label, Fan Caution
B660-15-031
2
Label, A/C Caution
99-00 NA75-61-439
01-04 NC72-61-439
3
Label, Vacuum Diagram
1999-00
To VIN 138751 NC10-69-044
From VIN 138751 NC49-69-C31A
2001-04 NC72-39-044
4
Label, Fuel Economy
1999-02
Man Trans
5 Speed NC72-69-042
6 Speed NC76-69-042
Auto Trans NC77-69-042
2003
Man Trans NC73-69-042
Auto Trans NC81-69-042
2004
Man Trans NC73-69-042B
Auto Trans NC81-69-042B
Label, Emission
5 w/Calif Emission
1999-00
To VIN 138751 NC11-69-036
From VIN 138751 NC57-69-036
2001-02 NC57-69-036
2003 NC73-69-036
2004
w/Turbo BP8J-69-036A
w/o Turbo NC73-69-036B
6 w/o Calif Emission
1999-00
To VIN 138751 NC10-69-036
From VIN 138751 NC49-69-036
2001-02 NC72-69-036
2003 NC73-69-036
2004
w/Turbo BP8P-69-036
w/o Turbo NC73-69-036B
7
Label, Air Bag Caution
BG1R-57-K93A
8
Label, VIN Plate
B001-69-D51
9
Label, Battery Information
FA03-69-C72A
10
Label, Battery Caution
FA01-69-064B
11
Label, Spare Tire
99-03 BF68-69-073B
04 LD47-69-074
12
Label, Fuel Warning
BC1M-69-D61
Label, Gasoline
TA16-69-065
13
Label, Tire Pressure
1999-00 NC10-69-014A
2001-03
Std Susp NC72-39-014
Sport Susp NC74-69-014
2004 N.A.
14
Label, Safety Panel
FA11-69-C31B
FRONT BUMPER
1999-00
1
Cover, Front (P)
NCY1-50-030D-8J
(P) Paint to Match
2
Emblem, Front (Adhesive)
NC10-51-731
3
Nut, Speed (3)
9YB3-20-301
4
Frame, License
NA01-50-180A
5
Protector, Frame
FB01-50-144
6
Cap, Screw (2)
0259-33-693
7
Bracket, Frame (2)
NA01-50-18X
8
Panel, Valance
NC10-51-9K0A
9
Fastener, Upper
R/L 1395-68-676-00
10
Fastener, Outer Lower
R/L BF67-50-033
11
Fastener, Inner Lower
R/L BF82-50-233
12
Guard, Side Bumper
R NC10-50-121B
L NC10-50-131B
13
Clip, Bumper Guard
(4/Side) R/L GJ21-50-049
14
Slide, Otr Bumper
R/L NC10-50-E11B
15
Slide, Inr Bumper
R/L NC10-50-E13A
16
Seal, Side Bumper
R/L BC1M-50-0Z5
17
Screw, Side
R/L 9CS6-00-520
18
Screw, Center (3)
R/L 9GDB-00-616
19
Grommet
R/L NC10-50-0G8
20
Rivet (2/Side)
R/L 9025-84-809
21
Guide, Air
NC10-50-A21A
22
Cover, Guide (3)
NA01-50-101A
23
Reinf, Bumper
NC10-50-071A
24
Retainer, Bumper
NC10-50-0K0B
2001-04
1
Cover, Front (P)
w/Turbo 04 NE46-50-031A
w/o Turbo N0Y1-50-030A
(P) Paint to Match
2
Emblem, Front (Adhesive)
N066-51-731
3
Fastener, Upper (2)
BF67-50-033
4
Cover, Grille (3)
NA01-50-101A
5
Rivet (3/Side)
R/L 9025-73-205
6
Seal, Front Cover
R/L N066-50-M25
7
Seal, Rear Cover
R/L N066-50-M15
8
Grommet, Screw
R/L N066-50-0Z5
9
Clip, Side Bumper
R/L N066-50-E13A
10
Nut, Side Bumper (3/Side)
R/L B455-56-135
11
Fastener, Lower
R/L BF82-50-233
Guide, Air
12 w/Turbo N115-50-A21A
13 w/o Turbo NC10-50-A21A
14
Reinf, Bumper
N066-50-071
15
Retainer, Bumper Reinf (2)
NA01-50-18X
16
Retainer, Bumper
N066-50-0K0A
17
Fastener, Bumper Retainer
R/L 1395-68-676-00
18
Rivet, Bumper Retainer
(2/Side) R/L 9025-84-809
19
Guard, Bumper
R N066-50-121
L N066-50-131
20
Cover, Fog Lamp Opng
R N066-50-C11A
L N066-50-C21A
21
Panel, Valance
NC10-51-9K0A
22
Frame, License
NA01-50-180A
23
Protector, Plate
FB01-50-144
24
Cap, Plate Holder
R/L 0259-33-693
25
Spoiler Assy, Front
SECTION INDEX
A/C /HEATER/VENTILATION............................................................ 235
A/C REFRIGERANT CAPACITIES ................................................... 235
ABS/BRAKES ................................................................................... 237
AIR BAG SYSTEM............................................................................ 237
AIR CLEANER .................................................................................. 241
BACK WINDOW................................................................................ 250
CENTER CONSOLE......................................................................... 245
CLEAR COAT IDENTIFICATION ...................................................... 233
CONVERTIBLE TOP......................................................................... 249
COOLING.......................................................................................... 234
COWL & DASH................................................................................. 244
CRUISE CONTROL SYSTEM .......................................................... 238
ELECTRICAL.................................................................................... 242
EMISSION SYSTEM......................................................................... 242
ENGINE UNDER COVER................................................................. 241
ENGINE/TRANS ............................................................................... 240
ENGINE/TRANS MOUNTS............................................................... 241
EXHAUST ......................................................................................... 241
FRONT BUMPER ............................................................................. 233
FRONT DOOR.................................................................................. 247
FRONT FENDER.............................................................................. 236
FRONT INNER STRUCTURE........................................................... 236
FRONT LAMPS................................................................................. 234
FRONT STEERING LINKAGE/GEAR............................................... 239
FRONT SUSPENSION ..................................................................... 238
FUEL TANK....................................................................................... 252
HARDTOP......................................................................................... 250
HOOD ............................................................................................... 234
INFORMATION LABELS................................................................... 233
INSTRUMENT PANEL ...................................................................... 244
LUGGAGE LID.................................................................................. 251
PAINT CODE LOCATION.................................................................. 233
QUARTER PANEL ............................................................................ 250
REAR BODY..................................................................................... 252
REAR BUMPER................................................................................ 254
REAR DRIVE AXLE.......................................................................... 252
REAR LAMPS................................................................................... 253
REAR SUSPENSION........................................................................ 251
ROCKER/PILLARS/FLOOR.............................................................. 246
SEAT ................................................................................................. 246
SEAT BELTS ..................................................................................... 247
SPECIAL CAUTIONS........................................................................ 233
STEERING PUMP ............................................................................ 239
STEERING WHEEL/COLUMN ......................................................... 240
TURBOCHARGER/INTERCOOLER................................................. 241
UNDERHOOD DIMENSIONS........................................................... 236
WHEEL ............................................................................................. 238
WINDSHIELD.................................................................................... 243
Page 2
MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
234
madpl1_g01_
Page 234—April 22, 2004—13:34:02—Version Manufacturer
FRONT BUMPER Cont’d
2001-04 Cont’d
Gray (Code 29Y) N115-51-9K0-01
Green (Code 18J) N115-51-9K0-46
Red (Code 27A) N115-51-9K0-87
Silver (Code 22V) N115-51-9K0-67
White (Code A3D) N115-51-9K0-09
26
Clip, Spoiler¶
R/L N115-51-958
¶Included w/Front Spoiler Assy
27
Clip, Spoiler Outer
R/L N115-50-EA1A
28
Fastener, Spoiler (7)
N115-51-599A
FRONT LAMPS
COMBINATION LAMP
1999-00
1
Lamp Assy, Combination
R NC10-51-030E
L NC10-51-040E
2
Lens & Body Assy¶
R NC10-51-0K0E
L NC10-51-0L0E
3
Protector, Lamp¶ (a)
R NC10-51-0M5B
L NC10-51-0N5B
(a) Included w/Lens & Body Assy
4
Cover, Headlamp Socket¶
R/L H432-51-0A1
5
Cover, Signal Lamp¶
R/L NC10-51-064
6
Socket, Park Lamp¶
R/L H432-51-0B4
7
Bulb, Headlamp¶
R/L 0000-11-9003
8
Bulb, Signal¶
R/L 0000-11-3496
9
Bulb, Park Lamp¶
R/L 0000-11-0194
¶Included w/Combination Lamp Assy
10
Fastener, Lamp
R/L NC13-51-025C
COMBINATION LAMP
2001-04
1
Lamp Assy, Combination
w/Turbo 04 R NE45-51-0K0
L NE45-51-0L0
w/o Turbo R NC72-51-0K0D
L NC72-51-0L0D
2
Seal, Upper Lamp¶
R N066-51-0M5C
L N066-51-0N5C
3
Seal, Lower Lamp¶
R/L N066-51-0N7
¶Included w/Combination Lamp Assy
4
Fastener, Lamp
R/L NC13-51-025C
5
Bulb, High Beam
R/L 0000-11-9005
6
Bulb, Low Beam
R/L 0000-11-9006
7
Bulb, Signal
R/L 0000-11-1157-NA
8
Cover, High Beam Bulb
R/L N066-51-0A1
9
Cover, Low Beam Bulb
R/L N066-51-0A1
10
Socket, Signal
R/L NC10-51-064
SIDE MARKER LAMP
1
Lamp Assy, Side Marker
R 8BN1-51-120
L 8BN1-51-130
2
Lens & Body¶
R NA01-51-5EXA
L NA01-51-5FXA
3
Gasket¶
R/L NA01-51-5D3A
4
Socket¶
R/L NA01-51-5E2
5
Bulb¶
R/L 0000-11-0194
¶Included w/Side Marker Lamp Assy
FOG LAMP
2001-03
1
Lamp Assy, Fog
R/L N066-51-680A
2
Bulb, Fog Lamp¶
R/L 0000-11-0H3
3
Socket, Fog Lamp Bulb¶
R/L B21H-51-6A6
¶Included w/Fog Lamp Assy
4
Harness, Fog Lamp
R/L N066-51-688A
FOG LAMP
2004
1
Lamp Assy, Fog
R/L NE01-51-680
2
Bulb, Fog¶
R/L 0000-11-9006
¶Included w/Fog Lamp Assy
3
Harness, Fog Lamp
R/L NE01-51-688A
4
Bracket, Fog Lamp
R/L NE01-51-684A
HOOD
1
Panel, Hood
NCY0-52-31XJ
2
Cushion, Front Rubber
R/L G067-58-873
3
Cushion, Side Bumper
R/L BC1M-56-786
4
Hinge, Hood
R NA01-52-410D
L NA01-52-420D
5
Latch
NC10-56-620A
6
Cable, Latch Release
NC10-56-720C
7
Fastener, Cable
LA01-56-631
8
Clip, Front Cable
G030-67-519
9
Clip, Rear Cable (2)
UB42-66-971
10
Rod Assy, Support
NC10-56-650D
11
Holder, Rear Rod¶
T001-56-652
¶Included w/Support Rod Assy
12
Holder, Front Rod
G030-56-693A
13
Plate, Rear Holder
B01A-56-641
14
W/Strip, Rear Hood
NC10-56-760A
Nozzle, Washer-See Windshield Section
COOLING
W/TURBO
Illustration Located in Next Column
1
Radiator Assy
BP8J-15-200A
2
Cap, Radiator¶
YF47-15-205
3
Cock, Drain¶
NF01-15-203
4
Mount, Rad¶ (2/Side)
Upper/Lower R/L JE48-15-202
¶Included w/Radiator Assy
5
Bracket, Rad Mount
R/L BP4W-15-231
6
Fan Assy, Cooling
BP8J-15-025A
7
Blade, Fan¶
R FS2V-15-140
L RF4R-15-140
8
Shroud, Fan¶
BP8J-15-210A
9
Motor, Fan¶
R/L L329-15-150
¶Included w/Cooling Fan Assy
10
Hose, Upper Rad
BP8J-15-186A
11
Hose, Lower Rad
BP8J-15-185B
12
Tank Assy, Coolant
BP8J-15-350A
13
Cap, Tank¶
BP8J-15-355
¶Included w/Coolant Tank Assy
14
Hose, Coolant Tank
BP4W-15-380
15
Pump Assy, Water
8ABB-15-010A
16
Gasket, Water Pump¶
B6BF-15-116
¶Included w/Water Pump Assy
17
Pulley, Water Pump
B3C7-15-131
18
Inlet, Water
B3CD-15-131
19
Pipe, By-Pass
BP8J-15-280A
20
Hose, By-Pass
BP6D-15-261
21
Outlet, Water
BP4W-15-179
22
Gasket, Thermostat Cover (2)
B621-15-173
23
Thermostat Assy
BP6F-15-171A
24
Gasket, Thermostat¶
B621-15-173
¶Included w/Thermostat Assy
25
Cover, Frt Thermostat
BPE8-15-172
26
Cover, Rear Thermostat
BP6D-15-170A
W/O TURBO
Illustration Located in Next Column
1
Radiator Assy
Man Trans BP4W-15-200A
Auto Trans 99-00 BP4X-15-200A
01-04 BP6H-15-200
2
Cap, Radiator¶
99-03 KL01-15-205
04 YF47-15-205
3
Cock, Drain¶
NF01-15-203
4
Mount, Rad¶ (2/Side)
Upper/Lower R/L JE48-15-202
¶Included w/Radiator Assy
5
Bracket, Rad Mount
R/L BP4W-15-231
6
Fan Assy, Main Cooling
BP4W-15-025
7
Blade, Fan¶
BP4W-15-140
8
Shroud, Fan¶
BP4W-15-210
Page 3
MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
235
madpl1_g01_
Page 235—April 22, 2004—13:34:04—Version Manufacturer
9
Motor, Fan¶
Z5A1-15-150
¶Included w/Main Cooling Fan Assy
10
Fan Assy, Auxiliary
B6MC-15-035
11
Blade, Fan¶
B6MC-15-140
12
Shroud, Fan¶
B6MC-15-210
13
Motor, Fan¶
Z5A1-15-150
14
Bracket, Hose¶
N001-61-4H1
¶Included w/Auxiliary Fan Assy
15
Hose, Upper Rad
BP4W-15-186B
16
Hose, Lower Rad
BP4W-15-185B
17
Tank Assy, Coolant
BP4W-15-350B
18
Cap, Tank¶
SLA1-15-355
¶Included w/Coolant Tank Assy
19
Hose, Coolant Tank
BP4W-15-380
20
Pump Assy, Water
8ABB-15-010A
21
Gasket, Water Pump¶
B6BF-15-116
¶Included w/Water Pump Assy
22
Pulley, Water Pump
B3C7-15-131
23
Inlet, Water
99-00 B61P-15-160
01-04 BP6D-15-160
24
Pipe, By-Pass
BP4W-15-290A
25
Hose, By-Pass
99-00 B61P-15-261A
01-04 BP6D-15-261
26
Outlet, Water
BP4W-15-179
27
Gasket, Thermostat Cover (2)
B621-15-173
28
Thermostat Assy
99-00 8ABE-15-171
01-03 BP6F-15-171
04 BP6F-15-171A
29
Gasket, Thermostat¶
B621-15-173
¶Included w/Thermostat Assy
30
Cover, Frt Thermostat
BPE8-15-172
31
Cover, Rear Thermostat
99-00 BPE8-15-170A
01-04 BP6D-15-170A
A/C REFRIGERANT CAPACITIES
A/C R-134a Refrigerant Capacity
1999-04: 21.2 Ozs (1.32 Lbs)
A/C /HEATER/VENTILATION
1999-00
Illustration Located in Next Column
1
Condenser Assy
NC10-61-480B
2
Condenser-Serviced w/Condenser Assy
3
Receiver/Drier¶
NC10-61-500A
4
Pipe, Receiver/Drier¶
NC10-61-464
¶Included w/Condenser Assy
5
Hose, Suction
NC10-61-462A
6
Hose, Pressure
NC10-61-461A
7
Tube Assy, Upper A/C
NC10-61-46X
8
Switch, Pressure¶
GB6H-61-503
¶Included w/Upper A/C Tube Assy
9
Tube, Lower A/C
NC10-61-465
10
Hose, Drain
NA01-61-526
11
Fan Assy, Auxiliary-See Cooling Section
12
Compressor
NA75-61-450
13
Bracket, Compressor
BPE8-15-810A
14
Idler Assy
BP01-15-930
15
Bracket, Pulley¶
BP01-15-951
16
Bolt, Adjust¶
E564-15-934
17
Collar, Outer¶
E564-15-942
18
Collar, Inner¶
BP01-15-933
19
Shaft, Pulley¶
0000-67-C42A-6F
20
Pulley Assy, Idler¶
BP01-15-940
21
Bearing¶ (a)
9960-68-302
¶Included w/Idler Assy
(a) Included w/Idler Pulley Assy
22
Evaporator
NC10-61-520
Illustration Located in Next Column
23
Heater Assy
NC11-61-130E
24
Core, Heater¶
NC10-61-A10A
25
Case, Heater¶
R NC10-61-A01
L NC10-61-A02A
26
Link, Mode¶
R NA01-61-A20
L NA01-61-A30A
¶Included w/Heater Assy
27
Blower Assy
NC11-61-140A
28
Case, Upr Blower¶
NA75-61-B01
29
Case, Lwr Blower¶
NA01-61-B02
30
Motor, Blower¶
NA01-61-B10
31
Resistor, Blower¶
NA01-61-B15
32
Link, Heater¶
NA01-61-B20
¶Included w/Blower Assy
2001-04
1
Condenser
Optional 99-03 NE02-61-480
04 NC72-61-480C
Standard 99-03 NE01-61-480
04 NC73-61-480B
2
Hose, Condenser
NC72-61-46XA
3
Hose, Pressure
99-03 NC72-61-461E
04 N101-61-461
4
Hose, Suction
2001
To 2-1-01 NC72-61-4T0B
From 2-1-01 NC72-61-4T0F
2002-03 NC72-61-4T0F
2004 NE01-61-4T0
5
Tube, Suction
01-02 NC72-61-46ZA
03-04 NC72-61-46ZE
Page 4
MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
236
madpl1_g01_
Page 236—April 22, 2004—13:34:06—Version Manufacturer
A/C /HEATER/VENTILATION Cont’d
2001-04 Cont’d
6
Tube, Upr Condenser
Optional 99-03 NC72-61-46ZA
04 NC72-61-464A
Standard 99-03 NC73-61-464
04 NC73-61-464
7
Tube, Lwr Condenser
NC72-61-465A
8
Hose Assy, Drain
NC72-61-52X
9
Hose, Drain¶
NC72-61-526
10
Grommet¶
LB46-61-558A
¶Included w/Drain Hose Assy
11
Compressor
1999-03 NC72-61-K00
2004
To 8-2-03 F151-61-K00
From 8-2-03 F151-61-K00A
12
Bracket, Compressor
99-03 BP6F-15-810
04 BP7V-15-810A
13
Clutch Assy, Compressor
1999-03 N026-61-L10A
2004
To 8-2-03 N101-61-L10
From 8-2-03 N101-61-L10A
14
Armature¶
1999-03 FD15-61-L11
2004-Serviced w/Compressor Clutch Assy
15
Pulley, Clutch¶
1999-03 N026-61-L12
2004-Serviced w/Compressor Clutch Assy
16
Coil¶
1999-03 FD15-61-L13
2004-Serviced w/Compressor Clutch Assy
¶Included w/Compressor Clutch Assy
17
Idler Assy
B63H-15-930C
18
Bolt, Adjust¶
B611-15-966
19
Spacer¶
R230-15-933
20
Pulley, Idler¶
B63H-15-940A
21
Shaft, Pulley¶
B611-15-932
22
Cover, Lever¶
R230-15-934
23
Nut, Flange¶
9994-01-000
¶Included w/Idler Assy
Belt, Drive-See Steering Pump Section
24
Evaporator Assy
2001
To 2-1-01 NC72-61-520D
From 2-1-01 NC72-61-520E
2002-04 NC72-61-520E
25
Case, Upper¶
NC72-61-J01
26
Core, Evaporator¶
NC72-61-J10
27
Sensor, Valve¶
99-03 N053-61-J22A
04 N053-61-J14A
28
Case, Lower¶
NC72-61-J02
29
Valve, Expansion¶
99-03 N053-61-J15
04 N053-61-J14A
30
Pipe, Evaporator¶
99-03 N053-61-J15
04 NC72-61-J15
31
Plate, Upper Seal¶
N001-61-529A
32
Plate, Lower Seal¶
N001-61-52YB
¶Included w/Evaporator Assy
33
Heater Assy
w/ A/C NC72-61-130B
w/o A/C NC11-61-130E
34
Core, Heater¶
NC10-61-A10A
35
Case, Heater¶
R NC10-61-A01
L NC10-61-A02A
36
Link, Mode¶
w/ A/C R NA01-61-A20
L NA01-61-A30A
w/o A/C R NA01-61-A20
L NC11-61-A30A
¶Included w/Heater Assy
37
Blower Assy
w/ A/C NC72-61-140
w/o A/C NC11-61-140A
38
Case, Upper Blower¶
w/ A/C NC72-61-B01
w/o A/C NA75-61-B01
39
Case, Lower Blower¶
w/ A/C NC72-61-B02
w/o A/C NA01-61-B02
40
Motor, Blower¶
BR70-61-B10
41
Resistor, Blower¶
NA01-61-B15
42
Link, Heater¶
NA01-61-B20
¶Included w/Blower Assy
FRONT FENDER
SHEET METAL/EXTERIOR TRIM
Illustration Located in Next Column
1
Fender
R NCY0-52-110F
L NCY0-52-210F
2
Tape, Seal
R/L GA2A-56-092
3
Liner, Fender
R NC10-56-131F
L NC10-56-141F
4
Fastener, Liner
R/L NA01-56-145
5
Clip, Liner (17/Side)
R/L BC1D-56-145
6
Shield, Splash
1999-00 R NC10-56-132E
L NC10-56-142D
2001-03 R N067-56-132
L N067-56-142
2004
w/Turbo R/L N115-56-13ZA
w/o Turbo R/L N067-56-142
7
Bolt, Splash Shield (3/Side)
R/L 9CF6-00-520B
8
Nut, Bolt (3/Side)
R/L B455-56-135
9
Emblem (Adhesive)¶
"10th Anniversary" R/L N065-51-761B
¶Contact Dealer for Information
UNDERHOOD DIMENSIONS
FRONT INNER STRUCTURE
FRONT
1
Support Assy, Radiator
N067-53-100B
2
Bar, Upper Tie¶
N067-53-150A
3
Panel, Side Support¶
R NCY0-53-120B
L NCY0-54-120B
¶Included w/Radiator Suppor t Assy
4
Bar, Lower Tie
N067-53-16XB
5
Support, Latch
N053-56-221C
Page 5
MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
237
madpl1_g01_
Page 237—April 22, 2004—13:34:08—Version Manufacturer
6
Bracket, Radiator
w/Turbo R BP8J-15-240
L BP8J-15-250
w/o Turbo R BP4W-15-241
L BP4W-15-250
7
Brkt, Upr Bumper Stay
R/L NC10-53-1D0A
8
Brkt, Lwr Bumper Stay
R/L NC10-52-12X
9
Cover, Under-See Engine Under Cover Section
SIDE
1
Apron Assy
1999-03 R NCY0-53-200B
L NCY0-54-200B
2004
To 8-2-03 R NCY0-53-200B
L NCY0-54-200B
From 8-2-03 R NCY0-53-200D
L NCY0-54-200D
2
Panel, Apron¶
R N067-53-210A
L N067-54-210C
3
Frame Assy, Inner Apron¶
99-00 R
N066-53-31X
L N066-54-31X
01-04 R N066-53-31X
L N066-54-31X
4
Rail, Upper Front¶ (a)
R NC10-53-320B
L NC10-54-320
5
Rail, Otr Frame¶ (a)
R NC10-53-35XA
L NC10-54-35XA
6
Rail, Inr Frame¶ (a)
R NC10-53-310
L NC10-54-310
7
Bracket, Stabilizer¶ (a)
99-00 R NA01-53-380
L NA01-54-380B
01-04 R N067-53-330
L N067-54-330
8
Reinf, Tie Down Hook¶ (a)
R NA01-53-32XB
L NA01-54-32XC
(a) Included w/Inner Apron Frame Assy
9
Reinforcement¶
R NC10-53-390A
L NC10-54-390A
10
Gusset, Frame¶
R NA01-53-370A
L NA01-54-370A
11
Rail, Upper Rear¶
R NA01-53-37ZB
L NA01-54-37ZD
12
Box, Torque¶
R NA01-53-391
L NA01-54-391
¶Included w/Apron Assy
13
Reinf, Apron
R NA01-53-591
L NA01-54-590
14
Hook, Tie-Down
R NA01-56-34XD
L NA01-56-34YD
15
Bar, Susp Strut
99-00 R N044-56-49Y
L N044-56-49X
01-04 N067-56-49XA
16
Plate, Strut Bar
99-00 R/L N044-56-492-3
01-04 R N067-56-49ZA
L N067-56-49YA
17
Bolt, Strut Bar
R/L N021-56-4K1A
18
Joint, Strut Bar (2)
99-00 N021-56-494A
19
Nut, Strut Bar
99-00 R N022-56-496A
L N021-56-499A
ELECTRICAL COMPONENTS
Illustration Located in Next Column
1
Block Assy, Main Fuse
1999-00 NC10-66-760
2001-03 NC82-66-760A
2004
w/Turbo NE45-66-760
w/o Turbo NE01-66-760
2
Cover, Upper Block¶
1999-00 NC10-66-762
2001-03 NC82-66-762
2004
w/Turbo NE45-66-762
w/o Turbo NE01-66-762
Fuse¶ (a)
3 15 Amp 0000-11-0015
4 20 Amp (3) 0000-11-0020
5 30 Amp (4) H115-67-099
6 40 Amp H116-67-099
7 80 Amp H117-67-099
¶Included w/Main Fuse Block Assy
(a) Order by Application
8
Cover, Lower Block
NC10-66-767
9
Protector, Harness
NC10-67-P80
10
Bracket, Harness
NC10-67-B81A
AIR BAG SYSTEM
1
Control Assy, Air Bag Diagnosis
99-00
NC10-57-K3XB
01-04 N066-57-K3XC
2
Control, Air Bag Diagnosis¶
1999-00-Serviced w/Air Bag Diagnosis Control Assy
2001-04 N066-57-K30C
3
Bracket, Air Bag Control¶
N034-57-KX0A
¶Included w/Air Bag Diagnosis Control Assy
4
Sensor, Air Bag
01-04 N066-57-K1XA
Illustration Located in Next Column
Module, Driver Air Bag
5 Urethane Wheel 99-00 NC10-57-K00B-00
6 Leather Wrapped Wheel
1999-00 N055-57-K00D
2001
To 6-1-01 B28V-57-K00
From 6-1-01 B33M-57-K00-00
2002-04 B33M-57-K00-00
7
Module, Pass Air Bag
NC10-57-K70D-02
8
Clockspring
1999-00 GE4T-66-CS0A
2001-04
Alps Brand N066-66-CS0
Tokai Brand GE4T-66-CS0A
Pretensioner, Seat Belt¶-See Seat Belts Section
¶Serviced w/Front Seat Belt
ABS/BRAKES
1
Hydraulic Assy, ABS
99-00 NC14-43-780A
01-03 NC78-43-780
04 N068-43-7A0
2
Hydraulic Unit¶
1999-00 NB86-43-7A0B
2001-03 N068-43-7A0
2004-Serviced w/ABS Hydraulic Assy
3
Relay¶
1999-00 NB86-67-740B
2001-04-Serviced w/Hydraulic Unit
4
Bracket, Upr ABS¶
99-00 NC14-43-320A
01-04 NC78-43-320
¶Included w/ABS Hydraulic Assy
5
Bracket, Lwr ABS
99-00 NC14-43-310
01-04 NC78-43-310
6
Control Unit, ABS
NC14-67-650
7
Bracket, ABS Control
NC10-67-9B2A
8
Sensor Assy, Front ABS
1999 R/L NA23-43-70XE
2000
To VIN 127064 R NA23-43-70XE
L NA23-43-73XE
From VIN 127064 R NC14-43-70X
L NC14-43-73XA
2001-04 R NC14-43-70X
L NC14-43-73XA
9
Clip, Front Sensor¶
R/L NA23-43-705
¶Included w/Front ABS Sensor Assy
10
Ring, Frt ABS Sensor¶-See Front Suspension Section
¶Included w/Hub Assy w/ABS-listed in Front Suspension Section
11
Sensor, Rear ABS
99-00 R NA23-43-71YB
L NA23-43-72YB
01-04 R N068-43-71YB
L N068-43-72YB
12
Ring, Rear ABS Sensor
R/L BC4C-33-471
Illustration Located in Next Column
13
Cylinder, Master
1999-00
w/ABS NC15-43-400
w/o ABS NC10-43-40Z
2001-04 NC78-43-400B
14
Holder, Master Cylinder
Page 6
MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
238
madpl1_g01_
Page 238—April 22, 2004—13:34:09—Version Manufacturer
ABS/BRAKES Cont’d
1999-00 NA02-43-750A
2001-04
Std Susp NC72-43-750A
Sport Susp NC74-43-750
15
Booster, Brake
1999-00
w/ABS NA80-43-800
w/o ABS NA75-43-800
2001-04 N069-43-800
16
Gasket, Brake Booster
H001-43-443
CRUISE CONTROL SYSTEM
1
Actuator, Cruise Control
LA01-66-310A
2
Bracket, Front Actuator
99-00 NC11-66-3A3A
01-04 NC72-66-3AY
3
Bracket, Rear Otr Actuator
99-00
LA01-66-3A1
01-04 NC72-66-3AXA
4
Bracket Assy, Rear Inner Actuator
99-00
NC11-66-3AY
01-04 NC72-66-3AXA
5
Grommet, Rear Inr Brkt¶
UE54-66-3A4
¶Included w/Rear Inner Actuator Bracket Assy
Grommet, Front Bracket
6 Right (2) UE54-66-3A4
7 Left B6S7-13-349
8
Spacer, Actuator
R UE54-66-3A5
L B6S7-13-329
9
Cable, Actuator
99-00 NC11-66-311
01-04 NC72-66-311
10
Clip, Cable (3)
JE48-18-868
11
Pipe, Cruise Control
99-00 NC11-66-360B
01-04 NC72-66-360A
12
Control, Cruise
99-00 NC12-66-320
01-04 NC72-66-320
13
Grommet, Hole
w/o Cruise Control B092-41-661
WHEEL
STEEL WHEEL
1
Wheel, Steel
14x5-1/2" 9965-B9-5540
2
Cap Assy, Center
B21V-37-190
3
Emblem, Center¶
G14H-37-192
¶Included w/Center Cap Assy
4
Stem, Valve
9963-60-4130
5
Nut, Lug
B002-37-160A
ALLOY WHEEL
1999-03
Wheel, Alloy
1 14x6" 9965-25-6040
15x6"
2 Type 1
Chrome 9965-H6-6050
Silver
1999-00 9965-F6-6050
2001-03 9965-J1-6050
3 Type 2 9965-L0-6050
4 16x6-1/2" 9965-27-6560
Cap, Center¶
15x6" Wheels
5 Type 1 NC10-37-190
6 Type 2 02 NC76-37-190
03 N072-37-190
7 16x6-1/2" Wheels N067-37-190
¶Order by Application
8
Stem, Valve
Black 9963-60-4130
Chrome 9963-60-414C
9
Nut, Lug
B002-37-160A
ALLOY WHEEL
2004
Wheel, Alloy
1 15x6" 9965-J1-6050
16x6-1/2"
2 5 Spoke 9965-43-6560
3 7 Spoke 9965-54-6560
4 17x7" 9965-19-7070
Cap, Center
5 Type 1
5 Spoke Wheels D376-37-190
7 Spoke Wheels NE45-37-190
6 Type 2 NC97-37-190
7
Stem, Valve
9963-60-4130
8
Nut, Lug
B002-37-160A
SPARE WHEEL & HARDWARE
Illustration Located in Next Column
1
Wheel, Spare
14x4" 99-03 9965-21-4040
04 9965-25-4040
15x4" 9965-31-4050
2
Stem, Valve
9963-60-4130
3
Clamp, Spare Wheel
GA5R-56-971C
4
Bolt, Spare Clamp
T001-56-961
5
Handle, Jack
D201-37-810
6
Jack
99-03 B25D-37-790B
04 N077-37-790
7
Bolt, Jack
B001-56-170C

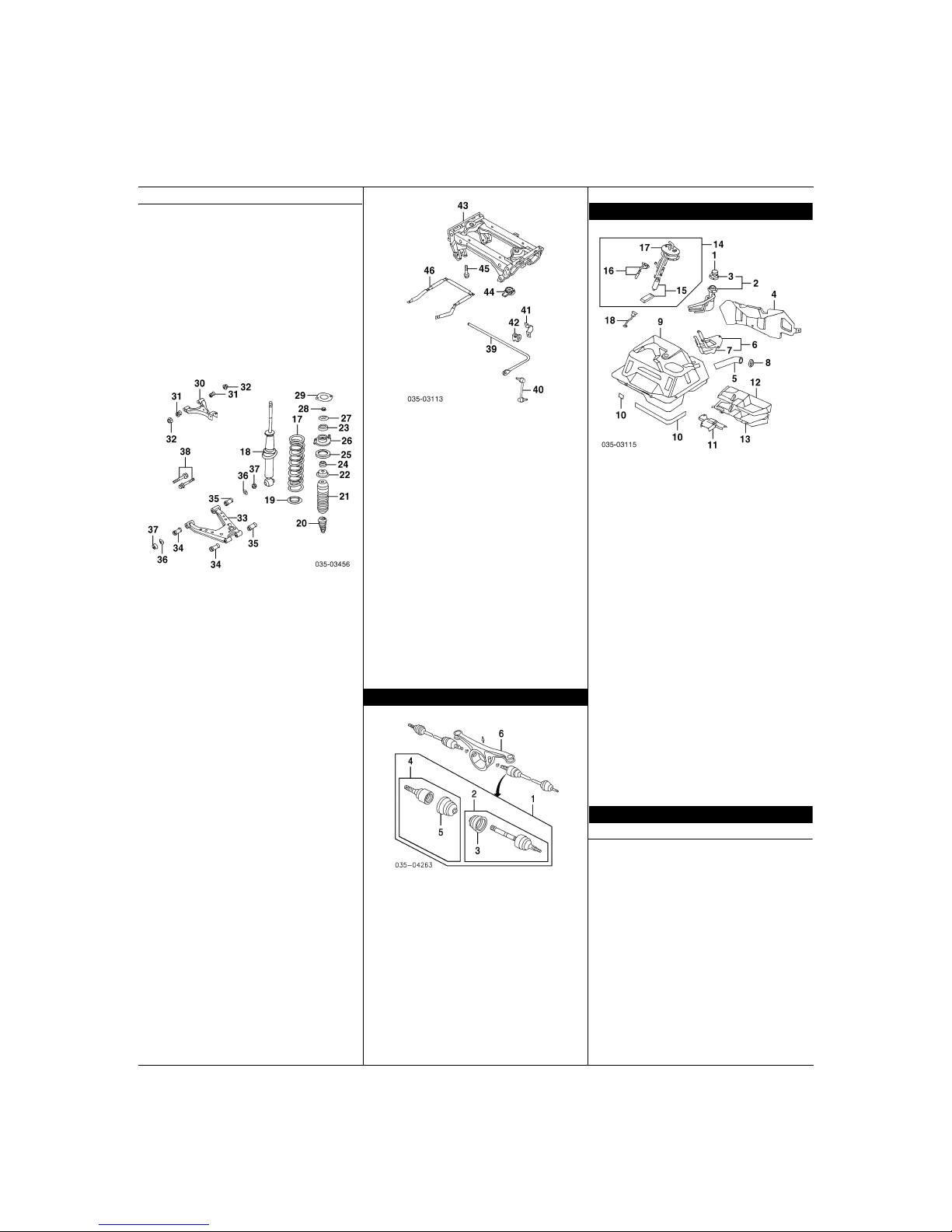

FRONT SUSPENSION
1
Cap, Dust
R/L B455-26-071
2
Nut, Lock
R/L D06Y-33-042
3
Rotor, Brake
1999-00 R/L N026-33-25XC
2001-04¶
Std Susp R/L N026-33-25XC
Sport Susp R/L N06Y-33-25X
¶Order by Application
4
Hub Assy
w/ABS R/L NA23-33-04XA
w/o ABS R/L NA01-33-04X
5
Bolt, Hub¶
R/L B455-33-062
6
Ring, Frt ABS Sensor¶
R/L NA23-33-471B
¶Included w/Hub Assy
7
Sensor, Front ABS-See ABS/Brakes Section
8
Caliper Assy, Brake
1999-00 R NAY5-33-98ZR
L NAY5-33-99ZR
2001-03
Std Susp 01-02 R NAY5-33-98ZR
L NAY5-33-99ZR
03 R NAZ5-33-98ZA
L NAZ5-33-99ZA
Sport Susp R N0Y7-33-98ZR
L N0Y7-33-99ZR
2004 R NAZ5-33-98ZA
L NAZ5-33-99ZA
9
Support, Caliper¶
1999-00 R NA75-33-281
L NA75-33-291
2001-03
Std Susp R NA75-33-281
L NA75-33-291
Sport Susp R/L N067-33-281
2004 R NA75-33-281
L NA75-33-291
¶Included w/Brake Caliper Assy
10
Pad Set, Brake
1999-00 NAY5-33-23ZC
2001
Std Susp NAY5-33-23ZC
Sport Susp N0Y9-33-23Z
2002-03
Std Susp N0Y3-33-28Z
Sport Susp 02 N0Y7-33-28Z
03 N0Y9-33-23Z
2004 N0Y3-33-23Z
11
Hose, Brake
1999-00 R NA75-43-810A
L NA75-43-820A
2001-04
Std Susp R NA75-43-810A
L NA75-43-820A
Sport Susp R N067-43-810
L N067-43-820
Page 7
MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
239
madpl1_g01_
Page 239—April 22, 2004—13:34:11—Version Manufacturer
12
Knuckle, Steering
w/ABS
1999-00 R NC14-33-021A
L NC14-33-031A
2001-03 R NE45-33-021
L NE45-33-031
2004
To 10-1-03 R NE45-33-021
L NE45-33-031
From 10-1-03 R NE45-33-021
L NE45-33-031
w/o ABS
1999-03 R N115-33-021
L NC10-33-031A
2004
To 10-1-03 R N115-33-021
L NC10-33-031A
From 10-1-03 R N115-33-021
L N115-33-031
13
Shield, Splash
1999-00 R NA75-33-261
L NA75-33-271
2001
Std Susp R NA75-33-261
L NA75-33-271
Sport Susp R N067-33-261A
L N067-33-271A
2002-04
Std Susp R NC85-33-260A
L NC85-33-270A
Sport Susp R NC82-33-260A
L NC82-33-270A
14
Spring, Coil
1999-00
Std Susp R/L NC12-34-011B
Sport Susp R/L NC10-34-011C
2001-03
Std Susp
Man Trans R/L NC10-34-011C
Auto Trans R/L N068-34-011A
Sport Susp¶ R/L N067-34-011A
2004
Std Susp
Man Trans R/L NC10-34-011C
Auto Trans R/L N068-34-011A
Sport Susp
w/Turbo R/L NE45-34-011A
w/o Turbo R/L N067-34-011A
15
Strut
1999-00
w/ABS R/L NC14-34-700C
w/o ABS
Std Susp R/L NC12-34-700D
Sport Susp R/L NC10-34-700C
2001-03
Std Susp
Man Trans R/L N066-34-700
Auto Trans R/L N068-34-700
Sport Susp¶ R/L N067-34-700
2004
Std Susp R/L N066-34-700
Sport Susp¶
w/ABS R/L NE10-34-700
w/o ABS R/L NE02-34-700
¶Order by Application
16
Rubber, Mounting
R/L NC10-28-0A3A
17
Stopper, Bumper
R/L NC10-34-111
18
Boot, Dust
R/L NC10-28-015A
19
Washe r
R/L NC10-28-777
20
Bushing, Lower
R/L NC10-28-776
21
Seat, Spring
R/L NC10-28-012B
22
Insulator, Mount
R/L NC10-28-340C
23
Bushing, Upper
R/L NC10-28-775
24
Retainer, Strut
R/L NC10-28-774
25
Nut, Flange
R/L D061-28-7A1
26
Gasket, Mount
R/L G030-28-013A
27
Arm Assy, Upper Control
w/ABS 99-00 R NC14-34-200A
L NC14-34-250A
01-04 R N068-34-200
L N068-34-250
w/o ABS 99-00 R NC10-34-200
L NC10-34-250
01-04 R N066-34-200
L N068-34-250
28
Bushing, Upper Cont Arm¶
Front/Rear (2/Side) R/L NC10-34-480
29
Seal, Dust¶
R/L NA01-34-548
¶Included w/Upper Control Arm Assy
30
Bolt, Upper Arm
R/L NA01-34-112
31
Washer (2/Side)
R/L NA01-34-117A
32
Arm, Lower Control
R N066-34-310
L N066-34-360
33
Bushing, Frt Lwr Cont Arm
R/L NA01-34-460A
34
Bushing, Rear Lwr Cont Arm
R/L NA01-34-490
35
Joint Assy, Lower Ball
R/L NA01-34-550B
36
Seal, Dust¶
R/L H266-28-448
¶Included w/Lower Ball Joint Assy
37
Plate, Cam (2/Side)
R/L NA80-28-473A
38
Bolt, Adjust (2/Side)
R/L NA80-28-66ZD
39
Bar, Stabilizer
w/Turbo NE45-34-151
w/o Turbo NC10-34-151B
40
Link, Stab Bar
R NC10-34-150
L NC10-34-170
41
Bracket, Stab Bar
R/L FB01-34-155
42
Bushing, Stab Bar
w/Turbo R/L NE45-34-156
w/o Turbo R/L NC10-34-156
43
Crossmember, Susp
NC72-34-800A
44
Bar, Crossmember
99-00 NC10-34-E91A
01-04 N066-34-E90
FRONT STEERING LINKAGE/GEAR
MANUAL
1
Gear Assy, Steering
NC11-32-110A
2
Housing, Gear¶
NC11-32-120
3
Rack, Gear¶
NA01-32-119
4
Pinion¶
NA01-32-122
5
Cover, Lever¶
NC11-32-112
6
Nut, Upper Lock¶
GJ21-32-137
7
Seal, Shaft¶
GJ21-32-126
8
Cover, Gear¶
GJ21-32-136
9
Bearing, Upper¶
0259-32-182
10
Bearing, Lower¶
G030-32-147
11
Nut, Lower Lock¶
S083-32-137
12
Plug, Pinion¶
HE01-32-129
13
Yoke Set, Support¶
GJ21-32-111
14
Rubber, Mounting¶ (2)
NC10-32-123
15
Rod, Tie¶
R/L NA01-32-240
16
Boot, Rack¶
R/L NA01-32-12X
17
Bushing, Mounting¶
NC11-32-124
18
Bracket, Mounting¶
NC10-32-134
¶Included w/Steering Gear Assy
19
End Assy, Tie Rod
R/L 8AN1-32-280
20
Seal, Dust¶
R/L B455-32-279
¶Included w/Tie Rod End Assy
POWER
1
Gear Assy, Steering
1999-03 NC10-32-110R-0H
2004
w/Turbo NE45-32-110A
w/o Turbo NC10-32-110J
2
Rack, Gear¶
w/Turbo N115-32-119
w/o Turbo NC10-32-119
3
Holder, Gear¶
w/Turbo N115-32-154
w/o Turbo NC10-32-154
4
Cover, Lever¶
NC10-32-112
5
Housing, Pinion¶
99-03 NC10-32-126
04 NC10-32-126A
6
Pinion Set¶
1999-00
To VIN 130784 NC10-32-380
From VIN 130784 NC10-32-380A
2001-03 NC10-32-380A
2004 NC10-32-380B
7
Yoke Set, Support¶
NC10-32-11XA
8
Rubber, Mounting¶ (2)
NC10-32-123
9
Nut, Lock¶
B456-32-131
10
Boot, Rack¶
R/L NC10-32-125
11
Pipe, Fluid¶
R NC10-32-45X
L NC10-32-45Y
12
Pipe, Upr Pressure¶
NC10-32-450
13
Pipe, Lwr Pressure¶
NC10-32-460
14
Bushing, Mounting¶
NC10-32-124
15
Bracket, Mounting¶
NC10-32-134
¶Included w/Steering Gear Assy
16
Rod, Tie
R NC10-32-240A
L NC10-32-250A
17
End Assy, Tie Rod
R/L 8AN1-32-280
18
Seal, Dust¶
R/L B455-32-279
¶Included w/Tie Rod End Assy

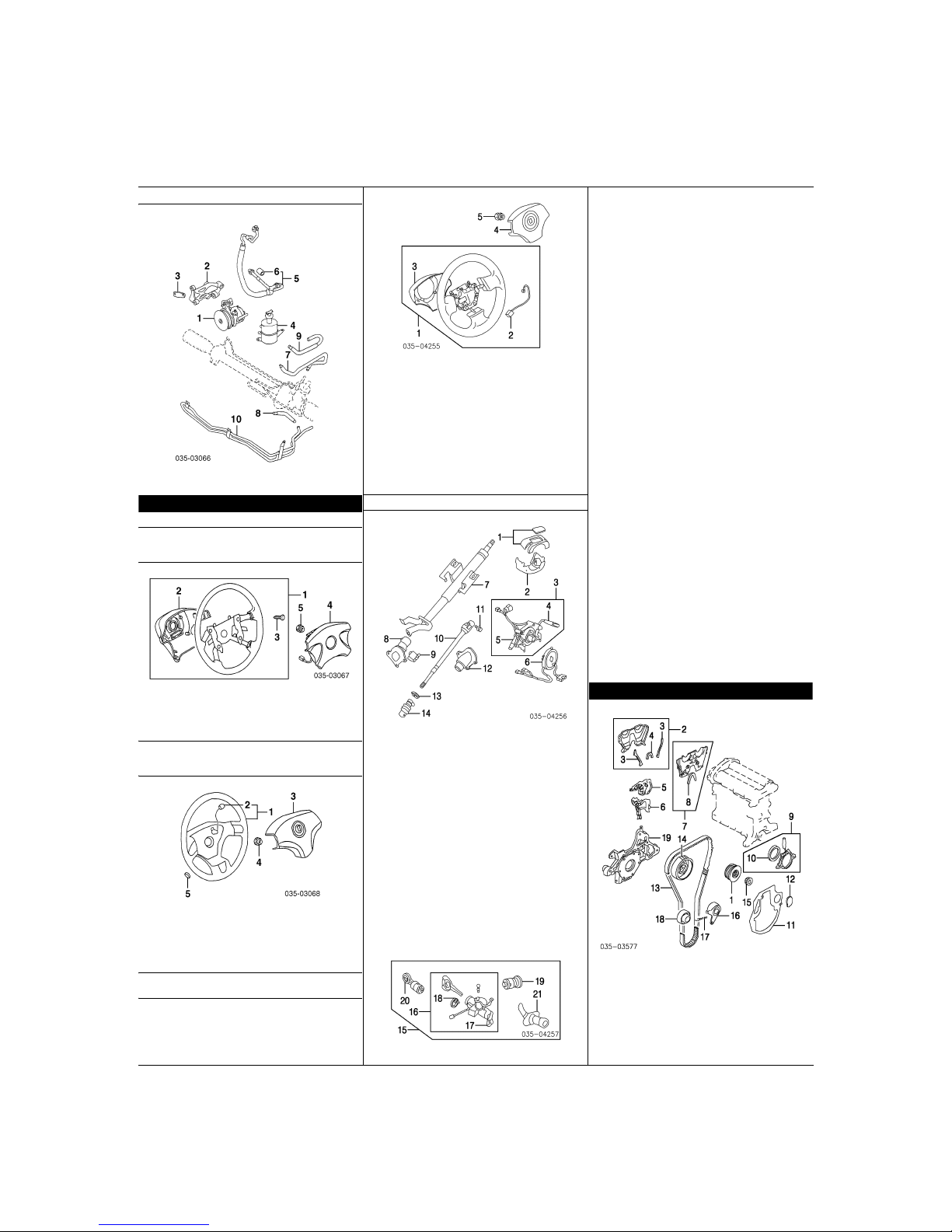

STEERING PUMP
Illustration Located in Next Column
1
Pump, Steering
1999-03 NC10-32-600R-0B
2004
To 12-1-03 NC10-32-600B
From 12-1-03 NC10-32-600C
2
Bracket, Strg Pump
NA02-32-680
3
Brace, Strg Pump
NC10-32-609
Belt, Drive¶
BPE8-15-909A
¶Order by Application
4
Reservoir, Fluid
NC10-32-690C
5
Hose Assy, Pressure
1999-00 NC10-32-490J
2001-03 N066-32-490
2004
To 11-1-03 N066-32-490
From 11-1-03 N115-32-490
6
Rubber, Mounting¶
BC1D-32-425
¶Included w/Pressure Hose Assy
7
Hose, Upr Return
Man Trans NC10-32-682
Auto Trans NC13-32-682A
8
Hose, Lwr Return
Man Trans NC10-32-683
9
Hose, Suction
NC10-32-688
10
Pipe, Cooling
Man Trans
Page 8
MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
240
madpl1_g01_
Page 240—April 22, 2004—13:34:13—Version Manufacturer
STEERING PUMP Cont’d
w/Turbo N115-32-470B
w/o Turbo NC10-32-470A
STEERING WHEEL/COLUMN
WHEEL & TRIM
1999-00
URETHANE WHEEL
1
Wheel Assy, Steering
GE8K-32-980C
2
Cover, Wheel¶
GE7T-32-049
3
Bolt, Wheel¶
GE7T-32-750
¶Included w/Steering Wheel Assy
4
Module, Driver Air Bag-See Air Bag System Section
5
Nut, Strg Wheel
9994-81-200
WHEEL & TRIM
1999-00
LEATHER WRAPPED WHEEL
1
Wheel Assy, Steering
Type A N065-32-980
Type B NC10-32-980C
2
Harness, Strg Wheel¶
NC10-32-9YX
¶Included w/Steering Wheel Assy
3
Module, Driver Air Bag-See Air Bag System Section
4
Nut, Strg Wheel
9994-81-200
5
Cap, Cover
BC1D-32-9L1
WHEEL & TRIM
2001-04
Illustration Located in Next Column
1
Wheel Assy, Steering
2001-03
Leather Wrapped B25H-32-980A
Woodgrain N066-32-980
2004
w/Turbo N115-32-980
w/o Turbo NE02-32-980
2
Harness, Strg Wheel¶
2001-03
Leather Wrapped Wheel B25E-32-9YX
Woodgrain Wheel NC10-32-9YX
2004-Serviced w/Steering Wheel Assy
3
Cover, Wheel¶
2001-03-Serviced w/Steering Wheel Assy
2004 NE12-32-049
¶Included w/Steering Wheel Assy
4
Module, Driver Air Bag-See Air Bag System Section
5
Nut, Strg Wheel
9994-81-200
COLUMN
1
Cover, Upper Column
NC10-60-220
2
Cover, Lower Column
NC10-60-231A
3
Switch Assy, Combination
w/Cruise Control NC11-66-120A
w/o Cruise Control NC10-66-120A
4
Switch, Wiper (a)
1997-03
w/Cruise Control NC11-66-128
w/o Cruise Control NC10-66-128
2004 NC10-66-135
5
Switch, Headlamp (a)
NC11-66-122
(a) Included w/Combination Switch Assy
6
Clockspring-See Air Bag System Section
7
Shaft, Upper
NC10-32-100D
8
Cover, Upr Joint
NA75-32-AZ1
9
Cover, Lwr Joint
NA01-32-AZ2A
10
Shaft, Intermediate
1999-00
Man Strg NC11-32-090D
Pwr Strg NC10-32-090D
2001-03
Man Trans NC11-32-090D
Auto Trans NC10-32-090D
2004 NC10-32-090D
11
Bolt, Shaft (3)
B455-32-099A
12
Cover, Lever
NC10-32-210
13
Grommet
NA01-32-217
14
Joint, Steering
NC10-32-850
15
Lock Set, Complete
1999-00 (b)
Man Trans NC93-09-010D
Auto Trans NC13-09-010E
2001-02 (b)
Man Trans
w/Immobilizer NCY3-76-29X
w/o Immobilizer NCY0-76-290
Auto Trans
w/Immobilizer NCY6-76-29X
w/o Immobilizer NCY3-76-290
2003
Man Trans
Man Locks
w/Immobilizer NC73-09-010A
w/o Immobilizer NC75-09-010
Pwr Locks
w/Immobilizer NC72-09-010D
w/o Immobilizer NC74-09-010
Auto Trans
w/Immobilizer NC77-09-010D
w/o Immobilizer NC81-09-010
2004
Man Trans
Man Locks
w/Immobilizer NE02-09-010
w/o Immobilizer NE04-09-010
Pwr Locks
w/Immobilizer NE01-09-010
w/o Immobilizer NE03-09-010
Auto Trans
w/Immobilizer NE07-09-010
w/o Immobilizer NE08-09-010
(b) Order by Application
16
Lock Assy, Ignition¶
1999-00
Man Trans NCY0-76-290
Auto Trans NCY3-76-290
2001-03
Man Trans
w/Immobilizer NCY3-76-29X
w/o Immobilizer NCY0-76-290
Auto Trans
w/Immobilizer NCY6-76-29X
w/o Immobilizer NCY3-76-290
2004
Man Trans
w/Immobilizer NEY1-76-29X
w/o Immobilizer NEY3-72-290
Auto Trans
w/Immobilizer NEY7-76-29X
w/o Immobilizer NY15-76-290
17
Switch, Ignition¶ (a)
N053-66-151
18
Coil, Immobilizer¶ (a)
2001-03
Man Trans 01-03 GG2A-66-938
Auto Trans 01-03 GG2C-66-938
2004-Serviced w/Ignition Lock Assy
(a) Included w/Ignition Lock Assy
19
Cylinder, Glove Box¶-See Instrument Panel Section
20
Cylinder, Door Lock¶-See Front Door Section
21
Cylinder, Luggage Lid Lock¶-See Luggage Lid Section
¶Included w/Complete Lock Set

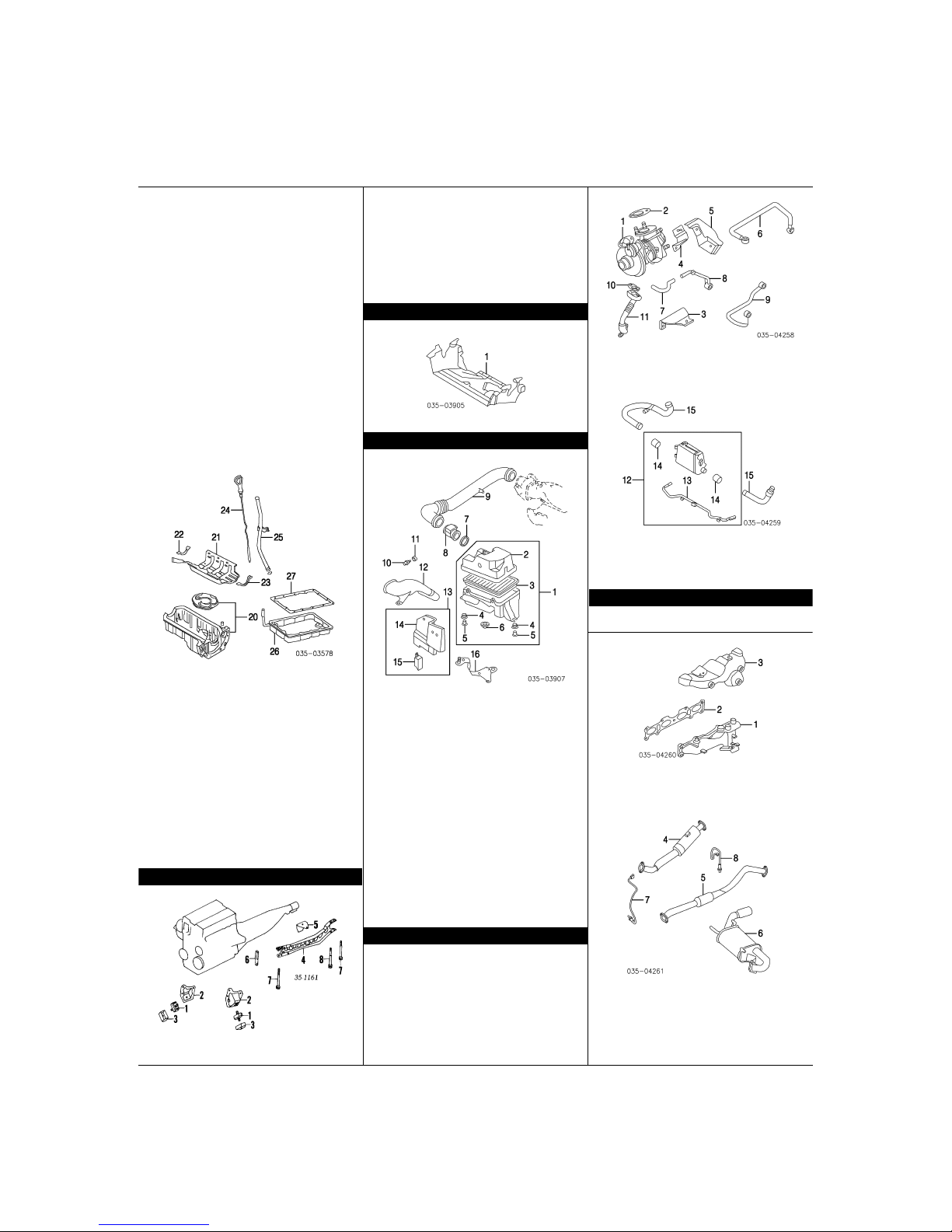

ENGINE/TRANS
1
Pulley, Crankshaft
Hillsdale Brand BP4W-11-401
NOK Brand BPD4-11-401
2
Cover Assy, Upper Timing
1999-00 B61P-10-510
2001-03 BP6D-10-511
2004
w/Turbo B61P-10-510
w/o Turbo BP6D-10-511
3
Gskt, Upr Timing Cover¶
Side
1999-00 R B61P-10-514
Page 9
MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
241
madpl1_g01_
Page 241—April 22, 2004—13:34:14—Version Manufacturer
L B61P-10-512
2001-03-Serviced w/Upper Timing Cover Assy
2004 R B61P-10-514
L B61P-10-512
4
Gskt, Upr Timing Cover¶
Inner
1999-00 B61P-10-513
2001-03-Serviced w/Upper Timing Cover Assy
2004 B61P-10-513
¶Included w/Upper Timing Cover Assy
5
Cover, Center Timing
B660-10-521B
6
Cover, Lower Timing
B660-10-501E
7
Plate Assy, Upper Cover
99-00 B61P-10-540C
01-04 BP6D-10-540
8
Seal, Plate¶
B61P-10-544
¶Included w/Upper Cover Plate Assy
9
Cover Assy, Rear
B366-11-310C
10
Seal, Oil¶
BP05-11-312
¶Included w/Rear Cover Assy
11
Plate, End
Man Trans
w/Turbo BP8J-10-901
w/o Turbo B61P-10-901B
Auto Trans BP4X-10-901
12
Cover, End Plate
Auto Trans BP4X-10-903
13
Belt, Timing
B6S7-12-205D-9U
14
Sprocket, Camshaft
RBP6D-12-4X0C
L B6S7-12-425A
15
Sprocket, Crankshaft
B3C7-11-321
16
Tensioner, Timing Belt
B660-12-700F
17
Spring, Tensioner
B660-12-711C
18
Idler, Timing Belt
B660-12-730C
19
Pump, Eng Oil
99-03 BP4W-14-100A
04 BP6D-14-100
20
Pan, Eng Oil
1999-00 BPY0-10-400D
2001-03 BP6D-10-400A
2004
w/Turbo BP8J-10-400A
w/o Turbo BP6D-10-400A
21
Plate, Baffle
99-00 BPE8-10-40Y
01-04 BP6D-10-40Y
22
Gasket, Frt Oil Pan
99-00 B6F4-10-427
01-04 B541-10-427
23
Gasket, Rear Oil Pan
99-00 B6F4-10-428
01-04 B541-10-428
24
Dipstick, Eng Oil
1999-00
w/Calif Emission BP4Y-10-450A
w/o Calif Emission BP4W-10-450
2001-04 BP4W-10-450
25
Tube, Eng Dipstick
1999-00
w/Calif Emission BP4Y-10-440A
w/o Calif Emission BP4W-10-440A
2001-04 BP4W-10-440A
26
Pan, Trans Oil
SB01-19-830
27
Gasket, Trans Oil Pan
99-03 SB01-19-0A2
04 BT24-19-835
ENGINE/TRANS MOUNTS
1
Mount, Engine
R/L NC10-39-040
2
Bracket, Eng Mount
99-00 R NC10-39-020
L NA75-39-030
01-03 R N066-39-020
L N066-39-030
04 R N066-39-020
L N066-39-030
3
Casing, Stopper
R/L NA01-39-041B
4
Support, Trans
Man Trans NC10-39-710B
Auto Trans NC13-39-710A
5
Bracket, Support
Man Trans NA01-39-730A
6
Spacer, Bolt
NA01-39-723
7
Bolt, Otr Support (3)
NA01-39-721A
8
Bolt, Inr Support
NA01-39-722
ENGINE UNDER COVER
1
Cover, Eng Under
NA01-56-111F
AIR CLEANER
1
Cleaner Assy, Air
99-02 BP4W-13-320B
03-04 B6MW-13-320
2
Cover, Air Cleaner¶
BP4W-13-Z01A
3
Element, Cleaner¶
99-02 FS05-13-Z40-9U
03-04 FS05-13-Z40-9U
4
Bushing, Mounting¶ (2)
FE51-13-363
5
Spacer, Mounting¶ (2)
FE51-13-329
6
Rubber, Mount¶
B61P-13-Z66
¶Included w/Air Cleaner Assy
7
Joint, Rubber
B578-13-245B
8
Sensor, Air Flow
99-00 FP39-13-215R-00
01-04 FS1E-13-215R-00
9
Pipe, Air Intake
99-00 BP4W-13-331B
01-04 BP6D-13-331
10
Sensor, Air Temp
BP4W-18-845
11
Grommet
KL47-13-375
12
Duct, Fresh Air
1999-00 BP4W-13-200A
2001
To 12-16-00 BP6D-13-200
From 12-16-00 BP6F-13-200
2002-04 BP6F-13-200
13
Bracket Assy, Air Pipe
1999-00-Serviced by Components
2001-04 BP5A-20-650A
14
Baffle, Air Intake (a)
BP4W-13-204A
15
Relay (a)
01-04 H310-67-740
(a) Included w/Air Pipe Bracket Assy
16
Bracket, Air Cleaner
BP4W-20-210
TURBOCHARGER/INTERCOOLER
Illustration Located in Next Column
1
Turbocharger
BP8J-13-700C
2
Gasket, Turbocharger
BP8J-13-710
3
Bracket, Turbocharger
BP8J-13-520
Insulator, Heat
4 No. 1 BP8J-13-381A
5 No. 2 BPS7-13-377
6
Pipe, Oil
BP8J-14-270
7
Hose, Water
BP8J-13-546
8
Connector, Water Hose
BP8J-13-590A
9
Pipe, Water Inlet
BP8J-13-530A
10
Gasket, Pipe
B6F4-14-293
11
Pipe, Oil Outlet
BP8J-14-260
12
Intercooler Assy
BP8J-13-560B
13
Hose, Intercooler¶
BP8J-13-56XA
14
Hose, Air¶
R/L BP8J-13-77X
¶Included w/Intercooler Assy
15
Pipe, Air
RBP8J-13-3D0B
L BP8J-13-330A

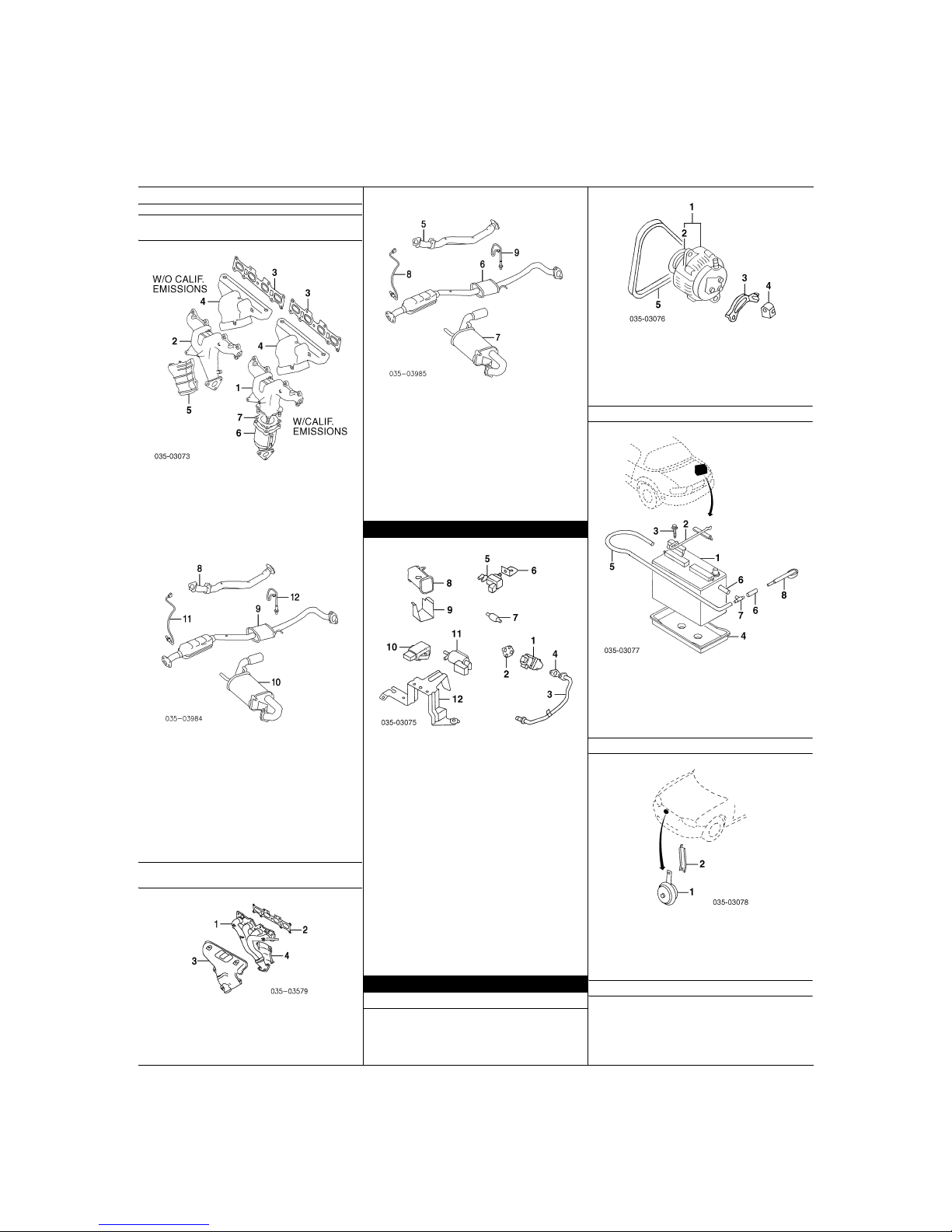

EXHAUST
W/TURBO
2004
1
Manifold, Exhaust
BP8J-13-450A
2
Gasket, Manifold
To 12-1-03 BP05-13-460
From 12-1-03 BP8J-13-4M0
3
Shield, Heat
BP8J-13-390
4
Pipe w/Converter, Front
BPS7-20-50XA
5
Pipe w/Silencer
BPS7-40-300A
6
Muffler w/Pipe
BPS7-10-100A
7
Sensor, Front Oxygen
BP8J-18-861
8
Sensor, Rear Oxygen
BP8K-18-861
Page 10
MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
242
madpl1_g01_
Page 242—April 22, 2004—13:34:16—Version Manufacturer
EXHAUST Cont’d
W/O TURBO
1999-00
Manifold, Exhaust
1 w/Calif Emission BP4Y-13-450B
2 w/o Calif Emission BP4W-13-450
3
Gasket, Manifold
BPD3-13-460
4
Shield, Manifold Heat
BP4Y-13-390A
5
Shield, Side
w/o Calif Emission BP4W-13-390
6
Converter, Catalytic
w/Calif Emission BP4Y-20-500C
7
Gasket, Converter
BP4Y-20-520A
8
Pipe, Front Exhaust
BPM3-40-500F
9
Converter w/Pipe¶
w/Calif Emission
Man Trans BP4Y-20-55XH
Auto Trans BP4Z-20-55XH
w/o Calif Emission
Man Trans BP4W-20-55XK
Auto Trans BP4X-20-55XK
¶Includes Catalytic Converter
10
Muffler w/Pipe
Man Trans BPM3-40-100G
Auto Trans BPM1-40-100E
11
Sensor, Front Oxygen
BP4X-18-861A-9U
12
Sensor, Rear Oxygen
w/Calif Emission BP4Y-18-861C-9U
w/o Calif Emission BP3B-18-86Z-9U
W/O TURBO
2001-04
1
Manifold, Exhaust
BP6F-13-450B
2
Gasket, Manifold
1999-03 BPD3-13-460
2004
To 12-1-03 BP05-13-460
From 12-1-03 BP8J-13-4M0
3
Shield, Front Heat
BP6F-13-390A
4
Shield, Rear Heat
BP6F-13-380
5
Pipe, Front Exhaust
BPM3-40-500F
6
Converter w/Pipe
01-02 BP6F-20-55XC
03 BP7F-20-55X
04 BPS5-20-55X
7
Muffler w/Pipe
1999-03
Man Trans BPP6-40-100C
Auto Trans 01-02 BPM8-40-100G
03 BPM8-40-100G
2004
Man Trans BPP6-40-100C
Auto Trans
To 10-1-03 BPM8-40-100G
From 10-1-03 BPM8-40-100H
8
Sensor, Front Oxygen
BP6F-18-861B-9U
9
Sensor, Rear Oxygen
BP6G-18-861C-9U
EMISSION SYSTEM
1
Valve , EGR
1999-00 BP4W-20-300A
2001
To 10-1-00 BP4W-20-300A
From 10-1-00 BP6F-20-300
2002-04 BP6F-20-300
2
Gasket, EGR Valve
JE27-20-305A
3
Pipe, EGR
1999-00 BP8J-20-31X
2001-03 BP6F-20-310A
2004
w/Turbo BP8J-20-31X
w/o Turbo BP6F-20-310A
4
Gasket, EGR Pipe
JE06-20-306
5
Valve, Solenoid
1999-00
To VIN 102379 Z504-18-741A
From VIN 102379 KLG5-18-741
2001-04 KLG5-18-741
6
Brkt, Solenoid Valve
BP4W-18-837
7
Valve , Check
HE41-13-995
8
Canister, Vapor
99-00 BP4W-13-970
01-04 BP5R-13-970
9
Protector, Canister
99-00 NC10-42-755
01-04 NC10-42-79X
10
Sensor, MAP
BP4W-18-211
11
Valve, Solenoid
BP4Y-18-741
12
Bracket, Valve
BP4W-18-28YB
Sensor, Front Oxygen-See Exhaust Section
Sensor, Rear Oxygen-See Exhaust Section
ELECTRICAL
ALTERNATOR
Illustration Located in Next Column
1
Alternator Assy
99-00 BP4W-18-300D
01-04 BP6D-18-300A
2
Pulley, Alternator¶
B3D1-18-W10
¶Included w/Alternator Assy
3
Bracket, Alternator
B6BF-18-361C
4
Spacer, Bracket
FP01-18-363
5
Belt, Drive
Bando Brand B6BG-18-401A
Gates Brand B6BF-18-381-9U
BATTERY
1
Battery
N.A.
2
Clamp, Battery
NC10-56-03XB
3
Bolt, Battery Clamp
9079-61-840
4
Tray, B att ery
NC10-56-041A
5
Tube, Vent Hose
BP4W-18-524
6
Hose, Vent¶
N.A.
¶Cut to Fit
7
Joint
0813-66-879
8
Connector, Tube
B61P-18-526
HORN
1
Horn
High Note N053-66-780
Low Note
w/Turbo B30E-66-790
w/o Turbo BG3F-66-790
2
Bracket, Horn (2)
w/Turbo NE45-66-7B1
w/o Turbo NC10-66-7B1
IGNITION
Illustration Located in Next Column
1
Module, Main Computer
Page 11
MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
243
madpl1_g01_
Page 243—April 22, 2004—13:34:18—Version Manufacturer
1999-00
w/Calif Emission
Man Trans BP4Y-18-881R-0C
Auto Trans BP4Z-18-881R-0C
w/o Calif Emission
Man Trans BP4W-18-881R-0C
Auto Trans BP4X-18-881R-0C
2001-02
Man Trans BP6F-18-881R-0G
Auto Trans BP6H-18-881R-0G
2003
Man Trans
w/Immobilizer BP7F-18-881G
w/o Immobilizer BP7J-18-881A
Auto Trans BP7G-18-881G
2004
w/Turbo
w/Calif Emission BP8J-18-881B
w/o Calif Emission BP8J-18-881A
w/o Turbo
Man Trans
w/Immobilizer BP7V-18-881D
w/o Immobilizer BP7X-18-881D
Auto Trans BP7W-18-881D
2
Bracket, Upr Module
BP4W-18-882
3
Bracket, Lwr Module
BP4W-18-883
4
Coil & Igniter
1999-00 BP4W-18-10XB
2001-04 (2) BP6D-18-100A
5
Wire Set, Ignition
1999-00 0000-18-121A
2001-04
No. 1 BP6D-18-140A
No. 2 BP6E-18-140A
STARTER
1
Starter
BPD4-18-400R-00

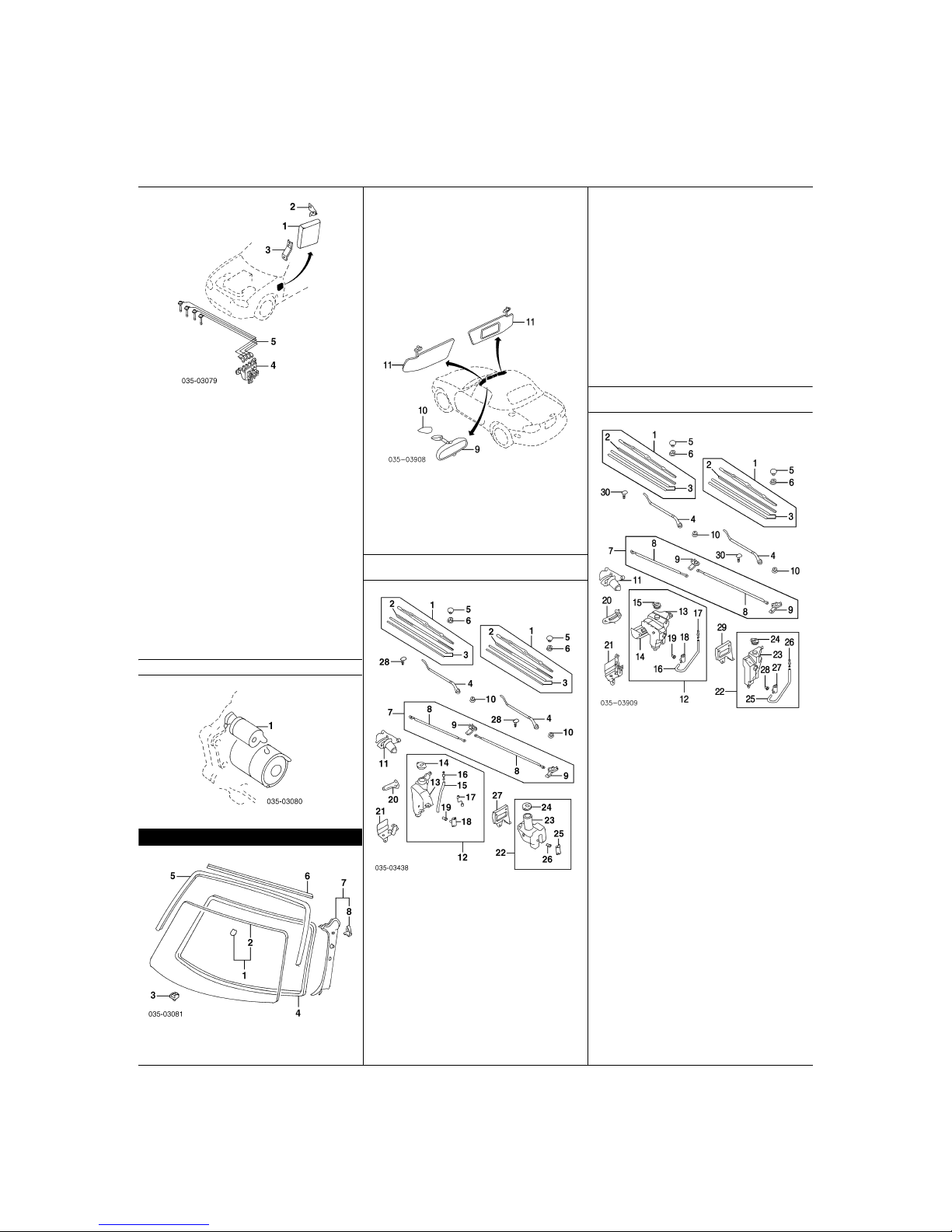

WINDSHIELD
1
Glass Assy, Windshield
Mazda NC11-63-900A
2
Base, Rear View Mirror¶
BC1C-69-240
¶Included w/Windshield Glass Assy
3
Spacer, Glass
R/L E040-50-891
4
Dam, Windshield
3550mm NA01-50-894A
3960mm GA7B-50-899
5
Moulding, Reveal
99-03 NA01-50-601A
04 NC82-50-601
6
Protector, Moulding
DX50-50-6B1
7
Trim Assy, Pillar
99-02 R NC10-68-160A-02
L NC10-68-170A-02
03-04 R N077-68-160A-02
L N077-68-170A-02
8
Clip, Trim¶ (2/Side)
R/L GJ12-68-865
¶Included w/Pillar Trim Assy
9
Mirror, Rear View
w/Turbo
Gray NE45-69-22X-01
Red NE45-69-22X-87
w/o Turbo HG82-69-220A
10
Base, Rear View Mirror
BC1C-69-240
11
Visor, Sun
99-03 R NC10-69-270B-02
L NC11-69-320B-02
04 R NC10-69-270B-02
L NE02-69-320-02
WIPER SYSTEM
1999-00
1
Blade Assy, Wiper
R NC11-67-330-9U
L NC10-67-330-9U
2
Insert, Wiper¶
R/L B16B-67-333
3
Plate, Backing¶
R NA10-67-332
L NC33-67-332
¶Included w/Wiper Blade Assy
4
Arm, Wiper
R NC11-67-321
L NC10-67-321
5
Cover, Wiper Arm
R/L LA01-67-395C
6
Nut, Wiper Arm
R/L 9090-10-801
7
Link Assy, Wiper
To VIN 100063 NC10-67-360A
From VIN 100063 NC10-67-360B
8
Link, Wiper¶
To VIN 100063 R NC10-67-361
L NC10-67-362
From VIN 100063 R NC10-67-361A
L NC10-67-362
9
Pivot, Wiper¶
R NC10-67-363A
L NC10-67-364A
¶Included w/Wiper Link Assy
10
Nut, Wiper Link
R/L 9994-00-601
11
Motor, Wiper
w/Cold Climate Spec NA04-67-340D
w/o Cold Climate Spec NA01-67-340E
12
Tank Assy, Washer
w/ABS NC14-67-480D
13
Tank, Washer¶
NC14-67-481A
14
Cap, Tank¶
GJ21-67-483
15
Pipe, Nozzle¶
NC17-67-501B
16
Joint, Hose¶ (2)
DB05-67-502
17
Cord¶
NC14-67-5D9A
18
Pump, Washer¶
S084-76-672
19
Grommet, Pump¶
S084-76-677
¶Included w/Washer Tank Assy w/ABS
20
Bracket, Upper Tank
NC17-67-520B
21
Bracket, Lwr Tank
NC18-67-520A
22
Tank Assy, Washer
w/o ABS NA01-67-480B
23
Tank, Washer¶
NA01-67-481
24
Cap, Tank¶
UB39-51-815
25
Pump, Washer¶
S084-76-672
26
Grommet, Pump¶
S084-76-677
¶Included w/Washer Tank Assy w/o ABS
27
Bracket, Tank
NC10-67-521
28
Nozzle, Washer
R NC10-67-510
L NC11-67-510
WIPER SYSTEM
2001-04
1
Blade Assy, Wiper
R NC11-67-330-9U
L NC10-67-330-9U
2
Insert, Wiper¶
R/L B16B-67-333
3
Plate, Backing¶
R NA10-67-332
L NC33-67-332
¶Included w/Wiper Blade Assy
4
Arm, Wiper
R NC11-67-321
L NC10-67-321
5
Cover, Wiper Arm
R/L LA01-67-395C
6
Nut, Wiper Arm
R/L 9090-10-801
7
Link Assy, Wiper
NC10-67-360B
8
Link, Wiper¶
R NC10-67-361A
L NC10-67-362
9
Pivot, Wiper¶
R NC10-67-363A
L NC10-67-364A
¶Included w/Wiper Link Assy
10
Nut, Wiper Link
R/L 9994-00-601
11
Motor, Wiper
w/Cold Climate Spec NA04-67-340D
w/o Cold Climate Spec NA01-67-340E
12
Tank Assy, Washer
Large NC79-67-480C
13
Tank, Washer¶
NC79-67-481A
14
Insulator, Tank¶
NC15-67-454A
15
Cap, Tank¶
GJ21-67-483
16
Pipe, Nozzle¶
NC79-67-501A
17
Joint, Hose¶ (2)
DB05-67-502
18
Pump, Washer¶
S084-76-672
19
Grommet, Pump¶
S084-76-677
¶Included w/Washer Tank Assy
20
Bracket, Upper Tank
NC17-67-520B
21
Bracket, Lwr Tank
NC78-67-520
22
Tank Assy, Washer
Standard
w/ABS NC78-67-480D
w/o ABS NA01-67-480B
23
Tank, Washer¶
w/ABS NC78-67-481A
w/o ABS NA01-67-481
24
Cap, Tank¶
UB39-51-815
25
Pipe, Nozzle¶
w/ABS NC15-67-501
26
Joint, Hose¶
Page 12
MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
244
madpl1_g01_
Page 244—April 22, 2004—13:34:19—Version Manufacturer
WINDSHIELD Cont’d
WIPER SYSTEM
2001-04 Cont’d
w/ABS DB05-67-502
27
Pump, Washer¶
S084-76-672
28
Grommet, Pump¶
S084-76-677
¶Included w/Washer Tank Assy
29
Bracket, Tank
w/ABS NC78-67-520
w/o ABS NC10-67-520A
30
Nozzle, Washer
R NC11-67-510
L NC10-67-510

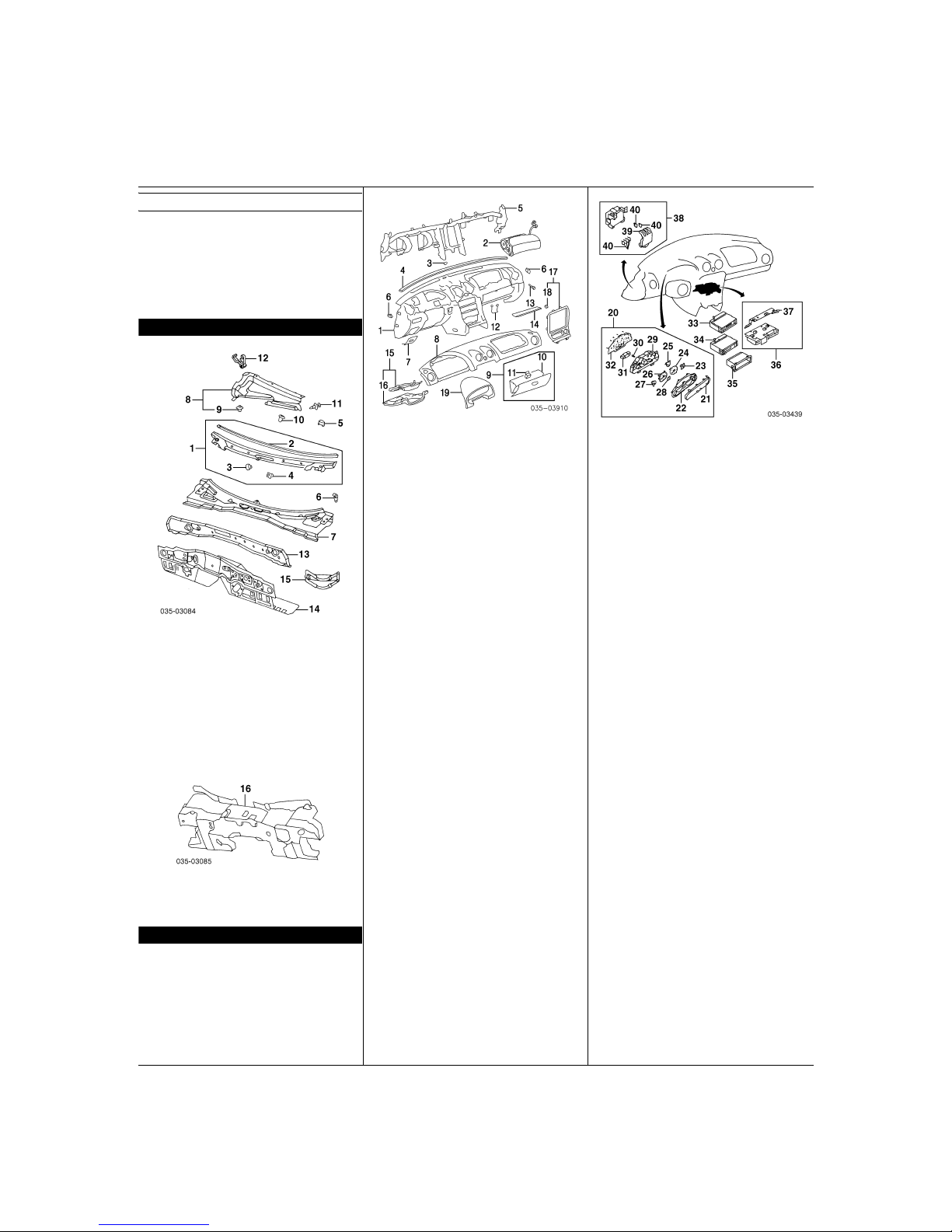

COWL & DASH
1
Grille Assy, Cowl Top
NA01-50-790E
2
Moulding, Grille¶
NA01-50-792A
3
Cap, Center Grille¶ (5)
B455-50-796A
4
Grommet, Center¶ (5)
NA01-51-789
¶Included w/Cowl Top Grille Assy
5
Cap, Side Grille
R/L NA01-50-797A
6
Grommet, Side
R/L NA01-50-798
7
Panel, Cowl Top
NC10-53-510A
8
Cover Assy, Cowl Panel
NA01-56-35X
9
Grommet, Outer¶
F044-51-912
¶Included w/Cowl Panel Cover Assy
10
Grommet, Inner (4)
G211-56-355A
11
Fastener, Cowl Top (2)
B040-68-865A-00
12
Clip, Hood Release Cable
99-00
H260-56-724
01-04 NC10-56-833
13
Panel, Upper Dash
NA01-70-62YD
14
Panel, Lower Dash
NC10-54-400B
15
Joint, Dash Panel
R/L NA01-54-480B
16
Insulator, Dash
1999-00 NC10-68-63XE
2001-03 NC72-68-63XB
2004
w/ A/C NC72-68-63XB
w/o A/C NC82-68-63XB
INSTRUMENT PANEL
Illustration Located in Next Column
1
Panel, Instrument
1999-02
Black NC10-60-401C-02
Black/Tan NC10-60-401C-21
2003-04
Black NC10-60-401D-02
Black/Brown NC10-60-401D-80
Black/Tan 03 NC10-60-401D-21
2
Module, Pass Air Bag-See Air Bag System Section
3
Cover, Center Hole
NA01-64-905A-02
4
Seal, Inst Panel
NA75-60-353
5
Frame, Inst Panel
99-00 NC10-60-420G
01-04 NC72-60-420B
6
Cover, Side (3/Side)
Beige NA01-64-912A-80
Black NA01-64-912A-02
Tan NA01-64-912A-21
7
Cover, Fuse Box
Beige NC10-55-551A-80
Black NC10-55-551A-02
Tan NC10-55-551-21
8
Pad, Inst Panel
NC10-60-350
9
Box Assy, Glove
Beige NC10-64-030H-80
Black NC10-64-030H-02
Tan NC10-64-030H-21
10
Box, Glove¶
NC10-64-161C
11
Lock, Glove Box¶
Beige NC10-64-090C-80
Black NC10-64-090C-02
Tan NC10-64-090C-21
¶Included w/Glove Box Assy
Cylinder, Glove Box¶
99-03 BG1N-76-250B
04 N1Y1-76-250
¶Included w/Complete Lock Set-listed in Steering Wheel/Column
Section
12
Striker, Glove Box
LB82-64-101
13
Cushion, Glove Box (3)
LB82-64-046
14
Reinf, Glove Box
99-00 NC10-60-430A
01-04 N053-60-430A
15
Cover Assy, Lower
Beige NC10-64-280F-80
Black NC10-64-280F-02
Tan NC10-64-280F-21
16
Cover, Lower¶
1999-02
Black N053-64-261B-02
Tan N053-64-261B-21
2003
Beige N053-64-261B-80
Black N053-64-261B-02
Tan N053-64-261B-21
2004
Beige NC10-64-261A-80
Black NC10-64-261A-02
¶Included w/Lower Cover Assy
17
Panel Assy, Center
1999-03 NC10-55-210B
2004
w/Turbo NE45-55-210
w/o Turbo NE01-55-210
18
Spring, Center Pnl¶ (4)
J001-64-345
¶Included w/Center Panel Assy
19
Hood, Meter
1999-00 NC10-55-420B
2001-02
Standard NC10-55-210B
Woodgrain NC76-55-210
2003-04 NC10-55-420B
Illustration Located in Next Column
20
Meter Assy¶
1999-00
Man Trans
5 Speed NC10-55-430
6 Speed NC65-55-430
Auto Trans NC10-55-430
2001-04-Serviced by Components
21
Lens
1999-00 (a) NC10-55-447
2001-04 NC10-55-447
22
Plate, Window
1999-00 (a)
Man Trans
5 Speed NC10-55-446
6 Speed NC65-55-446
Auto Trans NC10-55-446
2001-03 N066-55-446
2004 N067-55-446
23
Meter, Temperature
1999-00 (a)
Man Trans
5 Speed NC10-55-491
6 Speed N053-55-491
Auto Trans NC10-55-491
2001-03 N066-55-491
2004
w/Turbo NE01-55-491
w/o Turbo N066-55-491
24
Speedometer
1999-00 (a)
Man Trans
5 Speed NC10-55-471
6 Speed NC65-55-471
Auto Trans NC10-55-471
2001-02 NC72-55-471
2003 ND30-55-471
2004¶
w/Turbo NE01-55-471
w/o Turbo ND30-55-471
¶Order by Application
25
Meter, Oil Pressure
1999-00 (a)
Man Trans
5 Speed NC10-55-4A1
6 Speed N053-55-4A1
Auto Trans NC10-55-4A1
2001-03 N066-55-4A1
2004
w/Turbo NE01-55-4A1
w/o Turbo N066-55-4A1
26
Tachometer
1999-00 (a)
Man Trans
5 Speed NC10-55-461
6 Speed NC65-55-461
Auto Trans NC10-55-461
2001-03 NC72-55-461
2004
w/Turbo NE01-55-461
w/o Turbo NC72-55-461
27
Meter, Fuel
1999-00 (a)
Man Trans
5 Speed NC10-55-481
6 Speed N053-55-481
Auto Trans NC10-55-481
2001-03 N066-55-481
2004
w/Turbo NE01-55-481
w/o Turbo N066-55-481
28
Lens Warning
1999-00 (a) NC10-55-445
2001-04 NC10-55-445
29
Case, Meter
1999-00 (a) NC10-55-441
2001-04 NC10-55-441
30
Knob, Tripmeter
1999-00 (a) NC10-55-473
2001-04 NC10-55-473
31
Meter Set, Display
1999-00 (a) NC72-55-476
2001-02 NC72-55-476
2003-04 ND30-55-476
32
Plate, Printed Circuit
1999-00 (a) NC10-55-442
2001-02 NC11-55-442
2003-04 ND30-55-442
(a) Included w/Meter Assy
33
Radio¶
1999-00 NC15-79-9D0-US
2001-03
w/ABS ND22-66-9R0
w/o ABS NC72-66-AS0
Page 13
MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
245
madpl1_g01_
Page 245—April 22, 2004—13:34:21—Version Manufacturer
2004
w/CD Changer NE04-66-9RX
w/o CD Changer NE03-66-9R0
¶Order by Application
34
Player, CD
1999-00
w/Pwr Amplifier 0000-81-1066
w/o Pwr Amplifier GD7C-66-9R0
2001-02 NC75-66-9R0
2003-04 GK1R-66-AG0
35
Pocket, Radio
99-03 B02A-66-9M0A
04 B03A-66-9M0
36
Amplifier Assy, Power
1999-00 NC10-66-92ZA
2001-03 NC10-66-92ZB
2004
To 1-1-04 NE03-66-92X
From 1-1-04 NE03-66-92XA
37
Brkt, Amplifier¶
NC10-66-9B1
¶Included w/Power Amplifier Assy
38
Block Assy, Fuse
1999-00 NC10-66-730B
2001-03 NC72-66-730A
2004
w/Turbo NE45-66-730
w/o Turbo NC72-66-730A
39
Cover, Fuse Block¶
1999-00 NC10-66-731A
2001-04 NC72-66-731A
40
Fuse¶ (a)
0000-11-0210
¶Included w/Fuse Block Assy
(a) Order by Application

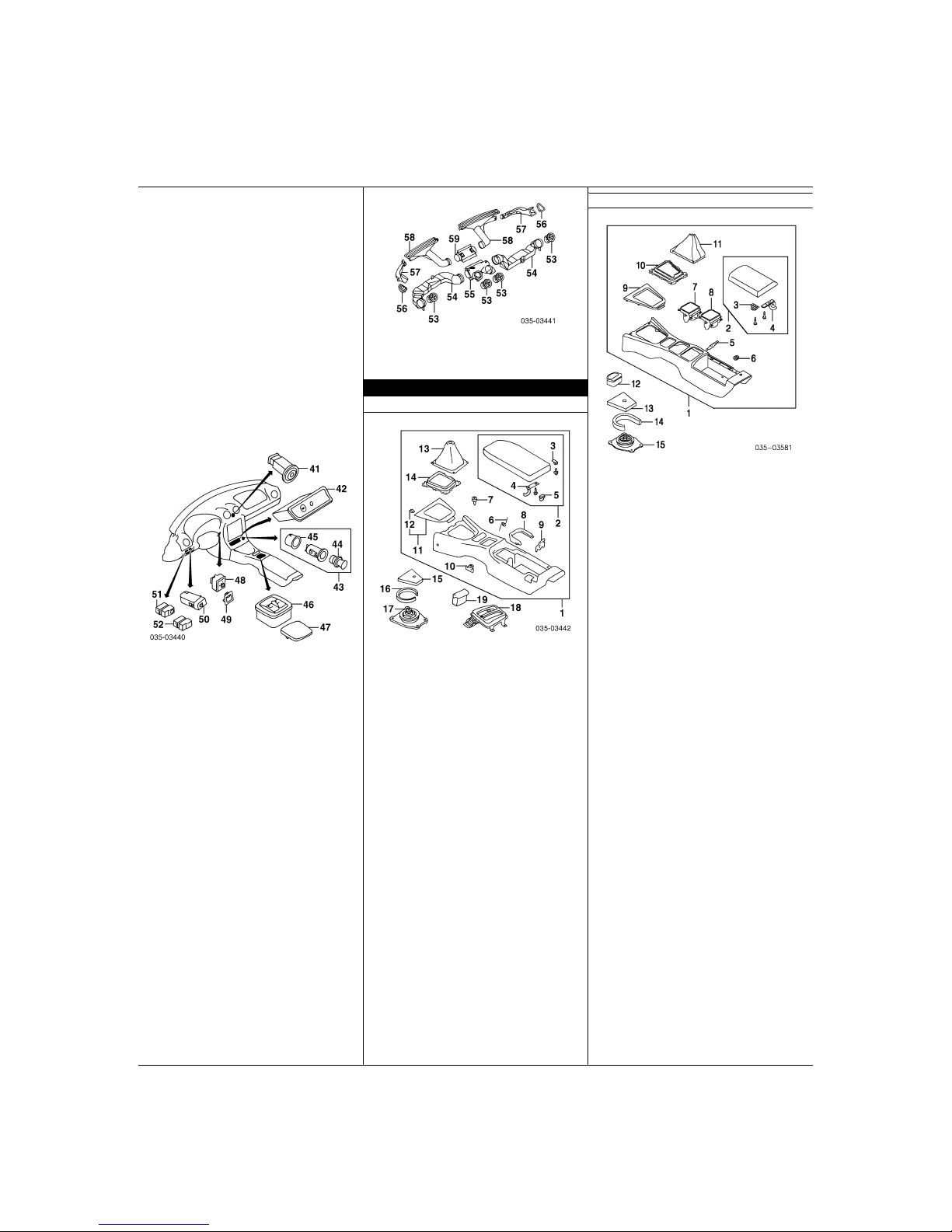

41
Switch, Hazard
NC10-66-4H0
42
Switch, Air Bag Off
99-00 NC10-66-6H0B
01-04 NC72-66-6H0
43
Lighter Assy, Cigarette
99-00 G13H-66-250
01-04 F146-66-250
44
Plug, Cigarette Lighter¶
1999-00 C001-66-252
2001-04-Serviced w/Cigarette Lighter Assy
45
Ring, Illumination¶
99-00 B001-66-251
01-04 N066-66-251
¶Included w/Cigarette Lighter Assy
46
Switch, Pwr Window
Beige 03-04 NC72-66-350-80
Black 99-00 NC11-66-350B-02
01-04 NC72-66-350-02
Tan 99-00 NC11-66-350B-21
01-03 NC72-66-350-21
47
Cover, Switch Hole
1999
Black
To VIN 121495 NC10-55-225B-02
From VIN 121495 NC10-55-225C-02
Tan
To VIN 121495 NC10-55-225B-21
From VIN 121495 NC10-55-225C-21
2000
Black NC10-55-225C-02
Tan NC10-55-225C-21
48
Switch, Pwr Mirror
GJ84-66-600A
49
Cover, Switch Hole
D002-55-225
50
Resistor, Light
99-03 BR70-55-490
04 NC72-66-6R0
51
Switch, Cruise Control
NC11-66-340
52
Cover, Switch Hole
B481-55-225
Switch, Fog Lamp
w/Cruise Control NC73-66-4B0
w/o Cruise Control NC73-66-4B0
Illustration Located in Next Column
53
Nozzle, Vent (4)
99-03 NA01-64-81XC-00
04 NE01-64-81X
54
Duct, Front Outer
R NC10-64-741A
L NC10-64-841A
55
Duct, Front Center
NC10-64-941
56
Grille, Side Defrost
R NC10-60-160
L NC10-60-170
57
Duct, Side Defrost
R NC10-60-181A
L NC10-60-191A
58
Nozzle, Defrost
R NA75-60-121B
L NA01-60-141
59
Connector, Defrost
NC10-60-122A
CENTER CONSOLE
1999-00
1
Console Assy
Man Trans
5 Speed
Black NC10-64-420M-02
Tan NC10-64-420M-21
6 Speed
Black NC65-64-420-02
Tan NC65-64-420-21
Auto Trans
Black NC13-64-420L-02
Tan NC13-64-420L-21
2
Lid Assy, Console¶
Black NC10-64-450E-02
Tan NC10-64-450E-21
3
Lock, Lid¶ (a)
NC10-64-453
4
Stopper, Lid¶ (a)
NC10-64-452B
5
Protector¶ (a)
NC10-64-357A
(a) Included w/Console Lid Assy
6
Spring, Lid¶
GE4T-64-394
7
Cushion, Lid¶
B092-64-046
8
Holder, Cup¶
NC10-64-39X
9
Cover, Lever¶
NA01-64-424A
10
Plate, Console Lid¶
NC10-64-433
11
Plate Assy, Control¶
Man Trans
5 Speed NC10-64-470A
6 Speed NC65-64-470
Auto Trans NC10-64-470A
12
Spring, Plate¶ (a) (2)
J001-64-345
(a) Included w/Control Plate Assy
13
Boot, Shift¶
Man Trans
5 Speed NC10-64-331A
6 Speed NC65-64-330
14
Plate, Boot¶
Man Trans
5 Speed NC10-64-334
6 Speed-Serviced w/Shift Boot
¶Included w/Console Assy
15
Pad, Shift Boot
Man Trans FB01-64-495
16
Gasket, Boot Plate
Man Trans H001-64-493
17
Insulator, Boot Plate
Man Trans NA01-64-481B
18
Indicator, Shift
Auto Trans NC13-64-350D
19
Ashtray
Black NC10-64-610A-03
Tan NC10-64-610A-21
2001-04
1
Console Assy
2001
Man Trans
Black NC72-64-420H-02
Tan NC72-64-420H-21
Auto Trans
Black NC77-64-420C-02
Tan NC77-64-420C-21
2002
Man Trans
Std Panel
Black NC72-64-420H-02
Tan NC72-64-420H-21
Woodgrain Panel NC76-64-420D-21
Auto Trans
Black NC72-64-420H-02
Tan NC72-64-420H-21
2003
Man Trans
Beige NC72-64-420G-80
Black NC72-64-420H-02
Tan NC72-64-420H-21
Auto Trans
Beige NC77-64-420G-80
Black NC77-64-420H-02
Tan NC77-64-420H-21
2004
Man Trans
w/Turbo
Beige NE45-64-420-80
Black NE45-64-420-02
w/o Turbo
Beige NE01-64-420-80
Black NE01-64-420-02
Auto Trans
Beige NE07-64-420-80
Black NE07-64-420-02
2
Lid Assy, Console¶
Beige NC72-64-450E-80
Black NC72-64-450E-02
Tan NC72-64-450E-02
3
Lock, Lid¶ (a)
Beige NC72-64-453B-80
Black NC72-64-453B-02
Tan NC72-64-453A-21
4
Stopper, Lid¶ (a)
Beige N066-64-452-80
Black N066-64-452-02
Tan N066-64-452-21
(a) Included w/Console Lid Assy
5
Cover, Lever¶
01 NA01-64-424A
02-04 N066-64-424
6
Cover, Rear Console Hole¶
Beige N066-64-48X-80
Black N066-64-48X-02
Tan N066-64-48X-21
7
Holder, Front Cup¶
Beige N067-64-39XB-80
Black N067-64-39XB-02
Tan N067-64-39XB-21
8
Holder, Rear Cup¶
Beige N066-64-39XC-80
Black N066-64-39XC-02
Tan N066-64-39XC-21
9
Plate, Control¶
2001-03
Std Panel NC10-64-470A
Woodgrain Panel NC76-64-470
2004
w/Turbo NE45-64-470
w/o Turbo NE01-64-470
10
Plate, Boot¶
Man Trans NC10-64-334
11
Boot, Shift¶
Man Trans
Std Panel NC10-64-331A
Woodgrain Panel NC76-64-331
Page 14
MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
246
madpl1_g01_
Page 246—April 22, 2004—13:34:22—Version Manufacturer
CENTER CONSOLE Cont’d
2001-04 Cont’d
¶Included w/Console Assy
12
Ashtray
N066-64-610B
13
Pad, Shift Boot
Man Trans FB01-64-495
14
Gasket, Boot Plate
Man Trans H001-64-493
15
Insulator, Boot Plate
Man Trans NA01-64-481B

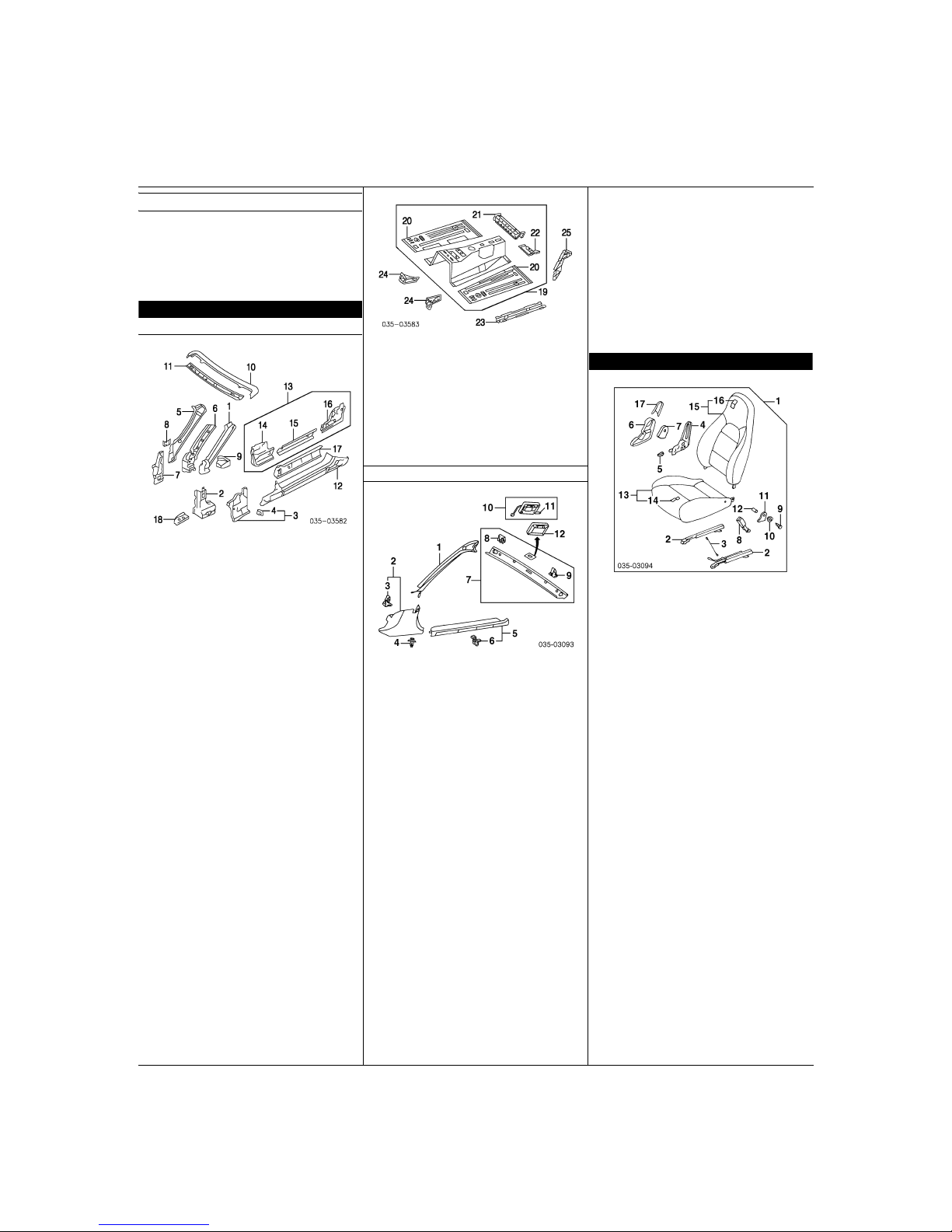

ROCKER/PILLARS/FLOOR
SHEET METAL
1
Pillar, Otr Upr Hinge
R N067-70-210
L N067-71-210
2
Reinf, Hinge Pillar
R N067-70-280A
L N067-71-280A
3
Panel Assy, Cowl Side
99-00 R NC10-70-020
L NC10-71-020
01-04 R N067-70-020
L N067-71-020
4
Bracket, Fender¶
R/L B092-70-070A
¶Included w/Cowl Side Panel Assy
5
Pillar, Inr Upr Hinge
99-03 R NC10-70-240A
L NC10-71-240A
04 R NC10-70-240B
L NC10-71-240B
6
Pillar, Otr Upr Hinge
R N067-70-244
L N067-71-244
7
Pillar, Inr Lwr Hinge
R NA01-70-230C
L NA01-71-230C
8
Plate, Nut
R NC10-70-20YB
L NC10-71-20YB
9
Brkt, Inst Panel
R NA01-70-071A
L NA01-71-071A
10
Header, Front Upper
NA01-70-650
11
Header, Front Lower
NB38-70-640A
12
Panel, Outer Rocker
R NC10-70-270D
L NC10-71-270D
13
Panel Assy, Inner Rocker
1999-00-Serviced by Components
2001-02 R N067-53-971A
L N067-54-971A
2003-04-Serviced by Components
14
Panel, Front Inner Rocker¶
1999-00 R NA01-53-960D
L NA01-54-96XC
2001-04 R N067-53-95XA
L N067-54-95XA
15
Panel, Center Inner Rocker¶
1999-00 R/L N067-54-971A
2001-02¶-Serviced w/Inner Rocker Panel Assy
2003-04 R N067-53-971A
L N067-53-95ZA
16
Panel, Rear Inner Rocker¶
1999-00 R NA01-53-980E
L N067-54-95ZA
2001-04 R N067-53-95ZA
L N067-54-95ZA
¶Included w/Inner Rocker Panel Assy
17
Reinf, Rocker Panel
R NC10-70-272A
L NC10-71-272A
18
Gusset, Rocker Panel
R NA01-70-274
L NA01-71-274
Illustration Located in Next Column
19
Pan Assy, Front Floor
1999-00
To VIN 109481 NC12-53-600C
From VIN 109481 NC12-53-600E
2001-03 NC72-53-600
2004 NC72-53-600A
20
Pan, Floor Side
1999-00 R NA01-53-602B
L NA01-54-610C
2001-04-Serviced w/Front Floor Pan Assy
21
Crossmember (a)
R NA01-53-650A
L NA01-54-650A
22
Bracket, Seat (a)
R NA01-53-670A
L NA01-54-670A
(a) Included w/Front Floor Pan Assy
23
Extension, Floor Side
99-00 R/L N053-53-660A
01-04 R N067-53-660A
L N067-54-660A
24
Bracket, Front Floor
99-00 R NC10-53-482A
L NC10-54-482A
01-04 R NC10-53-482B
L NC10-54-482B
25
Gusset, Front Floor
R NA01-53-725A
L NA01-54-725A
INTERIOR TRIM
1
Trim Assy, Pillar-See Windshield Section
2
Trim Assy, Cowl Side Panel
Beige R NC10-68-370A-80
L NC10-68-390A-80
Black R NC10-68-370A-02
L NC10-68-390A-02
Tan R NC10-68-370A-21
L NC10-68-390A-21
3
Clip, Cowl Trim¶
R/L GJ12-68-865
¶Included w/Cowl Side Panel Trim Assy
4
Fastener, Cowl Trim
Beige R/L GJ21-68-885B-80
Black R/L GJ21-68-885B-02
Tan R/L GJ21-68-885B-21
5
Plate Assy, Scuff
1999-00
Man Trans
5 Speed
Black R NC10-68-710D-02
L NC10-68-720D-02
Tan R NC10-68-710D-21
L NC10-68-720D-21
6 Speed
Black R NC65-68-710B-02
L NC65-68-720B-02
Tan R NC65-68-710B-21
L NC65-68-720B-21
Auto Trans
Black R NC10-68-710D-02
L NC10-68-720D-02
Tan R NC10-68-710D-21
L NC10-68-720D-21
2001
Black R NC10-68-710D-02
L NC10-68-720D-02
Tan R NC10-68-710D-21
L NC10-68-720D-21
2002
Plastic
Black R NC10-68-710D-02
L NC10-68-720D-02
Tan R NC10-68-710D-21
L NC10-68-720D-21
Stainless Steel
Black R NC65-68-710B-02
L NC65-68-720B-02
Tan R NC65-68-710B-21
L NC65-68-720B-21
2003-04
Plastic
Beige R NC10-68-710D-80
L NC10-68-720D-80
Black R NC10-68-710D-02
L NC10-68-720D-02
Stainless Steel
Beige R NC75-68-710-80
L NC75-68-720-80
Black R NC75-68-710-02
L NC75-68-720-02
6
Clip, Scuff Plate¶
(4/Side) R/L B456-68-712
¶Included w/Scuff Plate Assy
7
Trim Assy, Front Header
NA01-68-090E
8
Clip, Outer Header Trim¶
R/L B455-68-AD2
9
Clip, Inner Header Trim¶
R/L GJ21-68-865
¶Included w/Front Header Trim Assy
10
Lamp Assy, Interior
NB38-51-310C
11
Bulb (a)
9970-05-080L
(a) Included w/Interior Lamp Assy
12
Lens, Lamp¶
NB38-51-311A
¶Included w/Front Header Trim Assy
SEAT
1
Seat Assy, Front
1999-00
Black R NC10-57-100D-02
L NC10-57-150D-02
Blue R NC65-57-100-55
L NC65-57-150-55
Tan R NC11-57-100F-21
L NC11-57-150F-21
2001-04-Serviced by Components
2
Adjuster, Seat Track
1999-00 (a)
Passenger Side R NA01-88-102A
L NA01-88-103A
Driver Side R NC10-88-152
L NA01-88-153A
2001-02
Passenger Side R N066-88-102
L NC72-88-103
Driver Side R N066-88-152
L N066-88-153
2003-04
Passenger Side R N066-88-102
L NC72-88-103
Driver Side R N066-88-152
L N066-88-153
3
Wire, Release
1999-00 (a) R NA01-88-106
L NA01-88-156
2001-04 R NA01-88-106
L NA01-88-156
4
Knuckle, Reclining
1999-02 (a) R NA01-88-101C
L NA01-88-151C
2001-03 R N066-88-101
L N066-88-155
2004 R N066-88-101A
L N066-88-155A
5
Knob, Knuckle
1999-00 (a)
Black R/L NA01-88-084-00
Tan R/L NA01-88-084-21
2001-02
Black R N066-88-1G5-02
L N066-88-1H5-02
Tan R N066-88-1G5-21
L N066-88-1H5-21
2003-04
Beige R N066-88-1G5-80
L N066-88-1H5-80
Black R N066-88-IG5-02
L N066-88-IH5-02
6
Cover, Knuckle
1999-00 (a)
Black R NA01-88-031A-00
L NA01-88-081A-00
Tan R/L NA01-88-081-21
2001-04
Beige 03-04 R N066-88-1G1-80
L N066-88-1H3-80
Black R N066-88-1G1-02
L N066-88-1H3-02
Page 15
MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
247
madpl1_g01_
Page 247—April 22, 2004—13:34:24—Version Manufacturer
Tan 01-02 R N066-88-1G1-21
L N066-88-1H3-21
7
Protector, Seat Belt
1999-00 (a) R NA01-88-033
L NA01-88-083
2001-04
Beige 03-04 R N066-88-035-80
L N066-88-085-80
Black R N066-88-035-02
L N066-88-085-02
Tan 01-02 R N066-88-035-21
L N066-88-085-21
8
Buckle, Seat Belt
1999-00 (a) R/L NC10-57-620-00
2001-04 R N066-57-680A-00
L N066-57-620B-00
9
Bolt, Hinge
1999-00 (a) R/L D201-88-063
2001-04 R/L D201-88-063
10
Lever, Release
1999-00 (a) R/L NA75-88-108
2001-04 R/L NA75-88-108
11
Cover, Hinge (a)
1999-00
Black R NA01-88-035-00
L NA01-88-085-00
Tan R NA01-88-035-21
L NA01-88-085-21
12
Cushion, Hinge (a)
99-00 R/L NC10-88-049
13
Cushion Assy, Front Seat
1999-00 (a)
Black R NC10-88-110A-02
L NC10-88-160A-02
Blue R N065-88-110-55
L N065-88-160-55
Tan R NC11-88-110A-21
L NC11-88-160A-21
2001-02
Black R N066-88-110A-02
L N077-88-160-02
Tan R N068-88-110-21
L N068-88-160A-21
2003¶
Type 1 R ND33-88-110-02
L N068-88-160A-02
Type 2 R ND30-88-110-02
L N077-88-160-02
2004¶ R NE02-88-110-02
L NE02-88-160-02
14
Trim, Seat Cushion
1999-00 (a) (b)
Black R NC10-88-111A-02
L NC10-88-161A-02
Blue R N065-88-111-55
L N065-88-161-55
Tan R NC11-88-111A-21
L NC11-88-161A-21
2001-02 (b)
Black R N066-88-111A-02
L N066-88-161A-02
Tan R N068-88-110-21
L N068-88-160A-21
2003¶
Type 1 R ND33-88-111-02
L N068-88-161A-02
Type 2 R ND30-88-111-02
L N066-68-161A-02
2004¶ R NE02-88-111-02
L NE02-88-161-02
(b) Included w/Front Seat Cushion Assy
15
Back Assy, Seat
1999-00 (a)
Black R NC10-88-130-02
L NC10-88-180-02
Blue R NC65-88-130-55
L NC65-88-180-55
Tan R NC11-88-130B-21
L NC11-88-180B-21
2001-02
Black R NC72-88-130-02
L NC72-88-180-02
Tan R NC73-88-130-21
L NC73-88-180-21
2003-04¶
Type 1 R ND33-88-130-02
L NC73-88-180-02
Type 2 R ND30-88-130-02
L NC72-80-180-02
16
Trim, Seat Back
1999-00 (a) (b)
Black R NC10-88-131-02
L NC10-88-181-02
Blue R NC65-88-131-55
L NC65-88-181-55
Tan R NC11-88-131B-21
L NC11-88-181B-21
2001-02 (b)
Black R NC72-88-131-02
L NC72-88-181-02
Tan R NC73-88-131-21
L NC73-88-181-21
2003-04¶
Type 1 R ND33-88-131-02
L NC72-88-181-02
Type 2 R ND30-88-131-02
L NC72-88-181-02
¶Black listed, Order by Application
(b) Included w/Seat Back Assy
17
Cover, Seat Back (a)
1999-00
Black R NA01-88-036-00
L NA01-88-086-00
Tan R NA01-88-036-21
L NA01-88-086-21
(a) Included w/Front Seat Assy

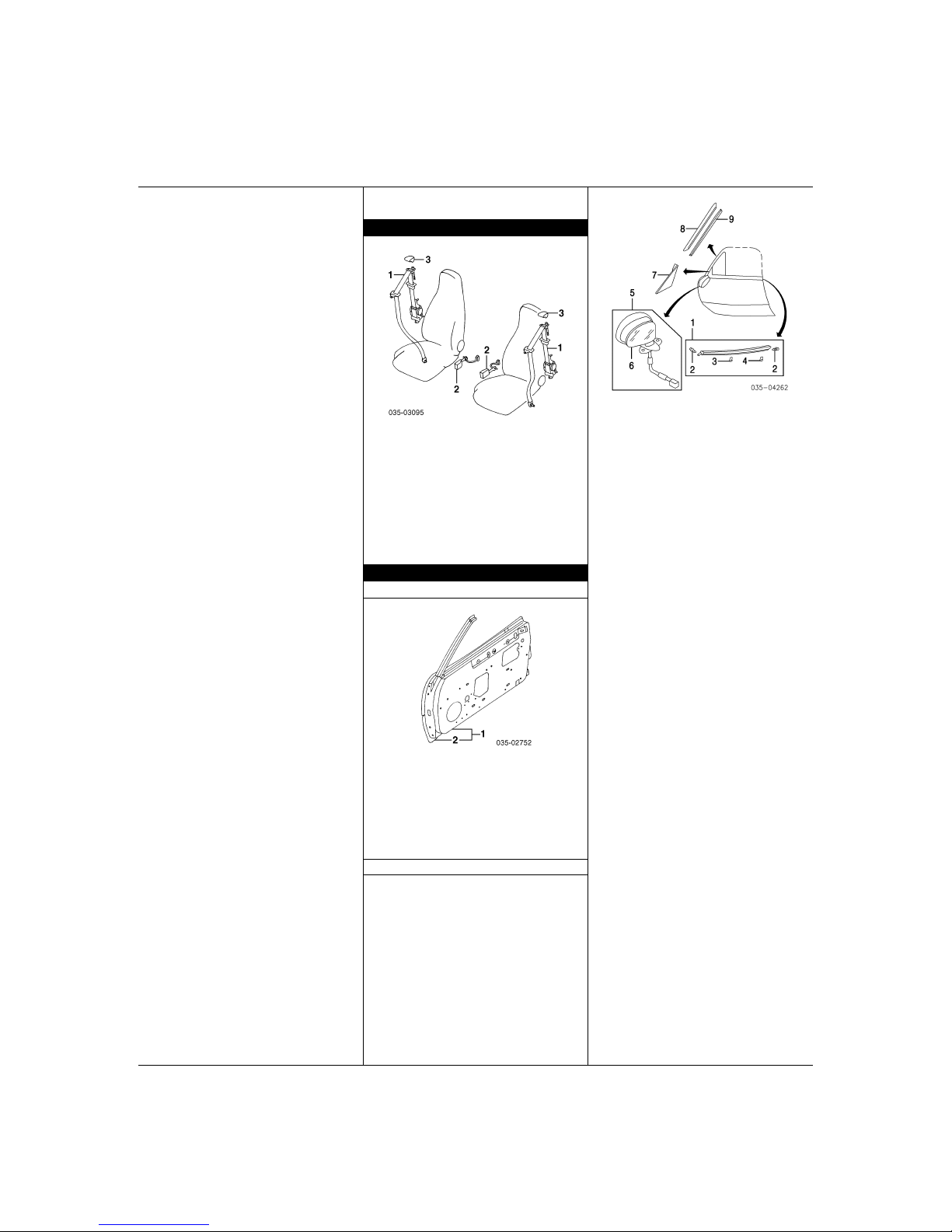

SEAT BELTS
1
Belt, Front Seat
Beige 03-04 R NC72-57-L30A-80
L N066-57-L30D-80
Black 99-00 R NC10-57-630F-00
L NC10-57-690E-00
01-04 R NC72-57-L30E-00
L N066-57-L30D-00
Tan 99-00 R NC10-57-630F-21
L NC10-57-690E-21
01-02 R NC72-57-L30E-21
L N066-57-L30D-21
2
Buckle, Seat Belt-See Seat Section
3
Cover, Anchor
Beige R/L NC10-57-631A-80
Black R/L NC10-57-631A-02
Tan R/L NC10-57-631A-21
Pretensioner, Seat Belt-Serviced w/Front Seat Belt
FRONT DOOR
SHEET METAL
1
Shell Assy, Door
1999-00 R NCY0-58-02XK
L NCY0-59-02XK
2001-03 R NCY2-58-02XE
L NCY2-59-02XD
2004
To 10-1-03 R NCY2-58-02XE
L NCY2-59-02XD
From 10-1-03 R NCY2-58-02XE
L NCY2-59-02XE
2
Panel, Door Repair¶
R NC10-58-030F
L NC10-59-030F
¶Included w/Door Shell Assy
EXTERIOR TRIM
Illustration Located in Next Column
1
Moulding Assy, Outer Belt
R NA01-58-810E
L NA01-59-810E
2
Fastener, W/Strip¶
(2/Side) R/L 9926-40-531B
Clip, W/Strip¶
3 Front (2/Side) R/L NA01-58-815
4 Rear R/L B157-58-815
¶Included w/Outer Belt Moulding Assy
5
Mirror Assy, Rear View
1999-00
Manual
Black (Code A3F) R NC10-69-120F-PZ
L NC10-69-180F-PZ
Blue
Code 20P R NC10-69-120F-40
L NC10-69-180E-40
Code 12K R NC10-69-120F-57
L NC10-69-180F-57
Green (Code 18J) R NC10-69-120F-46
L NC10-69-180F-46
Orange (Code 18K) R NC10-69-120E-56
L NC10-69-180E-56
Red (Code 23E) R NC10-69-120F-SU
L NC10-69-180F-SU
Silver (Code 18G) R NC10-69-120F-92
L NC10-69-180F-92
White (Code PT) R NC10-69-120E-PT
L NC10-69-180E-PT
Powe r
Black (Code A3F) R NC11-69-120F-PZ
L NC11-69-180F-PZ
Blue
Code 20P R NC11-69-120F-40
L NC11-69-180F-40
Code 12K R NC11-69-120F-57
L NC11-69-180F-57
Green (Code 18J) R NC11-69-120F-46
L NC11-69-180F-46
Orange (Code 18K) R NC11-69-120F-56
L NC11-69-180F-56
Red (Code 23E) R NC11-69-120F-SU
L NC11-69-180F-SU
Silver (Code 18G) R NC11-69-120F-92
L NC11-69-180F-92
White (Code PT) R NC11-69-120F-PT
L NC11-69-180F-PT
2001-02
Black
Code A3F R NC11-69-120F-PZ
L NC11-69-180F-PZ
Code 16W R NC11-69-120F-08
L NC11-69-180F-08
Blue
Code 22A R NC11-69-120F-50
L NC11-69-180F-50
Code 23C R NC11-69-120F-51
L NC11-69-180F-51
Code 24A R NC11-69-120E-61
L NC11-69-180E-61
Green
Code A3V R NC11-69-120F-55
L NC11-69-180F-55
Code 18J R NC11-69-120F-46
L NC11-69-180F-46
Red (Code A3E) R NC11-69-120F-SU
L NC11-69-180F-SU
Silver (Code 22V) R NC11-69-120F-67
L NC11-69-180F-67
White (Code A3D) R NC11-69-120E-09
L NC11-69-180F-09
Yellow (Code HZ) R NC11-69-120E-HZ
L NC11-69-180F-HZ
2003
Black (Code A3F) R NC11-69-120F-PZ
L NC11-69-180F-PZ
Blue (Code 22A) R NC11-69-120F-50
L NC11-69-180F-50
Green
Code 18J R NC11-69-120F-46
L NC11-69-180F-46
Code 25R R NC11-69-120F-48
L NC11-69-180F-48
Red (Code A3E) R NC11-69-120F-SU
L NC11-69-180F-SU
Silver (Code 22V) R NC11-69-120F-67
L NC11-69-180F-67
White (Code A3D) R NC11-69-120F-09
L NC11-69-180F-09
2004
Black (Code A3F) R NC11-69-120F-PZ
L NC11-69-180F-PZ
Blue (Code 25E) R NC11-69-120F-38
L NC11-69-180F-38
Ebony (Code 28W) R NC11-69-120F-88
L NC11-69-180F-88
Gray (Code 29Y) R NC11-69-120F-01
L NC11-69-180F-01
Green (Code 18J) R NC11-69-120F-46
L NC11-69-180F-46
Red
Page 16
MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
248
madpl1_g01_
Page 248—April 22, 2004—13:34:25—Version Manufacturer
FRONT DOOR Cont’d
EXTERIOR TRIM Cont’d
Code A3E R NC11-69-120F-SU
L NC11-69-180F-SU
Code 29A R NC11-69-120F-87
L NC11-69-180F-87
Silver (Code 22V) R NC11-69-120F-67
L NC11-69-180F-67
White (Code A3D) R NC11-69-120F-09
L NC11-69-180F-09
6
Glass, Mirror¶
R NC10-69-1G1
L NC10-69-1G7
¶Included w/Rear View Mirror Assy
7
Garnish, Door
R N066-68-DJ1A
L N066-68-DJ6A
Tape, Stripe Front
8 Outer R NC10-50-8V1
L NC10-50-8W1
9 Inner R NC10-50-8V3
L NC10-50-8W3

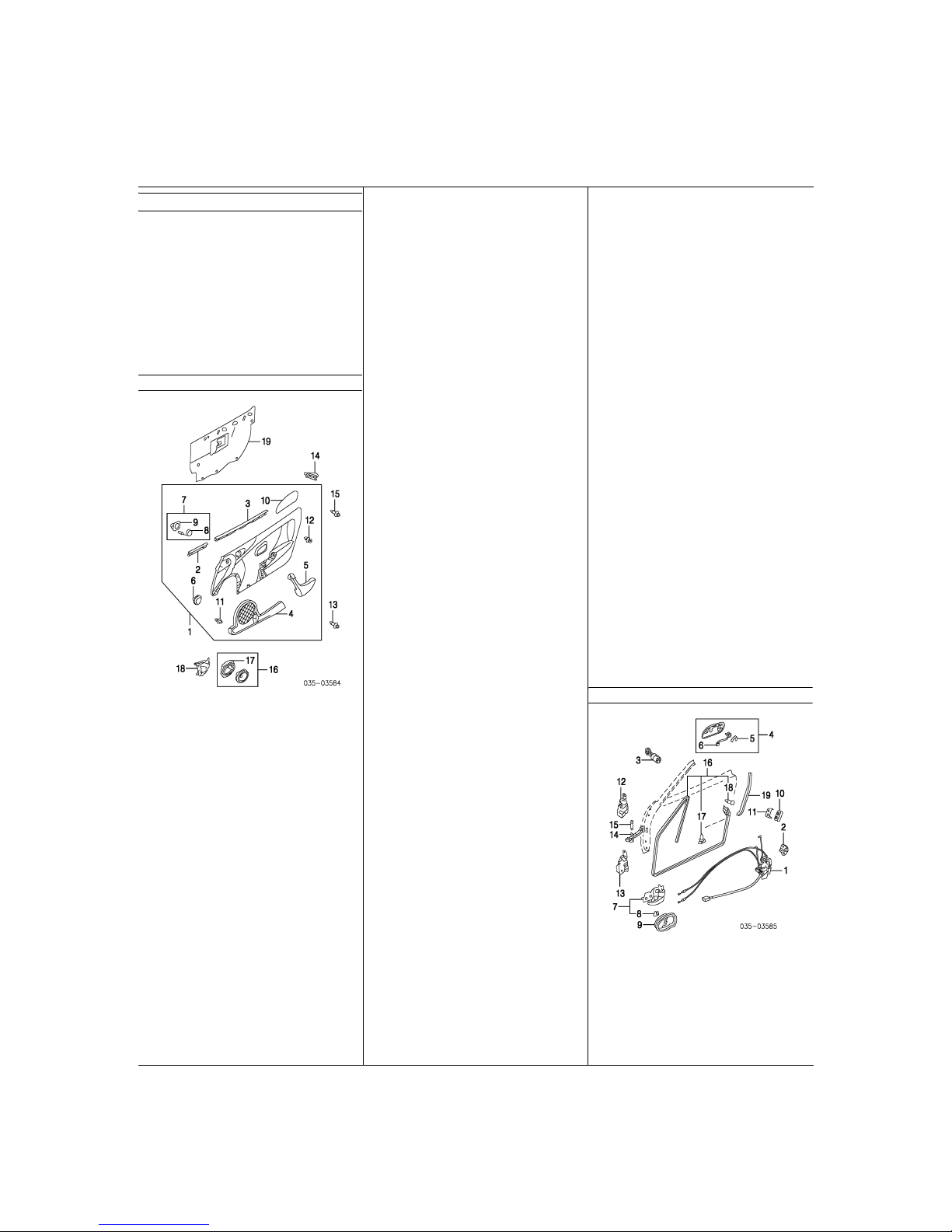

INTERIOR TRIM
1
Panel Assy, Trim
1999-00
Man Windows 2 Speaker
Black R NC10-68-420G-02
L NC10-68-450G-02
Black/Tan R NC10-68-420G-21
L NC10-68-450G-21
Man Windows 4 Speaker
Black R NC12-68-420G-02
L NC12-68-450G-02
Black/Tan R NC12-68-420G-21
L NC12-68-450G-21
Pwr Windows 2 Speaker
Black R NC11-68-420G-02
L NC11-68-450G-02
Black/Tan R NC11-68-420G-21
L NC11-68-450G-21
Pwr Windows 4 Speaker
w/Pwr Amplifier
To VIN 138751
Black R NC15-68-420H-02
L NC15-68-450H-02
Black/Tan R NC15-68-420H-21
L NC15-68-450H-21
From VIN 138751
Black R NC15-68-420K-02
L NC15-68-450K-02
Black/Tan R NC15-68-420K-21
L NC15-68-450K-21
w/o Pwr Amplifier
Black R NC12-68-420G-02
L NC12-68-450G-02
Black/Tan R NC12-68-420G-21
L NC12-68-450G-21
2001-03
Right
2 Speaker System
Beige NC72-68-420F-80
Black NC72-68-420F-02
Tan NC72-68-420F-21
4 Speaker System
w/Bose Speaker System
Beige NC76-68-420F-80
Black NC76-68-420F-02
Tan NC76-68-420F-21
w/o Bose Speaker System
Beige NC74-68-420F-80
Black NC74-68-420F-02
Tan NC74-68-420F-21
Left
w/Bose Speaker System
Beige NC76-68-450F-80
Black NC76-68-450E-02
Tan NC76-68-450F-21
w/o Bose Speaker System
Man Lock 2 Speaker
Beige NC72-68-450F-80
Black NC72-68-450F-02
Tan NC72-68-450F-21
Man Lock 4 Speaker
Beige NC74-68-450E-80
Black NC74-68-450F-02
Tan NC74-68-450F-21
Pwr Locks 2 Speaker
Beige NC73-68-480F-80
Black NC73-68-450F-02
Tan NC73-68-450F-21
Pwr Locks 4 Speaker
Beige NC75-68-450F-80
Black NC75-68-450F-02
Tan NC75-68-450E-21
2004 (a)
2 Speaker System R NC72-68-420F-80
L NC72-68-450F-80
4 Speaker System R NC74-68-420F-02
L NC74-68-450F-02
6 Speaker System R NE04-68-420-02
L NE04-68-450-02
(a) Order by Application
Mldg, Inner Belt¶
2 Front
1999-00
To VIN 100063 R/L NA02-58-821
From VIN 100063 R/L NC11-58-821
2001-04 R/L NC11-58-821
3 Rear R/L NA01-58-821A
4
Pocket, Door Trim¶
1999-00
2 Speaker System
Black R NC10-68-4C1-02
L NC10-68-4N1-02
Tan R NC10-68-4C1-21
L NC10-68-4N1-21
4 Speaker System
w/Pwr Amplifier
Black R NC15-68-4C1-02
L NC15-68-4N1-02
Tan R NC15-68-4C1-21
L NC15-68-4N1-21
w/o Pwr Amplifier
Black R NC10-68-4C1-02
L NC10-68-4N1-02
Tan R NC10-68-4C1-21
L NC10-68-4N1-21
2001-03
2 Speaker System
Beige 03 R N066-68-4C1A-80
L N066-68-4N1A-80
Black R N066-68-4C1A-02
L N066-68-4N1A-02
Tan 01-02 R N066-68-4C1-21
L N066-68-4N1-21
4 Speaker System
w/Bose Speaker System
Beige 03 R N068-68-4C1A-80
L N068-68-4N1A-80
Black R N068-68-4C1A-02
L N068-68-4N1A-02
Tan 01-02 R N068-68-4C1A-21
L N068-68-4N1A-21
w/o Bose Speaker System
Beige R N066-68-4C1A-80
L N066-68-4N1A-80
Black R N066-68-4C1A-02
L N066-68-4N1A-02
Tan R N066-68-4C1-21
L N066-68-4N1-21
2004
w/Bose Speaker System
Beige R N068-68-4C1A-80
L N068-68-4N1A-80
Black R/L N068-68-4N1A-02
w/o Bose Speaker System
Beige R N068-68-4C1A-80
L N068-68-4N1A-80
Black R N068-68-4C1A-02
L N068-68-4N1A-02
w/Bose Speaker System
R N068-68-4C1A-80
L N068-68-4N1A-80
5
Handle, Pull¶
1999-00
Black R NC10-68-D71-02
L NC10-68-D81-02
Tan R NC10-68-D71-21
L NC10-68-D81-21
2001-03
Man Locks
Beige R N066-68-D71B-80
L N066-68-D81B-80
Black R N066-68-D71B-02
L N066-68-D81B-02
Tan R N066-68-D71B-21
L N066-68-D81B-21
Pwr Locks
Beige R N066-68-D71B-80
L N066-68-D81B-80
Black R N066-68-D71B-02
L N066-68-D81B-02
Tan R N066-68-D71B-21
L N066-68-D81B-21
2004
Right
Beige N066-68-D71B-80
Black N066-68-D71B-02
Left
Man Locks
Beige NC73-68-D81C-80
Black NC73-68-D81C-02
Pwr Locks
Beige N066-68-D81B-80
Black N066-68-D81B-02
6
Grille, Upr Speaker¶
R NC10-68-4H1-02
L NC10-68-4W1-02
7
Speaker Assy, Upper¶
R 0000-81-096X
L 0000-81-096Y
8
Speaker, Upper¶ (a)
R/L NC12-66-960
9
Bracket, Upr Speaker¶ (a)
R NC12-66-9B2A
L NC12-66-9B1A
(a) Included w/Upper Speaker Assy
10
Plate¶
Beige R N066-68-4E6-80
L N066-68-4V6-80
Black R N066-68-4E6-02
L N066-68-4V6-02
Tan R N066-68-4E6-21
L N066-68-4V6-21
11
Fastener, Frt Trim¶
(2/Side) 99-03 R/L GA2A-68-AB1A
04 R/L N066-68-ABX
12
Fastener, Rear Trim¶
(4/Side) 99-03 R/L G350-68-AB1
04 R/L N066-68-ABX
¶Included w/Trim Panel Assy
13
Fastener, Trim Panel
R/L GJ21-68-885B-02
14
Bracket, Trim (2/Side)
R/L NC10-68-403
15
Fastener, Upper (2/Side)
Black R/L B467-68-AC3-02
Tan R/L B467-68-AC3-21
16
Speaker Assy, Lower
1999-00 R/L 0000-81-09C0
2001-04
w/Bose Speaker System
01-02 R/L
NC18-66-960D
03-04 R/L NC18-66-960D
w/o Bose Speaker System
R/L 0000-81-09C0
17
Bracket, Speaker¶
w/Pwr Amplifier
1999-00 R/L NC25-66-9B1A
2001-04 R/L NC25-66-9B1A
¶Included w/Lower Speaker Assy
18
Bracket, Speaker
w/Pwr Amplifier R/L NC18-66-960D
19
Shield, Moisture
1999-00
Man Windows R NC10-58-861F
L NC10-59-861F
Pwr Windows R NC12-58-861H
L NC12-59-861H
2001-04
w/Bose Speaker System
R N067-58-861D
L N067-59-861E
w/o Bose Speaker System
R N066-58-861D
L N066-59-861E
HARDWARE
1
Latch, Door
Man Locks 99-00 R NC10-58-310A
L NC10-59-310A
01-04 R NC72-58-310C
L NC72-59-310C
Pwr Locks 99-00 R NC11-58-310E
L NC11-59-310E
01-04 R NC73-58-310D
L NC73-59-310D
2
Striker, Latch
R/L FD01-58-361
3
Cylinder, Door Lock¶
Man Locks R NCY0-76-210B
L NCY0-76-220B
Pwr Locks R NCY3-76-210B
L NCY3-76-220B
Page 17
MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
249
madpl1_g01_
Page 249—April 22, 2004—13:34:27—Version Manufacturer
¶Included w/Complete Lock Set-listed in Steering Wheel/Column
Section
4
Handle Assy, Outside
1999-00
Black (Code A3F) R GA5R-58-410G-PZ
L EA01-59-410G-PZ
Blue
Code 20P R GA5R-58-410F-40
L EA01-59-410F-40
Code 12K R GA5R-58-410F-57
L EA01-59-410F-57
Green (Code 18J) R GA5R-58-410F-47
L EA01-59-410F-47
Orange (Code 18K) R GA5R-58-410F-56
L EA01-59-410F-56
Red (Code A3E) R GA5R-58-410F-SU
L EA01-59-410F-SU
Silver (Code 18G) R GA5R-58-410F-92
L EA01-59-410F-92
White (Code PT) R GA5R-58-410F-PT
L EA01-59-410F-PT
2001-02
Black
Code A3F R GA5R-58-410G-PZ
L EA01-59-410G-PZ
Code 16W R/L GA5R-58-410G-PZ
Blue
Code 22A R GA5R-58-410F-50
L EA01-59-410F-50
Code 23C R GA5R-58-410G-51
L EA01-59-410G-51
Code 24A R/L GA5R-58-410G-61
Green
Code A3V R/L GA5R-58-410G-55
Code 18J R GA5R-58-410F-47
L EA01-59-410F-47
Red (Code A3E) R GA5R-58-410F-SU
L EA01-59-410F-SU
Silver (Code 22V) R GA5R-58-410G-68
L EA01-59-410G-68
Yellow (Code HZ) R/L GA5R-58-410G-HZ
White (Code PT) R GA5R-58-410G-09
L EA01-59-410F-09
2003
Black (Code A3F) R GA5R-58-410G-PZ
L EA01-59-410G-PZ
Blue (Code 22A) R GA5R-58-410G-50
L EA01-59-410G-50
Green
Code 18J R GA5R-58-410G-46
L EA01-59-410G-46
Code 25R R GA5R-58-410G-48
L EA01-59-410G-48
Red (Code A3E) R GA5R-58-410G-SU
L EA01-59-410G-SU
Silver (Code 22V) R GA5R-58-410G-67
L EA01-59-410G-67
White (Code A3D) R GA5R-58-410G-09
L EA01-59-410G-09
2004
Black (Code A3F) R GA5R-58-410G-PZ
L EA01-59-410G-PZ
Blue (Code 25E) R GA5R-58-410G-38
L EA01-59-410G-38
Ebony (Code 28W) R GA5R-58-410G-88
L EA01-59-410G-88
Gray (Code 29Y) R GA5R-58-410G-01
L EA01-59-410G-01
Green (Code 18J) R GA5R-58-410G-47
L EA01-59-410G-47
Red
Code A3E R GA5R-58-410G-10
L EA01-59-410G-10
Code 29A R GA5R-58-410G-87
L EA01-59-410G-87
Silver (Code 22V) R GA5R-58-410G-67
L EA01-59-410G-67
White (Code A3D) R GA5R-58-410G-09
L EA01-59-410G-09
5
Retainer, Lock Cyl¶
R GT2G-58-495
L GT2G-59-495
6
Plug, Outside Handle¶
R/L HG30-58-4A9
¶Included w/Outside Handle Assy
7
Handle Assy, Inside
1999-00 R/L B01A-58-330D-02
2001-02 R N066-58-330A-02
L N066-59-330A-02
2003
Sport Susp R N067-58-330E
L N067-59-330E
Std Susp R N066-58-330A-02
L N066-59-330A-02
2004 R N068-58-330
L N068-59-330
8
Clip, Inside Handle¶
R B01A-58-335
L B01A-59-335
¶Included w/Inside Handle Assy
9
Cover, Inside
R EA01-58-303-02
L EA01-59-303-02
10
Wedge, Door
99-03 R/L NA01-62-681
04 R/L S084-62-671A
11
Dovetail, Wedge
R/L S084-62-671A
12
Hinge, Upper
R/L DX50-59-240
13
Hinge, Lower
R DX50-58-240
L DX50-59-240
14
Check, Door
R/L NA01-58-270B
15
Pin, Door Check
R/L BC1D-58-265
16
Weatherstrip Assy, Door
R NC10-58-760F
L NC10-59-760F
Fastener, W/Strip¶
17 No. 1 (19/Side) R/L BC1D-58-762
18 No. 2 (2/Side) R/L 9926-40-531B
¶Included w/Door Weatherstrip Assy
19
Welt, Seam
R/L NC10-68-911-00

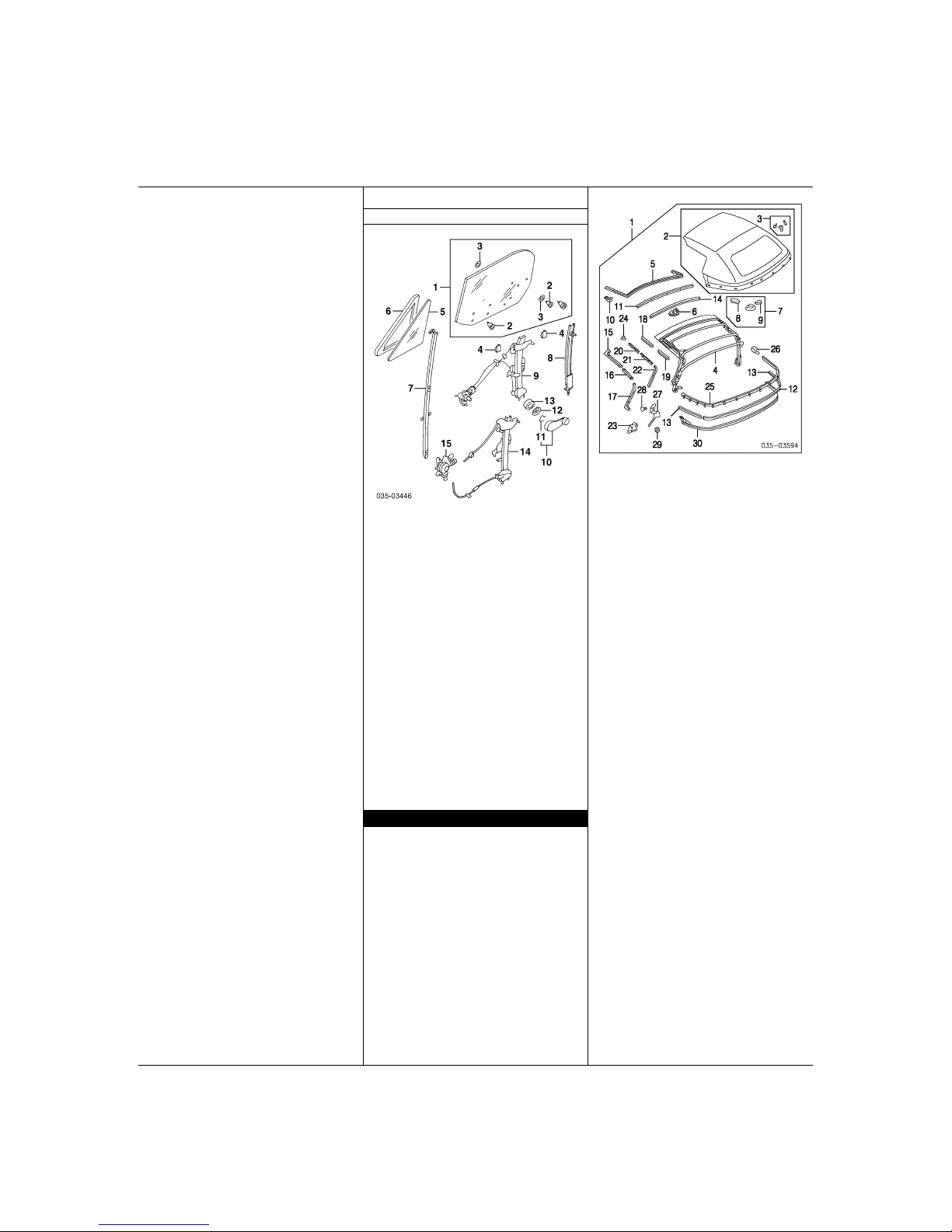

GLASS & PARTS
1
Glass Assy, Front Door
Mazda R NC10-58-510D
L NC10-59-510D
2
Stopper, Glass¶ (2/Side)
R/L H001-58-546
3
Washer¶ (4/Side)
R/L NA01-58-523
¶Included w/Front Door Glass Assy
4
Grommet, Stopper
(2/Side) R/L B235-58-502
5
Glass, Vent
Mazda R NB39-58-661A
L NB39-59-661A
6
W/Strip, Vent Glass
R NA01-58-651B
L NA01-59-651B
7
Channel, Division
1999-00
To VIN 100083 R NA01-58-604B
L NA01-59-604B
From VIN 100083 R NC10-58-604A
L NC10-59-604A
2001-04 R NC10-58-604A
L NC10-59-604A
8
Guide, Glass
R NA01-58-603D
L NA01-59-603D
9
Regulator, Manual
99-00 R NC10-58-560F
L NC10-59-560F
10
Handle Assy, Regulator
99-00 R/LS084-58-580A-00
11
Ring, Snap¶
99-00 R/L B001-58-585
¶Included w/Regulator Handle Assy
12
Escutcheon, Handle
99-00 R/L B001-58-582A-00
13
Pad, Handle
99-00 R/L B092-58-863A
14
Regulator, Power
R NC11-58-590G
L NC11-59-590G
15
Motor, Regulator
R NC11-58-58XA
L NC11-59-58XA
Moulding Assy, Outer Belt-See Exterior Trim Section
Mldg, Inr Belt
Front-See Interior Trim Section
Rear-See Interior Trim Section
CONVERTIBLE TOP
Illustration Located in Next Column
1
Top Assy, Convertible
1999
Black NC10-R1-020W-66
Blue NC10-R1-020W-44
Tan NC10-R1-020W-88
2000
Black NC20-R1-020P-66
Blue NC20-R1-020D-44
Tan NC20-R1-020P-88
2001
To 1-22-01
Black NC20-R1-020P-66
Tan
Type 1 NC20-R1-020P-88
Type 2 NC72-R1-020A-88
From 1-22-01
Black NC20-R1-020P-66
Tan
Type 1 NC20-R1-020P-88
Type 2 NC72-R1-020C-88
2002
Black NC20-R1-020P-66
Tan
Type 1 NC20-R1-020P-88
Type 2 NC72-R1-020C-88
2003
Black NC20-R1-020R-66
Tan VC20-R1-020R-88
2004
Cloth N.A.
Vinyl N.A.
2
Cover Assy, Outer Top¶
1999-02
Black NC10-R1-210G-66
Blue 99-00 NC10-R1-210G-44
Tan
Type 1 NC10-R1-210G-88
Type 2 NC72-R1-210B-88
2003
Black NC10-R1-210G-66
Tan NC10-R1-210G-88
2004
Cloth
Beige/Black N077-R1-210-80
Black N077-R1-210-66
Dark Blue N077-R1-210-60
Vinyl NC10-R1-210G-66
3
Fastener Set¶ (a)
NA01-R1-230
(a) Included w/Outer Top Cover Assy
4
Frame, Cover¶
1999-00
To VIN 138751 NC10-R1-100A
From VIN 138751 NC10-R1-100G
2001-04 NC10-R1-100G
5
W/Strip, Header¶
NC10-R1-711D
6
Handle, Top¶
NA01-R1-331
7
Latch Assy, Top¶
99-03 R NA01-R1-310L
L NA01-R1-320L
04 R NA01-R1-310M
L NA01-R1-320M
8
Cap, Top Latch¶ (a)
R/L NA01-R1-311
9
Pad¶ (a)
R/L NA01-R1-313B
(a) Included w/Top Latch Assy
10
Striker, Latch¶
R NA01-R1-361H
L NA01-R1-371H
11
Plate Set, Front¶
NA01-R1-291A
12
Plate Set, Center Rear¶
NA01-R1-581D
13
Plate Set, Outer Rear¶
R NC10-R1-582B
L NC10-R1-592B
14
Welt, Seam¶
NC10-R1-281
15
W/Strip, Otr Frt Frame¶
R NC10-R1-411C
L NC10-R1-421C
16
W/Strip, Otr Ctr Frame¶
R NC10-R1-412D
L NC10-R1-422D
17
W/Strip, Otr Rear Frame¶
R NC10-R1-413A
L NC10-R1-423A
18
W/Strip, Inr Frt Frame¶
R NC10-R1-431B
L NC10-R1-441B
19
W/Strip, Inr Rear Frame¶
R NC10-R1-432C
L NC10-R1-442C
20
Retainer, Frt Frame W/Strip¶
R NA01-R1-461
L NA01-R1-471
21
Retainer, Ctr Frame W/Strip¶
R NA01-R1-462
L NA01-R1-472
22
Retainer, Rear Frame W/Strip¶
R NA01-R1-463
L NA01-R1-473
23
W/Strip, Side¶
R NC10-R1-721D
L NC10-R1-731C
24
Grommet, Retainer¶ (16)
NA01-R1-491
25
Moulding, Belt¶
NC10-R1-750D
26
Protector, Moulding¶
R NA01-R1-741B
L NA01-R1-742C
27
Cover, Belt¶
R NC10-R1-780E
L NC10-R1-790G
28
Retainer, Belt Cover¶
R/L G032-68-865A-00
29
Stopper, Outer Cover¶
R/L NA01-R1-981A
30
Rail, Drip¶
NC20-R1-560
¶Included w/Convertible Top Assy
Page 18
MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
250
madpl1_g01_
Page 250—April 22, 2004—13:34:28—Version Manufacturer

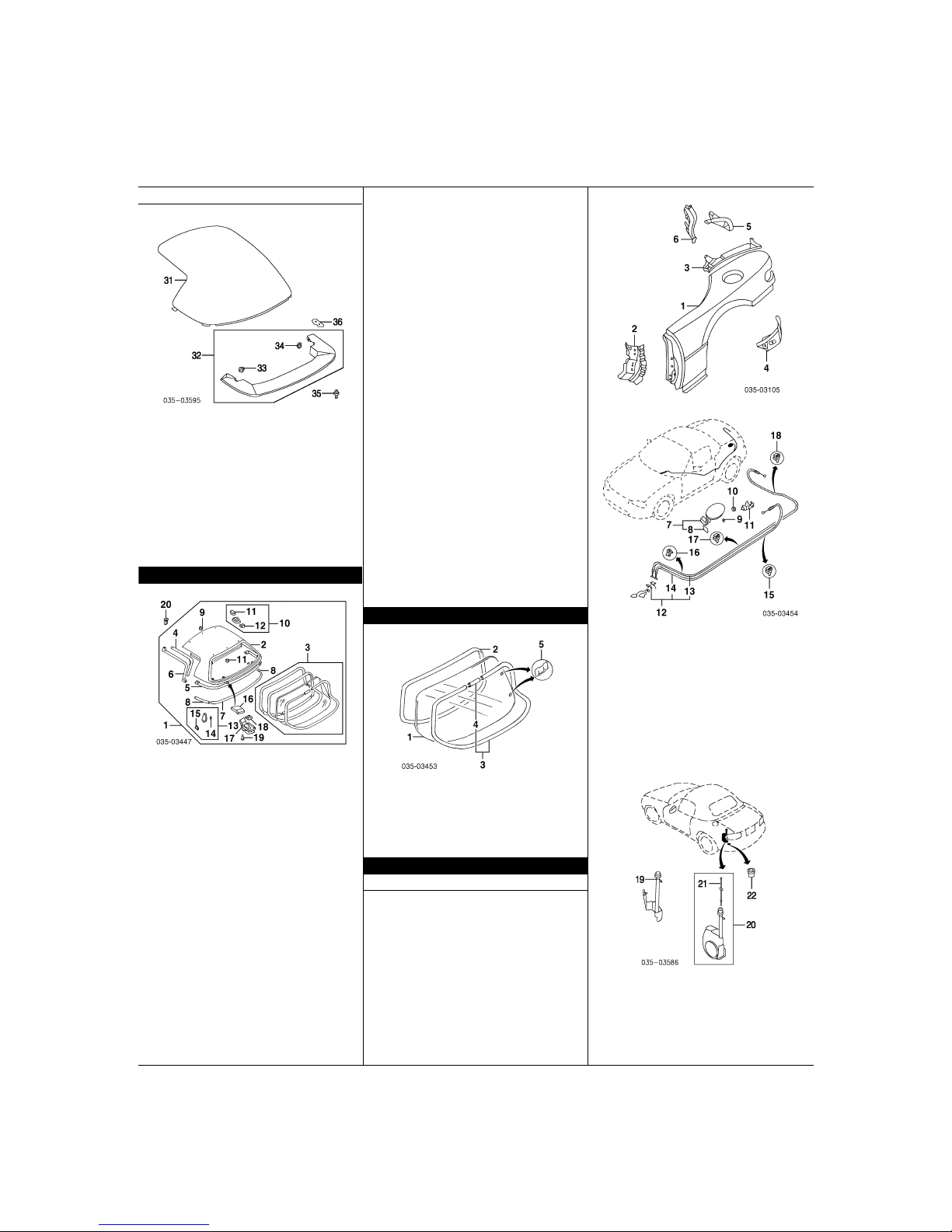

CONVERTIBLE TOP Cont’d
31
Cover, Top Inner
99-00 NA01-R1-96XD
32
Boot Assy
Beige 01-03 NC10-R1-960C-80
04 ND30-R1-960-66
Black 99-03 NC10-R1-960C-66
04 ND30-R1-960-66
Blue 00-03 NC10-R1-960C-53
04 NC10-R1-960C-60
Gray NC10-R1-960C-28
Tan NC10-R1-960C-21
33
Hook, Corner¶ (5)
Black NA01-R1-96Z-00
Silver NA01-R1-96Z-75
34
Hook, Top Boot¶ (4)
99-03 B235-R1-953
04 NC10-R1-96Z
¶Included w/Boot Assy
35
Hook, Inner (4)
NA01-R1-970A
36
Plate, Hook
R NA01-R1-381E
L NA01-R1-391E
HARDTOP
1
Panel Assy, Top
Black
Code A3F
1999-00 NC10-R1-810K-PZ
2001
To 1-1-01 NC10-R1-810K-PZ
From 1-1-01 NC10-R1-82XB-PZ
2002 NC10-R1-810L-PZ
2003 ND30-R1-810C-PZ
2004 ND30-R1-810G-PZ
Blue
Code 12K NC10-R1-810K-57
Code 20P NC10-R1-810K-40
Code 22A
2000 NC10-R1-810J-50
2001 NC10-R1-82XB-50
2002 NC10-R1-810L-50
2003 NC10-R1-810C-50
Code 23C NC10-R1-810N-51
Code 25E ND30-R1-810G-38
Ebony (Code 28W) ND30-R1-810G-88
Gray (Code 29Y) ND30-R1-810G-01
Green
Code A3V
2001 NC10-R1-82XB-55
2002 NC10-R1-810L-55
Code 18J
1999-00 NC10-R1-810K-46
2001 NC10-R1-82XB-46
2002 NC10-R1-810L-46
2003 ND30-R1-810C-46
2004 ND30-R1-810G-46
Code 25R 03 ND30-R1-810C-50
Orange (Code 18K) NC10-R1-810K-56
Red
Code A3E
Code A3E 99-00 NC10-R1-810K-SU
01 NC10-R1-82XB-SU
02 NC10-R1-810L-SU
03 ND30-R1-810C-SU
04 ND30-R1-810G-SU
Code 27A ND30-R1-810G-87
Silver (Code 22V)
1999 NC10-R1-810K-92
2000 NC10-R1-810J-68
2001 NC10-R1-82XB-68
2002 NC10-R1-810L-55
2003 ND30-R1-810C-68
2004 ND30-R1-810G-68
White
Code PT NC10-R1-810K-PT
Code A3D
2000 NC10-R1-810J-09
2001 NC10-R1-82XB-09
2002 NC10-R1-810L-09
2003 ND30-R1-810C-09
2004 ND30-R1-810G-09
Yellow (Code 26S) NC10-R1-82XB-76
2
Panel, Top¶ (P)
99-02 N007-68-031-00
03-04 ND30-68-030-00
(P) Paint to Match
3
Glass, Back Window¶-See Back Window Section
4
Retainer, Side W/Strip¶
RNA01-R1-882
LNA01-R1-892
5
W/Strip, Rear Top¶
NA01-R1-89XB
6
W/Strip, Side Top¶
R NC10-R1-881D
L NC10-R1-891D
7
Moulding, Center Belt¶
NA01-R1-935B
8
Moulding, Side Belt¶
RNA01-R1-936A
LNA01-R1-946A
9
Cover, Hole¶ (6)
G030-55-225-00
10
Latch Assy, Top Front¶
(2/Side) R NA01-R1-310L
LNA01-R1-320L
11
Cap, Latch¶ (a)
(2/Side) R/L NA01-R1-311
12
Pad, Cap¶ (a)
(2/Side) R/L NA01-R1-313B
(a) Included w/Top Front Latch Assy
13
Latch Assy, Rear Top¶
R/L NA02-R1-310G
14
Cap, Latch¶ (a)
R/L NA01-R1-311
15
Pad, Cap¶ (a)
R/L NA01-R1-313B
(a) Included w/Rear Top Latch Assy
16
Cover, Latch¶
RNA01-R1-861
LNA01-R1-871
17
Cushion, Latch¶
RNA01-R1-864
LNA01-R1-874
18
Plate, Latch¶
R/L NA01-R1-863
19
Pin, Latch¶
R/L NA01-R1-869
¶Included w/Top Panel Assy
20
Striker, Latch
RNA02-R1-361D
LNA02-R1-371D
BACK WINDOW
1
Glass, Back Window¶
Mazda 99-03 NB40-63-931
04 NB40-63-931D
2
Dam, Glass¶
NA01-63-895
3
Moulding Assy, Reveal¶
NAY1-63-930
4
Joint, Moulding¶ (a)
NA01-63-934
¶Included w/Top Panel Assy
(a) Included w/Reveal Moulding Assy
5
Terminal, Glass (2)
NC10-63-959A
QUARTER PANEL
SHEET METAL
Illustration Located in Next Column
1
Panel, Outer Quarter
R NCY0-70-400A
L NCY0-71-410A
2
Reinf, Door Striker
R NC10-70-460B
L NC10-71-460B
3
Rail, Rear Drip
R NC10-70-440A
L NC10-71-440A
4
Panel, Lower Rear
R NCY0-70-4A0
L NCY0-71-4A1B
5
Gusset, Rear
R NC10-70-4A5B
L NC10-71-4A5B
6
Housing, Lamp
R NC10-70-481B
L NC10-71-481B
7
Door Assy, Fuel
L NC10-42-410D
8
Spring, Fuel Door¶
L H043-42-431D
¶Included w/Fuel Door Assy
9
Stopper, Fuel Door (2)
L 0187-70-491
10
Nut, Fuel Door
L 9WA6-01-000B
11
Opener, Fuel Door
99-03 L EA01-56-890D
04 L B095-56-890E
12
Opener Assy, Luggage Lid
1999-00 NC10-56-850C
2001-04-Serviced by Components
13
Cable, Fuel Door Opener¶
NC10-56-880C
14
Cable, Luggage Lid Opener
1999-02¶ NC10-56-870C
2003-04 N067-56-870A
¶Included w/Luggage Lid Opener Assy
15
Clip, Fuel Door Cable
H260-67-054
16
Clip, Frt Luggage Lid Cable
9927-90-803
17
Clip, Ctr Luggage Lid Cable
H260-67-054
18
Clip, Rear Luggage Lid Cable
M003-66-941
19
Antenna, Manual
0000-81-154A
20
Antenna Assy, Power
NC72-76-930
21
Mast, Power Antenna¶
99-03 0000-81-904C
04 B05A-66-A30
¶Included w/Power Antenna Assy
22
Plug, Drain
B092-56-052
Page 19
MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
251
madpl1_g01_
Page 251—April 22, 2004—13:34:30—Version Manufacturer

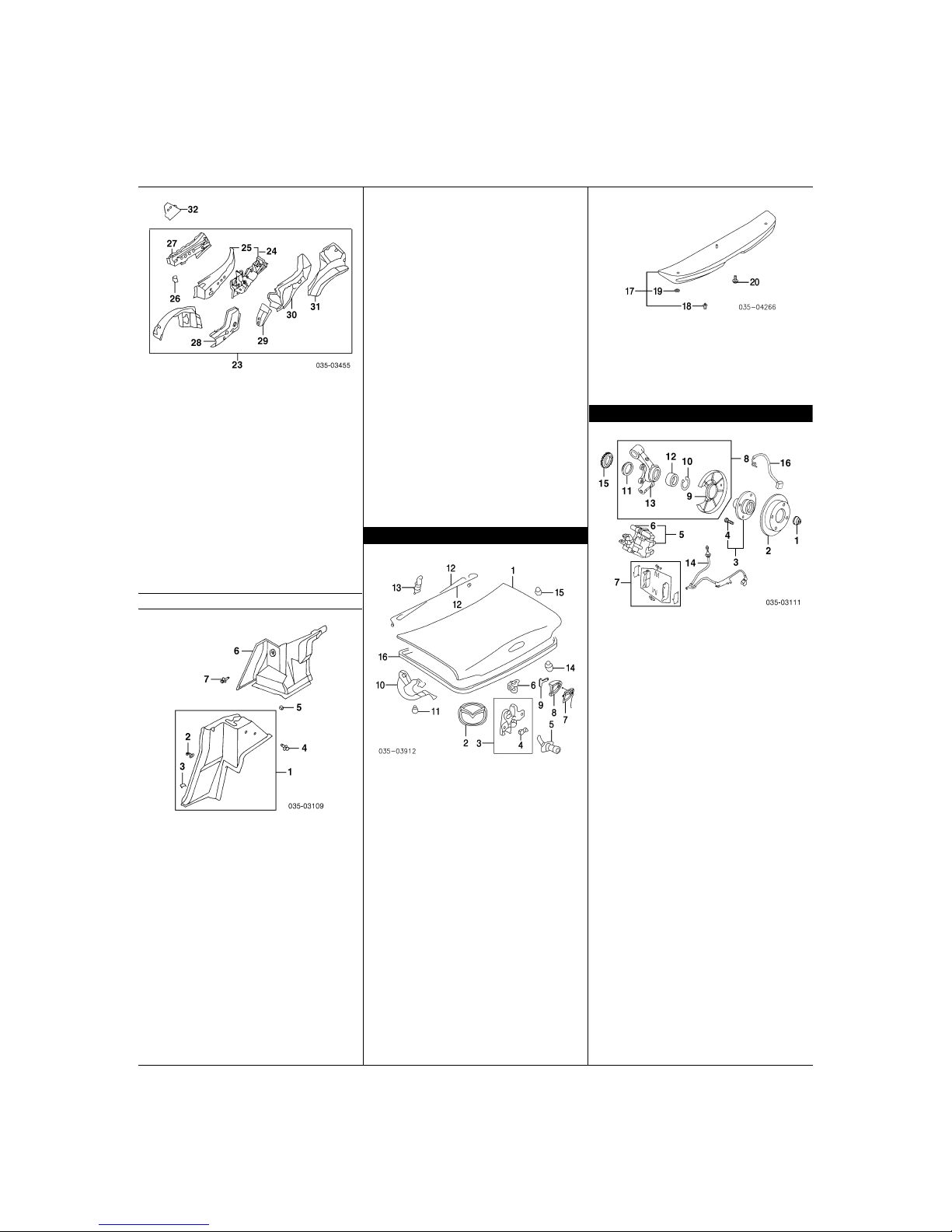

23
Panel Assy, Inner Quarter
99-00 R
NC10-70-100
L NC10-71-100
01-04 R N067-70-100
L N067-71-100
24
Panel Assy, Inner Upper¶
99-00 R
NC10-70-1X0
L NC10-71-1X0
01-04 R NA01-70-19XF
L NA01-71-19XF
25
Reinf, Inr Upr
1999-00¶ (a) R NA01-70-19XF
L NA01-71-19XF
2001-04-Serviced w/Inner Upper Panel Assy
(a) Included w/Inner Upper Panel Assy
26
Bracket, Inr Pnl¶
R/L NA01-71-192
27
Reinf, Quarter Panel¶
R NC10-70-117A
L NC10-71-117A
28
Plate, Joint¶
R NC10-70-1AXA
L NC10-71-1AXA
29
Plate, End¶
R NC10-70-112A
L NC10-71-112A
30
Reinf, Belt Line¶
R NA01-70-116D
L NA01-71-116F
31
Wheelhouse, Outer¶
R NCY0-70-11X
L NCY0-71-11X
¶Included w/Inner Quarter Panel Assy
32
Plate, Closing
R N067-70-670
L N067-71-670
INTERIOR TRIM
1
Panel Assy, Quarter Trim
Conv Top
w/Aero Board
Beige 01-03 R N053-68-520C-80
L N053-68-550C-80
04 R NC31-68-520C-80
L NC31-68-550C-80
Black 99-03 R N053-68-520C-00
L N053-68-550C-00
04 R NC31-68-520C-00
L NC31-68-550C-00
Tan R N053-68-520C-21
L N053-68-550B-21
w/o Aero Board
Beige 01-03 R NC10-68-520C-80
L NC10-68-550C-80
04 R NC30-68-520C-80
L NC30-68-550C-80
Black 99-03 R NC10-68-520C-00
L NC10-68-550C-00
04 R N053-68-520C-00
L N053-68-550C-00
Tan 01-02 R NC10-68-520C-21
L NC10-68-550C-21
Hardtop
w/Aero Board
Beige 01-03 R NC31-68-520C-80
L NC31-68-550C-80
04 R N053-68-520C-80
L N053-68-550C-80
Black 00-03 R NC31-68-520C-00
L NC31-68-550C-00
04 R N053-68-520C-00
L N053-68-550C-00
Tan 01-02 R NC31-68-520C-21
L NC31-68-550C-21
w/o Aero Board
Beige 01-03 R NC30-68-520C-80
L NC30-68-550C-80
04 R NC10-68-520C-80
L NC10-68-550C-80
Black 99-03 R NC30-68-520C-00
L NC30-68-550C-00
04 R NC10-68-520C-00
L NC10-68-550C-00
Tan 01-02 R NC30-68-520C-21
L NC30-68-550C-21
2
Clip, Upr Trim Panel¶
R/L GJ21-68-865
3
Clip, Lwr Trim Panel¶
Beige R/L NC10-68-AD2C-80
Black 99-03 R/L NC10-68-AD2B-00
04 R/L NC10-68-AD2C-00
Tan 01-02 R/L NC10-68-AD2B-21
¶Included w/Quarter Trim Panel Assy
4
Fastener, Trim Panel
Beige R/L B499-68-AC3A-80
Black R/L B499-68-AC3A-00
Tan R/L B499-68-AC3A-21
5
Cover, Hole
Beige R/L NA01-68-222A-80
Black R/L NA01-68-222A-00
Tan R/L NA01-68-222A-21
6
Cover, Link
Beige R NC10-68-282A-80
L NC10-68-292A-80
Black R NC10-68-282A-02
L NC10-68-292A-02
Tan R NC10-68-282A-21
L NC10-68-292A-21
7
Fastener, Link Cover
Beige R/L B467-68-AC3-80
Black R/L B467-68-AC3-02
Tan R/L B467-68-AC3-21
LUGGAGE LID
1
Lid, Luggage
NCY0-52-61XG
2
Emblem (Adhesive)
NC37-51-731A
3
Latch Assy
1999-00 NC10-56-820C
2001-02
w/Keyless Entry N066-56-820D
w/o Keyless Entry NC10-56-820C
2003-04
w/Keyless Entry NC88-56-820A
w/o Keyless Entry NC87-56-820B
4
Clip, Latch¶
G030-59-315
¶Included w/Latch Assy
5
Cylinder, Luggage Lid Lock¶
NCY1-76-230A
¶Included w/Complete Lock Set-listed in Steering Wheel/Column
Section
6
Striker, Latch
NA01-56-840
7
Cable, Latch Release
NC10-56-8B0B
8
Handle, Release
BJ0E-56-8B2B
9
Base, Release Handle
NC10-56-8B4A
10
Hinge
R NA01-52-710C
L NA01-52-720B
11
Cushion, Hinge
R/L NA01-56-802
12
Bar, Torsion
1999-03 R NC10-52-791B
L NC10-52-792B
2004
w/Turbo R N115-52-791A
L N115-52-792
w/o Turbo R NC10-52-791B
L NC10-52-792B
13
Holder, Torsion Bar
NA01-56-805
14
Cushion, Rubber
1999-01
To VIN 106606 R/L B481-56-786
From VIN 106606 R/L H043-56-786
2002-04 R/L H043-56-786
15
Plug, Drain
R/L NA01-56-051
16
W/Strip, Lid
NC10-56-951
17
Spoiler Assy, Air
Gray (Code 29Y) N115-51-960-01
Green (Code 18J) N115-51-960-46
Red (Code 27A) N115-51-960-87
Silver (Code 22V) N115-51-960-67
White (Code A3D) N115-51-960-09
18
Clip, Spoiler¶
R/L N115-51-685
19
Gasket, Spoiler¶ (3)
N115-51-965
¶Included w/Air Spoiler Assy
20
Bolt, Spoiler
R/L 9YA0-20-612
REAR SUSPENSION
1
Nut, Axle
R/L GJ21-33-042B
2
Rotor, Brake
1999-00 R/L BB4C-26-251C
2001
Std Susp R/L BB4C-26-251C
Sport Susp R/L N06Y-26-251B
2002-04
Std Susp R/L BB4C-26-251C
Sport Susp
w/Dacron Coating R/L N06Y-26-251B
w/o Dacron Coating R/L N06Y-26-251B
3
Hub Assy
R/L B01A-33-060A
4
Bolt, Lug¶ (4/Side)
R/L B01Y-33-062
¶Included w/Hub Assy
5
Caliper Assy, Brake
1999-00 R NAY5-26-98ZR
L NAY5-26-99ZR
2001-04
Std Susp R/L NAY5-26-98ZR
Sport Susp R/L N0Y7-26-98ZR
6
Support, Caliper¶
1999-00 R NA75-26-28X
L NA75-26-29X
2001-04
Std Susp R NA75-26-28X
L NA75-26-29X
Sport Susp R N067-26-28X
L N067-26-29X
¶Included w/Brake Caliper Assy
7
Pad Set, Brake
1999-00 NAY1-26-46ZB
2001
Std Susp N0Y8-26-43ZA
Sport Susp
To 11-1-01 N069-26-43ZA
From 11-1-01 N0Y9-26-43ZC
2002
Std Susp N0Y8-26-43ZA
Sport Susp N0Y9-26-43ZC
2003-04
Std Susp N0Y8-26-43ZA
Sport Susp N0Y7-26-48ZB
8
Knuckle Assy
1999-00
w/ABS R NC14-26-130
L NC14-26-140
w/o ABS R NC10-26-130
L NC10-26-140
2001-04
Std Susp R NC10-26-130
L NC10-26-140
Sport Susp
w/ABS R N069-26-130
L N069-26-140
w/o ABS R N067-26-130
L N067-26-140
Page 20
MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
252
madpl1_g01_
Page 252—April 22, 2004—13:34:31—Version Manufacturer
REAR SUSPENSION Cont’d
9
Shield, Splash¶
1999-00 R/L B530-26-261B
2001-04
Std Susp R/L B530-26-261B
Sport Susp R/L N067-26-261
10
Ring, Retaining¶
R/L B21M-33-048
11
Seal, Grease¶
R/L G304-33-065
12
Bearing, Knuckle¶
R/L B455-33-047D-MV
13
Knuckle¶
w/ABS R NC14-26-112B
L NC14-26-122B
w/o ABS R NC10-26-112B
L NC10-26-122B
¶Included w/Knuckle Assy
14
Sensor, Rear ABS-See ABS/Brakes Section
15
Ring, Frt ABS Sensor
w/Turbo R/L G14V-26-471
w/o Turbo R/L BC4C-33-471
16
Hose, Brake
R NA75-43-980A
L NA75-43-990A
17
Spring, Coil
1999-00
Std Susp R/L NC12-28-011D
Sport Susp R/L NC10-28-011B
2001-03
Std Susp R/L N066-28-011A
Sport Susp
Firm R/L N066-28-011A
Hard R/L N067-28-011
2004
Std Susp R/L N066-28-011A
Sport Susp
Firm R/L N066-28-011A
Hard
w/Turbo R/L NE45-28-011
w/o Turbo R/L N067-28-011A
18
Strut
1999-00
Std Susp R/L NC12-28-700D
Sport Susp R/L NC10-28-700C
2001-02
Std Susp R/L N066-28-700
Sport Susp
Firm R/L N066-28-700
Hard R/L N067-28-700
2003
Std Susp R/L N066-28-700
Sport Susp R/L N067-28-700
2004
Std Susp R/L N066-28-700
Sport Susp
Firm R/L NE02-28-700
Hard
w/Turbo R/L NE45-28-700A
w/o Turbo R/L N067-28-700
19
Rubber, Mounting
R/L NC10-28-0A3A
20
Stopper, Bumper
R/L NC10-28-111B
21
Boot, Dust
R/L NC10-28-015A
22
Washe r
R/L NC10-28-777
23
Bushing, Upper
R/L NC10-28-775
24
Bushing, Lower
R/L NC10-28-776
25
Seat, Spring
R/L NC10-28-012B
26
Insulator, Mount
R/L NC10-28-340C
27
Retainer, Strut
R/L NC10-28-774
28
Nut, Flange
R/L D061-28-7A1
29
Gasket, Mount
R/L G030-28-013A
30
Arm, Upper
R/L NC10-28-C10
31
Bushing, Upr Arm
(2/Side) R/L NA01-28-8C0C
32
Nut, Upper Arm (2/Side)
R/L 8871-34-222
33
Arm, Lower
R NC10-28-310
L NC10-28-360
34
Bushing, Frt Lwr Arm (2/Side)
R NA01-28-460
L NA01-28-4D0
35
Bushing, Rear Lwr Arm (2/Side)
R NA01-28-460
L NA01-28-4D0
36
Plate, Cam (2/Side)
R/L NA80-28-473A
37
Nut, Plate (4/Side)
R/L B001-39-037B
38
Bolt, Adjust (2/Side)
R/L NA80-28-66ZD
39
Bar, Stabilizer
1999-03
Std Susp NC12-28-151A
Sport Susp N023-28-151A
2004
Std Susp N023-28-151A
Sport Susp
Firm N023-28-151A
Hard
w/Turbo NE45-28-151
w/o Turbo NC12-28-151A
40
Link, Stab Bar
R GA2A-34-150A
L GA2A-34-170A
41
Bracket, Stab Bar
R/L FB01-28-155
42
Bushing, Stab Bar
1999-03
Std Susp R/L G113-28-156
Sport Susp R/L N023-28-156
2004
Std Susp R/L N023-28-156
Sport Susp
Firm R/L N023-28-156
Hard
w/Turbo R/L NE45-28-156A
w/o Turbo R/L G113-28-156
43
Crossmember, Suspension
99-00
NC10-28-800A
01-04 NC10-28-800D
44
Washer, Crossmember
R/L NA01-28-880C
45
Bolt, Control Link
99-03 R/L NA01-28-092
04 R/L 9YA0-21-286
46
Bar, Rear Cross
1999-00 NC10-28-E90D
2001-04
Std Susp NC10-28-E90D
Sport Susp N067-28-E90A
REAR DRIVE AXLE
1
Shaft Assy, Axle
w/Turbo R/L MA03-25-50X
w/o Turbo R/L MD21-25-500
2
Joint Assy, Outer¶
1999-00
w/ABS R/L MD12-22-510B
w/o ABS R/L MD11-22-510A
2001-03 R/L MD12-22-510B
2004-Serviced w/Axle Shaft Assy
3
Boot Set, Outer¶
1999-03 (a) R/L M090-22-530-9U
2004
w/Turbo R/L MA03-22-530
w/o Turbo R/L M090-22-530-9U
(a) Included w/Outer Joint Assy
4
Joint Assy, Inner¶
w/Turbo R/L MA03-22-520
w/Turbo R/L MD02-22-520B
5
Boot, Inner¶ (b)
w/Turbo R/L MA01-22-540
w/o Turbo R/L M090-22-540-9U
¶Included w/Axle Shaft Assy
(b) Included w/Inner Joint Assy
6
Case, Differential
MA02-27-600A
FUEL TANK
1
Cap, Filler
99-03 NC10-42-250B
04 NC11-42-250
2
Pipe Assy, Filler
1999 NC10-42-210H
2000
To VIN 138751 NC10-42-210H
From VIN 138751 NC49-42-210A
2001-04 NC49-42-210E
3
Gasket, Filler Pipe¶
0866-42-366B
¶Included w/Filler Pipe Assy
4
Protector, Filler Pipe
NC11-42-291A
5
Hose, Filler
NC10-42-231
6
Cover Assy, Filler Pipe
1999 NC10-42-240
2000 NC10-42-240
To VIN 138751 NC10-42-240
From VIN 138751 NC49-42-240
2001-04 NC49-42-240
7
Gasket, Cover¶
NA01-42-233
¶Included w/Filler Pipe Cover Assy
8
Valve, Non Return
99 GA2A-42-270
00 GE4T-42-270
01-04 GE4T-42-270B
9
Tank, Fuel
99-02 NC49-42-110B
03 ND30-42-110
04 ND30-42-110A
10
Insulator, Front Tank
R NC10-42-761
L NA01-42-761
11
Insulator, No. 1 Lwr Tank
NC10-42-740A
12
Insulator, No. 2 Lwr Tank
NC10-42-743A
13
Insulator, No. 3 Lwr Tank
NC10-42-74XC
14
Pump Assy, Fuel
1999-00 BP4W-13-35ZF
2001-03 BP4W-13-35ZG
2004
w/Turbo BP8J-13-35Z
w/o Turbo BP4W-13-35ZG
15
Pump, Fuel¶
w/Turbo BP8J-13-350
w/o Turbo BP4W-13-350A
16
Regulator, Fuel¶
BP4W-13-280B
17
Gasket, Fuel Pump¶
BP4W-60-962
¶Included w/Fuel Pump Assy
18
Gauge, Fuel Tank
NC10-60-960

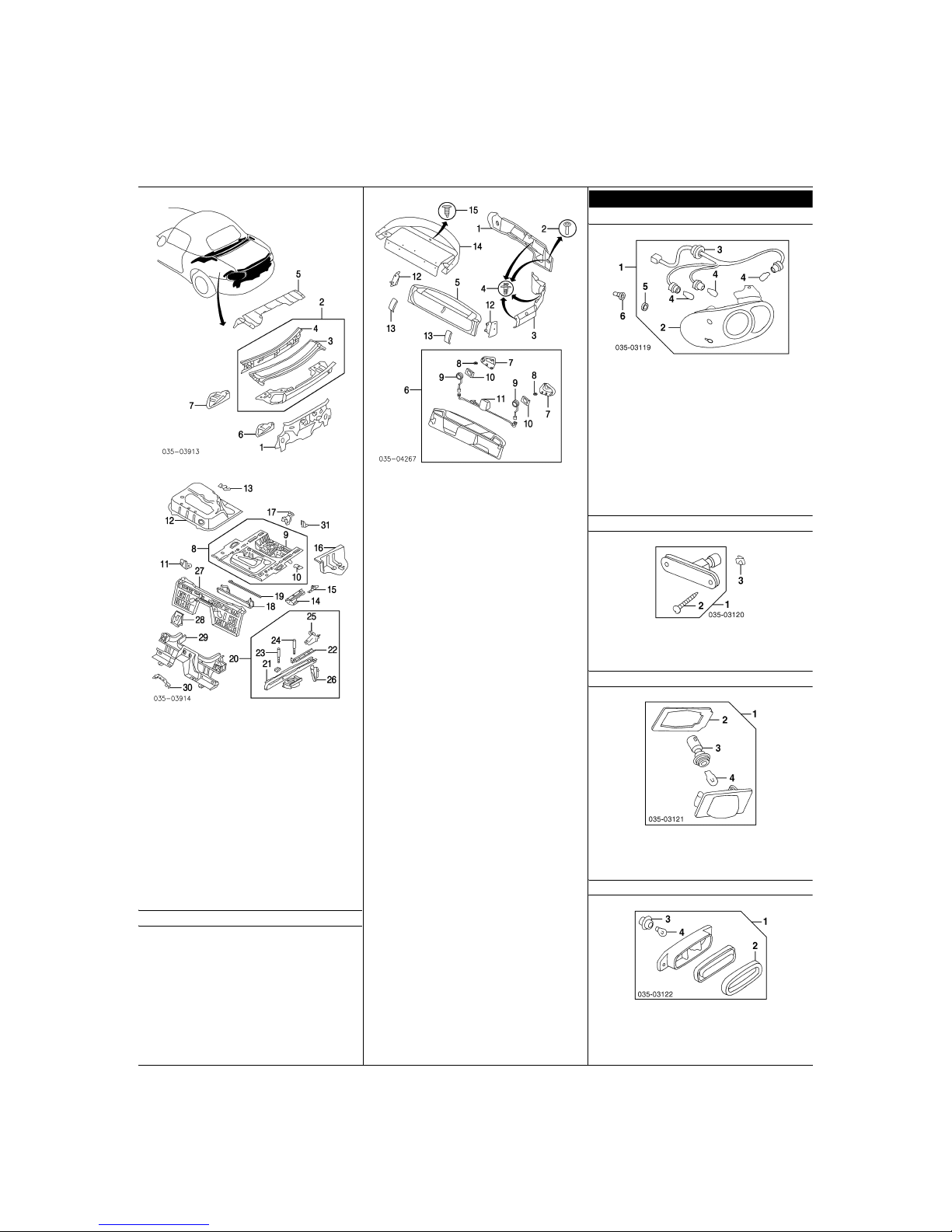

REAR BODY
SHEET METAL
Illustration Located in Next Column
1
Panel, Rear Body
99-02 NC10-70-750H
03-04 NC72-70-750
2
Panel Assy, Bulkhead
NC10-70-50Y
3
Panel, Rear Deck¶
NA01-70-521B
4
Member, Rear Deck¶
NA01-70-530D
¶Included w/Bulkhead Panel Assy
5
Panel, Package Tray
N066-56-5EXC
6
Plate, Corner
R NC10-70-481B
L NC10-71-481B
7
Cover, Service Hole
NA01-56-971
8
Panel Assy, Rear Floor
NCY0-53-710A
9
Panel, Rear Floor¶
N067-53-71YA
10
Bracket, Lower¶
1353-65-190
¶Included w/Rear Floor Panel Assy
11
Gusset, Floor Center
NA01-53-725A
12
Frame, Upper Floor
N067-53-71X
13
Brace, Frame
NC10-53-718
14
Plate, Side Front
R NA01-53-750B
L NA01-54-750B
15
Plate, Side Rear
R/L NA01-53-760B
Page 21
MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
253
madpl1_g01_
Page 253—April 22, 2004—13:34:33—Version Manufacturer
16
Extension, Rear Floor
R NC10-53-741B
L NC10-54-741A
17
Bracket, Jack
N067-53-79XB
18
Crossmember, Rear Floor
NC10-53-931
19
Reinf, Rear Floor
NC10-53-728
20
Rail Assy, Rear
R NC10-53-810F
L NC10-54-810F
21
Rail, Rear¶
R NC10-53-811A
L NC10-54-811A
22
Reinf, Rear Rail¶
R/L NC10-53-82Z
23
Bolt, Front Rail¶
R/L 9YA9-91-201A
24
Bolt, Rear Rail¶
R/L 9YA9-91-203
25
Bracket, Rear Bumper¶
R/L NC10-53-89XA
26
Bracket & Hook¶
R NC10-53-890A
L NC10-54-890A
¶Included w/Rear Rail Assy
27
Pan, Center Floor
99-02 N067-53-720A
03-04 N067-53-720B
28
Gusset, Center Floor
99-00 NC10-54-770A
01-04 N067-54-770B
29
Xmbr, Center Floor
99-00 NC72-53-900
01-02 NC72-53-900B
03-04 ND30-53-900
30
Brkt, Brake Cable
NA01-53-819
31
Brkt, Fuel Tank
NA01-54-780
INTERIOR TRIM
Illustration Located in Next Column
1
Panel, Rear End Trim
99-00 NC10-68-891A-04
01-04 NC72-68-891-04
2
Cap, Rear End Trim
R/L KA01-68-86YA
3
Trim, Side Trunk
R NC10-68-851-04
L NC10-68-871-04
4
Fastener, Trim (14)
Beige GJ21-68-885B-80
Black GJ21-68-885B-02
Tan GJ21-68-885B-21
5
Board, Aero
1999-03
Beige 01-03 N053-68-3X0E-80
Black NC10-V1-260F-02
Tan 99-02 N053-68-3X0E-21
6
Board Assy, Aero
2004
w/Rear Speaker
w/Bose Speaker System
Beige
To 1-1-04 NE06-68-3X0A-80
From 1-1-04 NE06-68-3X0B-80
Black
To 1-1-04 NE06-68-3X0A-02
From 1-1-04 NE06-68-3X0B-02
w/o Bose Speaker System
Beige NE01-68-3X0B-80
Black NE01-68-3X0B-02
w/o Rear Speaker
Beige NE45-68-3X0A-80
Black NE45-68-3X0A-02
7
Cover, Speaker¶
Beige R NE01-68-84XA-80
L NE01-68-86XA-80
Black R NE01-68-84XA-02
L NE01-68-86XA-02
8
Spring, Mounting¶
1999-03 R/L J001-64-345
2004
To 8-18-03 R/L J001-64-345
From 8-18-03 R/L S47P-64-345
9
Speaker, Rear¶
w/Bose Speaker System R/L NE02-66-960A
w/o Bose Speaker System
R/L NE01-66-960A
10
Bracket, Speaker¶
R/L NE02-66-9B1A
11
Amplifier, Radio¶
To 1-1-04 NE02-66-92XA
From 1-1-04 NE02-66-92XB
¶Included w/Aero Board Assy
12
Bracket, Board
1999-03
Beige 01-03 R N053-68-3CX-80
L N053-68-3CY-80
Black R N053-68-3CX-02
L N053-68-3CY-02
Tan 99-02 R N053-68-3CX-21
L N053-68-3CY-21
2004
Beige R NE01-68-3CX-80
L NE01-68-3CY-80
Black R NE01-68-3CX-02
L NE01-68-3CY-02
13
Cover, Seat Belt
1999-03
Beige 01-03 R N053-68-3R1C-80
L N054-68-3R1C-80
Black R N053-68-3R1C-02
L N054-68-3R1C-02
Tan 99-02 R N053-68-3R1C-21
L N054-68-3R1C-21
2004
Beige R NE01-68-3R1A-80
L NE02-68-3R1A-80
Black R NE01-68-3R1A-02
L NE02-68-3R1A-02
14
Trim, Package Tray¶
Sport, Std Pkg
Black NC10-68-3F1E-02
Tan NC10-68-3F1E-21
10th Anniversary Pkg N055-68-3F1-55
¶Order by Application
15
Fastener, Trim (8/Side)
Beige G032-68-865A-80
Black G032-68-865A-00
Tan G032-68-865A-39
REAR LAMPS
COMBINATION LAMP
1
Lamp Assy, Combination
99-00 R
NC10-51-150C
L NC10-51-160C
01-04 R N066-51-150
L N066-51-160
2
Lens & Body¶
99-00 R NC10-51-170C
L NC10-51-180C
01-04 R N066-51-170
L N066-51-180
3
Socket & Wire¶
99-00 R/L NC10-51-155
01-04 R/L N066-51-155
4
Bulb¶
Back-Up R/L 9970-06-210
Signal R/L 9970-06-210Y
Stop/Tail R/L 9970-08-215
5
Gasket¶
Outer R/L H432-51-158
Inner R/L N066-51-158
¶Included w/Combination Lamp Assy
6
Grommet
R/L GA7B-51-146
SIDE MARKER LAMP
1
Lamp Assy, Side Marker
R NC10-51-5H0A
L NC10-51-5J0A
2
Screw, Lamp¶ (2/Side)
R/L 9976-80-420
¶Included w/Side Marker Lamp Assy
3
Nut, Lamp (2/Side)
R/L G158-50-803
LICENSE LAMP
1
Lamp Assy, License
R/L NC10-51-270B
2
Gasket¶
R/L NC10-51-273A
3
Socket¶
R/L NC10-51-272
4
Bulb¶
R/L 0000-11-0194
¶Included w/License Lamp Assy
HIGH MOUNT STOP LAMP
1
Lamp Assy, Stop
NC10-51-580C
2
Gasket¶
NC10-51-592A
3
Socket¶
NA12-51-584A
4
Bulb¶
9970-13-210
¶Included w/Stop Lamp Assy
Loading...
