Mazda ECE NAVI, 1MI00, 1MI01, 1MI011 USER MANUAL
1

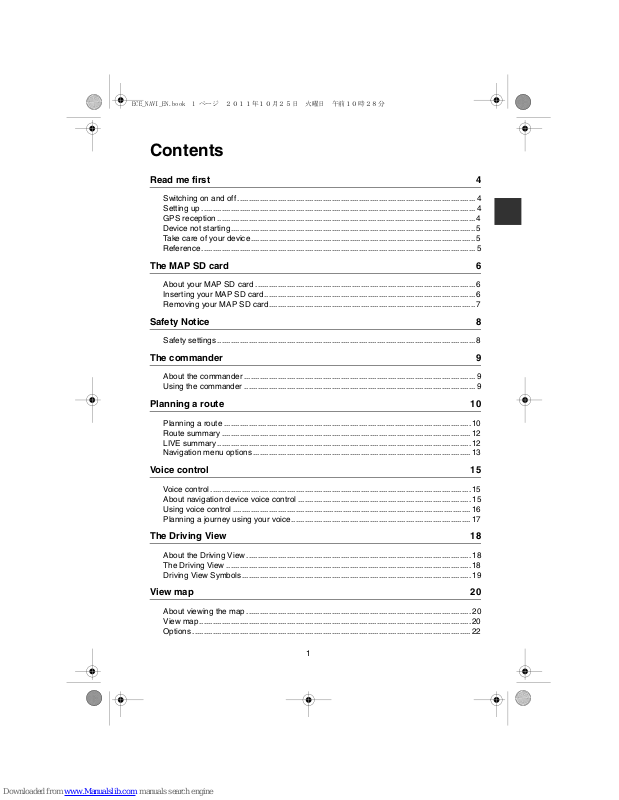

Contents
Read me first 4
Switching on and off .......................................................................................................... 4
Setting up ..........................................................................................................................4
GPS reception ...................................................................................................................4
Device not starting.............................................................................................................5
Take care of your device.................................................................................................... 5
Reference..........................................................................................................................5
The MAP SD card 6
About your MAP SD card ..................................................................................................6
Inserting your MAP SD card .............................................................................................. 6
Removing your MAP SD card............................................................................................ 7
Safety Notice 8
Safety settings................................................................................................................... 8
The commander 9
About the commander ....................................................................................................... 9
Using the commander .......................................................................................................9
Planning a route 10
Planning a route ..............................................................................................................10
Route summary ............................................................................................................... 12
LIVE summary ................................................................................................................. 12
Navigation menu options................................................................................................. 13
Voice control 15
Voice control.................................................................................................................... 15
About navigation device voice control ............................................................................. 15
Using voice control .......................................................................................................... 16
Planning a journey using your voice................................................................................ 17
The Driving View 18
About the Driving View .................................................................................................... 18
The Driving View .............................................................................................................18
Driving View Symbols...................................................................................................... 19
View map 20
About viewing the map .................................................................................................... 20
View map......................................................................................................................... 20
Options ............................................................................................................................ 22
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
2
Map corrections 23
About Map Share............................................................................................................. 23
Sounds and voices 24
About sounds and voices ................................................................................................24
About computer voices.................................................................................................... 25
Selecting a voice .............................................................................................................25
Changing the volume level .............................................................................................. 25
Settings 26
About Settings ................................................................................................................. 26
Home location.................................................................................................................. 26
Favourites ........................................................................................................................ 26
Safety settings.................................................................................................................27
Show POI on map ...........................................................................................................27
Switch map......................................................................................................................28
Turn off voice guidance / Turn on voice guidance............................................................ 28
Help 29
About getting help............................................................................................................ 29
Using Help to drive to a local service ..............................................................................29
Help menu options........................................................................................................... 29
Services 31
About LIVE Services ....................................................................................................... 31
Safety Notice ...................................................................................................................31
Activating LIVE Services .................................................................................................31
LIVE Services subscriptions............................................................................................ 32
Traffic 33
About traffic information................................................................................................... 33
About TomTom HD Traffic................................................................................................ 33
Using traffic information................................................................................................... 34
Speed cameras 35
Important .........................................................................................................................35
About Speed Cameras .................................................................................................... 35
Speed camera warnings.................................................................................................. 35
Changing the way you are warned.................................................................................. 36
Weather 37
About Weather................................................................................................................. 37
Requesting a weather report ........................................................................................... 37
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
3
TomTom HOME 38
About TomTom HOME..................................................................................................... 38
Installing TomTom HOME ................................................................................................ 38
MyTomTom account......................................................................................................... 39
Updating your device....................................................................................................... 40
Customer support 41
Getting help to use your navigation device...................................................................... 41
Status & information ........................................................................................................ 41
Addendum and Copyright 42
Addendum and Copyright................................................................................................ 42
Copyright notices 44
Software licenses 45
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
4
Read me first
Switching on and off
Your Navigation Device switches on when your car starts and switches off automatically when
you turn off your car's engine.
Until a connection has been established between the Audio control unit and the Navigation
Device, the screen shows audio-related information and the Nav button on the main display is
inactive. In the case of restart of the navigation device, press the Nav button. A Mazda/
TomTom screen is shown and it may take up to 30 seconds for the main screen to appear.
Under extreme temperature conditions, the navigation device may not start. When the
temperature is within the normal range again, the device should start, if the device fails to
start automatically in this situation, stop your car engine and start the car engine again.
Setting up
Important: Take care to select the correct language as the language you choose will be used
for all text on the screen.
When you first switch on your device, you have to answer a few questions to set up the
device. Answer the questions by tapping the screen.
GPS reception
When you first start your Navigation Device navigation device, the device may need a few
minutes to determine your GPS position and show your current position on the map. In future,
your position will be found much faster, usually within a few seconds.
In areas where GPS reception is not possible, such as tunnels, your location may not be
accurate.
Important: The GPS antenna is located in the dashboard so do not put objects on the
dashboard.
Note: In some situations, your navigation system may restart when turning your key in the
ignition from ACC-ON to the engine start position. If this happens, it may take up to 30
seconds for the main screen to appear on the navigation system.
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
5
Device not starting
In rare cases, your TomTom navigation module may not start correctly or may stop
responding to your taps. For example, if the device temperature is too high or too low, the
system shuts down.
In rare circumstances, you may need to reset your navigation device. To reset your device,
switch off the car engine and then remove the MAP SD card. Re-insert the MAP SD card and
switch the car engine on again.
Take care of your device
It is important to take care of your device as follows:
Your device is not designed for use in extreme temperatures and any such exposure may
cause permanent damage.
Do not open the casing of your device under any circumstances. Doing so may be dangerous
and will invalidate the warranty.
Important: If you sell your car, you should remove all personal information from your
navigation device first. To remove your personal information, tap Settings and then tap Reset
factory settings.
Reference
Refer to online manual for full operations.
Depending on the region in which the system is used, there may be differences in the
functions/displayed specifications which can be used.
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
6
The MAP SD card
About your MAP SD card
A MAP SD card is supplied with your navigation system. It includes a map of your country or
group of countries.
Updates are regularly produced by TomTom, particularly for maps and services like speed
cameras. These updates are only available for download by inserting your navigation
system's MAP SD card into a computer that is connected to the internet.
Once your new vehicle has been delivered, if a newer version of your map is available within
60 days of first using your navigation device, you can download this map for free.
Important: In order to qualify for the latest map guarantee you need to check if a new map is
available within the 60 day period, and you are only entitled to one free map download.
Inserting your MAP SD card
To insert your MAP SD card into your Navigation Device in your car, do the following:
1. Switch off the ignition in the car so that the navigation system is switched off.
2. Open the sliding door and insert the MAP SD card, taking care to handle it carefully and
that it is the right way round.
Note: Only use your MAP SD card for operating and updating your navigation system. Do
not insert the MAP SD card into another vehicle or into any other device such as a
camera.
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
7
Removing your MAP SD card
To remove your MAP SD card from your Navigation Device in your car, do the following:
1. Switch off the ignition in the car so that the navigation system is switched off.
2. Slide the door open and push gently on the MAP SD card.
3. Remove the MAP SD card, taking care to handle it carefully.
Use the SD card after the doors are securely closed. Switch the ignition off before inserting/
removing the SD card.
Data is being writing on the SD card directly after the sliding doors are opened. Do not
remove the SD card until the SD card removal authorization screen is displayed (about 3
seconds).
When replacing the Navigation Device due to damage, it is necessary to update the SD card
from TomTom Home so that the SD card information can be re-read. Consult your dealer for
details.
Please use only genuine Mazda SD card, and do not use other SD card
In case the MAP SD card is damaged, personal data in MAP SD card are not guaranteed. In
this case, the user can backup and restore your data using TomTom Home. Please refer to
tomtom.com/services for details.
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
8
Safety Notice
Some TomTom navigation devices contain a GSM/GPRS module which can interfere with
electrical devices such as cardiac pacemakers, hearing aids and aviation equipment.
Interference with these devices may endanger the health or life of you or others.
If your device includes a GSM/GPRS module, do not use it near unprotected electrical units
or in areas where the use of mobile telephones is prohibited, such as hospitals and airplanes.
Safety settings
We recommend using the safety settings to make your driving as safe as possible.
These are some of the options included in the safety settings:
• Show safety reminders
• Warn when driving faster than allowed
If your device supports voice commands, you can also drive more safely by using voice
commands to control your navigation device.
Navigation operation
- Avoid operating while driving. Operate after stopping the vehicle.
- Do not focus your attention on the display while driving. Otherwise an accident could occur
as a result of not paying attention to the road.
- Always obey the traffic laws of the country in which the vehicle is being driven.
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
9
The commander
About the commander
Important: The commander is only available for the European model.
The commander is an input device located near the arm rest of your car in the central
console.
It has a central stick that you can move in the following ways:
• Push in
• Rotate left or right
• Push the stick forwards or backwards
• Push the stick left or right
Using the commander
Important: The commander is only available for the European model.
1. Push in - selects the item in focus, for example, the volume control when focused on the
middle panel of the status bar in the Driving View. Switches items on or off.
2. Rotate left or right - operates slider bars, such as the volume control, and zoom in/out in
the Driving View.
3. Push forward or back - moves the focus around the different areas of the screen or around
the map when browsing.
4. Push left or right - moves you between pages in a menu or between tabs on a screen.
Examples of how to carry out common tasks using the commander
• To access the Main menu from the Driving View, push the button in.
• To zoom in or out in the Driving View, use rotate right and left.
• When focused on the map in the Driving View, push right to access the traffic menu.
• When focused on the map in the Driving View, push left to access the quick menu.
• When focused on the map in the Driving View, push back towards you to access the
volume control in the centre panel of the status bar.
• To access the Driving View from the Main menu, push the stick back towards you until you
are focused on the Done button, then push the button in.
• To move between letters on the keyboard screen, push left or right. Use push up or back to
move to the letter above or below. You can also use rotate left or right to move between
letters.
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
10
Planning a route
Planning a route
Important: In the interest of safety and to reduce distractions while you are driving, you
should always plan a route before you start driving.
To plan a route on your Navigation Device, do the following:
1. Tap the screen to open the Main menu.
2. Tap Navigate to.
3. Tap Address.
You can change the country or state setting by tapping the flag before you select a city.
4. Enter the town or city name.
Towns with similar names are shown in the list while you type.
When the correct city or town appears in the list, tap the name to select the destination.
5. Enter the streetname.
Streets with similar names are shown in the list while you type.
Tip: Instead of typing the address, tap the microphone button to enter the address by
speaking to your Navigation Device.
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
11
When the correct street name appears in the list, tap the name to select the destination.
6. Enter the house number, then tap Done.
7. The location is shown on the map. Tap Select to continue or tap Back to enter another
address.
8. When the new route is shown, tap Done.
For more information about the route, tap Details.
Tip: If you want your final destination to be a car park, tap Car park and select a
location from the list of car parks close to your general destination.
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
12
To change your route, for example, to travel via a particular location or to select a new
destination, tap Change route.
Your Navigation Device starts to guide you to your destination, using spoken instructions and
on-screen directions.
Route summary
The route summary shows an overview of your route, the remaining distance to your
destination and the remaining estimated journey time.
To view the route summary, tap the right-hand panel on the status bar in the Driving view or
tap View route in the Main menu and then tap Show route summary.
If you have a TomTom HD Traffic service or an RDS-TMC receiver, the route summary also
shows traffic information about delays on your route.
LIVE summary
LIVE summary shows LIVE services information on your route.
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
13
To view LIVE summary information, tap the LIVE tab on the route summary screen. Tap any
of the panels for more detailed information.
The LIVE tab panels show the following information:
• Traffic on route - tap this panel to view detailed information about traffic delays and other
incidents on your route.
• Speed cameras - tap this panel to open the Speed Camera menu. You can then report a
speed camera or change your settings for speed camera warnings.
• Weather - tap this panel to view the latest weather reports.
Navigation menu options
When you tap Navigate to, you can set your destination in many ways, not just by entering
the address. The other options are listed below:
Note: LIVE services are not available in all countries or regions, and not all LIVE services
are available in all countries regions. You may be able to use LIVE services when
travelling abroad. For more information on available services, go to tomtom.com/services
(see tomtom.com/services - http://www.tomtom.com/services
).
Home
Tap this button to navigate to your Home location.
You will probably use this button more than any other.
Favourite
Tap this button to select a Favourite as your destination.
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
14
Address
Tap this button to enter an address as your destination.
Recent destination
Tap this button to select your destination from a list of places you
have recently used as destinations.
Point of Interest
Tap this button to navigate to a Point of Interest (POI).
Point on map
Tap this button to select a point on the map as your destination
using the map browser.
Latitude Longitude
Tap this button to enter a destination using latitude and longitude
values.
Local search
Tap this button to use TomTom Local Search with Google to help
you find shops and businesses in and around your current location.
Note: Only available on LIVE devices.
You can choose to search for shops and businesses near you,
near your destination, near any other destination or in a city.
For example, if you are looking for a swimming pool near your
current location, enter 'swimming pool' and choose the best search
result.
'%'A0#8+A'0DQQMࡍࠫ㧞㧜㧝㧝ᐕ㧝㧜㧞㧡ᣣޓἫᦐᣣޓඦ೨㧝㧜ᤨ㧞㧤ಽ
Loading...
