Maytag XHPC155XW Installation manual

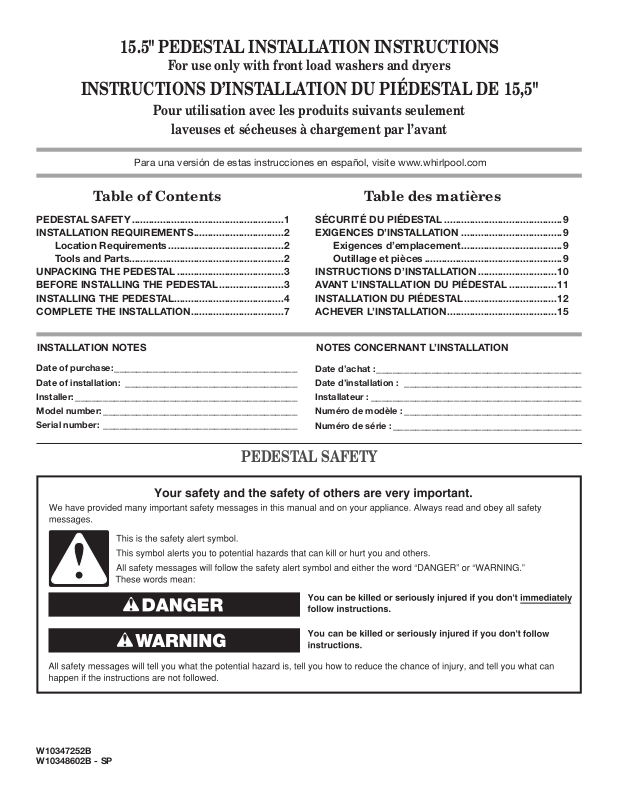

15.5" PEDESTAL INSTALLATION INSTRUCTIONS
For use only with front load washers and dryers
INSTRUCTIONS D’INSTALLATION DU PIÉDESTAL DE 15,5"
Pour utilisation avec les produits suivants seulement
laveuses et sécheuses à chargement par l’avant
Para una versión de estas instrucciones en español, visite www.whirlpool.com
Table of Contents Table des matières
INSTALLATION NOTES
Date of purchase: _________________________________ Date of installation: _______________________________ Installer: ________________________________________ Model number: ___________________________________ Serial number: ___________________________________
PEDESTAL SAFETY
NOTES CONCERNANT L’INSTALLATION
Date d’achat : _____________________________________ Date d’installation : ________________________________ Installateur : ______________________________________ Numéro de modèle : ________________________________ Numéro de série : __________________________________
W10347252B W10348602B - SP
INSTALLATION REQUIREMENTS
LOCATION REQUIREMENTS
NOTE: If the washer/dryer and pedestal assembly are located in
a garage, 3" (76 mm) must be added under the pedestal so that the washer/dryer is 18" (458 mm) above the garage oor.
TOOLS AND PARTS
Gather the required tools and parts before starting installation.
Tools Needed:
1/4" nut driver or nut driver
5/16" hex-head ratchet
Additional Items Needed:
Towel
Sponge
Parts Supplied:
Four #12 x 3/4" hex-head Drawer divider sheet metal screws
Utility knife 1/4" hex-head ratchet or open-end wrench
Level 9/16" open-end wrench
Pliers or slip-joint pliers Bucket
2
UNPACKING THE PEDESTAL
Spacer pads
Preparing the pedestal for installation
IMPORTANT: Set the pedestal box aside for use during
installation.

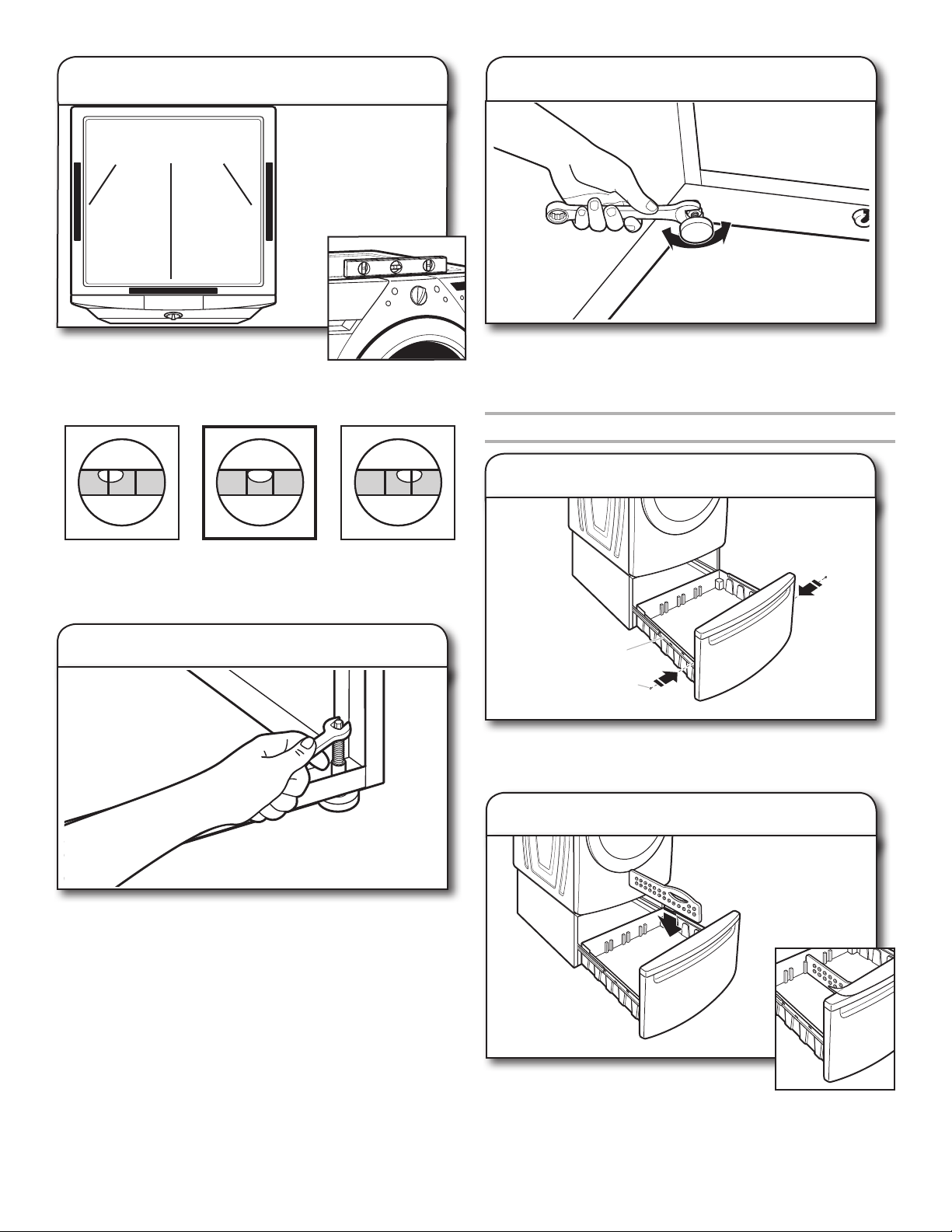

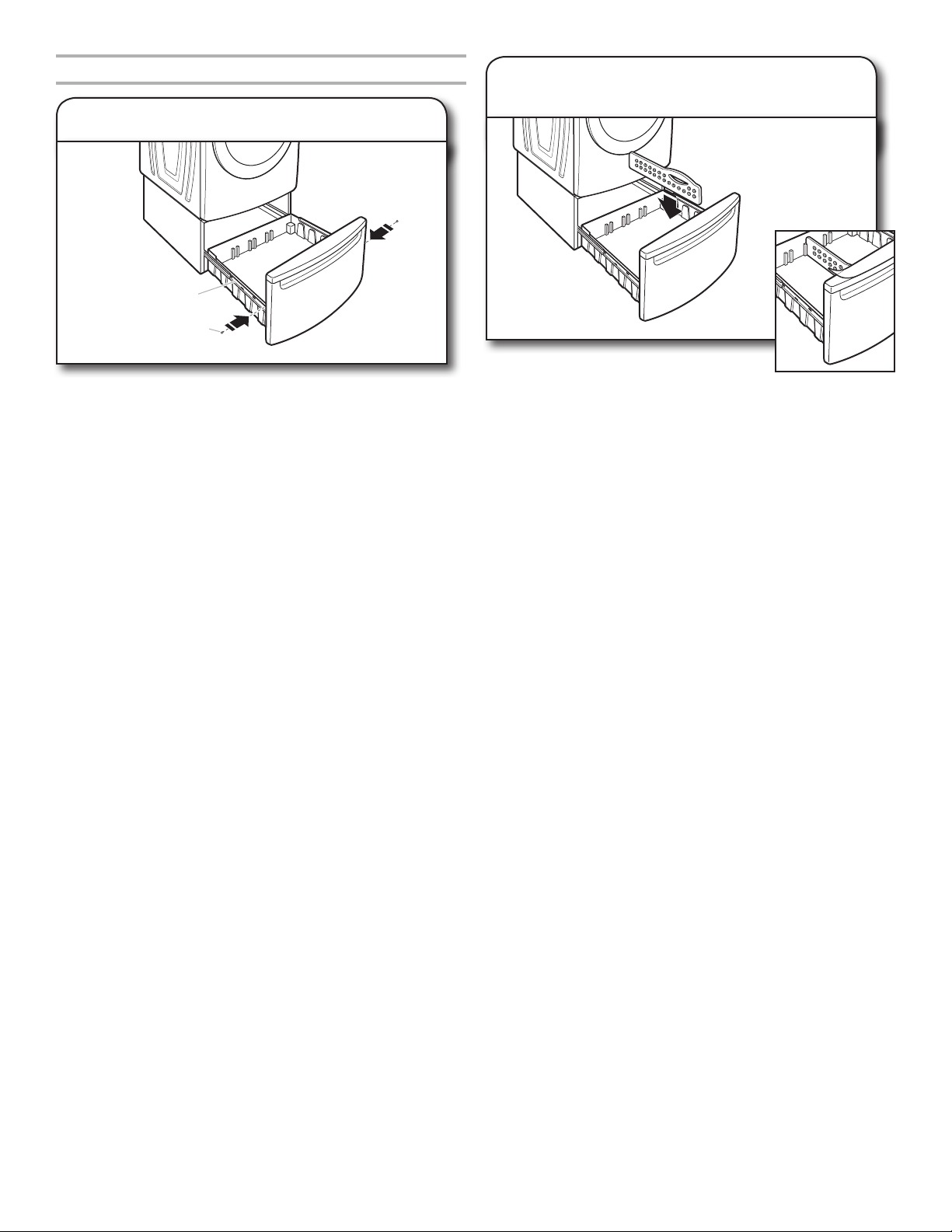

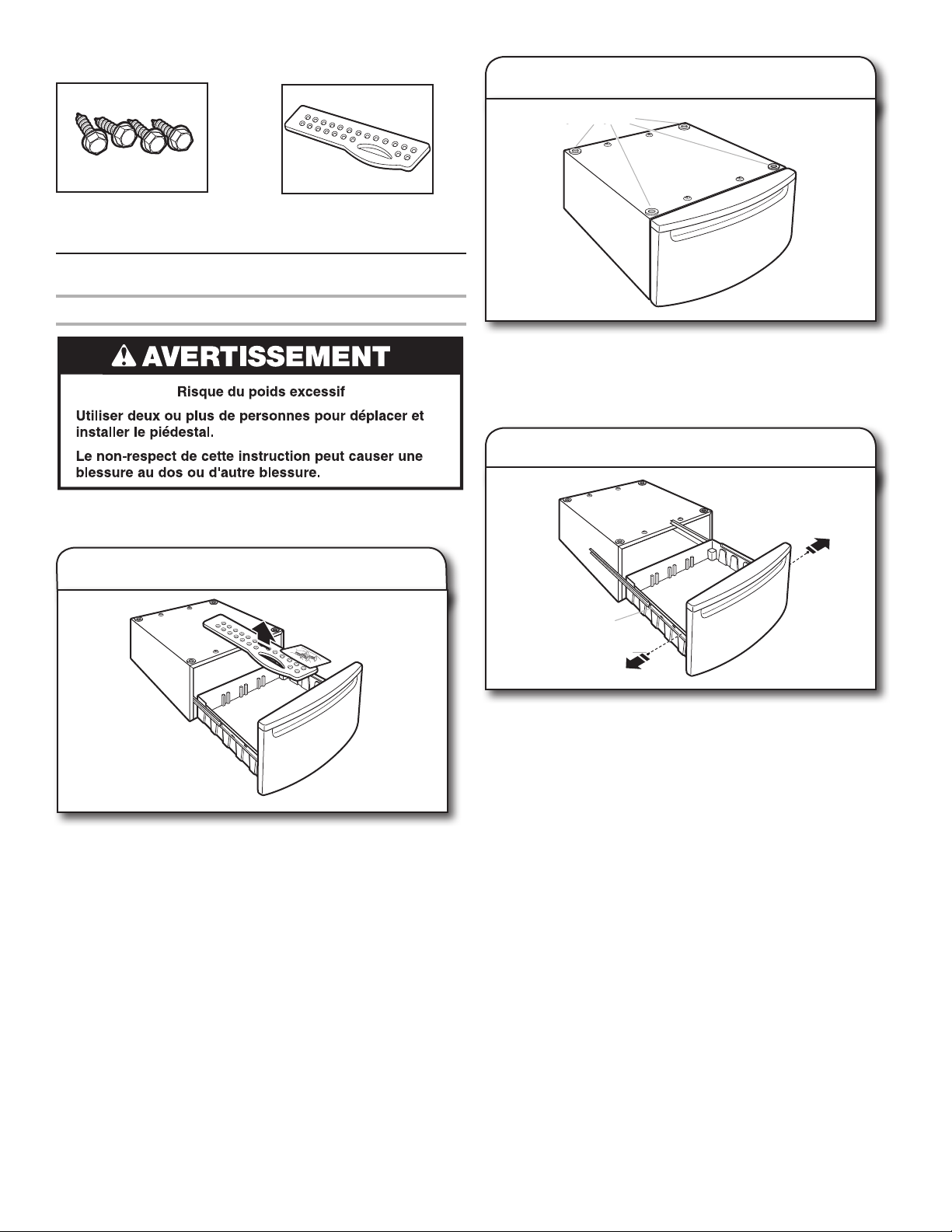

3. Remove pedestal drawer
1. Empty pedestal drawer
Open the pedestal drawer as far as possible and remove the contents. The package contains four #12 x 3/4" hex-head sheet metal screws and a drawer divider.

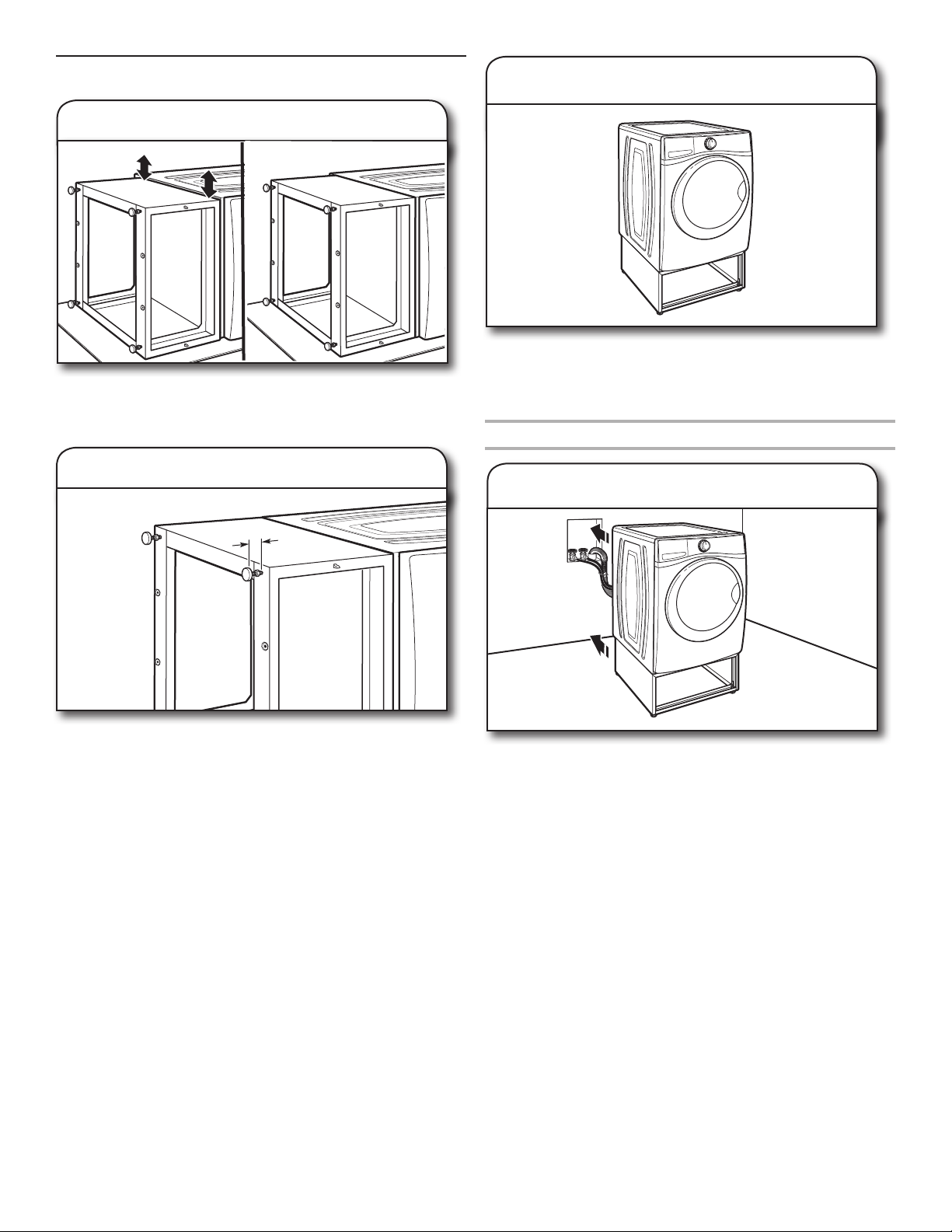

2. Locate spacer pads
The four spacer pads are installed on the top of the pedestal. These pads reduce vibration between the pedestal and the washer/dryer.
NOTE: If your washer/dryer has feet installed, remove them.
Using a 1/4" nut driver, remove the hex-head screws from both drawer slides and save screws. Remove the drawer from the slides and set aside. Push the slides back into the pedestal.
BEFORE INSTALLING PEDESTAL
IMPORTANT: If your washer and dryer are already installed, they must be uninstalled.

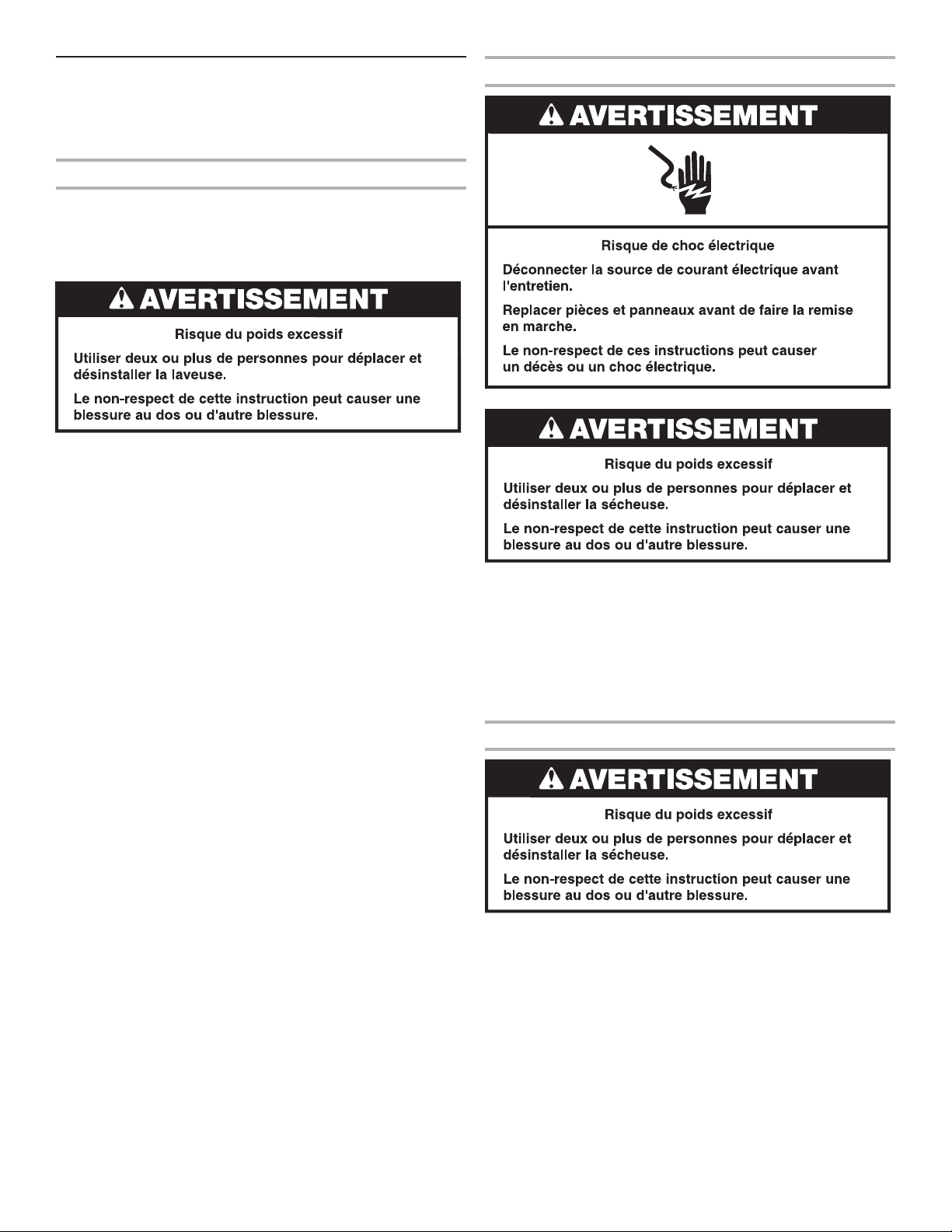

Uninstalling your washer
To avoid possible damage to the washer, the transport bolts on the back of the washer must be in place before installing the pedestal. For more information on transport bolts see, “Remove Transport System” in washer Use and Care Guide.
NOTE: If the washer is to be transported, call your local service center. To avoid suspension and structural damage, your washer must be properly set up for relocation by a certied technician.
1. Turn off the hot and cold water faucets.
2. Unplug the power supply cord.
3. Slowly loosen the ll hoses at the faucets to relieve the water
pressure. Use a sponge or towel to absorb the released water.
4. Remove the “HOT” and “COLD” ll hoses from the back of
the washer. Drain the water from the hoses into a bucket.
5. Remove the drain hose from the standpipe or laundry tub and
drain any water remaining in the hose into a bucket.
6. Pull the washer away from the wall so that you will have
enough space for the installation.
3
Uninstalling your electric dryer
1. Unplug the power supply cord or disconnect wiring if dryer is
direct wired.
2. Pull the dryer away from the wall enough to loosen the vent
clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.
3. Pull the dryer away from the wall so that you will have enough
space for the installation.

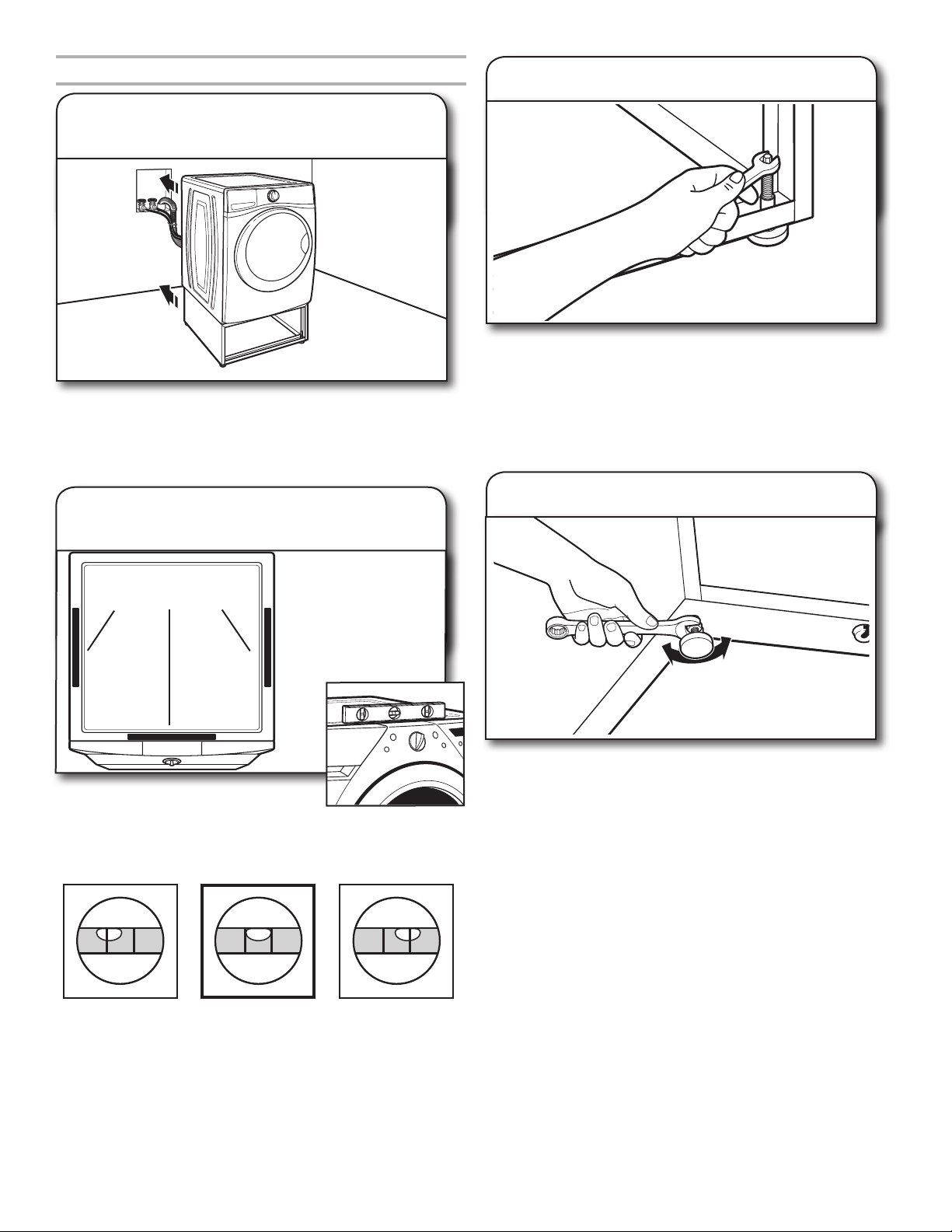

Installation of new washer/dryer
1. Unpack the washer/dryer and move close to the intended
installation location.
INSTALLING THE PEDESTAL
Installing the pedestal on the washer
Conrm transport bolts are in place
Uninstalling your gas dryer
1. Unplug the power supply cord.
2. Turn off the gas supply.
3. Pull the dryer away from the wall enough to loosen the vent
clamp. Loosen the clamp and gently remove the exhaust vent from the dryer exhaust outlet.
4.
Disconnect the exible gas supply line from the dryer. Put a
piece of tape over the open ends of the gas line connection ttings.
5. Pull the dryer away from the wall so that you will have enough
space for the installation.
Locate the transport bolts on rear of washer. Transport bolts must remain in washer before pedestal can be installed. For more information on transport bolts see, “Remove Transport System” in washer Use and Care Guide.
4

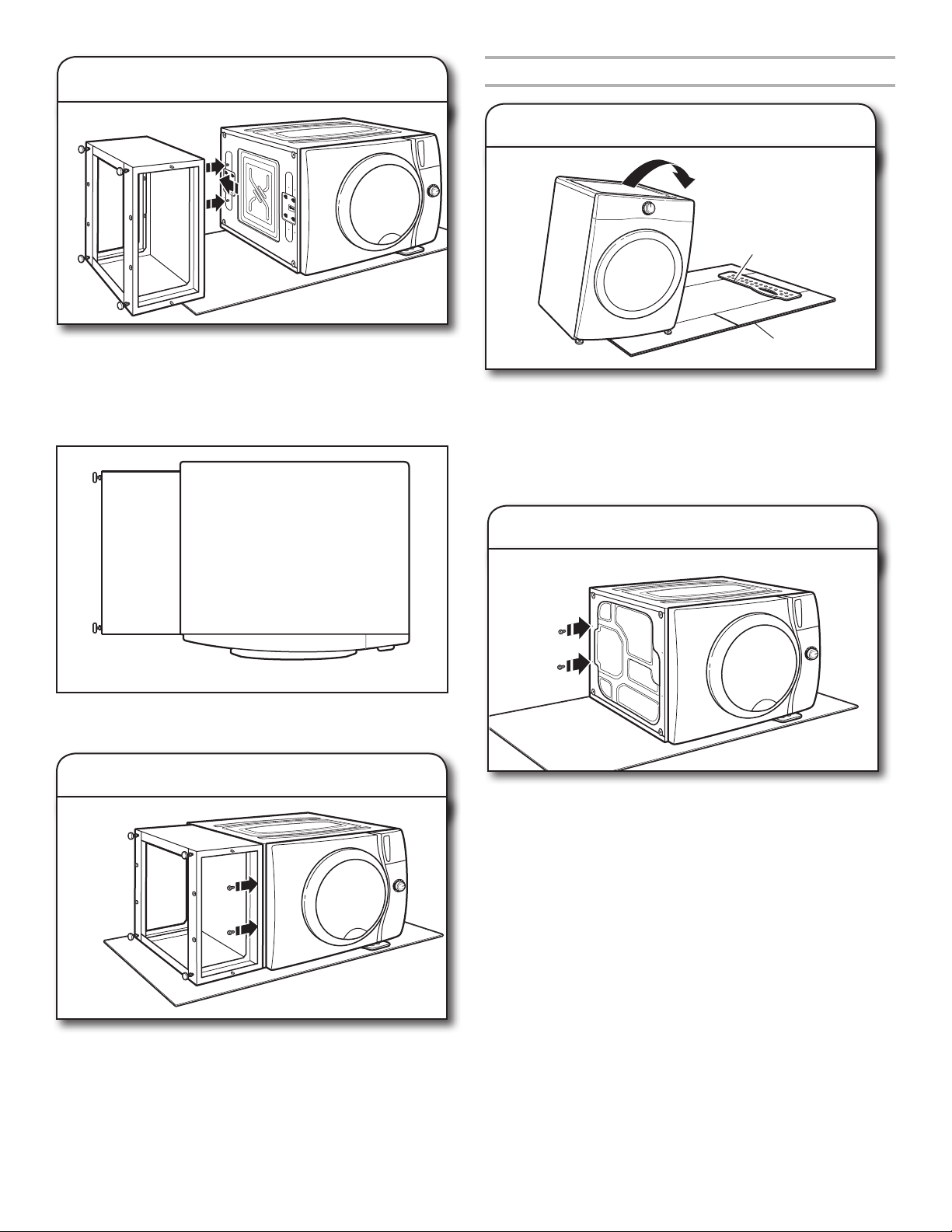

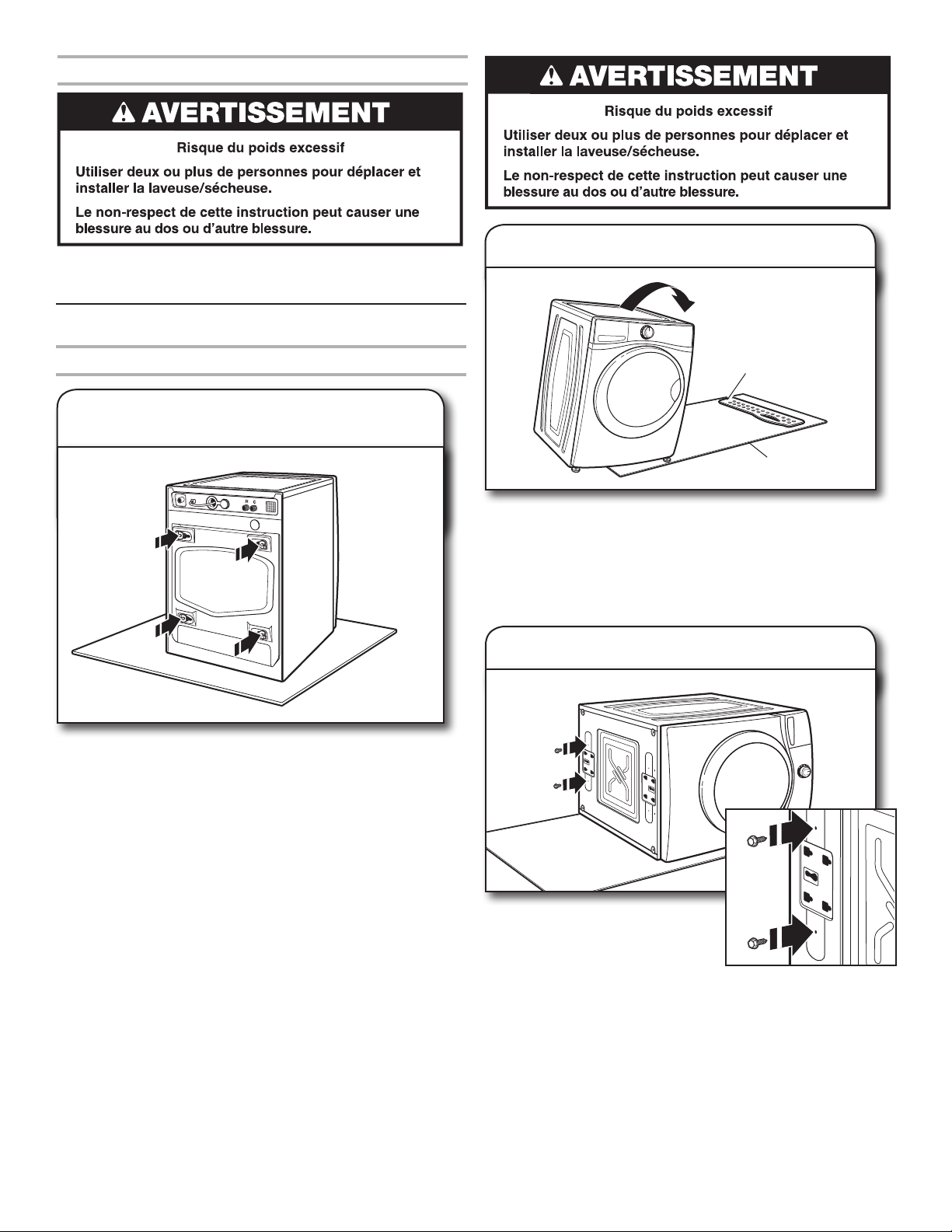

1. Place washer on its side

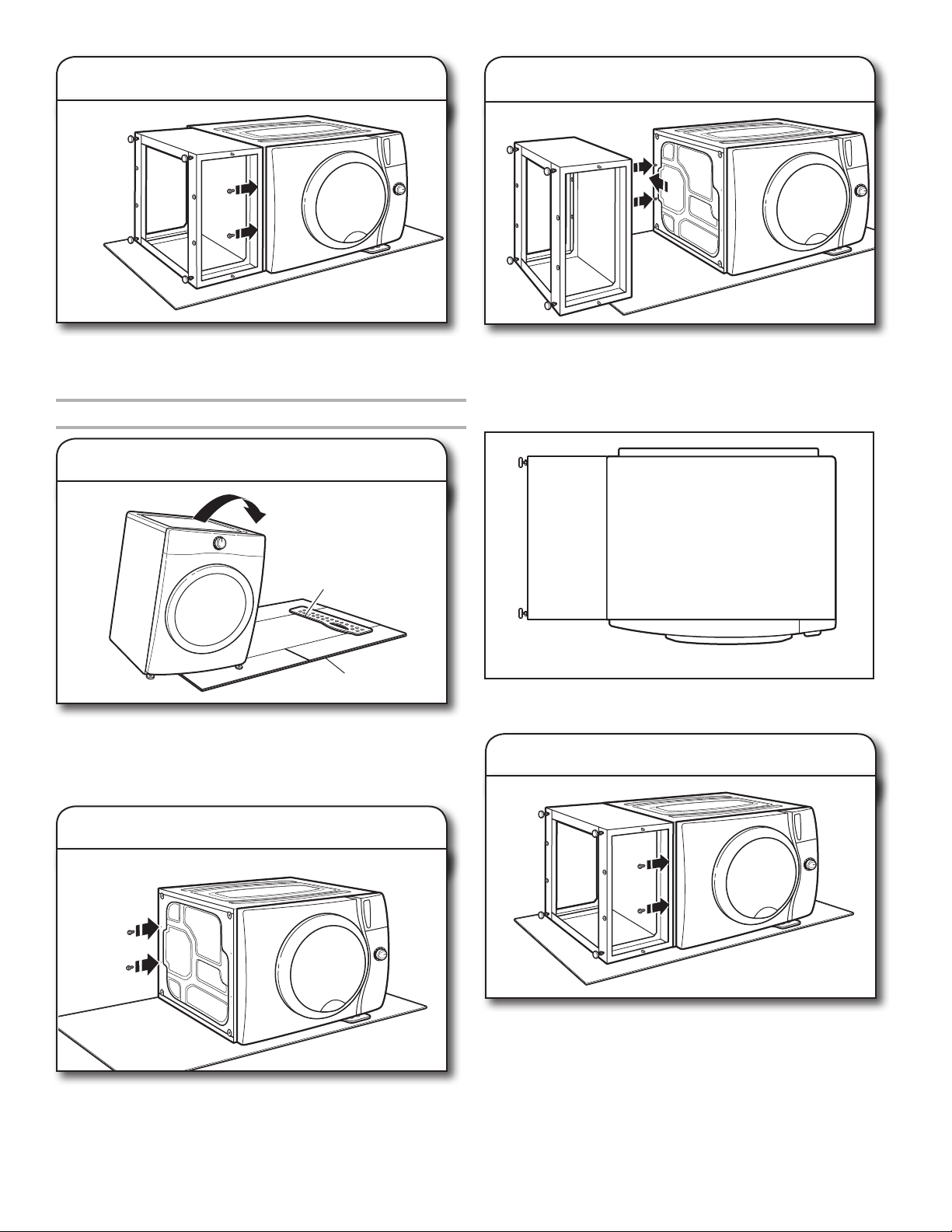

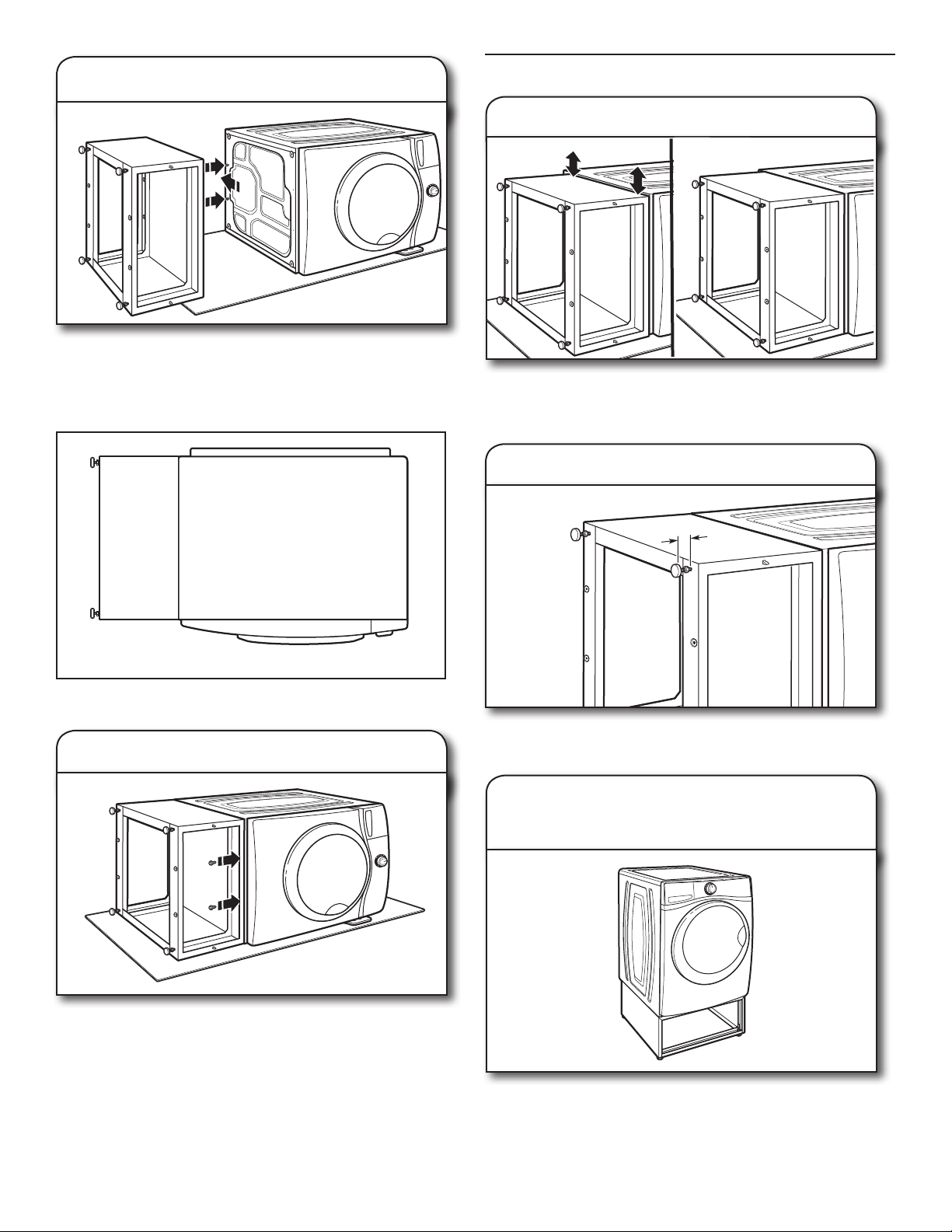

3. Attach pedestal to washer
Drawer divider
Pedestal box
To avoid oor damage and ease installation and handling, unfold the empty pedestal box at and place it next to the washer. Position the drawer divider so that it will be near the top of the washer, as shown. Gently tip the washer on its side so the washer is resting on the drawer divider.
2. Prepare the washer
Washer bottom
Move the pedestal against the washer bottom. The front of the pedestal cabinet should align with the washer cabinet as shown below.
Slide the pedestal’s keyhole slots over the lower two partially installed screws.
Pedestal Washer
Front
View from above
Partially install two of the #12 x 3/4" hex-head sheet metal screws in the indicated holes. Leave a space of about 3/8" (10 mm) between the screw head and the bottom of the washer.
NOTE: If your washer has leveling feet installed, remove them.
5
