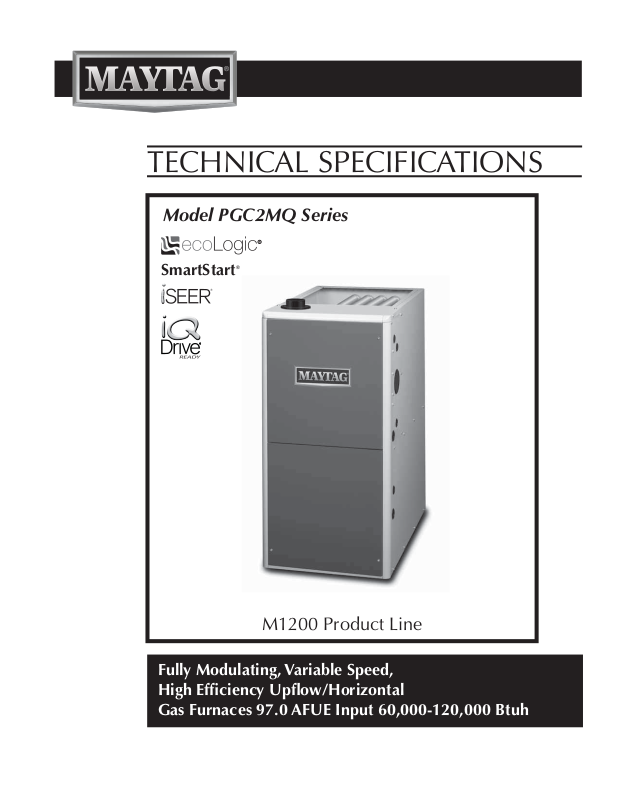

TECHNICAL SPECIFICATIONS
Model PGC2MQ Series
SmartStart
®
M1200 Product Line
Fully Modulating, Variable Speed,
High Efficiency Upflow/Horizontal
Gas Furnaces 97.0 AFUE Input 60,000-120,000 Btuh
2
The high efficiency gas furnace
may be installed free standing
in a utility room, basement, or
enclosed in an alcove or closet.
The rounded corner jacket
provides a pleasing “appliance
appearance.” Design certified by
CSA for application in Canada
and the United States.
Features and Benefits
- i SEER
TM
: Energy efficient brushless DC (ECM) motor gives up
to 1 SEER point efficiency gain in cooling.
- Modulating heating operation Includes:
- Modulating gas valve from 100% to 50% input
in 5% increments
- Time proportioning modulation down to 15%
- Variable speed inducer and blower.
- 100% fired and tested: All units and each component are
tested on the manufacturing line.
- Best packaging in the industry: Unique corner post design
assures product will arrive to the homeowner dent free.
- 30 second blower delay: At start-up assures a warm duct
temperature at furnace start-up. Adjustable blower off settings
(60, 90, 120 and 180 seconds).
- 30 second post purge: Increases life of heat exchanger.
- Hot surface igniter: Innovative application of an appliance
type igniter with a 20 year history of reliability. Utilizes proven
SmartStart® technology.
- Color coded wire harness: Designed to fit the components, all
with quick-connect fittings for ease of service and replacement.
- Flexible category IV venting system: May be vertically or
horizontally vented using either a one-pipe or two-pipe system
for maximum flexibility in installation.
- High Static Blowers: All models equipped with high static
blowers.
- Low Boy Height: Easy to apply in low ceiling applications,
works well with taller high SEER coils, easier to handle and
install.
- Tubular primary heat exchanger: Heavy gauge aluminized
steel heat exchanger and stainless steel secondary heat
exchanger assures a long life.
- 90 second fixed cooling cycle blower-off delay (TDR): Increases
cooling performance when matched with a NORDYNE coil.
- LP convertible: Simple burner orifice and regulator spring
change for ease of convertibility.
- Diagnostic lights for easy troubleshooting without counting
flashes: Dedicated light for flame signal strength and 2 lights
in combination to indicate all other fault codes with easy to
recognize states without counting flashes.
- Incorporates integrated control board: With connections for
electronic air cleaner, and humidifier.
- Two piece door design: Enhances furnace appearance and
uses captured screws to prevent losing door screws.
- Blower Compartment: Sealed door to reduce air leakage and
insulated for ultra quiet operation.
- Sealed Vestibule: Reduces burner and inducer sound levels.
- iQ Drive Thermostat: Provides modulation down to 15% and
is required for furnace operation.
3
GAS FURNACE COMPONENTS
UPFLOW / HORIZONTAL FURNACE (*MQ SERIES)
Finish
Flange
Gas Manifold
Flame Sensor
Pressure Switches
Main Air Limit Switch
Roll-Out
Switch
Burner
Assembly
Igniter
Gas Valve
Inducer Limit Switch
Inducer Assembly
Blower Door Switch
Motor Control Box
Motor Choke
(C & D cabinets only)
IDENTIFICATION CODE
PGC 2 M Q 060 D V B
Maytag Gas
Compact
Design Series
S = Single Stage
T = Two Stage
M = Modulating
Furnace Control Board
Transformer
Motor Control Board
Blower Assembly
Cabinet Width
B = 17.50
C = 21.00
D = 24.50
Cooling Airflow
V = VSB
A = 80% Upflow/Horizontal
C = 92.1% / 95.1% Upflow/Horizontal
K = 80% Downflow
L = 92.1% / 95.1% Downflow
Q = 97.0% AFUE Upflow/Horizontal
4
D = 90+% AFUE Low NOx
Input Heating Capacity
060 = 60,000 100 = 100,000
080 = 80,000 120 = 120,000
DIMENSIONS
34 1/2
2 3/4
22 1/2
25 3/8
22 1/2
Vent pipe
(Ø 3”)
17 1/4
T-stat
(Ø 7/8)
Electric
(Ø 7/8)
Gas
(Ø 1 5/8)
17 7/8
3 1/4
TOP VIEW
B
FLANGES
Combustion Air
A
19
T-stat
(Ø 7/8)
Vent pipe
(Ø 3”)
24 7/8
1
BOTTOM VIEW
C
Front Brace
Bottom
23 1/2
Panel
Electric (Ø 7/8)
22 1/2
Gas (Ø 1 5/8)
4 Knockouts
(both sides)
Cond. (Ø 1 1/16)
15
28
LEFT SIDE
Condensate
(Ø 1 1/16)
*MQ
Model #’s
060DVB 17
080DVC
100DVC
120DVD 24
FRONT VIEW
Dimension
“A”
1/2
21 19
1/2
Dimension
“B”
15
7/8
3/8
22
7/8
Dimension
“C”
16
1/8
19
5/8
23
1/8
PGC2MQ 97+ Modulating Upflow/Horizontal Series
23
1 1/4
RIGHT SIDE
5
SPECIFICATIONS
PGC2MQ MODEL
NUMBERS: 060DVB 080DVC 100DVC 120DVD
Input - Btuh (a) 60,000 / 30,000 80,000 / 40,000 100,000 / 50,000 120,000 / 60,000
Heating Capacity - Btuh 58,200 / 29,100 77,600 / 38,800 97,000 / 48,500 116,400 / 58,200
AFUE 97.0 97.2 97.4 97.0
Blower D x W 11 x 8 11 x 10 11 x 10 11 x 10
Motor H.P. - Speed - Type 1/2 - Variable 3/4 - Variable 3/4 - Variable 1 - Variable
Motor FLA 6.2 8.7 8.7 11.70
Rated Ext. SP - In. W.C. 0.5 0.5 0.5 0.5
Temperature Rise Range - ºF 30-60 35-65 35-65 40-70
Shipping Weights 130lbs 140lbs 150lbs 165lbs
NOTE: All models are 115V, 60 Hz. Gas Connections are 1/2" N.P.T. AFUE = Annual Fuel Utilization Efficiency
(a) Ratings to 2,000 ft. Over 2,000 ft. reduce 4% for each 1,000 ft. above sea level.
iQ CONTROLLER KIT
Description Sku
iQ Controller kit 920620*
* Revision Letter
AIRFLOW DATA
Target CFM for Selected Circulating Air
Gas Input
Rate
(Btuh)
60,000 1,110 635 1,000 560 940 515 850 470 950
80,000 1,480 850 1,345 740 1,255 685 1,140 625 1,300
100,000 1,850 1,050 1,680 925 1,565 855 1,460 780 1,760
120,000 2,225 1,270 2,020 1,115 1,890 1,025 1,730 940 2,100
NOTE: This table lists the High and Low target CFMs for each maximum input rate and temperature rise. If the
target CFM is more that 1,600 CFM, it is recommended that two return air openings into the furnace be used.
NOTE: The blower operating range is .1” to .8” ESP in wc.
45 50 55 60
Full
Input
Minimum
Input
Full
Input
Temperature Rises, F
Minimum
Input
Full
Input
Minimum
Input
Full
Input
Minimum
Input
Constant
6
ACCESSORIES
PGC2MQ KITS
Description SKU
2" Concentric vent kit 904177
3" Concentric vent kit 904176
2" Side wall vent kit 904617
3" Side wall vent kit 904347
U.S. LP Conversion kit (0 to 10,000 ft.) for US and Canada 904950
Bottom return filter 20 per box, "B" cabinet 904916
Bottom return filter 20 per box, "C" cabinet 904917
Bottom return filter 20 per box, "D" cabinet 904918
Side return filter kit 541036
Neutralizer kit 902377
Outdoor Sensor for conventional heatpump 920938
All models are 115 V, 60 HZ. Gas connections are 1/2" N.P.T.
AFUE= Annual Fuel Utilization Efficiency
MAXIMUM PIPE LENGTH
FURNACE
MODELS
(BTU)
60,000
80,000
100,000
120,000
*NOTES:
1 Subtract 2.5 ft. for each additional 2 inch long radius elbow, 5 ft. for each additional 2 inch short radius elbow, 3.5 ft. for each additional 3 inch
long radius elbow, and 7 ft. for each additional 3 inch short radius elbow. Two 45
2. Subtract 5ft for each 2” tee and 8ft for each 3” tee.
3. This table applies for elevations from sea level to 2,000 ft. For higher elevations, decrease pipe lengths by 8% per 1,000 ft of altitude.
4. The minimum length for 2” or 3” diameter vent pipe is 5 ft.
FURNACE
INSTALLATION
Upflow 50 80 50 80
Horizontal 40 80 40 80
Upflow 60 90 60 90
Horizontal 50 90 50 90
Upflow 50 90 50 90
Horizontal
Upflow
Horizontal N/A 70 N/A 70
SINGLE VENT PIPE LENGTH (FT.)
with 1 long radius elbow*
OUTLET
2” Diameter
40 90 40 90
N/A 90 N/A 90
OUTLET
3” Diameter
° elbows are equivalent to one 90° elbow.
DUAL VENT PIPE LENGTH (ft.)
with 1 long radius elbow on each pipe*
INLET/OUTLET
2” Diameter
INLET/OUTLET
3” Diameter
7
Before purchasing this appliance, read important energy cost and efficiency
information available from your retailer. Specifications and illustrations subject
to change without notice and without incurring obligations.
Manufactured under license by NORDYNE, O’Fallon, MO. ®Registered Trademark/ TM Trademark
of Maytag Corporation or its related companies. ©2014. All rights reserved.
046D-0914 (Replaces 046D-0212)
Printed in U.S.A. (09/14)
