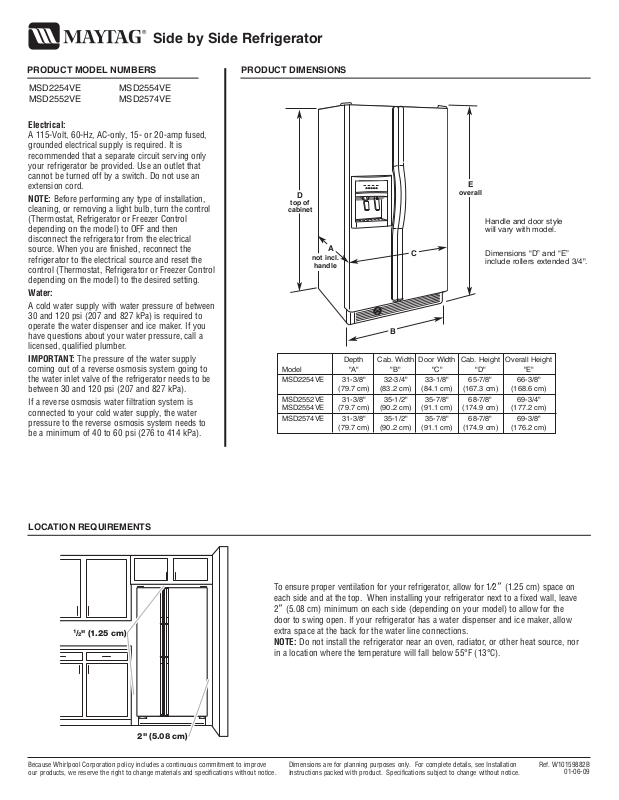

Maytag MSD2254VEA, MSD2254VEB, MSD2254VEQ, MSD2254VEW, MSD2254VEY Dimension Guide

Side by Side Refrigerator

PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS

MSD2254VE
MSD2552VE

MSD2554VE
MSD2574VE

Electrical:

A 115-Volt, 60-Hz, AC-only, 15- or 20-amp fused,
grounded electrical supply is required. It is
recommended that a separate circuit serving only
your refrigerator be provided. Use an outlet that
cannot be turned off by a switch. Do not use an
extension cord.

NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator or Freezer Control
depending on the model) to OFF and then
disconnect the refrigerator from the electrical
source. When you are finished, reconnect the
refrigerator to the electrical source and reset the
control (Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired setting.

Water:

A cold water supply with water pressure of between
30 and 120 psi (207 and 827 kPa) is required to
operate the water dispenser and ice maker. If you
have questions about your water pressure, call a
licensed, qualified plumber.

IMPORTANT: The pressure of the water supply
coming out of a reverse osmosis system going to
the water inlet valve of the refrigerator needs to be
between 30 and 120 psi (207 and 827 kPa).

If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (276 to 414 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.

Ref. W10159882B

01-06-09

E

overall

D

top of

cabinet

C

B

not incl.

handle

A

Depth Cab. Width Door Width Cab. Height Overall Height
Model "A" "B" "C" "D" "E"
MSD2254VE 31-3/8" 32-3/4" 33-1/8" 65-7/8" 66-3/8"

(79.7 cm) (83.2 cm) (84.1 cm) (167.3 cm) (168.6 cm)

MSD2552VE 31-3/8" 35-1/2" 35-7/8" 68-7/8" 69-3/4"
MSD2554VE (79.7 cm) (90.2 cm) (91.1 cm) (174.9 cm) (177.2 cm)

MSD2574VE 31-3/8" 35-1/2" 35-7/8" 68-7/8" 69-3/8"

(79.7 cm) (90.2 cm) (91.1 cm) (174.9 cm) (176.2 cm)

Handle and door style
will vary with model.

Dimensions “D” and “E”
include rollers extended 3/4".

LOCATION REQUIREMENTS

To ensure proper ventilation for your refrigerator, allow for 1⁄2”(1.25 cm) space on
each side and at the top. When installing your refrigerator next to a fixed wall, leave
2”(5.08 cm) minimum on each side (depending on your model) to allow for the
door to swing open. If your refrigerator has a water dispenser and ice maker, allow
extra space at the back for the water line connections.
NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor
in a location where the temperature will fall below 55°F (13°C).

1

1

/

2

" (1.25 cm)

2" (5.08 cm)
