Page 1

MLG35 Installation Manual

RETAIN THESE

INSTRUCTIONS IN A

SAFE PLACE FOR

FUTURE REFERENCE

Part No. 113249-2

Page 2

Dryer Safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING”. These words mean:

DANGER

You can be killed or seriously injured if you don’t immediately follow instructions.

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

■ It is recommended that the owner post, in a prominent location, instructions for the customer’s use in the event the customer smells gas. This information should be obtained from your gas supplier.

■ Post the following warning in a prominent location.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WARNING: For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death.

– Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

– WHAT TO DO IF YOU SMELL GAS:

● Do not try to light any appliance.

● Do not touch any electrical switch; Do not

use any phone in your building.

● Clear the room, building or area of all

occupants.

● Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s instructions.

● If you cannot reach your gas supplier,

call the fire department.

– Installation and service must be performed by

a qualified installer, service agency or the gas supplier.

You can be killed or seriously injured if you don’t follow instructions.

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil.

AVERTISSEMENT: Assurez-vous de bien suivre les instructions données dans cette notice pour réduire au minimum le risque d’incendie ou d’explosion ou pour éviter tout dommage matériel, toute blessure ou la mort.

– Ne pas entreposer ni utiliser d’essence

ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil.

– QUE FAIRE SI VOUS SENTEZ UNE

ODEUR DE GAZ:

● Ne pas tenter d’allumer d’appareils.

● Ne touchez à aucun interrupteur; Ne pas

vous servir des téléphones se trouvant dans le bâtiment.

● Évacuez la pièce, le bâtiment ou la zone.

● Appelez immédiatement votre fournisseur

de gaz depuis un voisin. Suivez les instructions du fournisseur.

● Si vous ne pouvez rejoindre le fournisseur

de gaz, appelez le service des incendies.

– L’installation et l’entretien doivent être assurés

par un installateur ou un service d’entretien qualifié ou par le fournisseur de gaz.

2 Maytag Co. 113249- 2

Page 3

WARNING: Gas leaks cannot always be detected by smell. Gas suppliers recommend that you use a gas detector approved by UL or CSA. For more information, contact your gas supplier. If a gas leak is detected, follow the “What to do if you smell gas” instructions.

In the State of Massachusetts, the following installation instructions apply:

■ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by the State of Massachusetts.

■ If using a ball valve, it shall be a T-handle type.

■ A flexible gas connector, when used, must not exceed 3 feet.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer. WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other

reproductive harm.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,

including the following:

■ Read all instructions before using the dryer.

■ Do not place items exposed to cooking oils in your

dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

■ Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable, or explosive substances as they give off vapors that could ignite or explode.

■ Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children.

■ Before the dryer is removed from service or discarded, remove the door to the drying compartment.

■ Do not reach into the dryer if the drum is moving.

■ Do not install or store the dryer where it will be

exposed to the weather.

■ Do not tamper with controls.

■ Do not repair or replace any part of the dryer or

attempt any servicing unless specifically recommended in this installation manual or in published user-repair instructions that you understand and have the skills to carry out.

■ Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

■ Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

■ Clean lint screen every third load to fourth.

■ Keep area around the exhaust opening and

adjacent surrounding areas free from the accumulation of lint, dust, and dirt.

■ The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.

■ See installation instructions for grounding requirements.

SAVE THESE INSTRUCTIONS

IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National

Fuel Gas Code, ANSI Z223.1/NFPA 54 or the Canadian Natural Gas and Propane Installation Code, CSA B149.1. The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the

National Electrical Code, ANSI/NFPA 70 or Canadian Electrical Code, CSA C22.1.

113249- 2 Maytag Co. 3

Page 4

Important Information ________________

IMPORTANT: A means of restraint must be used to avoid straining of the gas supply when the dryer is moved.

An external means of power removal (disconnect device) must be provided by the installer.

“Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper operation.”

«Attention: Au moment de l’entretien des commandes, étiquetez tous les fils avant de les débrancher. Des erreurs de câblage peuvent entraîner un fonctionnement inadéquat et dangereux.»

Table of Contents ______________

Specifications .......................................................... 5

Installation Procedures ........................................... 7

Location Requirements .......................................... 7

Dryer Enclosure Requirements .............................. 8

Fresh Air Supply Requirements.............................. 8

Exhaust Requirements ........................................... 8

Electrical Information ............................................. 10

Gas Information ..................................................... 11

Preparation for Operation / Start-Up ......................13

Preoperational Test ............................................... 13

Operating Instructions ...........................................13

Shutdown Instructions ...........................................14

WARNING

The dryer must never be operated with any of the back guards or service panels removed. Personal injury or fire could result.

The wiring diagram for the dryer is located behind the front control panel on the right side.

List of Acronyms _____________________

HVAC Heating, Ventilating, and Air-Conditioning

in wc Inches of Water Column

L.C.D. Liquid Crystal Display

L.P. Liquid Propane

UL Underwriters Laboratory

Service / Parts Information ...................................14

Service .................................................................. 14

Parts .....................................................................14

Routine Maintenance .............................................14

Cleaning ................................................................14

Adjustments ......................................................... 14

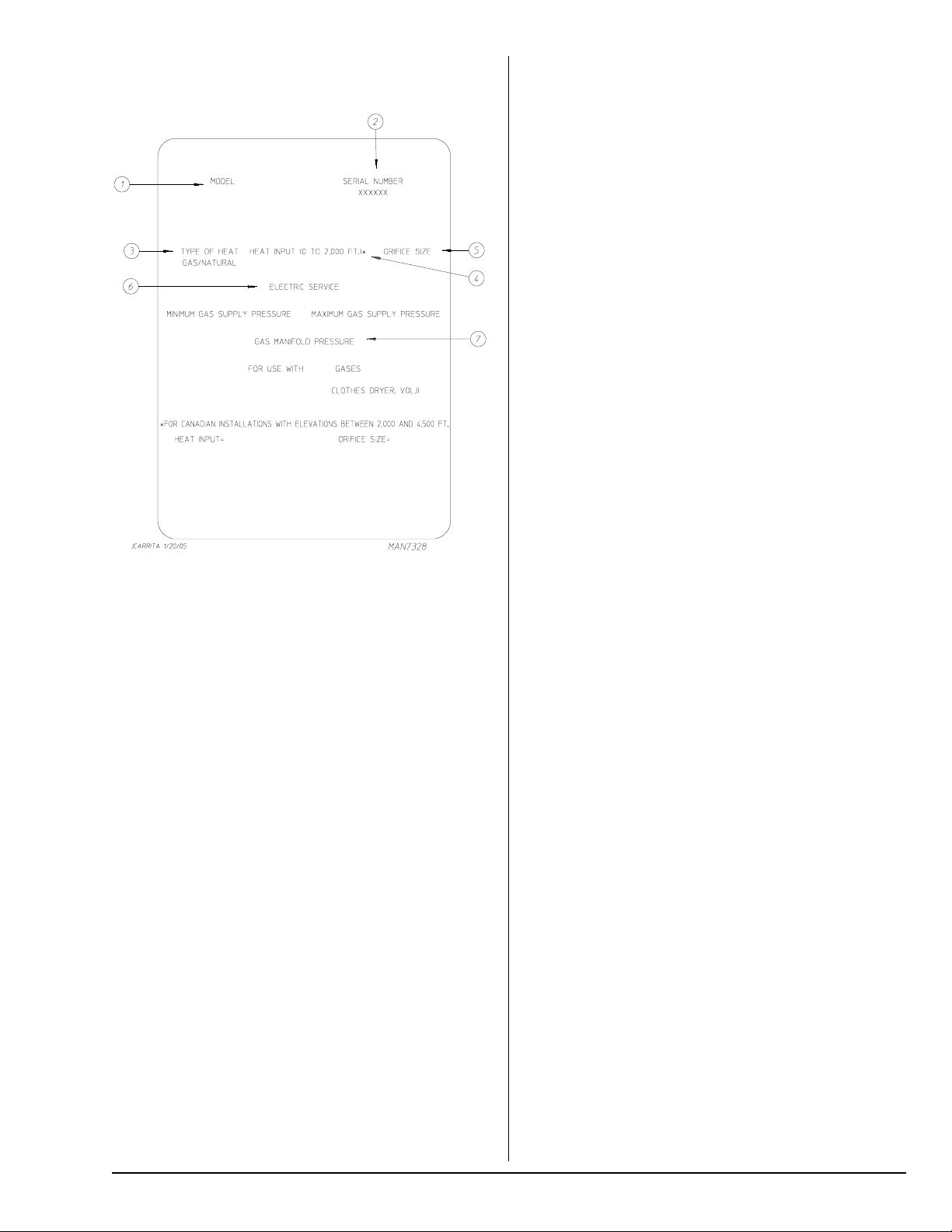

Data Label Information..........................................15

4 Maytag Co. 113249- 2

Page 5

Specifications _____________________________________________________________________

MAXIMUM CAPACITY

(DRY WEIGHT) PER POCKET

35 lb TUMBLER DIAMETER 30” TUMBLER DEPTH 30” TUMBLER VOLUME TUMBLER / DRIVE MOTOR BLOWER / FAN MOTOR DOOR OPENING DOOR SILL HE IGHT

PER POCKET

(DIAMETER)

TOP POCKET / BOTTOM POCKET

12.27 cu ft 1/4 hp 1/2 hp

19-3/8”

54-11/16” / 14-7/8”

138.91 cm / 37.78 cm

15.88 kg

76.20 cm

347.44 L

0.19 kW

0.37 kW

49.21 cm

DRYERS PER 20’/40’ CONTAINER 14 / 28 DRYERS PER 53’ TRUCK 36

VOLTAGE AVAILABLE 120V 1ø 2w 60 Hz APPROXIMATE NET WEIGHT 600 lb APPROXIMATE SHIPPING WEIGHT 630 lb AIRFLOW HEAT INPUT EXHAUST CONNECTION

GAS

PER POCKET

380 cfm

64,000 Btu/hr

(DIAMETER) PER POCKET

6”

272.16 kg

285.76 kg

10.76 cmm

16,128 kcal/hr

15.24 cm

COMPRESSED AIR CONNECTION N / A COMPRESSED AIR VOLUME N / A INLET PIPE CONNECTION

Shaded areas are stated in metric equivalents 8/28/12

PER POCKET

1/2” M.N.P.T.

NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

113249- 2 Maytag Co. 5

Page 6

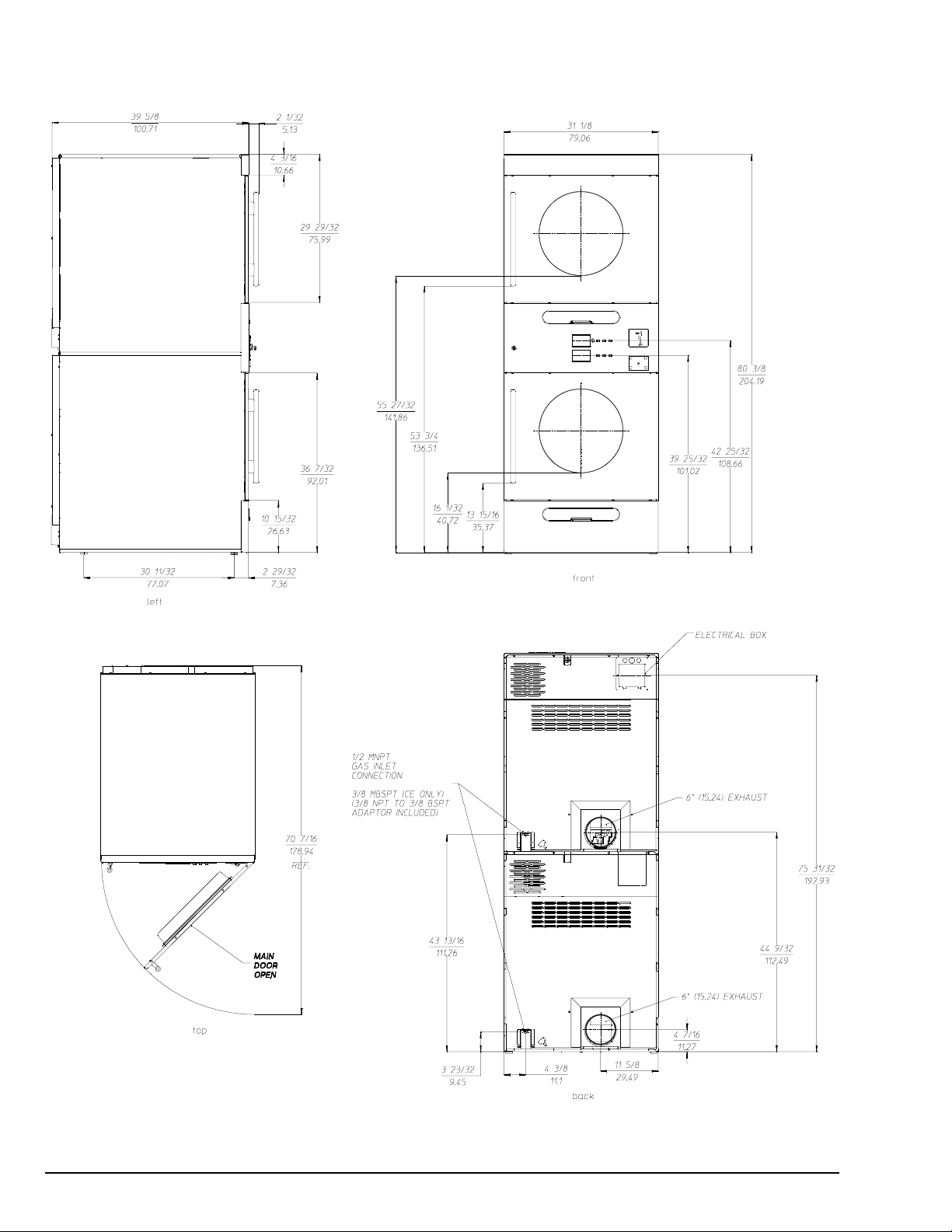

Specifications _____________________________________________________________________

NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation.

6 Maytag Co. 113249- 2

Page 7

Installation Procedures ______________

Location Requirements ______________

WARNING

Excessive Weight Hazard

Use two or more people and mechanical equipment to lift, move and install dryer.

Failure to do so can result in back or other injury.

Installation should be performed by competent professional in accordance with local, state, and country codes. In the absence of these codes, the installation must conform to applicable American National Standards: ANSI Z223.1LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA NO. 70-LATEST EDITION (National Electrical Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION (for General Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION (for Electrical Connections).

Leveling Dryer

The dryer is equipped with 4 leveling legs, 1 at each corner of the base. For optimum performance the dryer should be level front-to-back and side-to-side.

Tools Required

■ Utility Knife to remove packaging

■ 9/16” Box wrench or 9/16” socket to remove pallet bolts

■ #2 Phillips screwdriver to open front toe panel

■ Pipe wrench for gas connections

■ 7/8” open end wrench or adjustable wrench

to install coin box lock

■ TORX

■ 1/4” socket or 1/4” open end wrench to make the

■ A pair of slip-joint pliers

TORX is a registered trademark of Textron Innovations, Inc.

T20 TORX® T25 to open rear bottom guard

to get foot adjustment ends

leg adjustment

Installing Door Handle

1. Remove handle from dryer tumbler.

2. Unwrap door handle from bubble wrap.

3. Locate handle standoff in the handle slots.

4. Insert 1/4-20 x 2-1/4” stainless Truss Head Phillips screws through preexisting door holes.

5. Having handle flushed against door, tighten the two stainless Phillips screws.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer.

Do not install in a garage. Failure to do so can result in death, explosion, or fire.

Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST EDITION, or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION (for General Installation and Gas Plumbing).

The operation of this dryer may affect the operation of other types of gas dryers, which take their air for safe combustion from the same room. If in doubt, consult the dryer manufacturer(s).

The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be removed from the floor area that the dryer is to rest on.

The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.

Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply Requirements section).

Clearance provisions must be made from combustible construction as noted in this manual (refer to Dryer Enclosure Requirements section).

Provisions must be made for adequate clearances for servicing and for operation as noted in this manual (refer to Dryer Enclosure Requirements section).

The dryer must be installed with a proper exhaust duct connection to the outside as noted in this manual (refer to Exhaust Requirements section).

The dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual (refer to Exhaust Requirements section).

IMPORTANT: The dryer should be located where a minimum amount of exhaust ducting will be necessary.

The dryer must be installed with adequate clearance for air openings into the combustion chamber.

IMPORTANT: The dryer must be installed in a location/ environment, which the ambient temperature remains between 40° F (4.44° C) and 130° F (54.44° C).

113249- 2 Maytag Co. 7

Page 8

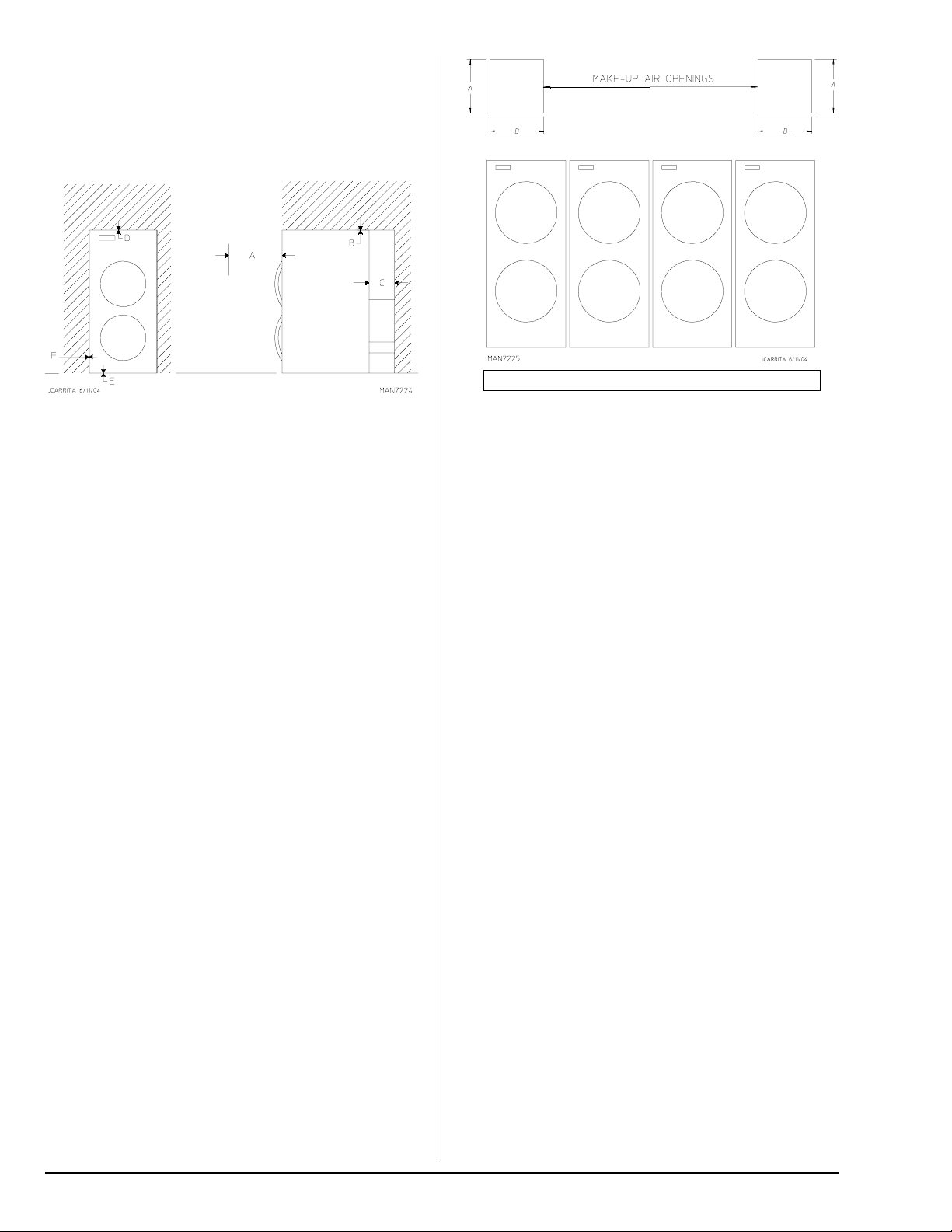

Dryer Enclosure Requirements ______

Bulkheads and partitions should be made of noncombustible material.

NOTE: Allowances must be made for opening the control door.

A = 16-inches (40.64 cm) B = 16-inches (40.64 cm)

A The requirement to allow the door to open completely

is 33-inches (83.8 cm).

B A minimum overhead clearance of 6-inches (15.24 cm)

is required.

C Dryer should be positioned a minimum of 12-inches

(30.48 cm) away from the nearest obstruction. 24-inches (60.96 cm) is recommended for ease of

installation, maintenance, and service. D 1/16” (1.5875 mm) minimum is required. E Flooring should be level or below dryer cabinet for ease

of removing panels during maintenance. F Dryers may be positioned sidewall to sidewall, however

a 1/16” (1.5875 mm) minimum allowance must be

made for the opening and closing of the control door,

along with the removal of panels during maintenance.

Fresh Air Supply Requirements ______

When the dryer is operating, it draws in room air, heats it, passes this air through the tumbler, and exhausts it out of the building. Therefore, the room air must be continually replenished from the outdoors. If the make-up air is inadequate, drying time and drying efficiency will be adversely affected. Ignition problems and sail switch “fluttering” problems may result, as well as premature motor failure from overheating. The dryer must be installed with provisions for adequate combustion and make-up air supply.

Air supply (make-up air) must be given careful consideration to ensure proper performance of each dryer. Fresh air ventilation openings shall not be blocked and/or sealed. As a general rule, an unrestricted air entrance from the outdoors of 128 inch 1 inch

It is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to all the dryers.

(826 cm2) is required for each dryer. (Based on

[6.5 cm2] per 1,000 Btu [252 kcal].)

EXAMPLE: For a bank of 4 dryers, 2 unrestricted openings measuring 16-inches by 16-inches (40.64 cm by 40.64 cm) are acceptable.

To compensate for the use of registers or louvers used over the openings, this area must be increased by approximately 33%. Make-up air openings should not be located in an area directly near where exhaust vents exit the building.

Allowances must be made for remote or constricting passageways or where dryers are located at high altitudes or predominantly low pressure areas.

IMPORTANT: Make-up air must be free of dry cleaning solvent fumes. Make-up air that is contaminated by dry cleaning solvent fumes will result in irreparable damage to the motors and other dryer components.

NOTE: Component failure due to dry cleaning solvent fumes will void the warranty.

Exhaust Requirements _______________

Exhaust ductwork should be designed and installed by a qualified professional. Improperly sized ductwork will create excessive back pressure, which results in slow drying, increased use of energy, and shutdown of the burner by the airflow (sail) switch, burner hi-limits, or lint chamber hi-limit protector thermostat. The dryer must be installed with a proper exhaust duct connection to the outside.

As per the National Fuel Gas Code, “Exhaust ducts for type 2 clothes dryers shall be constructed of sheet metal or other noncombustible material. Such ducts shall be equivalent in strength and corrosion resistance to ducts made of galvanized sheet steel not less than 26 gauge (0.0195-inches [0.50 mm]) thick.”

8 Maytag Co. 113249- 2

Page 9

WARNING

Fire Hazard Use a heavy metal vent. Do not use a plastic vent. Do not use a metal foil vent. Failure to follow these instructions can result in

death or fire.

The ductwork should be laid out in such a way that the ductwork travels as directly as possible to the outdoors with as few turns as possible. There should be a minimum 6-inch (15.24 cm) clearance between the back guard and the first bend in the ductwork for ease of servicing. Single or independent dryer venting is recommended. It is suggested that the use of 90° turns be avoided; use 30° and/or 45° bends instead. The radius of the elbows should preferably be 1-1/2 times the diameter of the duct. All ductwork should be smooth inside with no projections from sheet metal screws or other obstructions, which will collect lint. When adding ducts, overlap the duct being connected. All ductwork joints must be taped to prevent moisture and lint from escaping into the building. Back draft dampers must be installed in all commonly ducted systems. Inspection doors should be installed at strategic points in the exhaust ductwork for periodic inspection and cleaning of lint from the ductwork.

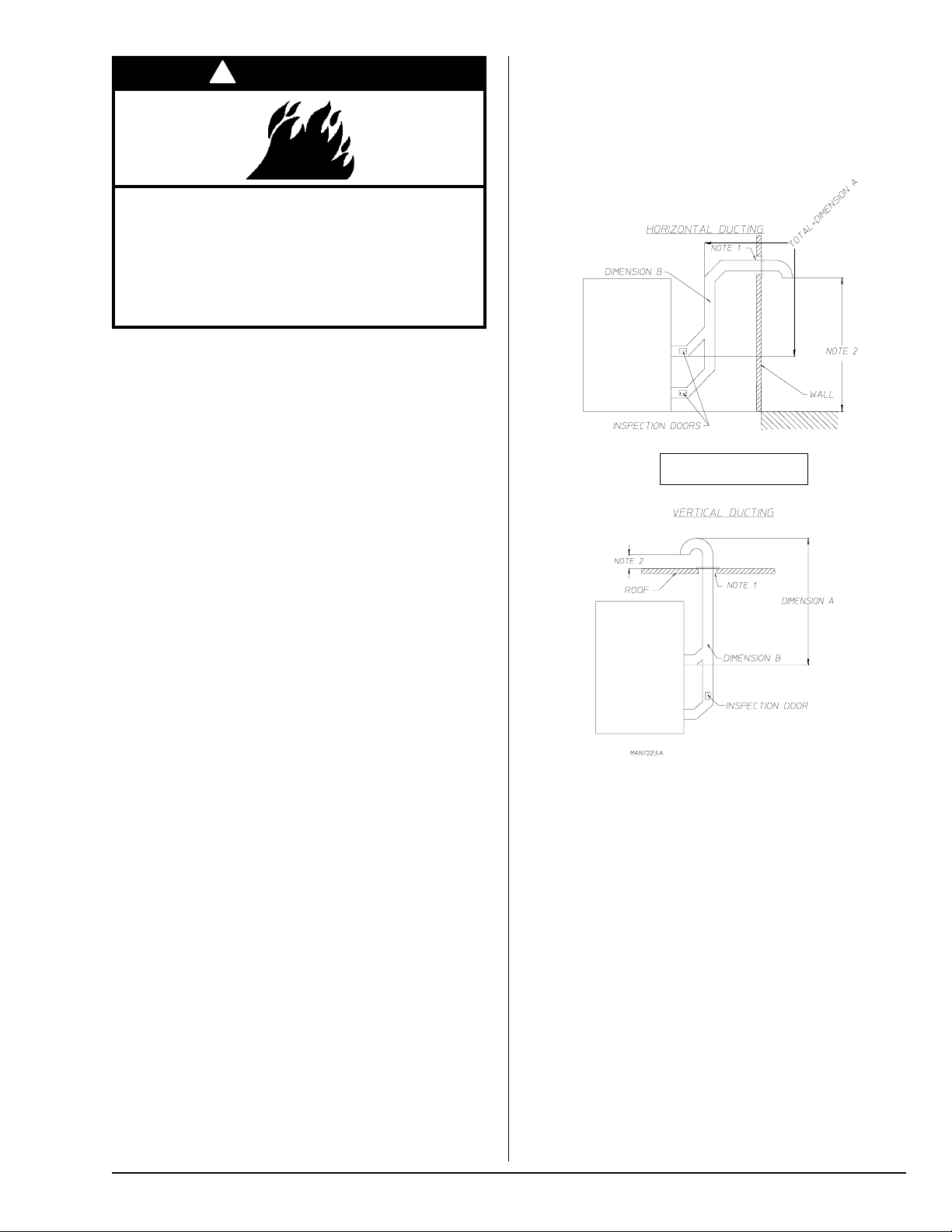

Single Dryer Venting

IMPORTANT: For extended ductwork runs, the crosssectional area of the ductwork can only be increased to an extent. When the ductwork approaches the maximum limits as noted in this manual, a professional HVAC firm should be consulted for proper venting information.

A = 12 feet (3.66 meters) B = 8-inches (20.32 cm)

IMPORTANT: It is recommended that exhaust or booster fans not be used in the exhaust ductwork system.

Exhaust back pressure measured by a manometer/ magnehelic in the exhaust duct must be no less than 0 and must not exceed 0.6 in WC (1.48 mb).

NOTE: When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible materials, the opening must be 2-inches (5.08 cm) larger than the duct (all the way around). The duct must be centered within this opening.

The ductwork for this appliance must be suitable for the appliance category in accordance with national installation regulations of the country of destination.

Outside Venting Protection

To shelter the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward should be installed where the exhaust exits the building. If the ductwork travels vertically up through the roof, it should be protected from the weather by using a 180° turn to point the opening downward. In either case, allow at least twice the diameter of the duct between the duct opening and the nearest obstruction (refer to the diagram).

IMPORTANT: Do not use screens, louvers, or caps on the outside opening of the exhaust ductwork.

NOTE 1 Opening from combustible materials must be 2-inches (5.08 cm)

larger than the duct (all the way around). The duct must be centered within this opening.

NOTE 2 Distance should be 2 times the diameter of the duct to the nearest

obstruction.

Multiple Dryer (Common) Venting

If it is not feasible to provide separate exhaust ducts for each dryer, ducts from individual dryers may be channeled into a “common main duct.” The individual ducts should enter the bottom or side of the main duct at an angle not more than 45º in the direction of airflow. The main duct should be tapered, with the diameter increasing before each individual duct is added. The minimum diameter of the individual ductwork must be at least 8-inches (20.32 cm).

IMPORTANT: No more than four dryers should be connected to one main common duct.

113249- 2 Maytag Co. 9

Page 10

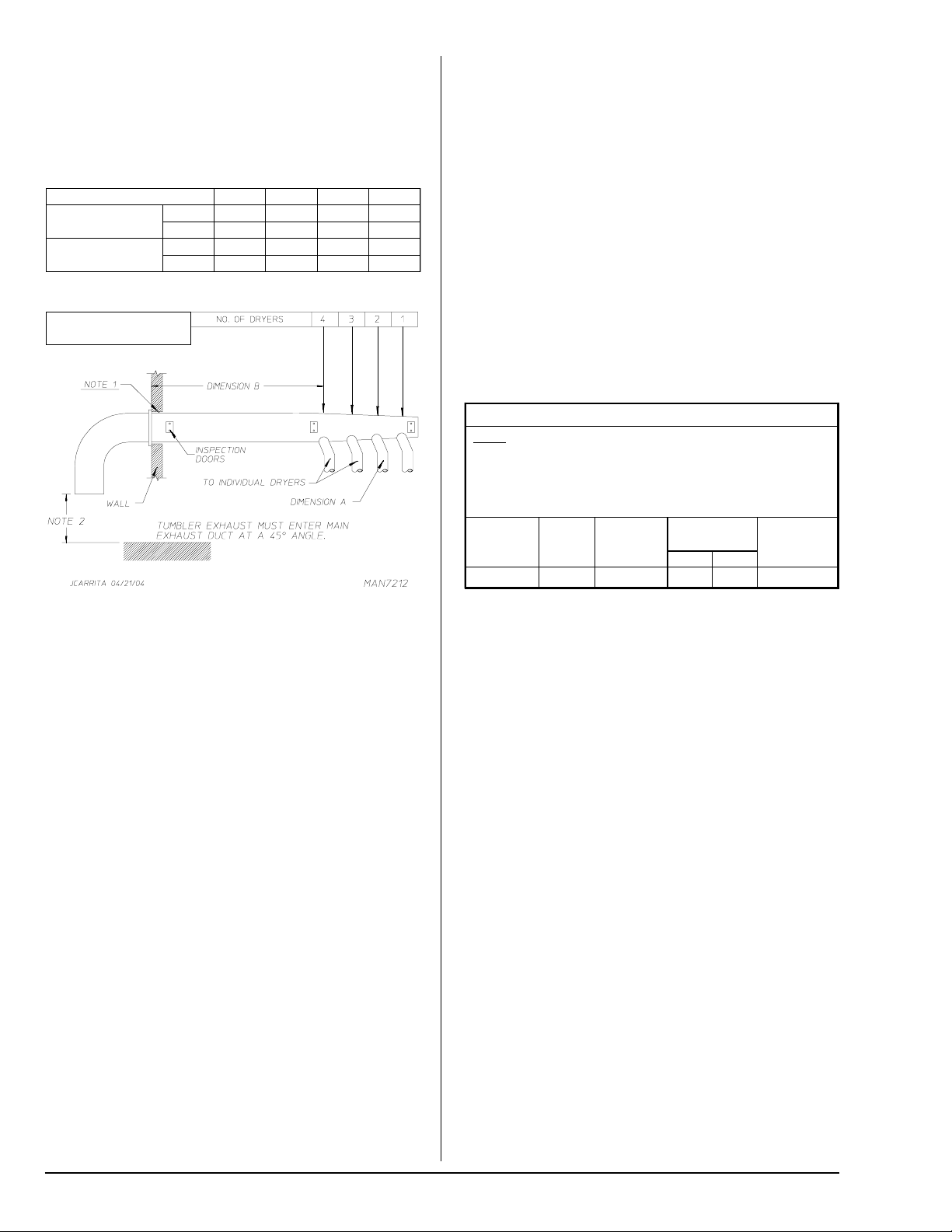

The illustration below shows the minimum cross-sectional area for multiple dryer round or square venting. These figures must be increased if the main duct run from the last dryer to where it exhausts to the outdoors is longer than 12 feet (3.66 meters) or has more than 1 elbow in it.

Multiple Dryer Venting with 8-Inch (20.32 cm) Diameter

720 cfm (20.38 cmm) Exhaust Connections at Common Duct

NUMBER OF DRYERS 4 3 2 1

MINIMUM CROSS-

SECTIONAL AREA

MINIMUM ROUND DUCT DIAMETER

A = 8-inches (20.32 cm) B = 12 feet (3.66 meters)

NOTE 1 Opening from combustible materials must be 2-inches (5.08 cm)

larger than the duct (all the way around). The duct must be centered within this opening.

NOTE 2 Distance should be 2 times the diameter of the duct to the nearest

obstruction.

SQ IN 164 120 80 54

SQ CM 1058 774.2 516.1 348.4

IN 14 12 10 8

CM 35.56 30.48 25.4 20.32

Electrical Information ________________

Electrical Requirements

All electrical connections must be made by a properly licensed and competent electrician. This is to ensure that the electrical installation is adequate and conforms to local, state, and national regulations or codes of the country of destination. In the absence of such codes, all electrical connections, materials, and workmanship must conform to the applicable requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.

IMPORTANT: Failure to comply with these codes or ordinances, and/or the requirements stipulated in this manual can result in personal injury or component failure.

NOTE: The use of aluminum wire will void the warranty. An individual ground circuit must be provided to each

pocket, do not daisy chain. Component failure due to improper voltage application

will void the warranty. The manufacturer reserves the right to make changes in

specifications at any time without notice or obligation.

IMPORTANT: A separate protected circuit must be provided to each pocket.

It is necessary to have a power disconnect for each dryer. These disconnects must be located within 30 feet (9 meters) of the dryer.

The dryer must be connected to the electric supply shown on the data label.

Electrical Service Specifications

Gas Models Only

ELECTRICAL SERVICE SPECIFICATIONS (PER POCKET)

NOTES: A.

SERVICE

VOLTAGE

120 1ø 2 10.3 — 15

When fuses are used they must be dual element, time delay, current limiting, class RK1 or RK5 ONLY. Calculate/determine correct fuse value, by applying either local and/or National Electrical Codes to listed appliance amp draw data. Circuit breakers are thermal-magnetic (industrial) motor curve type ONLY. For others, calculate/verify correct breaker size according to appliance amp draw rating and type of breaker used.

PHASE

WIRE

SERVICE

APPROX.

AMP DRAW

60 Hz 50 Hz

CIRCUIT

BREAKER

8/27/12

Grounding

A ground (earth) connection must be provided and installed in accordance with local, state, and national regulations or codes of the country of destination. In the absence of these codes, grounding must conform to applicable requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION, or in Canada, the installation must conform to applicable Canada Standards: Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION. The ground connection may be to a proven earth ground at the location service panel.

Electrical Connections

A wiring diagram is located behind the control panel with connection data.

If local codes permit, power to the dryer can be made by the use of a flexible UL listed power cord/pigtail (wire size must conform to rating of dryer), or the dryer can be hard wired directly to the service breaker panel. In both cases, a strain relief must be installed where the wiring enters the dryer.

NOTE: Component failure due to improper installation will void the warranty.

Each pocket should be connected to an independently protected branch circuit. The dryer must be connected with copper wire only. Do not use aluminum wire, which could cause a fire hazard. The copper conductor wire/cable must be of proper ampacity and insulation in accordance with electric codes for making all service connections.

10 Maytag Co. 113249- 2

Page 11

WARNING

Fire Hazard Use 12 gauge solid copper wire. Use a UL listed strain relief. Connect the white wire to the white wire from the

electric service; Connect the black wire to the black wire from the electric service; Connect the green wire to the green wire from the ground connection.

Securely tighten all electrical connections. Failure to do so can result in death, fire, or

electrical shock.

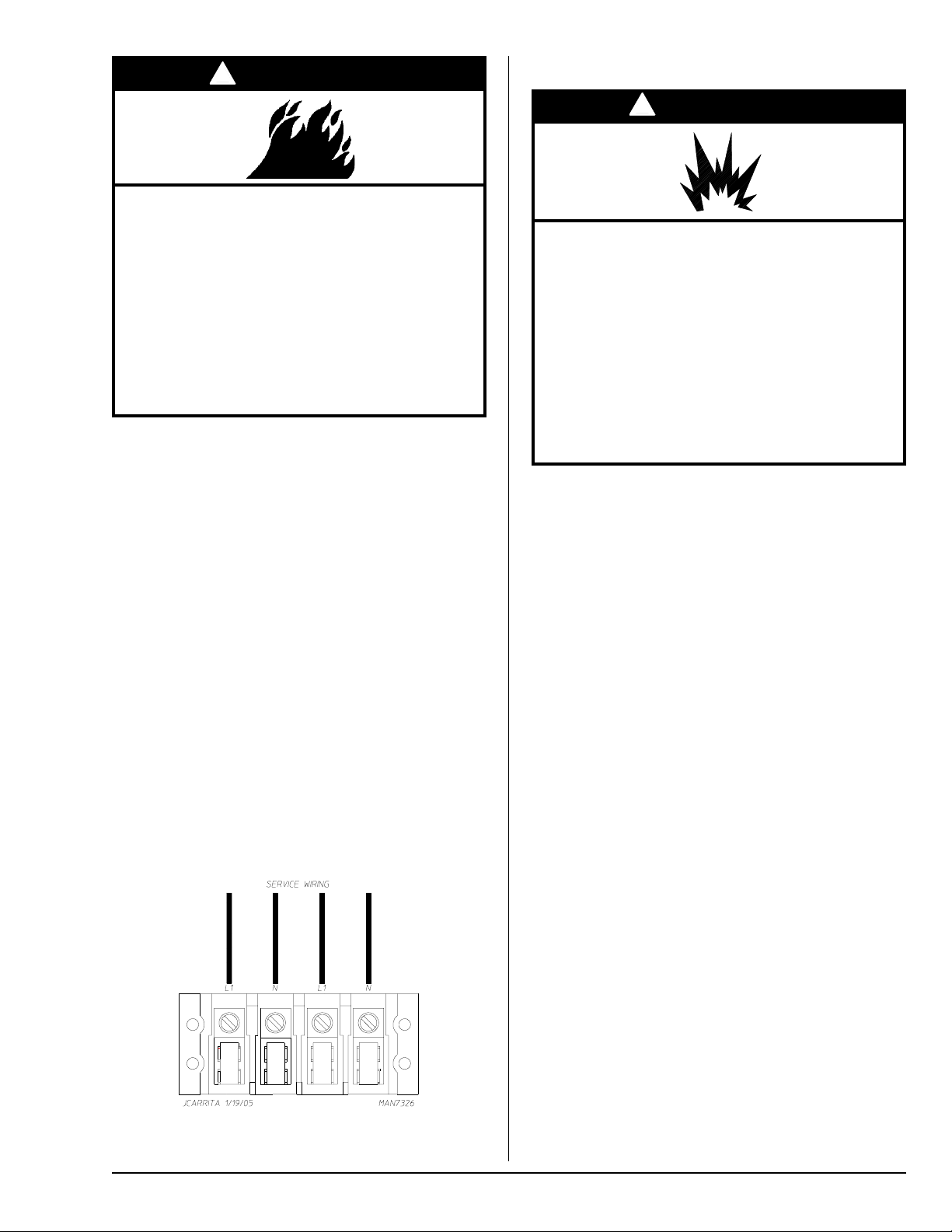

Single-Phase (1ø) Wiring Connections / Hookup

The electrical input connections are made into the rear service box located at the upper right area of the dryer. The ground connection is made to the copper lug, also provided in this box. To gain access, the service box cover must be removed.

Insert incoming white wire (neutral) for the top pocket into the far right hand connection.

Insert incoming black wire (L1) for the top pocket into the second from the right connection.

Insert incoming white wire (neutral) for the bottom pocket into the third from the right connection.

Insert incoming black wire (L1) for the bottom pocket into the far left hand connection.

Insert both incoming green wires (ground) into the copper lug.

Tighten strain relief screws assuring to leave a 1/2” of slack in the box.

Replace electrical box plate by inserting 3 screws previously removed.

120V Application with Neutral

Gas Information _______________________

WARNING

Explosion Hazard Use a new CSA International approved gas supply line. Install a shutoff valve. Securely tighten all gas connections. If connected to LP, have a qualified person make sure

gas pressure does not exceed 13” water column. Examples of a qualified person include: licensed heating personnel,

authorized gas company personnel, and authorized service personnel.

Failure to do so can result in death, explosion, or fire.

Type of Gas

This dryer is equipped for use with natural gas. It is designcertified by CSA International for L.P. (propane and butane) gases with appropriate conversion (see below). No attempt shall be made to convert the dryer from the gas specified on the serial/rating plate for use with a different gas without consulting the serving gas supplier. Conversion must be done by a qualified service technician.

MLG35 L.P. Conversion Kit: 884448

It is your responsibility to have all plumbing connections, materials, and workmanship conform to local and state regulations or codes of the country of destination. In the absence of such codes, all plumbing connections, materials, and workmanship must conform to the applicable local requirements. In the USA this is the National Fuel Gas Code ANSI Z223.1-LATEST EDITION, or in Canada, the Canadian Installation Codes CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGAB149.2-M91 (L.P. Gas) or LATEST EDITION.

It is important that gas pressure regulators meet applicable pressure requirements, and that gas meters be rated for the total amount of all the appliance Btu being supplied.

For ease of service, the individual gas supply line of each pocket must have its own manual shutoff valve.

The dryer and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).

Failure to isolate or disconnect the dryer from supply as noted can cause irreparable damage to the gas valve, voiding the warranty.

NOTE: Undersized gas piping will result in ignition problems, slow drying, increased use of energy.

113249- 2 Maytag Co. 11

Page 12

The input ratings shown on the data label are for elevations up to 2,000 feet (610 meters), unless elevation requirements of over 2,000 feet (610 meters) were specified at the time the dryer order was placed with the factory. The adjustment or conversion of dryers in the field for elevations over 2,000 feet (610 meters) is made by changing each burner orifice. If this conversion is necessary, contact the reseller who sold the dryer or contact the manufacturer.

IMPORTANT: If connection to this appliance is made with a flexible hose, it must be suitable for the appliance category in accordance with national installation regulations of the country of destination, and if in doubt the installer must contact the supplier. The manufacturer of this appliance does not recommend the use of flexible gas supply line/hose.

In the U.S.A.: An individual manual shutoff valve must be installed within 6 feet (1.8 meters) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1.

In Canada: An individual manual shutoff valve must be installed in accordance with the B149.1, Natural Gas and Propane Installation Code. It is recommended that an individual manual shutoff valve be installed within 6 feet (1.8 meters) of the dryer.

Gas Connections

Inlet connection .....1/2” N.P.T.

Inlet supply size .... 1/2” Diameter Pipe (minimum)

NOTE: Undersized gas supply piping can create a low or inconsistent pressure, which will result in erratic operation of the burner ignition system.

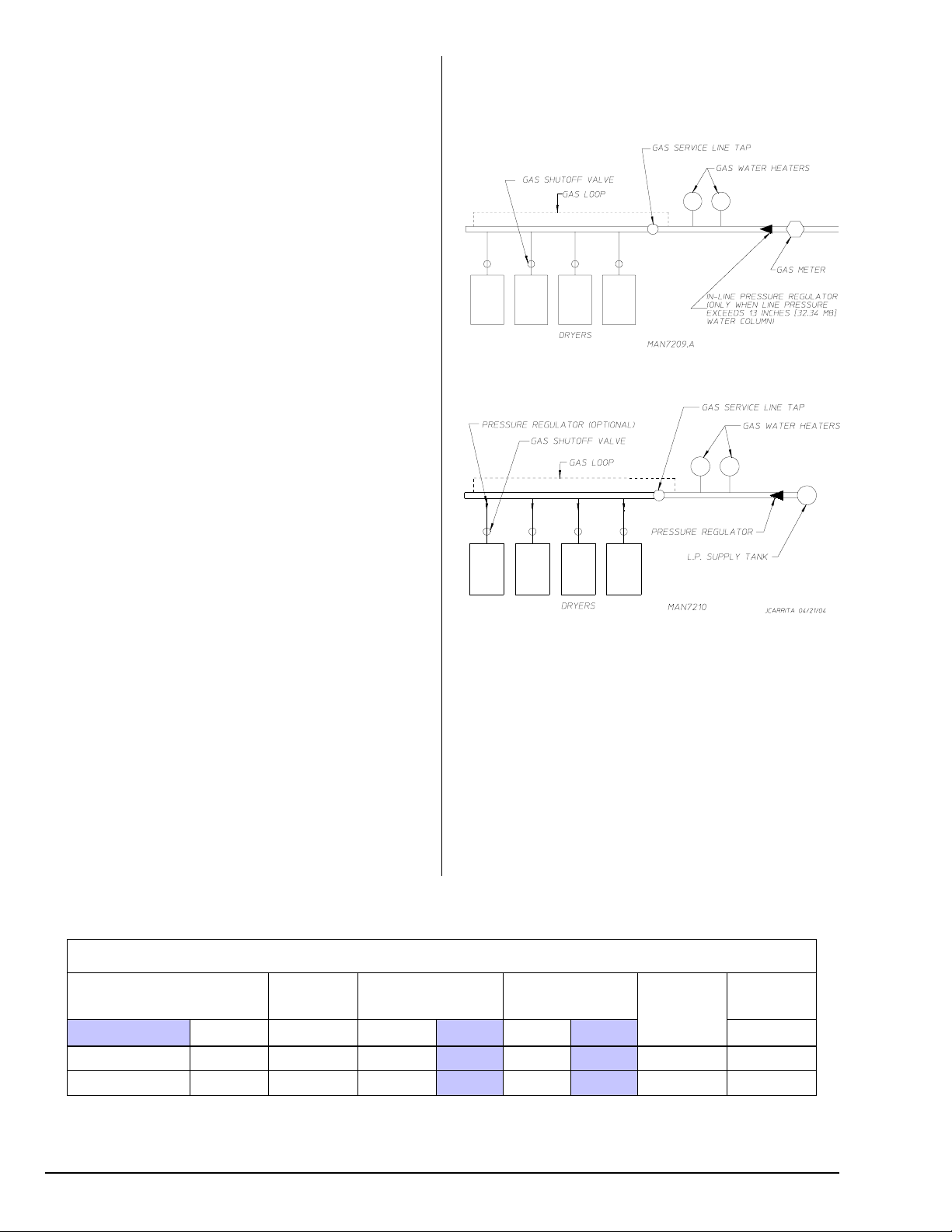

TYPICAL NATURAL GAS INSTALLATION

TYPICAL L.P. GAS INSTALLATION

Piping / Connections

The dryer is provided with two 1/2” N.P.T. inlet pipe connections (1 for each tumbler) at the rear of the dryer. If a separate feed is provided for each tumbler from the main supply line (header), then a 1/2” (12.7 mm) line connection is sufficient. However, if the top and bottom tumbler connections are connected together, the supply from the header must be increased to 3/4” (19.05 mm). There should be a minimum 6-inch (15.24 cm) clearance between the back guard and the first bend in the gas piping for ease of servicing. It is recommended that a gas shutoff valve be provided to the gas supply line of each dryer for ease in servicing.

The size of the main gas supply line (header) will vary depending on the distance this line travels from the gas meter or, in the case of L.P. gas, the supply tank, other gasoperated appliances on the same line, etc. Specific information regarding supply line size should be determined by the gas supplier.

Consistent gas pressure is essential at all gas connections. It is recommended that a 3/4” (19.05 mm) pipe gas loop be installed in the supply line servicing a bank of dryers. An in-line pressure regulator must be installed in the gas supply line (header) if the (natural) gas pressure exceeds 13.0 in WC (32.34 mb) pressure.

A plugged tap, accessible for a pressure gauge connection, must be installed in the main gas supply line immediately upstream of the dryers.

IMPORTANT: Pipe joint compounds that resist the action of natural, L.P., and butane gases must be used.

Test all connections for leaks by brushing on a soapy water solution (liquid detergent works well).

Heat Input / Gas Consumption / Orifice (Injector) Data

GAS SPECIFICATIONS FOR CSA APPROVED 60 HZ DRYERS***

Gas Type and

Nominal Heating Value

Btu/ft

Natural 1,000 7.0-13.0 64,000 *Liquid Propane 2,500 11.0 64,000

Shaded areas are stated in metric equivalents * Gas valve’s internal regulator disabled.

** Information is per pocket/tumbler. *** Consult factory for elevations over 2,000 feet (610 meters) for correct orifice size.

Supply

Pressure

in WC Btu/hr kW DMS mm in WC

**Gross

Heat Input

18.74

Orifice Size

23 42

3.912

2.375

**Orifice

(Injector)

Burner

Pressure

Quantity

13.5 1 10.5

12 Maytag Co. 113249- 2

Page 13

Gas Pressure Test Procedure

WARNING

Electric Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating. Failure to do so can result in death or electric

shock.

Preoperational Test __________________

All dryers are thoroughly tested and inspected before leaving the factory. However, a preoperational test should be performed before the dryer is publicly used. It is possible that adjustments have changed in transit or due to marginal location (installation) conditions.

Turn on electric power to the dryer. Refer to the operating instructions below for starting your

particular model dryer. Open all shutoff valves. When a gas dryer is first started (during initial start-up), it

has a tendency not to ignite on the first ignition attempt. This is because the gas supply piping is filled with air, so it may take a few minutes for the air to be purged from the lines.

1. Disconnect power to the dryer.

2. Turn off gas supply using the shutoff valve that supplies the dryer.

3. Remove the toe panel from the dryer.

4. Turn gas cock in gas supply line to “OFF” position.

5. Install pressure tap and attach manometer.

6. Turn gas cock to “ON” position.

7. Turn on gas supply using the shutoff valve that supplies the dryer and reconnect the power.

8. Start the dryer in Heat Mode and wait for ignition.

9. Record the manometer reading.

10. Once test is complete, disconnect power to the dryer, turn gas cock to “OFF” position. Remove manometer. Tighten screw inside the pressure tap or install plug.

11. Turn gas cock to “ON” position and check for leaks with soap solution.

12. Reinstall the toe panel.

13. Reconnect the power.

Preparation for Operation / Start-Up _

The following items should be checked before attempting to operate the dryer:

• Read all “WARNING” and “DIRECTION” labels attached

to the dryer.

• Check incoming supply voltage to ensure that it is the

same as indicated on the data label.

• Ensure that all gas shutoff valves are in the open

position.

• Ensure all back panels (guards) and electric box covers

are in place.

• Ensure the service doors are closed and securely in

place.

• Ensure the lint door/drawer is securely in place.

• Rotate the tumbler (drum) by hand to ensure it moves

freely.

• Check bolts, nuts, screws, terminals, and fittings for

tightness and security.

• Check that the vent is connected to the dryer and is

exhausted to the outdoors.

NOTE: During the purging period, check to be sure that all gas shutoff valves are open.

Tumbler Coating

The tumbler is treated with a protective coating. We suggest dampening old garments or cloth material with a solution of water and nonflammable mild detergent and tumbling them in the tumbler to remove this coating.

Microprocessor Programs / Selections

Each microprocessor controller (computer) has been preprogrammed by the factory with the most commonly used parameter (program) selections. If computer program changes are required, refer to the computer programming manual which was shipped with the dryer.

Operating Instructions _______________

IMPORTANT: For more detailed information regarding the microprocessor controller (computer), refer to the microprocessor user’s manual included with the dryer.

Microprocessor Controller (Computer)

When the microprocessor controller (computer) is in the ready state, the L.C.D. screen will display “To Start Insert $XX.XX”.

Insert coin(s). Once the correct “Amount to Start” has been inserted, the L.C.D. will display “Select Cycle”.

Select temperature by pressing HEAVY DUTY, NORMAL, or DELICATE. The cycle will start and the L.C.D. will display the Dry Cycle selected and the remaining time.

The dryer will continue through the drying and cooling cycles, until the vended time has expired.

NOTE: To stop the dryer, open main door. Continuation of the cycle will resume only after the door has been closed and any one of the three temperature selections is pressed.

113249- 2 Maytag Co. 13

Page 14

Shutdown Instructions _______________

If the dryer is to be shutdown (taken out of service) for a period of time, the following must be performed:

Discontinue power to the dryer either at the external disconnect switch or the circuit breaker.

Discontinue the fuel supply: close external gas shutoff valve. Also close internal gas shutoff valves.

Service / Parts Information __________

Service

Service must be performed by a qualified trained technician, service agency, or gas supplier. If service is required, contact the Maytag distributor from whom the equipment was purchased. If the distributor cannot be contacted or is unknown, contact the Maytag Co. for a distributor in your area.

NOTE: When contacting the Maytag Co., be sure to give them the correct model number and serial number so that your inquiry is handled in an expeditious manner.

IMPORTANT: The frequency of cleaning the lint screen can best be determined from experience at each location.

Weekly

Clean lint accumulation from lint chamber, thermostat, and microprocessor temperature sensor area.

90 Days

WARNING

Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.

Parts

Replacement parts should be purchased from the distributor from whom the Maytag equipment was purchased. If the distributor cannot be contacted or is unknown, contact the Maytag Co. for a distributor in your area.

NOTE: When ordering replacement parts from the Maytag distributor or the Maytag Co. be sure to give them the correct model number and serial number so that your parts order can be processed in an expeditious manner.

Routine Maintenance _________________

Cleaning

A program and/or schedule should be established for periodic inspection, cleaning, and removal of lint from various areas of the dryer, as well as throughout the ductwork system. The frequency of cleaning can best be determined from experience at each location. Maximum operating efficiency is dependent upon proper airflow. The accumulation of lint can restrict this airflow.

NOTE: Suggested time intervals shown are for average usage, which is considered 6 to 8 operational (running) hours per day.

Suggested Cleaning Schedule

Every Third or Fourth Load

Clean the lint screen every third or fourth load. A clogged lint screen will cause poor dryer performance. The lint door/ drawer is located just below the loading door of the dryer. Open the lint door/drawer, brush the lint off the lint screen, and remove the lint. Inspect lint screen and replace if torn.

NOTE: To remove the lint drawer from the dryer, pull the drawer out loosen the TORX rails. This allows the metal clips to rotate and allow the drawer to be fully removed. Reverse the above process for installation.

screws on the sides of the

NOTE: To prevent damage, avoid cleaning and/or touching ignitor/flame-probe assembly.

Remove lint from gas valve burner area with a dusting brush or vacuum cleaner attachment.

Clean any lint accumulation in and around the motor(s) casing opening.

Every 6 Months

Inspect and remove lint accumulation in customer furnished exhaust ductwork system and from dryer’s internal exhaust ducting.

NOTE: Do not obstruct the flow of combustion and ventilation air. Check back draft dampers in the exhaust ductwork. Inspect and remove any lint accumulation, which can cause the damper to bind or stick.

A back draft damper that is sticking partially closed can result in slow drying and shutdown of heat circuit safety switches or thermostats.

When cleaning the dryer cabinet(s), avoid using harsh abrasives. A product intended for the cleaning of appliances is recommended.

Adjustments

7 Days After Installation and Every 12 Months Thereafter

Inspect bolts, nuts, screws, setscrews, grounding connections and nonpermanent gas connections (unions, shutoff valves, and orifices). Belts should be examined. Cracked or seriously frayed belts should be replaced. Complete an operational check of controls and valves. Complete an operational check of all safety devices (lint door/drawer switch, door switches, sail switch, and hi-limit thermostats).

14 Maytag Co. 113249- 2

Page 15

Data Label Information _______________

Standard Label

NOTES _____________________________________________________

____________________________________________________________

When contacting Maytag, the information on the data label is required to ensure proper service/parts assistance. The data label is located at the upper left rear of the dryer behind the back guard.

1. Model Number – This describes the style of dryer and

type of heat (gas, electric, or steam).

2. Serial Number – Allows the manufacturer to gather

information on your particular dryer.

3. Type of Heat – This describes the type of heat for your

particular dryer, gas (either natural gas or L.P. gas), electric, or steam.

4. Heat Input (For Gas Dryers) – This describes the heat

input in British thermal units per hour (Btu/hr) or kilowatts (kW).

5. Orifice Size (For Gas Dryers) – Gives the number drill

size used.

6. Electric Service – This describes the voltage and current

rating for a particular model.

7. Gas Manifold Pressure (For Gas Dryers) – This

describes the manifold pressure taken at the gas valve tap.

____________________________________________________________

113249- 2 Maytag Co. 15

Page 16

Part No. 113249 2 - 09/05/12

Maytag MLG35PDAWS, MLG35PDAWW, MLG35PDBWW, MLG35PDBWS Installation Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual

Service

Parts

Cleaning

Adjustments
