Maytag MGDB950YW1, MGDB950YW2, MGDB950YW3, MGDB950YG1, MGDB950YG2 Installation Guide

...

Gas Dryer Installation Instructions

Canadian Electric Dryer Installation Instructions

Instructions pour l'installation de la s6eheuse a gaz

(E.-U. et Canada) et 61eetrique (Canada uniquement)

Table of Contents

DRYER SAFETY ............................................................... 2

iNSTALLATiON REQUIREMENTS ................................... 4

Tools and Parts ................................................................... 4

LOCATION REQUIREMENTS .................................................... 5

ELECTRIC DRYER POWER HOOKUP-CANADA ONLY .......... 6

Electrical Requirements .................................................... 6

GAS DRYER POWER HOOKUP ................................................ 7

Electrical Requirements .................................................... 7

Gas Supply Requirements ................................................. 7

iNSTALL LEVELING LEGS ......................................................... 8

VENTING ..................................................................................... 9

Venting Requirements ........................................................ 9

PLAN VENT SYSTEM ............................................................... 10

iNSTALL VENT SYSTEM ......................................................... 12

MAKE GAS CONNECTION ...................................................... 12

CONNECT iNLET HOSES ........................................................ 12

CONNECT VENT ...................................................................... 14

LEVEL DRYER .......................................................................... 14

COMPLETE iNSTALLATiON CHECKLIST .............................. 15

REVERSE DOOR SWING ......................................................... 15

TROUBLESHOOTING .............................................................. 17

iNSTALLATiON NOTES Date of purchase:

Date of installation:

Installer:

Model number: Serial number:

Table des matibres

SF:CURIT¢: DE LA S¢:CHEUSE ........................................ 18

EXIGENCES D'INSTALLATION ....................................... 20

Outillage et pi_ces ............................................................. 20

EXIGENCES D'EMPLACEMENT ............................................... 21

RACCORDEMENT DE LA SECHEUSE

leLECTRIQUE - CANADA SEULEMENT .................................. 22

Sp6cifications _lectriques ................................................. 22

RACCORDEMENT D'UNE S#CHEUSE A GAZ ........................ 23

Specifications 61ectriques ................................................. 23

Specifications de I'alimentation en gaz ........................... 23

iNSTALLATiON DES PIEDS DE NIVELLEMENT ...................... 25

L' EVACUATION .......................................................................... 25

Exigences concernant I'evacuation ................................. 25

PLANIFICATION DU SYSTEME D'EVACUATION ..................... 26

iNSTALLATiON DU SYST_:ME DqeVACUATION ....................... 28

RACCORDEMENT AU GAZ ....................................................... 29

RACCORDEMENT DES TUYAUX D'ALIMENTATION .............. 29

RACCORDEMENT DU CONDUIT D'ISVACUATION ................. 31

RLeGLAGE DE L'APLOMB DE LA SIsCHEUSE ......................... 31

LISTE DE VleRIFICATION

POUR iNSTALLATiON TERMINleE ............................................ 32

iNVERSiON DU SENS D'OUVERTURE DE LA PORTE ............ 32

DLePANNAGE .............................................................................. 34

NOTES CONCERNANT L'INSTALLATION

Date d'achat : Date d'installation :

Installateur : Num6ro de module :

Num_ro de s6rie :

W10392126A W10392127A-SP

Para obtener acceso al "lnstrucciones de instalaci6n" en espaSol, o para obtener informaci6n

adicional acerca de su producto, visite: www.whirlpool.com

Tenga Nsto su nOmero de modelo completo. Puede encontrar el nOmero de modelo

y de serie dentro de lacavidad superior de la puerta.

DRYER S_ETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

WARNING - ...i.. ofFi,o..

- Clothes dryer installation must be performed by a qualified installer.

- install the clothes dryer according to the manufacturer's instructions and local codes, = Do not install a clothes dryer with fle×ible plastic venting materials or flexible metal

(foil type) duct. if fle×ible metal duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryers, Fle×ible venting

materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.

= To reduce the risk of severe injury or death, follow all installation instructions. = Save these instructions.

When discarding or storing your old clothes dryer, remove the door.

WARNING: For your safety, the information in this manual must be followed to minimize 1 the risk of fire or explosion, or to prevent property damage, personal injury, or death. 1

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

- WHAT TO DO iF YOU SMELL GAS:

o Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building. ®Clear the room, building, or area of all occupants.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

= if you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

WARNING: Gas leaks cannot always be detected by smell.

Gas suppliers recommend that you use a gas detector approved by UL or CSA.

For more information, contact your gas supplier. If a gas leak is detected, follow the "What to do if you smell gas" instructions.

iMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSi Z223.1/NFPA 54 or the Canadian Natural Gas and Propane Installation Code, CSA B149.1.

The dryer must be electrically grounded in accordance with localcodes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or Canadian Electrical Code, CSA C22.1.

in the State of Massachusetts, the following installation instructions apply:

[] Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by

the State of Massachusetts.

[] if using a ball valve, it shall be a T-handle type. [] A flexible gas connector, when used, must not exceed 3 feet.

IN$ LATION REQUIREMENTS

TOOLS AND PARTS

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed here.

Tools needed for all installations:

Tools needed for gas installations:

Flat-blade screwdriver

Level

Utility knife

Adjustable wrench that opens to 1" (25 mm) or

hex-head socket wrench

Vent clamps

Caulking gun and compound (for installing new exhaust vent)

8" (203 mm) or 10" (254 mm) pipe wrench

Pipe-joint compound

resistant to LP gas

Parts supplied {all models):

Leveling legs (4) Parts supplied {steam models):

8" (203 mm) or 10" (254 mm) adjustable wrench (for gas connections)

Tin snips (new vent

installations)

Tape measure Pliers

1/4"( 6 mm) nut driver (recommended)

"Y" connector

5' (1.5 m) Inlet Hose

Remove parts package from dwer drum. Check that all parts are included.

Parts needed: (Not supplied with dwer) Check local codes. Check existing electrical supply and venting. See "Electrical Requirements" and "Venting Requirements"

before purchasing parts.

Mobile home installations require metal exhaust system hardware available for purchase from the dealer from whom you purchased your dryer. For further information, please refer to the "Assistance or Service" section in your "Use and Care Guide".

2' (0.6 m) inlet hose

Rubber washer

Optional Equipment: (Not supplied with dryer) Refer to your "Use and Care Guide" for information about

accessories available for your dryer.

LOCATION REQUIREMENWS

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from dryer,

Place dryer at least 18 inches (460 ram) above the floor

for a garage installation.

Failure to do so can result in death, explosion, or fire.

You will need:

[]

A location allowing for proper exhaust installation. See "Venting Requirements".

[]

A separate 15 or 20-amp circuit needed for gas dryers and 30-amp circuit needed for electric dryers.

[]

If using power supply cord, a grounded electrical outlet located within 2 ft. (610 mm) of either side of dryer.

See "Electrical Requirements".

[]

Floor must support dryer weight of 200 Ibs. (90.7 kg). Also consider weight of companion appliance.

[]

Level floor with maximum slope of 1" (25 mm) under entire dryer. If slope is greater than 1", clothes may not tumble properly and automatic sensor cycles may not operate correctly.

[]

For garage installation, place dryer at least 18" (460 mm) above floor.

[]

Steam models only: Cold water faucets located within 4 ft. (1.2 m) of the water fill valves, and water pressure of 20-100

psi (137.9-689.6 kPa). You may use the water supply for your washer using the "Y" connector provided.

Do not operate your dryer at temperatures below 45° F (7°C). At

lower temperatures, the dryer might not shut off at the end of an

automatic sensor cycle, this can result in longer drying times. The dryer must not be installed or stored in an area where it will

be exposed to water and/or weather.

Check codes requirements. Some codes limit, or do not permit,

installation of the dryer in garages, closets, mobile homes, or

sleeping quarters. Contact your local building inspector. NOTE: No other fuel-burning appliance can be installed in the

same closet as a dryer.

INSTALLATION CLEARANCES The location must be large enough to allow the dryer door

to open fully.

DRYER DIMENSIONS

Side view with open door dimensions:

-,,=====221/4"-------__ 30"------_

(50 ram) (783ra!!/-

44"

mm)

1//2H

(13ram)

Back view:

441/2"

63/4"

(171 rnrn}

Bottom view:

31/4" _1

(83_rn)

NOTE: Most installations require a minimum of 5" (127 mm) clearance behind dryer for exhaust vent with elbow. See "Venting

Requirements".

O ©

(368 ram) __ 11"

(279 ram)

4141/2"-_ "=-141/2"-_

(368 ram) (368 ram)

(1371 _----_mm)l 1

_- (25 turn)

Spacingfor recessedareaor closet installation

All dimensions show recommended spacing allowed, with tested spacing of 0" (0 mm) clearance on sides and rear.

[] Additional spacing should be considered for ease of

installation and servicing.

[] Additional clearances might be required for wall, door, and

floor moldings.

[] Additional spacing should be considered on all sides of the

dryer to reduce noise transfer.

[]

For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilitation openings are acceptable.

[] Companion appliance spacing should also be considered.

(76

(127 ram)

ELECTRIC DR R FOWER HOOKUFo ONLY

ELECTRICAL REQUIREMENTS

Electrical Shock Hazard

Plug into a grounded 4 prong outlet. Failure to do so can result in death or electrical shock.

it is your responsibility: [] Tocontact a qualified electrical installer.

[]

To be sure that the electrical connection is adequate and in conformance with Canadian Electrical Code, C22.1-1atest edition and all local codes. A copy of above codes standard may be obtained from: Canadian Standards Association, 178 Rexdale Blvd., Toronto, ON M9W 1R3 CANADA.

[]

To supply the required 4 wire, single phase, 120/240 volt, 60 Hz, AC only electrical supply on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or

circuit breaker is recommended. Connect to an individual branch circuit.

[]

This dryer is equipped with a CSA International Certified Power Cord intended to be plugged into a standard 14-30R

wall receptacle. The cord is 5 ft. (1.52 m) long. Be sure wall receptacle is within reach of dryer's final location.

(25turn}

Mobile home =Additional installation requirements:

This dryer is suitable for mobile home installations. The installation must conform to the Manufactured

Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile home construction and Safety, Title 24, HUD Part 280) or Standard

CAN/CSA-Z240 MH.

Mobile home installations require: All dryers:

[] Metal exhaust system hardware, available for purchase

from your dealer. For further information, see "Assistance or Service" section in your "Use and Care Guide".

[]

Special provisions must be made in mobile homes to introduce outside air into dryer. Openings (such as a nearby window) should be at least twice as large as dryer exhaust opening.

For gas dryers mobile home installations: [] Mobile Home Installation Hold-down Kit Part Number

W10432680 is available to order. For further information, see "Assistance or Service" section in your "Use and

Care Guide".

4-wire receptacle (14-30R)

If using a replacement power supply cord, it is recommended that you use Power Supply Cord Replacement Part Number 9831317.

For further information, please reference service numbers located in "Assistance or Service" section of your "Use and Care Guide".

GROUNDING iNSTRUCTiONS

GROUNDING INSTRUCTIONS

m For a grounded, cord-connected dryer: This dryer must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This dryer is equipped with a cord having an equipment- grounding conductor and a grounding plug. The plug must

be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes

and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative

or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug provided with the dryer: if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

GAS DR R POWER HOOKUP

ELECTRICAL REQUIREMENTS

[] For a grounded, cord-connected dryer: This dryer must be grounded. In the event of malfunction or

be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes

and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug provided with the dryer: if it will not fit the outlet, have a proper outlet

installed by a qualified electrician.

SAVE THESE INSTRUCTIONS

GAS SUPPLY REQUIREMENTS

Electrical Shock Hazard

Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter.

Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

[]

120 Volt, 60 Hz, AC only, 15- or 20- amp fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is also recommended that a separate circuit serving only this dryer be provided.

Explosion Hazard

Use a new CSA International approved gas supply line. Install a shut=off valve.

Securely tighten all gas connections. If connected to LP, have a qualified person make sure

gas pressure does not exceed 13" (330 ram) water column,

Examples of a qualified person include: licensed heating personnel,

authorized gas company personnel, and authorized service personnel.

Failure to do so can result in death, explosion, or fire.

GAS TYPE Natural Gas:

This dryer is equipped for use with Natural gas. It is design- certified by CSA International for LP (propane or butane) gases with appropriate conversion.

[]

Your dryer must have the correct burner for the type of gas in your home. Burner information is located on the rating plate in the door well of your dryer. If this information does not agree with the type of gas available, contact your dealer or call the phone numbers referenced in the "Assistance or Service" section of your "Use and Care Guide".

LP Gas Conversion:

IMPORTANT: Conversion must be made by a qualified technician.

No attempt shall be made to convert the dryer from the gas specified on the model/serial rating plate for use with a different gas without consulting your gas company.

GAS SUPPLY LiNE [] Must include 1/8" NPT minimum plugged tapping accessible

for test gauge connection, immediately upstream of the gas connection to the dryer.

A. 3/8" flexible gas connector

B.3/8" pipe to flare adapter fitting C. 1/8" NPT minimum plugged tapping D. 1/2" NPT gas supply line

E.Gasshutoff valve.

[] 1/2" IPS pipe is recommended. [] 3/8" approved aluminum or copper tubing is acceptable for

lengths under 20 ft. (6.1 m) if local codes and gas supplier

permit. [] If you are using Natural gas, do not use copper tubing. [] Lengths over 20 ft. (6.1 m) should use larger tubing and

a different size adapter fitting. [] If your dryer has been converted to use LP gas, 3/8" LP

compatible copper tubing can be used. If the total length of

the supply line is more than 20 ft. (6.1 m), use larger pipe.

NOTE: Pipe-joint compounds that resist the action of LP gas

must be used. Do not use TEFLON<e_tape. [] Must include shut-off valve

In the U.S.A.:

An individual manual shut-off valve must be installed within

six (6) ft. (1.8 m) of the dryer in accordance with the National

Fuel Gas Code, ANSI Z223.1. The location should be easy to

reach for opening and closing. In Canada:

An individual manual shut-off valve must be installed in

accordance with the B149.1, Natural Gas and Propane

Installation Code. It is recommended that an individual

manual shutoff valve be installed within six (6) ft. (1.8 m) of

the dryer. The location should be easy to reach for opening

and closing.

GAS SUPPLY CONNECTION REQUIREMENTS [] Use an elbow and a 3/8" flare x 3/8" NPT adapter fitting

between the flexible gas connector and the dryer gas pipe,

as needed to avoid kinking. [] Use only pipe-joint compound. Do not use TEFLON _'*_ttape. [] This dryer must be connected to the gas supply line with a

listed flexible gas connector that complies with the standard

for connectors for gas appliances, ANSI Z21.24 or CSA 6.10.

BURNER iNPUT REQUIREMENTS Elevations above 10,000 ft. (3,048 m): [] When installed above 10,000 ft. (3,048 m) a 4% reduction

of the burner Btu rating shown on the model/serial number

plate is required for each 1,000 ft. (305 m) increase in

elevation.

Gas supply pressure testing [] The dryer must be disconnected from the gas supply piping

system during pressure testing at pressures greater than

1/2 psi.

DRYER GAS PiPE [] The gas pipe that comes out through the rear of your dryer

has a 3/8" male pipe thread.

_ 4 1/2""

(25 ram)

A. 1/2" NPT gas supply line

B. 3/8" NPT dryer pipe

(115 ram)

NOTE: If the dryer is mounted on a pedestal, the gas pipe height must be an additional 10" (254 mm) or 15.5" (394 mm) from the floor, depending on the pedestal model. For a garage installation, the gas pipe height must be an additional 18" (460 mm) from

the floor.

1®TEFLON is a registered trademark of E.I. Dupont De Nemours and Company.

INSTALL LE¥ LING LEGS

Excessive Weight Hazard

Use two or more people to move and install dryer. Failure to do so can result in back or other injury.

rl, Prepare dryer for leveling legs

",%

To avoid damaging floor, use a large flat piece of cardboard from dryer carton; place under entire dryer. Firmly grasp

dryer body (not console panel) and gently lay dryer down on cardboard.

IMPORTANT: If laying dryer on its back, use the cardboard

corner posts the dryer was packed with to avoid damaging the back of the dryer. Lay the dryer on its side if you do not

have the cardboard corner posts the dryer was packed with.

¥ NTING

VENTING REQUIREMENTS

Fire Hazard

Use a heavy metal vent, Do not use a plastic vent.

Do not use a metal foil vent, Failure to follow these instructions can result in death

or fire.

WARNING: To reduce the risk of fire, this dryer MUST BE

EXHAUSTED OUTDOORS. IMPORTANT: Observe all governing codes and ordinances.

Dryer exhaust must not be connected into any gas vent, chimney, wall, ceiling, attic, crawlspace, or a concealed space

of a building. Only rigid or flexible metal vent shall be used for exhausting.

(102 ram)

4m'

Screw in leveling legs

Examine leveling legs. Screw legs into leg holes by hand, use a wrench if necessary, to finish turning legs until they

begin to touch the base.

Now stand the dryer on its legs. Slide the dryer until it is close to its final location. Leave enough room for electrical connection and to connect the exhaust vent.

4" (102 mm) heavy metal exhaust vent

[] Only a 4" (102 mm) heaw metal exhaust vent and clamps

may be used.

[] Do not use plastic or metal foil vent.

Rigid metal vent: [] Recommended for best drying performance and to avoid

crushing and kinking.

Flexible metal vent: (Acceptable only ifaccessible to clean)

[]

Must be fully extended and supported in final dryer location.

[]

Remove excess to avoid sagging and kinking that may

result in reduced airflow and poor performance. [] Do not installin enclosed walls, ceilings, or floors. [] The total length should not exceed 7 3/4ft. (2.4 m).

NOTE: If using an existing vent system, clean lint from entire length of the system and make sure exhaust hood

is not plugged with lint. Replace plastic or metal foil vents with rigid metal or flexible metal vents. Review Vent System Chart and if necessary, modify existing vent system to achieve best drying performance.

Exhausthoods:

[] Must be at least 12" (305 ram) from ground or any object

that may obstruct exhaust (such as flowers, rocks, bushes,

or snow).

Recommended Styles:

PLAN SYSTEM

Recommended exhaust installations Typical installations vent the dryer from the rear of the dryer.

Other installations are possible.

A ...........................

Louvered Hood

Box Hood

Acceptable Style:

Angled Hood

Elbows: [] 45° elbows provide better airflow than 90° elbows.

Recommended Styles:

............ Be

Clamps: []

Use clamps to seal all joints.

[]

Exhaust vent must not be connected or secured with screws or other fastening devices that extend into interior of duct

and catch lint. Do not use duct tape.

A. Dryer

B. Elbow C. Wall

D. Exhaust hood

E. Clamps R Rigid metal or flexible metal vent G. Vent length necessary to connect elbows

H. Exhaust outlet

Optional exhaust installations:

Fire Hazard

Use a heavy metal vent,

Do not use a plastic vent. Do not use a metal foil vent.

Failure to follow these instructions can result in death or fire.

[]

Exhaust Cover Kit (to cover unused exhaust holes): Part Number W10186596 - all models

[]

Bottom Exhaust Kit- Part Number 8212503

improper venting can cause moisture and lint to collect indoors, which may result in:

[] Moisture damage to woodwork, furniture, paint, wallpaper,

carpets, etc.

[] Housecleaning problems and health problems.

Vent products can be purchased from your dealer. For more

information, see "Assistance or Service" section in your "Use

and Care Guide".

If you prefer, dryer may be converted to exhaust through the bottom. You must contact your local dealer to have dryer

converted.

Determine vent path:

[] Select route that will provide straightest and most direct

path outdoors.

[] Plan installation to use fewest number of elbows and turns. [] When using elbows or making turns, allow as much room

as possible. [] Bend vent gradually to avoid kinking. [] Use as few 90° turns as possible.

A B

A.Standard rearoffset exhaust installation B. Bottom exhaust installation

Alternate installations for close clearances Venting systems come in many varieties. Select the type best

for your installation. Two close-clearance installations are shown.

Refer to the manufacturer's instructions.

A B

A. Over-the-top installation

(also available with one offset elbow)

B. Periscope installation

NOTE: The following kits for close clearance alternate

installations are available for purchase. Contact your local dealer.

[] Over-the-Top Installation:

Part Number 4396028

[]

Periscope Installation (For use with dryer vent to wall vent mismatch): Part Number 4396037 - 0" (0 mm) to 18" (460 mm) mismatch

Part Number 4396011 - 18" (460 mm) to 29" (737 mm) mismatch

Part Number 4396014 - 29" (737 mm) to 50" (1270 mm)

mismatch

Determine vent length and elbows needed for best drying performance:

[] Use following Vent System Chart to determine type of vent

material and hood combinations acceptable to use. NOTE: Do not use vent runs longer than those specified

in Vent System Chart. Exhaust systems longer than those specified will:

[] Shorten life of dryer. [] Reduce performance, resulting in longer drying times

and increased energy usage. The Vent System Charts provide venting requirements that

will help achieve best drying performance.

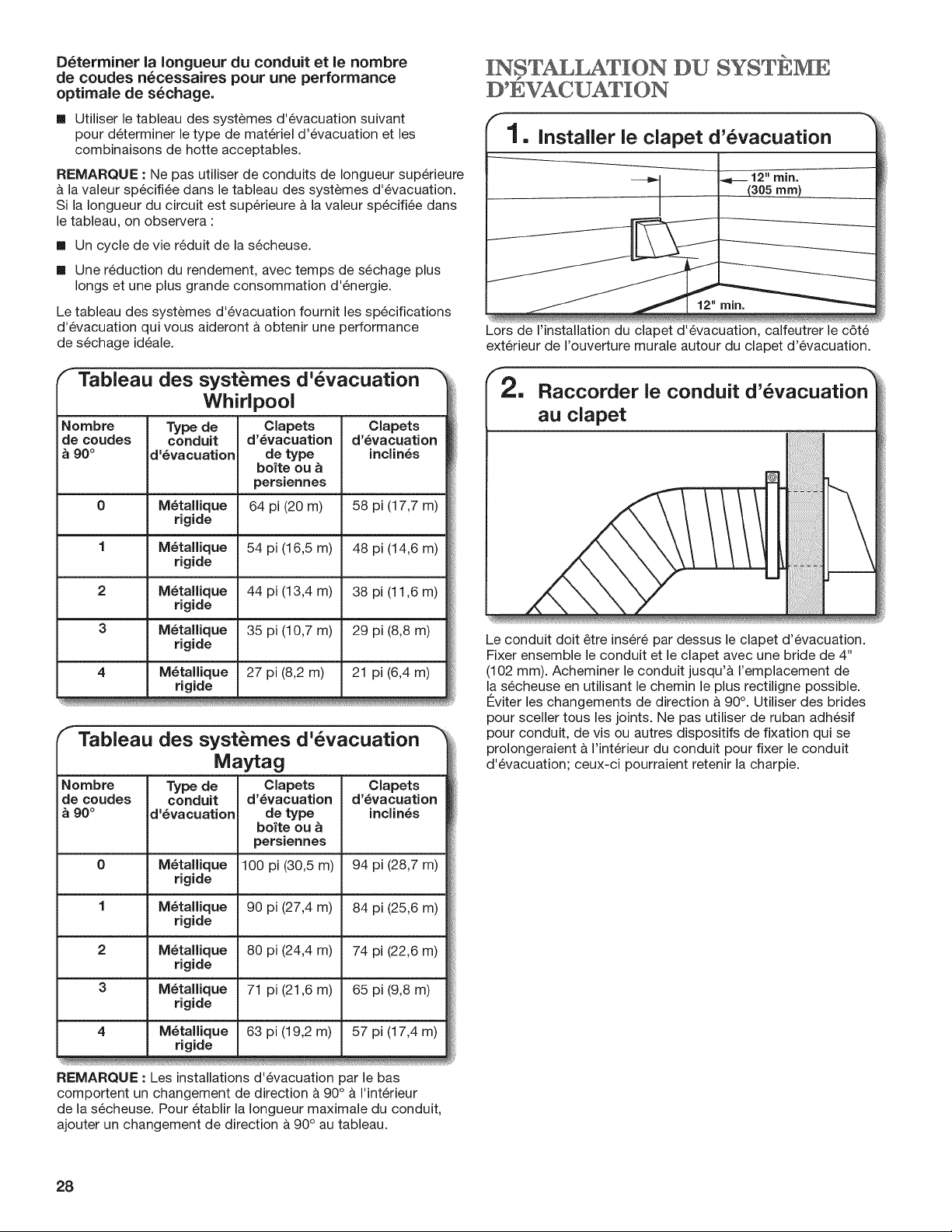

Whirlpool Vent System Chart

Number of Type Box/Iouvered Angled 90 ° elbows of vent hoods hoods

0 Rigid metal 64 ft. (20 m) 58 ft. (17.7 m)

Rigid metal 54 ft. (16.5 m) 48 ft. (14.6 m)

4 Rigid metal 27 ft. (8.2 m) 21 ft. (6.4 m)

Rigid metal 44 ft. (13.4m) 38 ft. (11.6m)

Rigid metal 35 ft. (10.7 m) 29 ft. (8.8 m)

Maytag Vent System Chart

Special provisions for mobile homes:

Exhaust vent must be securely fastened to a noncombustible

portion of mobile home and must not terminate beneath the

mobile home. Terminate exhaust vent outside.

______j

Moblie Home Exhaust installation

Number of Type Box/Iouvered Angled 90 ° elbows of vent hoods hoods

0 Rigid metal 100 ft. (30.5 m) 94 ft. (28.7 m)

1 Rigid metal 90 ft. (27.4 m) 84 ft. (25.6 m)

2 Rigid metal 80 ft. (24.4 m) 74 ft. (22.6 m)

3 Rigid metal 71 ft. (21.6 m) 65 ft. (19.8 m)

4 Rigid metal 63 ft. (19.2 m) 57 ft. (17.4 m)

NOTE: Bottom exhaust installations have a 90 ° turn inside the dryer. To determine maximum exhaust length, add one 90 ° turn

to the charts.

+ 25 hidden pages
