DOOR AND PANEL PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
UNDERCOUNTER
DISHWASHER
(Black) (White) (Biscuit) (Monochrome)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10199707
W10199660
W10199658
W10199659
W10142800
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener,
4 Panel Front
W10199758
W10199759
W10199760
W10199761
5 Access Panel
8573255 Black
8573256 White
8573257 Biscuit
6 8269016 Clip, Grounding
W10073520
7
8 Toe Panel
W10205336
W10205337
W10205338
9
W10073540
10 Screw
302868 Black
3400836 White
11 304392 Screw
12 3400071 Screw
Instructions,
Installation
Energy Guide
Guide, Use & Care
English/French
Guide, Use & Care
Spanish
Tech Sheet
Door
Black
White
Biscuit
Stainless
Insulation, Door
(Includes Item 9)
Black
White
Biscuit
Insulation,
Toe Panel
5−09 Litho In U.S.A. (cre) (psw)
1
Part No. W10261736 Rev. A
CONTROL PANEL PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
Illus. Part
No. No. DESCRIPTION
1 Console Asm.
(Includes Active
Overlay & Insert)
W10199784
W10199785
W10199786
W10199787
2 8546546 Clip, BI−Metal
W10208674
3
4 8269209 Switch, Door
W10077360
5
6 661663 Bi−Metal
7 3369051 Screw
8 Handle, Latch
W10205889
W10205890
W10205891
Black
White
Biscuit
Monochrome
Control
Electronic
Latch Assembly
Black
White
Biscuit
2
W10261736
DOOR AND LATCH PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8545608 Harness, Vent
Motor
W10056249
3
4 8268937 Inlet, Air
W10164259
5
6 8269259 Gasket, Vent
W10261736
Inner Door
Mastic Assembly
Vent Assembly
Illus. Part
No. No. DESCRIPTION
7 8545536 Deflector, Vent
(Also Order
Item 6)
W10199696
8
9 8269258 Seal, Front
10 8574160 Seal, Side
W10199683
11
Dispenser,
Assembly
Cap, Rinse Aid
3
Illus. Part
No. No. DESCRIPTION
W10078202
12
13
W10177098
14 8535660 Seal,
15 8535637 Bracket,
16 8531865 Shield, Dispenser
17 8281217 Screw
Wiring Harness
Main
Screw
Console/door
Dispenser
FILL, DRAIN AND OVERFILL PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overflow
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
W10219505
7
8 304392 Screw
9 356138 Clamp, Hose
W10137608
10
11 8268909 Switch, Overfill
12 8545946 Standpipe,
13 8531743 Gasket, Flat
14 9741998 Nut, Standpipe
W10077871
15
16 8269297 Miscellaneous
Fill Valve
Assembly
Drain Loop
with Check Valve
Overfill
(Also Includes
Item 13)
Float & Retainer
Assembly
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
4
W10261736
TUB AND FRAME PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
W10261736
5
TUB AND FRAME PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
Illus. Part
No. No. DESCRIPTION
1
W10164353
2 8573061 Strain Relief
W10112096
3
W10082838
4
5 9743002 Gasket, Bracket
6 8269110 Seal, Cabinet
7 3400072 Screw
W10084086
8
9 3367670 Screw
10 8269145 Bracket,
11 3400074 Screw
12 3370389 Screw
13 8268977 Wheel Leg
14 8524584 Leveler, Leg
W10082769
15
16 8270020 Spring, Door
17 8270019 Wheel & Mount
18 3400892 Screw
19 8268991 Cover, Terminal
W10158291
20
21 304666 Retainer, Push
22 8572661 Actuator Assy
23 8573240 Shield, Sound
24 9742648 Bracket,
25 661566 Thermostat
W10077370
26
27 3378128 Washer, Pronged
28 3400014 Screw
Tub Assembly
(Includes Heater
Assembly)
Door Seal
Plug Tub
Mounting
Door, Balance
Assembly
Undercounter
Motor, Wax
Balance
Assembly
(Also Order
Item 6)
Box
Cable, Door
Balance
(Includes Item 15)
Tub
Thermostat
Strike, Latch
6
W10261736
PUMP AND MOTOR PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
W10261736
7
PUMP AND MOTOR PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump with seal
5 8268375 Check Valve, Sump
W10083957
6
7 9741232 Screw
8 8531857 Protector, Inlet
W10231538
9
10 3400217 Screw
W10084567
11
12
W10237168
13 8269524 Tab, Sump
14 8533949 Nut
15 661662 Pump, Drain
16 8531019 Volute, Back
17 8269144 Hose, Drain
W10226459
18
19 8268397 Seal, Volute
20 8531017 Impeller Kit
21 8268403 Face Seal Assembly
22 356138 Clamp, Hose
W10134017
23
24
W10216724
25 8531018 Washer
Chopper Assembly
Motor Assembly
Screen, Separation
Sump & Motor
Assembly
(Also Order
Items 21 & 25)
Motor
(Also Order
Item 25)
(Also Order
Item 25)
Optical Water
Indicator
Capacitor
8
W10261736
UPPER WASH AND RINSE PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
W10261736
Illus. Part
No. No. DESCRIPTION
1
W10199781
2 8533889 Screw
3 8557720 Spinner, 3rd
W10199650
4
W10199650
5
6
W10199649
W10199648
7
8 8268433 Seal, Sprayarm
W10082831
9
W10082841
10
11 8575244 Valve Assembly,
Feed Tube
Silverware Zone
(Also Includes
Item 3 & 11)
Level Wash
Mount, Upper
Mount Assembly
(Includes #4)
Manifold
Hanger
Nozzle−Feed
Sprayarm
Manifold
9
HEATER PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Speed Nut
If heater element is
NOTE:
removed, it must be replaced.
10
W10261736
UPPER RACK AND TRACK PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
W10261736
Illus. Part
No. No. DESCRIPTION
1
W10240108
2 8565925 Stop, Track
W10194028
3
4 3385089 Track, Rack
W10199682
5
6 8539113 Clip, No−Flip
7 9744566 Tine Row
8 8539190 Clip, Pivot
9 8539119 Positioner, Dual
10 6−918303 Clip, Wheel
Dishrack, Upper
Non−Removable
Wheel
Stop, Track
Removable
Mounting
11

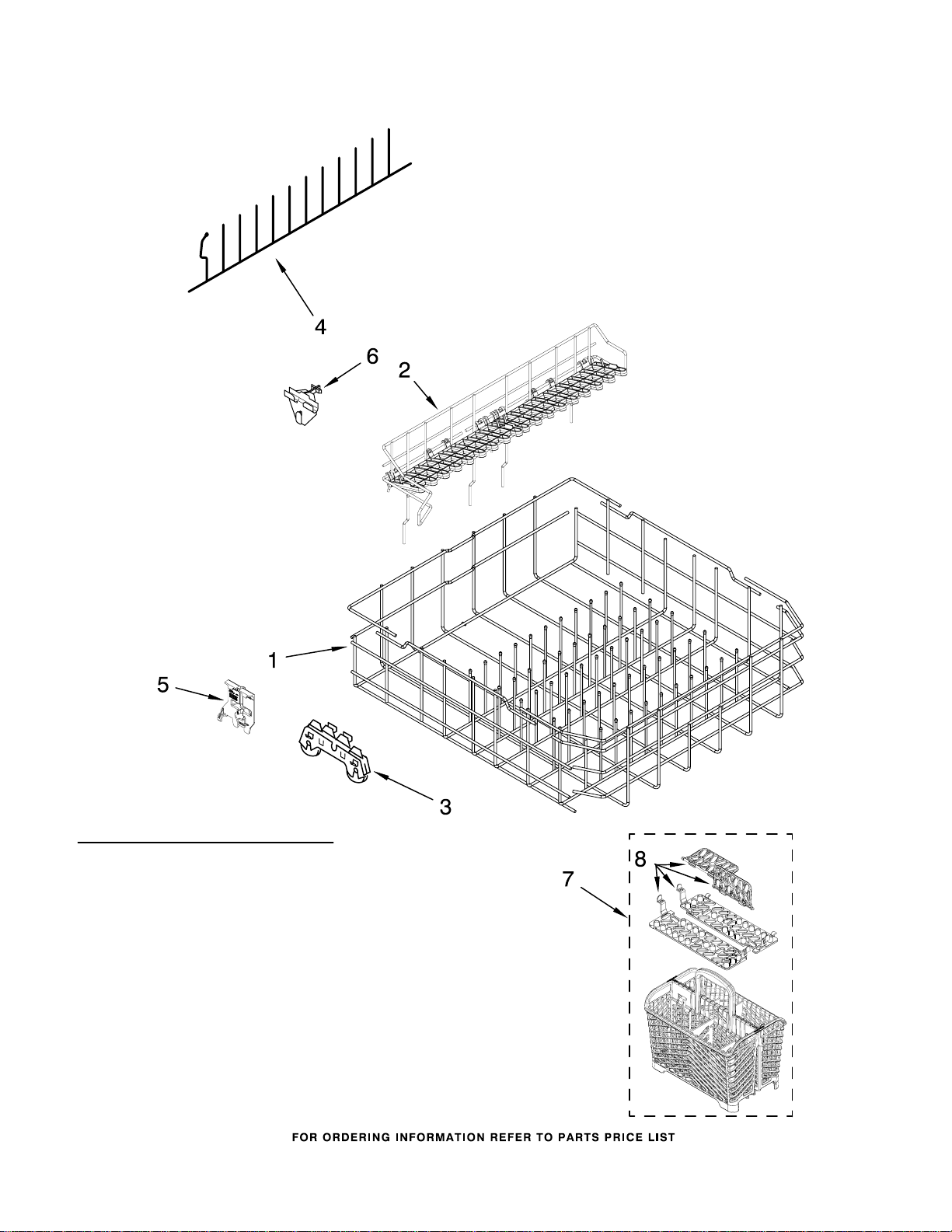

LOWER RACK PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
Illus. Part
No. No. DESCRIPTION
1
W10082825
2
W10199654
3 8268713 Wheel & Transport
W10082907
4
W10175279
5
6 8539118 Latch Assembly
7
W10199701
W10199681
8
Lower Rack
Assembly
Cupshelf
Assembly
Assembly
Tine Row
Basket
Retainer, Tine Row
Silverware, Basket
Assembly
(Includes Item 8)
Lid, Silverware
Basket
12
W10261736
LOWER WASHARM PARTS
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
W10261736
Illus. Part
No. No. DESCRIPTION
1
W10199688
2 8268343 Cap, Internal
3 8268340 Seal, Sprayarm
W10077898
4
Wash Arm Assembly
Rear Feed
Support, Lower
Sprayarm
13
OPTIONAL PARTS (NOT INCLUDED)
For Models: MDB7809AWB0, MDB7809AWW0, MDB7809AWQ0, MDB7809AWM0
(Black) (White) (Biscuit) (Monochrome)
Illus. Part
No. No. DESCRIPTION
ACCESSORIES
Side Panel Kits
8171656 White
8171657 Black
8171658 Biscuit
8171659 Stainless Steel
Custom Panel & Trim Kit
8171555 Black
8171556 White
8171557 Biscuit
8171558 Grey
Moisture Barrier Kit
4396277 Kit
Drain Hose
3385556 12 Ft.
Seal Kit
6−919539 Metal Chopper
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
4392899 Biscuit
4396603 Meteorite
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
285006 Superior Black
4392901 Biscuit
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit
Illus. Part
No. No. DESCRIPTION
POWER CORD KIT
4317824 Power Cord Kit
(Includes Power
Cord & Misc.
Hardware)
ANTI−TIP KIT
8171477 Floor Mount Kit
DISHRACK REPAIR
Tip Tine Repair Kit
(Enough for Two
Complete Dishracks)
4396838 White
4396840 Grey
Vinyl Touch−Up (4 oz.)
676453 White
676455 Grey
14
W10261736
