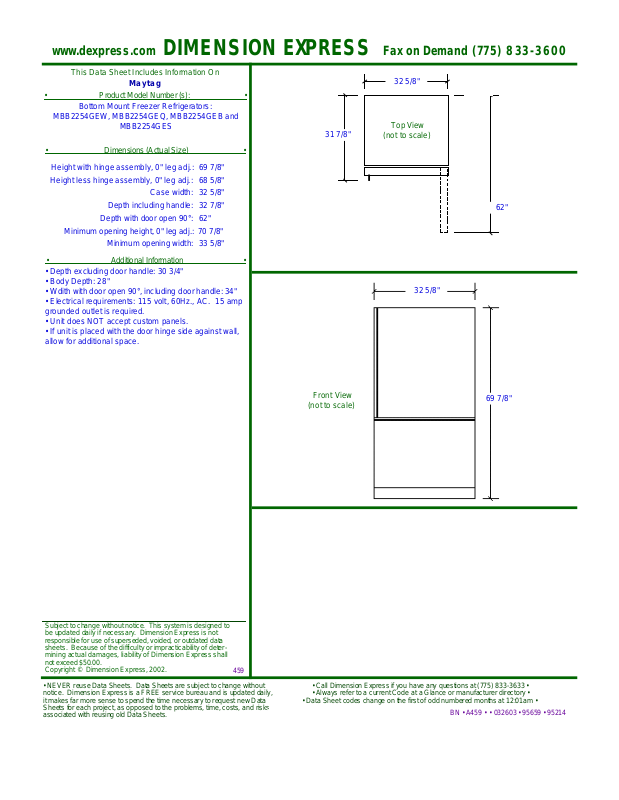

Maytag MBB2254GEW, MBB2254GEQ, MBB2254GEB, MBB2254GES Dimension Guide

www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]

This Data Sheet Includes Information On

Maytag

• Product Model Number (s): •

Bottom Mount Freezer Refrigerators:

MBB2254GEW, MBB2254GEQ, MBB2254GEB and

MBB2254GES

• Dimensions (Actual Size) •

31 7/8"

32 5/8"

Top View

(not to scale)

Height with hinge assembly, 0" leg adj.:

Height less hinge assembly, 0" leg adj.:

Case width:

Depth including handle:

Depth with door open 90°:

69 7/8"
68 5/8"
32 5/8"
32 7/8"
62"

70 7/8"Minimum opening height, 0" leg adj.:

Minimum opening width:

33 5/8"

• Additional Information •

• Depth excluding door handle: 30 3/4"

• Body Depth: 28"

• Wdith with door open 90°, including door handle: 34"

• Electrical requirements: 115 volt, 60Hz., AC. 15 amp
grounded outlet is required.

• Unit does NOT accept custom panels.

• If unit is placed with the door hinge side against wall,
allow for additional space.

Front View

(not to scale)

62"

32 5/8"

69 7/8"

Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter­mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2002.
