DOOR AND PANEL PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
UNDERCOUNTER
DISHWASHER
(Black) (White) (Almond)
Illus. Part
No. No. DESCRIPTION
1 9743028 Door Frame
2 302868 Screw
3 9742964 Stiffener,
Door
4 Panel Front
3379375 Black Model
3379376 White Model
3379377 Almond Model
5 Access Panel
& Clip Assembly
(Includes Items 11 & 12)
9742645 Black Model
9742856 White Model
9742857 Almond Model
6 3379643 Spring, Door (2)
7 3373234 Bushing, Spring
Door (2)
8 Toe Panel
(Includes Item 11)
3375423 Black Model
9742869 White Model
9742870 Almond Model
11 3374767 Insulation
12 3378123 Clip, Grounding
13 3367670 Screw (2)
1−97 Litho in U.S.A. (rle)
1
Part No. 4172132
CONTROL PANEL PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
Illus. Part
No. No. DESCRIPTION
1 Console
(Also Order
Item 2)
9743577 Black Model
9743578 White Model
9743579 Almond Model
2 Insert
9743375 Black Model
9743376 White Model
9743377 Almond Model
3 9743241 Switch, Panel
(User Interface)
4 9743573 Spring, Handle
5 9743572 Link, Handle
6 9743412 Sponge, Vent
7 304231 Screw (3)
8 3369051 Screw (4)
9 Handle, Latch
9743188 Black Model
9743189 White Model
9743190 Almond Model
10 9743440 Barrier, Display
11 9743444 Retainer, Barrier
12 9743442 Clip, Retainer
2
4172132
DOOR AND LATCH PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
4172132
3
DOOR AND LATCH PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
Illus. Part
No. No. DESCRIPTION
1 9743399 Cap, Dispenser
2 9743467 Shield, Switch
3 3369051 Screw, Door
4 9743554 Latch Assembly
(Includes Item 2)
6 9742625 Inner Door
Mastic Assembly
(Also Includes
Items 7, 9 & 10)
7 9742631 Seal, Door
Lower
8 9742770 Vent Assembly
(Also Order Item 9)
9 9742782 Gasket, Vent
10 9742780 Deflector, Vent
(Also Order
Item 9)
11 9742629 Dispenser,
Assembly
12 9743450 Shield,
Dispenser
13 9742623 Bracket, Controls
14 9742963 Shield, Control
16 9743486 Bracket,
Dispenser (2)
19 9743448 Control,
Electronic
20 246132 Screw (2)
22 9743451 Fuse Thermal
Electronic
24 9743154 Dispenser,
Wiring Harness
25 9743026 Sound Absorber
26 9742852 Sensor, Rinse Aid
27 3376405 Elbow, Harness
30 9743462 Wiring Harness
Main
33 3400700 Screw (6)
4
4172132
LOWER WASHARM AND STRAINER PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
4172132
Illus. Part
No. No. DESCRIPTION
1 9742947 Wash Arm Assembly
2 9742945 Nut, Washarm
3 9742646 Strainer (Coarse)
4 9742946 Bearing, Radial
5 3376846 Seal, Sprayarm
5
HEATER PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
Illus. Part
No. No. DESCRIPTION
1 9743495 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 9743039 Nut, Heater
Element
4 9743166 Pod, Terminal
Heater
6
4172132
FILL AND OVERFILL PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
Illus. Part
No. No. DESCRIPTION
1 9742938 Control, Overfill
Assembly
(Also Order
Item 14)
2 9742727 Hose, Inlet
3 9742783 Water Inlet
Assembly
(Includes
Items 4 & 5)
4 9742787 Gasket
5 9742786 Bezel, Inlet
6 301958 Clamp, Hose
7 9743559 Fill Valve
Assembly
8 304392 Screw
10 4159424 Screw
11 9743413 Switch, Overfill
Control
12 9742937 Standpipe,
Overfill
13 4161670 Gasket, Flat
14 4161596 Nut, Standpipe
15 9743070 Float & Retainer
Assembly
16 4171116 Lever, Overflow
Switch
4172132
7

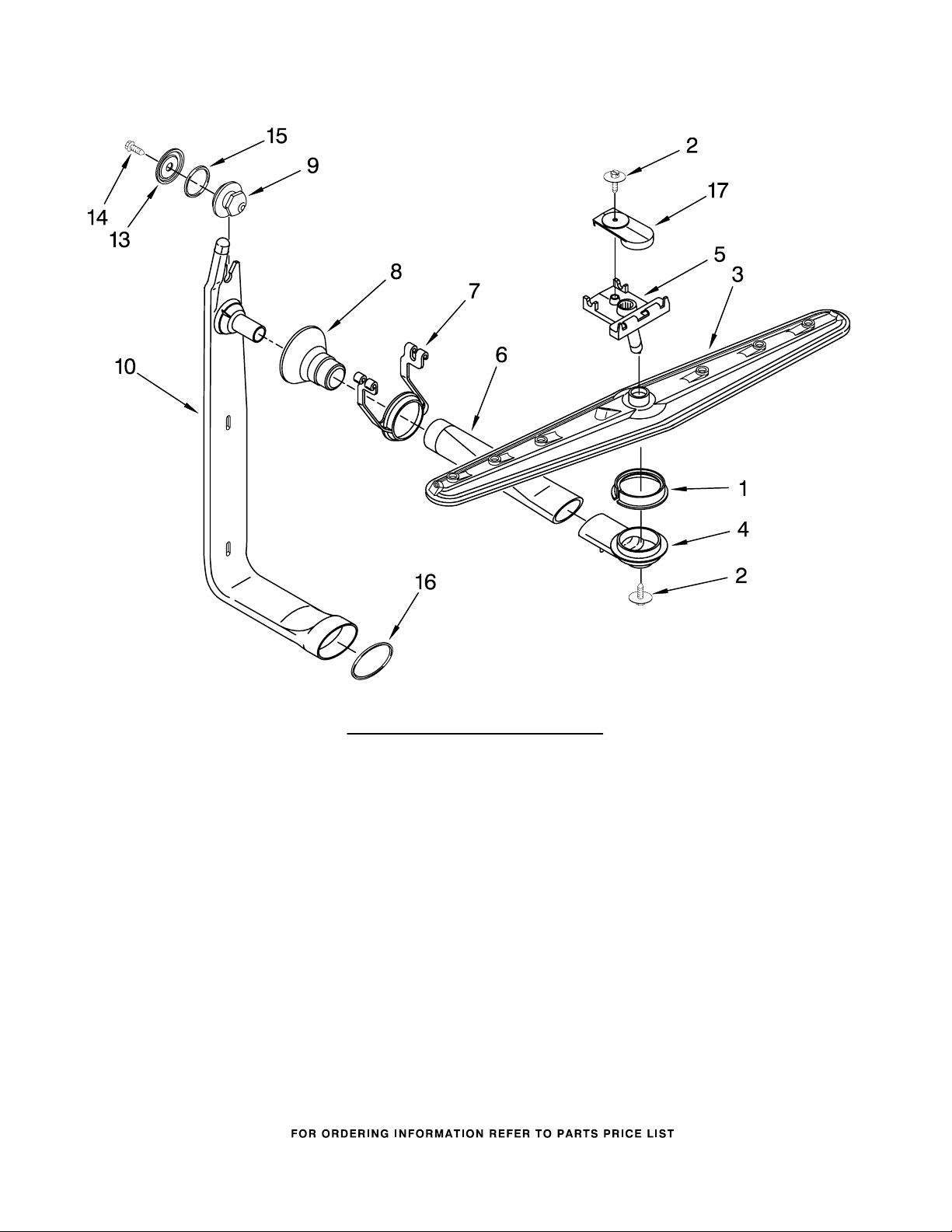

UPPER WASH AND RINSE PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
Illus. Part
No. No. DESCRIPTION
1 3376846 Seal, Sprayarm
2 3400002 Screw
3 9742989 Sprayarm, Upper
(Also Order
Item 1)
4 9742992 Manifold, Sprayarm
5 9742994 Mount, Tiered
6 9742995 Tube, Connector
7 9743542 Holder, Water
Inlet Funnel
8 9743210 Funnel
9 9743473 Connector
(Includes Items
13, 14 & 15)
10 9742950 Feed Tube
Assembly
13 9743475 Washer
14 9740848 Screw
15 9743474 Gasket, Connector
16 9742953 Seal, Tube
17 9743194 Mount, Top
Upper Sprayarm
8
4172132
TUB AND FRAME PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
4172132
9
TUB AND FRAME PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
Illus. Part
No. No. DESCRIPTION
1 9742605 Tub Assembly
3 9742612 Door Seal
4 9742788 Plug Tub (2)
5 9743468 Wheel & Mount
Assembly
(Also Order
Item 6)
6 9743002 Gasket, Bracket
Mounting
7 3378056 Tub Stiffener
8 3400003 Screw (8)
9 9743149 Rear Support
Assembly
10 343641 Screw
11 9742610 Connector
Tub To Brace
12 90767 Screw (2)
13 304392 Screw
14 3370389 Screw (2)
15 302819 Wheel Leg
16 3376439 Leveler, Leg
17 9743488 Spacer, Tank − RH
18 9743489 Spacer, Tank − LH
19 3378131 Terminal Box
20 3369138 Screw
21 300068 Cover, Terminal
Box
22 3400014 Screw
23 3378128 Washer
24 3370307 Strain, Relief
25 9743460 Trim Strip, Tub
26 304666 Retainer, Push (2)
27 9742789 Corner Trim, Tub
28 9742661 Shield, Sound
Tub
29 9742648 Bracket,
Thermostat
30 3371618 Thermostat
31 9742722 Strike, Latch
32 9743406 Pad, Friction
33 3370225 Screw, Ground
10
4172132
PUMP AND MOTOR PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
Note: The Pump Gasket
Must Be Replaced Anytime
The Pump Assembly Is
Removed And Reinstalled
In The Dishwasher.
4172132
Pump Centering Tool Required
For Pump Re−Assembling
Order Item 31.
11
PUMP AND MOTOR PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
Illus. Part
No. No. DESCRIPTION
1 9740982 Plate, Perforated
(Also Order
Item 30)
See Note A.
2 3367173 Base, Inlet
(Includes Items
1 & 5)
(Also Order
Item 30)
See Note A.
3 9741232 Screw
4 302710 Seal, Inlet Base
5 302709 Ball, Check
6 95080 "O" Ring
7 719929 Ball, Check (2)
9 9742968 Filter Assembly
10 3400001 Screw
11 303510 Impeller, Wash
(Includes Items
12 & 13)
12 3371152 Screw & Seal,
13 302711 Seal, Pump Outlet
14 9742973 Outlet, Pump
(Includes Item 13)
15 3369482 Check Valve
(Includes Item 6)
Illus. Part
No. No. DESCRIPTION
16 717000 Gasket, Pump
17 9743202 Pump & Motor
Assembly
(Includes Item 16)
18 302707 Bushing, Grind
19 302718 Chopper Kit
(Also Order
Item 30)
See Note A.
20 3378139 Sleeve, Drain
Impeller
22 302704 Seal, Drain Cover
23 3378207 Cover, Drain
(Also Order
Item 30 & 40)
See Note A.
24 303539 Impeller,
Drain Kit
(Also Order
Item 30)
See Note A.
25 3376157 Base, Pump
(Also Order
Item 30)
See Note A.
26 3367197 Support, Pump
Mounting (4)
Illus. Part
No. No. DESCRIPTION
27 3368270 Slinger
(Also Order
Item 30)
(See Note A.)
28 3376765 Motor & Fan
(Assembly)
(Includes Item
27)
(Also Order
Item 30)
See Note A.
29 3369331 Screw (4)
30 675703 Pump Seal Kit
(Includes Items
4, 12, 13 & 22)
31 303918 Tool, Pump
Centering
32 356138 Clamp, Hose
33 3374077 Hose, Drain
34 3371748 Cap, Drain
35 3374757 Shaft, Absorber
36 3378202 Weight, Absorber
37 3378083 Thermostat
38 3376723 Seal, O−Ring
39 3376358 Retainer,
Thermostat
40 9740674 Gasket, Drain
Cover
NOTE A:
Pump Centering Tool Required
For Pump Re−Assembling
Order Item 31.
12
4172132
UPPER RACK AND TRACK PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
Illus. Part
No. No. DESCRIPTION
1 3377435 Dishrack, Upper
(Also Order
Item 3)
3 9742983 Wheel & Bearing
Assembly (4)
4 9743016 Pivot, Upper
Tine Row (2)
6 9742998 Track, Rack (2)
4172132
Illus. Part
No. No. DESCRIPTION
7 9743017 Clip, Tine Row (5)
8 3377429 Tine Row
9 3377419 Cupshelf
10 9743019 Clip, Cupshelf
11 3377443 Tine Row, Upper
(Multi Position)
12 3377439 Tine Row,
Upper Mini
13 9743472 Track Stop (4)
13
Illus. Part
No. No. DESCRIPTION
14 3377604 Holder,
Stemware (2)
15 9743018 Positioner
16 3377464 Clip, No Flip (4)
17 9742999 Protector,
Sprayarm Guard
18 9743010 Handle, Dishrack Front
19 9743011 Handle, Dishrack Rear
LOWER RACK PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
Illus. Part
No. No. DESCRIPTION
1 9743501 Lower Rack
Assembly
(Includes Item 3)
2 9743048 Cover Basket
Silverware
3 9743007 Wheel Assembly (2)
Lower Rack (8)
4 9743574 Basket Half,
Silverware
5 9743536 Extension,
Side Wall
6 9743548 Flexrow (2)
7 9743534 Clip, Flexrow (6)
8 3377419 Cupshelf
10 9743019 Clip, Cupshelf (3)
11 3368629 Retainer,
Flexrow (2)
14
4172132
MISCELLANEOUS PARTS
For Models: KUDS24SEBL2, KUDS24SEWH2, KUDS24SEAL2
(Black) (White) (Almond)
Illus. Part
No. No. DESCRIPTION
1 3369816 Miscellanous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
LITERATURE AND OPTIONAL PARTS
Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
LIT9743663
LIT3380578
LIT9743103
LIT9743409
Instructions,
Installation
Energy Guide
Guide, Use & Care
Tech Sheet
ACCESSORIES
SIDE PANEL KITS
4378867 White
4378868 Black
4378869 Almond
Door Frame Kits
Framed
4378864 White
4378865 Black
4378866 Almond
Frameless
4378861 White
4378862 Black
4378863 Almond
Illus. Part
No. No. DESCRIPTION
OPTIONAL PARTS NOT INCLUDED
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
72032 Black
PAINT, PRESSURIZED SPRAY
(13 oz.)
350930 White
350956 Almond
285006 Superior Black
PAINT, BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
Illus. Part
No. No. DESCRIPTION
HARD START KIT
4317824 Hard Start Kit
(Includes Power
Cord & Misc.
Hardware)
ANTI−TIP KIT
4378968 Floor Mount Kit
4172132
