Repair
Parts
List
MODEL NUMBER
JGD8130ADS
COOKTOP DDRAFT
©2005 Maytag Services
When requesting service or ordering parts, always
provide the following information:
- Product Type - Part Number
- Model Number - Part Description
Section: TOP ASSEMBLY
Model: JGD8130ADS
C15-551
1
Section:
TOP ASSEMBLY
No. Part No. Description
1 74005871 TOP, MAIN (STL) 10 1
- 74006890 HARNESS, PAN SWITCH 13 1
- 74006100 HARNESS, PAN SWITCH 10 1
2 74006094 SWITCH, SNAP 10 1
- 74006095 INSULATOR, SWITCH 10 1
3 74005866 INSULATOR, CERAMIC BLOCK 10 2
4 Y700503 CLIP, RETAINER 10 2
- 7101P270-60 SCREW, BLACK Note: SCREW , CLIP 10 2
5 71001564 SWITCH, FAN (BLK) 10 1
- 7101P290-60 SCREW Note: SCREW, SWITCH 10 2
6 74006141 KNOB, VALVE (BLK) Note: KNOB, VALVE (BLK) 10 4
7 74006145 TRIM, FAN CONTROL (BLK) 10 1
8 74005794 GRILL, AIR (BLK) 10 1
9 71003267 GRATE, GRILL 10 2
10 Y704979 SEAL, PAN 10 2
11 71001764 PIN, LOCATOR 10 3
- 704553 NUT Note: NUT, PIN 10 3
12 74006089 PAN, GRILL (RT) Note: PAN, GRILL (RT) 10 1
12 74006090 PAN, GRILL (LT) Note: PAN, GRILL (LT) 10 1
13 74005898 GRATE, BURNER (BLK) 10 1
14 74006093 CLIP, TERMINAL BLOCK 10 2
15 74006153 RECEPTACLE W/HARNESS Note: RECEPTACLE W/HARNESS 10 2
- 74005528 MANUAL, USE & CARE 10 1
- N 16008409 COOKBOOK----NA 10 1
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
2
Section: BODY
Model: JGD8130ADS
C14-740
3
Section:
BODY
No. Part No. Description
1 74006147 COVER, GAS 10 1
- Y700502 SCREW Note: SCREW, COVER 10 4
1 74006611 COVER, GAS 11 1
- Y707664 WASHER Note: WASHER, RIVIT 10 4
2 701662 RIVET 10 4
- 707124 NUT,SQUARE Note: NUT, LID 10 2
3 N 707870 LID, JAR 10 1
- Y707121 SCREW Note: SCREW, LID 10 2
4 74006148 BAFFLE, BURNER BOX 10 1
- Y700502 SCREW Note: SCREW,BAFFLE 10 5
5 Y707869 JAR, DRAIN 10 1
6 74005867 BOX, BURNER 10 1
- 704553 NUT Note: NUT (1/4" INSTALL) 10 3
- 71003131 SCREW Note: SCREW (4" X 1/2" INSTALL) 10 3
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
4
Section: GAS CONTROLS
Model: JGD8130ADS
C13-227
5
Section:
GAS CONTROLS
No. Part No. Description
1 74006070 E-BURNER, GRILL 10 1
2 74006072 IGNITOR, E-BURNER 10 1
3 74006073 IGNITOR, GROUND ASSY 10 1
4 74006071 SHIELD, IGNITOR BRACKET 10 1
5 74006155 MANIFOLD 10 1
6 74006173 VALVE, TOP BURNER (LT) 10 2
6 74006156 VALVE, TOP BURNER Note: VALVE, TOP BURNER (RT) 10 2
7 74006158 SWITCH, VALVE (DOUBLE) 10 2
7 74006955 SWITCH, VALVE (SINGLE) 15 2
7 74006157 SWITCH, VALVE (SINGLE) 10 2
7 74006956 SWITCH, VALVE (DOUBLE) 15 2
8 74006177 TUBE, BURNER (LR) 10 1
8 74006175 TUBE, BURNER (LF) 10 1
8 74006176 TUBE, BURNER (RF) 10 1
- Y704947 WASHER Note: WASHER, TUBE 10 4
8 74006178 TUBE, BURNER (RR) 10 1
9 74005897 TOP, CARTRIDGE (BLK) 10 1
- 74004288 SCREW (6ABX3/8-SN) Note: SCREW, TOP 10 4
10 74005895 VENTURI (REAR) 10 1
- 74004288 SCREW (6ABX3/8-SN) Note: SCREW , VENTURI 10 2
11 74005894 VENTURI (FRONT) 10 1
12 74004053 IGNITER, TOP BURNER 10 2
13 74005892 BURNER ASSY (BLK) 10 2
14 Y704545 REGULATOR, PRESSURE 10 1
15 74005893 SEAL (BRASS) 10 8
16 74006935 COVER, CARTRIDGE 14 1
16 74005887 COVER, CARTRIDGE 10 1
17 74005888 HOUSING, CARTRIDGE 10 1
18 74005889 BRACKET, VENTURI ALIGNMENT 10 1
- 71001183 SCREW (#8AB) 10 4
19 74006098 IGNITOR/BLOCK, ASSY 10 1
20 74006934 GUARD, CORNER 14 2
- 74006048 KIT, LP ORIFICE (4 BURNER) 10 1
- 74006179 HARNESS, SPARK SUPPLY 10 1
- 74006953 HARNESS, SPARK SUPPLY 15 1
- W10124350 NOT REQUIRED PART OR SEE NOTE Note: FOR A COMPLETE SEALED BURNER CARTRIDGE
ORDER JGA8100ADB
- W10124350 NOT REQUIRED PART OR SEE NOTE Note: FOR A COMPLETE SEALED BURNER CARTRIDGE
ORDER JGA8100ADW
Series Qty
10 1
10 0
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
6

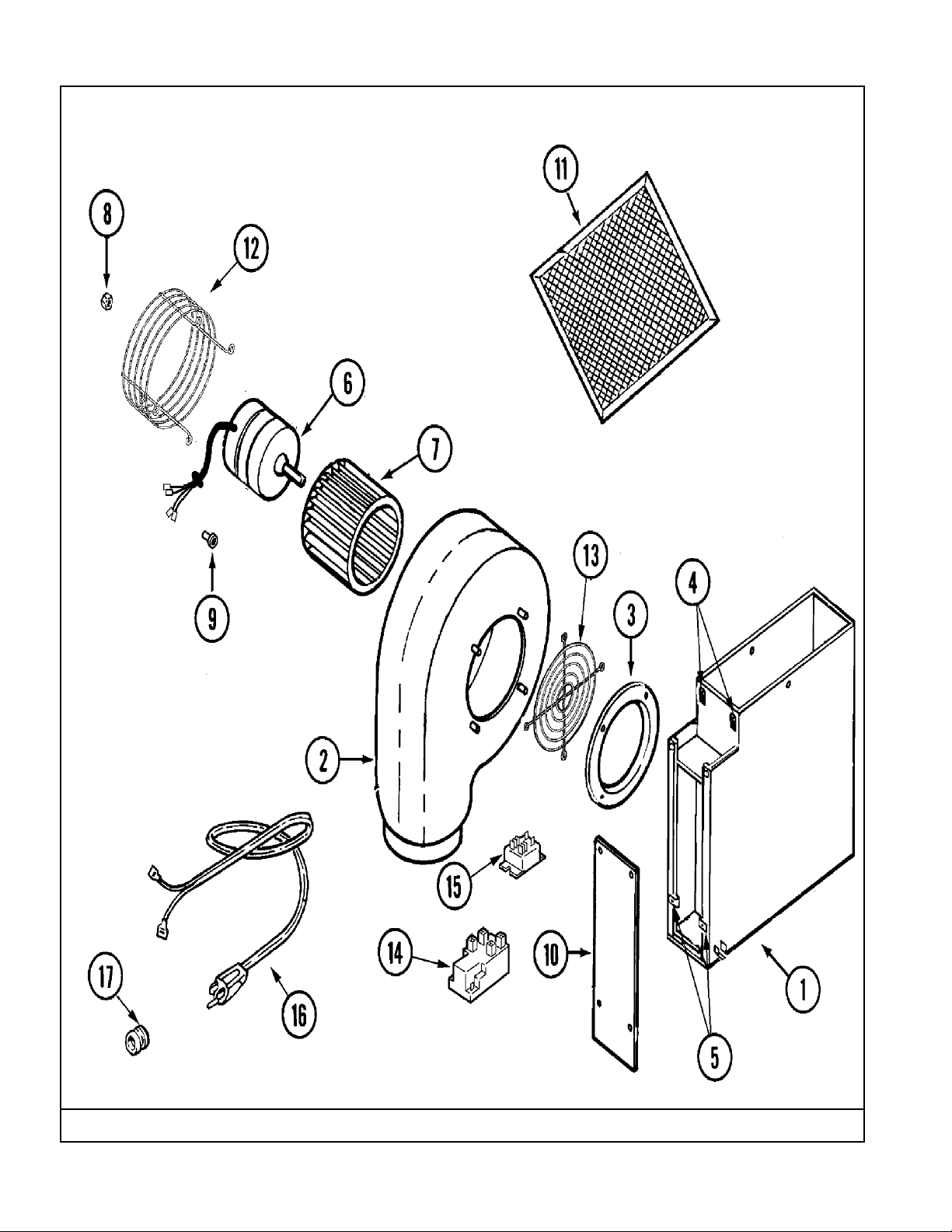

Section: BLOWER PLENUM
Model: JGD8130ADS
C18-68
7
Section:
BLOWER PLENUM
No. Part No. Description
1 74006138 PLENUM WELD ASSEMBLY Note: PLENUM 10 1
1 74006610 PLENUM WELD ASSEMBLY 11 1
2 712008 SCROLL, BLOWER ASSY. Note: SCROLL, BLOWER ASSY 10 1
- Y704762 RETAINER Note: RETAINER, RING 10 1
- Y704761 RING, RESTRICTOR 10 1
3 Y704758 RING, INLET 10 1
4 Y707831 CLIP Note: CLIP, COVER 10 2
5 74005812 CLIP, COVER (J-TYPE) 10 2
- Y707150 SCREW Note: SCREW, MOTOR 10 1
6 74005785 BLOWER MOTOR W/CAGE 10 1
- 701719 NUT, HEX Note: NUT, MOTOR 10 1
7 Y707985 WHEEL, BLOWER 10 1
8 Y707702 LOCKNUT Note: LOCKNUT, WHEEL 10 4
9 Y04100522 SCREW Note: SCREW, GROUND 10 2
10 71001759 PLATE, COVER Note: COVER, PLATE 10 1
- Y700502 SCREW Note: SCREW, PLATE 10 4
10 74006609 COVER, PLENUM ACCESS 11 1
- 74005868 PLATE, WIRE COVER Note: PLATE, WIRE COVER (BOTTOM) 10 1
11 707929 FILTER, GREASE 10 1
- Y707688 RETAINER, FILTER 10 1
- Y700502 SCREW Note: SCREW, RETAINER 10 2
12 N 74005787 CAGE, MOTOR 10 1
- 71001183 SCREW (#8AB) Note: SCREW, CAGE 10 2
- Y706193 PLUG, HOLE 10 4
- 74001521 WASHER (1") Note: WASHER, GUARD 10 4
13 71001534 GUARD, BLOWER 10 1
14 74004283 MODULE, SPARK (4+0) 10 1
15 71001579 RELAY, FAN 10 1
16 74005927 CORD, POWER 10 1
17 Y04100254 RELIEF, STRAIN 10 1
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
8

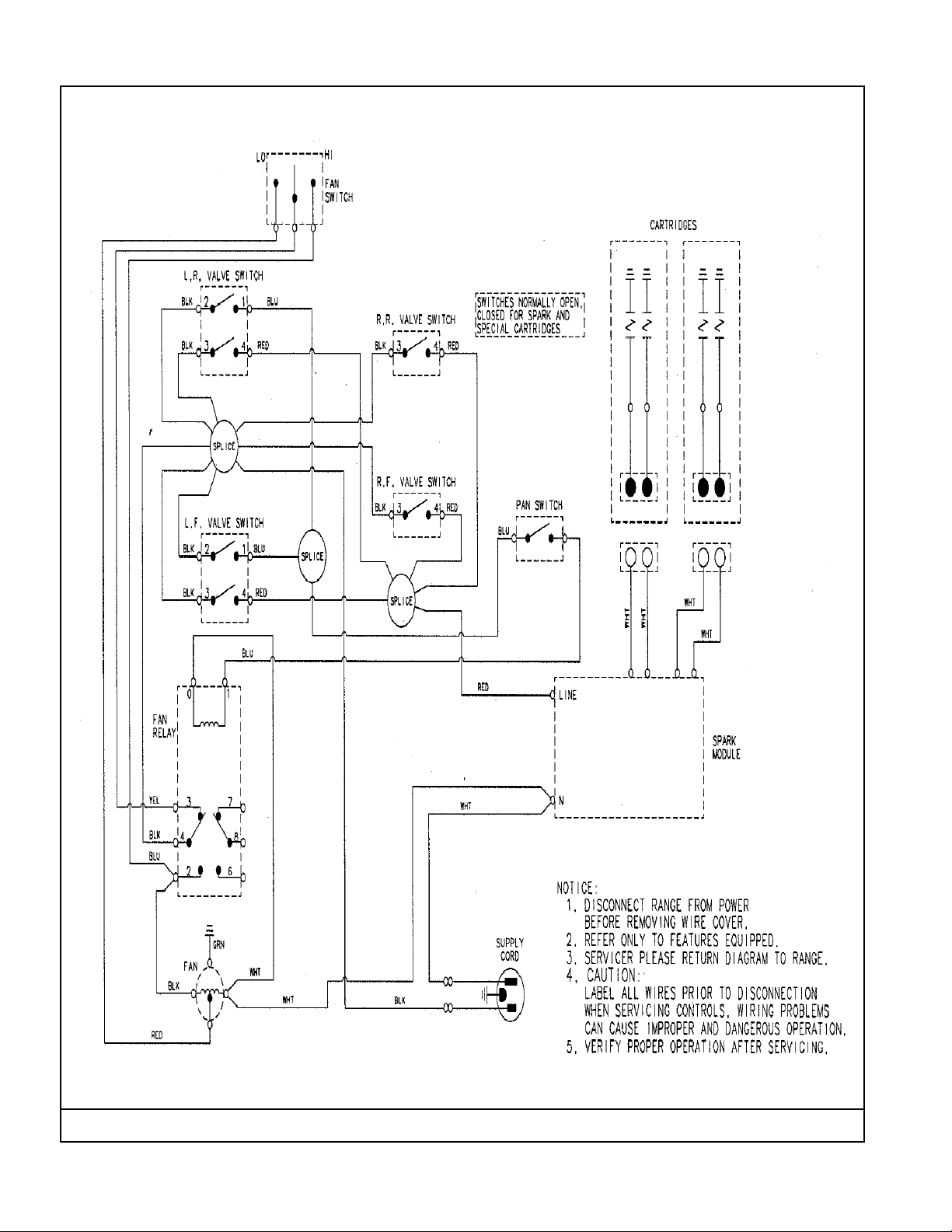

Section: WIRING INFORMATION
Model: JGD8130ADS
15002837
9
