Repair
List
Parts
MODEL NUMBER
AMV6167BDS
MICROWAVE
©2005 Maytag Services
When requesting service or ordering parts, always
provide the following information:
- Product Type - Part Number
- Model Number - Part Description
Section: CONTROL PANEL/DOOR/VENT GRILLE
1
Model: AMV6167BDS
MW11-69
Section:
2
CONTROL PANEL/DOOR/VENT GRILLE
No. Part No. Description
1 DE97-00633A ASY-BKT-C/PANEL 10 1
2 W10127102 ASY PCB PARTS (UPR) 10 1
3 DE94-01386P ASY CONTROL-PANEL (STL) 10 1
4 DE34-00233K SWITCH MEMBRANE (BLK) 10 1
5 DE64-00766B WINDOW-DISPLAY;4150,SAN,T2.0,W 10 1
6 DE94-01385B ASY DOOR (STL) 10 1
7 DE97-00655A ASY GRILLE (BLK) 10 1
8 W10127104 ASY PCB PARTS (LWR) 10 1
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Av ailable
Section: BASE/CAVITY/INTERNAL CONTROLS
3
Model: AMV6167BDS
MW13-70
Section:
4
BASE/CAVITY/INTERNAL CONTROLS
No. Part No. Description
1 DE97-00425A ASY-COVER ADIBATIC LOWER 10 1
2 2501-001016 CAPACITOR 10 1
3 DE91-70063D ASSY-HVD 10 1
4 DE31-10177E MOTOR FAN 10 1
5 DE31-90051A BLADE-FAN 10 1
6 DE63-00141A COVER-MOTOR 10 1
7 DE61-00502A GUIDE-AIR(BOTTOM) 10 1
8 DE61-00406B BASE-BOTTOM 10 1
9 DE61-00407C BRACKET-BOTTOM LAMP 10 1
10 DE63-00137A COVER-GLASS COOKTOP 10 1
11 DE64-00911A GLASS-COOKTOP LAMP 10 1
12 4713-001165 LAMP-HALOGEN 10 1
13 DE47-00032B SOCKET-LAMP HALOGEN 10 1
14 DE66-90106B LEVER-SWITCH LOWER 10 1
15 3405-001033 SWITCH-MICRO 10 1
16 3405-001034 SWITCH, MICRO (125/250 VAC) 10 2
17 DE66-00168A LATCH-BODY;MODULAR-2,PP,-,-,-, 10 1
18 DE97-00432A ASSY-COVER ADIBATIC RIGHT 10 1
19 DE61-00415A BASE-PLATE 10 1
20 DE47-20059A SW-THERMO 10 1
21 DE47-20034A THERMOSTAT 10 1
22 DE26-00125A TRANS H.V 10 1
23 DE61-00411A BRACKET-DUCT REAR 10 1
24 W10126786 ASSY-MAGNETRON 10 1
25 DE47-20007A THERMOSTAT 10 1
26 DE63-00138A COVER-FRONT 10 1
27 DE31-10173A MOTOR-DRIVE 10 1
28 DE61-00375A HOLDER-RACK 10 4
29 DE97-00602A ASY-COUPLER 10 1
30 DE75-00044A RACK-WIRE 10 1
31 DE97-00368B ASSY-GUIDE ROLLER 10 1
32 DE63-00383A TRAY-COOKING 10 1
33 DE71-60121A COVER-STIRRER 10 1
34 DE66-20095B BUTTON-LOCK 10 1
35 DE61-00160A HOLDER-STIRRED 10 1
36 DE66-00127A BLADE-STIRRER 10 1
37 DE31-00040A MOTOR DRIVE 10 1
38 DE63-00196A FILTER-AIR 10 2
39 DE59-50002A CAPACITOR-MOTOR 10 1
40 3405-001034 SWITCH, MICRO (125/250 VAC) 10 1
41 DE31-10095B MOTOR SYNCHRONOUS 10 1
42 DE39-00358B WIRE HARNESS-B 10 1
43 DE61-00498A GUIDE-AIR(MGT) 10 1
44 DE63-00234A TRAY-CONVECTION 10 1
45 DE66-00136A CAM-MOTOR 10 1
46 DE66-00154A DAMPER-GASKET 10 1
47 DE66-00156A DAMPER-SWING 10 1
48 N DE70-00394A ROD-DAMPER 10 1
49 DE32-10013A SENSOR-THERMISTOR 10 1
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Av ailable

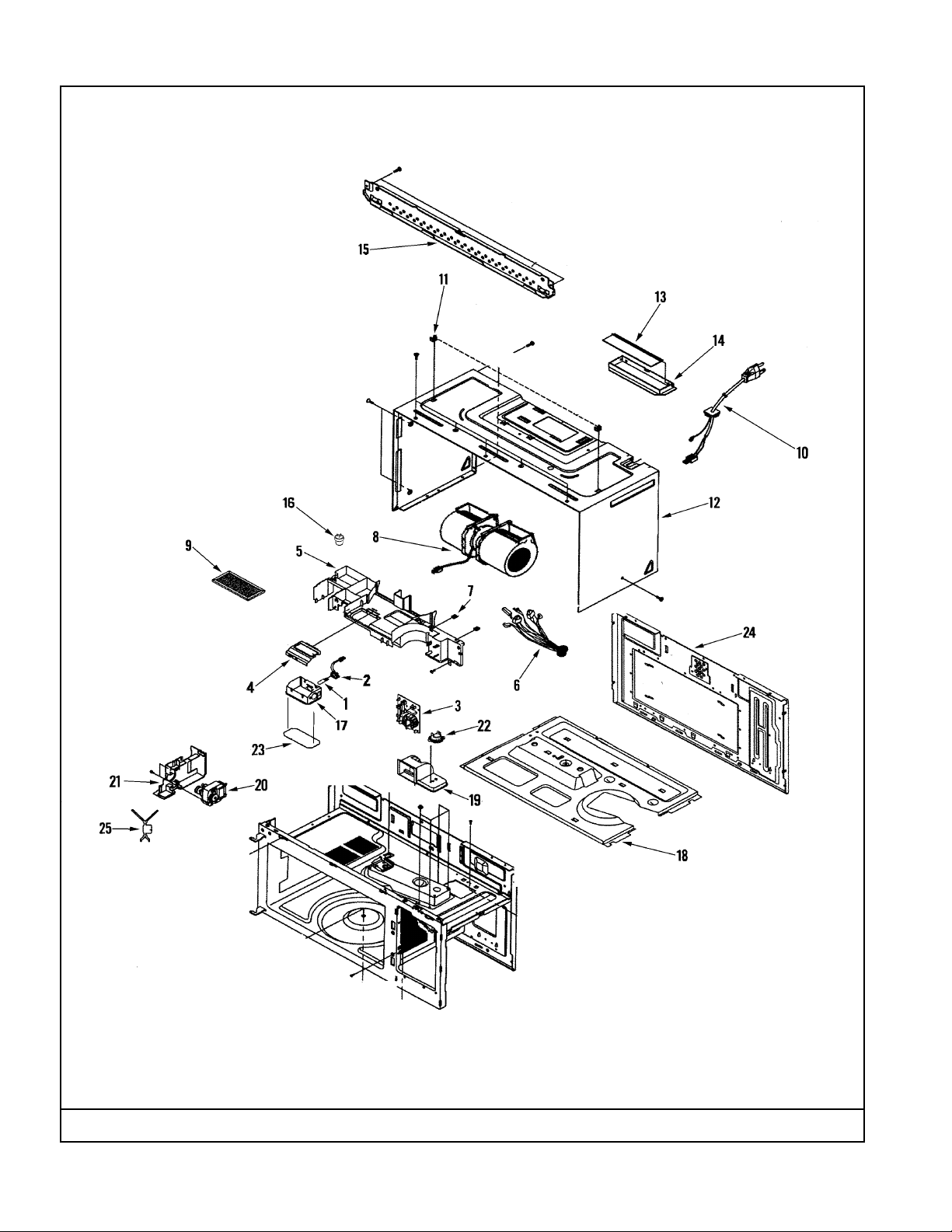

Section: BODY/BLOWER MOTOR
5
Model: AMV6167BDS
MW14-125
Section:
6
BODY/BLOWER MOTOR
No. Part No. Description
1 4713-001165 LAMP-HALOGEN 10 1
2 DE47-00032A SOCKET-LAMP HALOGEN 10 1
3 DE96-00400A ASSY NOISE FILTER;SN-UF12A,250 10 1
4 DE61-00493A BRACKET-DUCT(U) 10 1
5 DE67-00177A DUCT-UPPER 10 1
6 DE96-00557A ASY-WIRE HARNESS C 10 1
7 DE60-30063A NUT-MOUNTING 10 2
8 DE31-00028C MOTOR VENTILATION 10 1
9 DE63-00367D FILTER-CHARCOAL 10 1
10 DE96-00218A ASSY-POWER CORD 10 1
11 DE92-90508A ASSY-HOLDER NUT 10 1
- DE97-00433A ASSY-PANEL BACK;SMV9165,ASSY-A 10 1
12 DE64-01144A PANEL-OUTER (BLK) 10 1
13 N DE71-60051A COVER-DAMPER 10 1
14 DE72-40022A DAMPER-MAIN 10 1
15 DE70-00378A PLATE-MOUNTING 10 1
- DE61-00525A HOLDER-SENSOR 10 1
16 DE32-60011A SENSOR-GAS 10 1
17 DE61-00486A BRACKET-OVEN 10 1
18 DE97-00426A ASSY-COVER ADIBATIC UPPER 10 1
19 DE67-00186A DUCT-EXHAUST 10 1
20 DE31-00032A MOTOR CONVECTION 10 1
21 N DE61-00601A GUIDE-AIR (HEATER) 10 1
22 DE47-20007A THERMOSTAT 10 1
23 DE64-01088A GLASS-OVEN LAMP 10 1
24 DE97-00433A ASSY-PANEL BACK;SMV9165,ASSY-A 10 1
25 DE66-00135A PULLEY-FAN MOTOR 10 1
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Av ailable
Section: CONVECTION FAN ASSEMBLY
7
Model: AMV6167BDS
MW16-7
Section:
8
CONVECTION FAN ASSEMBLY
No. Part No. Description
1 DE47-00030A HEATER-CONVECTION 10 1
2 DE47-00031A HEATER-CONVECTION 10 1
3 6021-001149 NUT-HEXAGON FLANGE 10 2
4 DE47-20029A THERMOSTAT 10 1
5 N DE60-00032A SPACER-BEARING;SMV9165,SILICON 10 1
6 DE60-40019A WASHER-DOOR 10 2
7 DE61-00550A BRACKET-AIR GUIDE 10 3
8 DE61-00602A HOLDER-HEATER 10 1
9 DE61-00619A HOLDER-BEARING 10 2
10 DE61-00690A BRACKET-GUIDE 10 1
11 N DE61-00718A BRACKET-CASING 10 1
12 DE62-00032A ADIABATIC CASING 10 1
13 DE63-00176A COVER-CASING 10 1
14 DE66-00137A SHAFT-FAN 10 1
15 DE66-00155A PULLEY-FAN CASING 10 1
16 DE66-10017A BEARING-FAN 10 2
17 N DE69-00361A BAND-RUBBER 10 1
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Av ailable
Section:
9
SUPPLEMENTAL INFORMATION
No. Part No. Description
- 8112P300-60 MANUAL, USE & CARE 10 1
- DE96-00536A AST-WIRE HARNESS A 10 1
- DE92-90505G ASY-HARDWARE * 10 1
- DE60-20022A BOLT-TOGGLE 10 3
- DE97-00672A BOLT-FLAT 10 3
- DE60-30022A NUT-TOGGLE 10 3
- DE60-10111A SCREW-LAG 10 1
- DE63-10011A GROMMET 10 2
Series Qty
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Av ailable
