IMPORTANT:
Read and save
Part
\
No. 3183636 Rev. D
these instructions.
IMPORTANT:
Installer: Leave Installation Instructions
with the homeowner.
Homeowner: Keep Installation Instructions
for future reference.
Save Installation Instructions for local
electrical inspector’s use.

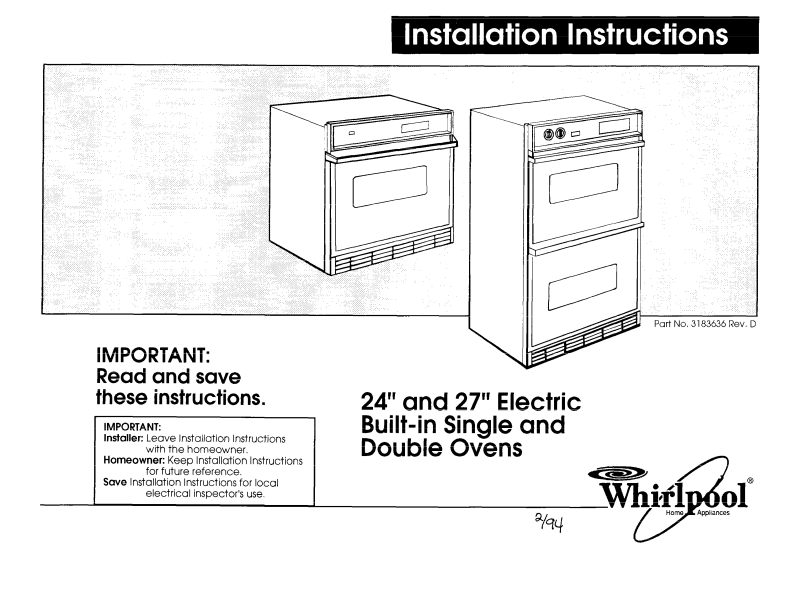

24” and 27” Electric
Built-in Single and
Double Ovens
Page 2
24” Double oven
24” mln. overall
q----
-N
I
i
I
I
I
1
rc--
lo Not’,
ieal oven
o cabinets. \
\
22-l/2”
min.
cabinet
openlng
width
\
-I
b.
\
i-r
cabinet
openlng I
helght
44’
1
1 2%j/4” min.
I
I z$::g
I
I
i
I
I
I
cabinet
Electdcal supply
lunctton box
I
See Note.”
sed
Iht
I I
Cablnet door
“Note: There must be
1” min. between bottom
ot cablnet door and top
ot oven console.
Oven control
console
50-W4” -
See Note.”
overall
4-112”
exposed
trtm. door
and handle
depth (2-l/2”
wlthout
handle)
Before you start...
Read the electrical and carpentry instructions.
Proper installation is your responsibility. A
qualified technician should install this oven.
Make sure you have everything necessary for
correct installation. It is the responsibility of the
installer to comply with the installation
clearances specified on the serial/rating plate.
The serial/rating plate can be found behind
the door (double oven models - upper oven)
on the oven frame.
Check location where the built-in oven will be
installed. The location should be away from
strong draft areas, such as windows, doors,
and strong heating vents. The built-in oven
should be located for convenient use in the
kitchen.
Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must be
solid and level.
The recessed installation area must provide
complete enclosure around the recessed
portion of the oven.
ALL OPENINGS IN THE WALL OR FLOOR WHERE
THE BUILT-IN OVEN IS TO BE INSTALLED MUST BE
SEALED.
Electrical ground is required. See “Electrical
requirements.”
Do Not install single oven in a base cabinet
24’ mln.
overall
cabinet
recommended
so upper oven
door, when
open, Is 38
_ _. I
rrom rroor.
27” Double oven
27’ mln. overall
I
cabinet wldth
NOTE:
I
Cablnet door
“‘Note: There must be
1” mln. between bottom
ol cabinet door and top
ol oven console.
i
Oven control
console
lhe oven support surface must be flush with
the bottom of the cabinet opening.
Important: Observe all governing codes
ordinances.
Electrical Shock Hazard
It is the customer’s responsibility:
*To contact a qualified electrical installer.
*To assure that the electrical installation is
adequate and in conformance with
National Electrical Code, ANSI/NFPA 70 latest edition*, and all local codes and
ordinances.
Failure to do so could result in fire, electrical
shock or other personal injury.
Personal Injury Hazard
Securely fasten oven to cabinet using the
screws provided (2 screws for a single oven
or 4 screws for a double oven).
Failure to do so could cause the oven to
move or tip during use and result in personal
injury.
I
I
24-112”
mln.
cabinet
openlng
I
width
I
I
I
I
I
I
I
1 L
c-4-C
\
\
\
\
24” mtn.
.
\
.
Do Not seal
oven to
cabinets.
overall
1” mln.
rlote.“‘
I 23.j/4” mln.
cabinet
I
I
49”
cabinet
opening I
helght
depth
I
I
I
4-l/2”
exDosed
tdti, door
and handle
depth (2-l/2”
wlthout
handle)
Copies of the standards listed may be
obtained from:
l
National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
I
I
I
Electrlcal supply
I
junctton box
If- I
50-j/4” -
overall
helght
See Note.“’
Cabinet Damage
Do Not block the oven vent.
Blocking the oven vent may cause damage
and poor baking performance.
Tools needed for
installation:
recommended
so upper oven
door, when open,
Is 36” lrom (loor.
Panel A
Parts supplied for
overall wrarn
installation:
5 screws (single oven)
7 screws (double oven)
Page 3
24” Single oven
24” min. overall
cabinet wldth
’ II
211/T’ mln.
27-5/5”recessed
height
II
I I
Cabinet door
‘Note: There must be 1”
mln. between bottom of
cabinet door and top of
oven console.
Oven control
console
I II
See Note.’
4-W exposed
tdm, door and
handle depth
fW&‘ltho~
29-3/V -
overall
height
Do Not seal
oven to
cabinets.
27” Single oven
24” min.
overall
cabinet
depth
31-l/4” mlrY.
recommended
so oven door,
when open,
Is 38’ from floor.
h,
23-515” recessed
depth
Do Not seal
oven to
cabinets.
c-N’-’
+N
I
I
--I
I
I
24-l/2” min.
I
cabinet
I
openlng
wtdth
I
I
I
-em--
T
\
\
\
\
24” min. overall
cabinet depth
‘*
27” mln. overall
cabinet wldth
31 -l/4” mln.
recommended
so oven door,
when open, Is
36” from floor.
’ II
21112” mtn.
27-5/V*recessed
height
“Note: There must be
1” mln. between
bottom of cabinet
door and top of oven
console.
Oven control
console
Panel B
Page 4
Electrical requirements
Electrical Shock Hazard
l Electrical ground is required on this
appliance.
*Do Not ground to a gas pipe.
*Do Not have a fuse in the neutral or
grounding circuit. A fuse in the neutral
or grounding circuit could result in an
electrical shock.
*Check with a qualified electrician if
you are in doubt as to whether the
appliance is properly grounded.
Failure to follow these instructions
could result in serious injury or death.
If codes permit and a separate grounding
wire is used, it is recommended that a
qualified electrician determine that the
grounding path is adequate.
IMPORTANT:
Save Installation Instructions for the local
electrical inspector’s use.
. This appliance must be
A
connected to the proper electrical
voltage and frequency as specified on
the serial/rating plate located behind
the oven door (double oven models upper oven) on the front frame. Models
rated at 7.0 kw on 240 volts (5.3 kw on
208 volts) or more require a separate 40ampere circuit. Fuse both sides of the
line. A time-delay fuse or circuit breaker
is recommended.
Electrical connection
Electrical Shock Hazard
*Electrical ground is required on this
appliance.
*Do Not connect to the electrical
supply until appliance is
permanently grounded.
l Disconnect power to the junction
box before making the electrical
connection.
*This appliance must be connected to
a grounded, metallic, permanent
wiring system, or a grounding
connector should be connected to
the grounding terminal or wire lead
on the appliance.
Failure to do so could result in a fire,
personal injury or electrical shock.
L
This appliance is manufactured with
white (neutral) power supply wire and a
cabinet-connected green grounding
wire twisted together.
Connect the appliance cable to the
junction box through the U.L.-listed
conduit connector. Complete electrical
connection according to local codes
and ordinances.
A. Where local codes
permit...
connecting of the cabinet-grounding
conductor to the neutral (white) junction
box wire:
Cable from
C. If connecting to a fourwire electrical system...
Do Not connect the cabinet-grounding
conductor to the neutral (white) junction
box wire.
Junction
box
Figure 3
1. Disconnect the power supply.
2. Separate the green (or bare) and
white appliance cable wires.
3. Connect the white appliance cable
wire to the neutral (white) wire in the
junction box.
4. Connect the two black wires together;
then the two red wires together. See
Figure 3.
5. Connect the green appliance cable
wire to the green grounding wire in the
junction box.
Cable from
pyy supply
C;rbi;,
from
oven
White
wires
U.L.-listed
conduit
connector
. OVEN MUST BE CONNECTED WITH
B
COPPER WIRE ONLY.
. Wire sizes and connections
C
conform to the requirements of the
National Electrical Code, ANSI/NFPA
70 - latest edition*, and all local codes
and ordinances. Wire sizes and
connections must conform with the rating
of the appliance.
Copies of the standards listed may be
obtained from:
l National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
n This appliance should be
D
connected directly to the fused
disconnect (or circuit breaker box)
through flexible, armored or non-metallic
sheathed, copper cable (with grounding
wire). The flexible armored cable from the
appliance should be connected directly
to the junction box.
E
n Locate the junction box to allow as
much slack in the cable as possible
between the junction box and the
appliance so that the oven can be
moved if servicing is ever necessary.
Do Not cut the conduit.
must
U.L.-listed conduit
Figure 1
1. Disconnect the power supply.
2. Remove the terminal block cover,
3. Connect together 3 wires: green and
white appliance cable wires and the
neutral (white) wire in junction box.
4. Connect the two black wires together;
then the two red wires together. See
Figure 1,
Cable
from oven
Grounded Neutral
connector
B. Where local codes Do
Not permit...
connecting the cabinet-grounding
conductor to the neutral (white) junction
box wire:
Junction
box
Red
wires
Cable from
. A U.L.-listed conduit connector must
F
be provided at the junction box,
n A wiring diagram is included in
G
the Tech Sheet. The Tech Sheet is
located behind the control panel.
Panel C
Bare or
green
wires
Figure 2
1. Disconnect power supply.
2. Separate the green and white
appliance cable wires.
3. Connect the white appliance cable
wire to the neutral (white) wire in the
junction box.
4. Connect the two black wires together;
then the two red wires together. See
Figure 2.
5. Connect the green or bare grounding
wire from the appliance cable to a
grounded wire in the junction box.
cabi;
from
oven
Ungrounded Neutral
isted
conduit
connector
riles
Page 5
Now start...
with oven in kitchen.
1
n Remove shipping materials, tape,
and protective film from oven. Do Not
remove shipping base at this time.
2
n Remove the racks and other parts
from inside the oven.
Property Damage
Before moving ovens across floor,
check that ovens are on shipping
base or slide ovens onto cardboard or
hardboard.
Failure to follow these instructions may
result in damage to floor covering.
-
Personal Injury Hazard
l Use both hands to remove oven doors
l Grasp only the sides of oven doors.
l Do Not use handle or any portion of
the front frame or trim for lifting.
l Because of the weight and size of the
ovens, two or more people are
needed to move and safely install the
ovens.
Failure to properly grasp the oven doors
or to lift ovens properly could result in
damage to the product or personal
injury.
2
d n Completely open the lower oven
door. Remove the two oven door screws,
(Not all models have oven door screws,)
6
n Turn power supply off. Move oven
close to final position. Remove and
discard shipping base. Feed appliance
cable through the opening in cabinet.
Make electrical connection. See
“Electrical requirements” and “Electrical
connection” sections, Panel C.
Product Damage
Carefully push against the seal area
of the oven front frame when pushing
the oven into the cabinet.
Do Not push against outside edges.
Failure to follow these instructions can
result in damage to oven finish.
Push against seal area of front frame to
push oven into cabinet.
4 screwS 4 screwS
H Center oven into cabinet cutout. H Center oven into cabinet cutout.
8 8
Use two screws (four screws for a double Use two screws (four screws for a double
oven) through the mounting holes in the oven) through the mounting holes in the
front frame of the oven to secure the front frame of the oven to secure the
oven to the cabinet. Do Not overtiahten oven to the cabinet. Do Not over-tighten
screws. screws.
4
n Close lower or single oven door to
the broil position. Grasp the sides of the
oven door and pull the door up and out
of the hinge slots to remove. Set door
aside.
I
5
m Repeat Steps 3 and 4 for upper
oven.
7
n Lift oven up into cabinet cutout
using the oven opening as an area to
grip.
Use one low-profile
screw in this position.
9
n Install the lower vent grille using the
three screws provided.
1.
Panel D
Numbers
correspond
to steps.
Page 6
Replace the oven racks.
Replace the single oven or upper double
oven door by partially fitting the door
hinges into the hinge slots. Pull door slightly
toward you; then slide door completely in
place. Reinstall the two oven-door screws
(if required for your oven door). If door
does not close, you have not pushed
hinges completely into frame. Repeat for
lower oven door.
n
13
single or upper oven broil element. Press
the “BROIL” button. “500”” will appear in
the display. Press the ‘START/ENTER”
button to start the broil operation. In l-2
minutes, the upper element should glow
red. The single or upper oven indicator
light should be on and the oven should
be heating.
Press the “OFF/CANCEL” button.
Check the operation of the
TEMPERATURE
0
SELECTOR
0
n
11
should appear in the’temperature
display and “88:88” should appear in the
clock display. Press the “CLOCK/SET”
button. ‘TIME, HR AND MIN” will light in
the display. ‘0:OO” will appear and “:” will
be flashing. Press the “HOUR” and
“MINUTE” arrows to set the clock to the
correct time of day. Press the
“START/ENTER” button to start the clock.
12
single oven or upper oven. Press the
“BAKE” but-ton. ‘350”” will appear in the
display. Press the “START/ENTER” button
to start the bake operation. In 1-2
minutes, the bottom element should
glow red. The upper element should
become hot, but not glow red. The
single or upper oven indicator light
should be on and the oven should be
heating.
The oven indicator light goes off when
the oven is preheated.
Press the “OFF/CANCEL” button,
Turn on the power supply. ‘PF”
n
Check the operation of the
TEMPERATURE
0
SELECTOR
0
-
Check the operation of the lower oven
broil element. Set the oven selector and
oven temperature control knobs to
“BROIL.” In l-2 minutes, the upper
element should glow red. The lower
oven indicator light should be on and
the oven should be heating.
Turn the oven selector and temperature
control knobs to “OFF.”
You have just finished
installing your new Whirlpool
oven. To get the most efficient
use from your new oven, read
your Whirlpool Use & Care Guide.
f
I
~~~~~~~
Congratulations!
and Guide close to oven for easy
I
Check the operation of the lower oven.
Set the oven selector control knob to
‘BAKE.” Set the oven temperature control
knob to “350°F.” In l-2 minutes, the
bottom element should glow red. The
upper element should become hot, but
not glow red. The lower oven indicator
light should be on and the oven should
be heating.
The oven indicator light goes off when
the oven is preheated.
Turn the oven selector and temperature
control knobs to ‘OFF.”
Panel E
Page 7
If the oven does
If you need
If you need
not operate...
l
Check that the circuit breaker is not
tripped or the house fuse blown.
l
See Use and Care Guide for
troubleshooting checklist.
NOTE:
Refer to Use and Care Guide for
operating instructions and cleaning
instructions.
assistance...
The Whirlpool Consumer Assistance
Center will answer any questions about
operating or maintaining your oven not
covered in the Installation Instructions.
The Whirlpool Consumer Assistance
Center is open 24 hours a day, 7 days a
week. Just dial 1-800-253-l 301 - the call
is free.
When you call, you will need the oven
model number and serial number. Both
numbers can be found on the
serial/rating plate located behind the
oven door (double oven models upper oven) on the front frame.
service...
In the event that your Whirlpool
appliance should need service, call the
dealer from whom you purchased the
appliance or a Whirlpool-authorized
service company. A Whirlpool-authorized
service company is listed in the Yellow
Pages of your telephone directory under
“Appliances - Household - Major Service or Repair”. You can also obtain
the service company’s name and
telephone number by dialing, free, within
the continental United States, the
Whirlpool Consumer Assistance Center
telephone number, 1-800-253-l 301. A
special operator will tell you the name
and number of your nearest Whirlpoolauthorized service company.
Maintain the quality built into your
Whirlpool appliance - call a Whirlpoolauthorized service company.
Part No. 3183636 Rev. D
0 1994 Whirlpool Corporation
Prepared by Whirlpool Corporation, Benton Harbor, Michigan 49022
Printed on recycled paper.
10% post consumer waste/
50% recovered materials.
Printed in U.S.A.
Loading...
