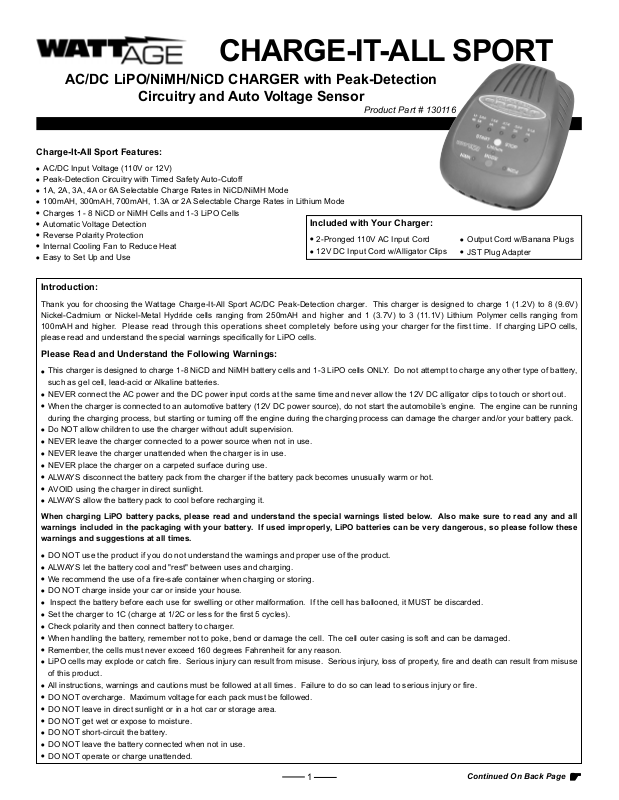

CHARGE-IT-ALL SPORT
AC/DC LiPO/NiMH/NiCD CHARGER with Peak-Detection
Circuitry and Auto Voltage Sensor
Product Part # 130116
Charge-It-All Sport Features:
●
AC/DC Input Voltage (110V or 12V)
●
Peak-Detection Circuitry with Timed Safety Auto-Cutoff
●
1A, 2A, 3A, 4A or 6A Selectable Charge Rates in NiCD/NiMH Mode
●
100mAH, 300mAH, 700mAH, 1.3A or 2A Selectable Charge Rates in Lithium Mode
●
Charges 1 - 8 NiCD or NiMH Cells and 1-3 LiPO Cells
●
Automatic Voltage Detection
●
Reverse Polarity Protection
●
Internal Cooling Fan to Reduce Heat
●
Easy to Set Up and Use
Introduction:
Thank you for choosing the Wattage Charge-It-All Sport AC/DC Peak-Detection charger. This charger is designed to charge 1 (1.2V) to 8 (9.6V)
Nickel-Cadmium or Nickel-Metal Hydride cells ranging from 250mAH and higher and 1 (3.7V) to 3 (11.1V) Lithium Polymer cells ranging from
100mAH and higher. Please read through this operations sheet completely before using your charger for the first time. If charging LiPO cells,
please read and understand the special warnings specifically for LiPO cells.
Please Read and Understand the Following Warnings:
●
This charger is designed to charge 1-8 NiCD and NiMH battery cells and 1-3 LiPO cells ONLY. Do not attempt to charge any other type of battery,
such as gel cell, lead-acid or Alkaline batteries.
●
NEVER connect the AC power and the DC power input cords at the same time and never allow the 12V DC alligator clips to touch or short out.
●
When the charger is connected to an automotive battery (12V DC power source), do not start the automobile’s engine. The engine can be running
during the charging process, but starting or turning off the engine during the charging process can damage the charger and/or your battery pack.
●
Do NOT allow children to use the charger without adult supervision.
●
NEVER leave the charger connected to a power source when not in use.
●
NEVER leave the charger unattended when the charger is in use.
●
NEVER place the charger on a carpeted surface during use.
●
ALWAYS disconnect the battery pack from the charger if the battery pack becomes unusually warm or hot.
●
AVOID using the charger in direct sunlight.
●
ALWAYS allow the battery pack to cool before recharging it.
When charging LiPO battery packs, please read and understand the special warnings listed below. Also make sure to read any and all
warnings included in the packaging with your battery. If used improperly, LiPO batteries can be very dangerous, so please follow these
warnings and suggestions at all times.
●
DO NOT use the product if you do not understand the warnings and proper use of the product.
●
ALWAYS let the battery cool and "rest" between uses and charging.
●
We recommend the use of a fire-safe container when charging or storing.
●
DO NOT charge inside your car or inside your house.
●
Inspect the battery before each use for swelling or other malformation. If the cell has ballooned, it MUST be discarded.
●
Set the charger to 1C (charge at 1/2C or less for the first 5 cycles).
●
Check polarity and then connect battery to charger.
●
When handling the battery, remember not to poke, bend or damage the cell. The cell outer casing is soft and can be damaged.
●
Remember, the cells must never exceed 160 degrees Fahrenheit for any reason.
●
LiPO cells may explode or catch fire. Serious injury can result from misuse. Serious injury, loss of property, fire and death can result from misuse
of this product.
●
All instructions, warnings and cautions must be followed at all times. Failure to do so can lead to serious injury or fire.
●
DO NOT overcharge. Maximum voltage for each pack must be followed.
●
DO NOT leave in direct sunlight or in a hot car or storage area.
●
DO NOT get wet or expose to moisture.
●
DO NOT short-circuit the battery.
●
DO NOT leave the battery connected when not in use.
●
DO NOT operate or charge unattended.
Included with Your Charger:
●
2-Pronged 110V AC Input Cord
●
12V DC Input Cord w/Alligator Clips
1
●
Output Cord w/Banana Plugs
●
JST Plug Adapter
Continued On Back Page
☛☛
☛
☛☛
Charge-It-All Sport Safety Features:
●
If the battery pack polarity is reversed or if the battery pack has a short circuit,
the charger will shut off and the charge rate LEDs will blink together. If this
happens, unplug the battery pack from the charger and double-check all wires
for polarity and short circuits before reattaching the battery pack to the charger.
●
When the START/STOP button is pressed to start the charging process,
an internal safety timer is automatically started. If the battery pack
malfunctions or misses the “peak,” the timer will automatically stop the
charging process after the following elapsed times:
NiCD and NiMH MODE
1 Amp .................. 300 Minutes
2 Amps ................. 150 Minutes
3 Amps ................. 100 Minutes
4 Amps ................... 75 Minutes
6 Amps ................... 50 Minutes
LITHIUM MODE
All Amp Ratings ........... 3 Hours
After the charge process is complete, the charger switches
to trickle charge mode at 1/10th of the selected charge rate,
regardless of the charge mode
●
Choose the charge type (either NiMH, NiCD or Lithium) by pressing
and holding the MODE button for
1.5 seconds. The charge mode
will change as indicated by the
green LED. If your battery has
NiCD cells, choose the NiCD
charge mode. If your battery has
NiMH cells, choose the NiMH
charge mode. If you have a
Lithium Polymer (LiPO) battery,
choose the Lithium charge mode.
WARNING Always make sure that you choose the charge mode that
matches the type of cells in your battery pack. Charging your battery pack
using a charge mode that’s different than the cell type you’re charging will
damage the battery pack and possibly result in fire.
●
After selecting the charge
mode, select the charge rate by
briefly pressing the MODE
but ton until the desired charge
rate is selected as indicated by
the blinking red LED. See the
table below for recommended
charge rates.
Using Your Charge-It-All Sport Charger:
Before using your charger for the first time, please read and
understand the warnings listed on the front page. Failure to
understand and follow these warnings can result in damage to the
charger, your flight battery or worse.
●
Plug the desired input cord into the back of the charger (either 12V DC
or 110V AC), then plug the input cord into the power source. The red and
green LEDs will default to the position they were in when the charger was
last used.
WARNING Never plug the charger into a 220V power source and never
connect the charger to a 12V DC and a 110V AC power source at the
same time. Use only one desired power source at a time. If connecting
the charger to a 12V DC power source, make sure to attach the red
alligator clip to the positive terminal and the black alligator clip to the
negative terminal.
●
Plug the banana plugs on the output cord into the front of the charger,
making sure that the polarity is
correct (red to red and black to
black), then connect your
battery to the output cord.
IMPORTANT If the connector on
your battery is different from the
connector on the output cord,
you will need to change the
connector on the output cord. If you do, double-check that the polarity is
correct when you install your new connector.
NOTE The charger includes a JST adapter if your battery uses a JST
plug. The JST plug is typically referred to as a BEC connector and is red.
Recommended Charge Rates
We recommend choosing a charge rate for NiMH batteries that is close to
the batteries’ rated mAH capacity (e.g., charge a 2000mAH NiMH battery
at no more than 2 amps). For NiCD batteries, we recommend choosing a
charge rate that is 1-3 times the batteries’ rated mAH capacity (e.g., charge
a 1400mAH NiCD battery at 2-4 amps).
NiCD Charge Rates NiMH Charge Rates
1000mAH 1A -3 A 1000mAH 1A
1200mAH 2A - 3A 1200mAH 1A
1400mAH 2A - 4A 1400mAH 1A
1600mAH 2A - 5A 1600mAH 1A - 2A
1800mAH 2A - 5A 1800mAH 1A - 2A
2000mAH 2A - 6A 2000mAH 2A
2400mAH 3A - 6A 2400mAH 2A
2800mAH 3A - 6A 2800mAH 3A
3000mAH 3A - 6A 3000mAH 3A
Lithium Charge Rates
145mAH .1A (100mAH) 1250mAH 1.3A
340mAH .3A (300mAH) 1500mAH 1.3A
350mAH .3A (300mAH) 2000mAH 2A
520mAH .3A (300mAH) 2100mAH 2A
750mAH .7A (700mAH) 2150mAH 2A
830mAH .7A (700mAH) 2500mAH 2A
910mAH .7A (700mAH) 3200mAH 2A
1050mAH .7A (700mAH) 4000mAH 2A
Sample average charge time for a 1600mAH battery charged at:
1Amp is 96 minutes
2Amps is 48 minutes
4Amps is 24 minutes
IMPORTANT Batteries may be charged at different rates depending on
the manufacturer’s suggestions. The table above is for general reference
only and errs on the side of caution.
IMPORTANT If you are charging 8 cells using a 12V DC power source,
the DC input (your power source) MUST be higher than 14V.
1600/4000=0.4x60=24 Minutes
