Mayline SRF3871 User Manual

Kwik-File, LLC

Mailflow-To-Go VertiPocket Sorter

SRF3871

VertiPocket Sorter

Model SRF3871, 37 3/4"W x 12 3/4"D x 71"H

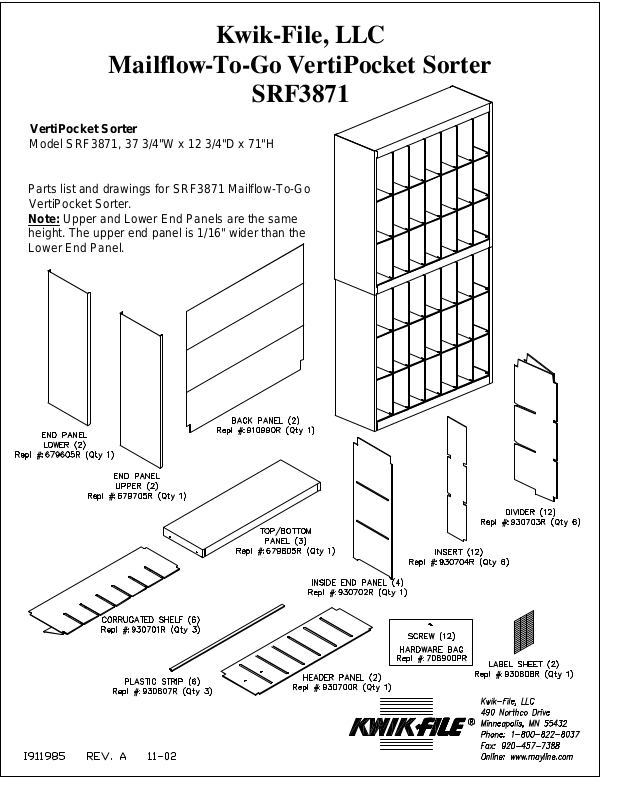

Parts list and drawings for SRF3871 Mailflow-To-Go

VertiPocket Sorter.
Note: Upper and Lower End Panels are the same
height. The upper end panel is 1/16" wider than the
Lower End Panel.

1. Tools required: Phillips screwdriver. Unpack
carton; then identify and count all parts.

2. Place a 2" thick shelf with open side down on

the floor; front edge has slots at each end. Install
lower outside end panels (1/16" thinner than
upper outside end panels): insert tab through slot
in front as shown, and turn back of end panel
until it fits behind back of shelf. Repeat with other
side. Insert 4 screws through outside end panel
and shelf at rear corners; fasten securely.

3. Install top 2" thick shelf by sliding onto tabs of
outside end panels. Pull out the back edges of

the outside end panels so the shelf can be
lowered into place; then return outside end
panels to their original position.

4. Assemble upper level by installing upper
outside end panel. Insert tab at bottom front of
panel into same shelf slot used by lower outer
end panel; then move back of upper end panel
until it fits behind back of shelf. Now insert two
screws; repeat with opposite panel. Install top
shelf as before; insert 4 screws (through spacers

for added depth and better fit); fasten securely.

5. Now that both lower and upper levels have
been combined into one large organizer, carefully
place the unit on its back. Insert both lower and
upper fiberboard back panels; then insert both
upper and lower inside header panels.

6. Install corrugated inside end panels with feet
on bottom and large corner cutout to top rear of
sorter; (press inside end panels firmly against
outside end panels in both upper and lower
levels).

7. Install one corrugated shelf into the slots in the
inside end panels, with the short folded side of

the shelf on the bottom. Repeat with the
remaining shelves in both upper and lower levels,
ending with the last shelf in each level resting on

the bottom of that level.

8. Place a corrugated insert ( with notch at the
bottom front) into a corrugated divider. Fold small

flaps at bottom of divider outwards. Now install
corrugated divider, making sure the folded flaps

fit under bottom shelf in each level, and top of
divider fits into slots in header panel. Finally,
press divider down firmly until flush with shelves.
Repeat with remaining five dividers and inserts in
upper level; then install 6 dividers and inserts in
lower level.

9. Install plastic strips on front edge of each shelf,

with the short edge of the plastic strip under the
bottom, and the longer edge over the shelf top.
Roll each strip onto the shelf edge and press

firmly into place. Repeat for all shelves.

10. The grooves in the front of each plastic strip
hold the paper labels provided. Separate each
label along the perforations; then insert in the
bottom groove, and push the label into place,

tucking the top of label into the top groove with

your fingernail. (Labels can be created using a
PC and printer or typewriter as desired, but
before separating.)
