Kwik-File, LLC
Two-Tier Sorter with Riser
SR6046R
2- Tier Sorter with Riser,
60"W x 46 1/4"H x 13 1/4"D
Parts list and drawings for 2-Tier Sorter with Riser.
![](/html/25/2574/257480768a126c9c01d5f4dc0a0746c1063f55c8443e59209bf8dfaec1555916/bg2.png)
1. No tools required: Unpack carton and identify all parts. Peel off protective film from face side of all
flat steel parts.

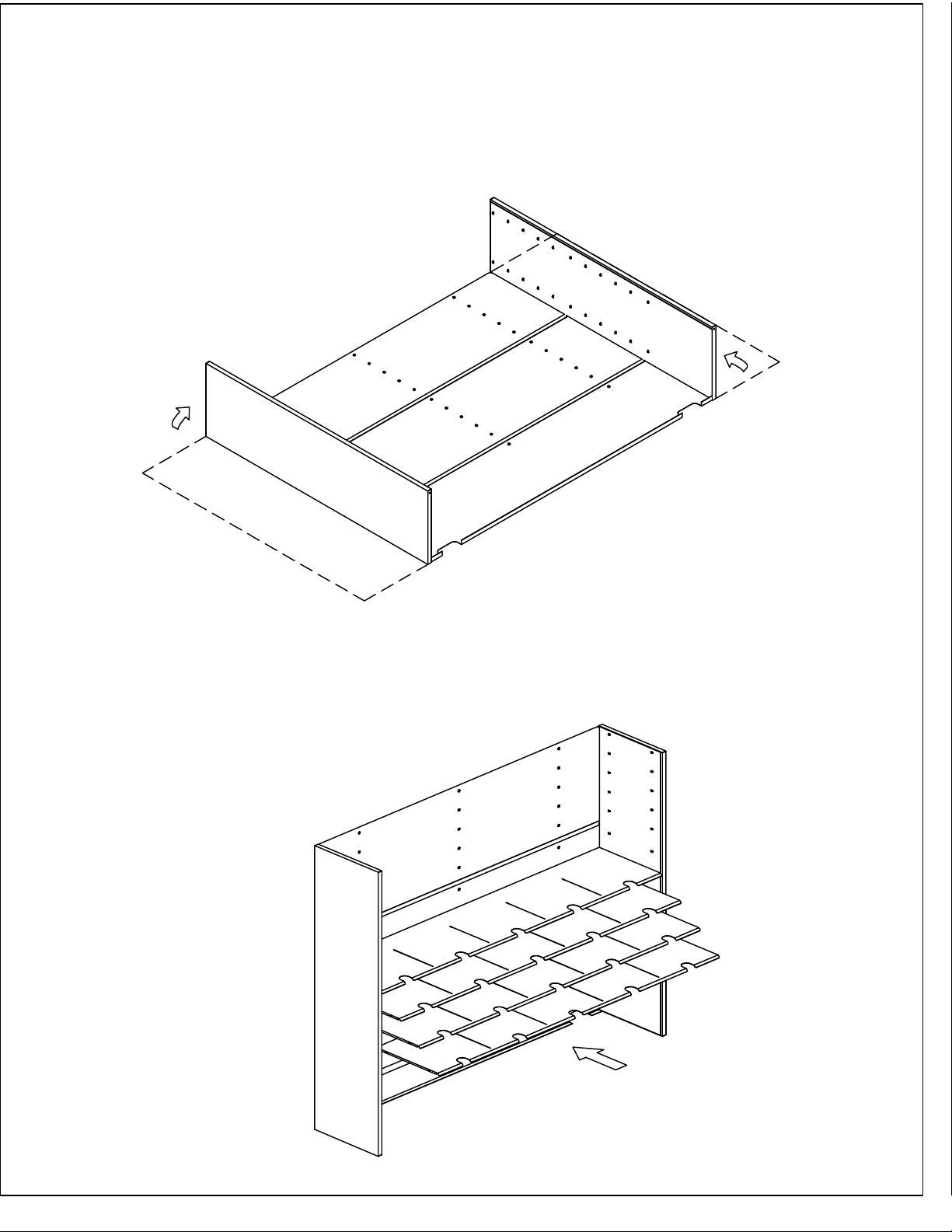

2. Position the two outside end panels (flange side up) and the three back panels (tab side up) as
shown on a clean, flat, smooth surface. Bottom back panel has wire cutouts on bottom; top back
panel has a 45-degree flange on the back.
3. Lift up one side of the bottom back panel and insert tabs through the lower slots in the adjacent
end panel. Repeat with other side. Then do the same with the middle and top back panels. The
lower edge of the middle back panel will slightly overlap the upper edge of the lower back panel;
and the lower edge of the top back panel will slightly overlap the upper edge of the middle back
panel.

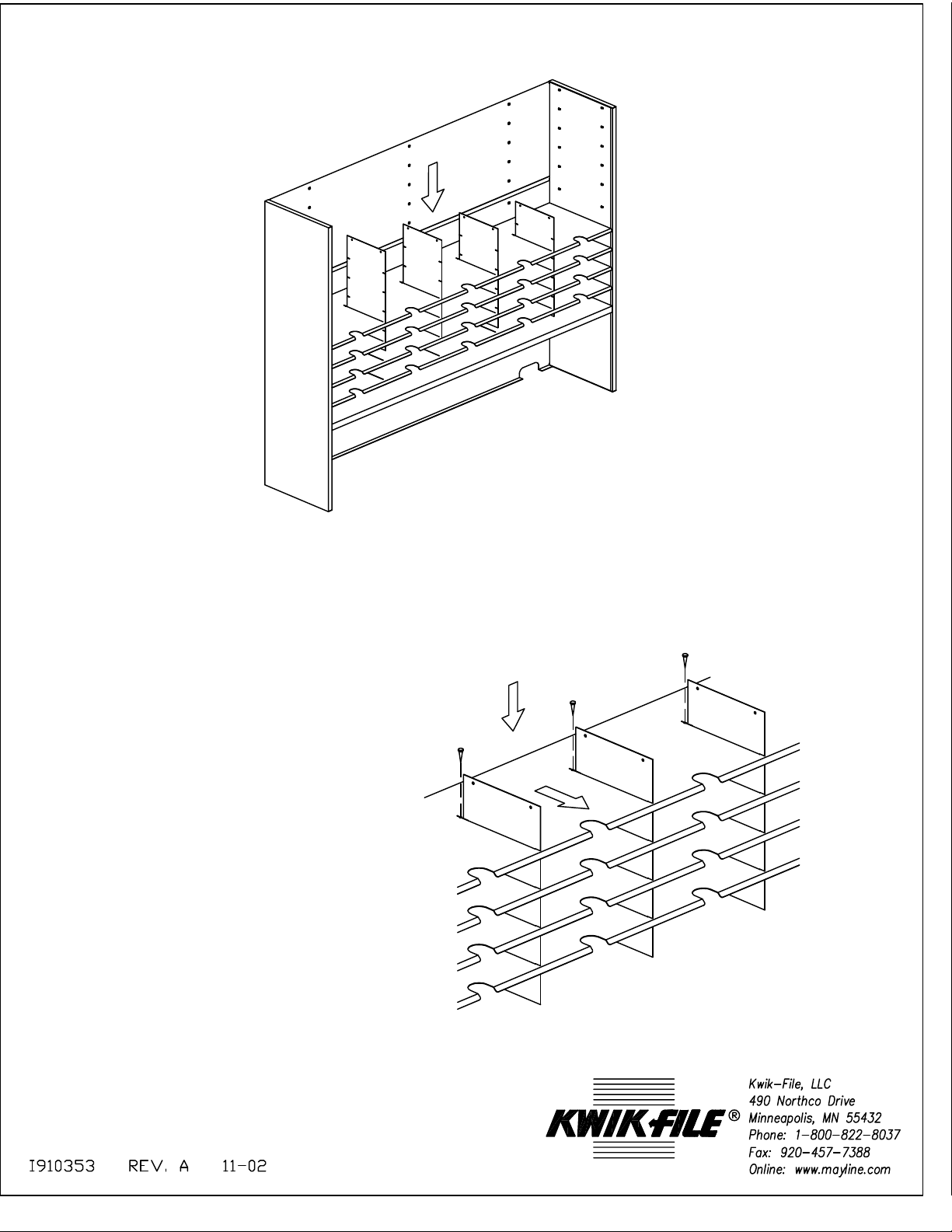

4. Place each of the inside end panels inside the outside end panels, loop side up; the offset lip fits
under the flange on the outer edge of the outside end panel. Note: the flange on the inside end
panel with the two holes should be facing down.
