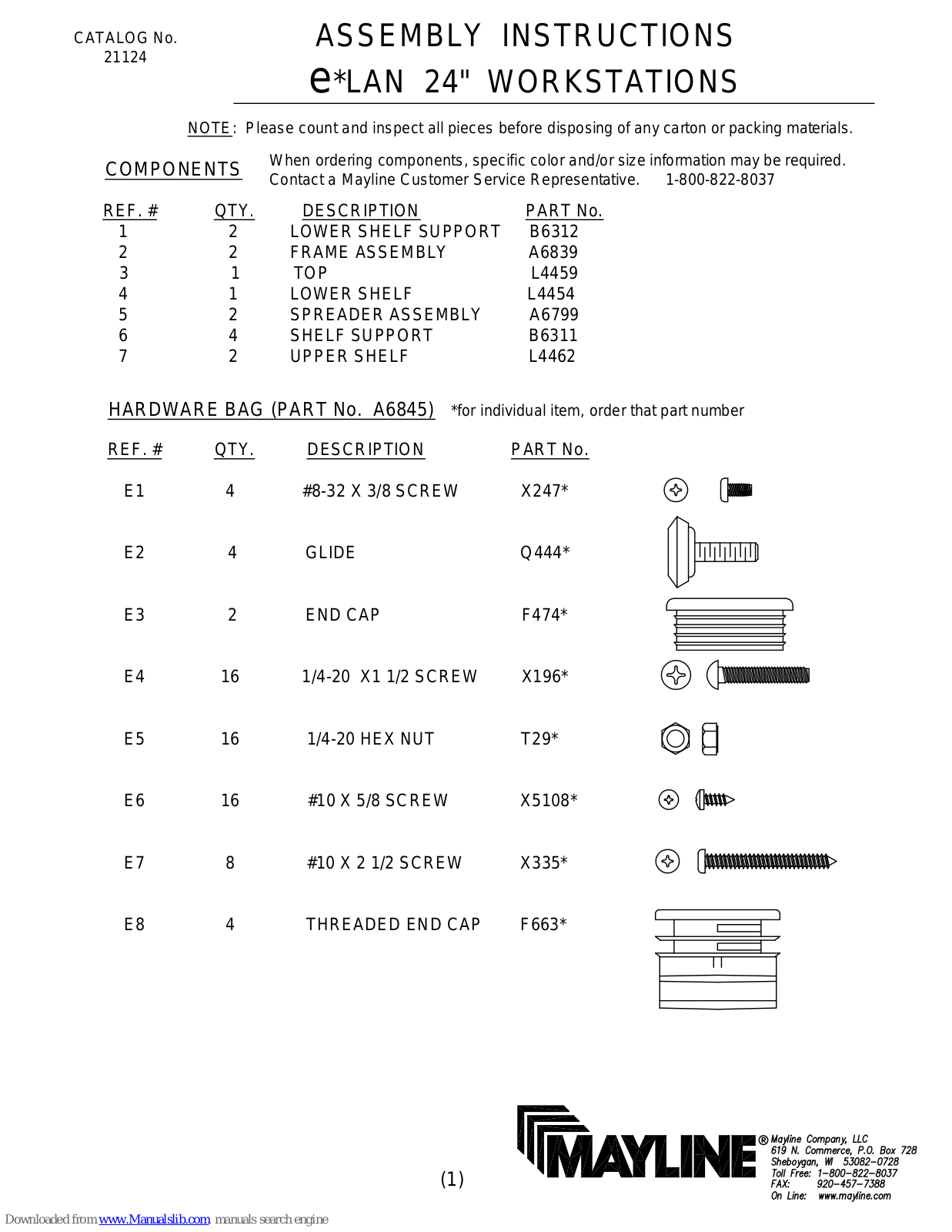

CATALOG No.
21124
ASSEMBLY INSTRUCTIONS
e
*LAN 24" WORKSTATIONS
NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.
COMPONENTS
REF. # QTY. DESCRIPTION PART No.
1 2 LOWER SHELF SUPPORT B6312
2 2 FRAME ASSEMBLY A6839
3 1 TOP L4459
4 1 LOWER SHELF L4454
5 2 SPREADER ASSEMBLY A6799
6 4 SHELF SUPPORT B6311
7 2 UPPER SHELF L4462
When ordering components, specific color and/or size information may be required.
Contact a Mayline Customer Service Representative. 1-800-822-8037
HARDWARE BAG (PART No. A6845) *for individual item, order that part number
REF. # QTY. DESCRIPTION PART No.
E1 4 #8-32 X 3/8 SCREW X247*
E2 4 GLIDE Q444*
E3 2 END CAP F474*
E4 16 1/4-20 X1 1/2 SCREW X196*
E5 16 1/4-20 HEX NUT T29*
E6 16 #10 X 5/8 SCREW X5108*
E7 8 #10 X 2 1/2 SCREW X335*
E8 4 THREADED END CAP F663*
(1)
Page 2

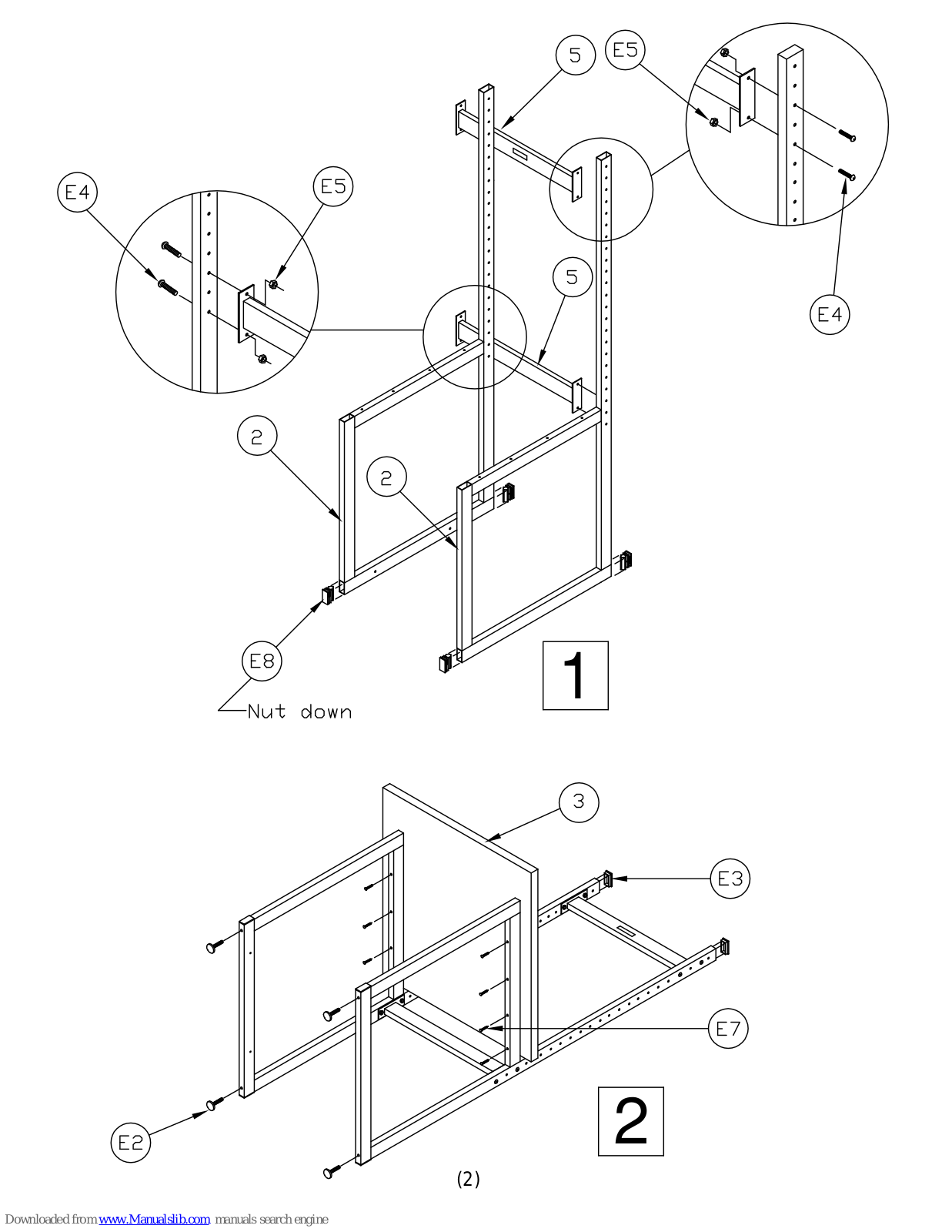

1
2
(2)
Page 3

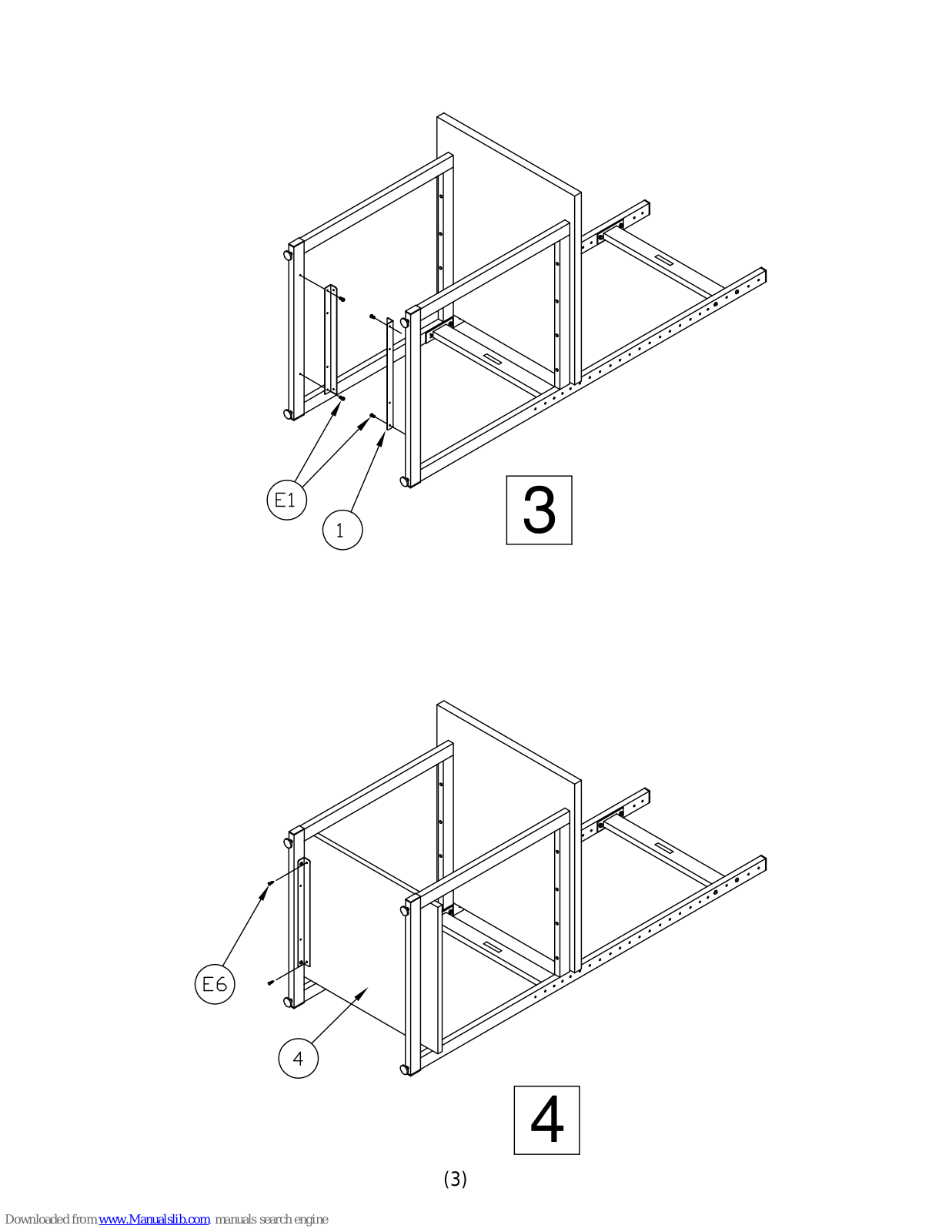

3
4
(3)
Page 4

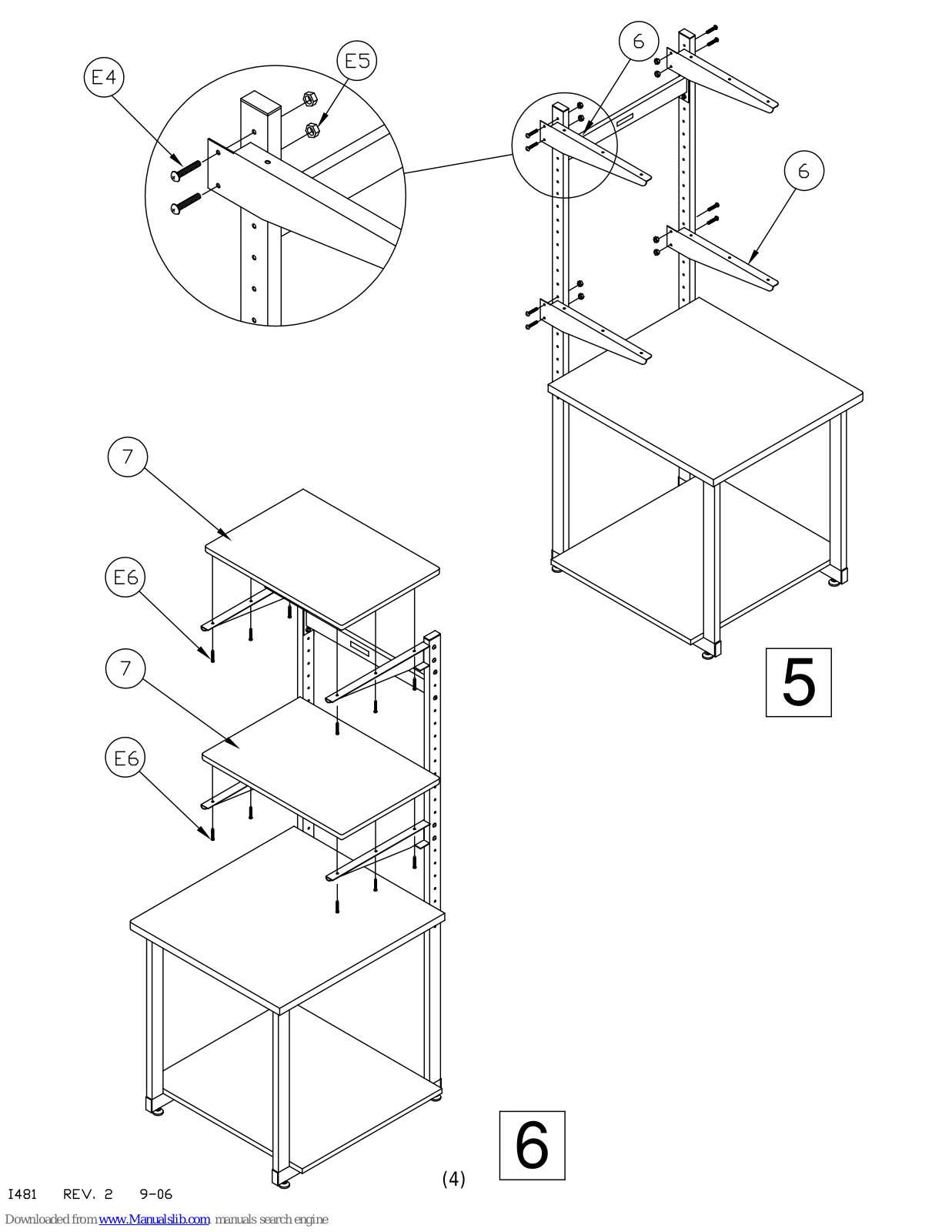

5
6
(4)
