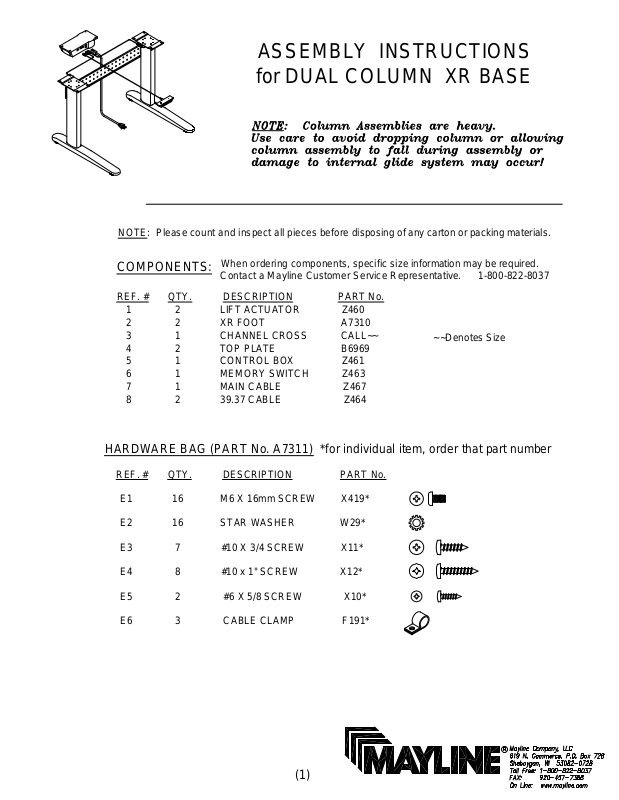

Page 1
(1)
ASSEMBLY INSTRUCTIONS
for DUAL COLUMN XR BASE
NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.
COMPONENTS:
REF. # QTY. DESCRIPTION PART No.
1 2 LIFT ACTUATOR Z460
2 2 XR FOOT A7310
3 1 CHANNEL CROSS CALL~~
4 2 TOP PLATE B6969
5 1 CONTROL BOX Z461
6 1 MEMORY SWITCH Z463
7 1 MAIN CABLE Z467
8 2 39.37 CABLE Z464
When ordering components, specific size information may be required.
Contact a Mayline Customer Service Representative. 1-800-822-8037
~~Denotes Size
HARDWARE BAG (PART No. A7311) *for individual item, order that part number
REF. # QTY. DESCRIPTION PART No.
E1 16 M6 X 16mm SCREW X419*
E2 16 STAR WASHER W29*
E3 7 #10 X 3/4 SCREW X11*
E4 8 #10 x 1" SCREW X12*
E5 2 #6 X 5/8 SCREW X10*
E6 3 CABLE CLAMP F191*
Page 2
(2)
Cross Channel clip
on REAR of Column
Cord Assembly
1. Place each Lift Actuator Column Assembly (1)
upside down with the cord toward the floor.
CAUTION: Do not pinch Cord Assembly
2. Position the XR Foot (2) over Lift Actuator Column
Assembly (1) with the longer portion of the Foot
toward the front. The column front is determined by
the position of the cross channel clip welded on the
column. Position this clip to the rear.
3. Attach the XR Foot (2) to the Lift Actuator Column
Assembly (1) with four M6 x 16 mm Screws (E1) and
Star Washers (E2).
Cords toward
center
Cross Channel
notches DOWN
4. Place the assembled columns upright and attach
the Cross Channel (3). Position the Cross Channel
flange with end notches toward the floor. Slide the
Cross Channel bracket onto the tapered channel clip
on each Column. Gently tap the Cross Channel in
place with a Rubber Mallet to assure a tight fit.
5. In the event that you must reposition the Actuator
Cord. Gently remove the cord and strain relief from
the notch in the top of the Lift Actuator Column
Assembly (1). Position the cords so that they are
toward the center of the assembled base. Insert the
strain relief into the appropriate Column notch.
Attach Top Plate (4) to each Actuator Column with
four M6 x 16 mm Screws (E1) and Star Washers (E2).
6. Attach the Memory Switch (6), Main Cord (7), and
the 39.37 Cables (8) to the Control Box (5).
Page 3
(3)
ATTENTION:
MAYLINE includes screws for the installation of a Work
Surface with a minimal thickness of 1 inch (25.4mm).
NOTE:
#10 X 3/4" Screws (E3) are provided
for Clamp and Control Box installation
only.
#10 x 1" Screws (E4) are provided for
Work Surface attachment only.
7. PRIOR TO ATTACHING A
WORKSURFACE. Place the Memory
Switch cable over the top of the Cross
Channel.
8. Align the holes in the Top with the holes
in the Top Plates (4) and secure in place
with eight #10 x 1" Screws (E4).
9. Align the holes in the Control Box (5)
with the holes in the underside of the Top
and attach it with four #10 x 3/4" Screws
(E3). Connect the cables to the columns.
10. Place the Memory Switch (6) in a
comfortable and accessible location on the
underside of the Top and attach it with two
#6 x 5/8 Screws (E5).
11. Route the actuator column cables and
the switch cable away from moving
components and secure them in place with
Cable Clamps (E6) and Screws (E3).
Page 4
INSTRUCTIONS for
(4)
DESK SWITCH w/ PROGRAMMABLE
MEMORY
21 3
1. Initialize system by pressing down and holding for 5 to 10
seconds after table bottoms out.
2. Push 'UP' to desired height.
3. To save this position in Memory:
A.) Press (Set)
B.) Press (do not hold) button , , or
Position is now saved under the number chosen.
4. To change to different height, press or .
This position may be saved by repeating Step 3 and using
one of the other buttons or using the same button to change
the previous setting. Up to 3 positions may be stored.
S
S
321
5. To go to new height position, press or , or press stored
height under , , or . Unit will automatically stop at
the stored position.
1
2 3
