ASSEMBLY INSTRUCTIONS
CS
NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.
COMPONENTS:
Item # QTY. DESCRIPTION PART #
1 1 WORK SURFACE CALL ~~**
2 1 MODESTY PANEL CALL~~**
3 0 / 1 / 2 LEG CALL~~**
4 2 / 1 / 0 DRAWER PEDESTAL CALL~~**
5 1 L.H. GUSSET B7483
6 1 R.H. GUSSET B7482
II
When ordering components, specific color and/or size information may be required.
Contact a Mayline Customer Service Representative. 1-800-822-8037
DESK AND CREDENZA
** Denotes Color Code
~~Denotes Size
HARDWARE BAG (PART No. A7618)
Item # QTY DESCRIPTION PART #
E1 26 #10 X 3/4 SCREW X11*
E2 10 #10-24- X 3/8 SCREW X147*
E3 10 #10-24 KEPS NUT T2*
E4 4 GLIDE Q630*
E5 4 CABLE CLAMP F191*
* for individual item, order that part number
Page 2
(2)
the Left tab. Pull drawer forward
Pedestal
Glide

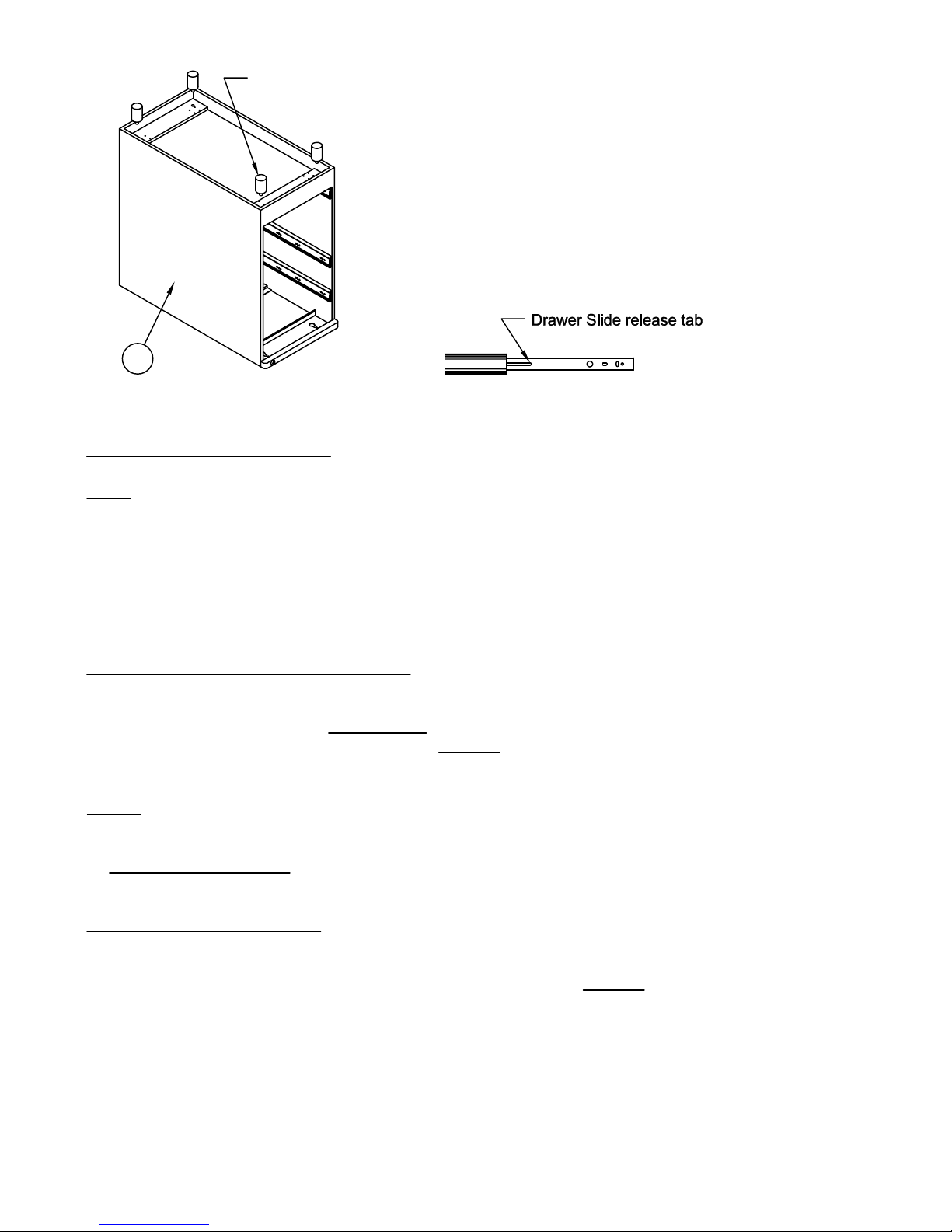

Drawer Pedestal Assembly:
1. Remove the Pedestal (4) from carton.
2. Remove all drawers from the Pedestal by pulling drawers out to the
full extent. Locate the drawer slide release tab on each drawer slide.
Press DOWN on the Right tab and LIFT
to remove.
3. Turn the Pedestal upside down and install four Glides into threaded
holes on bottom of Pedestal.
4
Desk or Credenza Assembly:
NOTE: Shape, size, and accessories may vary but assembly procedure remains the same. Bow Front Desk
with Pedestal is shown.
4. Place the Work Surface (1) face down onto a clean, protected surface.
5. Position Leg (3) approximately 3/16 from the edges and align the holes in the Leg with the pre-drilled holes in
the Work Surface. Attach each Leg to Work Surface with seven Screws (E1). DO NOT tighten screws at this
time.
For units equipped with a Drawer Pedestal (4):
Position Drawer Pedestal (4) approximately 3/16 from the edges and align the Pedestal holes with the pre-drilled
holes in the Work Surface (NOTE: DO NOT USE keyhole slots). Attach the Pedestal to Work Surface with four
Screws (E1) - two at the front and two at the rear. DO NOT tighten screws at this time.
NOTE
6. MODESY PANEL - DESK: The Modesty Panel (2) may be positioned either flush or inset of the Leg or
Drawer Pedestal. Select your desired location.
MODESTY PANEL - CREDENZA: The Modesty Panel (2) will be positioned flush with Legs or Drawer Pedestal .
Position the Modesty Panel (2) between the Legs (3) or Leg and Pedestal. Align the holes in the Panel with the
pre-drilled holes in the Work Surface. Secure Panel with Screws (E1). DO NOT tighten screws at this time.
: If your furniture is not equipped with a "MODESTY PANEL" - skip to step #9 at this time.
7. Attach the Modesty Panel (2) to each Leg (3) with three Screws (E2) and three KEPS Nuts (E3). Modesty
Panel does not get attached to the Pedestal Unit.
8. Align the holes in the Gusset (5) and the holes in the Modesty Panel (2). Attach the Gusset to the Panel with
two Screws (E2) and two KEPS Nuts (E3). Attach the Gusset to the Work Surface with two Screws (E1).
9. Tighten all screws at this time.
10. Install two Glides (E4) into each Leg.
Page 3
(3)
E2
E3
Desk or Credenza Assembly:
NOTE: Shape, size , and accessories may vary but assembly
procedure remains the same. Legs and Drawer Pedestals may be
placed on Right or Left side.
Assemble as shown for LEFT HAND Pedestal
2
E3
E2
6
E1
5
E1
4
E1
1
E1
3
Page 4
(4)
11. Place the assembled desk in the upright position. MAYLINE recommends that a minimum
of two people perform this task.
12. Place the desk at the location where it will be used. MAYLINE recommends that a minimum
of two people perform this task.
13. Level the assembly by adjusting the glides. If your assembly includes a Drawer Pedestal,
adjust all four glides under that unit.
14. If your assembly includes a Drawer Pedestal, return all drawers to the pedestal at this time.
15. Four Cable Clamps (E5) are included to position cables away from work area. Attach the
clamps to the Work Surface with one Screw (E1) per clamp.
