Mayline Corner Support Medina User Manual

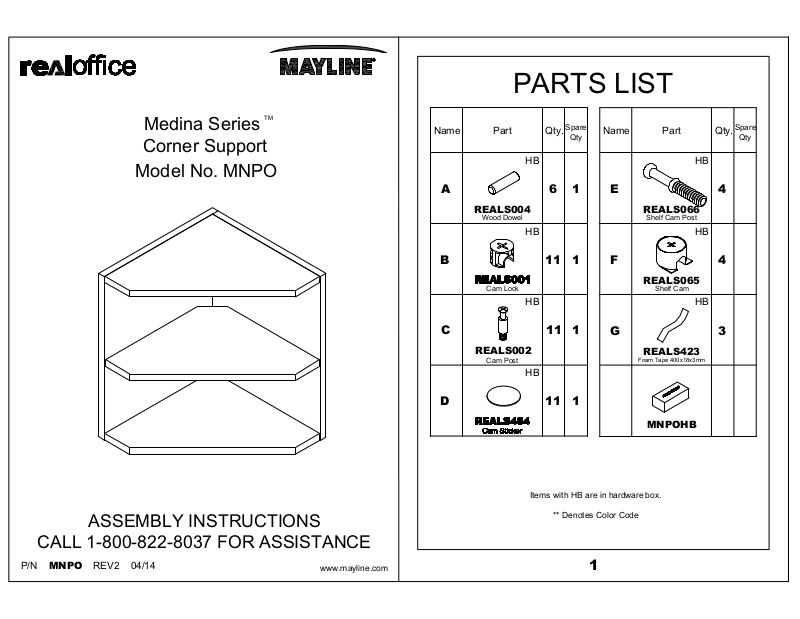

PARTS LIST
TM
Medina Series
Corner Support
Model No. MNPO
Name Part
A
REALS004
Wood Dowel
B
Cam Lock
C
REALS002
Cam Post
D
HB
HB
HB
HB
Spare
Qty.
Qty
6
11111
11
PartName
HB
1
E
REALS066
Shelf Cam Post
HB
F
REALS065
Shelf Cam
HB
1
G 3
REALS423
Foam Tape 400x18x3mm
Qty.
4
4
Spare
Qty
1
ASSEMBLY INSTRUCTIONS
CALL 1-800-822-8037 FOR ASSISTANCE
P/N MNPO REV2 04/14
www.mayline.com
MNPOHB
Items with HB are in hardware box.
** Denotes Color Code
1
Name Part
PARTS LIST
Qty. Qty.
Insert the Cam Post (C) and Wood Dowel (A) into Right Side Panel (J). Next Insert the
1
Wood Dowel (A) into Top (H) and Bottom Shelf (L) .Attach Right Side Panel (J) to Top
(H) and Bottom Shelf (L) by turning Cams (B). Apply Cam Sticker(D) onto Cams (B).
Insert the Cam Post (C) into Left Side Panel (I). Then Attach Right Side Panel (J) and
PartName
Top (H) and Bottom Shelf (L) to Left Side Panel (I) by turning Cams (B). Apply Cam
Sticker (D) onto Cams (B).
H
J
1
MNPOH**
Top
I
MNPOI**
Left Side Panel
1
K
L
MNPOK**
Adjustable Shelf
MNPOL**
Bottom Shelf
1
1
1
2
MNPOJ**
Right Side Panel
Insert Shelf Cam (F) into Adjustable Shelf (K) with open slot in cam to edge of shelf.
Screw Shelf Cam Posts (E) into Side Panels (I & J). Press Shelves onto Shelf Posts.
Turn Shelf Cam (F) screw to lock in place. Before installing the MNH63 / MNH72 to the
MNPO, Please stick Foam Tape (G) to the surface of Top (H).
**Denotes Color Code
