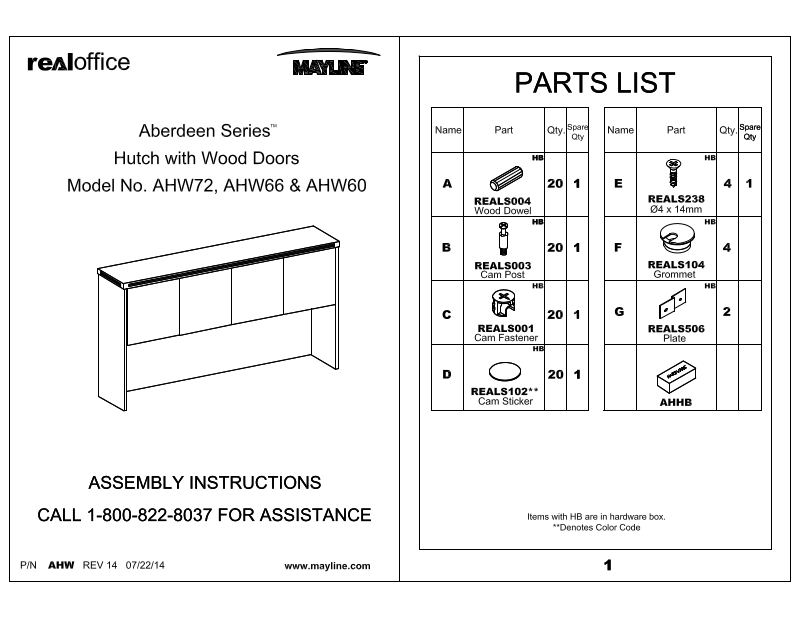

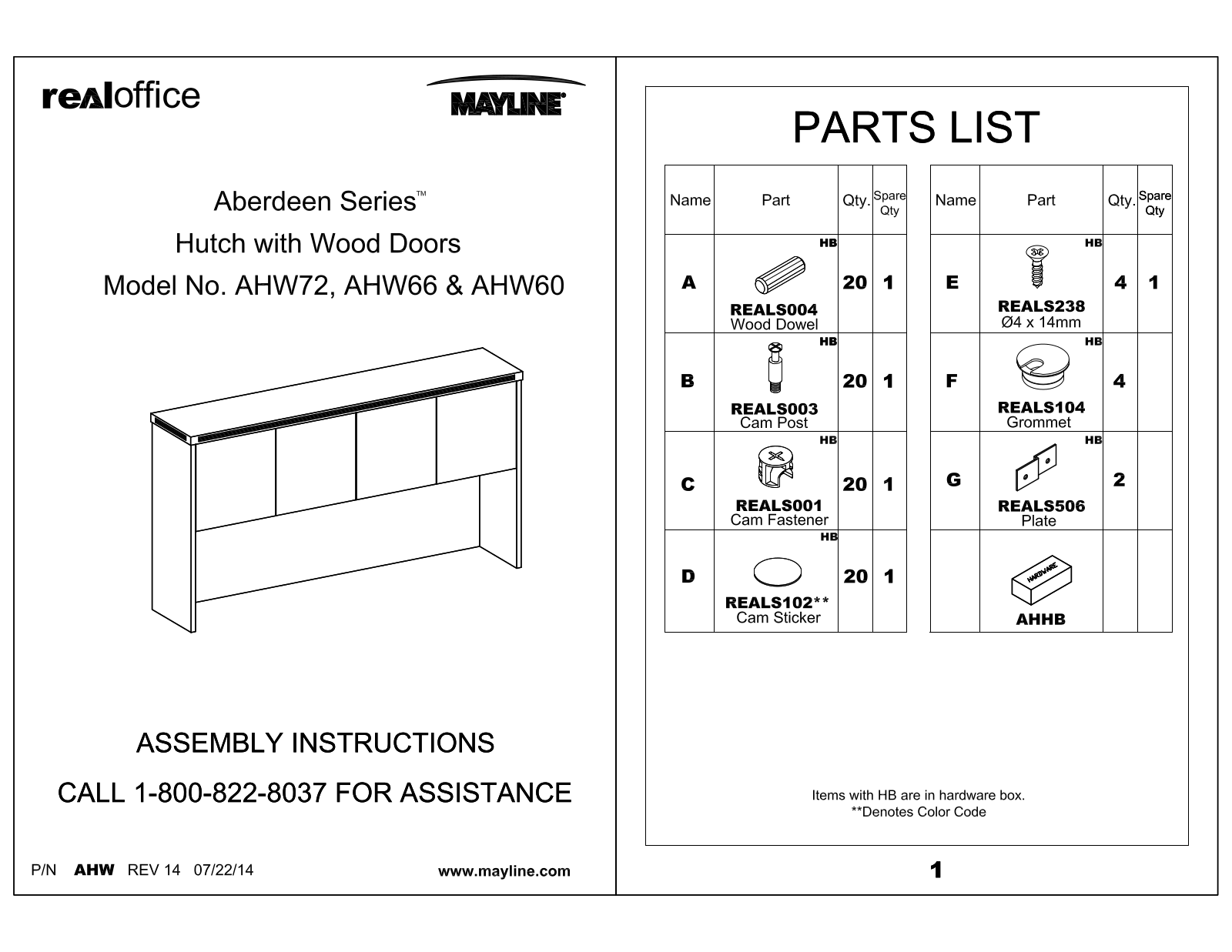

Mayline AHW66LMA, AHW66LGS, AHW66LDC, AHW66LCR, AHW60LGS Assembly Guide

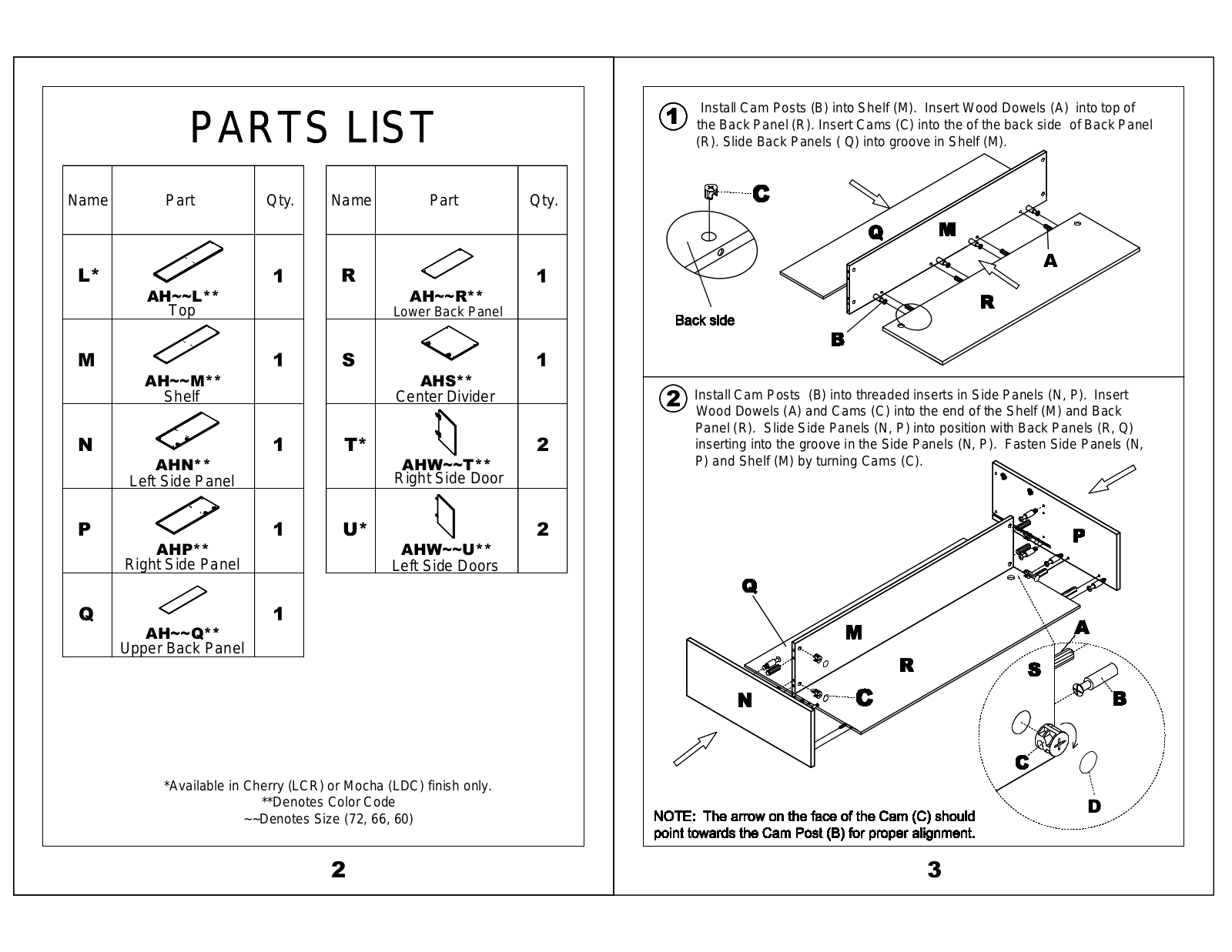

PARTS LIST

PARTS LIST

Install Cam Posts (B) into Shelf (M). Insert Wood Dowels (A) into top of

1111

the Back Panel (R). Insert Cams (C) into the of the back side of Back Panel
(R). Slide Back Panels ( Q) into groove in Shelf (M).

L*

AH~~L**

M

AH~~M**

N

Left Side Panel

P

Right Side Panel

Q

AH~~Q**

Upper Back Panel

PartName

Top

Shelf

AHN**

AHP**

Qty.

1

1

1

1 2

R

S

T*

U*

PartName

AH~~R**

Lower Back Panel

AHS**

Center Divider

AHW~~T**

Right Side Door

AHW~~U**

Left Side Doors

1

Qty.

1

1

2

A

Install Cam Posts (B) into threaded inserts in Side Panels (N, P). Insert

2

Wood Dowels (A) and Cams (C) into the end of the Shelf (M) and Back
Panel (R). Slide Side Panels (N, P) into position with Back Panels (R, Q)
inserting into the groove in the Side Panels (N, P). Fasten Side Panels (N,
P) and Shelf (M) by turning Cams (C).

*Available in Cherry (LCR) or Mocha (LDC) finish only.

**Denotes Color Code

~~Denotes Size (72, 66, 60)

2

D

3
