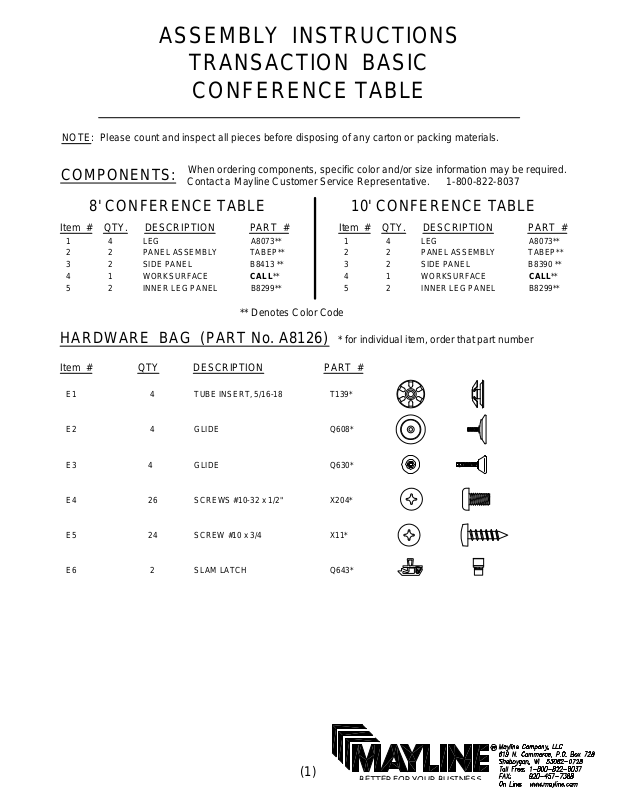

ASSEMBLY INSTRUCTIONS
TRANSACTION BASIC
CONFERENCE TABLE
NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.
COMPONENTS:
8' CONFERENCE TABLE 10' CONFERENCE TABLE
Item # QTY. DESCRIPTION PART #
1 4 LEG A8073**
2 2 PANEL ASSEMBLY TABEP**
3 2 SIDE PANEL B8413 **
4 1 WORKSURFACE CALL**
5 2 INNER LEG PANEL B8299**
HARDWARE BAG (PART No. A8126)
Item # QTY DESCRIPTION PART #
E1 4 TUBE INSERT, 5/16-18 T139*
E2 4 GLIDE Q608*
When ordering components, specific color and/or size information may be required.
Contact a Mayline Customer Service Representative. 1-800-822-8037
Item # QTY. DESCRIPTION PART #
1 4 LEG A8073**
2 2 PANEL ASSEMBLY TABEP**
3 2 SIDE PANEL B8390 **
4 1 WORKSURFACE CALL**
5 2 INNER LEG PANEL B8299**
** Denotes Color Code
* for individual item, order that part number
E3 4 GLIDE Q630*
E4 26 SCREWS #10-32 x 1/2" X204*
E5 24 SCREW #10 x 3/4 X11*
E6 2 SLAM LATCH Q643*
(1)
1. Install threaded inserts (E1) into legs (1).
2. Thread glides (E2) into threaded inserts installed in Step 1.
3. Thread glides (E3) into bottom of panel assembly (2).
4. Attach legs (1) to panel assembly (2) with screws (E4).
5. Partially install screws (E4) into the second hole from the top
and the bottom holes of each leg panel assembly so that the screw
heads are approximately 1/8" from the leg.
6. Using the slots in the ends of the side panels (3), attach side
panels to leg assemblies. TIGHTEN ALL SCREWS AT THIS TIME.
Top hole
remains OPEN
(2)
7. Install slam latch (E6) into inner leg panel cutout (5)
as shown.
8. Insert inner leg panel (5) into assembled leg panel
slots. Rotate inner leg panel till slam latch catches.
9. Position worksurface (4) on base assembly and
fasten using screws (E5) through legs and side panels.
(3)
