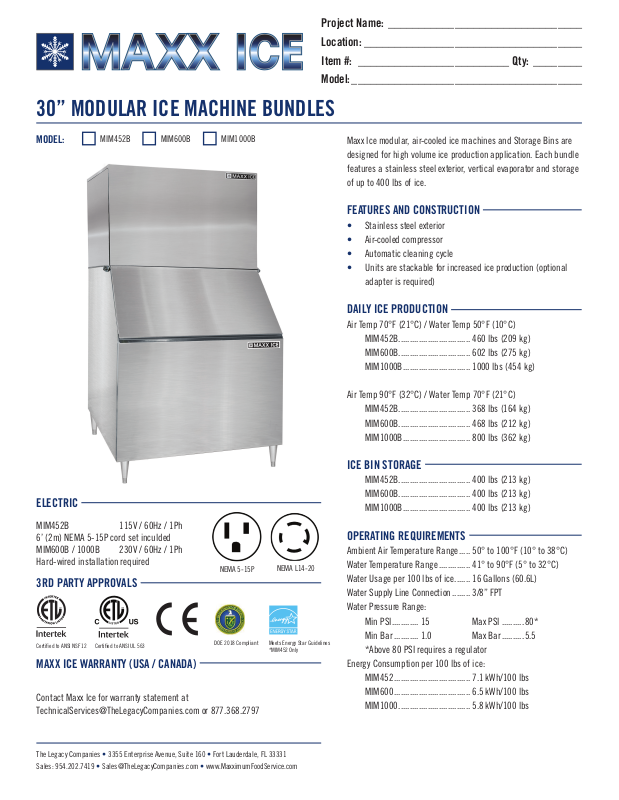

30” MODULAR ICE MACHINE BUNDLES
MODEL:
MIM452B MIM600B MIM1000B
Maxx Ice modular, air-cooled ice machines and Storage Bins are
designed for high volume ice production application. Each bundle
features a stainless steel exterior, vertical evaporator and storage
of up to 400 lbs of ice.
FEATURES AND CONSTRUCTIONFEATURES AND CONSTRUCTION
• Stainless steel exterior
• Air-cooled compressor
• Automatic cleaning cycle
• Units are stackable for increased ice production (optional
adapter is required)
DAILY ICE PRODUCTIONDAILY ICE PRODUCTION
Air Temp 70°F (21°C) / Water Temp 50°F (10°C)
MIM452B ................................ 460 lbs (209 kg)
MIM600B ................................ 602 lbs (275 kg)
MIM1000B .............................. 1000 lbs (454 kg)
Air Temp 90°F (32°C) / Water Temp 70°F (21°C)
MIM452B ................................ 368 lbs (164 kg)
MIM600B ................................ 468 lbs (212 kg)
MIM1000B .............................. 800 lbs (362 kg)
ELECTRICELECTRIC
MIM452B 115V / 60Hz / 1Ph
6’ (2m) NEMA 5-15P cord set inculded
MIM600B / 1000B 230V / 60Hz / 1Ph
Hard-wired installation required
NEMA 5-15P
NEMA L14-20
3RD PARTY APPROVALS3RD PARTY APPROVALS
Certified to ANSI NSF 12 Certified to ANSI UL 563
DOE 2018 Compliant
Meets Energy Star Guidelines
*MIM452 Only
MAXX ICE WARRANTY (USA / CANADA)MAXX ICE WARRANTY (USA / CANADA)
Contact Maxx Ice for warranty statement at
TechnicalServices@TheLegacyCompanies.com or 877.368.2797
The Legacy Companies • 3355 Enterprise Avenue, Suite 160 • Fort Lauderdale, FL 33331
Sales: 954.202.7419 • Sales@TheLegacyCompanies.com • www.MaxximumFoodService.com
ICE BIN STORAGEICE BIN STORAGE
MIM452B ................................ 400 lbs (213 kg)
MIM600B ................................ 400 lbs (213 kg)
MIM1000B .............................. 400 lbs (213 kg)
OPERATING REQUIREMENTSOPERATING REQUIREMENTS
Ambient Air Temperature Range ..... 50° to 100°F (10° to 38°C)
Water Temperature Range .............. 41° to 90°F (5° to 32°C)
Water Usage per 100 lbs of ice ....... 16 Gallons (60.6L)
Water Supply Line Connection ........ 3/8” FPT
Water Pressure Range:
Min PSI ............ 15 Max PSI ..........80*
Min Bar ........... 1.0 Max Bar ..........5.5
*Above 80 PSI requires a regulator
Energy Consumption per 100 lbs of ice:
MIM452 .................................. 7.1 kWh/100 lbs
MIM600 .................................. 6.5 kWh/100 lbs
MIM1000 ................................ 5.8 kWh/100 lbs
30” MODULAR ICE MACHINE BUNDLES
MIM452B / MIM600B MIM1000B
58"
1473 mm
63.63"
1616 mm
152 mm
MODEL
MIM452B
MIM600B
MIM1000B
6"
30"
763 mm
REAR VIEW (ALL MODELS)
EXTERNAL
DIMENSIONS
30” x 24” x 21”
(762 x 610 x 533 mm)
30” x 24” x 21”
(762 x 610 x 533 mm)
30” x 24” x 26.63”
(762 x 610 x 676 mm)
34"
864 mm
On/Off Switch
Power Input
3/8” Water Inlet
1/2” Water Outlet
DAILY
ICE PRODUCTION
(70°F Air / 50°F Water)
ICE BIN STORAGE
CAPACITY
460 lbs (209 kg) 400 lbs (213 kg)
602 lbs (274 kg) 400 lbs (213 kg)
1000 lbs (454 kg) 400 lbs (213 kg)
6"
152 mm
FULL DICE CUBE
SHIPPING WEIGHT
(ICE MACHINE / BIN)
148 lbs (67 kg)
112 lbs (50.8 kg)
165 lbs (75 kg)
112 lbs (50.8 kg)
208 lbs (94 kg)
112 lbs (50.8 kg)
30"
763 mm
AMP DRAW
(MAKING / HARVESTING)
12.4A / 15.3A
7.60A / 9.85A
9.2A / 11.3A
0.875"(22.2 mm)0.875"(22.2 mm)
34"
864 mm
REFRIGERANT
AND CHARGE SIZE
R-404a
24.5 oz (695 g)
R-404a
45.8 oz (1298 g)
R-404a
57.9 oz (1641 g)
0.875"(22.2 mm)
ELECTRICAL
115V / 60Hz / 1Ph
230V / 60Hz / 1Ph
230V / 60Hz / 1Ph
INSTALLATIONINSTALLATION
• A clearance of 2” from the wall is recommended to promote adequate cooling air circulation
• A gravity drain line is required to install this ice machine
• For optimal performance, the use of a water filter is recommended
