Maxx Ice MIM250 Operator’s Manual

AUTOMATIC
ICE CUBE MACHINE
User’s Manual
Models: MIM250
*Be sure the ice machine has been standing upright for at least 24 hours prior to plug in.
TABLE OF CONTENTS
Page
Unpacking ..........................................................................................................................7
Installing the Adjustable Feet ..............................................................................................7
Installing the Stability Brackets ........................................................................................................... 8
Location Requirements .................................................................................................. 8 - 9
Electrical Requirements ................................................................................................................ 9 - 10
Leveling the Ice Maker ....................................................................................................................... 10
Water Supply .................................................................................................................................10 - 11
Installation Types .............................................................................................................11
Final Checklist before Operation .....................................................................................12
Operating Method ........................................................................................................................ 12 - 13
How the Machine Makes Ice ................................................................................................ ............. 13
Normal Sounds ............................................................................................................................. 13 - 14
Preparing the Ice Maker for Long Storage .................................................................................... 14
Exterior Cleaning .............................................................................................................15
Interior Cleaning ................................................................................................................................... 15
Water Distribution Tube Cleaning .................................................................................................. 16
Ice-Making System Cleaning ............................................................................................................ 16
Sanitizing the Ice-Making System .....................................................................................17
Asbury Foodservice reserves the right to make changes in specifications and design without
prior notice.
1
ICE MAKER SAFETY
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock or injury, when using your ice maker, follow these basic precautions:
Plug into grounded 3-prong outlet Do not remove grounding prong Do not use an adapter Do not use an extension cord
SAVE THESE INSTRUCTIONS
Disconnect power before cleaning Disconnect power before servicing Replace all panels before operating Use 2 or more people to move and
install ice maker
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can injure or kill you and others. All safety messages will follow the
Safety Alert Symbol and either the words “DANGER”, “WARNING” OR
“CAUTION”.
DANGER means that failure to heed this safety statement may result in death or severe personal injury.
WARNING means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.
CAUTION means that failure to heed this safety statement may result in minor or moderate
or property or equipment damage. All safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.
personal injury,
IMPORTANT SAFEGUARDS
Before the ice maker is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. Maxx Ice strongly recommends that you have a professional install your new machine. The warranty may be affected or voided by an incorrect installation. To reduce the risk of fire, electrical shock or injury when using the ice maker, follow basic precautions, including the following:
2
Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use an adapter,
and do not use an extension cord.
It is recommended that a separate circuit, serving only your ice maker, be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Do not connect or disconnect the electric plug when your hands are wet. Never unplug the ice maker by pulling on the power cord. Always grip the plug firmly and pull
straight out from the outlet.
Never clean ice maker parts with flammable fluids. Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected and the water line is shut off. (EXCEPTION: When cleaning the machine’s ice making and water systems, see pages 18 – 19.)
Before operating, put all the enclosure panels back into their original places. Do not touch the evaporator with your hand when the machine is operating. Unplug the ice maker or disconnect power before cleaning or servicing. Failure to do so can
result in electrical shock or death.
Do not attempt to repair or replace any part of your ice maker unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.

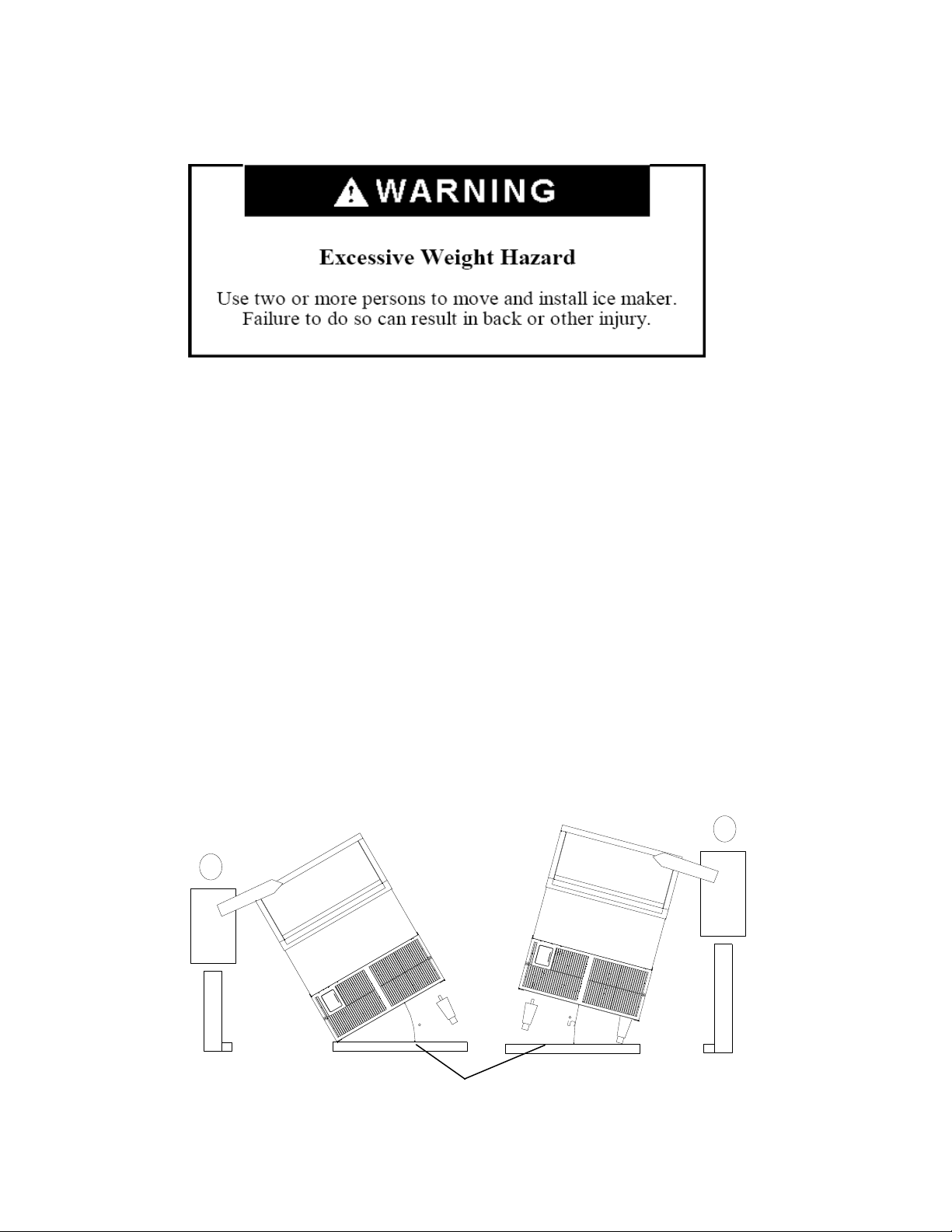

Use two or more people to move and install ice maker. Failure to do so can result in back or
other injury.
To ensure proper ventilation for your ice maker, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 50ºF (10ºC) and below 100ºF (38ºC). This unit MUST be installed in an area protected from the elements, such as wind, rain, water spray or drips.
The ice maker should not be located next to ovens, grills or other sources of high heat.
The ice maker must be installed with all electrical and water connections in accordance with state and local codes. A standard electrical supply, properly grounded in Electrical Code and local codes and ordinances, is required.
Do not kink or pinch power supply cord or drain lines between ice maker and cabinet. The fuse (or circuit breaker) size should be 15 amperes. It is important for the ice maker to be leveled in order to work properly. You may need to make
accordance with the National
several adjustments to level it.
All installations must be in accordance with local plumbing code requirements. Make certain that the hoses are not pinched or kinked or damaged during installation. Check for leaks after connection. Remove the packing materials and clean the ice maker before using. Turn on the water supply tap before switching on the ice maker. Never turn the water supply
tap off when the ice maker is working.
Except to take ice from the unit, keep the door closed in order to reduce ice melting and to
promote proper ice formation.
Although the unit has been tested at the factory, due to long-term transit and storage, the first
3
batch of cubes must be discarded.
If the ice maker will not be used for a long time, before the next use it must be thoroughly
cleaned. Follow carefully any instructions provided for cleaning or use of sanitizing solution. Do not leave any solution inside the ice maker after cleaning.

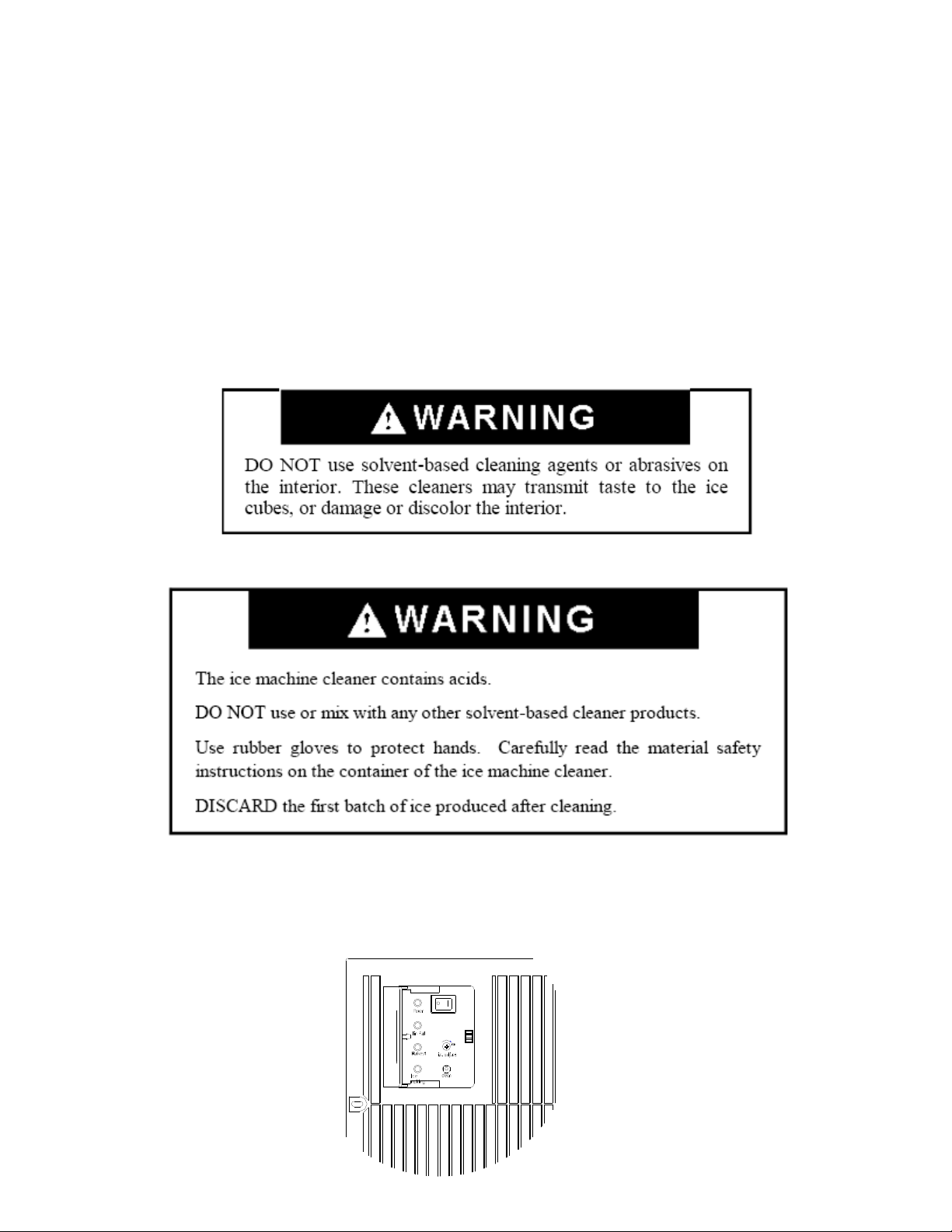

DO NOT touch the condenser fins. The condenser fins are sharp and can be easily damaged. DO NOT use solvent-based cleaning agents or abrasives on the interior. These cleaners may
transmit taste to the ice cubes, or damage or discolor the interior.
The ice machine cleaner contains acids. DO NOT use or mix with any other solvent-based
cleaner products. Use rubber gloves to protect hands. Carefully read the material safety instructions on the container of the ice machine cleaner.
Do not use this apparatus for other than its intended purpose.
SAVE THESE INSTRUCTIONS
Electrical Connection
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded. The power cord of this appliance is equipped with a 3-prong grounding plug that mates with a standard 3-prong grounding wall outlet to minimize the possibility of electric shock hazard from the appliance. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The ice maker should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. Never unplug your ice maker by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the ice maker, be careful not to damage the power cord.
Extension Cord Because of potential safety hazards under certain conditions, it is strongly recommended that you
do not use an extension cord with this ice maker.
4
Technical Information
Model: MIM250 Electrical input: 115VAC ~ 60Hz Power consumption: 9.4 kW·h / 100 lbs of ice Ice-making/Ice-harvest rated current: 9.2A/12A Refrigerant: R404a, 22.9 oz. High/Low side pressure: 350psig/190psig Unit width x depth x height: 24” x 24” x 39” Unit weight: 136 lbs maximum Ice storage capacity: 75 lbs maximum Ice-making capability: 250 lbs/day* Ice shape: Cube Ice cube dimensions: 1” x 1” x ¾” Ambient temperature range for best operation: 50°F – 100°F
Optimum temperature range for feed water: 41°F – 90°F
*The actual quantity of ice produced per day can vary with room and water conditions.
The technical data and performance index listed above should be used for reference only. They are subject to change. This product has been tested and certified to NSF standard 12 by NSF International.
Introduction
Maxx Ice model MIM250 Ice Cube Machine produces hard, crystal-clear, gourmet cube ice, and offers convenience for homeowners and hotel guests. An insulated ice storage bin is built in. This user’s manual is intended as a resource for persons installing, using and servicing model MIM250. It contains valuable information on safety and maintenance. Maxx Ice strongly recommends that this manual be kept in a place where it can be accessed when needed. Every Maxx Ice Ice Cube Machine is designed and manufactured according to the highest standards of safety and performance. It meets or exceeds the safety standard of UL563 and sanitation standard NSF12.
Asbury Foodservice assumes no liability or responsibility of any kind for products manufactured by Maxx Ice that have been altered in any way, including the use of any parts and/or other components not specifically approved by Asbury Service Warranty & Parts. Maxx Ice reserves the right to make design changes and/or improvements at any time. Specifications and designs are subject to change without notice.
5
Component Locations
Back view
Top view
Power supply line
Ice maker drain 1/2” FPT
Bin drain 1/2” FPT
Water inlet 3/8” FPT (Female Pipe Thread)
Water pump Float
Stability brackets
Top panel
Door
Evaporator (ice mold)
Bin full probe
Water tank
Water tank screw nut
Ice storage bin
Front bottom louver
Control panel cover
Adjustable foot
