Project Name: ________________________________
Location: ____________________________________
Item #: _________________________ Qty: ________
Model: ______________________________________

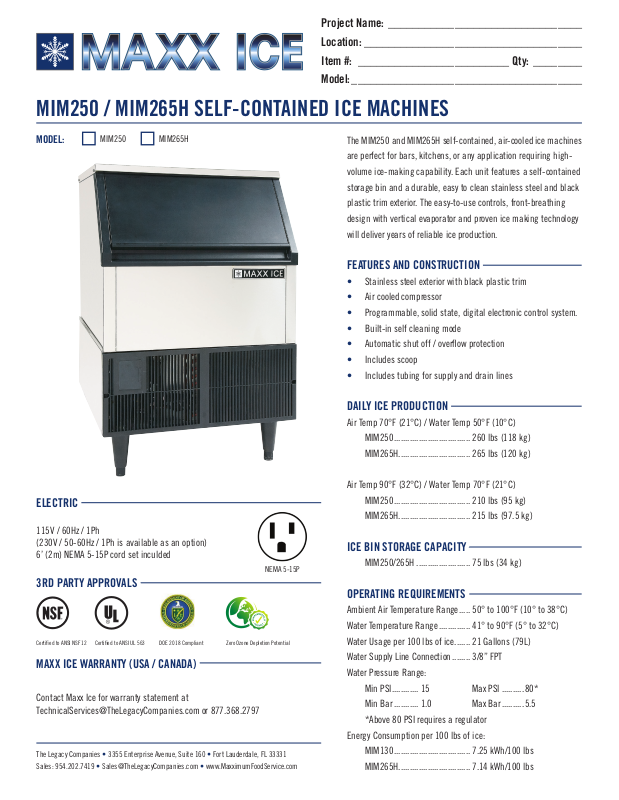

MIM250 / MIM265H SELF-CONTAINED ICE MACHINES
MODEL:
MIM250 MIM265H
The MIM250 and MIM265H self-contained, air-cooled ice machines
are perfect for bars, kitchens, or any application requiring high-
volume ice-making capability. Each unit features a self-contained
storage bin and a durable, easy to clean stainless steel and black
plastic trim exterior. The easy-to-use controls, front-breathing
design with vertical evaporator and proven ice making technology
will deliver years of reliable ice production.
FEATURES AND CONSTRUCTIONFEATURES AND CONSTRUCTION
• Stainless steel exterior with black plastic trim
• Air cooled compressor
• Programmable, solid state, digital electronic control system.
• Built-in self cleaning mode
• Automatic shut off / overflow protection
• Includes scoop
• Includes tubing for supply and drain lines
DAILY ICE PRODUCTIONDAILY ICE PRODUCTION
Air Temp 70°F (21°C) / Water Temp 50°F (10°C)
MIM250 .................................. 260 lbs (118 kg)
MIM265H ................................ 265 lbs (120 kg)
ELECTRICELECTRIC
115V / 60Hz / 1Ph
(230V / 50-60Hz / 1Ph is available as an option)
6’ (2m) NEMA 5-15P cord set inculded
NEMA 5-15P
3RD PARTY APPROVALS3RD PARTY APPROVALS
Certified to ANSI NSF 12 Certified to ANSI UL 563
Zero Ozone Depletion PotentialDOE 2018 Compliant
MAXX ICE WARRANTY (USA / CANADA)MAXX ICE WARRANTY (USA / CANADA)
Contact Maxx Ice for warranty statement at
TechnicalServices@TheLegacyCompanies.com or 877.368.2797
The Legacy Companies • 3355 Enterprise Avenue, Suite 160 • Fort Lauderdale, FL 33331
Sales: 954.202.7419 • Sales@TheLegacyCompanies.com • www.MaxximumFoodService.com
Air Temp 90°F (32°C) / Water Temp 70°F (21°C)
MIM250 .................................. 210 lbs (95 kg)
MIM265H ................................ 215 lbs (97.5 kg)
ICE BIN STORAGE CAPACITYICE BIN STORAGE CAPACITY
MIM250/265H ........................ 75 lbs (34 kg)
OPERATING REQUIREMENTSOPERATING REQUIREMENTS
Ambient Air Temperature Range ..... 50° to 100°F (10° to 38°C)
Water Temperature Range .............. 41° to 90°F (5° to 32°C)
Water Usage per 100 lbs of ice ....... 21 Gallons (79L)
Water Supply Line Connection ........ 3/8” FPT
Water Pressure Range:
Min PSI ............ 15 Max PSI ..........80*
Min Bar ........... 1.0 Max Bar ..........5.5
*Above 80 PSI requires a regulator
Energy Consumption per 100 lbs of ice:
MIM130 .................................. 7.25 kWh/100 lbs
MIM265H ................................ 7.14 kWh/100 lbs
MIM250 / 265H
SELF-CONTAINED ICE MACHINES
FRONT VIEW SIDE VIEW
MODEL
MIM250
MIM265H
REAR VIEW
EXTERNAL
DIMENSIONS
24” x 24” x 38.6”
(610 x 610 x 980 mm)
24” x 24” x 38.6”
(610 x 610 x 980 mm)
DAILY
ICE PRODUCTION
(70°F Air / 50°F Water)
260 lbs (118 kg) 75 lbs (34kg)
265 lbs (120 kg) 75 lbs (34kg)
ICE BIN
STORAGE CPACITY
FULL DICE CUBE (MIM250)
HALF DICE CUBE (MIM265H)
NET WEIGHT /
SHIPPING WEIGHT
144 lbs (65 kg)
160 lbs (72.5 kg)
144 lbs (65 kg)
160 lbs (72.5 kg)
AMP DRAW
(NOMINAL/MAX)
9.2A / 12A
9.2A / 12A
REFRIGERANT
AND CHARGE SIZE
R-404a
22.9oz (649g)
R-404a
22.9oz (649g)
ELECTRICAL
115V / 60Hz / 1Ph
115V / 60Hz / 1Ph
INSTALLATIONINSTALLATION
• A clearance of 2” from the wall is recommended to promote adequate cooling air circulation
• A gravity drain line is required to install this ice machine
• For optimal performance, the use of a water filter is recommended
Due to periodic changes in designs, methods, procedures, policies and regulations, the specifications contained in this document are subject to change without notice. While we
exercise good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the
specifications. By using the information provided, the user assumes all risks in connection with such use.
01/15/20
