宁波福曼斯电器有限公司
NINGBO FUMANS HOUSEHOLD APPLIANCES CO.,LTD
File no.:FU/BOM - 528 - 002 Page1of6
BOM - HW528T
Model
HW528T (220 - 240V~ 1600W - 2000W)
No.
Description
Material
1
base
PP380
2
accessory rack
ABS3screw
ST4 × 12
4
little wheel pastern
SOFT PVC
5
little wheel
ABS
6
little wheel rack
ABS
7
little wheel gasket
ABS
8
screw
ST4 × 12
9
big wheel pastern
SOFT PVC
10
big wheel
ABS
11
motor fixation
rubber
12
motor silencer
sponge
13
motor
220~240V 50/60Hz
1600~2000W
14
motor absorber
rubber
15
motor cover
PP阻燃16
PCB
FU07001
17
screw
ST3 × 10
宁波福曼斯电器有限公司
NINGBO FUMANS HOUSEHOLD APPLIANCES CO.,LTD
File no.:FU/BOM - 528 - 002 Page2of6
18
switch
KAG - 03 - B R12 - 2
19
safeguard
ABS
20
spring
cementite
21
safeguard airproof
SOFT PVC
22
motor cover airproof
EVA23screw
ST4 × 16
24
left\right panel
ABS25middle cover
ABS
26
spring
cementite
27
switch button
PP
28
cord button
PP29handle base
ABS
30
handle cover
ABS31power adjust button
ABS32cord rack
PP
增强
33
spring
cementite
34
cord wheel 1
PP
阻燃
宁波福曼斯电器有限公司
NINGBO FUMANS HOUSEHOLD APPLIANCES CO.,LTD
File no.:FU/BOM - 528 - 002 Page3of6
35
cord wheel 2
PP
阻燃
36
brake staff
POM37cord shaft
POM38brake wheel
rubber
39
brake wheel core
POM40cord outlet shaft
ABS
41
cord outlet shaft core
A3镀锌42
big sheet copper
brass H62
43
litter sheet copper
brass H62
44
papilionaceous sheet
copper
bronze
45
screw
ST4 × 12
大盘头
46
screw
ST3 × 8
47
screw
ST4 × 12
48
power cord
2 × 1.0mm2 × 5m
49
coil spring box
PP50coil spring
cementite
51
screw
ST3 × 8
52
pyrocondensation pipe
53
stannum
宁波福曼斯电器有限公司
NINGBO FUMANS HOUSEHOLD APPLIANCES CO.,LTD
File no.:FU/BOM - 528 - 002 Page4of6
54
3#lipin
55
screw
ST4 × 16
56
screw
ST4 × 16
57
outlet air filter
dacron cloth
58
outlet bar
PP59inlet seat
ABS
60
inlet core
ABS61screw
ST3 × 8
62
dust cup
MBS63filter rack
PP+net
64
filter rack cover
PP65screw
ST4 × 12
66
inlet
ABS
67
inlet airproof
rubber
68
screw
ST4 × 12
69
spring
cementite
70
dust cup base lockpin
ABS
宁波福曼斯电器有限公司
NINGBO FUMANS HOUSEHOLD APPLIANCES CO.,LTD
File no.:FU/BOM - 528 - 002 Page5of6
71
screw
ST4 × 12
72
spring
cementite
73
dust cup cover
ABS74dust cup lockpin
ABS
75
dust cup base cover
ABS76dust cup airproof
EVA
77
haipa airproof
EVA78HEPA rack
ABS
79
haipa airproof
EVA80haipa
PET
81
hose connect
ABS82hose tie - in cover
ABS
83
hose tie - in lockpin
ABS84spring
cementite
85
screw
ST4 × 12
86
gluewater
102
87
syphon
PP
宁波福曼斯电器有限公司
NINGBO FUMANS HOUSEHOLD APPLIANCES CO.,LTD
File no.:FU/BOM - 528 - 002 Page6of6

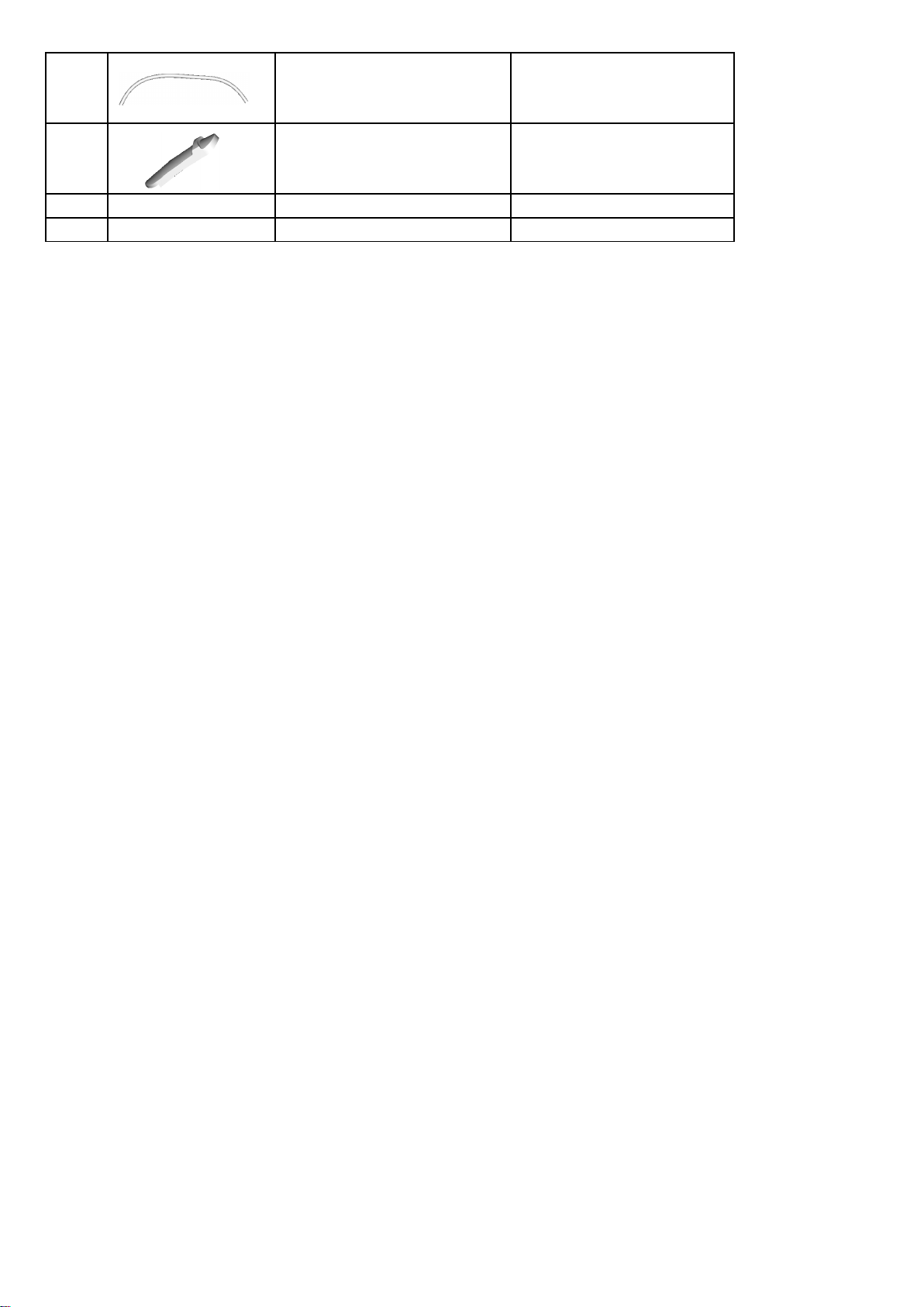

88
hose
EVA89syphon valve
PP
90
extension pipe
91
brush
宁波福曼斯电器有限公司 NINGBO FUMANS HOUSEHOLD APPLIANCES CO.,LTD File no.:FU/BOM - 528 - 001 Page1of1
A
HW528T Assembly drawing for the product
