NINGBO FADA ELECTRIC MANUFACTURE CO., LTD
ADD:No.629 Haiguan North Road Cixi Zhejiang
Tel:0574-63037678 Fax:0574-63037772 P.C:315300

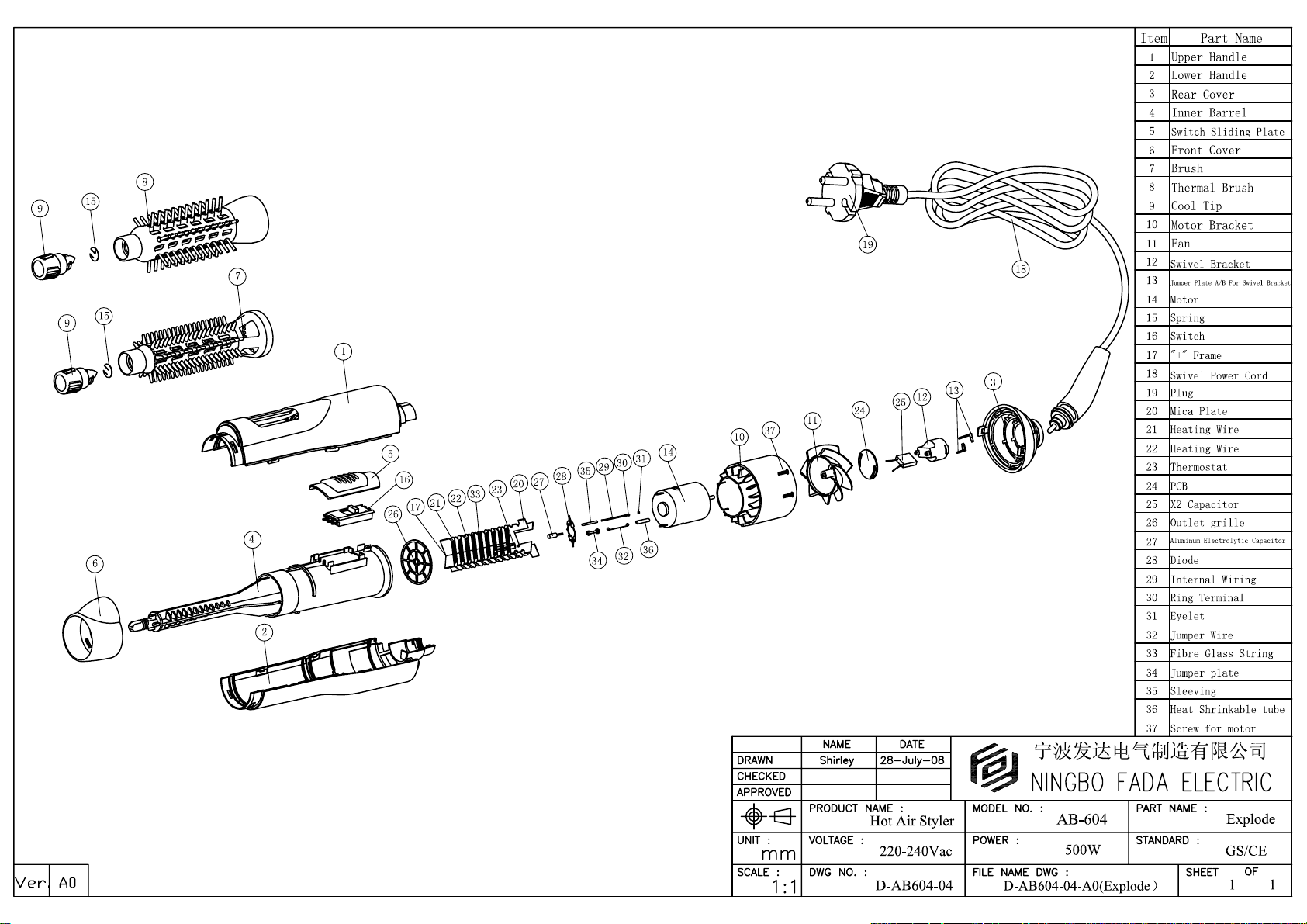

Parts list
Model No.:AB-604 Rating:220~240Vac 50Hz 500W Standard:GS/CE Ver.:A0
Item Part Name Specification QTY. Manufacturer Remark
1
Upper Handle PC 1 FADA ELECTRIC
2
Lower Handle PC 1 FADA ELECTRIC
3
Rear Cover ABS 1 FADA ELECTRIC
4
Inner Barrel PA66+30%GF 1 FADA ELECTRIC
5
Switch Sliding Plate PC 1 FADA ELECTRIC
6
Front Cover PC 1 FADA ELECTRIC
7
Brush PA66+10%FG 1 FADA ELECTRIC
8
Thermal Brush PA66+30%FG 1 FADA ELECTRIC
9
Cool Tip PC 2 FADA ELECTRIC
10
Motor Bracket PC 1 FADA ELECTRIC
11
Fan PC 1 FADA ELECTRIC
12
Swivel Bracket
13
Jumper Plate A/B For Swivel Bracket
14 Motor
15 Spring
16 Switch XN-14 6.5A250V / SK-10-M 5A250V 1 XIN NAN
17 "+" Frame steel plated within black 1 FADA ELECTRIC
18
Swivel Power Cord
19 Plug VDE,2.5A250V D01 1 QIAO PU
20 Mica Plate T=0.7MM 2 FADA ELECTRIC
21 Heating Wire
22 Heating Wire
23 Thermostat
24 PCB BL896 1
25 X2 Capacitor MPX 275V~X2 0.1uF 1 YING ZHONG
26 Outlet grille T=0.7MM
27
Aluminum Electrolytic Capacitor
28 Diode IN4007 1000V 1A 6 FU QI DA
PC 1 FADA ELECTRIC
T=0.3MM copper plated within Ag 2
HLRS365S DC45V （21000RPM）
φ0.7
2
H03VVH2-F 2×0.50mm
φ0.3
φ0.17
ZST-95℃
，steel plated within black 1
CD263 63V~ 0.22uF -40~+105℃
×1.80M
1 HENG LI
2
1 QIAO PU
1 SHUN FA
1 SHUN FA
1 ZHEN SHEN
1 MEI HONG
29 Internal Wiring UL1723 24AWG 5 FENG TAI
30 Ring Terminal φ3.2MM copper 4
31 Eyelet φ2.5×4 copper 7
32 Jumper Wire φ0.6MM copper
33 Fibre Glass String φ0.6MM×80CM 1 LIN RAN
34 Jumper plate T=0.3MM copper 1
35 Sleeving φ1/φ1.5/φ4 6 LIN RAN
36 Heat Shrinkable tube
37 Screw for motor M2.5×5 2
125℃ VW-1 H φ1
1 HEAVY POWER
Prepared By:Shirley Date:25-Feb.-09 Checked By:Jensen Approval By:Eric
