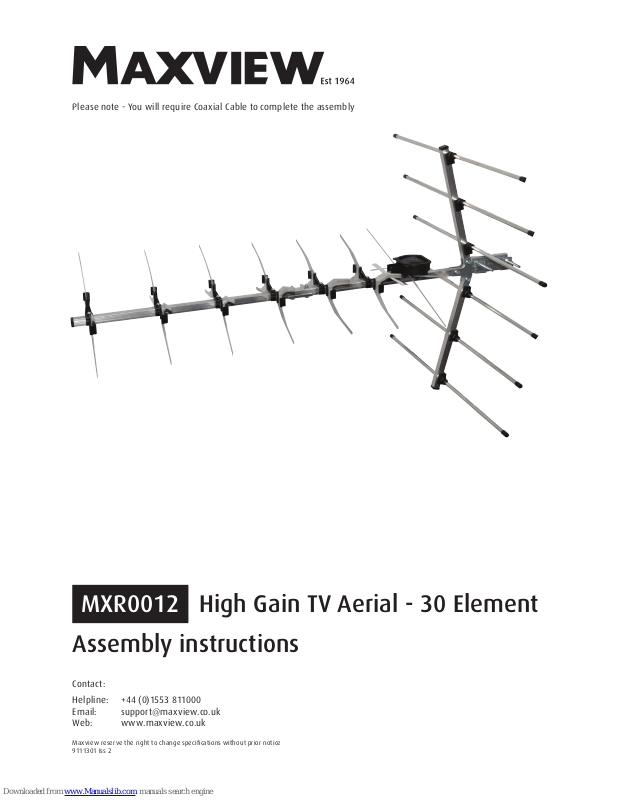

MXR0012 High Gain TV Aerial - 30 Element

Assembly instructions

Please note - You will require Coaxial Cable to complete the assembly

A. Reflector Boom x2
B. Front Boom x 1
C. Rear Boom x 1
D. Reflector Rod x 6
E. Mast Clamp x 1
F. Foil ‘V’ Element x 12
G. Dipole x 1

H. Reflector Bracket x2
I. Element Clip x 6
J. Joining Plate x 2
K. End Bung x 4
L. Refelector Rod Clip x 6
M. Saddle Clip x 1

N. Reflector Bung x 12
O. Screw x 14
P. Nut x 5
Q. Washer x 5
R. M5 x 25mm Screw x 5
S. Element x 1

Safety precautions

Kit contents check list

> Ladder safety - always read and follow the manufacturer’s instruction label affixed to the ladder
> When working on installations outside, beware of overhead power lines
> Observe safe working practices, tread carefully and ensure adequate lighting is available in loft or roof space
> To avoid injury always route cables or wiring carefully
> Always follow manufacturer’s operating and safety instructions before using tools and/or equipment
> Before starting installation check structure is sound and check for hidden electrical wiring or plumbing
> If in doubt consult a qualified electrician or professional aerial installer

E

F

A

B

C

D

G

H

I

J

K

L

M

N

O

P

Q

R

S

Aerial Assembly Instructions

3.

Join the 2 pieces of Boom together using the Joining
Plate and Screws.

Snap all Foil ‘V’ Elements into 6 Element Clips using
your thumb.

Screw the 6 sets of Foil ‘V’ Elements to the Boom. Screw the Element to the Boom.

Element reference guide.

1. 2.

3. 4.

6 x foil ‘V’ elements

R

J

C

Q

P

B

I

F

O

O

S

M

S

Screw the Dipole to the Boom. Prise open clip using a screwdriver or by hand.

Firmly insert Rod into Clip cavity and close.

Use the template on the back of the box as a guide to centre the Clips onto the Rod. Simply slide Clip along Rod to
adjust.

Screw the Reflector Rods onto the Reflector Boom.

Secure the Reflectors to the Aerial Boom using the
Reflector Brackets.

5. 6.

8.

9.

7.

O

G

L

D

P

Q

R H

O

L

A

Place the Bungs on the Rods and Boom.

Using a sharp knife prepare the Coaxial Cable** as
shown.

Loosen the screws on the two terminals. Thread
Coaxial Cable through Dipole. Ensure outer braid
does not touch inner core. Tighten screws and Dipole
lid.

Ensure cable routed as shown for maximum
performance.

Connecting Coaxial Cable (Not supplied)

10.

1. 2.

3.

12mm

18mm

28mm

1

2

3

K

N

Mast Clamp Assembly

Attach aerial to a suitable aerial mast**
(not supplied) using the supplied Fixing Bracket.

* Coaxial Cable Kit
**Wall, Loft or Chimney TV Aerial Fixing Kit

Available from Maxview. Contact our Customer Service
(01553 811000) for your nearest retail outlet or order
online at www.maxview.co.uk

You should mount your aerial as high as possible on either a chimney, on an external wall, or in the loft. Remember
that in general, TV pictures improve with height and the less obstructions between the aerial and the transmitter
the better.

Now point your aerial in the direction of the transmitter by looking at neighbours aerials and copying the direction
they are pointing. If you decide to fit the aerial in your loft, special care should be taken when walking in the roof
space.

Typical Aerial Mounting Application Examples

Wall, loft and chimney fixing kits are available from Maxview

Polarisation

Tip:
Look at outdoor aerials in your area to see which direction to point your aerial for best reception.

Aligning your aerial

Turn on your TV set. Refer to manufacturers instructions
to tune your TV into the available digital/HD/3D
channels. Select a tuned in channel.
Next, carry out the following procedures:

1. Turn your aerial to the LEFT until you lose the picture
(if alone turn the volume up and turn until you hear a
reduction in sound quality).

2. Remember this position and turn your aerial to the
RIGHT until you lose the picture/sound again.

3. Now point the aerial in the centre of these two points
and you will receive optimum reception.

Need a boost?

If you are struggling to receive some of the digital
terrestrial channels clearly or are experiencing picture
break up on your TV, this may be due to being in a very
poor signal area and a signal booster may be required.

When connected between your aerial and TV/Set top
box, a booster will amplify the signal being received
from your closest TV transmitter.

The now amplified signal should then give you more
chance of receiving a clearer, stronger and more stable
picture.

Visit our website www.maxview.co.uk for our full range
of digtial signal boosters.

Horizontal mounting
recommended for
Main TV transmitters

Vertical mounting
recommended for
Relay TV transmitters
