MaxTronic JanusRAID SA-6692J User Manual

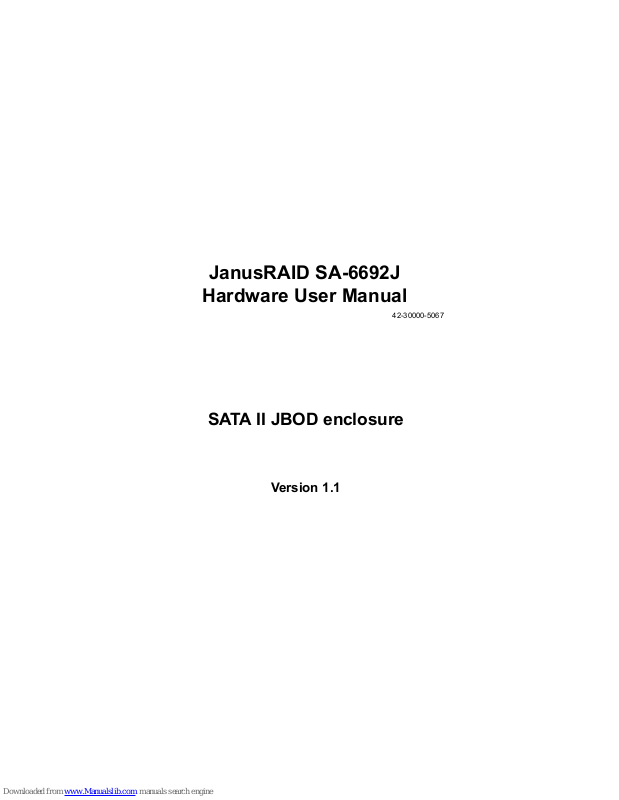

JanusRAID SA-6692J
Hardware User Manual
42-30000-5067
SATA II JBOD enclosure
Version 1.1
SA-6692J
SATA II JBOD enclosure
Hardware User Manual
Table of Contents
Preface................................................................................................................... i
Chapter 1 System Requirements
Operating Environment .................................................................................... 1
Host Interface-x4 SAS Channel ....................................................................... 1
Hard Disk Interface-SATA II .............................................................................1
Chapter 2 Basic Configuration
Unpacking ............................................................................................................. 3
Components .......................................................................................................... 4
Closed Front Panel ...........................................................................................4
Open Front Panel .............................................................................................5
Disk Tray ..........................................................................................................6
Rear View .........................................................................................................7
Installing Disks ......................................................................................................8
Making Connections ........................................................................................... 10
Connecting to a host of RAID system or HBA ................................................10
Expanding additional JBOD enclosure ...........................................................11
Connecting and Turning on the Power ...........................................................12
Mounting in a Rack .............................................................................................13
Installing the Rail Extenders ...........................................................................14
Chapter 3 Maintenance
Replacing a Disk .................................................................................................15
Replacing a Power Supply ..................................................................................16
Replacing a FAN module ................................................................................... 17
Appendix
Hardware Specifications .....................................................................................19
i
Preface
About this Manual
This manual is designed to make the disk array system as easy to use as possible.
Information contained in this document has been checked for accuracy, but no guarantee is given that the contents are correct. Information and specifications are subject
to change without notice.
Copyright Notice
© Copyright 2007 MaxTronic International Co., Ltd.
All rights reserved. This disk array system and related documentation are protected by
copyright and are distributed under licenses restricting their use, copying, and distribution. No part of this documentation may be reproduced in any form by any means without prior written authorization of MaxTronic International Co., Ltd. and its licensors, if
any.
Conventions
Caution
This symbol is used to remind users to pay attention to important
descriptions regarding usage and maintenance (repair) or additional
important information related to this disk array system.
Note
This symbol is used to remind users of useful information that can make
procedures such as configuration easier to accomplish.
i
SA-6692J SATA II JBOD enclosure System
Important Safety Instructions, Care and Handling
Preface – Important Safety Instructions, Care and Handling
Before starting, take a few minutes to read this manual.
Read all of these instructions and save this manual for
later reference.
Protect the disk array system from extremely high or low
temperatures. Let the disk array system warm (or cool)
to room temperature before using it.
Protect the disk array system from being bumped or
dropped. Do not place the disk array system on an
unstable cart, stand, or table. It may fall, causing serious
damage to the product.
Keep the disk array system away from magnetic forces.
Do not use the disk array system near water.
V
Keep the disk array system away from dust, sand, or dirt.
Gaps and openings in the cabinet are provided for ventilation. Never block or cover these openings, because
the disk array system may overheat and become unreliable. Don’t place the disk array system on a bed, sofa,
rug, or other similar surface.
Do not place the disk array system near or over a radiator or other heat source.
Refer to the rating plate for the correct voltage and
ensure that the appliance voltage corresponds to the
supply voltage.
ii
SA-6692J SATA II JBOD enclosure System
The appliance must be grounded. The disk array system
is equipped with a 3-wire grounded type of power cord.
This power cord will only fit into a grounded type of
power outlet.
If an extension cord or a power center is used with the
disk array system, make sure that the total current consumption of all products plugged into the wall outlet
does not exceed the ampere rating.
Do not place the disk array system where the cord will
be walked on.
Never push any kind of object into the disk array system
through cabinet gaps and openings, since they may
touch dangerous voltage points and cause a risk of fire
or electric shock.
Unplug the power cord from the wall outlet before cleaning. Keep the disk array system dry. Do not use liquid
cleaners, aerosol cleaners, or a wet cloth. Use a damp
cloth for cleaning.
Preface – Important Safety Instructions, Care and Handling
Except as specifically explained in this User Manual, do
not attempt to service the disk array system by yourself.
Opening or removing the covers may expose you to
dangerous voltages.
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following
conditions.
• If the disk array system has been exposed to
water or any liquid.
• If the disk array system has been dropped or the
cabinet damaged.
Users should not remove the cover.
o
GGw
GGY
F
a
n
1
P
o
w
e
r
1
Disconnect all power supply cords before servicing.
iii
