Maxtor ELX8-60 User Manual

ELX8- 60

Installation Guide

(v 1.0a)

FCC Compliance Statement

Caution : Any changes or modifications in construction of this device which are not expressly

approved the party responsible for compliance could void the user's authority to operate the equipment.

NOTE : This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation . This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

CAUTION

1. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

2. Disposal of used batteries according to the general recommendations against the environmental

pollution.

3. Do not throw the batteries into a fire, and do not heat, short -circuit or attempt to disassemble the

batteries.

4. Do not attempt to recharge the batteries.

Important Notice

1. Do not place heavy objects on the top of the ELX8-60.

2. ELX8-60 is not weatherproof. In case of outdoor use, equip a weatherproof case to protect ELX8-60 from water, moisture, or temperature (higher or lower than specifications ). To clean the ELX8 -60, gently wipe the outside with a clean dry cloth.

3. Be sure to use a DC adapter that is provided by Rugged CCTV Connecting ELX8-60 directly to an AC current will cause electric damages to ELX8-60.

4. Be careful not to drop the ELX8-60. Physical shocks may harm the product. In addition, be sure the ELX8-60 is secured after installation.

5. ELX8-60 is made of metal. Therefore you can hurt human beings if yu throw it to them or hit on them. When installing ELX8-60, be cautious to locate on safe places where children are unreachable.

6. If ELX8-60 does not operate properly, please contact the closest RUGGED CCTV distributor for after sales service. Tampering or disassembling the product will void the warranty.

7. Security surveillance laws may differ for each country. Therefore, please contact the local region first to avoid any surveillance law violations.

ELX8-60 TABLE OF CONTENTS

OVERVIEW ..................................................................................................................................................................7

1. What is ELX8-60?.........................................................................................................................................7

2. Supplied Accessories..................................................................................................................................8

3. Description & Function ................................................................................................................................9

INSTALLATION AND CONNECTION .............................................................................................................. 11

4. Connecting & Running ELX8-60............................................................................................................11

4.1. Connecting camera...........................................................................................................................11

4.2. Connecting Monitor.......................................................................................................................... 12

4.3. Connecting Audio ..............................................................................................................................12

4.4. Supplying Power ............................................................................................................................... 13

5. Running OSD menu..................................................................................................................................14

5.1. Using menu .........................................................................................................................................14

5.2. Dialogue Box to Edit a Word.........................................................................................................15

6. Setting remote controller .........................................................................................................................17

6.1. Setting remote control DIP switch ............................................................................................... 17

6.2. Setting ID of ELX8-60...................................................................................................................... 17

6.3. Selecting ELX8-60 ............................................................................................................................ 18

6.4. Operable range of remote controller .......................................................................................... 18

6.5. Loading the batteries into remote controller............................................................................19

7. ELX8-60 Configuration.............................................................................................................................20

7.1. Basic Configuration.......................................................................................................................... 20

7.2. Advanced Configuration.................................................................................................................20

7.3. External Storage & Backup Configuration................................................................................21

7.4. Internet/Intranet Configuration......................................................................................................21

8. ELX8-60 Basic Setting ...........................................................................................................................22

8.1. Viewing Image.................................................................................................................................... 22

8.2. Setting Date & Time.........................................................................................................................23

8.2.1. Time Zone ...................................................................................................................................23

8.2.2. Daylight Saving.........................................................................................................................23

8.2.3. Sync with NTP ........................................................................................................................... 23

8.2.4. Time Format............................................................................................................................... 24

8.2.5. Date............................................................................................................................................... 24

8.2.6. Time ..............................................................................................................................................24

8.2.7. Apply Date/Time.......................................................................................................................24

4 2003. 08. 13 (v 1.0) Rugged CCTV

TABLE OF CONTENTS ELX8-60

8.3. Setting Recording Condition .........................................................................................................24

8.3.1. Configuration Status ................................................................................................................25

8.3.2. Channel Status.......................................................................................................................... 25

8.3.3. Recording Speed/Quality.......................................................................................................26

8.3.4. Speed(ips) .................................................................................................................................. 26

8.3.5. Quality.......................................................................................................................................... 26

8.3.6. Audio Recording.......................................................................................................................26

8.3.7. Apply .............................................................................................................................................26

9. Connecting and Configuring Sensor ...................................................................................................27

9.1. Connecting Sensor Input................................................................................................................27

9.2. Setting Sensor at OSD me nu.......................................................................................................28

10. Connecting & Configuring Relay Out..............................................................................................29

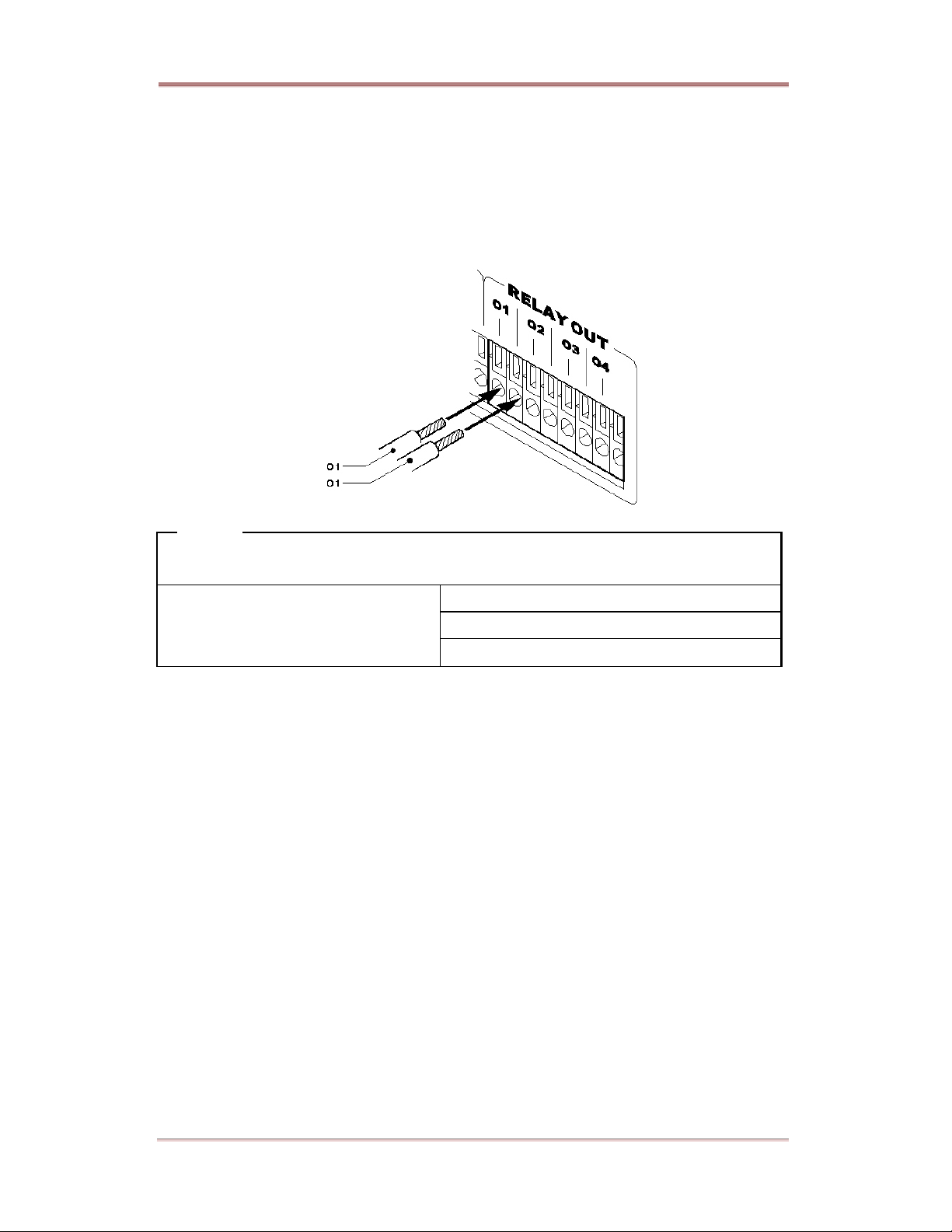

10.1. Connecting Relay Out.................................................................................................................29

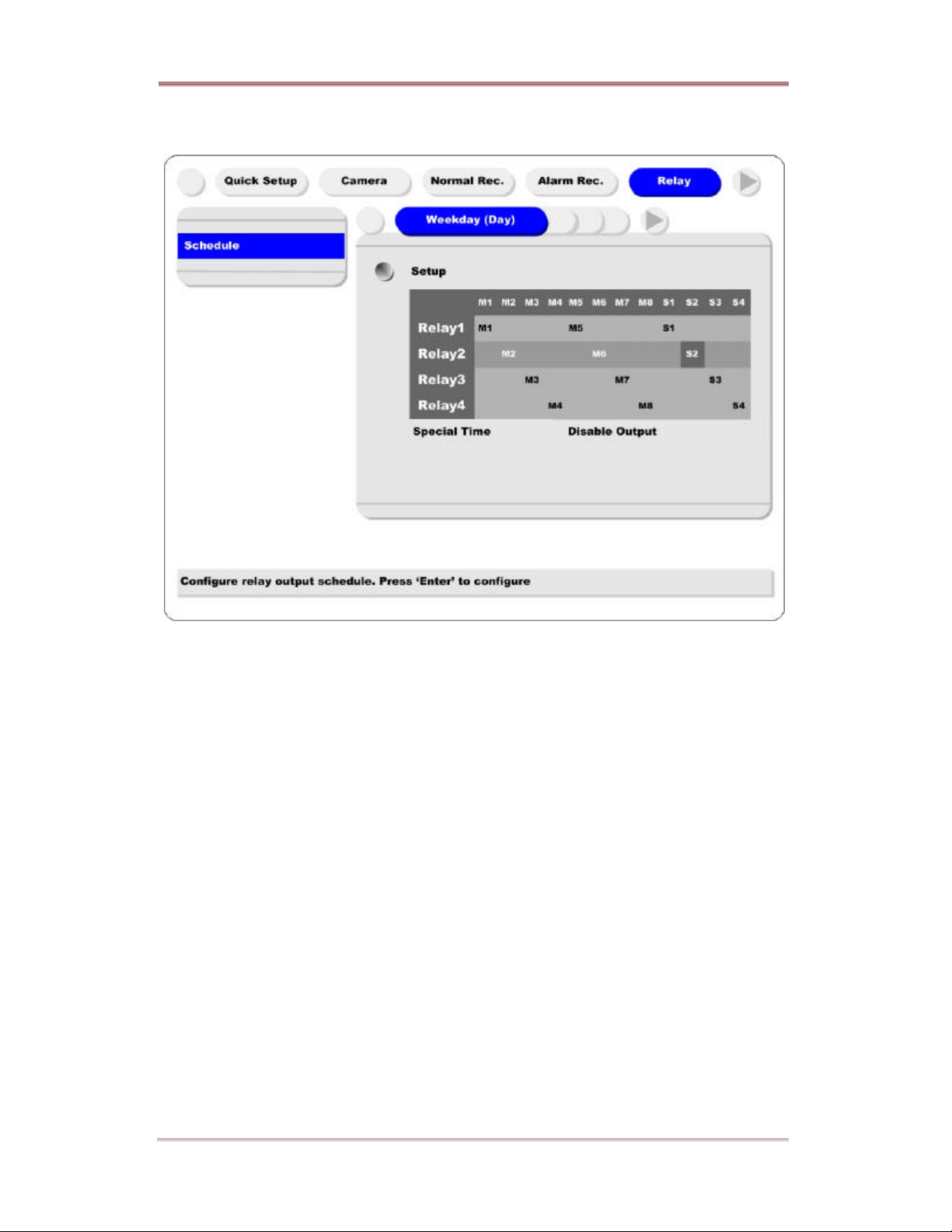

10.2. Configuring Relay Out.................................................................................................................30

11. Connecting External Device with Serial Port............................................................................... 31

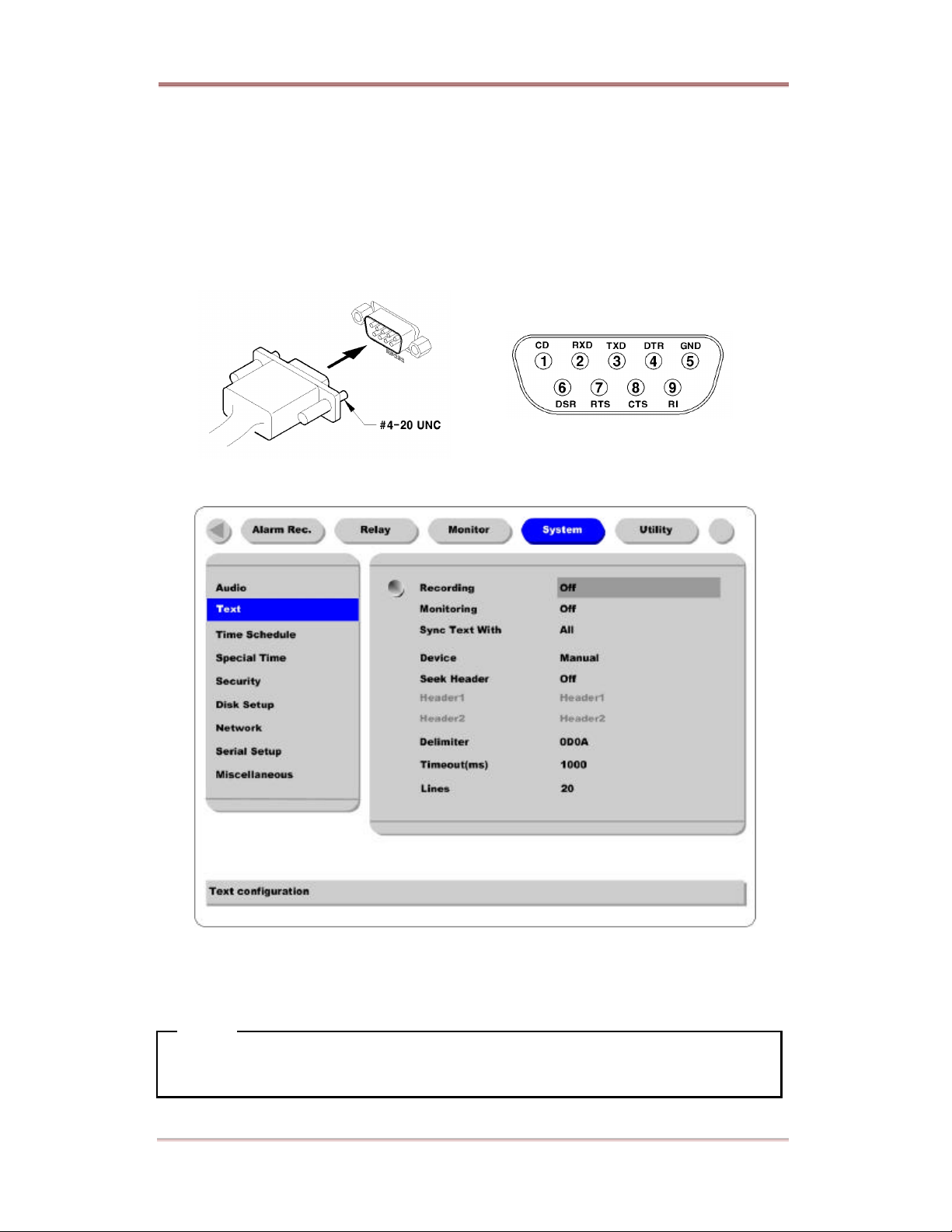

11.1. Connecting Text Input Device (ATM / POS / Access Control).......................................31

12. Connecting & Configuring Serial Ports for Pan/Tilt/Zoom .......................................................32

12.1. Connecting Serial Port................................................................................................................32

12.1.1. Connecting RS232 ..............................................................................................................32

12.1.2. Connecting RS485 ..............................................................................................................32

12.1.3. Connecting RS422 ..............................................................................................................32

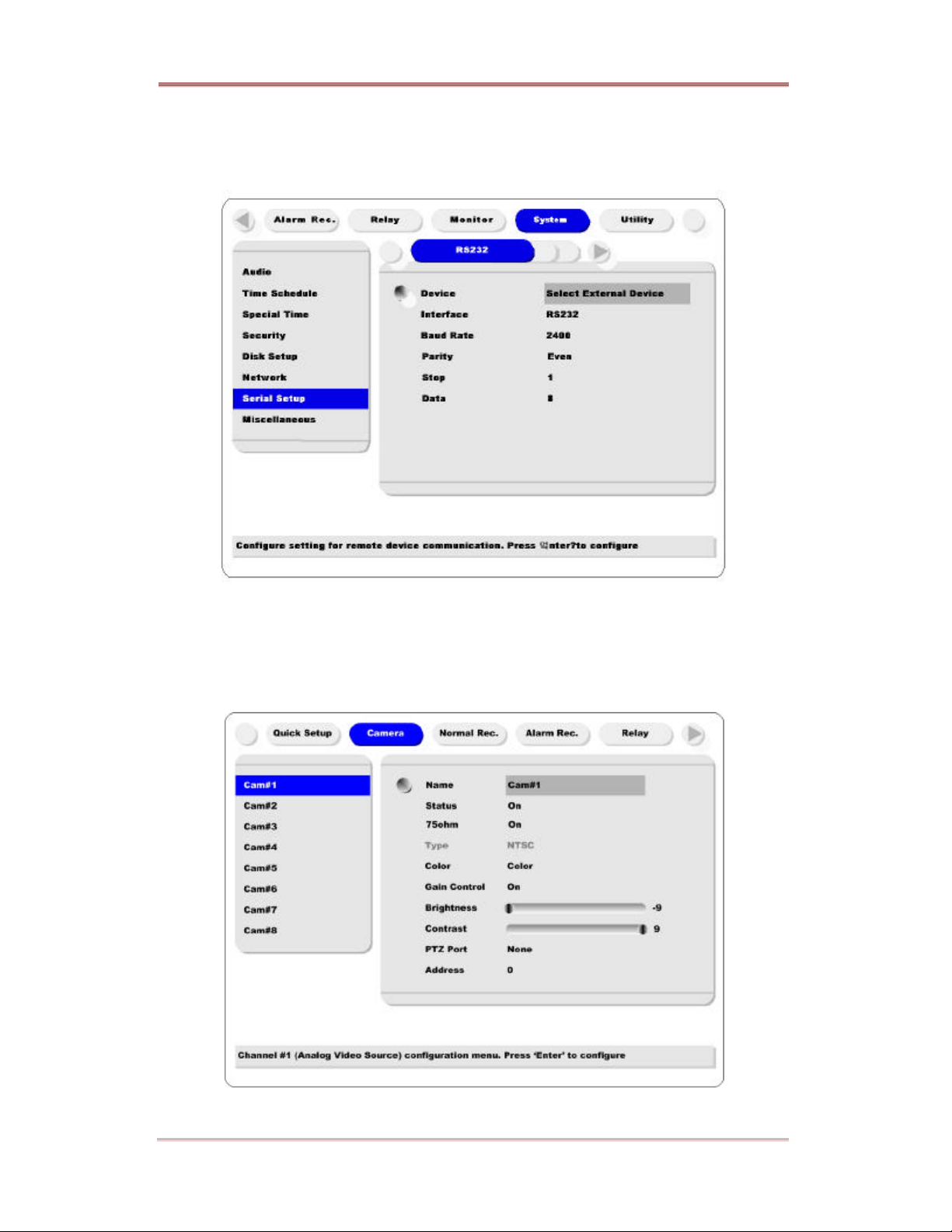

12.2. Configuring Serial Port................................................................................................................33

13. Connecting USB Device......................................................................................................................34

14. Connecting External Storage ............................................................................................................ 36

14.1. IEEE1394 Port............................................................................................................................... 36

14.2. Connecting IEEE1394 Device..................................................................................................36

14.3. Available HDD ............................................................................................................................... 37

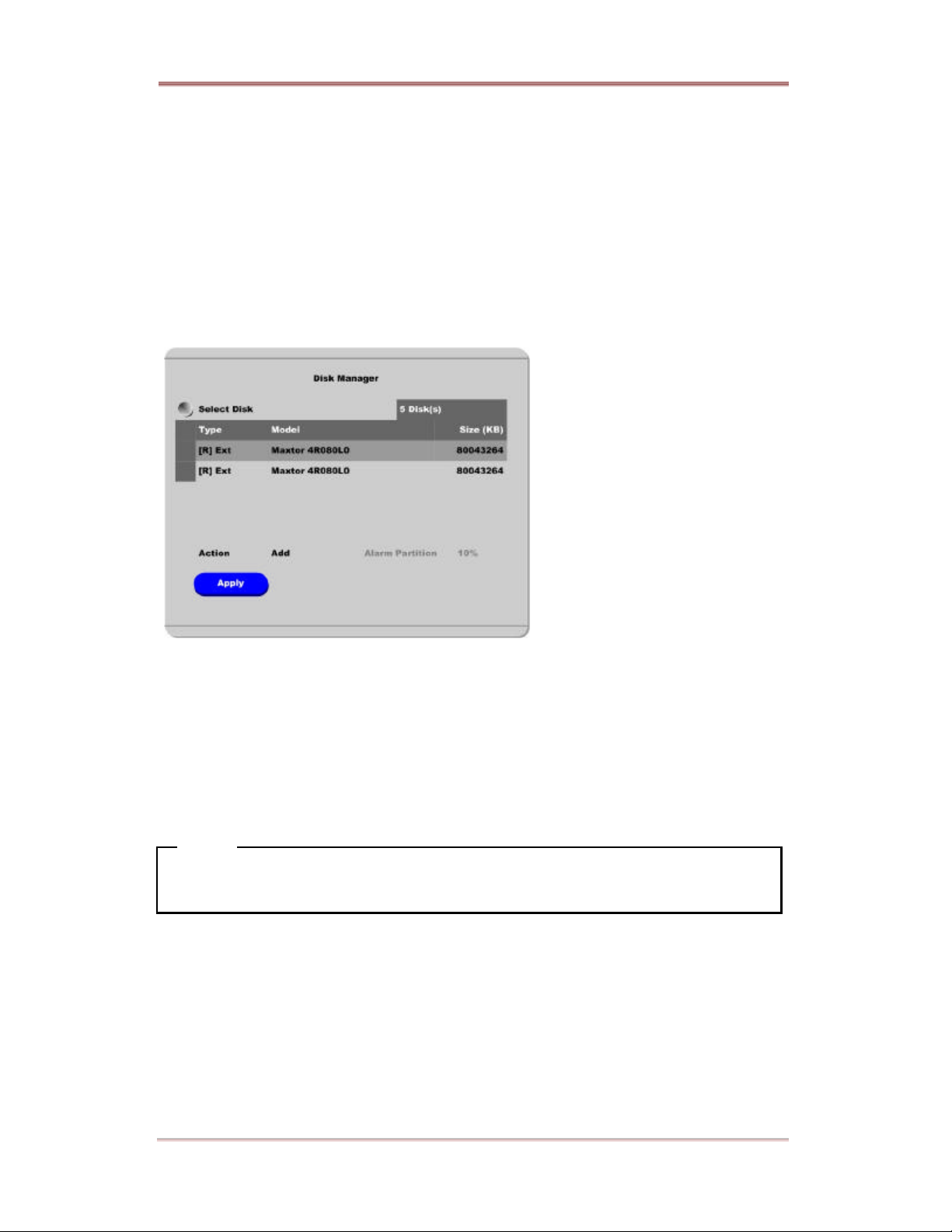

14.4. Registering & Formatting HDD ................................................................................................37

15. Network Monitoring & Managing......................................................................................................38

15.1. Connecting Ethernet.................................................................................................................... 38

15.2. Configuring ELX8-60’s Network Information.......................................................................40

16. Using DVR Manager .............................................................................................................................41

16.1. PC System Requirements for running D VR Manager ..................................................... 41

16.2. Installing DVR Manager.............................................................................................................41

Rugged CCTV 2003. 08. 13 (v 1.0) 5

ELX8-60 TABLE OF CONTENTS

16.3. Uninstalling DVR Manager ........................................................................................................43

16.4. Configstation .................................................................................................................................. 43

16.5. Monitor ..............................................................................................................................................44

16.6. Playback .......................................................................................................................................... 44

APPENDIX ..............................................................................................................................................................45

#1. HDD............................................................................................................................................................46

#1.1. Fundamental Notions & Terms.................................................................................................46

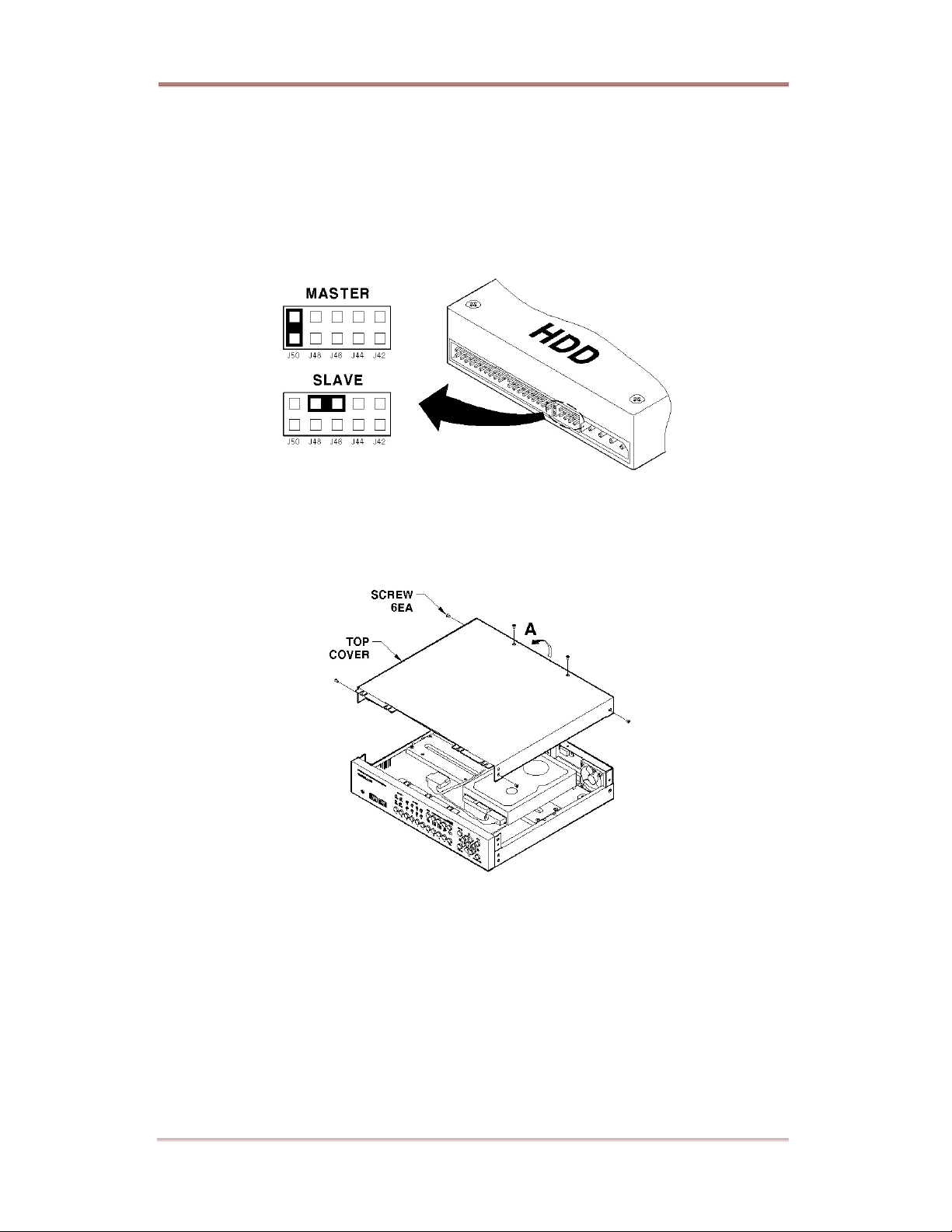

#1.2. Installing HDD ................................................................................................................................48

#1.3. Replacing HDD ..............................................................................................................................60

#1.4. Keeping Data .................................................................................................................................61

#1.5. Caution in using HDD..................................................................................................................62

#2. Using CD-ROM......................................................................................................................................63

#3. Specification............................................................................................................................................64

6 2003. 08. 13 (v 1.0) Rugged CCTV

OVERVIEW ELX8-60

OVERVIEW

1. What is ELX8-60?

The ELX8-60 is an 8-analog channels network digital video recorder. Video, Audio, and Text Event -Logs are digitized and stored on two internal hard-drives.

Key features

q 8 analog video channels

q 1 channel audio recording & playback

q Max. 60 / 50 ips (NTSC / PAL) recording speed

Realtime (30 / 25 ips for each channel) monitoring

q Built-in software multiplexer for all 8 live monitoring channels (1 / 4 / 9 Ch Mode on CCTV Monitor

as well as PC)

q Maximum 4TB storage capacity (IEEE 1394 for external HDD)

ATM/POS transaction information text recording and search with corresponding video

q 4 pairs of sensor inputs and alarm outputs

q Built-in hardware motion d etection with search function (64 -division comparison)

q Various efficient back-up methods (IEEE 1394(FiWi), Ethernet)

PTZ Control (Preset support) via RS 232 and RS 485/RS422

q User-friendly 32bit True-colored Graphic OSD Menu

q Dynamic IP (DHCP, Floating IP) support (when xDSL and Cable Modem are used)

q IR remote controller (User controls PTZ with remote controller)

Remote Management Software (D VR Manager)

Rugged CCTV 2003. 08. 13 (v 1.0) 7

ELX8-60 OVERVIEW

2. Supplied Accessories

Unpack and check all the items as below.

1. ELX8-60 (1)

2. DC Power Supply (1) (110V~220V)

3. AC Power Cord (1)

5. Remote Controller (1)

7. Plug Bracket (1)

4. CD-ROM (Including DVR Manager) (1)

6. Guide (2)

8. HDD Fixing Screw (8)

8 2003. 08. 13 (v 1.0) Rugged CCTV

OVERVIEW ELX8-60

3. Description & Function

ELX8 -60 Front

(1) LED (2) IEEE1394 connecter (3) Remote controller receiver (4) USB connecter (5) Function buttons (6) Bracket fixing hole for rack mount

Rugged CCTV 2003. 08. 13 (v 1.0) 9

ELX8-60 OVERVIEW

ELX8 -60 Rear

(7) Power switch (8) Ethernet connector (9) BNC connector for Video input (10) Audio input / output connector (11) RS232 connecter (9Pin D-Sub) (12) Terminal block for RS232 & 422/485 (13) Terminal block for Sensor input (14) Terminal block for Relay output (15) Video output for MONITOR or VCR (16) Video input type/impedance select & remote controller switch (17) IEEE1394 connecter (18) USB connecter (19) Power connector (DC12V) (20) GND

10 2003. 08. 13 (v 1.0) Rugged CCTV

INSTALLATION AND CONNECTION ELX8-60

INSTALLATION AND CONNECTION

4. Connecting & Running ELX8-60

4.1. Connecting camera

(1) Set video type (NTSC/PAL) by rear panel’s switch. (2) Connect CCTV camera to ELX8-60 with BNC cable as shown below.

<Note>

The video type for all channels should be either NTSC or PAL. NTSC is the standard used in North America.

Rugged CCTV 2003. 08. 13 (v 1.0) 11

ELX8-60 INSTALLATION AND CONNECTION

4.2. Connecting Monitor

(1) Connect CCTV monitor to ELX8-60 with BNC cable as shown below .

<Note>

ELX8-60 has two video output ports ; for Monitor and VCR. The output signals from the two ports are same and either port may be used.

4.3. Connecting Audio

(1) Connect audio signal to ELX8 -60.

12 2003. 08. 13 (v 1.0) Rugged CCTV

INSTALLATION AND CONNECTION ELX8-60

4.4. Supplying Power

(1) Connect power cable to ELX8 -60. (2) Turn on the power switch located on the ELX8-60 rear panel.

<Note>

Use the plug bracket to secure the power cable if needed.

<Note>

To connect EARTH, refer to the following picture.

Rugged CCTV 2003. 08. 13 (v 1.0) 13

ELX8-60 INSTALLATION AND CONNECTION

5. Running OSD menu

5.1. Using menu

Press the [MENU] button to open the OSD Configuration Menu.

(1) Main Menu

(2) Sub-menu

(3) Setting Page

(4) Help message

(1) Main Menu Tabs: The selected tab is shown in blue and the related sub-menus will be shown below the tab. To move to the previous/next Main Menu Tab, use the [ /  ] arrow buttons. To move to a sub-menu, press the [ENTER] or [] buttons. (2) Sub-menu : The select ed sub -menu is shown in blue and the related setting page will be shown to the right of the sub-menu. Use the [/] arrow button s to move within the sub-menu list. To move to the setting page press the [ENTER] button. To exit the setting page, press the [EXIT] button. (3) Setting Page: The select ed item is shown in gray. To move within each page, use the [ / ] or [/] arrow buttons. Press the [ENTER] button to change the value of a setting. When the setting value is a word, a dialogue box to edit the word will open. When setting value is a number, it should be set with using the [ / ] or [/] arrow buttons. After the value is set, press the [EXIT] button. To exit the Setting Page, press the [EXIT] button.

(4) Help message : Related information for each menu/setting will be displayed here.

14 2003. 08. 13 (v 1.0) Rugged CCTV

INSTALLATION AND CONNECTION ELX8-60

5.2. Dialogue Box to Edit a Word

There are two methods to set word.

(1) Using number button Enter the related numbers in order of horizontal/vertical . (For example, in order to select “C”, press [3] and [2] buttons.)

(2) Using arrow button Select a value using the [ / ] or [/] buttons. The intersection of the horizontal and vertical bar is selected value. Press the [] button to confirm the selected value.

Rugged CCTV 2003. 08. 13 (v 1.0) 15

ELX8-60 INSTALLATION AND CONNECTION

(3) Function word The following symbols are for executing specific functions:

1#2.1 : Enter

: Back Space & delete

: Space  : Move to left  : Move to right

: Previous Code Page

: Next Code Page

16 2003. 08. 13 (v 1.0) Rugged CCTV

INSTALLATION AND CONNECTION ELX8-60

6. Setting remote controller

6.1. Setting remote control DIP switch

Set the remote control DIP switch to “ON.”

6.2. Setting ID of ELX8-60

When controlling several ELX8-60s with one remote controller, set Remote Control ID as follows.

(1) Press the [MENU] button. (2) Select “System” with using [ ] button and press the [ENETR] or [] button. (3) Select “ Miscellaneous” from the sub-menu list using the [] button and press the [ENETR] button.

Rugged CCTV 2003. 08. 13 (v 1.0) 17

ELX8-60 INSTALLATION AND CONNECTION

(4) Select “Remote Control ID,” and press the [ENETR] button. (5) Select a value using the [  / ] buttons and press the [EXIT] button. (6) Press the [EXIT] button to exit the Settings Page and return to Monitor mode.

<Note> Remote Control ID

Up to 16 ELX8-60s can be controlled with a single remote controller.

6.3. Selecting ELX8-60

If several ELX8-60s are set with unique ID numbers, they can be controlled with one remote controller. To select a specific ELX8-60, press the ID button of remote controller until the 8 LEDs on the front of the ELX8-60 light up and a buzzer sounds.

<Note>

Because remote controller ID is sixteen, ELX8-60 will correspond.

6.4. Operable range of remote controller

18 2003. 08. 13 (v 1.0) Rugged CCTV

INSTALLATION AND CONNECTION ELX8-60

6.5. Loading the batteries into remote controller

Remote controller requires two AAA-type batteries.

2. Taking care that the poles(+/-)

1. Remove the battery cover. are correctly positioned

<Note>

Batteries are not included as a packing accessory.

3. Replace the battery cover.

Rugged CCTV 2003. 08. 13 (v 1.0) 19

ELX8-60 INSTALLATION AND CONNECTION

7. ELX8-60 Configuration

7.1. Basic Configuration

7.2. Advanced Configuration

20 2003. 08. 13 (v 1.0) Rugged CCTV

INSTALLATION AND CONNECTION ELX8-60

7.3. External Storage & Backup Configuration

7.4. Internet/Intranet Configuration

Rugged CCTV 2003. 08. 13 (v 1.0) 21

+ 48 hidden pages
