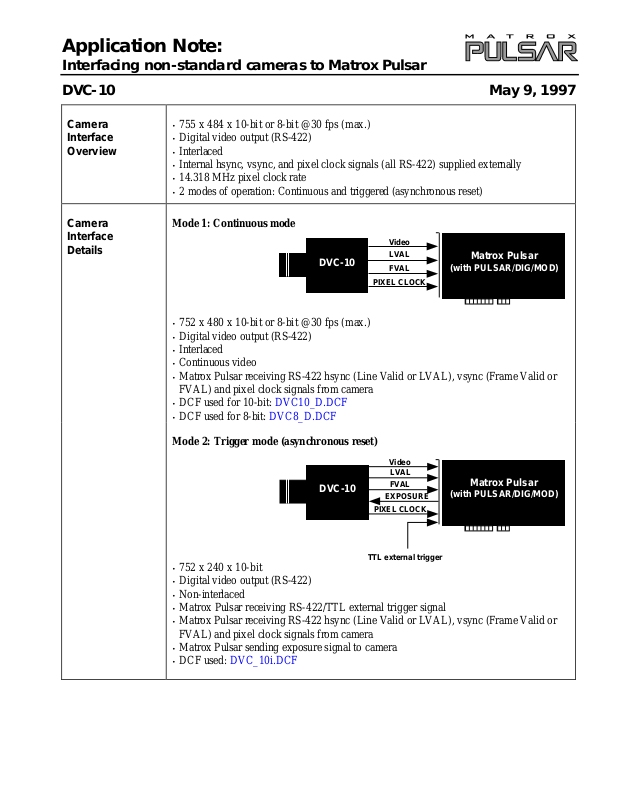

Application Note:
Interfacing non-standard cameras to Matrox Pulsar
DVC-10 May 9, 1997
Camera
Interface
Overview
Camera
Interface
Details
• 755 x 484 x 10-bit or 8-bit @30 fps (max.)
• Digital video output (RS-422)
• Interlaced
• Internal hsync, vsync, and pixel clock signals (all RS-422) supplied externally
• 14.318 MHz pixel clock rate
• 2 modes of operation: Continuous and triggered (asynchronous reset)
Mode 1: Continuous mode
Video
DVC-10
• 752 x 480 x 10-bit or 8-bit @30 fps (max.)
• Digital video output (RS-422)
• Interlaced
• Continuous video
• Matrox Pulsar receiving RS-422 hsync (Line Valid or LVAL), vsync (Frame Valid or
LVAL
FVAL
PIXEL CLOCK
Matrox Pulsar
(with PULSAR/DIG/MOD)
FVAL) and pixel clock signals from camera
• DCF used for 10-bit: DVC10_D.DCF
• DCF used for 8-bit: DVC8_D.DCF
Mode 2: Trigger mode (asynchronous reset)
Video
LVAL
DVC-10
• 752 x 240 x 10-bit
• Digital video output (RS-422)
• Non-interlaced
• Matrox Pulsar receiving RS-422/TTL external trigger signal
• Matrox Pulsar receiving RS-422 hsync (Line Valid or LVAL), vsync (Frame Valid or
FVAL
EXPOSURE
PIXEL CLOCK
TTL external trigger
Matrox Pulsar
(with PULSAR/DIG/MOD)
FVAL) and pixel clock signals from camera
• Matrox Pulsar sending exposure signal to camera
• DCF used: DVC_10i.DCF
Application Note:
Interfacing non-standard cameras to Matrox Pulsar
DVC-10 May 9, 1997
Cabling
Requirements
Mode 1:Continuous mode
• PULSAR/DIG/MOD required for digital data in RS-422 format.
The following connections should be made between the 37-pin DB-37 connector of the
camera and the 68-pin connector of PULSAR/DIG/MOD:
PULSAR/DIG/MOD DVC-10/DVC-08
(68-pin connector) (DB-37 plug)
Pin name Pin no. Pin name Pin no.
CLKIN+ 29
CLKIN - 63
HSYNC+ 26
HSYNC- 60
VSYNC+ 25
VSYNC- 59
GROUND 01 GND 16
GROUND 68 GND 35
DATA9+ 08
DATA9- 42
DATA8+ 09
DATA8- 43
DATA7+ 10
DATA7- 44
DATA6+ 11
DATA6- 45
DATA5+ 13
DATA5- 47
DATA4+ 14
DATA4- 48
DATA3+ 15
DATA3- 49
DATA2+ 16
DATA2- 50
DATA1+ 19
DATA1- 53
DATA0+(LSB) 20
DATA0- (LSB) 54
GROUND 12 GND 16
TTL_EXP1 66
TTL_USER0 31
TTL_USER1 32
TTL_USER2 33
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
←
→
→
→
→
CLK+ 01
CLK- 20
HSYNC+ 02
HSYNC- 21
VSYNC+ 03
VSYNC- 22
DB9+ 15
DB9- 34
DB8+ 14
DB8- 33
DB7+ 13
DB7- 32
DB6+ 12
DB6- 31
DB5+ 11
DB5- 30
DB4+ 10
DB4- 29
DB3+ 09
DB3- 28
DB2+ 08
DB2- 27
DB1+ 07
DB1- 26
DB0+ 06
DB0- 25
RESET 17
MODE CONTROL0 18
MODE CONTROL1 37
MODE CONTROL2 19
PUL-CID-031
2
Application Note:
Interfacing non-standard cameras to Matrox Pulsar
DVC-10 May 9, 1997
Mode 2:Trigger mode (asynchronous reset)
• IMG-7W2-TO-5BNC cable required for TTL external trigger source and
PULSAR/DIG/MOD required for digital data, syncs and control signals in RS-422
format.
• TTL external trigger source should be connected to the TTL Trigger Input of the IMG-
7W2-TO-5BNC cable.
• all connections are as in Mode 1: Continuous mode
• it is recommended that the non-used data bits are not left floating, in other words, the
data bits 10(+) to 15(+) should be connected to 0V and the data bits 10(-) to 15(-)
should be connected to 5V.
The DCF(s) mentioned in this application note can be found on the MIL and MIL-Lite CD, or our FTP site (ftp.matrox.com). The information furnished by
Matrox Electronics System, Ltd. is believed to be accurate and reliable. Please verify all interface connections with camera documentation or manual.
Contact your local sales representative or Matrox Sales office or Matrox Imaging Applications at 514-822-6061 for assistance.
