Digital Multiplex Recorder

USER’S MANUAL

Please read the instructions thoroughly before operation and retain it for future reference.

777 W V1.0

WARNING

All the safety and operating instructions should be read before operation. The improper operation may cause permanent damage.

• Please use the provided adaptor (Other adaptor is not suitable for this machine).

• Please lift and place this equipment gently.

• Do not expose this equipment to open sunlight.

• Do not use this equipment near water or in contact with water.

• Do not spill liquid of any kind on the equipment.

• Please power down the unit before unplugging.

• Do not switch the Power On & Off within short period of time (within 3 seconds).

• Do not attempt to have this equipment serviced by yourself.

• Installation should be made by qualified service personnel.

The lightning flash with arrowhead symbol, within an equilateraltriangle, is intended to alert

the user to the presence ofuninsulated"dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intendedto alert the user to the presence of important operating and maintenance-(servicing) instructions in the literature accompanying the appliance.

TABLE OF CONTENTS

What Do You Get??

What Do You Get

• FEATURES--------------------------------------------------------------------------------------

• PACKAGE INCLUDING ----------------------------------------------------------------------

Before Operation

• INSTALLATION GUIDE----------------------------------------------------------------------

• FRONT PANEL ----------------------------------------------------------------------------------

• BACK PANEL-----------------------------------------------------------------------------------

Basic Operation

• START THIS UNIT ------------------------------------------------------------------------------

• OPERATION--------------------------------------------------------------------------------------

Detailed Menu Setup

• MENU ----------------------------------------------------------------------------------------------

• ACCESS MENU ---------------------------------------------------------------------------------

• MAIN MENU--------------------------------------------------------------------------------------

• MENUOPTIONS --------------------------------------------------------------------------------

• MOTION DETECTION-------------------------------------------------------------------------

Network Setting Guide

• HARDWARE CONNECTION AT DMR SIDE --------------------------------------------

• STATIC IP SETTING--------------------------------------------------------------------------

• DYNAMIC IP SETTING ------------------------------------------------------------------------

• SOFTWARE OPERATION AT CLIENT SIDE ---------------------------------------------

• INTRODUCTION OF BASIC OPERATION ------------------------------------------------

•PLAYBACK OPERATION----------------------------------------------------------------------

•ADVANCED SETTING--------------------------------------------------------------------------

224

•CONNECT VIDEO WEB SERVER VIA IE BROWSER----------------------------------

TABLE OF CONTENTS

Advanced Operation

• OPERATION OPTIONS -----------------------------------------------------------------------

• KEY LOCK ----------------------------------------------------------------------------------------

• TROUBLE SHOOTING--------------------------------------------------------------------------

• SPECIFICATIONS -------------------------------------------------------------------------------

Appendix

• APPENDIX #1 – INSTALL HDD---------------------------------------------------------------

• APPENDIX #2 – RACK MOUNT---------------------------------------------------------------

• APPENDIX #3 – RECORDING SPEED------------------------------------------------------

• APPENDIX #4 – PIN CONFIGURATIONS--------------------------------------------------

What Do You Get ?

FEATURES

DMR Features

•Remote control via the Internet

•Wavelet Compression Format replaces Time-Lapse VCR + Multiplexer

• 4 Audio inputs / 2 Audio outputs

• On Screen Display and RTC (Real time clock) Function

• Support from 4 channels to 7/9/10/13/16 channels video inputs

• Picture-In-Picture (PIP) is available in live and DMR playback modes

• Motion detection function and 4 level video quality adjustable on each channel

• Alarm Input & Output Function

• Video loss detected on each channel can record up to 160 events

• Power-loss memory function

• Support 2 Removable HDDs, IDE Type

• Quick Multiple Search by date/time, alarm, full list

• Security password protection

PACKAGE INCLUDING

Digital Multiplex Recorder(with HDD cartridge)

User’s Manual

CD-ROM

Accessories pack

NOTE : Please check the package to make sure that you receive the complete accessories which includes the

components shown above.

2 Keys for Cartridge Power Adapter and Cord

Before Operation

INSTALLATION GUIDE

1. Connect cameras and monitor with the DMR.

2. Shown below is one example for connecting the DMR to your existing Observation System.

3. Install HDDs(The compatible HDD Brands are listed in the following table.)

Please refer to page.46 Appendix #1 for installation instructions.

The HDDsmust be installed before the DMR is turned on.

Alarm Sensor

Main Monitor

Audio Speaker

Power

Camera 1 Camera 16 Call Monitor

COMPATIBLE HARD DISK BRANDS

Manufacturer Model Capacity Rotation

HITACHI Deskstar 180 GXP (120 GB) 120GB 7200 rpm HITACHI Deskstar 7K250, HDS722516VLAT20 HITACHI Deskstar 7K250, HDS722525VLAT80 250GB 7200rpm

IBM Deskstar 120GXP (80GB) 80GB 7200 rpm IBM Deskstar 120GXP (120GB) 120GB 7200 rpm

Maxtor DiamondMax 536DX(60GB) 4W060H4 60GB 5400rpm

Maxtor DiamondMax Plus 9 80GB 7200 rpm Maxtor DiamondMax Plus 9, Model#6Y120L 120GB 7200 rpm

Maxtor DiamondMax Plus 9, Model#6Y160L0 160GB 7200rpm

Seagate Barracuda ATA IV, ST380021A 80GB 7200rpm Seagate Barracuda ATA V, ST3120023A 120GB 7200 rpm

Seagate Barracuda 7200.7 Plus, ST3160023A 160GB 7200 rpm

Western Digital Caviar WD1200BB-00CAA1 120GB 7200rpm

Western Digital Caviar WD2000BB-00DWA0 200GB 7200rpm

160GB

7200rpm

FRONT PANEL

ENTER

ALARM

TIMER

REC

Down

Left

Right

POWER

1. REMOVABLE HDD CARTRIDGE

Please refer to page.46 Appendix #1.

2. MENU

Press MENU button to enter main menu.

3. ENTER

Press ENTER button for confirmation.

1 53

2 4 6

SELECT

9 11 13 15

8 10 12 14

ZOOM SLOW

REC

HDD

PLAY

Full

4. ZOOM

Press ZOOM button to enlarge the picture display.

Press PIP button for Picture in Picture screen.

6. SLOW

To slow down speed of play mode.

7. SELECT

Press SELECT button to select appointed camera (1~16) to displayon full screen mode.

4 channels display mode

7, 9, 10, 13 channels display mode

10.

16 channels display mode

11. LED LIGHT

The LED Light is ON under the following conditions.

•HDD : HDD is activated

•HDD Full : HDD is full

•ALARM : If you want to turn off the ALARM LED light, please refer to page.13 and set the

Camera / ALARM item as OFF. (all of thecameras should be set as OFF.)

•TIMER : When Timer is set as Enabled

•PLAY : On Play mode

•REC : On Recording mode

12. CAMERA (1-16)

Press theCamera Select (1-16) to select specified camera.

13. REC

Press REC to start recording.

14. REW / LEFT

•REW:Under DMR play mode, it can play video backward at different speeds. (Press REW again to adjust speed as 1, 2, 4, 8, 16, 32 times)

•Left : Under setup mode, it works as Leftbutton.

15. PLAY

Press PLAY toplay recorded video.

16. STOP / DOWN

•STOP : Under DMR Record / Play mode, it can stop the action.

•DOWN : Under setup mode, it works as Down button.

17. PAUSE / UP

•Pause : Under DMR play mode, it can pause the action.

•UP : Under setup mode, it works as Up button.

18. FF / Right

•FF : It can play video forward at high speed, and press FF againto adjust speed from 1, 2, 4, 8, 16, 32 times.

•Right : Under setup mode, it can work as Right button.

19. POWER

Press Power to turn ON / OFF the DMR.

BACK PANEL

8 6 7

1 2

1. POWER

Please use the provided adaptor to connect power cord (Other adaptors are not suitable for this machine).

2. EXTERNAL I/O

•Controlled remotely by an external device or control system.

•Alarm input, external I / O explanation.

3. 75Ω / HI

When using Loop function, please switch to HI. If you don’t use Loop function or disconnect the video input, please set it as 75Ω.

4. VIDEO INPUT (1-16)

Connect to video source, such as camera.

5. LOOP (1-16)

Connect video signal between Input port and Loop port to make a loop.

6. AUDIO IN (1-4)

Connect to audio source, such as microphone.

•IPS should be set to 25A (for NTSC) or 18A (for PAL)

✻ 4 audio inputs, but users can only select 1 for recording.

7. AUDIO OUT (R/L)

Connect to monitor or speaker.

•IPS should be set to 25A (for NTSC) or 18A (for PAL)

✻ with 2 mono audio outputs from the same source.

8. MONITOR

Connect to Main monitor.

9. CALL

Connect to CALL monitor. Show the Switch Display. When the alarmis triggered, the call monitor will show

the triggered channel for a period of time.

10.LAN

Connect Internet by LAN cable.

Basic Operation

START THIS UNIT

Before using the DMR, please have the HDDsinstalled ready. (refer to Appendix #1 for installation or removal of HDDs).

Connect the AC Power Cord with Power Adapter and plug into an electrical outlet. The Red LED indicator light will be

ON and the DMR is in Standby mode.

Press the Power button. The POWER LED will turn from red to orange, and other red LED indicators will turn ON. It

takes approximately 5 to 15 seconds to boot the system with the message : “ HDD Detecting ”. On connecting, the POWER LED will change to green color, and the Alarm LED will be ON.

3. Before operating the DMR, please set up the system time first. (for setting system time, please refer to page.12).

NOTE : When “HDD not found” message shows up, please refer to appendix # 1. It may result from the improper installation of the HDD.

OPERATION

RECORDING

The DMR offers a variety of recording modes, such as continuous recording, scheduled time, or by events. You can set up recording speed and resolution. You can set these options by selecting MENU / RECORD before recording, please refer to page.13. Under the recording status, if power is off accidentally, recorded video will still be stored in the HDDs. DMR will return to original recording situation after power is on again.

On the screen, you will find the date, time, HDD recording type,the amount of available GB left in the HDDsmemory and the letter “M” represents the method of recording that is occurring.

(OW : HDD Overwrite)

NOTE : 1. When the HDDsare full under O/W Recording mode, previous recorded

files may be overwritten without further warning notices.

2.XXGB on the left side means the left space in the Master HDD andthat at the right side means the left space in the Slave HDD.

3. If the HDD’s capacity is only 5 GB left, it will buzz for 3 seconds; so as in 4GB, 3GB, 2GB and 1GB. If the O/W Recording mode(NOTE 1) is on, it won’t have the warning buzzer.

There are 4 recording modes in which Recording can occur : Alarm, Timer, Manual and Motion Trigger.

1. ALARM RECORDING

DMR is triggered by an alarm input. Indicated by the letter “A” and will show diagram on the triggered channel.

2002 – JAN –01 01:02:03

M● 032GB 080GB

2. TIMER RECORDING

Recording is scheduled by a Timer. Indicated by the letter “T”.

3. MANUAL RECORDING

Recording is initiated by manually pressing the REC button.Indicated by the letter “M”.

4. MOTION TRIGGER RECORDING

Recording is triggered by motion detection. Indicated by the letter “D”. And show diagram on the triggered channel.

PLAY

Press “ PLAY ” button, the DMR will show the last recording.

1. FAST FORWARD (F.F. ) & FAST REWIND (F.R.)

You can increase speed for Fast Forward and Rewind on the DMR. In the Play mode, press ” ►► ” once to get 2X speed forward and press twice to get 4X speed,… and the maximum speed can reach 32X. Press ”◄◄ ” once to get 1X speed rewind and press twice to get 2X speed, … and the maximum speed can reach 32X.

2. SLOW FORWARD (S.F.) & SLOW REWIND (S.R.)

You can also slow down the speeds of Forward and Rewind on the DMR. In the Play mode, press the SLOW button and you will enter Slow mode. Press ” ►► ” once to get 1/2X speed forward and press twice to get 1/4X speed,… and the slowest speed can reach 1/32X. Press ”◄◄ ” once to get 1/2X speed rewind and press twice to get 1/4X speed, … and the slowest speed can reach 1/32X.

3. PAUSE

It will let you pause the current image displayed on the screen.

4. STOP

Press “ STOP ” button under all circumstance, it will return DMR to live monitoring mode.

5. IMAGE JOG DIAL

It will allow you to manually view video frame-by-frame, one image at a time. While in PLAY mode, press “ PAUSE ”, it will pause the screen. Press “ ►► ” button to advance the frozen screen one image forward. Press “ ◄◄ ” button to move back one image.

CAMERA SELECT (1--16)

Press Camera Select (1-16) to select appointed camera to display on full screen mode.

Detailed Menu Setup

LAST RECORD

FULL LIST

ALARM LIST

MOTION LIST

TIME SEARCH

TIMER

DAY

START

END

QUALITY

IPS

TIMER ENABLE

RECORD

HDD OVERWRITE

RECORD IPS

RECORD QUALITY

ALARM REC IPS

ALARM REC QUALITY

MOTION TRIGGER RECORD

CAMERA

TITLE

DWELL

Brightness / Contrast / Color

ALARM

RECORD

SYSTEM EVENT

AUDIO INPUT

INT AUDIBLE ALARM

EXT AUDIBLE ALARM

MOTION AUDIBLE ALARM

ALARM DURATION

DWELL TIME

MESSAGE LATCH

TITLE DISPLAY

TIME DISPLAY

TIME

NEW PASSWORD

CLEAR HDD

SYSTEM RESET

NETWORK

SEVER IP

GATEWAY

NET MASK

DNS

WEB PORT

RESET DEFAULT

ACCESS MENU

The Menu allows you to configure your DMR settings. Please follow the steps below to access the Menu :

Press the Menu button. The password screen will appear:

NOTE :

To key-in the Password, press the “Right” and “Left” buttons to move between numbers, and use the “Up” and “Down” buttons to input the number.

Press the ENTER button once the correct Password is entered. The MENU options screen will appear.

Note: If you get a message “Password Error”, you might enter an incorrect password.

The default Password is 0000. Press the Enter button to access the Menu.

Password: 0000

MAIN MENU

There are 7 options available in the Main Menu:

(MENU)

SEARCH --------Find recorded list TIMER ----------Scheduling Record RECORD -------Record Mode Setup CAMERA -------Camera Channel Setup SYSTEM --------System Setup EVENT ----------Event List NETWORK------Network Setup

► SEARCH

TIMER RECORD CAMERA SYSTEM EVENT NETWORK

Outlined below are the buttons used for Menu setting :

•“Up” and “Down” : Scroll up and down or change values when an option is selected and is blinking

•“Left” and “Right” : Scroll sideways within a menu option that has been selected

•ENTER : Selects a submenu / an option under a submenu for browsing / modification

•MENU : Completes modification of a menu option and exits a menu

MENU OPTIONS

SYSTEM

1. AUDIO INPUT

To choose one of 4 channels to record. (can only select 1 during operation for recording)

2. INT AUDIBLE ALARM

To set the INTERNAL AUDIBLE ALARM. It will be trigged by event occurrence when

the setting is ON.

3. EXT AUDIBLE ALARM

To set the EXTERNAL AUDIBLE ALARM. It will be trigged by event occurrence when

the setting is ON.

4. MOTION AUDIBLE ALARM

(MENU)

TIMER

RECORD

CAMERA

►SYSTEM

EVENT

NETWORK

To set the MOTION AUDIBLE ALARM. It will be trigged by

motion detection occurrence when the setting is ON.

5. ALARM DURATION

Set the reaction time which was determined by the length of alarm mode responded to a buzzer. Default setting is 10 sec. Options are 10 SEC, 15 SEC, 20 SEC, 30 SEC, 1MIN, 2MIN, 3 MIN, 5 MIN, 10 MIN, 15 MIN, 30 MIN, ALWAYS.

6. DWELL TIME

DWELL TIME is the time period that each channel sequentially shown on call monitor.

7. MESSAGE LATCH

To select whether the DMR messages will disappear after 10 sec or remain on screen. NO is the default setting which the messages will go away after 10 sec.

NOTE : Video loss, Alarm and Motion messages will be shown

the same as Alarm Duration time.

8. TITLE DISPLAY

(SYSTEM)

► AUDIO INPUT : 1

INT AUDIBLE ALARM : ON

EXT AUDIBLE ALARM : ON

MOTION AUDIBLE ALARM : ON

ALARM DURATION : 10 SEC

DWELL TIME : 02 SEC

MESSAGE LATCH : NO

TITLE DISPLAY :ON

TIME DISPLAY : Y/M/D

2003-JAN-02(THU) 17:37:09

NEW PASSWORD : XXXX CLEAR HDD : NO

SYSTEM RESET : NO

To set the title shown on monitor or not.

9. TIME DISPLAY

To set the time format on the DMR.

10. TIME

To set the correct time on the DMR.

11. NEW PASSWORD : XXXX (Default password : 0000)

To set the new password.

12. CLEAR HDD

Delete all the contents of your HDD. When you choose “YES” on this option, you will be prompted with the

question shown : Press “►” to clear HDD or press ”◄” not to clear HDD.

13. SYSTEM RESET

Reset the system to book to the factory default settings.

Press ”ENTER” to confirm SEARCH setup, and the screen will show the following options.

1. LAST RECORD

Play the last recorded video.

2. FULL LIST

Show a listing of all recorded video sorted by time on the HDD.

D : Motion Recording M : Manual Recording time A : Alarm Recording time T : Timer Recording time M-HDD : Storage in Master HDD S-HDD : Storage in Slave HDD

3. ALARM LIST

Show a listing of all recorded video triggered by an Alarm.

NOTE: If there is no Alarm recorded, the screen will

display “EMPTY”.

► 2002-JAN-01 02:32:03 M-HDD

2002-JAN-03 01:02:03 M-HDD

2002-JAN-05 21:12:24 M-HDD

2002-JAN-12 12:57:38 M-HDD

2002-JAN-13 16:16:39 S-HDD

2002-JAN-15 23:55:23 S-HDD

2002-JAN-22 18:22:13 M-HDD

2002-JAN-25 12:52:03 S-HDD

◄: PAGE UP ►: PAGE DOWN

ALL DATA IN HDD

WILL BE CLEARED

ARE YOU SURE?

(◄ : NO ► : YES )

(MENU)

► SEARCH

TIMER

RECORD

CAMERA

SYSTEM EVENT NETWORK

4. MOTION LIST

Show a listing of all triggered motion detections.

5. TIME SEARCH

Find video recorded on a specific date that is entered.

(SEARCH)

►LAST RECORD

FULL LIST ALARM LIST MOTION LIST TIME SEARCH

TIMER

1. DAY

Select the day, or days of the week (Mon–Fri / Sat-Sun / Daily) that you wish to schedule

the DMR to auto recording.

NOTE : 1.Special Date could be changed by “Enter”, “Up” and “Down” buttons.

2. If you have selected the specific date and recording timer set from that specific day to a new day,

then the Recording Timer Schedule will be setas a whole week. For specific date of Recording Timer Schedule, it is not recommended to set End Time over 23:59. For Example:If you set Timer Schedule Day as Sunday, and START from 11:30, but End on 00:20, then Recording Timer Schedule is setas from every Sunday's 11:30 to next Sunday's 00:20. If you only want to set Recording Timer Schedule from every Sunday 11:30 to Monday00:20, then you should set Recording Timer Schedule as Sunday from 11:30 to 23:59, and Monday from 00:00 to00:20.

2. START

Select the starting time for the recording.

3. END

Select the finishing time for the recording.

4. QUALITY

Select the image quality for the recording. There are four Quality settings :

BEST, HIGH, NORMAL and BASIC.

(MENU)

►TIMER

RECORD CAMERA

SYSTEM EVENT NETWORK

5. IPS

Stand for Images Per Second and it could let you see Recordsubmenu for more details.

NTSC－25A、15、08、04、02、01 PAL－18A、12、06、03、02、01 NOTE : “A” means “ Record with Audio”.

6. TIMER ENABLE

Enables / disables Timer recording function.

DAY START END QUALITY IPS

(TIMER)

DAILY 00:00 00:00 BEST 25A DAILY 00:00 00:00 BEST 25A DAILY 00:00 00:00 BEST 25A DAILY 00:00 00:00 BEST 25A DAILY 00:00 00:00 BEST 25A DAILY 00:00 00:00 BEST 25A DAILY 00:00 00:00 BEST 25A TIMER ENABLE : NO

RECORD

1. HDD OVERWRITE

Select “YES” to overwrite previous recording video in HDD. NOTE : When the HDD is full under O/W Recording mode, previous recorded files

may be overwritten without further warning notices.

2. RECORDING IPS

Select the images per second of recording. The options are

as following :

NTSC－25A、15、8、4、2、1 PAL－18A、12、6、3、2、1 NOTE : “A” means “Record with Audio ”.

3. RECORDING QUALITY

There are four quality settings : BEST, HIGH, NORMAL and BASIC.

4. ALARM REC IPS

Select the images per second of recording during an Alarm.The options are as following :

NTSC－25A、15、8、4、2、1 PAL－18A、12、6、3、2、1 NOTE : “A” means “ Record with Audio”.

(MENU)

SEARCH TIMER

► RECORD

CAMERA SYSTEM EVENT

NETWORK

(RECORD)

► HDD OVERWRITE: NO

RECORD IPS: 25A RECORD QUALITY : NORMAL ALARM REC IPS: 25A ALARM REC QUALITY : HIGH

MOTION TRIGGER RECORD: ON

5. ALARM REC QUALITY

There are four quality settings during an Alarm : BEST, HIGH, NORMAL and BASIC.

6. MOTION TRIGGER RECORDING

When you set up the MOTION DETECTION function (Please refer to Page.15 for MOTION DETECTION SETUP),

1. Select “ON” to set up the motion trigger recording: It can automatically switch from stand-by mode to Recording Mode. The motion detection will change the scanning sequence and shows and “D” on the monitor.

NOTE: The trigger recording time will depend on ALARM DURATION mode setting (Please refer to page.10 for ALARM DURATION) and it will

record from the last trigger time. For example, when the alarm duration setting is 1 min, the time recording time is from 9:00:00 to 9:01:00. If the motion detection trigged again at 9:00:40, the trigged recording time will from 9:00:00 to 9:00:40 and 9:00:40 to 9:01:40. The total recording time is 00:01:40.

2. Select ”OFF”: The screen shows , the motion detection will change the scanning sequence while in recording mode and shows “M”on the monitor.

CAMERA

1. TITLE

Assign a six-characters title to each camera input. Initially each title is the camera’s max number.

2. DWELL

Select “ON” to set up the channel auto switching on the call monitor.

(MENU)

SEARCH TIMER RECORD

► CAMERA

SYSTEM EVENT

NETWORK

3. (Brightness) / (Contrast) / (Color)

Have a video adjustment (Brightness / Contrast / Color) of each channel. The level is from 0 to 9.

4. ALARM

Select LOW / OFF / HIGH for alarm polarity. The default value is LOW.

5. RECORD

Set up which channel you want to record during alarm trigger. The DMR record methods are as below : EVENT : when alarm input is triggered, DMR will record alarming channel more frequently.

For example : when CH01 is triggered, the recording method will become 1-2-1-3-1-4….

NORMAL : when alarm input is triggered, DMR will record normally as set up. OFF : when alarm input is triggered, DMR will not record.

NETWORK

Press the “▲”“▼””◄”“►”buttons to move the cursor.

Press the “+”“-”buttons to change the digit.

Press the “MENU” button to confirm the changes/ to exit the menu.

Set IP ADDRESS, GATEWAY, NET MASK, DNS and PORT.

Choose YES in RESET DEFAULT will go back to default value of NETWORK.

(NETWORK) SERVER IP GATEWAY NET MASK DNS WEB PORT RESET DEFAULT NO

192.168.001.010

192.168.001.065

255.255.255.000

168.095.001.001 00080

(MENU)

TIMER

RECORD

CAMERA

SYSTEM EVENT

► NETWORK

MOTION DETECTION

MOTION DETECTION SETUP

1. Press “ MENU “ to enter the menu set up, then “ Down ” to CAMERA setup.

2. Press “ENTER” twice to enter the Motion Detection Setup.

3. Each screen displays the current camera picture overlaid withthe motion targets (as Figure 1).

You can push the button “ Left ” or “ Right ”, ” Up ” or “ Down ” to adjust motion detection in ON or OFF.

4. The targets on each motion setup can be turned to ON or OFF individually. To set up targets, using the

front panel buttons:

àPress “ENTER” to confirm the channel

àPress “ENTER” to enter motion mode

•▲ Up --moves the target cursor up one row at a time.

•▼ Down --moves the target cursor down one row at a time.

•◄ Left --moves the target cursor left one column at a time.

•► Right --moves the target cursor right one column at a time.

àPress “ENTER” to turn the target cursor ON and press “ENTER” again to turn the target cursor OFF. (Figure 1-1)

•Zoom – turns all targets in the current row ON or OFF. (Figure 1-2)

•PIP – turns all targets on the screen ON or OFF. (Figure 1-3)

5. Press “ SLOW “ button to setup the Sensitivity list up to 255 and “ REC “ button to setup the Sensitivity list down to 000.

The default value is set on 32.

NOTE : Sensitivity value is related to motion and brightness change. Low value (as 001) means higher sensitivity

on motion and brightness change. High value (as 255) means lower sensitivity on motion and brightness

change. User can choose the suitable sensitivity value in different locations.

NOTE : When motion trigger recording setting is ON, it can automatically switch from stand-by mode to record mode.The

motion detection will change the scanning sequenceand shows on the monitor. There will be an action as

following:

For example : If the motion is detected on Camera #1, its recording & scanning sequence will be more frequent. The sequence will be as 1st, 2nd, 1st, 3rd, 1st, … 16th. And channel 1 will show on the screen. If 2nd cameraand 3rd camera both motion detection are activated, they will be scanning as 1st, 2nd, 3rd, 2nd, 2nd, 3rd, 3rd, 2nd, 3rd, 4th, 2nd, 3rd … and vice versa. And CH2 & CH3 will show for a period of time which is same as Alarm Duration time.

Figure 1 MOTION DETECTION SETUP

2 3 4 5 6 7 8 9 10 11 12 13 14 15

Figure 1-1 MOTION DETECTION SETUP — 1~15

2 3 4 5 6 7 8 9 10 11 12 13 14 15

032

-- -- -- -- -- -- -- -- -- -- -- -- -- --

Figure 1-2 MOTION DETECTION SETUP--LINE

2 3 4 5 6 7 8 9 10 11 12 13 14 15

032

-- -- -- -- -- -- -- -- -- -- -- -- -- --

032

-- -- -- -- -- -- -- -- -- -- -- -- -- --

Figure 1-3 MOTION DETECTION SETUP--ALL

2 3 4 5 6 7 8 9 10 11 12 13 14 15

032

-- -- -- -- -- -- -- -- -- -- -- -- -- --

EVENT

There are only 16 recorded events will be shown on a single pageand please press “◄ ” or “► ” to change the pages or press ▲ + ▼ to CLEAR the EVENT record.

(MENU)

M-HDD WARNING: Master HDD might be failed.

M-HDD LOSS: Master HDD does not exist. Now user can use the otherHDD.

M-HDD ERROR: Master HDD might be error

S-HDD WARNING: Slave HDD might be failed

S-HDD LOSS: Slave HDD does not exist. Now user can use the other HDD.

S-HDD ERROR: Slave HDD might be error

HDD FULL: HDD is full

SYSTEM ERROR: System might be failed

M–HDD WARNING 2002-JAN-01 03:00:00 M–HDD LOSS 2002-JAN-01 03:00:00 M–HDD ERROR 2002-JAN-01 03:00:00

----02 VLOSS: Channel: 2 Video loss

----03 ALARM: Channel: 3 External I/O Alarm have triggered

S–HDD WARNING 2002-JAN-01 03:00:00 HDD FULL 2002-JAN-01 03:00:00 SYSTEM ERROR 2002-JAN-01 03:00:00

POWER RESTORE : Power restore

----02 VLOSS 2002-JAN-01 03:00:00

----03 ALARM 2002-JAN-01 03:00:00

◄: PAGE UP ►: PAGE DOWN ▲+▼: CLEAR

TIMER

RECORD CAMERA SYSTEM

► EVENT

NETWORK

Network Setting Guide

HARDWARE CONNECTION AT DMR SIDE

Direct Connect with PC

CAMERA

Remote Connect Via Internet

CAMERA

MONITOR

STATIC IP SETTING

STEP1: Software installation

1.Put the attached CD into a CD-ROM and it will start to install the application program on Windows PC.

2. Press “Next”.

3.Choose destination location and press “Next”.

4.Set program shortcuts setting and press “Next”.

5.Press “Next” to copy files

6.After the installation, there are 6 files and 1 folder in yourassigned path (file folder) as below.

Step2 : Static IP setting

In DMR MENU / NETWORK set IP ADDRESS, GATEWAY, NET MASK, DNS and WEB PORT which are provided from your local ISP ( internet service provider ).

(MENU) SEARCH TIMER RECORD CAMERA SYSTEM EVENT

► NETWORK

For example

(NETWORK)

SERVER IP GATEWAY NET MASK DNS WEB PORT RESET DEFAULT NO

61.66.138.74

61.66.138.254

255.255.255.000

168.095.001.001 00080

After all network settings are finished, please connect DMR to internet.

Static IP

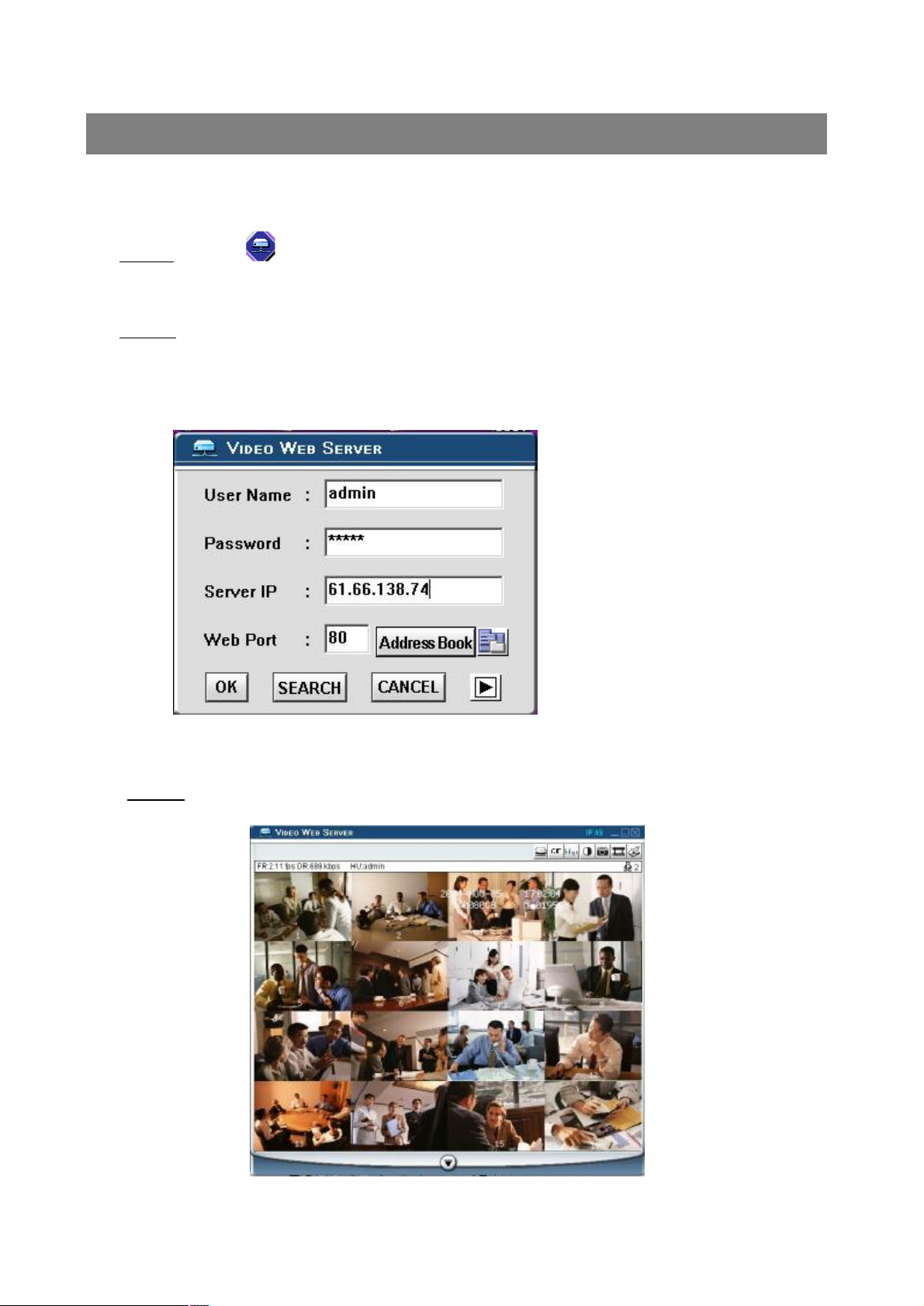

Step3 : Connect PC and DMR via the internet

Click twice and enter your User name, Password (Note: If you never change the “Account” before, the default user name and password are both “admin”) and Server IP which you have set to DMR in step 2. Then click OK to connect.

DYNAMIC IP SETTING

Step1 : Software installation

1.Put the attached CD into a CD-ROM and it will start to install the application program on Windows PC.

2. Press “Next”.

3.Choose destination location and press “Next”.

4.Set program shortcuts setting and press “Next”.

5.Press “Next” to begin copying files

6.After the installation, there are 6 files and 1 folder in yourassigned path (file folder) as below.

Step2 : DDNS apply

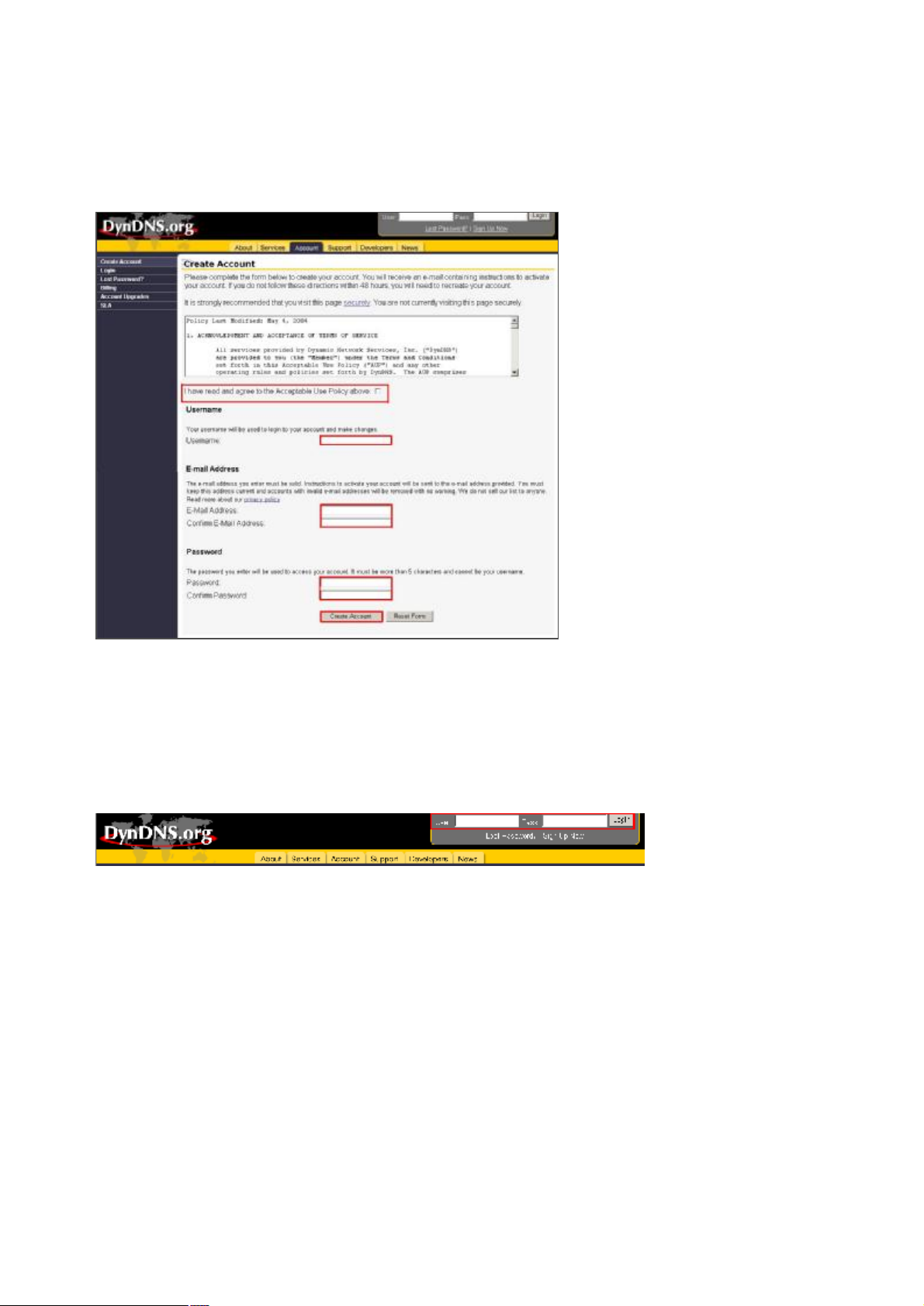

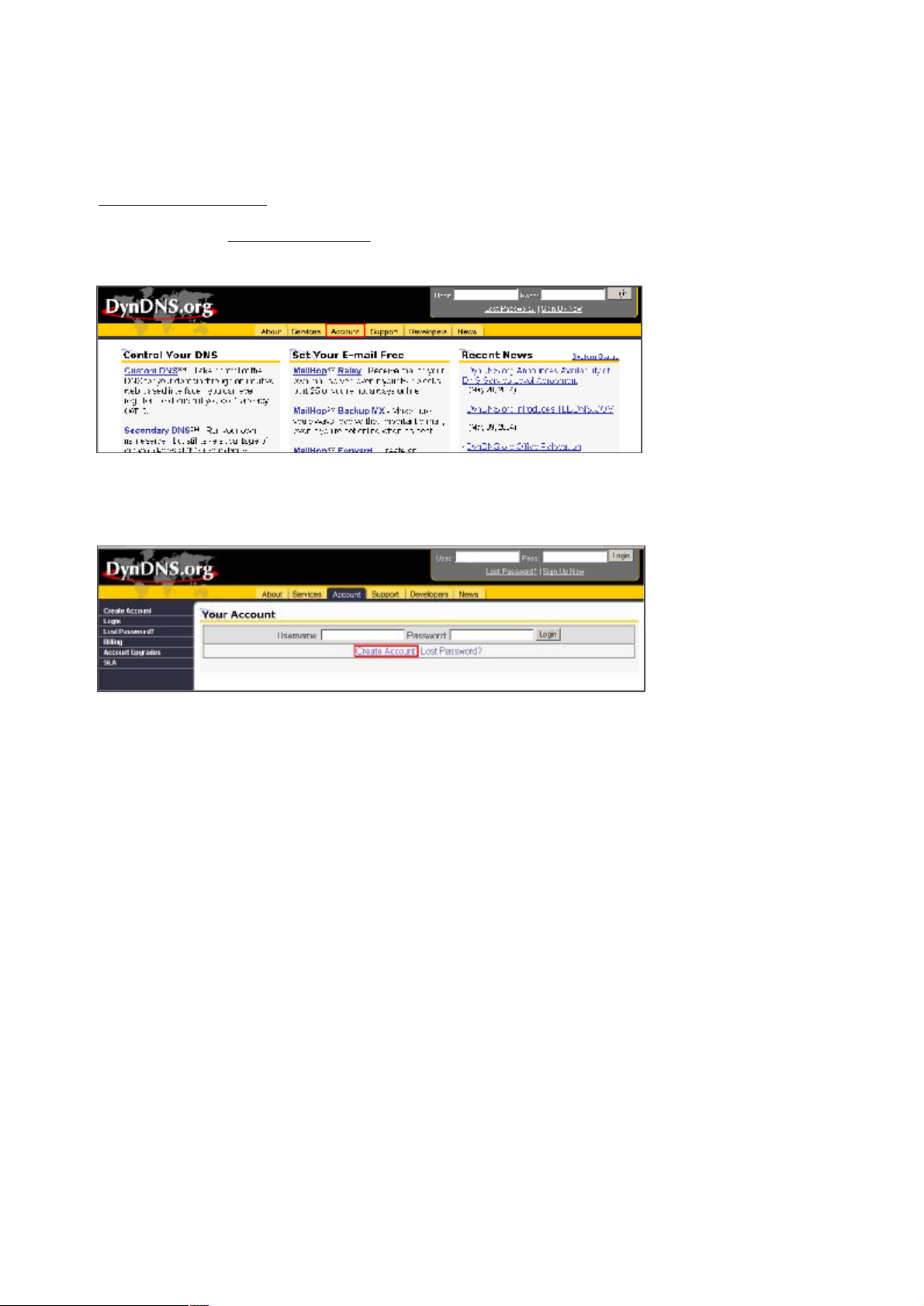

1. Click on free site “http://www.dyndns.org” (please look at the example below, you can also apply DDNS in other DDNS web page) and “ACCOUNT”

2. Press “Create Account”

3. Register the information and click on “Create Account”

4.After registering your account, you will receive an e-mail, which contains instructions to activate your account. If you do not follow these directions within 48 hours, you will need

to re-register your account.

5.Login your account.

6.Click on“Account” and “Add Host”

7 Users can set up their own DDNS HOST. For example, the user’s applied Host name

is “TEST”. And then press “Add Host” to finish the setting.

(NOTE : Some routers don’t support some DDNS HOST)

TEST

Step3 : Login router

NOTE : The following settings are different from router to router. Please read the

instruction of your router thoroughly.

1.Connect PC and router (LAN end)

LAN end

POWER

2. Network setting for PC. (The instruction is based on Win XP O/S. If your O/S is

Win 2000 or Win 2003, the setup procedure is similar to that ofWin XP O/S.)

Click twice

3.Click “Properties” for TCP/IP setup

Local Area Connection Enabled Realtek RTL8139 Family

4.Click on “INTERNET PROTOCAL (TCP/IP)” , then select “Properties” to setup

5.Choose “Obtain an IP address automatically”

6. Enter “Command Prompt”

. . . . . .

. . .

7. In the setting window, type “ ipconfig” to find out router’s gateway(e.q. 192.168.1.1)

8. Close the window in the above step. Enter the IP address (router’s gateway : 192.168.1.1 ) to log in to the router from internet explore. And then enter the login web page and key

in the router’s user name and password.

Step4 : Router setting

NOTE : In the router setting, we have four steps as follows.

1. Dial setting

2. DHCP setting

3. Virtual server setting

4. DDNS setting

(◇ The following settings will differ from router to router. Please refer to

the user’s manual of router)

1.Press “INTERNER PORT” and choose your WAN type (e.q. PPPoE), and then enter your “User Name” and “Password” of dialing up to dynamic IP. Press save after you finish the set up.

TEST

2. Press “LOCAL PORT” and set “Start IP address” and “Number of IP address”. (For example, if the IP address of DMR is 192.168.1.10, then 10 is excluded from the setting range) Press save after you finish setting up.

3. In “ADVANCED SETUP / Virtual Server”. Choose “By Port” and set “Port Number” to 80 for DMR. And set “Local Server IP Address” to 192.168.1.10. Press add after you finish the set up.

4. In “ADVANCED SETUP / Dynamic DNS”. Key in the “DNS Account”, “User Name” and “Password” that you applied in step 3. Press save after you finish the setup.

TEST

Step 5 : IP setting

In DMR MENU / NETWORK set SERVER IP, GATEWAY, NET MASK, DNS andWEB PORT.

(MENU) SEARCH TIMER RECORD CAMERA SYSTEM EVENT NETWORK

►

For example

(NETWORK)

SERVER IP GATEWAY NET MASK DNS WEB PORT RESET DEFAULT NO

192.168.001.010

192.168.001.065

255.255.255.000

168.095.001.001 00080

Step6 : Connect router

ADSL modem

(WAN end)

Step7 : Connect to DMR via internet

1. Change PC network setting to the original setting and link PCto the internet.

2. Click twice and enter your User name, Password and host(Note : The default User Name and Password are both “admin”). Then click OK to connect.

Backup Program

Play the last record file

admin test.dydns.org

NOTE:

There are two ways to get the software, one is via attached CD, and the other is via Video Web Server.(Refer to P.41~42)

vAddress Book

You can press “Address Book” button to add a new IP or choose any loginedIP address to access the Video Server. This function is designed tostore the list of IP addresses which you can control and manage.

vBackup Program

You can press “ ” button and you can backup all related files of this applicationprogram to any storage device that you want (for example: any hard disk or USB Flash Drive).

vPlay last record file

You can press “ ” button and you can play the last record file.

Note of Dynamic IP setting

*In step 2.7 : Some routers don’t support some DDNS HOST. *In step 3.1 : Please use router’s LAN end to connect PC. *In step 3.8 : Please use IE browser to enter router’s gateway. *In step 4.1 : Please make sure that you have pressed save aftersetting. *In step 4.2 : Please make sure that you have pressed save aftersetting. *In step 4.3 : Please make sure that you have pressed add after setting. *In step 4.4 : Please make sure that you have pressed save aftersetting. *In step 6 : Please use router’s LAN end to connect to DMR. Use WAN end to connect to ADSL modem. *In step 7 : The Server IP is the DDNS HOST which you set in step 4.4.

SOFTWARE OPERATION AT CLIENT SIDE

Follow the steps for connection at your client site (remote site). (e.g. If you set up the server at your office with one static IP, you can remotely proceed to watch thevideo anywhere with a networked computer.)

Step 1：Click twice to enter Login setup (please refer to “software installation”)

Step 2：Key in “User Name” and “ Password”. Click “OK” to establish the connection.

For example

Step 3：If you could see the video screen as following, you have been successfully connecting to

the server.

INTRODUCTION OF BASIC OPERATION

A. Video Web Server control panel

3 4

5 6

8 9

1. Image transmission rate per second

2. Data transmission rate

3. Connection/Disconnection

4. Resolution : D1、CIF

5. Image quality : High、Middle、Low

6. Image adjusting : Brightness/ Contrast/ Saturation

7. Snapshot : press this button, the image will be automaticallysaved in the PC.

8. Record : press this button, the recording file will be saved in the PC automatically.

9. System Config

10. Number of online users

B. Digital device control panel

1. CH1-16,

2. 4cut, 7cut, 9cut, 10cut, 13cut,16cut, PIP

3. Zoom, Select, Lock, Record

4. Stop, Rewind, Fast Forward, Pause, Slow, Play

5. Menu(Exit), Left, Right, Up, Down

6. Enter

7. TURBO

uNOTE：

After you press the record icon, there will be a recording file in the path that you have set.Each recording file can be save up to 6000 frames. The recording file will be assigned to the second File if it is more than 6000 frames. Besides, if the HDD space is less than 200MB, the program will stop recording.

PLAYBACK OPERATION

Please find a recording file in the PC and click twice on it to playback.

4 5 6

2 3

2004/12/15 09:49:38

2004-DEC-15 [WED] 09:49:33 Ad 001.4 GB O/W

78 9101112

20% CH1

NTSC_CIF 219.84.21.166

1. On Screen Display

2. Snapshot

3. Stop

4. Pause

5. Slow (1/2X, 1/4X, 1/8X, 1/16X, 1/32X)

6. PLAY

7. Fast (2X, 4X, 8X, 16X, 32X)

8. OSD show / hide

9. Configsetting (Path of snapshot, text color, progress

color, channel color)

10. Open Last File

11. Open Next File

12. Duration time / Status

13. Playback controlling bar

ADVANCED SETTING

Click “System Config” for advanced setting.

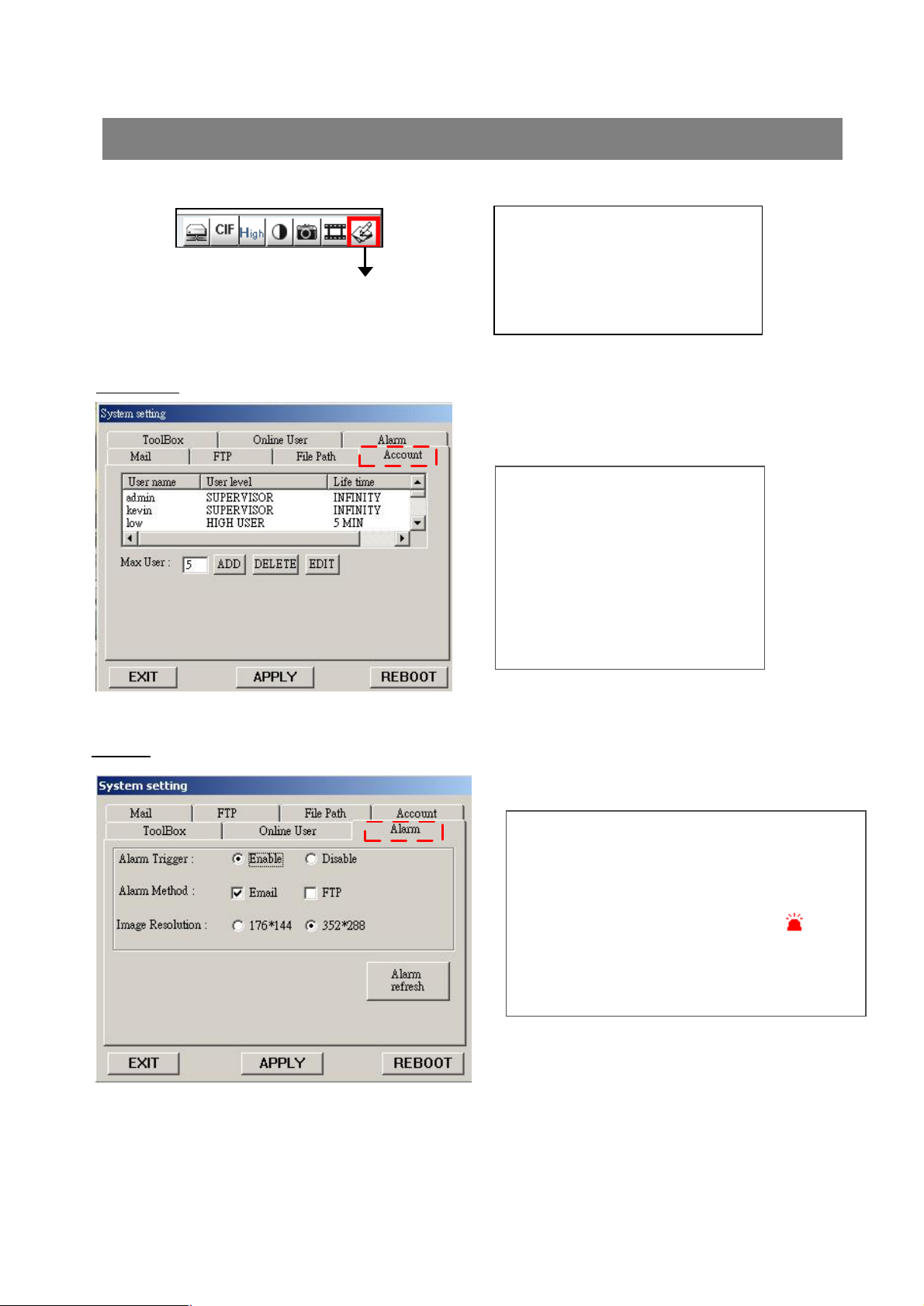

SYSTEM CONFIG

ACCOUNT

NOTE : Apply--

After changing all setting, press “apply” to refresh the data.

Reboot--

Press this button to restart the server.

Set up the user’s account( Max 10 accounts) , password and authority ( Max 6 accounts on line at the same time) .

1.User’s level:

SUPERVISOR-control all the functions

HIGH LEVEL-control advanced functions

NORMAL-control basic functions only

GUEST LEVEL –watch the image only

ALARM

2.Life time : During the period of time,

users are allowed to control the Video Web Server.

Set up the ALARM function. You can use it

to operate “alarm trigger recording” function.

1.Alarm Trigger: Enable or disable Alarm trigger function.

2.Alarm Method : Two selections—E-mail or FTP.

3.Image Resolution : Image storing resolution for

Email or FTP function

(CIF is 176 *144 ; D1 is 352*288)

4.Alarm refresh : Clean the alarm message “ ” which is showed on the screen.

* When the motion detection is triggered, the DMR will issue the alarm sound to notify the users.

MAIL

FTP

When the alarm is triggered, the video server program will capture the instant picture and e-mail the captured

image to the assigned recipients.

1.You can get all the data from the ISP company or by mailing to the server

supplier.(POP3/SMTP server)

2.You should set the mail list which you want to send to when the alarm is triggered.

3.If it is not necessary for you to verify password and user’s name, please choose Verify as “No”.

When the alarm is triggered, the video server program will capture the instant picture and upload the captured image to the assigned FTP site.

File Path

1.You can get all the data from your MIS department.

2.The default uploading port is No.21.

3.You can set the uploading directory.

You can modify the storing path for recording file and snapshot images.

C:\Documents and Settings\bowbow.huang\desktop

TOOLBOX

Online User

Upgrade the firmware and get the online users’ information.

NOTE :Do not reboot the DMR while

it is upgrading the firmware.

1.Firmware Version : The current firmware

version. You can click on “Find” button to get the latest firmware from PC and press “Upgrade Firmware” to upgrade it.

2.Turbo Step:Activate the turbo button when you would like to shift the selections more quickly by jumping 6 selections at a time.

The information of online user.

Info Refresh:

It can refresh the users’ information.

CONNECT VIDEO WEB SERVER VIA IE BROWSER

You can also connect Video Web Server via browser. This functionis suitable in both WIN 2000 and WIN XP ( WIN XP is preferable to WIN 2000)

Step 1：Enter IP address that you want to connect.(example)

219.84.21.166

Step 2：Enter your Username and Password to login Video Web Server.

Step 3：After you login, you will see as below. (example)

3 4

5 6 7 8

1.Image transmission rate per second

2.Data transmission rate

3.Video Channel

4. Resolution :D1、CIF

5.Image quality : High、Middle、Low

6.Number of online users

7.Channel switching button

8.Resolution switching button

9.Quality switching button

10.Menu, Left, Right, Up, Down, Exit

11.Lock, Enter, Zoom, Search, Select.

12.Stop, Play, Record, Rew, Fast, Pause, Slow

13.Camera

14.4cut, 7cut, 9cut, 10cut, 13cut, 16cut, Pip

15.Position of view

Advanced Operation

OPERATION OPTIONS

SELECT

This device allows user to get the ideal view size.

àPress , , button to make different view size.

àPress “ Select ” then “ Left ” or “ Right ” button to locate the desired position.

àPress “ Camera Select (1-16) “ to select the appointed camera.

àPress “ Menu “ to exit.

PICTURE IN PICTURE (PIP)

Press PIP button to enter PIP display screen. The PIP format displays a full screen “background” picture with a 1 / 16 size screen “insert”.

àPress button to move the insert screen.

àPress “Select” button to confirm the camera selection.

àPress “Left” or “Right” to choose background or insert screen.

àPress camera select (1-16) to select appointed camera into screen.

àPress “Menu“ to exit.

ZOOM

Press ZOOM button to enlarge the display of main picture. It displays zoomed picture on main picture and a small window inserted. The inserted window contains a movable 1/4 view size of the appointed camera.

àPress the appointed “Camera Select (1-16)“.

àPress “Zoom“ button to select zoom mode.

àPress the “Zoom” button again to move the zoom pointer.

àPress “Menu“ to exit.

VIDEO LOSS

Screen will display if the video input is not connected properly.

KEY LOCK

For further security, you can “Lock” all buttons on your DMR. Locking disables the buttons and prevents other people from using the system.

Press ENTER and MENU at the same time to enable Key Lock. Press ENTER and MENU at the same time and key in password (Default : 0000), then press “ENTER“ to disable Key Lock.

TROUBLE SHOOTING

RS232 REMOTE PROTOCOL

When malfunction occurs with DMR, it may be not serious and can be corrected easily. The table below describes some typical problems and their solutions. Please check them before calling your DMR dealer.

PROBLEM SOLUTION

HDD Not Found

No power

Not working when press any button

No recorded video

Timer Record enable does not working No live video

Please Insert HDD

Please use the Key to lock the HDD Cartridge

And press any key

Check power cord connections.

Confirm that there is power at the outlet.

Check if it is under Key Lock mode.

l l

Press "MENU" & "ENTER" to exist Key Lock mode.

Check if the HDD is installed properly.

Check if the Record Enable is set to YES

Check camera video cable and connections.

Check monitor video cable and connections.

Confirm that the camera has power.

Check camera lens setting.

Programmable (1~10 Sec)

Picture in Picture

Yes (Movable)

2*2 (Movable)

6 letters

Power Source

AC100~240V

10% switching adaptor

SPECIFICATIONS

TROUBLE SHOOTING

Video format Network Interface Protocals Trigger & Action

Hard disk storage

Record mode Camera Input Signal

Camera Loop Back

Main Monitor Output

Call Monitor Output

Audio input

Audio output

Motion Detect Area

Motion Detect Sensitivity

Video Loss Detection Refresh Rate

Recording Rate

Dwell Time

NTSC/EIA or PAL/CCIR

Ethemet(10/100 Base-T)

TCP/IP, ICMP, SMTP, HTTP, FTP

E-Mail images or images uploading to FTP site's specific account/Remote

Recording

IDE type, UDMA 66

Manual / Alarm / Timer / Motion

Composite video signal 1 Vp-p 75Ω BNC, 16 channels

Composite video signal 1 Vp-p 75Ω BNC

4 audio inputs, (RCA) *

2 audio outputs, (RCA) **

15 * 12 targets per camera (NTSC) / 15 * 14 targets per camera (PAL)

256 Levels

Yes

Up to 120 images/sec. for NTSC / 100 images/sec. for PAL

Up to 25 images/sec. for NTSC / 18 images/sec. for PAL

Key Lock

Picture Zoom Camera Title Video Adjustable

Alarm Input

Alarm Output Time Display Format

Power Consumption Operation Temperature

Dimension (mm)

Net Weight

✻ 4 audio inputs, but only can select 1 during operation for recording

✻✻with 2 mono audio outputs from the same source.

Color/ Contrast/ Brightness Adjustable

YY/MM/DD, DD/MM/YY, MM/DD/YY, OFF

Yes

TTL input, Hi (5V), Low (GND)

COM,/N.O

<45W

10 ~ 40

432(W) x 110(H) x 325(L)

℃

5.7 kg

Specifications are subject to change without notice.

APPENDIX #1 – INSTALL HDD

Please follow the next steps carefully in order to ensure correct installation.

The compartment located on the front panel of the DMR is the removable Cartridge Casing in which you insert the HDD. The various parts of the Cartridge Casing are labeled for your reference.

Remove the Cartridge Case from the DMR

Cartridge Casing

Handle

Remove the Cover from the Cartridge Casing

à Unclip the release latch with the word “OPEN” printed beside it by gently pushing on the latch. à Slide the cover off the Cartridge Casing.

3. Connect the HDD into the Cartridge Casing

Keyhole

LED indicator lights

Please take the Hard Disk Drive and Connect the two cables from the back of the Cartridge Casing to the HDD.

Secure the HDD in the Casing (optional)

Use the supplied screws and tighten them, and positioning the HDD into place.

Slide the top Cover over the Cartridge Casing

Slide the Cover forward over the Cartridge Case. Ensure it is secured in place over the release latch.

6.Reinsert the Cartridge Casing into the DMR

Fully insert the Cartridge Case into the DMR.

Lock the Cabinet

Lock the cabinet by turning the key clockwise.

A (locked)

(unlocked)

Note :

If you do not lock the cabinet, the DMR system will not functionproperly.

1. If two HDDs are set up, one should be selected as “ Master “ and the other should be selected as “ Slave”.

2. This product does not support hot swap. Please power off the unit before removing HDD.

3. Approvedmodels and manufacturers of HDD listed in page.2 have been tested and proven compatible with this appliance.

4. Please remove hard disk drive ONLY after power was shut off for more than 60 seconds. This would protect and extend the operating life of the harddisk drive.

5. Master or Slave HDD should be set up by selecting HDD Jumper.

APPENDIX #2 – RACK MOUNT

Screws and brackets for rack mounting applications can be purchased as an optional accessory.

Front Angle with Rack Mount

Side View with Rack Mount

APPENDIX #3 – RECORDING SPEED

The Record Time is different based on Record Speed and Record Quality. Please refer to following table.

NTSC SYSTEM

PAL SYSTEM

Note: Above data is from actual test data obtained from recording normal TV program. (Reference only)

APPENDIX #4 – PIN CONFIGURATIONS

25 pin com port

DMR

EXTERNAL ALAM NO EXTERNAL ALARM COM

PIN OFF ALARM INPUT 9 ALARM INPUT 10 ALARM INPUT 11 ALARM INPUT 12 ALARM INPUT 13 ALARM INPUT 14 ALARM INPUT 15 ALARM INPUT 16 ALARM INPUT 1 ALARM INPUT 2 ALARM INPUT 3 ALARM INPUT 4 ALARM INPUT 5 ALARM INPUT 6 ALARM INPUT 7 ALARM INPUT 8 PIN OFF GND

GND

ALARM INPUT

EXTERNAL ALARM NO

EXTERNAL ALARM COM

GROUND

To connect wire from ALARM INPUT ( PIN 2 --9 ; PIN 15-22) to GND

( PIN 1 ) connector, DMR will start recording and buzzer will be on. Ø When Menu/ Camera/ Alarm is set up to “Low” :

When alarm input signal is “ Low ”, the unit starts to record and buzzer.

Ø When Menu/ Camera/ Alarm is set up to “High” :

When alarm input signal is “ High ”, the unit starts to record and buzzer.

----PIN OFF

Under normal operation COM disconnect with NO. But when Alarm triggered, COM connect with NO.

PIN 1

PIN2-9;

PIN 15-22

PIN10,11,12,14,

23,24

PIN13

PIN 25

Maxtor Digital Multiplex Recorder User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
