4 CH Digital Video Recorder
User’s Manual
Please read this instructions thoroughly before operation and keep the manual in a safe
place for further reference.
773W V1.0
WARNING
All the safety and operating instructions should be read before operation.
Improper operations may cause permanent damage.
• This adaptor is only for this machine.
Do not use it for other electronic products or it will damage other products.
• Please lift and place this equipment gently.
• Do not expose this equipment to direct sunlight.
• Do not use this equipment near water or in contact with water.
• Do not spill liquid of any kind on the equipment.
• Please power down the unit before unplugging.
• Do not block the ventilation holes at the top and bottom of theunit.
• Do not switch the Power On & Off within short period of time
(within 3 seconds).
• Installation should be made by qualified service personnel.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert theuser to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute arisk of electric shock to persons.
The exclamation point within an equilateral triangle is intendedto alert the
user to the presence of important operating and maintenance-(servicing)
instructions in the literature accompanying the appliance.
TABLE OF CONTENTS
What do you get ?
• FEATURES ---------------------------------------------------------------------------------------
• PACKAGE CONTENT -------------------------------------------------------------------------
Before Operation
• INSTALLATION GUIDE ------------------------------------------------------------------------
• FRONT PANEL ------------------------------------------------------------------------------------
• REAR PANEL -------------------------------------------------------------------------------------
Basic Operation
• GETTING STARTED -----------------------------------------------------------------------------
• OPERATION ---------------------------------------------------------------------------------------
Detailed Menu Setup
• MAIN MENU---------------------------------------------------------------------------------------
• MENUOPTIONS ---------------------------------------------------------------------------------
Network setting guide
• HARDWARE CONNECTION AT SERVER SITE-------------------------------------------
• STATIC IP SETTING ------------------------------------------------------------------------------
• DYNAMIC IP SETTING ----------------------------------------------------------------------------
• SOFTWARE OPERATION AT CLIENT SITE -----------------------------------------------
• PLAYBACK OPERATION -----------------------------------------------------------------------
• ADVANCE SETTING -----------------------------------------------------------------------------
• CONNECT VIDEO WEB SERVER VIA IE BROWSER -----------------------------------
1
1
2
3
5
6
6
8
8
17
18
22
34
36
37
40
Advanced Operation
• OPERATION OPTIONS ------------------------------------------------------------------------
• KEY LOCK ----------------------------------------------------------------------------------------
• TROUBLE SHOOTING ---------------------------------------------------------------------------
• SPECIFICATIONS --------------------------------------------------------------------------------
APPENDIX #1 – INSTALL THE HDD ----------------------------------------------------------APPENDIX #2 – REPLACE THE HDD --------------------------------------------------------APPENDIX #3 – PIN CONFIGURATIONS ----------------------------------------------------
APPENDIX #4 – RECORDING SPEED ---------------------------------------------------------
42
43
43
44
45
46
47
49
FEATURES
DVR Features
• Remote control via internet
• Wavelet compression format replaces Time-Lapse VCR + Multiplexer/ Quad
• 4 audio inputs / 2 audio outputs
• On Screen Display and Remote Control via PC
• Connect video web server via IE browser
• Auto sending message by e-mail or FTP when there have alarm.
• Auto recording when there have alarm.
• Picture-in-Picture (PIP) and Picture-on-Picture (POP) function in live, Linear Zoom (2x~4x)
• Motion detection & motion trigger recording function (16*12 detection point)
• Alarm input & output function( COM / NO / NC )
• Recording rate up to full size 30 fields/sec. or quad size 240 fields/sec.
• Multiple quick search by date/time/alarm/full/motion list
• Support IDE HDD capacity more than 400G.
• Security password protection
What do you get ?
PACKAGE CONTENT
User’s ManualDigital Video Recorder(with HDD cartridge)
Accessories pack
Warning:
1. Please check the package to make sure that you receive the complete accessories which includes the components shown above.
2. This adaptor is suited for DC19V 2A use. If it is damaged, users can find replacement adaptor easily in the locality with this
specification.
Accessories pack
Power Adapter and Cord
2 Keys
CD-ROM
1
INSTALLATION GUIDE
1. Connect cameras and monitor to the DVR.
2. Shown below is an example of connecting the DVR to your existing Observation System.
3. Install HDD (The compatible HDD brands are listed in the following table.)
Please refer to page.45 Appendix #1 for installation instructions.
Note: The HDD must be installed before turning on the DVR. If HDD is not installed, the DVR would function as a 4 CH multiplexer.
Before Operation
COMPATIBLE HARD DISK MODELS
Manufacturer Model Capacity Rotation
HITACHI Deskstar 180 GXP (120 GB) 120GB 7200 rpm
HITACHI Deskstar 7K250, HDS722516VLAT20
HITACHI Deskstar 7K250, HDS722525VLAT80 250GB 7200 rpm
HITACHI Deskstar 7K400, HDS724040KLAT80 400GB 7200 rpm
IBM Deskstar 120GXP (80GB) 80GB 7200 rpm
IBM Deskstar 120GXP (120GB) 120GB 7200 rpm
Maxtor DiamondMax 536DX(60GB) 4W060H4 60GB 5400 rpm
Maxtor DiamondMax Plus 9 80GB 7200 rpm
Maxtor DiamondMax Plus 9, Model#6Y120L 120GB 7200 rpm
Maxtor DiamondMax Plus 9, Model#6Y160L0 160GB 7200 rpm
Maxtor
Seagate Barracuda ATA IV, ST380021A 80GB 7200 rpm
Seagate Barracuda ATA V, ST3120023A 120GB 7200 rpm
Seagate Barracuda 7200.7 Plus, ST3160023A 160GB 7200 rpm
Western Digital Caviar WD1200BB-00CAA1 120GB 7200 rpm
Western Digital Caviar WD2000BB-00DWA0 200GB 7200 rpm
NOTE: For non-stop long-time recording, we suggest having two HDD for recording to ensure good reliability of HDD.
MaxLine Plus Ⅱ, Model#7Y250P0
2
160GB
250GB 7200 rpm
7200 rpm
FRONT PANEL
1 2
1. REMOVABLE HDD CARTRIDGE
& KEYHOLE
2. CONTROL PANEL
LED LIGHT
MENU
ENTER
SEARCH
ZOOM
/ + PICTURE IN PICTURE
Please refer to page.44 Appendix #2.
The LED Light is ON under the following conditions.
•HDD : HDD is reading or recording.
•HDD Full : HDD is full
•ALARM : To turn off the ALARM LED light, please refer to
page.12 and set the ALARM mode as OFF.
•TIMER : When Timer is Enabled
•PLAY : Playing mode
•REC : Recording mode
Press MENU button to enter main menu.
PressENTER button for confirmation.
PressSEARCH button for searching recorded video.
Press ZOOMbutton to enlarge the picture display.
PIP: Press “ ” button for Picture in Picture screen.
/ -4 CHANNELS DISPLAY MODE
SLOW
POWER
+ : Press “+ ” button can change the setting in the menu.
Press “ ” button for 4 CH display modes and press twice to enter
POP (Picture On Picture) function.
- : Press “ - ” button can change the setting in the menu.
To slow down the speed of playing mode.
Press Power to turn ON / OFF the DVR.
3
FF / ►
•FF:Play video fast forward. (Press FF button again to adjust speed
as 1, 2, 4, 8, 16, 32 times)
• ► : Under setup mode, it works as Rightbutton.
REW / ◄
•REW:Play video fast backward. (Press REW button again to adjust
speed as 1, 2, 4, 8, 16, 32 times)
• ◄ : Under setup mode, it works as Leftbutton.
STOP / ▼
•STOP : Under DVR Recording / Playing mode, it can stop the action.
• ▼ : Under setup mode, it works as Down button.
PAUSE / ▲
•Pause : Under DVR playing mode, it can make the action pause.
• ▲ : Under setup mode, it works as Up button.
PLAY Press “PLAY” button toplayback recorded video.
REC
Press “REC” to start recording.
CAMERA SELECT (1-4) Press theCamera Select (1-4) to select the camera.
4
REAR PANEL
1. LAN
Connect DVR by LAN cable.
2. EXTERNAL I/O
•Controlled remotely by an external device or control system suchas Video Web Server or PC.
•Alarm input, external I / O expansion.
3. VIDEO INPUT (1-4)
Connect to video source, such as camera.
4. CALL
Connect to CALL monitor. Show the Switch Display.
When the alarm is triggered, the call monitor will show thetriggered channel for a period of time.
5. MAIN
Connect to Main monitor.
6. AUDIO IN (1-4)
Connect to audio sources, such as a microphone.
•IPS should be set to 30 (for NTSC) or 25 (for PAL)
*4 audio inputs, but can only record one input at the same time.
7. AUDIO OUT
Connect to monitor or speaker.
•IPS should be set to 30 (for NTSC) or 25 (for PAL)
* with 2 mono audio outputs from the same source.
8. FAN
For ventilation, do not block the opening.
9. POWER
Please use the provided power cord.
Warning:
1. This adaptor is only for this machine. Do not use it for other electronic product or it will damage other products.
2. This adaptor is suited for DC19V 2A use If it is damaged, user can find replacement adaptor easily in the locality with this
specification.
5
GETTING STARTED
Before using the DVR, please have a HDD installed ready, or it will function as 4 CH multiplexer(refer to Appendix #1 and
Appendix #2 for installation or removal of a HDD).
1.
Connect the AC power cord and plug into an electrical outlet. The Red LED indicator light will be ON and the DVR is
in standby mode.
2.
Press the Power button. The POWER LED will turn from red to orange, and other red LED indicators will turn ON. It
takes approximately 5 to 15 seconds to boot the system with the message : “ HDD Detecting ”. Once connected, the
POWER LED will change to green color, and the Alarm LED will be ON.
3.
Before operating the DVR, sets the system time first. (refer to page.9).
Basic Operation
NOTE : 1.If the HDD is not installed correctly or not installed,the “HDD not found” message will appear for 3 seconds
and then return to 4 CH Multiplexerdisplay mode.
2.To switch the system, you need to turn off the power and pull out the AC power cord before reconnecting the
power. And after pressing “POWER” + “FF” to NTSC system or “POWER” + “REW” to PAL system and
reconnect the AC power cord, the system of the DVR will be switched.
OPERATION
RECORDING
The DVR offers 4 recording modes, variety of recording modes. Refer to p.11 for advanced setting of recording speed and
resolution. Under the recording status, if power is off accidentally, the recorded video will still be stored in the HDD. And
the DVR will return to original recording setting after the power restores again.
On the screen, you will find the date, time, HDD recording type,the available space of HDD (in GB) left and the symbol
“ ” represents the recording mode.
NOTE : 1. Under O/W recording mode, previously recorded files will be
automatically overwritten without further warning notices, when the
HDD is full.
2. If the HDD capacity is only 5 GB left, it will display “5 GB” on the up-right
screen and shows orange color, and it will buzz for seconds; so as in 4GB, 3GB, 2GB and 1GB. If the
O/W Recording mode (NOTE 1) is on, it won’t have the warning buzzer.
2002 – JAN –01 01:02:03
●OW
(OW : HDD Overwrite)
There are 4 recording modes: Alarm, Motion, Timer and Manual Recording.
1. ALARM RECORDING
DVR is triggered by an alarm input. symbol will beshown on the triggered channel. (refer to page12)
2. MOTION TRIGGER RECORDING
Recording is triggered by motion detection. symbol will be shown on the triggered channel. (refer to page13)
3. TIMER RECORDING
Recording is scheduled by a Timer. It will indicate by the symbol . (refer to page9)
4. MANUAL RECORDING
Recording is initiated manually by pressing the REC button.Symbol will be shown.
6
PLAY BACK
Press “PLAY ” button, the DVR will show the last recording.
1. FAST FORWARD (F.F.) & FAST REWIND (F.R.)
You can increase the speed of Fast Forward and Rewind on the DVR.
In the Play mode, press “ ► ” once to get 2X speed forward and press twice to get 4X speed,… and the maximum
speed can reach 32X.
Press “◄ ” once to get 1X speed rewind and press twice to get 2X speed, … and the maximum speed can reach
32X.
2. SLOW FORWARD (S.F.) & SLOW REWIND (S.R.)
You can also slow down the speed of Forward and Rewind on the DVR.
In the Play mode, press the SLOW button and you will enter Slow mode.
Press ” SLOW ” once to get 1/2X speed forward and press “ ► ” to get 1/4X speed,… and the slowest speed can
reach 1/32X.
Press “◄ ” once to get 1/2X speed rewind and press twice to get 1/4X speed, … and the slowest speed can reach
1/32X.
3. PAUSE
You can make the playback pause and the image will be displayed on the screen.
4. STOP
Press “ STOP ” button under any circumstance, the DVR will return to live monitoring mode.
5. IMAGE JOG DIAL
It will allow you to manually view video frame-by-frame, one image at a time.
While in PLAY mode, press “ PAUSE ”, and the screen will pause.
Press “ ► ” button advances the frozen screen one image forward.
Press “ ◄ ” button moves back one image.
Note: During the LIVE or PLAY mode, press “ENTER” + “SEARCH” buttons at the same time to switch the “NORMAL” and
“SHARPNESS” display.
6. SHARPNESS
When in play mode, press “ENTER + SEARCH” to switch the sharpness( normal or sharpness )
CAMERA SELECT (1-4)
Press Camera Select (1-4) to select the camera to display in full screen.
7
MAIN MENU
Detailed Menu Setup
There are 12 options available in the Main Menu:
TIMER ----------Program Timer Recording
CAMERA -------Camera Setup
RECORD -------Recording Mode Setup
ALARM ---------Alarm Setup
DWELL ---------Dwell time Setup
PIP ---------------Picture in Picture Setup
MOTION --------Motion Detection Setup
DISPLAY -------Display Mode Setup
NETWORK -----Network Setup
USER -----------User Password Setup
SYSTEM-------System Setup
EVENT ---------Event List
Outlined below are the buttons used for Menu setting :
•“▲” and “▼” : Scroll up and down within a menu option.
• “◄” and “►” : Scroll sideways within a menu option that has been selected.
•“ + ” and “ - ” : Increase and decrease the number or change values when an option is selected and is blinking.
•ENTER : Select a submenu / an option under a submenu for browsing / modification.
•MENU : Complete modification of a menu option; exit a menu.
(MENU)
TIMER
CAMERA
RECORD
ALARM
DWELL
PIP
MOTION
DISPLAY
NETWORK
USER
SYSTEM
EVENT
MENU OPTIONS
SYSTEM
1. AUDIO INPUT
To choose one of 4 channels to record. (It can only record 1 input at the same time)
2. BUZZER
Set the BUZZER “ON”, it will buzzer by event occurrence when the setting is ON.
3. EXT ALARM
To set the EXT ALARM. It will be trigged by event occurrence when the setting is ON.
4. VLOSS ALARM
To set the VLOSS ALARM. When the setting is “ON”, the alarm will start by the setting
of Buzzer, EXT alarm or Alarm Duration.
5. MOTION ALARM
To set the MOTION ALARM. When the setting is “ON”, the alarm will start
by the setting of Buzzer, EXT alarm or Alarm Duration.
6. KEY MUTE
To set the KEY MUTE. When the setting is “YES”, there will be no sound when you press any key.
7. HDD OVERWRITE
To set the HDD OVERWRITE. When the HDD is full under O/W recording mode, previously recorded
files will be overwritten without further warning notices if the HDD OVERWRITE is ON.
(MENU)
TIMER
CAMERA
RECORD
ALARM
DWELL
PIP
MOTION
DISPLAY
NETWORK
USER
SYSTEM
EVENT
8
8. MESSAGE LATCH
To select whether the DVR messages will disappear after 10
seconds or remain on screen. NO is the default setting which the
messages will disappear after 10 sec.
NOTE : Video loss, Alarm and Motion messages will be shown
like the Alarm Duration time.
9. DATE DISPLAY
To set the date Y/M/D, M/D/Y, D/M/Y or OFF on the monitor.
10. DATE
To set the date on the DVR.
11. TIME
To set the time on the DVR.
AUDIO INPUT 1
BUZZER ON
EXT ALARM ON
VLOSS ALARM ON
MOTION ALARM ON
KEY MUTE YES
HDD OVERWRITE YES
MESSAGE LATCH YES
DATE DISPLAY D/M/Y
DATE 26-DEC-2003 [FRI]
TIME 22:55:34
CLEAR HDD YES
SYSTEM RESET YES
(SYSTEM)
12. CLEAR HDD
Delete all the contents of the HDD. When you choose “YES” on this option, press “ENTER” and you
will be prompted with the question shown: Press “→” to clear HDD or press ”←” to cancel.
13. SYSTEM RESET
Reset all system settings back to factory default settings.Select “YES” and press “ENTER” button.
TIMER
1. DAY
Select the day, or days of the week (Mon–Fri / Sat-Sun / Daily) that you wish to schedule
the DVR to automatically record.
NOTE :
1. Date could be changed by “+” and “-” buttons.
2. If you have selected the date and Timer recording set from that specific day
to a new day, then the Timer Recording Schedule will be set as whole week.
For specific date of Timer Recording Schedule, it is not recommended to set Ending
Time over 23:59. For example: If you set Timer Schedule Day as Sunday, and
START from 11:30, but End on 00:20, then Recording Timer Schedule is setas from
every Sunday's 11:30 to next Sunday‘s 00:20. If you only want to set Recording
Timer Schedule from every Sunday 11:30 to Monday00:20, then you should set
Recording Timer Schedule as Sunday from 11:30 to 23:59, and Monday from 00:00
to 00:20.
3. It is not suggested that users press “STOP” button or restart the system during setting
time. In doing so, the recording will stop, and users can resume recording by pressing
“ENTER” + “MENU”.
9
2. START
Set the time to start the recording.
3. END
Set the time to end the recording.
4. IPS (IMAGE PER SECOND)
NTSC－30、15、8、4、2、1
PAL－25、12、6、3、2、1
5. QUALITY
Select the quality of recording image: BEST, HIGH, NORM and BASIC.
6. MODE
There are three recording mode settings :
QUAD-FRAME, QUAD-FIELD, MULTIPLEX.
NOTE: To select the appropriate recording mode before
you start recording. We don’t suggest users to change
the different recording mode during recording
to ensure the best recording quality.
(TIMER)
DAY START END IPS QLT MODE
DAILY 01:00 22:00 30 BEST Q-FR
OFF 00:00 00:00 30 BEST Q-FI
OFF 00:00 00:00 30 BEST Q-FI
OFF 00:00 00:00 30 BEST Q-FR
OFF 00:00 00:00 30 BEST Q-FR
OFF 00:00 00:00 30 BEST Q-FR
OFF 00:00 00:00 30 BEST MUX
OFF 00:00 00:00 30 BEST Q-FI
TIMER ENABLE : YES
7. TIMER ENABLE
When TIMER ENABLE is “YES”, press “menu” button, and you
can see the timer diagram according to your setting.
CAMERA
1. TITLE
Assign a title to each camera. Initially each title is the camera’s number.
2. ALARM
Select LOW / OFF / HIGH for alarm polarity. The default value isLOW.
(CAMERA)
TITLE
CAMERA01
CAMERA02
ALARM
OFF
HIGHCAMERA03
REC
OFF
OFF
BR
CLCT
HUE
18151518ONLOW
18151518
18151518
18151518ONHIGHCAMERA04
10
3. REC (RECORD)
Set up which channel you want to record.
ON : when alarm input is triggered, DVR will record alarming channel more frequently.
For example : when CH01 is triggered, the record method will become 1-2-1-3-1-4….
OFF : DVR will not record.
4. BR (BRIGHTNESS)
Adjust the brightness of each channel. The level is from 0 to 63.
5. CT (CONTRAST)
Adjust the contrast of each channel. The level is from 0 to63.
6. CL (COLOR)
Adjust the color of each channel. The level is from 0 to 63.
7. HUE (HUE)
Adjust the hue of each channel. The level is from 0 to 63.
RECORD
1. RECORD IPS
Select the recording speed. The options are
as following :
NTSC－30、15、8、4、2、1
PAL－25、12、6、3、2、1
RECORD IPS 30
QUALITY NORMAL
RECORD MODE QUAD-FRAME
(RECORD)
2. QUALITY
There are four quality settings : BASIC, BEST, HIGH, NORMAL.
NOTE : Please refer to page.49 APPENDIX #4 recording speed for the relationship of recording time, IPS
and recording quality.
3. RECORD MODE
There are three recording settings : QUAD-FRAME, QUAD-FIELD, MULTIPLEX.
NOTE: To select the appropriate recording mode before
you start recording. We don’t suggest to change
the different recording mode during the recording
to ensure the best recording quality.
11
ALARM
1. ALARM ENABLE
Alarm will be triggered by event occurrence when the setting is YES.
2. ALARM DURATION
Set the reaction time which was determined by how long the alarmmode
responded to a buzzer. Default setting is 10 sec. Options are 10 Sec, 15 Sec, 20
Sec, 30 Sec, 1 MIN, 2 MIN, 3 MIN, 5 MIN, 10 MIN, 15 MIN, 30MIN, ALWAYS, AUTO.
NOTE : 1. Video loss, Alarm and Motion messages is shown like the Alarm Duration time is.
2. When the setting is AUTO, the alarm duration time is based on the setting of the external
alarm device.
3. During ALARM DURATION’S setting time, users can restart ALARM/MOTION function by
pressing both “ENTER” + “STOP” buttons.
3. REC IPS
Select the images per second of recording during an ALARM.
The options are as following:
NTSC－30、15、8、4、2、1
PAL－25、12、6、3、2、1
4. QUALITY
There are four quality settings during an alarm.
ALARM : BASIC, BEST, HIGH, NORMAL.
ALARM ENABLE YES
ALARM DURATION 15 MIN
RECORD IPS 30
QUALITY NORMAL
RECORD MODE QUAD-FRAME
(ALARM)
5. RECORD MODE
There are three recording settings : QUAD-FRAME, QUAD-FIELD,
MULTIPLEX.
DWELL
1. NORM
To set up the DWELL time period that each channel auto sequentially shows on call
monitor. The level is from 1 to 15 Sec or OFF.
2. ALARM
To set up the DWELL time period when alarm input is triggered.
The level is from 1 to 15 Sec or OFF.
PIP
1. FULL SCREEN
To set up the full screen background picture display.
2. PIP SCREEN
To set up the picture with a 1/9 size screen “insert”.
3. POSITION
There are six position settings : D/L, D/M, D/R, U/L, U/M, U/R.
(DWELL)
NORM ALARM
CAM1 01 01
CAM2 01 01
CAM3 01 01
CAM4 01 01
(PIP)
FULL SCREEN CAM 1
PIP SCREEN CAM 2
POSITION D/R
12
MOTION
(MOTION)
SEN MD-NUM RE DET
CAM1 70 03 64 ON AREA
CAM2 70 03 64 OFF AREA
CAM3 70 03 64 ON AREA
CAM4 70 03 64 ON AREA
MOTION RECORD : ON
DAY START END
DAILY 00 : 00 00 : 00
1. SEN (SENSITIVITY)
Sets the sensitivity of the pixel-based Motion Detection feature from 1 to 99.
The highest sensitivity setting is 01, the lowest sensitivity setting is 99.
The default setting is 70.
2. MD-NUM (MOTION DETECTION NUMBER)
Sets the number of targets of the motion detection to occurin order to trigger an Alarm
(from 1-99 target areas).
Note: MD-NUMcannot be less than the number of targets set in the AREA.
3. RE (REFERENCE)
Set the Reference image to which the current screen is compared (from 1-99).
For example, the value 64 would compare the current image to the 64thprevious
screen image. The higher value may increase the sensitivity.
4. DET (DETECTION)
The motion detection on each channel can be turned to be
ON or OFF individually.
5. AREA
Press the ENTER button on this option to set the Pixel-based
Motion Detection Area for each channel. Red targets represent
where the target is (Figure 1-1). Green targets represent the
Motion Detection Area(Figure 1-2), and Purple targets represent
motion currently taking place (Figure 1-3). After stopping the detection,
the color of target will be green (Figure 1-4).
To modify the Motion Detection Area, use the following controls:
ZOOM: turn the selected target ON/OFF.
▲▼◄►: navigates between targets
-: turns all targets on the screen ON/OFF
+ : turn all targets in the selected row ON/OFF
Note: When the “DET” (DETECTION) setting is “ON”, you must set the motion detection
area or it won’t be triggered.
13
Figure 1-1
91112
91112
91112
91112
MOTION DETECTION SETUP
Figure 1-2
MOTION DETECTION SETTING — ROW SETUP
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1
2
3
4
5
6
7
8
Figure 1-3
MOTION DETECTION TRIGGERED-TURN INTO PURPLE
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1
2
3
4
5
6
7
8
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1
2
3
4
5
6
7
8
Figure 1-4
BACK TO MOTION DETECTION SETTING
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1
2
3
4
5
6
7
8
6. MOTION RECORD
When the DET setting is “ON”, you can set up the MOTION RECORD function,
1. Select “ON” to set up the motion trigger recording: It can automatically switch to Record Mode. The motion
detection will change the scanning sequence and show on the monitor.
NOTE: The triggered recording time is based on ALARM DURATION mode setting (Please refer to page.12 for ALARM DURATION) and it will
record from the last triggered time. For example, when the alarm duration setting is 1 min, the recording time is from 9:00:00 to 9:01:00. If
the motion detection is trigged again at 9:00:40, the trigged recording time will be from 9:00:00 to 9:00:40 and 9:00:40 to 9:01:40. The total
recording time is 00:01:40.
For example : If the motion is detected on Camera #1, its recording & scanning sequence will be more frequently. The sequence
will be as 1st, 2nd, 1st, 3rd, 1st, … 4th. And channel 1 will show on the screen. If the motion detection of 2nd
camera and 3rd camera are both activated, they will be scanning as 2nd, 3rd, 1st, 2nd, 3rd, 4th, 2nd, 3rd,1st, 2nd, 3rd,
4th … and vice versa. And CH2 & CH3 will show for a period oftime which is just like the Alarm Duration time.
2. Select ”OFF”: The screen still shows and if it is in recording mode, the motion detection will change the
scanning sequence.
14
7. DAY / START / END
To setup the DAY and the START/ END time for motion trigger recording timer setting.
DISPLAY
(DISPLAY)
1. TITLE DISPLAY
To set the title shown on monitor or not.
2. OSD COLOR
Select the OSD (On Screen Display) color. The options are
YELLOW, GREEN, CYAN, BLUE, PINK, GRAY, WHITE, RED.
3. LOSS SCREEN
Retain the last picture or select the LOSS SCREEN color.
The options are GREEN, BLACK, BLUE and RETAIN.
4. TIME POSITION
TITLE DISPLAY YES
OSD COLOR YELLOW
LOSS SCREEN GREEN
TIME POSITION NORMAL
To set the OSD POSITION shown on monitor.
The options are NORMAL or CENTER.
NETWORK
1. SERVER IP
To set the the IP address
2. GATEWAY
To set the gateway
3. NET MASK
To set the net mask
4. DNS
To set the DNS
5. WEB PORT
To set the web port
6.RESET DEFAULT
(NETWORK)
SERVER IP 061.062.147.111
GATEWAY 061.062.147.254
NET MASK 255.255.255.000
DNS 168.095.001.001
WEB PORT 00080
RESET DEFAULT NO
Go back to default setting YES/NO
15
USER
1. USER
To set up the user account for controlling. It
allows 8 users setting.
Supervisor – Control all the functions.
Other Users – View all functions except the
SUPERVISOR 0000
menu setting and event list
cleaning.
2. PASSWORD
To set the security password for each account.
The maximum length of user’s password is 4
characters.
NOTE: To switch to different USER, press
“ENTER” + “MENU” buttons to “ KEY
LOCK” and then enter the different user’s
password to UNLOCK.
EVENT
A single page can display 16 recorded events. Press “◄ ” or “► ” to change the
pages or press “▲” + “▼” to CLEAR the EVENT record.
(USER)
PASSWORD
USER 1 0000
USER 2 0000
USER 3 0000
USER 4 0000
USER 5 0000
USER 6 0000
USER 7 0000
DISK FULL: HDD is full
PWR REST : Power restored
M-HD REMS: HDD remove
M-HD REPL: HDD replace
M-HD ERR : HDD error
M-HD WARM: HDD warming
K UNLOCKS: Key unlock
DMA ERROR: DMA error
C1 VLOSS : The video of Channel 1 is lost
C2 ALARM : Channel 2 has been triggered by external I/O alarm
C3 MOTION: Channel 3 has been triggered by motion detection
SYSTEM ERROR: System might fail
POWER RESTORE : Power restored
16
C1 VLOSS 26-DEC-2002 03:00:00
C2 ALARM 26-DEC-2002 03:00:00
K UNLOCKS 26-DEC-2002 03:00:00
M-HD ERR 26-DEC-2002 03:00:00
M-HD WARM 26-DEC-2002 03:00:00
PWR REST 26-DEC-2002 03:00:00
DMA ERROR 26-DEC-2002 03:00:00
M-HD REPL 26-DEC-2002 03:00:00
↑+↓: CLEAR
Hardware CONNECTION
AT SERVER SITE
Network Setting Guide
17
STATIC IP SETTING
STEP1: Software installation
1.Put the attached CD into a CD-ROM and it will start to install the application program into PC.
2. Press “Next”.
3.Choose destination location and press “Next”.
18
4.Set program shortcuts setting and press “Next”.
5.Press “Next” to begin to copy files
6.After the installation, there are 6 files and 1 folder in yourassigned path (file folder) as below.
19
Step2 : Static IP setting
In DVR MENU / NETWORK set SERVER IP, GATEWAY, NET MASK, DNS andWEB PORT which are provided from
your local ISP ( internet service provider ).
(MENU)
TIMER
CAMERA
RECORD
ALARM
DWELL
PIP
MOTION
DISPLAY
NETWORK
USER
SYSTEM
EVENT
For example
(NETWORK)
SERVER IP 061.066.138.074
GATEWAY 061.066.138.073
NET MASK 255.255.255.000
DNS 168.095.001.001
WEB PORT 00080
RESET DEFAULT NO
After all network settings are finished, please connect DVR and static IP.
Static IP
20
Step3 : Connect PC and DVR via internet
Click twice and enter your User name, Password (Note: If you never change the “Account” before, the User Name
and Passwordare both “admin”) and Server IP which you have set to DVR in step 2. Then click OK to connect.
21
DYNAMIC IP SETTING
Step1 : Software installation
1.Put the attached CD into a CD-ROM and it will start to install the application program into PC.
2. Press “Next”.
3.Choose destination location and press “Next”.
22
4.Set program shortcuts setting and press “Next”.
5.Press “Next” to begin copying files
6.After the installation, there are 6 files and 1 folder in yourassigned path (file folder) as below.
23
Step2 : DDNS apply
1. Click on free site “http://www.dyndns.org” (please look at the example below, you can also apply DDNS in
other DDNS web page) and “ACCOUNT”
2. Press “Create Account”
24
3. Register the information and click on “Create Account”
4.After registering your account, you will receive an e-mail, which contains instructions to
activate your account. If you do not follow these directions within 48 hours, you will need
to re-register your account.
5.Login your account.
25
6.Click on“Account” and “Add Host”
7 Users can set up their own DDNS HOST. For example, the user’s applied Host name
is “avtech.dyndns.org”. And then press “Add Host” to finish the setting.
(NOTE : Some routers don’t support some DDNS HOST)
test
Step3 : Login router
NOTE : The following settings are different from router to router. Please read the
instruction of your router thoroughly.
1.Connect PC and router (LAN end)
LAN end
POWER
26
2. Network setting for PC. (The instruction is based on Win XP O/S. If your O/S is
Win 2000 or Win 2003, the setup procedure is similar to that ofWin XP O/S.)
Click twice
3.Click “Properties” for TCP/IP setup
Local Area Connection
Enabled
Realtek RTL8139 Family
27
4.Click on “INTERNET PROTOCAL (TCP/IP)” and then select “Properties” to setup
5.Choose “Obtain an IP address automatically”
6. Enter “Command Prompt”
28
7. In the setting window, enter “ ipconfig” to write down router’s gateway(e.q. 192.168.1.1)
8. Close the window in the above step. Enter the IP address (router’s gateway : 192.168.1.1 )
to log in to the router from internet explore. And then enter the login web page and key
in the router’s user name and password.
29
Step4 : Router setting
NOTE : In the router setting, we have four steps as follows.
1. Dial setting
2. DHCP setting
3. Virtual server setting
4. DDNS setting
1.Press “INTERNER PORT” and choose your WAN type (e.q. PPPoE), and then enter
your “User Name” and “Password” of dialing up to dynamic IP. Press save after
you finish the set up.
test
2. Press “LOCAL PORT” and set “Start IP address” and “Number of IP address”.
(For example, if the IP address of DVR is 192.168.1.10,then 10 is excluded from the setting range) Press
save after you finish setting up.
30
3. In “ADVANCED SETUP / Virtual Server”. Choose “By Port” and set “Port Number” to 80
for DVR. And set “Local Server IP Address” to 192.168.1.10. Press add after you finish the set up.
4. In “ADVANCED SETUP / Dynamic DNS”. Key in the “DNS Account”, “User Name” and
“Password” that you applied in step 3. Press save after you finish the setup.
test
31
Step 5 : IP setting
In DVR MENU / NETWORK set SERVER IP, GATEWAY, NET MASK, DNS andWEB PORT.
(MENU)
TIMER
CAMERA
RECORD
ALARM
DWELL
PIP
MOTION
DISPLAY
NETWORK
USER
SYSTEM
EVENT
For example
(NETWORK)
SERVER IP 192.168.001.010
GATEWAY 192.168.001.001
NET MASK 255.255.255.000
DNS 168.095.001.001
WEB PORT 00080
RESET DEFAULT NO
Step6 : Connect router
ADSL modem
(WAN end)
32
Step7 : Connect to DVR via internet
1. Change PC network setting to the original setting and link PCto the internet.
2. Click twice and enter your User name, Password and host(Note : If you never change the “Account”
before, the User Name and Passwordare both “admin”). Then click OK to connect.)
DDNS HOST
Note of Dynamic IP setting
*In step 2.7 : Some routers don’t support some DDNS HOST.
*In step 3.1 : Please use router’s LAN end to connect PC.
*In step 3.8 : Please use IE browser to enter router’s gateway.
*In step 4.1 : Please make sure that you have pressed save afteryou finish setting.
*In step 4.2 : Please make sure that you have pressed save afteryou finish setting.
*In step 4.3 : Please make sure that you have pressed add after you finish setting.
*In step 4.4 : Please make sure that you have pressed save afteryou finish setting.
*In step 6 : Please use router’s LAN end to connect to DVR. Use WAN end to connect to ADSL modem.
*In step 7 : The Server IP is the DDNS HOST which you set in step 4.4.
33
SOFTWARE OPERATION AT CLIENT SITE
Follow the steps for connection at your client site (remote site). (e.g. If you set up the server at your office with one static ADSL,
you can remotely proceed to watch the video anywhere with a networked computer.)
Step 1：Click twice to enter Login setup (please refer to “software installation”)
Step 2：Key in “User Name” and “ Password”. (e.g. “User Name” and “Password” are “dan”
and the IP address is 61.222.50.174). Click “OK” to establish the connection.
NOTE:
1.There are two ways to get the software,
one is via the attached CD, and the other is via
Video Web Server.(Refer to APPENDIX#3)
2.You can press “Address Book”
button to add a new IP into this
table or choose any loginedIP
address to access the Video Server.
3.This function is designed to store
the list of IP addresses which you
can control and manage.
Step 3：If you could see the video screen as following, you have been successfully connecting to
the server.
34
Introduction of Basic Operation
A. Video Web Server control panel
3 4 6
1
NOTE：
After you press the record icon, there will be a recording file in the path that you
have set. Each recording file can be saved up to 6000 frames. The recording file
will be assigned to the second file if it has more than 6000frames. Besides, if
the HDD space is less than 200MB, the programwill stop recording.
2
5 10
9
8
7
1112
B. Digital device control panel
1
2
3
4
5
1.Camera video inputs
2.PIP, POP, QUAD screen
3.Zoom, Select, Lock, Search, Enter
4.Stop, Record, Rewind, Fast Forward, Pause,
Slow, Play
5.Menu, Left, Right, Up, Down, Exit
1.Image transmission rate per second
2.Data transmission rate
3.Power
4.Disconnection
5.Resolution : VGA、QVGA
6.Image quality : High、Middle、Low
7.Image adjusting : Brightness/ Contrast/ Saturation
8.Snapshot : press this button, the image will be automatically
saved in the PC.
9.Record : press this button, the recording file will be saved
in the PC automatically.
10.System setting
11.Number of online users
12.Window adjust ( right click for Full Screen)
35
PLAYBACK OPERATION
Please find a recording file in the PC and click twice on it to playback.
1 2 3
1. On Screen Display
2. Snapshot
3. Stop
4. Pause
5. Slow (1/2, 1/4, 1/8)
6. PLAY
7. Fast
8. OSD show / hide
9. System setting (Path of snapshot,
text color, progress color, channel
color)
10. Next (Play next file on the same folder)
11. Duration time / Play speed
12. Playback controlling bar
4 5
6 7 8 910 11
12
36
ADVANCED SETTING
Click “System Config” for advanced setting.
ACCOUNT
SYSTEM CONFIG
NOTE :
Apply--
After all setting changes, press “apply” to
refresh the data.
Reboot--
Press this button to restart setting.
Set up the user’s account( Max 10 accounts) ,
password and authority ( Max 6 accounts in line
at the same time) .
1.User’s level:
SUPERVISOR-control all the functions
USER LEVEL-control advanced functions
GUEST LEVEL-control basic functions only
2.Life time : During the period of time,
users are allowed to control the Video
Web Server.
ALARM
ALARM
Set up the ALARM function. You can use it
to operate “alarm trigger recording” function.
1.Alarm : Enable or disable Alarm trigger function.
2.Method : Two selections—E-mail or FTP.
3.Resolution : Image storing resolution for
Email or FTP function(SUBVGA is
160 *120 QVGA is 320*240)
4.Alarm Duration : Alarm and alarm record
duration time.
5.Alarm record : Enable or disable “Alarm
trigger recording” function.
7.Alarm refresh : Clean the alarm message “ ”
which is showed on the screen.
37
MAIL
FTP
When the alarm is triggered, the video server program
will capture the instant picture and e-mail the captured
image to the assigned recipients.
1.You can get all the data from the ISP
company or by mailing to the server
supplier.(POP3/SMTP server)
2.You should set the mail list which you
want to send to when the alarm is
triggered.
3.If it is not necessary for you to verify
password and user’s name, please
choose Verify as “No”.
When the alarm is triggered, the video
server program will capture the instant
picture and upload the captured image to
the assigned FTP site.
1.You can get all the data from your
MIS department.
RECORD
2.The default uploading port is No.21.
3.You can set the uploading
directory by yourself.
You can modify the storing path for recording
file and snapshot images by yourself.
38
TOOLBOX
PERIPHERAL
Upgrade the firmware and get the online
users’ information.
NOTE :Do not reboot the DVR while
it is upgrading the firmware.
1.Firmware Version : The current firmware
version. You can click on “Find” button to
get the latest firmware from PC and press
“Upgrade Firmware” to upgrade it.
2.Info refresh : Refresh the online users’
information.
You can see the default peripheralsettings
in this Windows.
1.Turbo Step: Set the shift step when you
shift the zone which you see during the
zoom in function.
39
CONNECT VIDEO WEB SERVER VIA IE BROWSER
You can also connect Video Web Server via browser. This functionis suitable in both WIN 2000 and WIN XP ( WIN XP is
preferable to WIN 2000)
Step 1：Open IE browser, in Tools/ Internet Options/Security/Custom Level, please select “Enable” for all optionsof
ActiveX.
Step 2：Enter IP address that you want to connect.
40
Step 3：Enter your Username and Password to login Video Web Server.
Step 4：After you login, you will see as below.
1.Image transmission rate per second
2.Data transmission rate
3.User name
4.Video CHs
5.Channel switching button
6. Resolution : VGA、QVGA
7.Image quality : High、Middle、Low
8.Resolution switching button
9.Number of online users
10.Quality switching button
11.Download AP button
12.Menu, Left, Right, Up, Down, Exit
13.Lock, Zoom, Enter, Search, REC.
14.Stop, Record, Rewind, Fast Forward, Pause, Slow, Play
15.Camera
16.4, 9, 16, Multi, PIP, POP, Power, Focus, Zoom
17.ESC, VCR, LIVE, FREEZE, AUTO
18.Position of view
41
OPERATION OPTIONS
Advanced Operation

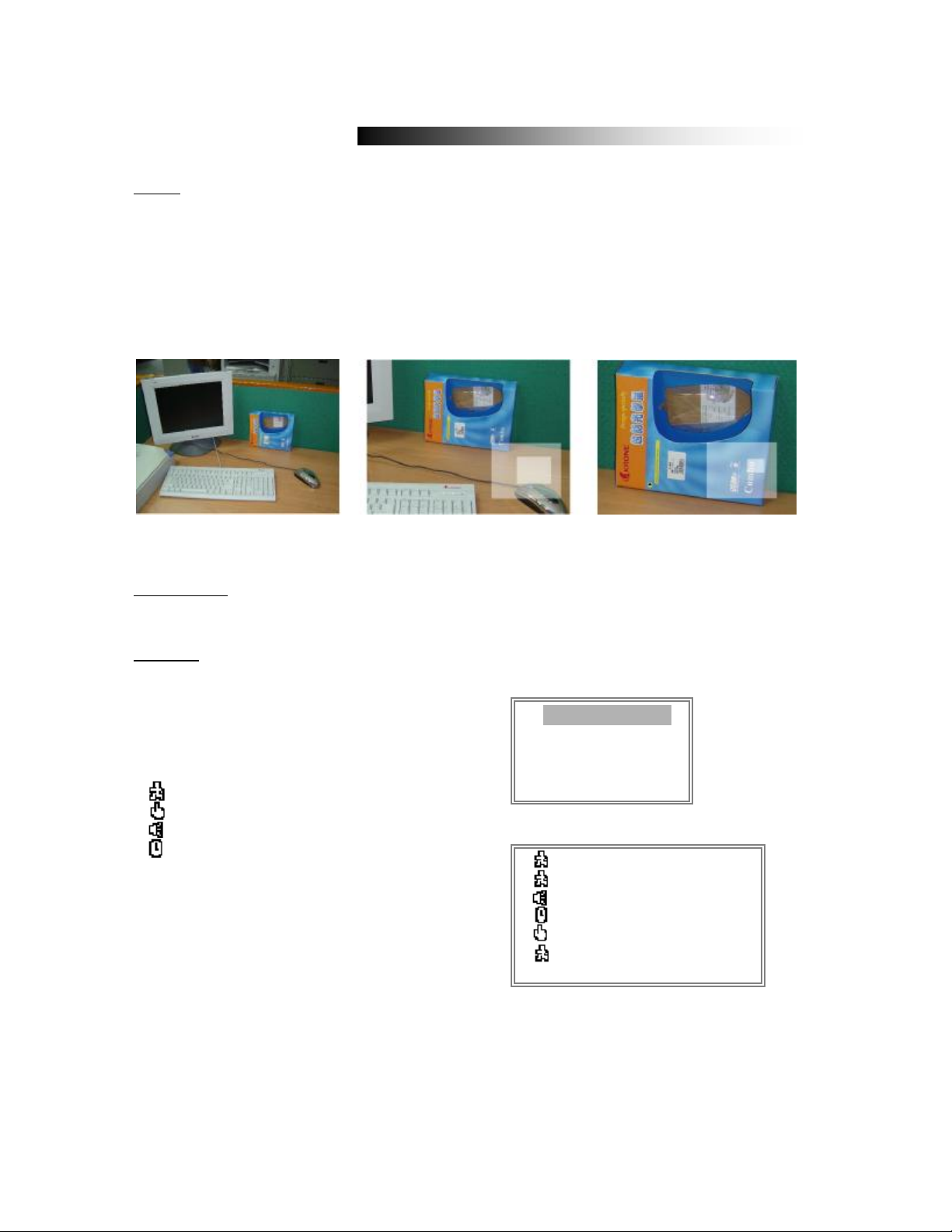

ZOOM
Press ZOOM button to enlarge the display of main picture. It displays zoomed picture on main picture and a small window
inserted. The inserted window contains a movable 1/4 view size of the appointed camera. The range is from 2X to 4X.
• Press PIP button : Zoom in
• Press QUAD button: Zoom out
• Press the “Zoom” button again to leave the zoom pointer.
• Press Camera 1-4 button to select channel.
• Press ▲▼◄► button to move the zoom position.
Original 2X Zoom 4X Zoom
VIDEO LOSS
Screen will display “LOSS” in the center of display picture, if the video input is not connected properly.
SEARCH
1. LAST RECORD
Play the last recorded piece of video.
2. FULL LIST
List all recorded video on the HDD that are sorted by time.
: Motion Recording
: Manual Recording
: Alarm Recording
: Timer Recording
M : Storage in Master HDD (or S:Storage in Slave HDD)
NOTE: It will display different color on each record list
mention above.
3. ALARM LIST
List all recorded video triggered by an Alarm.
NOTE: If there is no Alarm in the record, the screen will
display “EMPTY”.
4. MOTION LIST
List all motion triggered recordings.
LAST RECORD
FULL LIST
ALARM LIST
MOTION LIST
TIME SEARCH
2003-JAN-01 01:02:03 M
2003-JAN-05 05:02:03 M
2003-MAR-12 04:02:03 M
2003-APR-02 03:02:04 M
2003-MAY-01 05:02:03 M
2003-AUG-09 01:02:01 M
← : PAGE UP → : PAGE DOWN
5. TIME SEARCH
Find video recorded on a specific date.
42
KEY LOCK
For advanced security, users can “Lock” the buttons on your DVR. Key-Lock prevents other people from using the system.
Press “ENTER” + “MENU” at the same time to enable Key Lock.
Press “ENTER” + “MENU” at the same time and key in password (Default : 0000),
then press “ENTER“ to disable Key Lock.
NOTE: To switch to different USER, press “ENTER” + “MENU” buttons to “KEY LOCK” and then enter the
different user’s password to UNLOCK.
TROUBLESHOOTING
When malfunction occurs, it may be not serious and can be corrected easily. The table below describes some typical
problems and their solutions. Please check them before calling your DVR dealer.
PROBLEM SOLUTION
No power
Not working when press any
button
No recorded video
Timer Record enable does not
working
No live video
Check power cord connections.
l
Confirm that there is power at the outlet.
l
Check if it is under Key Lock mode.
l
Press "
l
Check if the HDD is installed properly.
l
Check if the Record Enable is set to YES
l
Check camera video cable and connections.
l
Check monitor video cable and connections.
l
Confirm that the camera has power.
l
Check the setting of camera lens.
l
MENU"
& "
ENTER"
to exit Key Lock mode.
NTSC & PAL System switch
To switch the system, press “
system and “
POWER
” + “
REW
POWER
” + “FF” to NTSC
” to PAL system.
(Refer to Page 7 "GETTING STARTED". )
43
Programmable (1~15 Sec)
Picture in Picture
Yes (Movable)
2*2 ~4*4 (Movable)
8 letters
SPECIFICATIONS
Camera Input Signal
Network Interface
Protocals
Main Monitor Output
Call Monitor Output
Audio input
Audio output
Motion Detect Area
Motion Detect Sensitivity
Video Loss Detection
Refresh Rate
Recording Rate
Dwell Time
Key Lock
Picture Zoom
Camera Title
Video Adjustable
Alarm Input
Alarm Output
Trigger & Action
Web Interface
Time Display Format
Power Source
Power Consumption
Operation Temperature
Dimension (mm)
Composite video signal 1 Vp-p 75Ω BNC, 4 channels
Ethernet (10/100 Base-T)
TCP/IP, ICMP, SMTP, HTTP, FTP
Composite video signal 1 Vp-p 75Ω BNC
Composite video signal 1 Vp-p 75Ω BNC
4 audio inputs, (RCA) *
2 audio outputs, (RCA) **
16 * 12 targets per camera
99 Levels
Yes
240 fields/sec. <NTSC> / 200 fields/sec. <PAL>
Multiplex:Up to 30 fields/sec.< NTSC> / 25 fields/sec.<PAL>
Quad-field:Up to 120 fields/sec.<NTSC> / 100 fields/sec.<PAL>***
Quad-frame:Up to 240 fields/sec.<NTSC> / 200 fields/sec.<PAL>****
Yes
Hue/ Color/ Contrast/ Brightness Adjustable
TTL input, Hi (5V), Low (GND)
COM./N.O/N.C
E-Mail images or images uploading to FTP site's specific account/
Remote Recording
Yes
YY/MM/DD, DD/MM/YY, MM/DD/YY, OFF
DC 19V
<32W
10 ~ 40
343(W) x 223(L) x 59(H)
℃
* 4 audio inputs, can select only 1 during operation for recording at the same time.
** with 2 mono audio outputs from the same source.
***NTSC: 4CH x 30IPS = 120 fields/sec, PAL: 4CH x 25IPS = 100 fields/sec
****NTSC: 4CH x 60IPS = 240 fields/sec,PAL: 4CH x 50IPS= 200 fields/sec
• Specifications are subject to change without notice.
44
APPENDIX #1 – INSTALL THE HDD
Follow the steps carefully in order to ensure correct installation.
The compartment located on the front panel of the DVR is the removable Cartridge, in which
you insert the HDD. The various parts of the Cartridge are labeled for your reference.
***Note: Users need to set the HDD on the Master mode for the system detecting.***
Step 1 Connect the connector with the HDD (refer to Picture 1).
Step 2 Put HDD into the HDD cartridge. Please notice the bottom side is power side as chart shows
(refer to Picture 2).
Step 3 Screw the HDD to the cartridge. Before you screw the HDD, please be aware that you must to level
pin 1 of the HDD at pin 1 mark, because the screw hole is different from different HDD brands.
Then screw the HDD correctly (refer to Picture 3 and 4). You must precisely align the
hard disk to the pin connection to ensure correct installation.
Step 4 Reverse the HDD and put it into DVR (refer to Picture 5 and 6).
Step 5 Connect the HDD with DVR (refer to Picture 7).
Step 6 Lock the cabinet by turning the key clockwise (refer to Picture 8).
A ( locked )
B ( unlocked )
Note : If you do not lock the cabinet, the DVR system will not function properly.
Step 7 Close the cap (refer to Picture 9).
45
APPENDIX #2 – REPLACE THE HDD
A ( locked )
B ( unlocked )
Step 1 Open the cap
Step 3
Pull out the cartridge
Note: 1. If you want to change a different HDD, you must remove the connectors from HDD ( refer to Page 51 ).
2. When HDD works for a period of time, the surface temperature will be high, please pay attention to it.
3. After turning the key to unlock position, please wait for severalseconds until HDD operation stops
completely.
Step 2
Unlock the cabinet by turning
the key anti-clockwise
Loosen all screws on
Step 4
the Cartridge
Step 5
Remove the HDD from
Cartridge
HDD HOT SWAP FUNCTION
Please follow the steps as following to ensure the reliability.
1)Unlock the cabinet by turning the key anti-clockwise.
2)Key in your password and press enter to disable the hard drive.
3)Pull out the HDD cartridge.
4)Replace the HDD in the tray.
Note: After turning the key to unlocked position, please wait for severalseconds till HDD
operation stops completely.
46
APPENDIX #3– PIN CONFIGURATIONS
DQR
15 pin com port
9 pin com port
•
•
•
DVR
•
•
•
DVR
•
•
47
PIN 3, 4, 5, 6 ALARM INPUT
To connect wire from ALARM INPUT (PIN 3, 4, 5, 6) to GND ( PIN 9 ) connector, DVR will start recording and
buzzer will be on. When alarm has been triggered, signal becomes “Low”, and it will stop all alarm activities.
Under normal operation, signal remains “High”.
PIN 7. EXTERNAL ALARM NC
Under normal operation COM connects with NC and disconnects with NO. But when alarm is triggered, COM
disconnect with NC, and connect with NO.
PIN 8. EXTERNAL ALARM NO
Under normal operation, COM will disconnect from NO. But when Alarm is triggered, COM will connect with NO.
PIN 9. GND
GROUND
PIN 12. DISK FULL (OUTPUT)
When the HDD is full, it sends a signal to trigger next DVR recording mode, if you install another DVR. Under
normal operation, the signal remains “High”, but when the disk is full, DVR will send “Low” signal.
PIN 14. ALARM RESET (INPUT)
To connect wire from ALARM RESET ( PIN 14 ) to GND ( PIN 9 ) connector, it can disable ALARM. An external
signal to ALARM RESET ( PIN 14 ) can be used to reset both ALARMOUTPUT signal and DVR’s internal buzzer.
When alarm has been triggered, signal becomes “Low”, and it will stop all alarm activities. Under normal operation,
signal remains “High”.
PIN 15. EXTERNAL ALARM COM
Under normal operation COM connect with NC and disconnect with NO. But when alarm is triggered, COM
disconnects with NC, and connects with NO.
48
APPENDIX #4 – RECORDING SPEED
The Recording Time is different based on Recording Speed, Recording Quality and Recording Mode.
Please refer to the following table. The HDD capability is 250GB.
NTSC SYSTEM
12481530IPS
1500hr750hr375hr187hr100hr50hrBest
MULTIPLEX
QUAD-FIELD
QUADFRAME
PAL SYSTEM
MULTIPLEX
1875hr937hr468hr235hr125hr62hrHigh
2998hr1500hr750hr375hr200hr100hrNormal
4996hr2498hr1250hr625hr333hr167hrBasic
1425hr712hr356hr178hr95hr48hrBest
1781hr890hr445hr223hr118hr59hrHigh
2848hr1425hr712hr356hr190hr95hrNormal
4746hr2373hr1187hr594hr316hr158hrBasic
713hr356hr178hr89hr48hr24hrBest
890hr445hr223hr112hr59hr30hrHigh
1424hr713hr356hr178hr95hr48hrNormal
2373hr1187hr594hr297hr158hr79hrBasic
250 GBHDD Type
12361225IPS
1266hr633hr423hr210hr104hr50hrBest
1583hr792hr527hr265hr131hr62hrHigh
2542hr1266hr844hr422hr210hr102hrNormal
QUAD-FIELD
QUADFRAME
250 GBHDD Type
Note: The data above is obtained from actual test of recording normal TV programs.
(For Reference Only)
49
4218hr2110hr1406hr704hr350hr168hrBasic
1202hr600hr400hr200hr98hr48hrBest
1503hr752hr500hr251hr124hr58hrHigh
2414hr1202hr800hr400hr200hr98hrNormal
4005hr2004hr1335hr668hr332hr160hrBasic
600hr300hr200hr100hr50hr24hrBest
751hr376hr250hr125hr62hr30hrHigh
1207hr601hr400hr200hr100hr49hrNormal
2003hr1002hr667hr334hr166hr80hrBasic
Loading...
