Maxtor 545XE, 275XE Product Manual

Download

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .

Medalist XE Family

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .

275xe, 545xe

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .

ATA Interface Drives

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .

Product Manual

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .

Medalist XE Family

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .

275xe, 545xe

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .

ATA Interface Drives

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .

Product Manual

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..

October 1994 Seagate, Seagate Technology and the Seagate logo are registered

trademarks of Seagate Technology, Inc. SeaCache is a trademark of Seagate Technology, Inc. Other product names are trademarks or registered trademarks of their owners.

Seagate reserves the right to change, without notice, product offerings or specifications. No part of this publication may be reproduced in any form without written permission from Seagate Technology, Inc.

Medalist XE Family Product Manual, Rev. B iii

Contents

1.0 Specification summary . . . . . . . . . . . . . . . . . . . . . 1

1.1 Format configuration . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Physical organization . . . . . . . . . . . . . . . . . . . . . 2

1.3 Functional specifications . . . . . . . . . . . . . . . . . . . 3

1.4 Drive dimensions . . . . . . . . . . . . . . . . . . . . . . . 3

1.5 Seek time . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.6 Start and stop time . . . . . . . . . . . . . . . . . . . . . . 4

1.7 Power specifications . . . . . . . . . . . . . . . . . . . . . . 4

1.7.1 Voltage tolerances . . . . . . . . . . . . . . . . . . . . 4

1.7.2 Conducted noise . . . . . . . . . . . . . . . . . . . . . 5

1.7.3 Power-management modes . . . . . . . . . . . . . . . 5

1.8 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.8.1 Ambient temperature . . . . . . . . . . . . . . . . . . . 7

1.8.2 Temperature gradient . . . . . . . . . . . . . . . . . . . 7

1.8.3 Relative humidity . . . . . . . . . . . . . . . . . . . . . 8

1.8.4 Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.8.5 Shock and vibration . . . . . . . . . . . . . . . . . . . 8

1.9 Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.10 Reliability . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.11 Auto-park . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.12 Agency listings . . . . . . . . . . . . . . . . . . . . . . . . 9

1.13 FCC verification . . . . . . . . . . . . . . . . . . . . . . . 9

2.0 Configuration and mounting . . . . . . . . . . . . . . . . . 11

2.1 Handling and static-discharge precautions . . . . . . . . . 11

2.2 The ATA interface connector . . . . . . . . . . . . . . . . 12

2.3 Power connector . . . . . . . . . . . . . . . . . . . . . . . 12

2.4 Master/slave jumper block . . . . . . . . . . . . . . . . . . 12

2.4.1 Single-drive configuration . . . . . . . . . . . . . . . 13

2.4.2 Two-drive configuration . . . . . . . . . . . . . . . . . 13

2.4.3 Cable-select configuration . . . . . . . . . . . . . . . 14

iv Medalist XE Family Product Manual, Rev. B

2.4.4 Factory-test configuration . . . . . . . . . . . . . . . . 15

2.5 Optional drive activity LED . . . . . . . . . . . . . . . . . 15

2.6 Mounting the drive . . . . . . . . . . . . . . . . . . . . . . 16

3.0 ATA interface . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1 ATA interface connector pin assignments . . . . . . . . . 19

3.2 Bus signal levels . . . . . . . . . . . . . . . . . . . . . . . 19

3.3 Supported ATA commands . . . . . . . . . . . . . . . . . 21

3.3.1 Identify Drive command (EC

3.3.2 Set Features command (EF

3.3.3 Set Multiple Mode command (C6

3.3.4 Read Multiple command (C4

3.3.5 Write Multiple command (C5

) . . . . . . . . . . . . . 23

) . . . . . . . . . . . . . 26

) . . . . . . . . . . 28

) . . . . . . . . . . . . . 28

) . . . . . . . . . . . . . 29

3.4 Onboard drive diagnostics . . . . . . . . . . . . . . . . . . 30

3.5 ECC performance tests . . . . . . . . . . . . . . . . . . . 30

3.6 Supported BIOS . . . . . . . . . . . . . . . . . . . . . . . 31

Medalist XE Family Product Manual, Rev. B v

Figures

Figure 1. Typical startup current profile . . . . . . . . . . . . . . . . 7

Figure 2. The drive interface connector . . . . . . . . . . . . . . . 12

Figure 3. Connectors and jumpers . . . . . . . . . . . . . . . . . 13

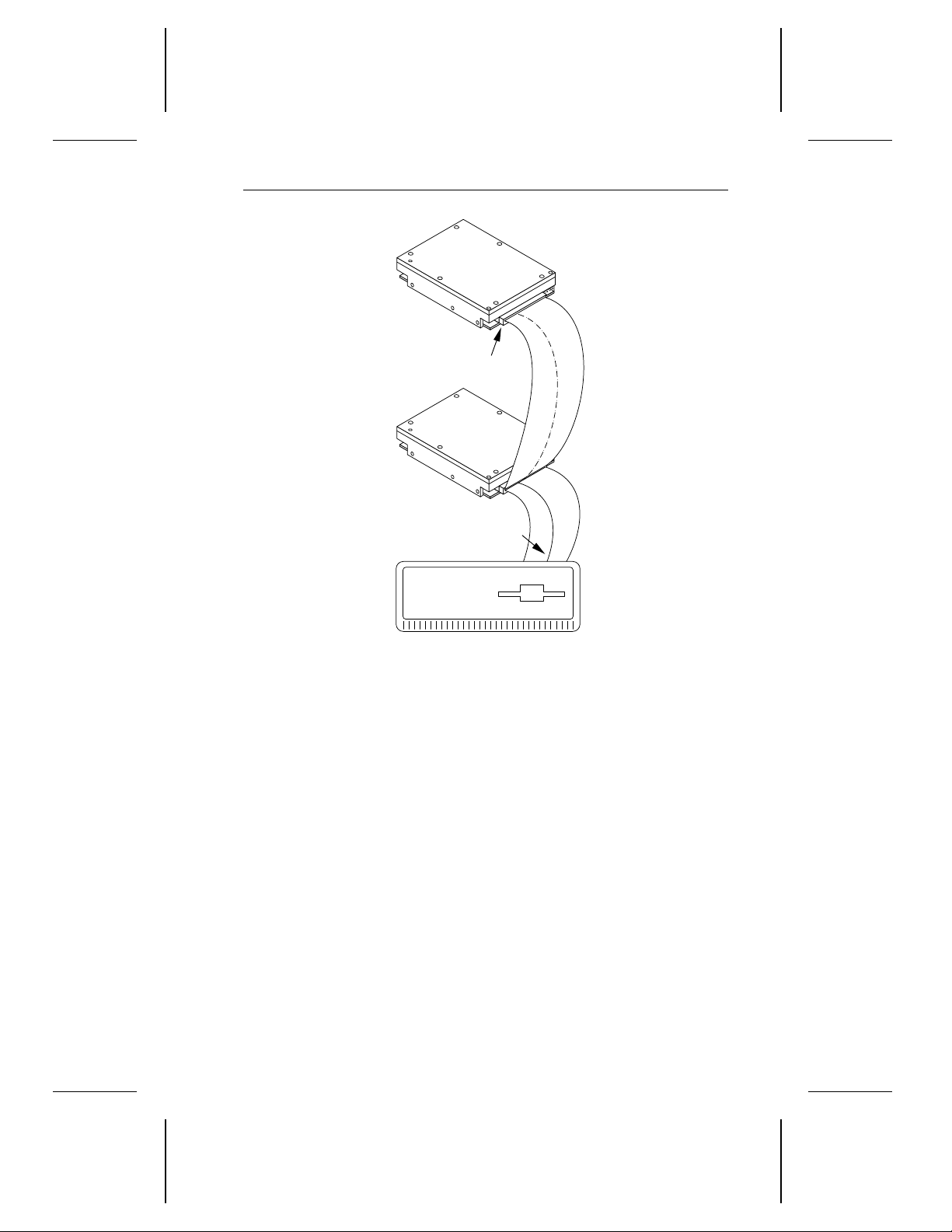

Figure 4. Connecting cable-selected drives . . . . . . . . . . . . . 15

Figure 5. Standard mounting dimensions . . . . . . . . . . . . . . 17

Figure 6. Metric mounting dimensions . . . . . . . . . . . . . . . 18

Figure 7. ATA connector pin assignments . . . . . . . . . . . . . 20

Medalist XE Family Product Manual, Rev. B 1

1.0 Specification summary

The Medalist 275xe and 545xe drives use an ATA interface. The interface conforms to

ATA Timing Extension for Local Bus Attachments, Rev. 2.0 Identify Drive Data for Drives Under 8 GB National Standards AT Attachment Interface X3.310-948D, Rev. 2E.

Note. The Medalist drives are referred to by their model numbers

1.1 Format configuration

Seagate Medalist drives are low-level formatted at the factory. You do not need to low-level format the drive.

The drives support LBA addressing and are configured in translation mode at the factory. (You can verify the number of cylinders, sectors per track and heads and the total number of sectors using the Identify Drive (EC

) command.) The table below shows the factory configurations.

Cylinders 761 1,057 Heads 14 16 Sectors per track 50 63 Formatted capacity (Mbytes*) 272.7 545.5 Total sectors 532,700 1,065,456

ATA (AT Attachment) Interface X3.221, Rev. 4; SFF 8011:

;

SFF 8019:

and

Draft Proposal American

throughout this manual. The Medalist 275xe is referred to as the ST3295A. The Medalist 545xe is referred to as the ST3660A.

ST3295A ST3660A

* One Mbyte equals one million bytes.

You can use other values to configure the drive provided the following conditions are met:

• The number of sectors per track does not exceed 256.

• The number of sectors per track and the number of heads satisfy the

following relationship:

16 ≤ (sectors per track) × (heads) ≤ 4,096.

• The total sectors do not exceed the physical capacity of the drive. You can calculate the total sectors with the following formula:

total sectors = (logical heads) × (logical sectors per track) × (logical cylinders).

2 Medalist XE Family Product Manual, Rev. B

Note. Some DOS and BIOS pairings can limit the accessible hard disc

capacity to 528 Mbytes. These systems do not acknowledge more than 1,024 cylinders in the translation geometry. If more than 1,024 cylinders are specified in the System Setup, the system may ignore the additional cylinders or overwrap the initial 1,024 with the additional cylinders. In an overwrap condition, only the overwrapping cylinders are used to determine the drive capacity. The overwrap condition for the ST3660A is:

1,057 – 1,024 = 33 cylinders for 17.3 Mbytes.

There are several solutions for this limitation:

• Use a BIOS that supports logical block addressing (LBA) or extended cylinder-head-sector (CHS) addressing.

• Use a host adapter that supports more than 528 Mbytes.

• Use installation software or a software device driver that allows

access to the drive’s full capacity to install the drive.

1.2 Physical organization

ST3295A ST3660A

Heads 2 4 Discs 1 2

Medalist XE Family Product Manual, Rev. B 3

1.3 Functional specifications

Interface Internal data transfer rate (Mbits/sec) External data transfer rate (Mbytes/sec)

PIO Mode 3 DMA Mode 1

Spindle speed ± 0.5% (RPM) SeaCache buffer (Kbytes) Zone Bit Recording method Bytes per sector Recording density, max (BPI) Flux density, max (FCI) Track density, max (TPI)

* Represents the external burst data transfer rate.

ATA

20.0 to 35.8

11.1*

13.3* 3,811 120 RLL (1,7) 512 63,225 42,150 3,285

1.4 Drive dimensions

Height (max) 1.00 inch (25.4 mm) Width (max) 4.02 inches (102.1 mm) Depth (max) 5.77 inches (146.6 mm) Weight (max) 1.3 lb (0.59 Kg)

1.5 Seek time

All performance measurements are taken using a 25-MHz 486 AT computer (or faster) with an 8.3-MHz I/O bus. The measurements are taken using nominal power at sea level and at 25°C ambient temperature. The specifications in the table on page 4 are defined as follows:

• Track-to-track seek time is an average of all possible single-track seeks in both directions.

• Average seek time is a true statistical random average of at least 5,000 measurements of seeks between random tracks, less overhead.

4 Medalist XE Family Product Manual, Rev. B

• Full-stroke seek time is one-half the time needed to seek from the first data cylinder to the maximum data cylinder and back to the first data cylinder. The full-stroke average is determined by measuring 100 full-stroke seeks in both directions.

Model

ST3295A 5 14 34 7.87 ST3660A 5 14 34 7.87

Track-to-track

typ (msec)

Average

typ (msec)

Full-stroke typ (msec)

Latency

(msec)

1.6 Start and stop time

Within 10 seconds, the drive is ready. Typical and maximum start and stop times are shown in the following table. See Figure 1 on page 7 for the typical startup current profile.

Typical Maximum

Start time 7 sec 10 sec Stop time 6 sec 9 sec

1.7 Power specifications

Except during a write operation, you can apply power to the drive or remove power from the drive in any sequence without losing data or damaging the drive.

1.7.1 Voltage tolerances

Voltage tolerance including noise

+5V +12V

± 5% ± 5%

± 10% during spinup

Medalist XE Family Product Manual, Rev. B 5

1.7.2 Conducted noise

The drive is expected to operate with a maximum of:

• 150 mV peak-to-peak triangular-wave injected noise at the power connector. The frequency is 10 Hz to 100 KHz with equivalent resistive loads.*

• 100 mV peak-to-peak triangular-wave injected noise at the power connector. The frequency is 100 KHz to 10 MHz with equivalent resistive loads.*

* Equivalent resistance is calculated by dividing the respective volt-

age by the typical RMS read/write current.

1.7.3 Power-management modes

The drive supports the following power-management modes:

• Active mode. The drive is seeking, reading or writing.

• Idle mode. When the drive receives an Idle Immediate command, or

the idle timer counts down to zero, the drive enters the Idle mode. In Idle mode, the spindle remains up to speed. The SeaCache buffer remains enabled, and the drive accepts all commands and returns to the Active mode whenever a seek, read or write operation is needed.

• Standby mode. When the drive receives a Standby Immediate com-

mand, or the standby timer has counted down to zero, the drive enters the Standby mode. In the Standby mode, the SeaCache buffer remains enabled, the heads are parked in the shipping zone and the spindle is stopped. The drive accepts all commands and returns to the Active mode whenever a seek, read or write operation is needed.

• Sleep mode. When the drive receives a Sleep Immediate command,

it enters the Sleep mode. The heads are parked in the shipping zone and the spindle is at rest. A hard reset or a soft reset returns the drive to Active mode. A soft reset preserves the current emulation and translation parameters.

1.7.3.1 Idle and Standby timers

The drive can enter the Idle mode or the Standby mode by either of two methods:

• The computer sends an Idle Immediate command or a Standby

Immediate command.

• The idle timer or the standby timer counts down to zero.

6 Medalist XE Family Product Manual, Rev. B

The Idle and Standby timers are disabled at the factory. Use the computer’s setup utility to enable and set the timer delays. When the Idle timer is enabled, it is initialized each time the drive completes a read, write or seek.

If the Idle timer reaches zero before any drive activity is required, the drive goes into the Idle mode, and the Standby timer, if it is enabled, is initialized. If the Standby timer reaches zero before any drive activity is required, the drive goes into the Standby mode. See the

Interface Reference Manual

, publication number 36111-

Seagate ATA

xxx

for details.

In both the Idle and Standby modes, the drive accepts all commands and returns to the Active mode any time disc access is necessary. There may be a slight delay between the time the drive receives the command and drive activity begins.

1.7.3.2 Power dissipation

The following guidelines are used to measure power dissipation:

• All measurements are taken at sea level with an ambient temperature of 25°C.

• All typical measurements are taken using nominal voltages; the peak startup power is measured using the nominal voltages.

• Seek current measurements are taken using an RMS meter while the drive is randomly seeking with two spindle rotations between each seek.

Mode

Power (watts)

+12V +5V

Current (amps)

Spinup (peak) 1.2 0.35 8.5

Active

Seeking (typ) 0.34 0.23 5.23

Read/write (typ)

Idle

(typ) Standby Sleep

(typ) 0.025 0.085 0.725

(typ) 0.025 0.070 0.650

0.145 0.32 3.34

0.12 0.085 1.865

1. These power dissipation values apply only when power management is enabled. To enable power management, use the computer setup utility.

2. Spinup power is averaged over 3 seconds.

2.0 4.0

6.0

8.0

400

600

800

1,000

1,200

200

10.0 12.0

14.0

16.0

18.0 20.0

Current mA

Medalist XE Family Product Manual, Rev. B 7

Time (seconds)

Figure 1. Typical startup current profile

1.8 Environment

The acceptable environmental conditions for the drive are specified below. The specifications in this section are defined as follows:

• Operating specifications assume that the drive is powered up.

• Nonoper ating specifications assume that the drive is packaged as it

was shipped from the factory.

1.8.1 Ambient temperature

Operating 5° to 55°C (41° to 131°F) Nonoperating –40° to 70°C (–104° to 158°F)

1.8.2 Temperature gradient

Operating (max) 20°C per hour (36°F per hour) Nonoperating (max) 30°C per hour (54°F per hour)

8 Medalist XE Family Product Manual, Rev. B

1.8.3 Relative humidity

Operating 8% to 80% noncondensing

Maximum wet bulb 29.4°C (85.0°F)

Nonoperating 5% to 95% noncondensing

Maximum wet bulb 40.0°C (104.0°F)

1.8.4 Altitude

Operating –1,000 ft to 10,000 ft (–305 m to 3,050 m) Nonoperating –1,000 ft to 40,000 ft (–305 m to 12,200 m)

1.8.5 Shock and vibration

Shock measurements are based on an 11 msec, half sine wave shock pulse, not to be repeated more than twice per second. The specifications in the table below are defined as follows:

• During normal operating shock and vibration, the drive sustains no physical damage and reads and writes data without errors.

• During abnormal operating shock and vibration, the drive sustains no physical damage, but performance is adversely affected.

• During nonoperating shock and vibration, the read/write heads are in the shipping zone and the drive sustains no physical damage.

Normal operating

Shock 2.0 Gs 10.0 Gs 75.0 Gs 5–22 Hz vibration 0.020-inch

displacement peak-to-peak

22–300 Hz vibration 1.0 G

peak-to-peak

Abnormal operating Nonoperating

0.030-inch displacement peak-to-peak

1.5 Gs peak-to-peak

0.160-inch displacement peak-to-peak

8.0 Gs peak-to-peak

1.9 Acoustics

Sound pressure is measured at idle from 1 meter above the drive top cover.

Sound pressure, typ 29 dBA Sound pressure, max 33 dBA

Medalist XE Family Product Manual, Rev. B 9

1.10 Reliability

The MTBF and contact start-stop specification assumes nominal power at sea level with an ambient temperature of 25°C.

Nonrecoverable errors 1 per 10 MTBF 300,000 power-on hours Contact start-stop (CSS) 40,000 cycles MTTR 30 minutes Service life 5 years

bits read

1.11 Auto-park

Upon power-down, the read/write heads automatically move to the shipping zone. The heads park inside the maximum data cylinder. When power is applied, the heads recalibrate to track 0.

1.12 Agency listings

This drive is listed with agencies as follows:

• UL 1950

• CSA C22.2 No. 0-M91 and CSA C22.2 No. 950-M89

• EN 60950/10.92 as tested by TUV-Rheinland, North America

1.13 FCC verification

The ST3295A and ST3660A drives are intended to be contained solely within a personal computer or similar enclosure (not attached to an external device). As such, a drive is considered to be a subassembly even when individually marketed to the customer. As a subassembly, no Federal Communications Commission authorization, verification or certification of the device is required.

Seagate Technology, Inc. has tested these drives in an enclosure as described above to ensure that the total assembly (enclosure, disc drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J of Part 15 of the FCC rules. Operation with noncertified assemblies is likely to result in interference to radio and television reception.

10 Medalist XE Family Product Manual, Rev. B

Radio and television interference. This equipment generates and uses radio frequency energy and, if not installed and used in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception.

This equipment is designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television, which can be determined by turning the equipment on and off, you are encouraged to try one or more of the following corrective measures:

• Reorient the receiving antenna.

• Move the device to one side or the other of the radio or TV.

• Move the device farther away from the radio or TV.

• Plug the equipment into a different outlet so that the receiver and

computer are on different branch outlets.

If necessary, you should consult your dealer or an experienced radio/television technician for additional suggestions. You may find helpful the following booklet prepared by the Federal Communications Commission:

How to Identify and Resolve Radio-Television Interference Problems.

This booklet is available from the Superintendent of Documents, US Government Printing Office, Washington, DC 20402. Refer to publication number 004-000-00345-4.

Medalist XE Family Product Manual, Rev. B 11

2.0 Configuration and mounting

This section discusses the ATA interface connector and other physical features of the drive, including mounting. Figure 3 on page 13 shows the location of the following features:

• The ATA interface connector

• The power connector

• The master/slave jumper block

• The optional drive activity LED

A brief discussion of each starts on page 12.

2.1 Handling and static-discharge precautions

After you unpack the drive, and before you install it in a computer, be careful not to damage it through mishandling. Wool and synthetic clothing, carpet, plastics and Styrofoam are contributors to the static build-up that can damage sensitive components when discharged through touch. Observe the following standard handling and static-discharge precautions:

Caution:

• Keep the drive in its static-shielded bag until you are ready to complete the installation. Do not attach any cables to the drive while it is in its static-shielded bag.

• Wear a grounded wrist strap that is properly connected to earth ground or ground yourself frequently by touching the metal chassis of a power supply that is plugged into a grounded outlet when handling the drive and throughout the entire installation procedure.

• Handle the drive by its edges or frame only.

• The drive is extremely fragile—handle it with care. Do not press down

on the drive top cover.

• Always rest the drive on a padded, antistatic surface until you mount it in the computer.

• Do not touch the connector pins or the printed circuit board. Do not touch the printed circuit cable between the circuit board and the head/disc assembly.

• Do not remove the factory-installed labels from the drive or cover them with additional labels. If you do, you void the warranty. Some factoryinstalled labels contain information needed to service the drive. Others are used to seal out dirt and contamination.

0.70 ± 0.010

1.90

0.025

± 0.002

0.100 typ

0.230 ± 0.003

2.00

0.235 ± 0.025

0.160

0.070 ± 0.010

0.100 ± 0.010

0.025 ± 0.002

Dimensions are in inches

12 Medalist XE Family Product Manual, Rev. B

2.2 The ATA interface connector

The drive uses a standard 40-pin interface connector with 2 rows of 20 male pins. Pin 20 is removed. The connector is shown in Figure 2.

For the mating connector, use a 40-pin, nonshielded connector with 2 rows of 20 female contacts. We recommend the following part numbers:

AMP 499496 Berg Electronics 66900-040

Figure 2. The drive interface connector

2.3 Power connector

The drive comes with a standard 4-pin power connector. It is also available with a standard 3-pin power connector.

2.4 Master/slave jumper block

Figure 3 shows the location of the master/slave jumper block and shows how to install the jumpers for various configurations. The jumper block accepts 2-mm (0.079-inch) jumpers. A spare jumper is attached to the jumper block. If you need additional jumpers, use Seagate part number 10562-001 or an equivalent.

Caution. If you use a jumper that is not the correct size, you may damage

the jumper block and the jumper. Use the jumpers supplied with the drive.

Front

4-pin

power connector

8-pin

master/slave jumper block

Front

Cable select

40-pin

ATA interface

connector

Circuit board

+5V +5V return +12V return +12V

The drive is a master; a  slave is present that uses only the PDIAG– signal.

2-pin header

Drive activity

LED 

(optional)

3-pin

power connector 

(optional)

Keyway

Ground +12V +5V

The drive is a master; a slave is present, but it is not ATA-compatible.

The drive is a slave to an ATA-compatible master.

The drive is a master; the slave is either a Medalist family drive or  another ATA-compatible  drive, or there is no slave.

21436

587

Circuit board

Pin 1

Spare jumper 

across pin 1 and pin 3

–

Medalist XE Family Product Manual, Rev. B 13

Figure 3. Connectors and jumpers

2.4.1 Single-drive configuration

Use the factory-default jumper setting when the Medalist drive is installed as the single drive in the computer.

2.4.2 Two-drive configuration

When two drives are installed in the computer, you must configure one drive as the master and the other as the slave.

14 Medalist XE Family Product Manual, Rev. B

2.4.2.1 Medalist drive as master

The Medalist drives provide for three ways the slave can identify itself. You can configure the Medalist drive for a slave that is:

• An ATA-compatible drive

• A non-ATA-compatible drive that does not conform to the DASP–

timing parameter of the ATA spec

• A non-ATA-compatible drive that does not conform to the DASP– timing parameter of the ATA spec but negates PDIAG– when the drive is ready

2.4.2.2 Medalist drive as slave

The Medalist drive conforms to the ATA standard for slave identification. If the master drive is a non-ATA-compatible drive, it may not recognize the Medalist drive in the slave position. We recommend that you configure your Medalist drive as the master when used with a non-ATA-compatible drive.

2.4.3 Cable-select configuration

If your computer and both of your drives support cable select (CSEL), you can use the cable select option to determine the master and slave. To configure your drives to use cable select, you need to install jumpers and to use a special cable-select cable as follows:

• Install a jumper on pins 3 and 4 of the master/slave jumper block as shown in Figure 3 on page 13. When a jumper is installed in this position, the drive ignores the jumper installed on pins 7 and 8.

• You must use an interface cable built for cable-select. To make a drive the master, attach it to the connector that has the CSEL signal line connected to pin 28. To make a drive the slave, attach it to the connector that has pin 28 unconnected (CSEL is not carried to pin 28 of that cable connector.) Note that CSEL is grounded at the host.

Master

Slave

CSEL not carried to pin 28 of this connector

Computer

Pin 28 grounded at computer

Medalist XE Family Product Manual, Rev. B 15

Figure 4. Connecting cable-selected drives

2.4.4 Factory-test configuration

Do not install jumpers on pins 5 and 6 and pins 7 and 8 at the same time. This configuration is used to test the drive at the factory. When jumpers are installed in both of these positions, the heads continuously seek back and forth across the media and the drive ignores all control signals sent by the interface.

2.5 Optional drive activity LED

The drives are available with or without the external activity LED shown in Figure 3 on page 13. This option is available for users for whom the activity display through the bus is inaccessible or inconvenient. There are two LED options:

• The LED is mounted directly on the printed circuit board, or

• A two-pin header is mounted on the printed circuit board for a remote

LED. The anode pin of the header is nearest the edge of the PCB.

16 Medalist XE Family Product Manual, Rev. B

2.6 Mounting the drive

You can mount the drive in any orientation using either the bottom or the side mounting holes, as described below. Figure 5 shows the SAE dimensions for the drive. Figure 6 on page 18 shows the metric dimensions for the drive.

Note. The location of the mounting holes are different for the SAE and

metric drives. Overall, the drive dimensions are the same.

• SAE drives have an “S” stamped on the frame runner and accept 6-32 UNC screws.

• Metric drives have an “M” stamped on the frame runner and accept M3 screws.

Bottom mounting holes. Insert four mounting screws not more than

0.20 inches (6 full turns) into the drive frame.

Side mounting holes. Insert four mounting screws not more than

0.13 inches (4 full turns) into the drive frame.

Caution. To prevent damage to the drive:

• Use only mounting screws of the correct size and length.

• Lightly tighten the mounting screws—do not apply more than

6 inch-pounds of torque.

Four #6-32 UNC-2B mounting holes

1.75 ± 0.0102.375 ± 0.025

4.000 ± 0.010

2.362 ± 0.010

0.630 ± 0.025

0.250 ± 0.010

5.77 max

3.750± 0.030

4.02 max

0.15 ± 0.01 Six #6-32 UNC-2B mounting holes

0.030

1.000 max

Medalist XE Family Product Manual, Rev. B 17

Figure 5 shows the dimensions in inches. The mounting holes are located in different positions for the SAE drive than the mounting holes on the metric drive shown in Figure 6 on page 18.

Figure 5. Standard mounting dimensions

Four M3 × 0.5 mounting holes

70.002 ± 0.25430.988

± 0.635

89.992 ± 0.254

59.995 ± 0.254

21.006 ± 0.635

4.978 ± 0.254

146.56 max

93.98 ± 0.762

102.108 max

3.81 ± 0.254

Six M3 × 0.5 mounting holes

0.762

25.4 max

18 Medalist XE Family Product Manual, Rev. B

Figure 6 shows the dimensions in millimeters. This figure shows that the mounting holes for the metric drive are in different positions than the mounting holes for the SAE drive shown in Figure 5 on page 17.

Figure 6. Metric mounting dimensions

Medalist XE Family Product Manual, Rev. B 19

3.0 ATA interface

This section discusses commands and modes whose implementation is unique for these drives. For a general discussion of the Seagate ATA interface, refer to the tion number 36111supported BIOS are also discussed.

3.1 ATA interface connector pin assignments

The drive is connected to the computer through the 40-pin interface connector shown in Figure 3 on page 13. The pin assignments for the interface are shown in Figure 7 on page 20. For a complete description of each pin, see the

Note. This text uses the following conventions:

• Signal names are in upper case.

• Signal names followed by a minus sign (–) indicate that the

signal is active low. Otherwise, the signal is active high.

Note. The drives do not use the SPSYNC– signal.

Seagate ATA Interface Reference Manual

xxx

. Onboard diagnostics, ECC performance test and

Seagate ATA Interface Reference Manual

, publica-

3.2 Bus signal levels

Signals that the drive sends have the following output characteristics measured at the drive connector.

Logic low 0 to 0.4V Logic high 2.5 to 5.25V

Signals that the drive receives must have the following input characteristics measured at the drive connector.

Logic low 0 to 0.8V Logic high 2.0 to 5.25V

Drive 0

(master)

Drive 1

(slave)

28 34 39

SPSYNC−:CSEL

PDIAG

–

DASP–

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39

Host Reset Ground Host Data Bus Bit 7 Host Data Bus Bit 8 Host Data Bus Bit 6 Host Data Bus Bit 9 Host Data Bus Bit 5 Host Data Bus Bit 10 Host Data Bus Bit 4 Host Data Bus Bit 11 Host Data Bus Bit 3 Host Data Bus Bit 12 Host Data Bus Bit 2 Host Data Bus Bit 13 Host Data Bus Bit 1 Host Data Bus Bit 14 Host Data Bus Bit 0 Host Data Bus Bit 15 Ground (No Pin) DMA Request Ground Host I/O Write Ground Host I/O Read Ground I/O Channel Ready Cable Select DMA Acknowledge Ground Host Interrupt Request Host 16 Bit I/O Host Address Bus Bit 1 Passed Diagnostics Host Address Bus Bit 0 Host Address Bus Bit 2 Host Chip Select 0 Host Chip Select 1 Drive Active or Slave Present Ground

Host pin # and signal description

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

*28

29 30 31 32 33

*34

35 36 37 38

*39

Drive pin #

Signal name

20 Medalist XE Family Product Manual, Rev. B

–

Reset

Ground

DD7 DD8 DD6 DD9 DD5

DD10

DD4

DD11

DD3

DD12

DD2

DD13

*Indicates master-slave signals (details shown below).

Figure 7. ATA connector pin assignments

DD1

DD14

DD0

DD15

Ground

(removed)

DMARQ

Ground DIOW Ground

DIOR

Ground

IORDY

DMACK

Ground

INTRQ

IOCS16

DA1

PDIAG

DA0

DA2 CS1FX CS3FX

DASP Ground

– –

–

– –

–

SPSYNC−:CSEL

Host

28 34 39

Medalist XE Family Product Manual, Rev. B 21

3.3 Supported ATA commands

The table on page 22 lists all ATA commands that the ST3295A and ST3660A drives use. Commands that have a particular application for the drives or that may be of special interest are discussed in the text. For a complete description of all ATA interface commands the drives use, refer to the 36111Small Form Factor specification, SFF-8011 Rev 1.1, September 18,

1993. The table uses the following abbreviations:

FR Features register SC Sector count register SN Sector number register CY Cylinder register DH Drive/head register

Seagate ATA Interface Reference Manual

xxx

. Where indicated, additional information is provided by the

This register does not contain a valid parameter for this command.

This register contains a valid parameter for this command. In the drive/head register, both the drive and head parameters are valid for this command.

The drive/head register contains a valid drive parameter for this command. The head parameter is not valid for this command.

, part number

22 Medalist XE Family Product Manual, Rev. B

Command name

Active and Set Idle Timer FB n y n n D Active Immediate F9 n n n n D Check Idle Mode FD n y n n D Check Power Mode 98, E5 n y n n D Execute Drive Diagnostics 90 n n n n D Format Track 50 n y n y y Identify Drive EC n n n n D Idle 97, E3 n y n n D Idle and Set Idle Timer FA n y n n D Idle Immediate 95, F8, E1 n n n n D Initialize Drive Parameters 91 n y n n y Read DMA C8, C9 — y y y y Read Long 22, 23 n y y y y Read Multiple C4 n y y y y Read Sector 20, 21 n y y y y Read Sector Buffer E4 n n n n D Read Verify Sector 40, 41 n y y y y Recalibrate 1X n n n n D Seek 7X n n y y y Set Features EF y n n n D Set Multiple Mode C6 n y n n D Set Sleep Mode 99, E6 n n n n D Standby 96, E2 n n n n D Standby Immediate 94, E0 n n n n D Write DMA CA, CB — y y y y Write Long 32, 33 n y y y y Write Multiple C5 n y y y y Write Sector 30, 31 n y y y y Write Sector Buffer E8 n n n n D

Command

code (in hex)

Parameters used

FR SC SN CY DH

Medalist XE Family Product Manual, Rev. B 23

3.3.1 Identify Drive command (ECH)

The Identify Drive command transfers information about the drive to the host after power up. The data is organized as a single 512-byte block of data. The block’s contents are shown in the table below . All reserved bits or words must be set to zero. Parameters listed with an “x” are drive-specific or vary with the state of the drive.

The sector buffer parameters for ST3295A and ST3660A drives are listed in the table below. For a complete description of the Identify Drive command, see the number 36111-

Word Description Value

0 Configuration information

2 3

7–9

Seagate ATA Interface Reference Manual

xxx

045A

Bit 10: 1 = disc transfer greater than 10 Mbits/sec Bit 6: 1 = fixed drive Bit 4: 1 = head switch time > 15 µsec Bit 3: 1 = not MFM encoded Bit 1: 1 = hard-sectored disc

Number of fixed cylinders (default logical emulation)

ATA reserved 0000

ST3295A: 2F9 ST3660A: 421

Number of heads (default) ST3295A: E

ST3660A: 10

Number of unformatted bytes

8D90

per track Number of unformatted bytes

0248

per sector Number of sectors per track

(default logical emulation) ATA reserved (vendor-

ST3295A: 32 ST3660A: 3F

0000

unique)

, publication

H H

continued

1. The ST3660A default cylinder count is 1,057. Some DOS and BIOS combinations do not support more than 1,024 cylinders. You can format the drive using 1,024 cylinders, which limits the accessible capacity to 528 Mbytes, or use one of the solutions listed on page 2 to access the drive’s full capacity.

24 Medalist XE Family Product Manual, Rev. B

continued from previous page

Word Description Value

10–19

characters, 0000

= not

specified) Controller type = dual-ported

Serial number: (20 ASCII

multisector buffer with caching

Buffer size (number of 512byte sectors)

Number of ECC bytes available (R/W Long)

23–26 Firmware revision (8 ASCII

character string).

27–46 Drive model number (40

ASCII characters, padded to end of string)

47 Maximum sectors per

interrupt on read/write multiple

48 Double word I/O (not

supported)

49 DMA data transfer and

IORDY (supported)

50 ATA reserved 0000 51

PIO data transfer cycle timing mode

Single-word DMA transfer cycle timing mode

Bit 0 = 1 indicates the fields reported in words 54–58 are

valid; Bit 1 = 1 indicates the fields reported in words 64–8 are valid.

54 Number of cylinders (current

emulation mode)

55 Number of heads (current

emulation mode)

56 Number of sectors per track

(current emulation mode)

Drive-unique value expressed as ASCII characters

0003

00F0

(240D)

0010

(16D)

Drive-dependent string

Drive-dependent string: ST3

xxx

0010

0000

0B00

0200

0003

See Section 1.

Medalist XE Family Product Manual, Rev. B 25

Word Description Value

57–58 Number of sectors (current

See Section 1.

emulation mode)

60–61 LBA total sectors 3,295 532,700

Current multiple sector setting 01

3,660 1,065,046

Single-word DMA active;

0000

modes supported Multiword DMA active;

0103

modes supported Advanced PIO modes

0001

supported (Mode 3

supported)

Minimum multiword DMA transfer cycle time per word

Recommended multiword DMA transfer cycle time per

016B

(150 nsec)

(363 nsec)

word

69–127 128–159 160–255

Minimum PIO cycle time without IORDY flow control

Minimum PIO cycle time with IORDY

ATA reserved 0000 Seagate reserved ATA reserved 0000

016B

(363 nsec)

00B4H (180 nsec)

xxxx

2. Cycle times less than 363 nsec require IORDY.

26 Medalist XE Family Product Manual, Rev. B

3.3.2 Set Features command (EFH)

The host uses the Set Features command (command code EFH) to establish parameters that affect the execution of certain drive features. To use the command:

1. Write the Feature value to the Features register.

2. Write the Set Features command to the command register. Note. If the value in the Features register is not supported or is invalid,

the drive posts an Aborted Command error.

At power-on, or after a hard reset, the feature selections are restored to the factory-default values. If 66 change the feature selections (this can be canceled by setting CC 66

has not been set, a soft reset returns the settings to the factory

defaults. The following table shows alterable features supported by the ST3295A

and ST3660A drives. Where a factory default value exists, that value is listed.

Byte Feature description

has been set, a software reset does not

). If

02 03

55 66 77 82 88 AA BB CC

Enable write cache (factory default).

Set value for Set Transfer mode based on value in Sector

Count register. Use maximum length of ECC (16 bytes) on read long/write

long commands (factory default). Disable read look-ahead feature.

Use current settings as default (until hard reset or power off).

Disable ECC.

Disable write cache.

Enable ECC (factory default).

Enable read look-ahead feature (factory default).

4 bytes of ECC apply on read long/write long commands.

Enable reverting to power-on defaults (factory default).

Medalist XE Family Product Manual, Rev. B 27

3.3.2.1 PIO and DMA Data Transfer Modes

You can use the Set Features command to set the type of data transfer mechanism and transfer mode that the drive uses. To do this:

1. Write Set Features command value 03

(Set Data Transfer mode) to

the Features register.

2. Write a Transfer Types value to the Sector Count register. The upper 5 bits of this value define the type of data transfer, and the lower 3 bits encode the mode value. The following table identifies allowable Transfer Types values:

Data Transfer Mechanism Transfer Types value

Mechanism name

PIO Transfer Mode (default: Set PIO Mode = 2)

PIO Transfer Mode: Set PIO Mode = 2

PIO Flow Control Transfer Mode: Set PIO Mode = 0

PIO Flow Control Transfer Mode: Set PIO Mode = 1

PIO Flow Control Transfer Mode: Set PIO Mode = 2

PIO Flow Control Transfer Mode: Set PIO Mode = 3

Multiword DMA Mode Multiword DMA Mode Reserved

Mode

value

2 00000 000

2 00000 001

0 00001 000

1 00001 001

2 00001 010

3 00001 011 0 00100 000

1 00100 001

— 01000

Data

Upper 5 bits

Lower 3 bits

nnn

Notes:

1. If the drive does not support a commanded mode, the drive

returns an Aborted Command error.

2. If the drive receives a Set Features command with a Mechanism and mode value of 00000 001 and the drive supports disabling of IORDY, then the drive sets its default PIO transfer mode and disables IORDY.

Reserved values are intended for use in a future specification of an alternative flow-control mechanism.

28 Medalist XE Family Product Manual, Rev. B

3.3.3 Set Multiple Mode command (C6H)

Command code C6H enables the drive to perform Read and Write Multiple operations and establishes the block count for these commands. You do not have to issue this command before every Read Multiple or Write Multiple command.

The Sector Count register is loaded with the number of sectors per block. Drives normally support block sizes of 2, 4, 8 and 16 sectors. However, other block-size values may also be supported, depending on the size of the drive’s buffer. After receiving the Set Multiple Mode command, the drive sets BSY=1 and checks the Sector Count register.

If the Sector Count register contains a valid value and the block count is supported, the value is loaded for all subsequent Read Multiple and Write Multiple commands and execution of those commands is enabled. If a block count is not supported, an Aborted Command error is posted, and Read Multiple and Write Multiple commands are disabled.

If the Sector Count register contains 0 when the command is issued, Read and Write Multiple commands are disabled.

At power on, or after a hardware reset, the default mode is Read and Write Multiple disabled. If Disable Default has been set in the Features register, then the mode remains the same as that last established before a software reset. Otherwise it reverts to the default of disabled.

3.3.4 Read Multiple command (C4H)

This command (code C4H) is similar to the Read Sectors command. Interrupts are not generated on every sector, but on the transfer of a block that contains the number of sectors defined by a Set Multiple Mode command.

The number of sectors per block to be transferred without intervening interrupts is programmed by the Set Multiple Mode command, which must be executed before the Read Multiple command. Interrupts are generated when DRQ is set to 1 at the beginning of each block or partial block.

When the Read Multiple command is issued, the Sector Count register contains the number of sectors (not the number of blocks or the block count) requested.

Medalist XE Family Product Manual, Rev. B 29

If the number of requested sectors is not evenly divisible by the block count, as many full blocks as possible are transferred, followed by a final, partial block transfer. The partial block transfer is for

= remainder (sector count / block count)

If the Read Multiple command is attempted before the Set Multiple Mode command has been executed or when Read Multiple commands are disabled, the Read Multiple operation is rejected with an Aborted Command error.

Disc errors encountered during Read Multiple commands are posted at the beginning of the block or partial block transfer, but DRQ is still set and the data transfer takes place as it normally would, including transfer of corrupted data, if any.

The contents of the Command Block registers, following the transfer of a data block that had a sector in error, are undefined. The host should retry the transfer as individual requests to obtain valid error information.

Subsequent blocks or partial blocks are transferred only if the error was a correctable data error. All other errors cause the command to stop after the block containing the error is transferred.

sectors, where

3.3.5 Write Multiple command (C5H)

This command (command code C5H) is similar to the Write Sectors command. Interrupts are not presented on each sector but on the transfer of a block that contains the number of sectors defined by Set Multiple Mode command.

The number of sectors per block to be transferred without intervening interrupts is programmed by the Set Multiple Mode command, which must be executed before the Write Multiple command.

When the Write Multiple command is issued, the Sector Count register contains the number of sectors (not the number of blocks or the block count) requested.

If the number of requested sectors is not evenly divisible by the block count, as many full blocks as possible are transferred, followed by a final, partial-block transfer. The partial-block transfer is for

= remainder (sector count / block count)

If the Write Multiple command is attempted before the Set Multiple Mode command has been executed or when Write Multiple commands are disabled, the Write Multiple operation is rejected with an aborted command error.

sectors, where

30 Medalist XE Family Product Manual, Rev. B

Disc errors encountered during Write Multiple commands are posted after the attempted disc write of the block or partial block transferred. The Write command ends with the sector in error, even if it was in the middle of a block. Subsequent blocks are not transferred in the event of an error. Interrupts are generated when DRQ is set to 1 at the beginning of each block or partial block.

The contents of the Command Block registers are undefined when they follow the transfer of a data block that had a sector in error. The host should retry the transfer as individual requests to obtain valid error information.

3.4 Onboard drive diagnostics

During startup, the drive executes a series of diagnostic tests. If the diagnostic tests detect an error, the drive LED indicates the nature of the error by emitting a flash code. A subset of the error flash codes is contained in the following table.

Number of

flashes

Irregular flashes Microprocessor error

2 ROM checksum error 3 External RAM error 4 I/O chip error 5 Buffer RAM error

Error code description

3.5 ECC performance tests

The drive does not report ECC errors when it performs on-the-fly error correction. This allows the drive to correct the data without sacrificing performance.

Some older drive diagnostic utilities test the drive’s ability to apply ECC by creating small data errors and then checking to see if these errors are reported. If you run one of these tests on a drive that is functioning properly, the test may report that the drive is failing to detect ECC errors. However, this does not mean that the drive is malfunctioning.

Medalist XE Family Product Manual, Rev. B 31

3.6 Supported BIOS

The drive uses 16 bytes of ECC with Read Long and Write Long commands. If the computer BIOS expects less than 16 bytes, some drive diagnostics may return false failures (typically time-out errors). If so, you must reconfigure the computer to receive 4 bytes of ECC.

The BIOS revisions listed in the following table are fully compatible with the ATA interface implemented on the ST3295A and ST3660A drives. Earlier BIOS revisions than those listed may not fully support the ATA interface as implemented on these drives.

BIOS manufacturer Version supported

American Megatrends Dated 4/9/90 or later Award 3.04 or higher Quadtel Single drive, any version

Dual drive, 3.04 or higher

Phoenix ROM BIOS Plus 286, 3.10 or higher

ROM BIOS Plus 386, 1.10 or higher

PhoenixBIOS 1.00 or higher

Seagate Technology, Inc. 920 Disc Drive, Scotts Valley, California 95066, USA

Publication Number: 36283-001, Rev. B, Printed in USA

Maxtor 545XE, 275XE Product Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
