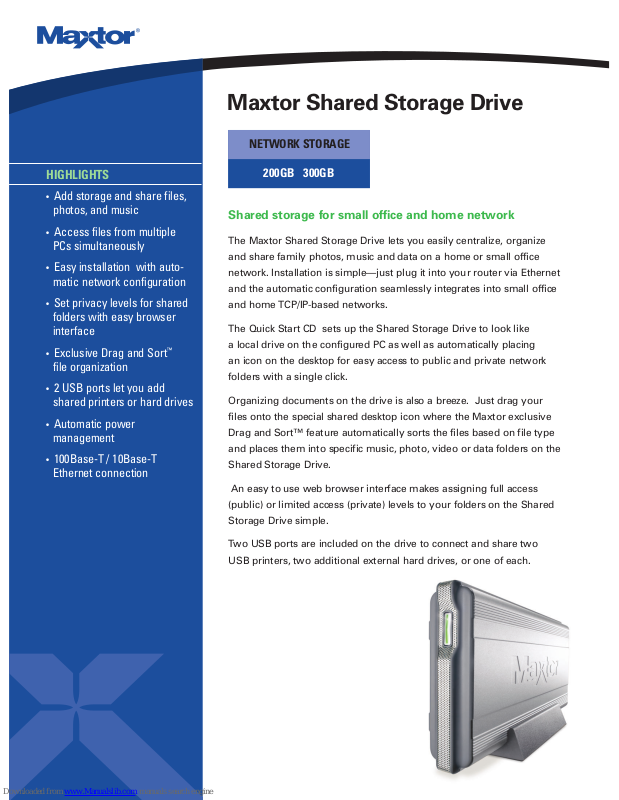

Maxtor 200GB, 300GB Specifications

Shared storage for small office and home network

The Maxtor Shared Storage Drive lets you easily centralize, organize

and share family photos, music and data on a home or small office

network. Installation is simple—just plug it into your router via Ethernet

and the automatic configuration seamlessly integrates into small office

and home TCP/IP-based networks.

The Quick Start CD sets up the Shared Storage Drive to look like

a local drive on the configured PC as well as automatically placing

an icon on the desktop for easy access to public and private network

folders with a single click.

Organizing documents on the drive is also a breeze. Just drag your

files onto the special shared desktop icon where the Maxtor exclusive

Drag and Sort™ feature automatically sorts the files based on file type

and places them into specific music, photo, video or data folders on the

Shared Storage Drive.

An easy to use web browser interface makes assigning full access

(public) or limited access (private) levels to your folders on the Shared

Storage Drive simple.

Two USB ports are included on the drive to connect and share two

USB printers, two additional external hard drives, or one of each.

Maxtor Shared Storage Drive

NETWORK STORAGE

200GB 300GB

HIGHLIGHTS

• Add storage and share files,

photos, and music

• Access files from multiple

PCs simultaneously

• Easy installation with auto-

matic network configuration

• Set privacy levels for shared

folders with easy browser
interface

• Exclusive Drag and Sort

™

file organization

• 2 USB ports let you add

shared printers or hard drives

• Automatic power

management

• 100Base-T / 10Base-T

Ethernet connection

*For Windows OS versions Win 98SE, Win ME, Win 2000, Win XP † software does not work with the Server editions of these operating systems. ** FW: with FireWire interface only.

For purposes of measuring storage capacity, a gigabyte (GB) equals 1,000,000,000 bytes. Total accessible capacity varies depending on operating environment. Maxtor OneTouch is an element of your overall data protection plan.
© 2005 Maxtor Corporation. Maxtor, What drives you and the Maxtor stylized logo are registered trademarks, and Maxtor DriveLock is a trademark of Maxtor Corporation. Dantz, the Dantz logo, and Retrospect are registered trademarks of
Dantz Development Corporation. (Dantz Development Corporation: U.S. patents 5,150,473 and 5,966,730. Other patents pending.) Mac and the Mac logo are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. The
USB-IF logos are trademarks of Universal Serial Bus Implementers Forum, Inc. Microsoft, Windows and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Other trademarks are the property of their respective holders. Actual product may vary from photo shown. Specifications are subject to change without notice. Maxtor Corporation, 500 McCarthy Boulevard, Milpitas, CA 95035.
www.maxtor.com. DS-MSS-02/05-CL

Technical

Capacity (model numbers):

• 200GB (H01P200)

• 300GB (H01R300)

Cache buffer:

• 16MB—300GB

• 8MB—200GB

Client computers:

•Windows PC

LAN standards:

• IEEE 802.1, IEEE 802.3u

Connectivity:

•1 - 10/100 RJ-45 Ethernet

•2 - USB 2.0 port for expansion, including USB printers
and external hard drives

Performance

Ethernet transmission speed (maximum):

• 100Mbps/10Mbps

Average seek time:

• ≤ 9.0 ms

Bus transfer rate (maximum):

• USB2—480 Mb/sec

Environmental

Operating temperature: 5º C to 35º C (41º F to 95º F)

Physical

Dimensions: 1 5/8 x 5 1/2 x 10 11/16 inches (41 x 140 x 271 mm)

Weight: 3.7 lbs (1.7 Kg)

Power Requirements

AC Input Voltage: 100–240 VAC

Input Frequency: 47–63 Hz AC

Specifications

• Windows®98SE, Me, 2000, XP

• Wired or wireless router with an available 10/100 Ethernet RJ-45 port

• Internet Explorer 6.0 or higher for management interface of Shared
Storage Drive

• Internet connection for updates

Minimum System Requirements

For support or information, call us at 1-866-746-4924 or visit us at www.maxtor.com

Shared storage drive

Ethernet cable

External AC power adapter

Quick Start CD

User’s guide

Maxtor limited warranty

Included in the box

Shared Storage Drive—Management Interface
