Maxtium Computer EXB, LXB User Manual

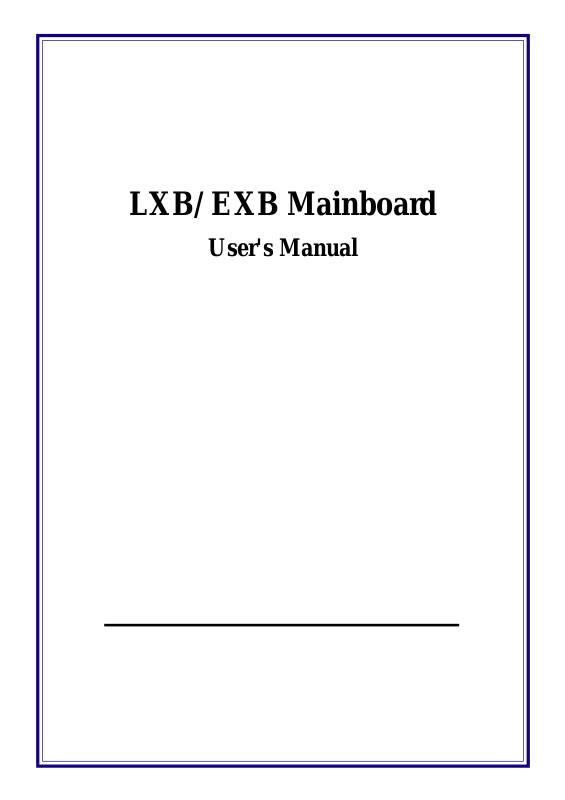

LXB/EXB Mainboard

User's Manual

LXB/EXB User's Manual

FCC & DOC Compliance

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following

two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference

that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable ates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the manufacturer’s instructions, may cause harmful interference to
radio communication. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning! The use of shielded cables for the connection of the monitor to the
graphics card is required to assure compliance with FCC regulations Changes or
modifications to this authority to operate this equipment.

Version 1.0

Copyright  November 1997 All right reserved

This publication may not be copied, reproduced, translated, to any printed or
electronic medium or to any machine readable form without the written consent of the
copyright holders.

The contents or this publication are subject to change. The manufacturer reserves
the right to alter the contents of this publication at any time and without notice. The
contents of this publication may contain inaccuracies or typographical errors and is supplied
for informational use only.

LXB/EXB User's Manual

Chapter 1 : Package & Product Information

Manual Features.........................................................................1-1

Check list....................................................................................1-1

Mainboard Specifications..........................................................1-2

Layout..........................................................................................1-4

Hardware Control & Indicator Connectors...............................1-5

LXB/EXB System Block Diagram............................................1-6

Chapter 2 : Reconfiguring your mainboard

Jumper Settings..........................................................................2-1

CMOS Clear setting...................................................................2-1

CPU Clock setting.....................................................................2-2

Panel Connector.........................................................................2-3

System Memory Installation......................................................2-4

Chapter 3 : CMOS Setup Utility Summary

Main Menu.................................................................................3-1

Standard CMOS Setup...............................................................3-4

BIOS Features Setup.................................................................3-6

Chipset Features Setup..............................................................3-9

Power Management Setup.........................................................3-13

PnP/PCI Configuration Setup..................................................3-17

Integrated Peripherals Setup....................................................3-19

Password Setting........................................................................3-22

Chapter 4 : Motherboard BIOS Upgrade

Flash Utility Maxflash.exe.........................................................4-1

LXB/EXB User's Manual

Chapter1: Package & Product Information

This Manual contains all the information and features that show
you how to use the LXB/EXB mainboard. Please take a moment to
familiarize yourself with the design and organization of this manual.

1-1 Manual Features

This manual is divided into four chapters:
Chapter 1:Package & Product Information

A brief overview of what comes in the mainboard
package and the feature it appears.

Chapter 2:Reconfiguring your Mainboard

How to change or upgrade the mainboard by
jumper settings

Chapter 3:CMOS Setup Utility Summary

A summary of the mainboard settings and
specifications.

Chapter 3:Motherboard BIOS Upgrade

1-2 Check list

LXB/EXB mainboard package contains the following items.
Please inspect the package contents and confirm that everything is
there . If anything is missing or damaged, call your vendor for
instructions before operating.

The package includes:

nLXB/EXB Mainboard

nOne Floppy & IDE cable
nOne CD tiltle for Bus Master drivers

& Utilities

nUser’s Manual

nPentium II Retention Module
nOne Serial port bracket
nOne Paralle port & PS/2 Mouse bracket
nQuick Installation guide

Chapter 1-1

LXB/EXB User's Manual

1-3 Mainboard Specifications

The mainboard is a high-performance mainboard based on the
advanced Pentium II microprocessor and featuring PCI Local Bus, it
offers a high degree of flexibility in configuration and is fully IBM
PC/AT compatible.

The mainboard includes the following features:

n AT form factor Motherboard

n Intel 440 LX AGP Chipsets

n Switching power provides CPU CORE voltage from

2.0V to 3.5V

n Supports 1 x AGP bus, 4 x PCI BUS with Master mode

and 2 x ISA BUS.

n Supports recoverable fuse for USB and KB/MOUSE

n Dual PCI IDE port up to 4HDDs (PIO mode 4, DMA

Chapter 1-2

mode 2, or Ultra DMA 33)

n Multi-Boot by IDE, SCSI, CDROM, FDD, ZIP and

LS-120

n Provides dual ATX (20-pin) and AT(12-pin) power

connectors and ATX power supports Suspend Switch,
Power Button, Modem Ring On, Wake On LAN, and
Alarm Wake Up

n Award BIOS

n Supports Advanced Configuration and Power Interface

(ACPI) Specification and OS Directed Power
Management

n Year 2000 Compliance

LXB/EXB User's Manual

n Supports Pentium II/Celeron CPUs with Slot 1 socket,

the maximum speed up to 333MHz or above.

n Supports 64-Mbit(16Mx4, 8Mx8, 4Mx16) EDO DRAM/

SDRAM technology

n 3x168-pin DIMM to support SDRAM/EDO DRAM up

to 384MB

n Onboard PCI Bus Master IDE interface supports 4 IDE

devices with 2 channels; BIOS supports 4 IDE hard drives
drives which do not need device driver for S/W application
and the capacity of each harddisk can be larger than
528MB and up to 136GB

n PCI IDE Controller supports PIO Mode 0 to Mode 4,

Ultra DMA/33 at maximum transfer rate of 33 MB/s, and
Bus Master IDE DMA Mode 2

n Supports 2.88MB, ZIP, and IDE LS-120 FDD; bootable

from floppy, HDD, CD-ROM, SCSI, NetWork, LS-120,
ZIP, or others

n Onboard super Multi-I/O chip supports 2 serial ports with

16C550 fast UART compatible, 1 parallel port with EPP
and ECP capabilities, and one floppy disk drive interface

n Supports PS/2 Mouse connector
n Floppy Disk supports 360KB/720KB/1.2MB/1.44MB/

2.88MB

Chapter 1-3

LXB/EXB User's Manual

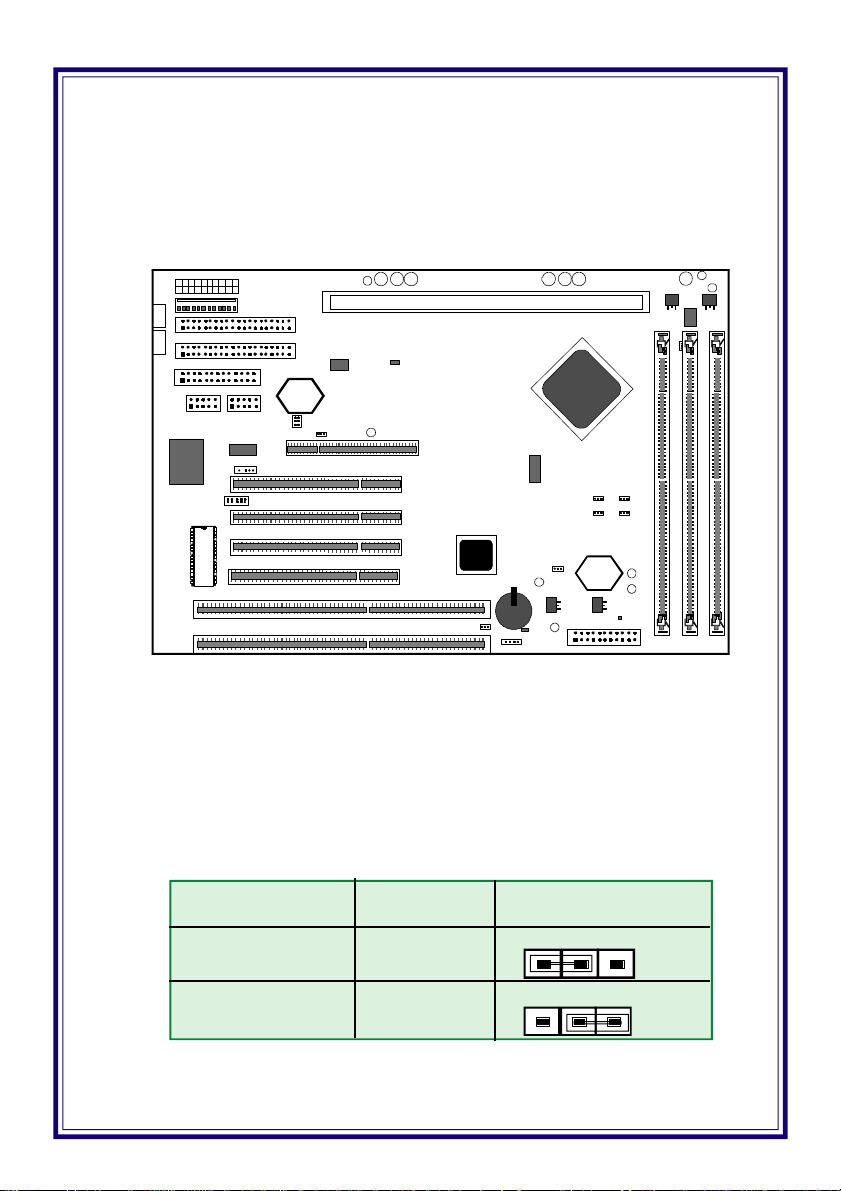

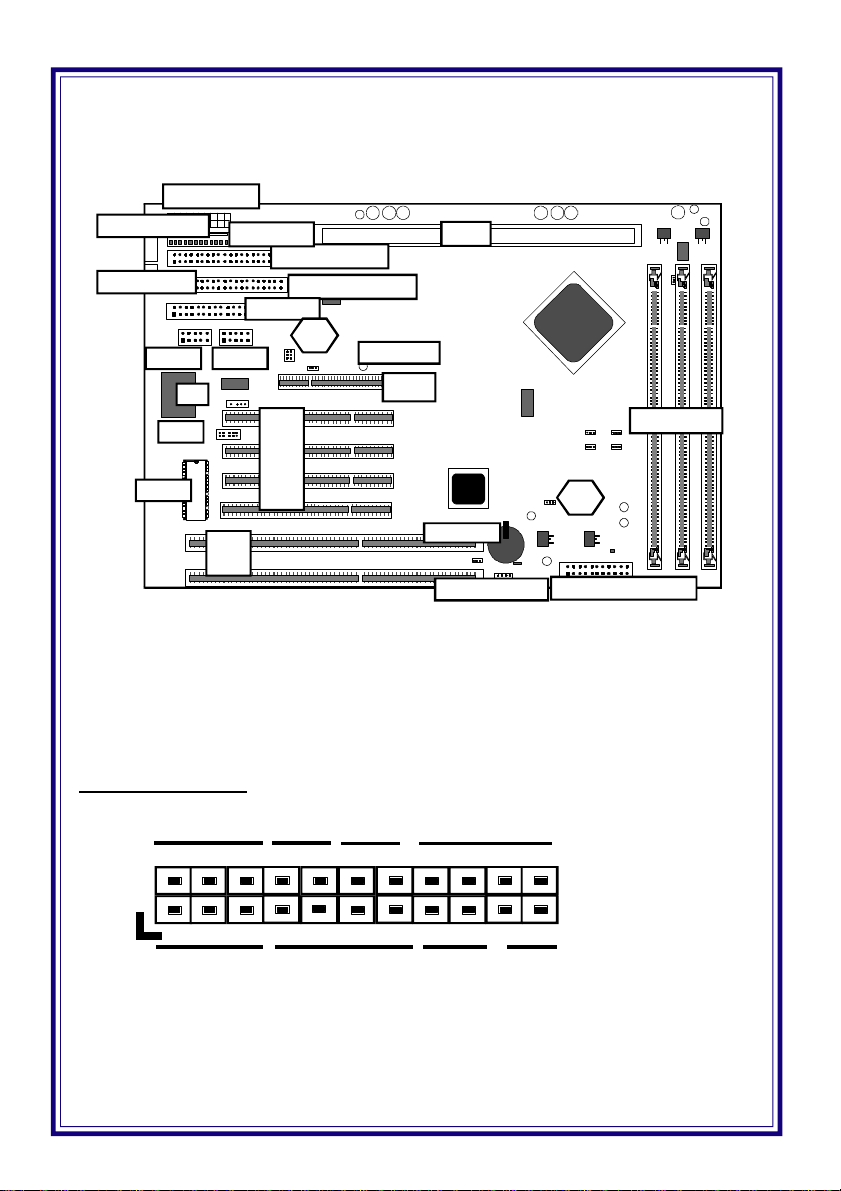

1-4 Layout

ATX power

AT Keyboard

PS/2 Mouse

COM1

USB

BIOS

AT power

COM2

IR

Primary IDE

Secondary IDE

Printer

JP2

PCI1
PCI2
PCI3
PCI4

SLOT1

CPU FAN

AGP

DIMM1,2,3

JP1

ISA1
ISA2

Jumpers & Connectors

The illustration above shows the location of the jumpers, ports

and other connectors on the mainboard.

Panel Connector

PWR LED

+ + -

+ -

GRN LED

KBLCK

+ - - +

SLP

+ - - +

CHAFAN

Wake on Lan Panel Connector

SPEAKER

RESETHDD LED

PWR ON

Chapter 1-4

LXB/EXB User's Manual

1-5 Hardware Control & Indicator Connectors

There are some control features and status indicators that connect

from the mainboard to your system case, these are:

• Power Switch

• Power Status Indicator

• Reset Switch

• Hard Disk Drive Activity Indicator

• Keyboard Lock

• Suspend Status Indicator

Name Function

SLOT 1 For Pentium II CPU Connector
Primary IDE 40 pin connector connects to 2 device cable;

End device is Primary Master, middle is Slave

Secondary IDE 40 pin connector connects to 2 device cable;

End device is Secondary Master, middle is Slave
AT Keyboard AT Keyboard Connector
PS/2 Mouse PS/2 Mouse Connector
Printer Standard parallel port supports enhanced modes
COM1 Onboard 9-pin serial port, can be set to COM3
COM2 Onboard 9-pin serial port, can be set to COM4
USB Universal Serial Bus ports, two stacked ports
IR IR header
CPU FAN For cooling fan power cable
CHAFAN Chassic FAN or system FAN
ATX power ATX Power Supply Connector
AT power AT Power Supply Connector
JP1 CMOS RAM Clear Selector
JP2 CPU Clock Ratio
Wake on Lan Lan Wake up Connector

Chapter 1-5

LXB/EXB User's Manual

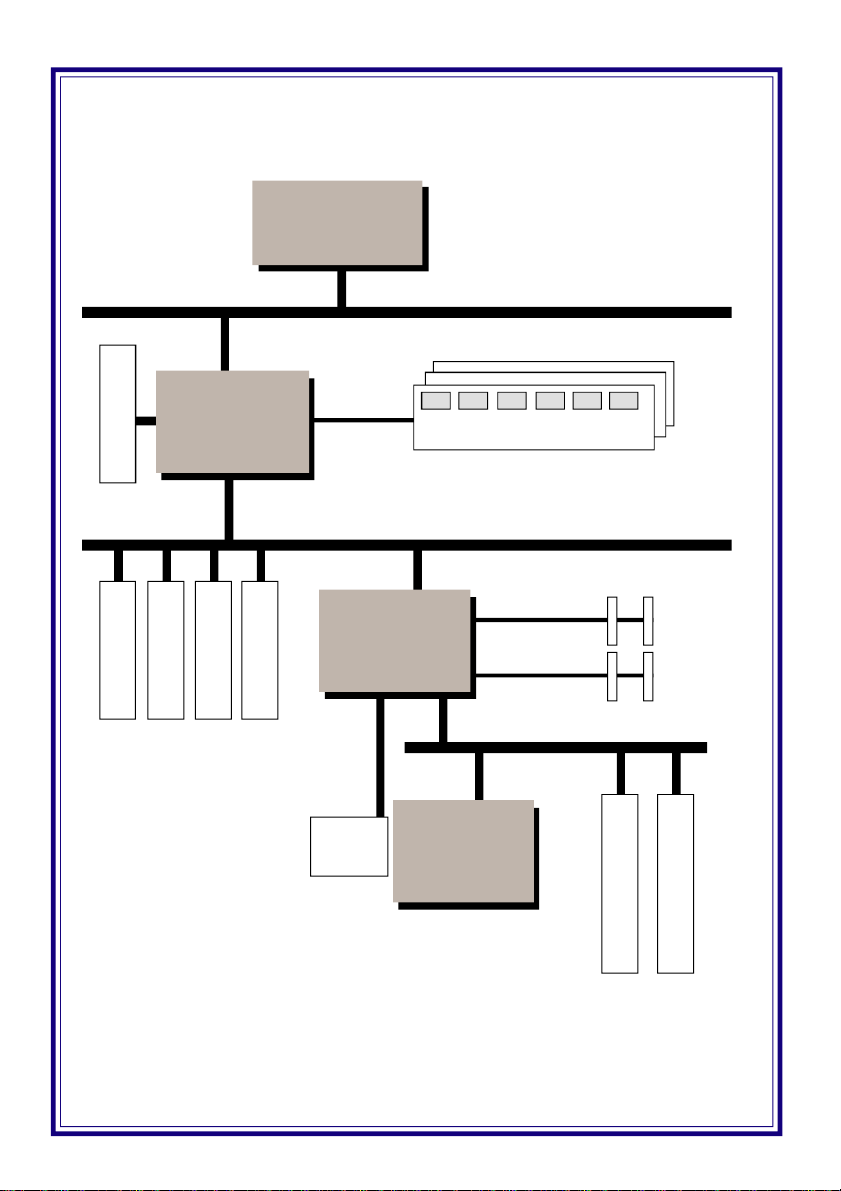

1-6 P2LXB System Block Diagram

Pentium II
Processor

Host Bus

PCI/AGP
Controller

FW82443LX

AGP Slot x 1

PCI Bus

DIMM x 3

DIMM 168 pins

Chapter 1-6

PCI Slot x 4

PIIX4

FW82371AB/EB

USB

Super I/O
ITE
IT8679/IT8687

Primary IDE

Secondary IDE

ISA Bus

ISA Slot x 2

LXB/EXB User's Manual

Chapter 2:Reconfiguring your Mainboard

2-1 Jumper Settings

Here is the jumpers location / setting as follows,

JP2

JP1

2-2 CMOS Clear Setting

JP1: CMOS CLEAR
CMOS JP1 Setting
*NORMAL 1-2
CLEAR 2-3

*: Default setting

1

1

Chapter 2-1

LXB/EXB User's Manual

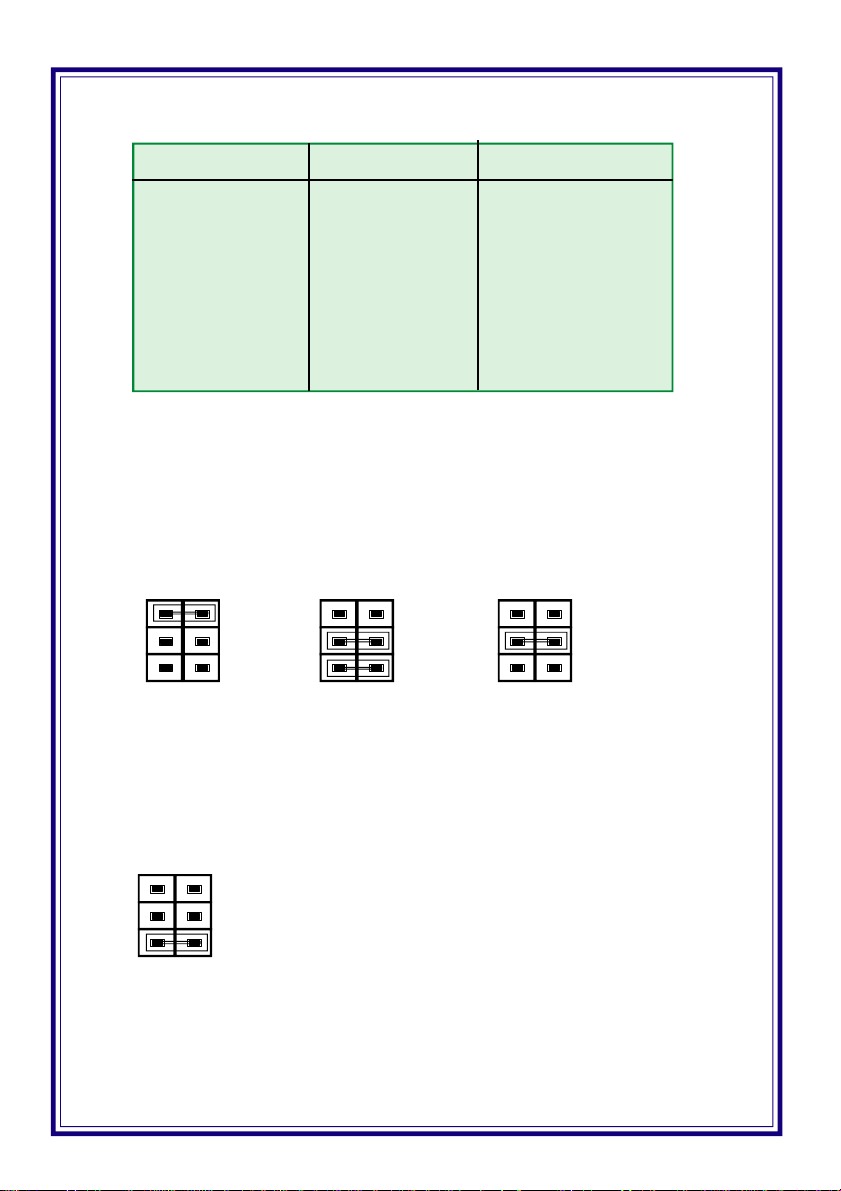

2-3 CPU Clock Setting

CLK RATIO CPU TYPE JP2

3.5X 233MHz 1-2 - -

*4X 266MHz - 3-4, 5-6

4.5X 300MHz - 3-4 ­5X 333MHz - - 5-6

JP2: CPU CLOCK RATIO

CLK RATIO/CPU TYPE

3.5X/233MHz

1 2

5 6

5X/333MHz

1 2

5 6

*4X/266MHz

1 2

5 6

*: Default setting

4.5X/300MHz

1 2

5 6

Chapter 2-2

LXB/EXB User's Manual

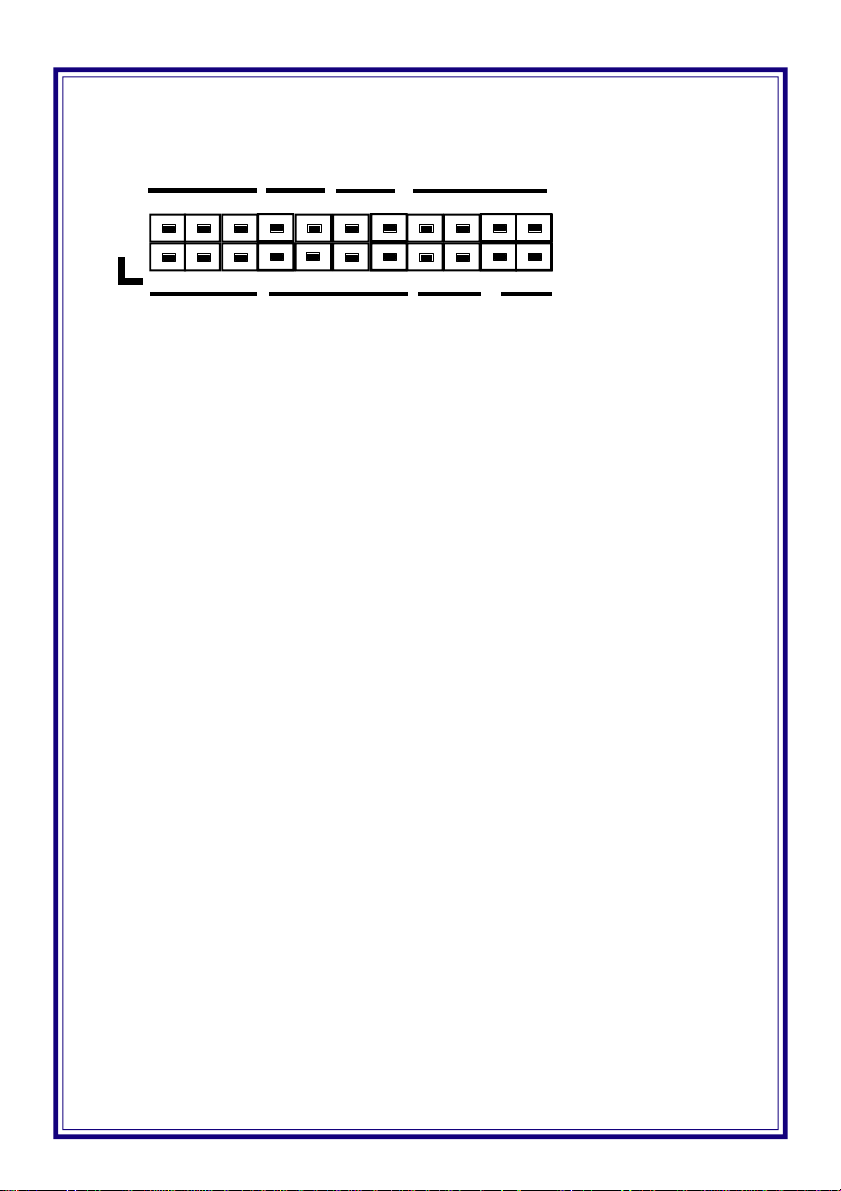

2-4 Panel Connector

PWR LED

+ + -

2
1

+ -

GRN LED

KBLCK

+ - - +

HDD LED

SLP

SPEAKER

+ - - +

22
21

PWR ONRESET

• GRN LED: Green LED(Pin1,3,5)

• HDD-LED:HDD LED Connector(Pin7,9,11,13)

• RESET:Reset Switch Connector(Pin15,17)

• *PWR ON:ATX Power Button and Suspend

Switch(Pin19,21)

• Power LED Connector(Pin2,4,6)

• KBLCK:Keylock Connector(Pin8,10)

• SLP:Suspend LED Connector(Pin12,14)

• SPEAKER:Speaker Connector(Pin16,18,20,22)

*PWR ON: ATX Power Button and Suspend Switch Connector

Attach the ATX Power Button or Suspend Switch cable to this connector.
In the ATX power system, this connector will be not only an ATX power

button but a Suspend switch as well. Details are described below:

When the system is off, push the power button to turn the system on.
When the system is on, push the power button rapidly to switch the system to the
Suspend mode, and, by pushing and holding the button for more than 4 seconds,
it will turn the system completely off. When the system is in the Suspend mode,
push the power button rapidly to turn the system on.

Chapter 2-3

LXB/EXB User's Manual

2-5 System Memory Installation

The mainboard lets you add up to 384 MB of system memory
through DIMM sockets on the board. Three DIMM sockets on the
board that are divided into 3 banks: Bank1, Bank2, Bank3. Each bank
consists 168-pin DIMM modules. The mainboard supports the following
memory configurations. We suggest you use the same type DIMM
modules for better compatibility.

Bank Memory Module

Bank1
DIMM1 8MB, 16MB, 32MB, 64MB
(168-pin DIMM) 128MB
Bank2
DIMM2 8MB, 16MB, 32MB, 64MB
(168-pin DIMM) 128MB
Bank3
DIMM3 8MB, 16MB, 32MB, 64MB
(168-pin DIMM) 128MB

Total System Memory= Bank1+ Bank2+ Bank3

Chapter 2-4

LXB/EXB User's Manual

Memory Combinations

3 DIMM sockets support up to 384MB. Memory combinations
such as 8MB, 16MB, 24MB, 32MB, 40MB, 48MB, 64MB, 72MB,

80MB, 96MB, 128MB, 144MB, 160MB, 192MB.....384MB and etc.

The following table is an example for your reference:

[ex]

DIMM 1 DIMM2 DIMM3 TOTAL

8MB X X 8MB
X 8MB X
X X 8MB
16MB X X 16MB
X 16MB X
X X 16MB
8MB 16MB X 24MB
8MB X 16MB
X 8MB 16MB
X 16MB 8MB
16MB 8MB X
16MB X 8MB
32MB X X 32MB
16MB 16MB X

.
.
.

128MB 128MB 128MB 384MB

Chapter 2-5

LXB/EXB User's Manual

Chapter 3:CMOS Setup Utility Summary

This chapter describes Award BIOS setup for P2LXB. To run
the CMOS Setup Utility, press the <Del> or <Delete> key while the
computer is staring up, before the operating starts to load. The utility’s

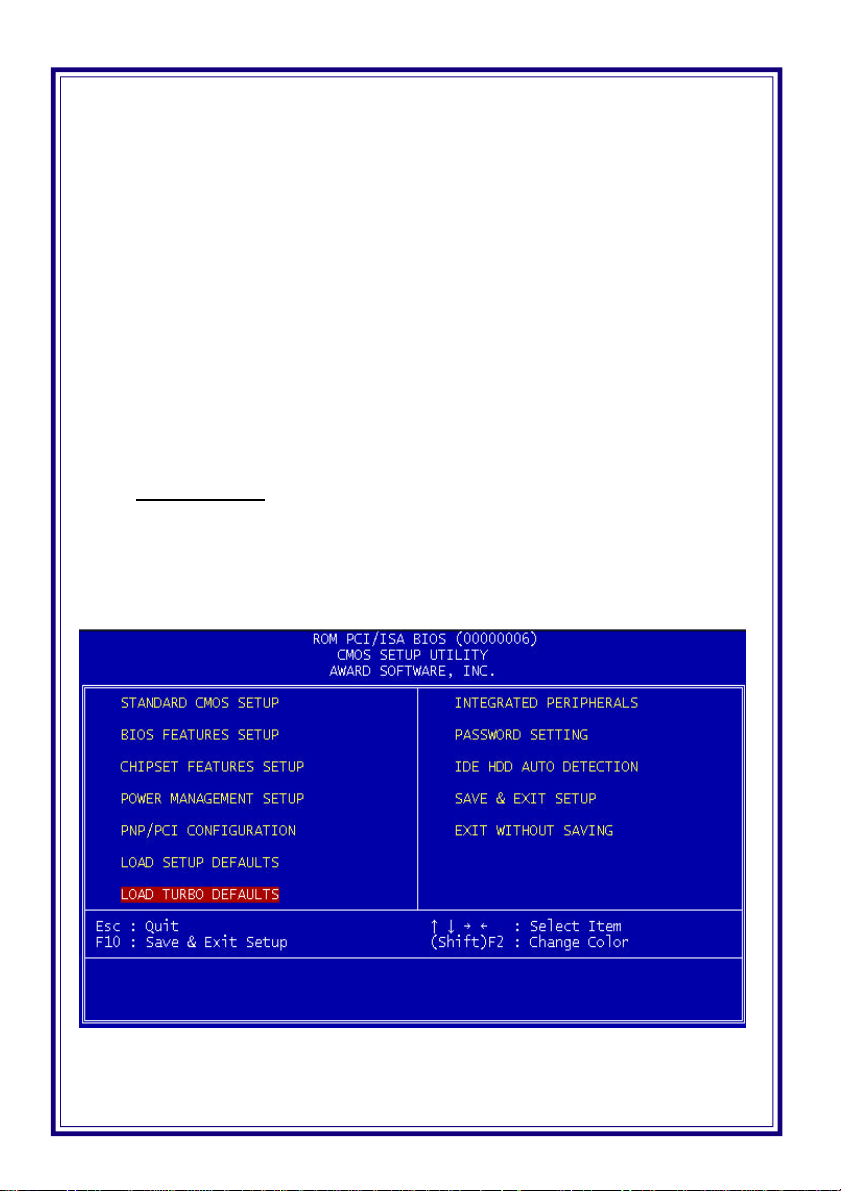

main screen will appear as shown on the following screen .

To navigate the program, use the controls shown on the screen.
The utility has several sections. Many of the features configured by
the utility are set to operate automatically when the “Setup Defaults”,
the recommended mode, are used. With Setup Defaults loaded you
can still customize various setting.

Quick Setup: This is a recommendation for your first installing
system. Just select “LOAD SETUP DEFAULT” while entering

Main Menu Setup then type [F10] to save and exit setup.

3-1 Main Menu

This option displays a table of items which defines basic information
about your system.

Chapter 3-1

LXB/EXB User's Manual

Menu Commands

If you look at the lower portion of the screen illustration you’ll
see a section that lists the control commands for this level of the
program. The program commands are:

Quit

This command will close the Setup program when you press

the <ESC> key.

Help

This displays information about the highlighted item when you

press the <F1> key.

Select Item

You can use the arrow keys on your keyboard to move around

the screen and select a menu item. An item is highlighted when

it is selected.

Change Color

Chapter 3-2

You can change the program color scheme by pressing

“<Shift>+<F2>”

There are 13 main sections to the Setup program:

Standard CMOS Setup

Date, time, disk drive, video display and error handling.

BIOS Features Setup

System customization features and video display memory
Shadow settings.

Chipset Features Setup

Chipset settings, memory configuration feature for specialized
add-on cards and VGA memory configuration.

Power Management Setup

Sets up the “green” power management features.

LXB/EXB User's Manual

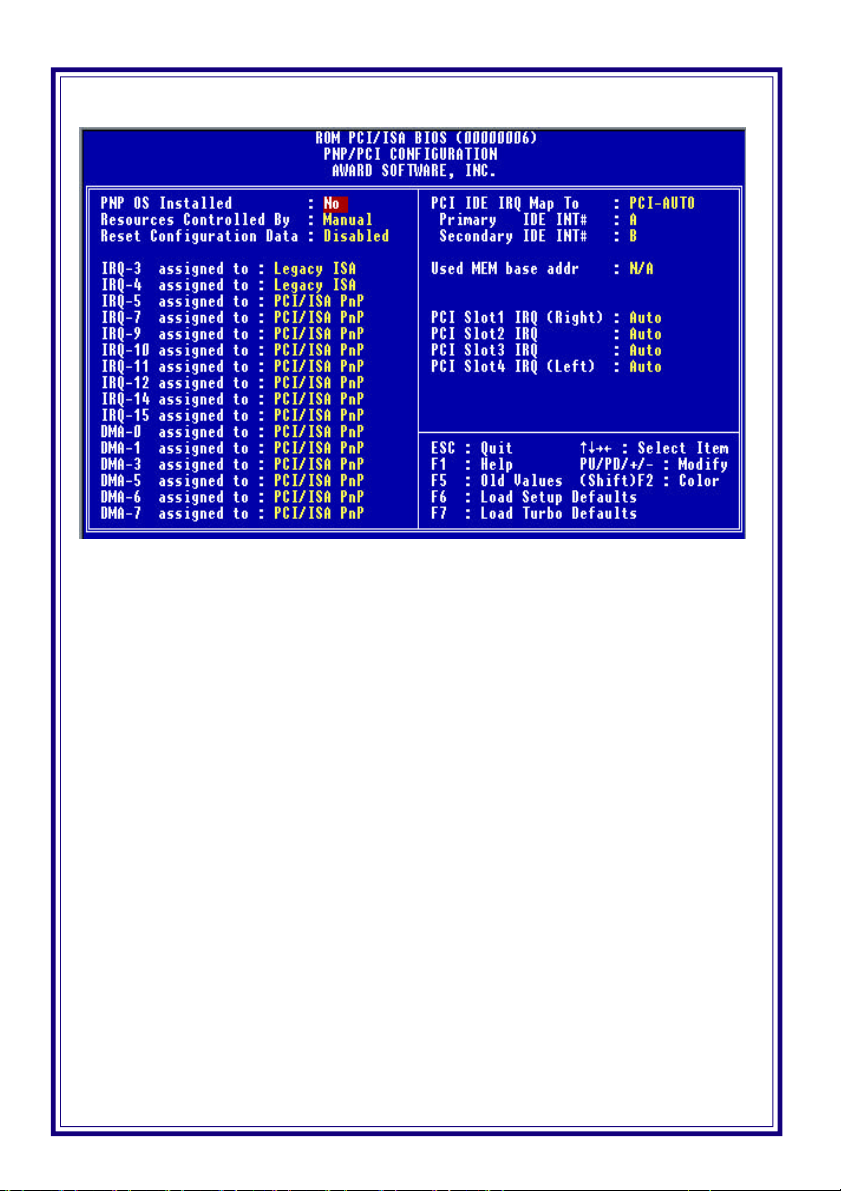

PNP/PCI Configuration

PCI expansion slot and system resource settings

Load SETUP Defaults

Loads minimum settings from the BIOS ROM.

Load TURBO Defaults

Loads optimized settings from the BIOS ROM.

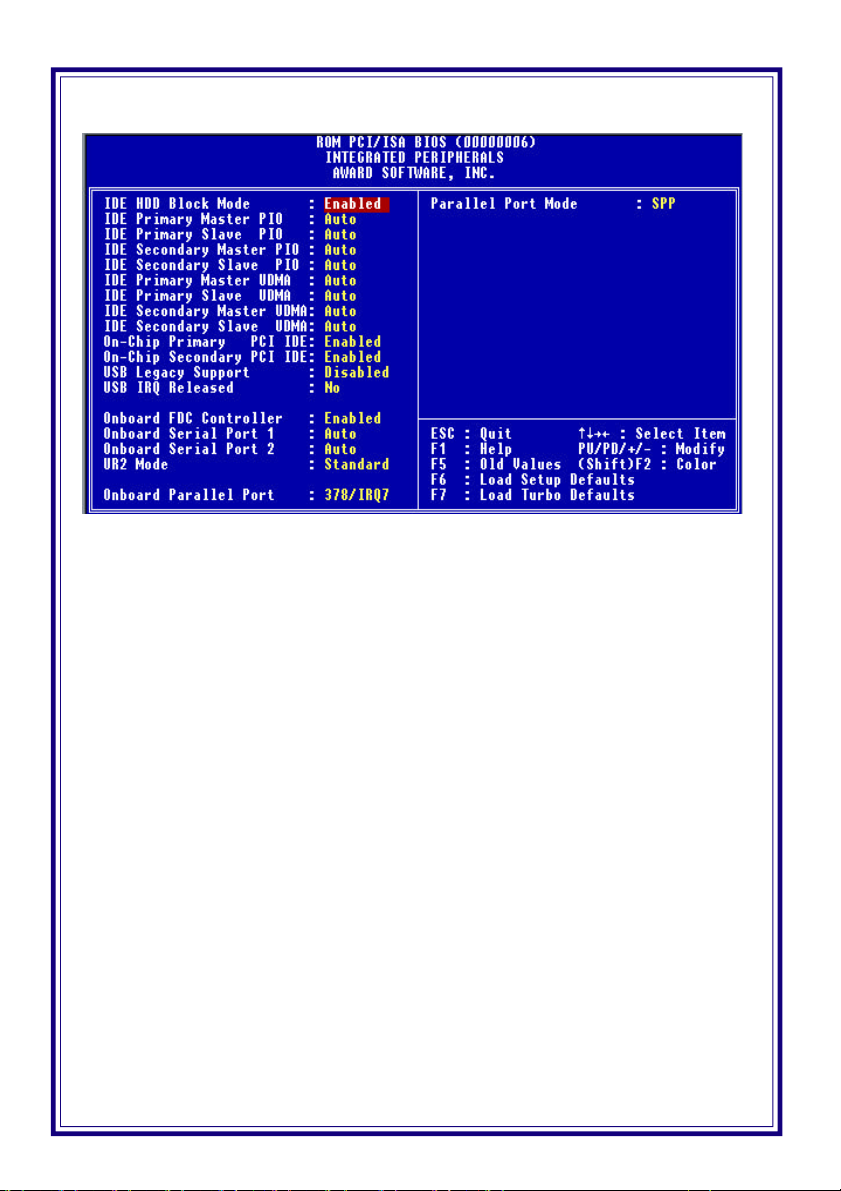

Integrated Peripherals

Settings for the IDE channels and onboard ports.

Password Setting

Sets a system password which is configured by the
Security Option item in BIOS Features Setup.

IDE HDD Auto Detection

Automatically detects the drive parameters of any
installed IDE hard disk drives and enters them
automatically in the Standard CMOS Setup.

Save & Exit Setup

Saves the current settings and exits the program.

Exit Without Saving

Disregards any changes made during the current session
and exits the program.

Chapter 3-3

LXB/EXB User's Manual

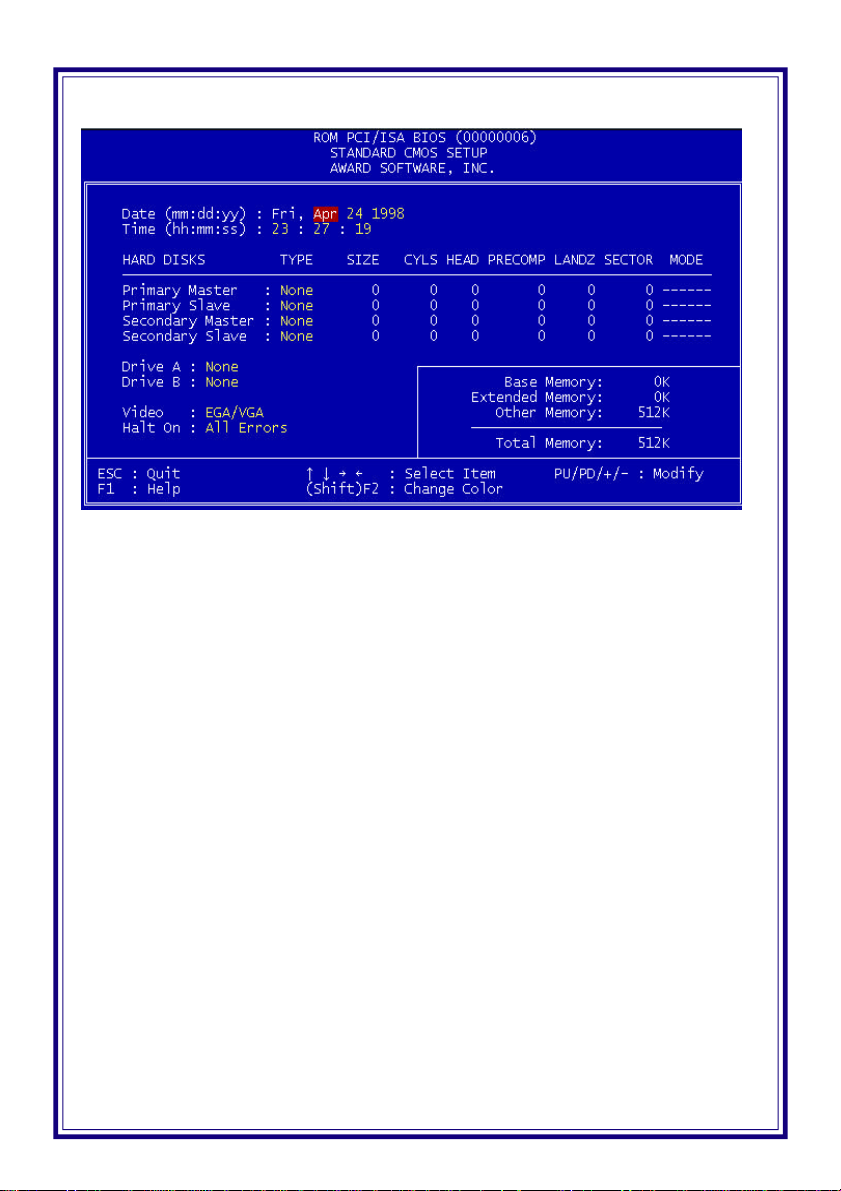

3-2 Standard CMOS Setup

This option displays a table of items which defines basic information
about your system.

Date (mm:dd:yy)
Time (hh:mm:ss)

The Date and Time items show the current date and time held by
your computer.

Hard Disks

- Primary Master

- Primary Slave

- Secondary Master

- Secondary Slave

The item reserve”Auto/User/None” options. Defaulted “Auto” is
recommended.

Chapter 3-4

LXB/EXB User's Manual

Floppy

- Drive A

- Drive B

The system supports up to 2.88MB, 3.5" floppy type.

Video

This item defines the video mode of the system. The default value is
for the VGA standard which is supported by all current display
adapters. If you wish to use an older display adapter which does not
support VGA, you can select one of the earlier video standards such
as CGA or Hercules.

Halt on

This item defines the operation of the system POST (Power On Self
Test) routine. You can use this item to select which kind of errors in
the POST are sufficient to halt the system.

Chapter 3-5

LXB/EXB User's Manual

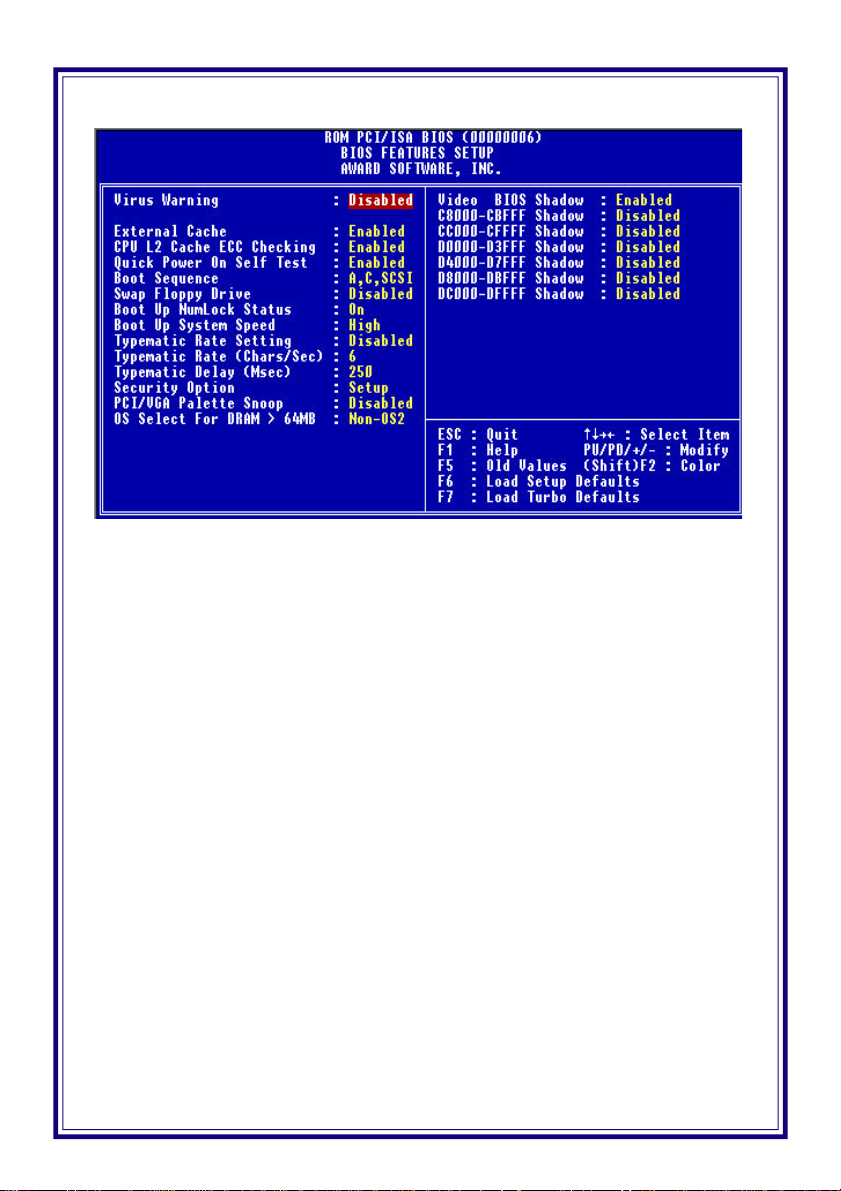

3-3 Bios Feature Setup

This option displays a table of items which defines more advanced
information about your system. You can make modifications to most
of these items without introducing fatal errors to your system.

Virus Warning

When this item is enabled it provides some protection against viruses
which try to write to the boot sector and partition table of your
harddisk drive. This item is Disabled as a default so that you can
install an operating system. We recommend that you enable Virus
Warning as soon as you have installed your disk with an OS.

Default:Disabled

External Cache

This item controls Enabled/Disabled the external L2 cache.

Default:Enabled

Chapter 3-6

LXB/EXB User's Manual

CPU L2 Cache ECC Checking

This item can be used to enable ECC (error checking and correction)
for the level-2 cache memory. When the item is enabled, BIOS will
automatically check if CPU support L2 ECC and the ECC funtion
will be unavailable for selecting if CPU does not support L2 ECC.

Default:Enabled

Quick Power On Self Test

This item can be used to start Operating System quickly and test
itself.

Default:Enabled

Boot Sequence

This item defines where the system will look for an operating system,
and the order of priority. You can boot an operating system from
many locations including a SCSI device, a ZIP drive, a floppy diskette
drive, CD-ROM or an LS-120 high-capacity diskette drive.

Default:A,C, SCSI

SWAP Floopy Drive

If you have two floppy diskette drives in your system, this item allows
you to swap around the assigned drive letters so that dirve A becomes
drive B, and dirve B becomes drive A.

Default:Disable

Boot Up Floppy Seek

This item controls the system to seek floopy drive during boot up
POST.

Default:Disable

Boot Up Numlock Status

This item defines if the keyboard Num Lock key is active when your
system is started.

Default:On

Boot Up System Speed

This item allows the system to boot an operating system quickly.

Default:High

Typematic Rate Setting

This option controls the speed of keyboard to send keys (scan/make

Chapter 3-7

LXB/EXB User's Manual

codes) and scan the key matrix of the key pad.

Default:Disabled

Typematic Rate (Chars/Sec)

This option provides typematic rate setting, which allows you
control the repeated keystrokes speed.

Typematic Delay (Msec)

This option provides typematic delay setting, which allows you
control the delay time between the first and the second keystroke.

Security Option

This option is for password request in entering setup or boot.

Default:Setup

PCI/VGA Palette Snoop

It helps to promote VGA access efficiency when both PCI VGA
and PCI graphic accelerator device are installed on separate
boards.

Default:6

Default:250

Default:Disabled

OS Select For DRAM > 64MB

This item is to patch OS/2 that can not report correct memory size
for more than 64MB.

Default:Non-OS/2

Video BIOS Shadow

This option defines if you leave default setting, Video BIOS memory
will be copied from ROM into DRAM area to enhance system
performance as DRAM access time is faster than ROM.

Default:Enable

C8000-CBFFF Shadow/DC000-DFFFF Shadow

This option defines if you leave enabled setting, BIOS will copy this
area from ROM to RAM. We recommend you leave the default
setting.

Default:Disabled

Chapter 3-8

LXB/EXB User's Manual

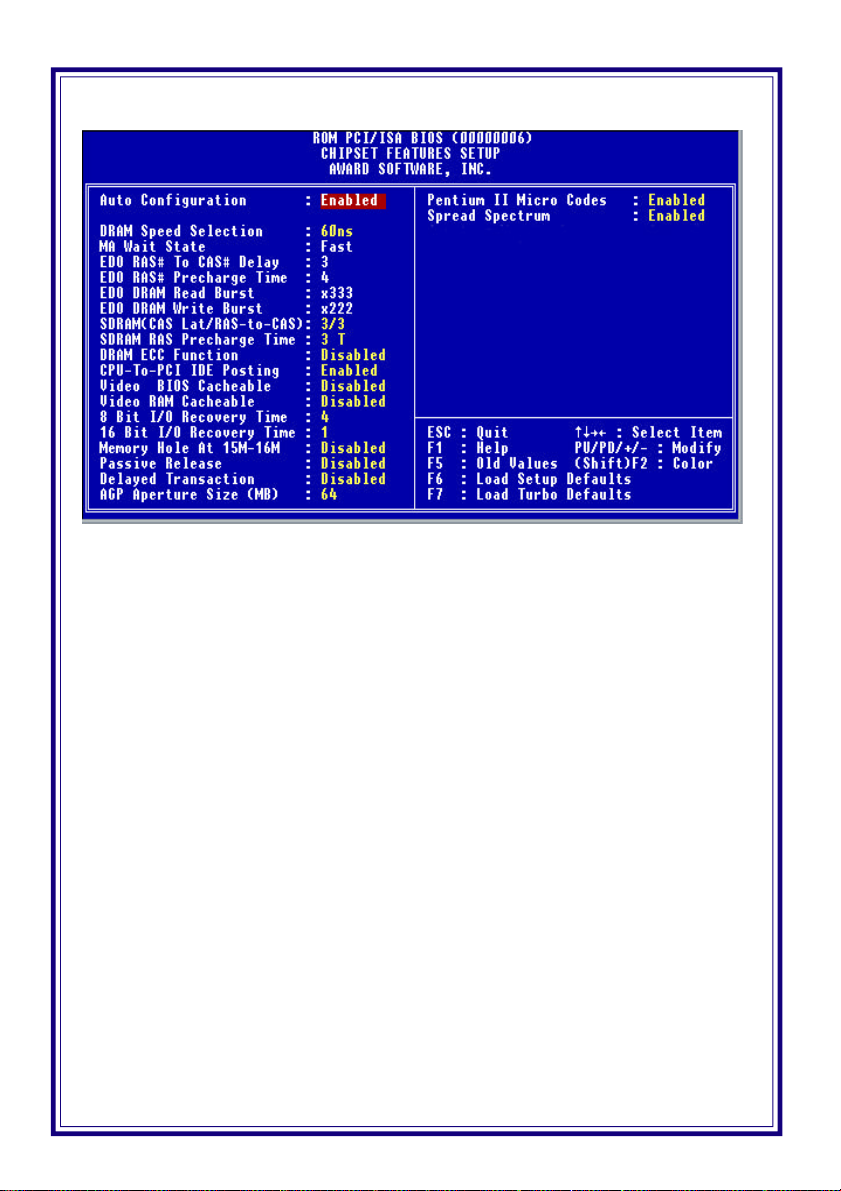

3-4 Chipset Feature Setup

This option displays a table of items which define timing parameters
of the mainboard components including the graphics system, the
memory, and the system logic. In general rule, you should leave the
items on this page at the default values unless you are very familiar
with the technical specifications of your hardware. If you change the
values, you may introduce fatal errors or recurring instability into
your system.

Auto Configuration

Leave this item at the default value Enabled. This will automatically
install the correct values for the system DRAM timing. Set Disable if
you want to specify your own DRAM timing.

Default:Enabled

DRAM Speed Selection

This option can set the DRAM speed, 50ns or 60ns.

Default:60ns

MA Wait State

This item defines MA Wait state. Set it to Fast when DRAM
loading is heavy or the speed is lower.

Default:Slow

Chapter 3-9

LXB/EXB User's Manual

EDO RAS# To CAS# Delay

It means the burst clocks spent in the first memory access cycle
when read/write miss is encountered.

EDO RAS# Precharge Time

The function as similiar as the front one.

EDO DRAM Read Burst

It means the four continuous memory reading during burst cycle.

Default:X222

EDO DRAM Write Burst

It means the four continuous memory writing during burst cycle.

Default:X222

SDRAM(CAS Lat/RAS-to-CAS)

This item defines SDRAM CAS Latency and RAS to CAS Delay.

SDRAM RAS Precharge Time

Default:2

Default:3

Default:3/3

This item defines SDRAM RAS Precharge Time.

Default:3T

DRAM ECC Function

This item enables or disables ECC (error checking and correction) for
the main memory. We recommend that you leave this item at Enabled
if you have verified that your memory modules support ECC. To use
this funtion, you need 72 bits (64+8 bit parity) DIMM.

Default:Disabled

Chapter 3-10

LXB/EXB User's Manual

CPU-To-PCI IDE Posting

This item enables CPU to PCI IDE posting. Set it Disable if you have
any IDE incompatible problem.

Default:Enabled

Video BIOS Cacheable
Video RAM Cacheable

These two items allow the system and video BIOS to be cached for
faster performance.

Default:Disabled

8 Bit I/O Recovery Time
16 Bit I/O Recovery Time

These two items set timing parameters for 8-bit and 16-bit ISA
expansion cards.

Memory Hole At 15M-16M

Default:4
Default:2

This item can be used to reserve memory space for some ISA cards
that require it.

Default:Disabled

Passive Release
Delayed Transaction

These two items make the PCI bus compliant with the PCI
Specification Ver. 2.1. It provides compatibility with older, slower
ISA expansion cards.

Default:Disabled
Default:Disabled

Chapter 3-11

LXB/EXB User's Manual

AGP Aperture Size(MB)

This item defines the effective size of the AGP aperture.

Pentium II Micro Codes

This item defines the Pentium II Micro Codes which are used to
resolve Pentium II CPU bugs. We recommend that you leave this
item at the default value for better reliability.

Default:Enabled

Default:64

Chapter 3-12

LXB/EXB User's Manual

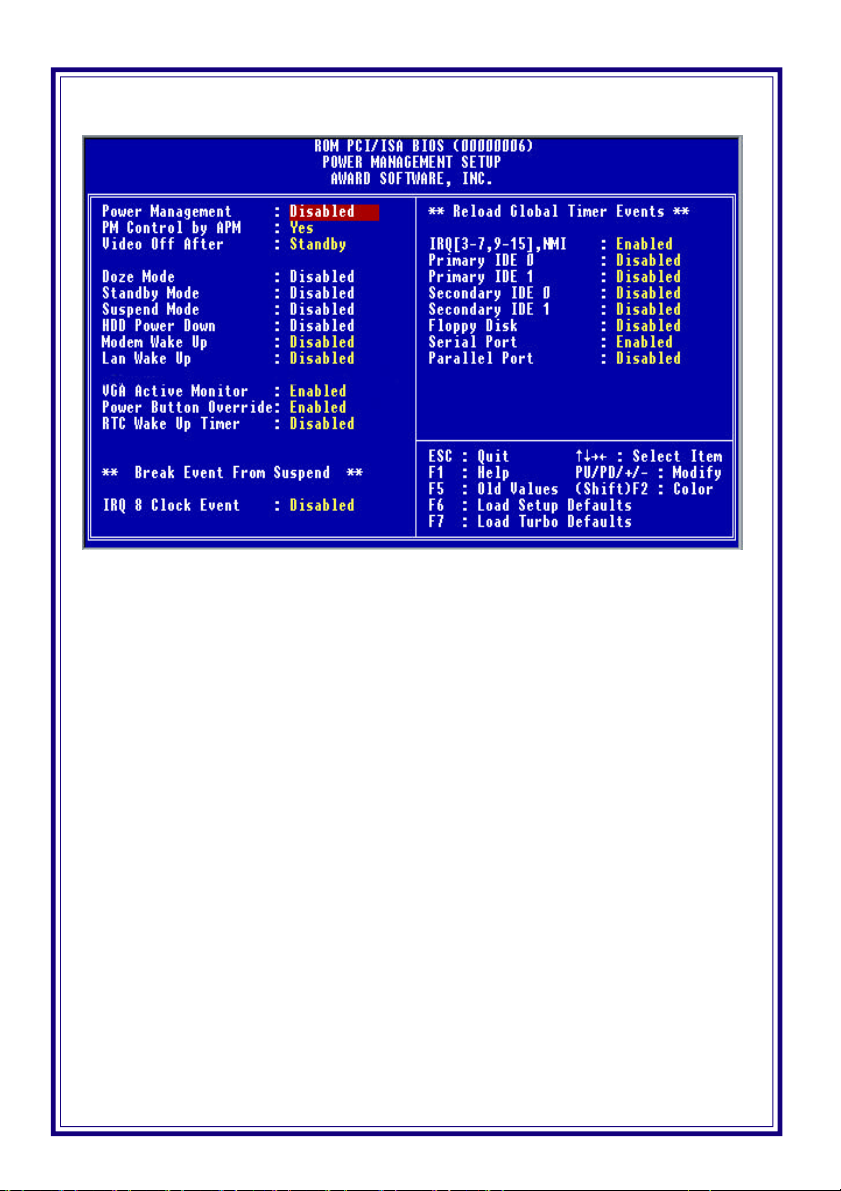

3-5 Power Management Setup

This option displays a table of items which lets you control the power
management of the system. Modern operating systems take care of
much of the routine power management. This mainboard supports ACPI
(advanced configuration and power interface).

This system supports three levels of power-saving modes; doze mode,
standby mode, and suspend mode. Standby mode uses less power than
doze mode and suspend mode uses the least power.

Power Management

This item acts like a master switch for the power-saving modes and
harddisk timeouts. If this item is set to Disabled, all the power-savings
modes are disabled. If this item is set to Max Saving, doze, standby,
and suspend mode, and the harddisk powerdown will occur after a
timeout of 1 minute. If this item is set to Min Saving, doze, standby,
and suspend mode will occur after a timeout of 1 hour. The harddisk
powerdown will occur after 15 minutes. If the item is set to User Define,
you can insert your own timeouts for the power-saving modes and
harddisk powerdown.

Default:User Define

Chapter 3-13

LXB/EXB User's Manual

PM Control by APM

When this is set to Yes, the Advanced Power Management feature in
Microsoft Windows controls power management operation.

Default:Yes

Video Off After

This item lets you define which level of power-saving mode is required
in order to turn off the video display.

Default:Standby

Doze Mode

Allow user to set the period to enter this mode. The power saving
is in throttling.

Default:Disable

Stanby Mode

If you have selected User Define for the Power Management item,
you can set this item to a selection of timeouts from 1 minute to 4
hours.

Default:Disable

Suspend Mode

Allow users to set the period counting from the beginnings of Doze
to enter this mode. BIOS will set CPU in stop clock state and stop
CPU fan to get an optimized power saving rate. Besides video will
be turn off in entering this mode or follows standby status.

Default:Disable

HDD Power Down

This function allow all IDE enter an standby mode periodically
according to the setting. Any IDE access requests will wake the
IDE up from standby.

Default:Disable

Chapter 3-14

LXB/EXB User's Manual

Modem Wake up

If this item is enabled, the system will restart when an incoming
transmission is received by an external modem.

Default:Disabled

Lan Wake up

If this item is enabled, the system will restart when an incoming
transmission is received by an internal LAN, please reference to the
motherboard layout Chapter 1-4.

Default:Disabled

VGA Active Monitor

You can use this item to enable/disable the VGA activity detection
for power down state transition.

Default:Enabled

Power Button Override

When enabled, the power switch on the front panel can be used to
control power On/Suspend/Off.

Press switch System status
Less than 4 sec Suspend mode
Longer than 4 sec Power off
When disabled, the power switch is only used to control On/Off, no

Suspend mode funtion.

Default:Enabled

RTC Wake Up Timer

You can use this item to set a time and date for the system to
automatically power on.

Default:Disabled

Chapter 3-15

LXB/EXB User's Manual

IRQ 8 Clock Event

If this item is enabled, OS2 will periodically detect IRQ
8(RTC)(Realtime colck) interruptions. When set this item to Disabled,
OS/2 may has problem to go into Doze/Standby/Suspend mode.

Default:Disabled

IRQ[3-7, 9-15] , NMI

If this item is enabled, any activity on the listed IRQs (interrupt request
lines) or the NMI (non-masked interrupt) will restart the timer.

Default:Enabled

Primary IDE 0 Default: Disabled
Primary IDE 1 Default: Disabled
Secondary IDE 0 Default: Disabled
Secondary IDE 1 Default: Disabled
Floppy Disk Default: Disabled

You can use these items to let activity on the IDE devices or floppy
disk drives restart the timer.

Serial Port Default: Enabled
Parallel Port Default: Disabled

When enabled, these items let activity on the serial or parallel ports
restart the timer.

Chapter 3-16

LXB/EXB User's Manual

3-6 PnP/PCI CONFIGURATION Setup

This option displays a table of items that configures how PNP (Plug
and Play) and PCI expansion cards operate in your system.

PnP OS Installed

Set ‘Yes’ to bypass BIOS PnP device initial except of boot device.
PNP OS will do these PnP devices residently. If set this item to
'No', BIOS will handle all PCI/PnP devices.

Default:No

Resources Controlled By

Basically, BIOS will allocate the IRQ/DMA resources automatically
for these PnP/PCI and onboard devices. The exception might be
encountered when legacy ISA devices are installed, which occupies
resources that BIOS can’t know.Therefore, this option is for BIOS
to know in advance what IRQ/DMA is occupied by legacy ISA devices
if “Manual” is selected.

Default:Manual

Chapter 3-17

LXB/EXB User's Manual

Reset Configuration Data

Once ‘Enabled’ is selected, BIOS will turn it ‘Disabled’ again in
next Boot. The option is for clearing ESCD data. The only reason
to clear is the data loosing the confidence. The engineering test is a
good reason to change the default setting.

Default:Disabled

IRQ/DMA assigned to

The option provides IRQ/DMA resources assigned Legacy ISA or
PCI/ISA PnP card

Default: IRQ3~4 => Legacy ISA

Others => PCI/ISA PnP

PCI IDE IRQ Map To

This is a complement for the case that an ISA or PCI add-on IDE
card are installed. Since most of PCI add-on IDE cards are not PCI­compliant, a location and INT# inputs are necessary for
acknowledging to BIOS.

Default:PCI-Auto

Used MEM base addr

This option defines the rest of Legacy ISA Cards used memory will
be used by PnP card.

Default:N/A

PCI Slot 1, 2, 3, 4 IRQ

This option defines that the BIOS assign IRQ to PCI from 1 to 4
or user can set up “Auto” default.

Default:Auto

Chapter 3-18

LXB/EXB User's Manual

3-7 Integrated Peripherals Setup-

IDE HDD Block Mode

This BIOS follows the enhanced IDE specification and allow multiple
sectors access in a time when read/write IDE. If set “ Disabled”, it
runs in single sector access.

Default:Enabled
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Second Master PIO
IDE Second Slave PIO

IDE Primary Master UDMA
IDE Primary Slave UDMA
IDE Second Master UDMA
IDE Second Slave UDMA

This option provides that you can adjust IDE PIO/UDMA mode,
we recommend you leave “Auto” as the default setting.

Default:Auto
Default:Auto
Default:Auto
Default:Auto

Chapter 3-19

LXB/EXB User's Manual

On-Chip Primary PCI IDE

This item enables or disables the primary IDE channel that is built
into this mainboard.When the channel is enabled, the items Master/
Slave PIO Mode/UDMA appear. As a default, the PIO mode item is
set to Auto and the UDMA item is set to Auto. The system will then
automatically detect if a device on the channel requires PIO mode, or
Ultra-DMA.

Default:Enable

On-Chip Secondary PCI IDE

This item enables or disables the secondary IDE channel that is built
into this mainboard. When the channel is enabled, the items Master/
Slave PIO Mode/UDMA appear. As a default, the PIO mode item is
set to Auto and the UDMA item is set to Auto. The system will then
automatically detect if a device on the channel requires PIO mode,
or Ultra-DMA.

Default:Enabled

USB Leagacy Support

This BIOS is allowed to support USB keyboard in legacy, which
means during POST or DOS before OS, with USB support, is loaded.
Both UHCI and OHCI protocols are supported in this BIOS.

Default:Disabled

USB IRQ Released

This item allows you to release USB controller IRQ if your system
IRQ are not enough for add-on cards allocation.

Default:No

FLASH BIOS

This item allows user to flash/upgrade BIOS.
Default: Enabled

Onboard FDC Controller

This is a pure switch to control the onboard FDD controller to be
disabled or enabled.

Default:Enabled

Chapter 3-20

LXB/EXB User's Manual

Onboard Serial Port 1
Onboard Serial Port 2

This option allows user to select the IO port and IRQ used by serial
port.

Default:Auto

UR2 Mode

This item is selectable only when the Onboard Serial Port 2 is Enabled.
The available mode selections for the serial port 2 are:

1. Standard
Configurates serial port as normal mode.

2. IrDA 1.0
Sets to this setting if there is an infrared device connected on the
IrDA connector in the system.
The maximum baud rate of this setting is: 115K baud.

3. ASK IR

Sets to this setting if there is an infrared device connected on the
IrDA connector in the system.
The maximum baud rate of this setting is: 19.2K baud.

Default:Standard

Onboard Parallel Port
Parallel Port Mode

This option allow user to control parallel port and enhanced mode
like EPP – provide asymmetric bi-directional data transfer driver by
host device. ECP – uses DMA protocol to achieve data transfer rates
up to 2.5MB/seconds, which provides a symmetric bi-directional data
communications.

Default:378/IRQ7

Default:SPP

Chapter 3-21

LXB/EXB User's Manual

3-8 PASSWORD SETTING

Password prevents unauthorized use of your computer. If you set a
password, the system prompts for the correct password before boot or
asscess to Setup, the steps as follows,

1. Highlight the item Password Setting on the main menu and press
ENTER.

2. The password dialog box will appear.

3. If you are installing a new password, carefully type in the password.
Press ENTER after you have typed in the password. If you are
deleting a password that is already installed just press ENTER when
the password dialog box appears.

4. The system will ask you to confirm the new password by asking
you to type it in a second time. Carefully type the password again
and press ENTER, or just press ENTER if you are deleting a
password that is already installed.

5. If you typed the password correctly, the password will be installed.

[Note]

If you forget your password, or you want to cancel your password,
you can do the steps as the following,
(1) Password forgotten

i> Turn off the system
ii> Short JP1 at Pin 2-3 for a few seconds to clear CMOS.
iii> Set the JP1 back to Pin 1-2.
iv> Power on the system.

(2) Clear Password

Clear your password by key-in the password you installed before,
then go to PASSWORD SETTING to press ENTER twice.

Chapter 3-22

LXB/EXB User's Manual

IDE HDD Auto Detection Option

This item automatically detects and installs any harddisk drives installed
on the primary and secondary IDE channel. Most modern drives can
be detected. If you are using a very old drive that can’t be detected,
you can install it manually using the Standard CMOS Setup option.

Setup will check for two devices on the primary IDE channel and then
two devices on the secondary IDE channel. At each device, the system
will flash an N in the dialog box. Press Enter to skip the device and
proceed to the next device. Press Y, then Enter to tell the system to
accept the BIOS auto-detected device type.

SAVE & EXIT SETUP

Highlight this item and press ENTER to save the changes that you
have made in the setup utility and exit the setup program. When the
Save and Exit dialog box appears, press Y to save and exit, or press
N to return to the setup main menu.

Chapter 3-23

P2LXB User's Manual

LXB/EXB User's Manual

Chapter 4: Motherboard BIOS Upgrade

The following program are located on the attached CD-ROM

disk with directory

\utility
Please refer to the README file in the directory and catch

these files per DOS prompt or file manager of Windows 95

n

Usage of MAXFLASH.EXE

This program is for your BIOS upgrade.
The usage is as follows,

1. maxflash

The Program will show a help message.

2.maxflash filename.bin

The program will overwrite current BIOS data with binary

code "filename.bin”. Be very careful to make sure filename.bin
is the right file, otherwise, the system won’t work properly if an
incorrect BIOS is written.

Chapter 4-1
