BXAD

Dual Pentium II

User's Manual

®

Mainboard

Model : BXAD
Manual version : English, version 1.0
Release Date : May 30, 1998

Copyright

Copyright  1998 by this company. All rights reserved.

No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language in any form or by
any means, electronic, mechanical, magnetic, optical, manual or otherwise,
without the prior written consent of the copyright holders.

User’s Notice

The contents of this publication are subject to change. This company reserves
the right to alter the contents of this publication at any time and without
notice. The contents of this publication may contains inaccuracies or
typographical errors and is supplied for informational use only.

Intel and Pentium are registered trademarks of Intel Corporation.
OS/2 and IBM are registered trademarks of International Business Machines.
Windows and MS-DOS are registered trademarks of Microsoft Corporation.
AWARD is a registered trademark of Award Software Inc.

Other brand, corporate, and product names may or may not be registered
trademarks or copyright of their respective companies.

II

FCC & & DOC Compliance

Federal Communications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the
following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
manufacturer
communication. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

Re-orient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning! The use of shielded cables for the connection of the monitor to
the graphics card is required to assure compliance with FCC regulations
Changes or modifications to this authority to operate this equipment.

III

CONTENTS

SECTION 1: PRODUCT INFORMATION

1-1 Manual Features………………………….…...1-

1

1-2 Package Check List ...................................1-1

1-3 Mainboard Specifications.

2
1-4 Mainboard Layout

5

SECTION 2: HARDWARE INSTALLATION

2-1 Jumper Settings.........................................2-1

2-1.1 CMOS Clear Setting 2-1

IV

2-1.2 CPU Type & CPU Clock Setting ...................... 2-2

2-2 Connectors ……….……....……………..........2-

3

2-2.1 Panel Connector ……….…...….……………………………2-3

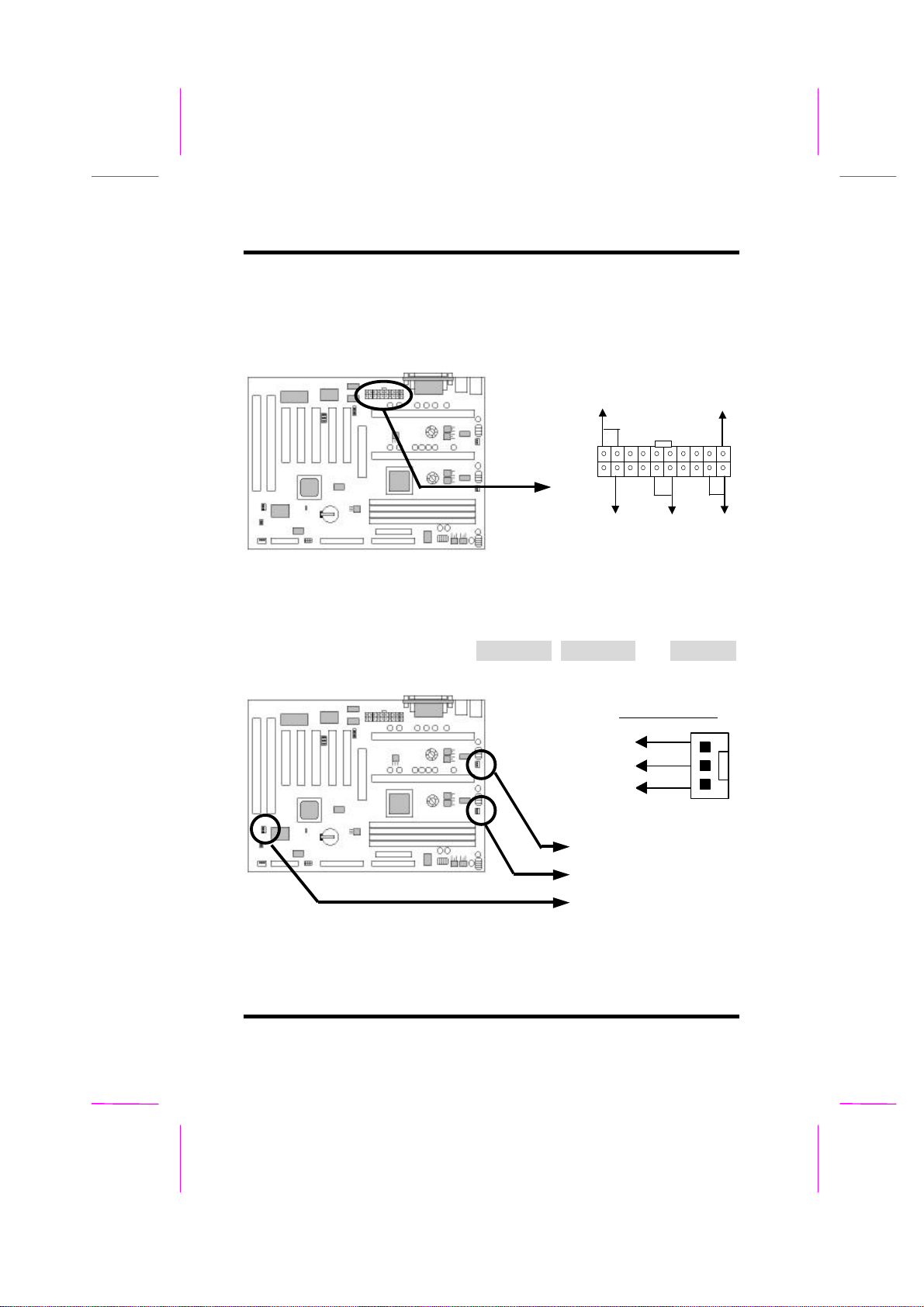

2-2.2 Power Connector …………....………………………………2-4

2-2.3 Fan Connectors …….……..…….….....….…………………2-4

2-2.4 PS/2 Mouse Connector …………..…………………………2-5
2-2.5 Keyboard Connector ….………..……………………………2-5
2-2.6 USB Device Connector ……..………………………………2-6

2-2.7 Serial Device(COM1/COM2) Connector 2-6

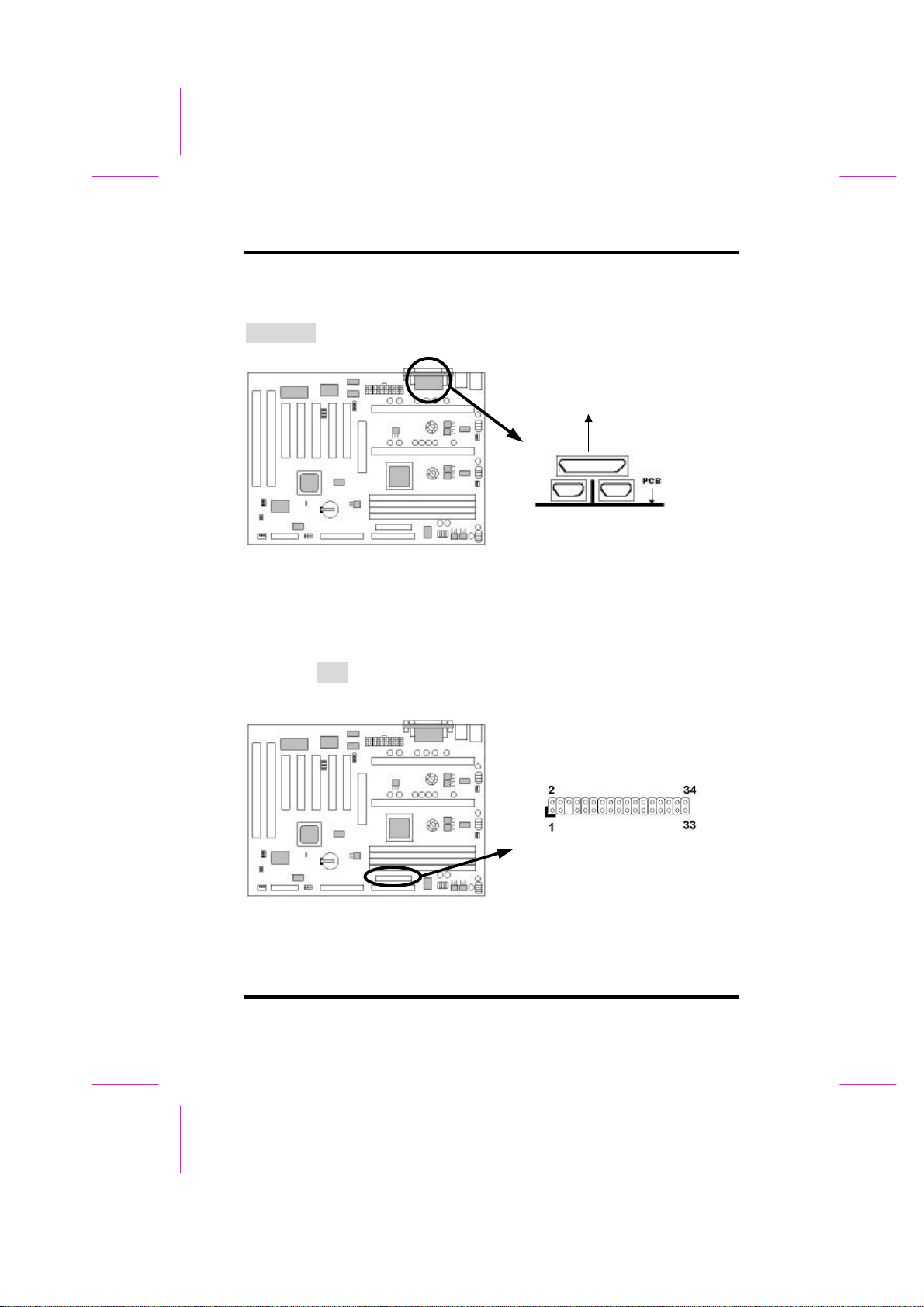

2-2.8 Printer Connector. ….….….….……..….…....….….….…...2-7

2-2.9 Floppy Drive Connector …….….….……......................…2-7

2-2.10 IDE Hard Disk and CD-ROM Connector.. …….…….……2-8

2-2.11 IrDA Connector …….….………………………........………2-9

2-2.12 SB-Link Connector …………………………....…....………2-9

2-2.13 Wake On LAN Connector ….….….……....…....……..…2-10

2-2.14 Ring-On Connector …………….….…………… ……..…2-10

2-3 System Memory Installation .......………...2-11

2-3.1 Type ............. ………………………….........….…………2-11

2-3.2 Speed .. ……….……………………………………………2-11
2-3.3 Buffered and Non-buffered .. 2-12

2-3.4 2-clock and 4-clock ………………..….…...……….....…2-12

2-3.5 Parity and Non-parity ………....……...………….........…2-13

2-3.6 Memory Auto detection by BIOS 2-13
2-3.7 Suggested SDRAM combination 2-13

SECTION 3: CMOS SETUP UTILITY

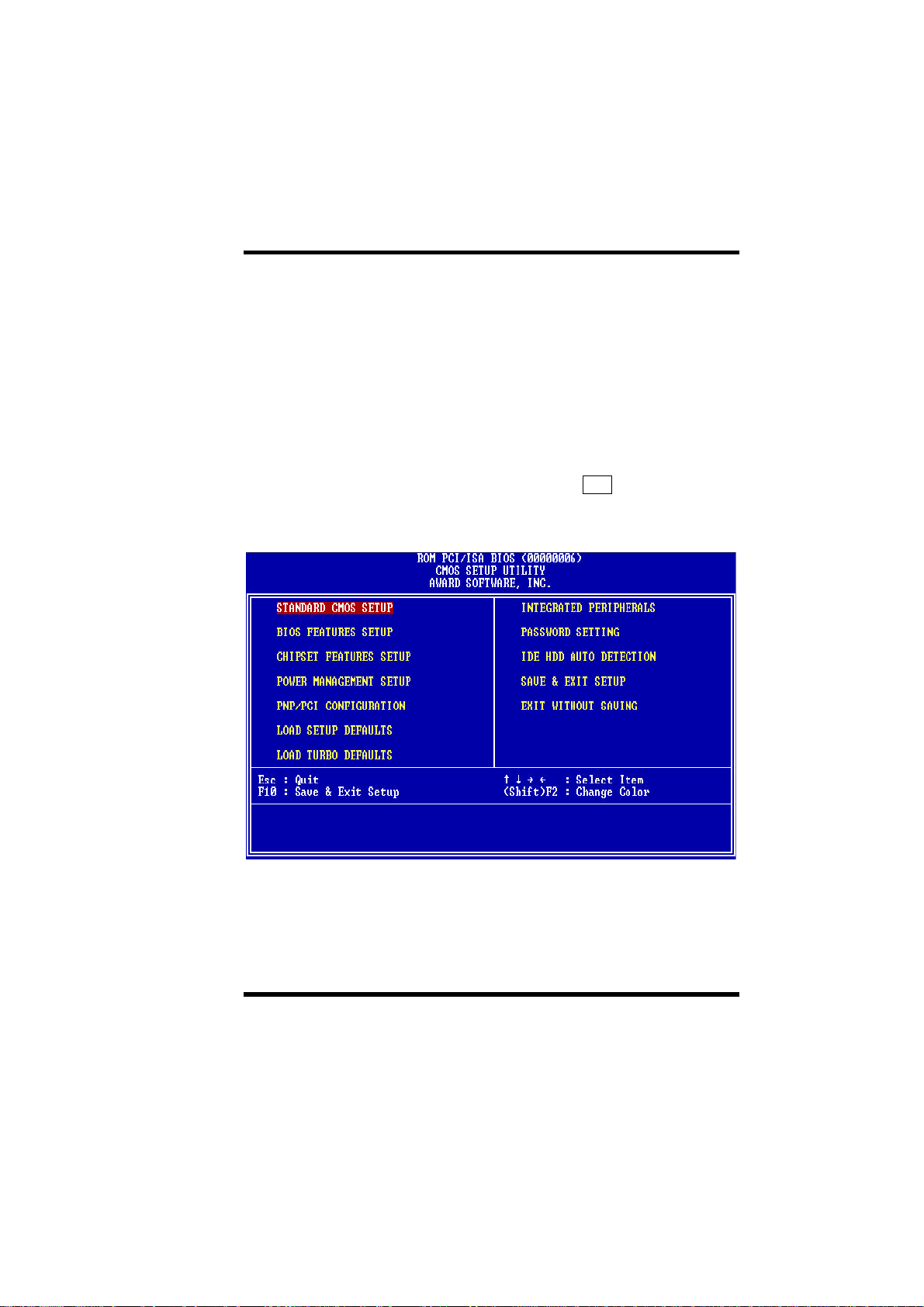

3-1 BIOS Setup Main Menu..............................3-1

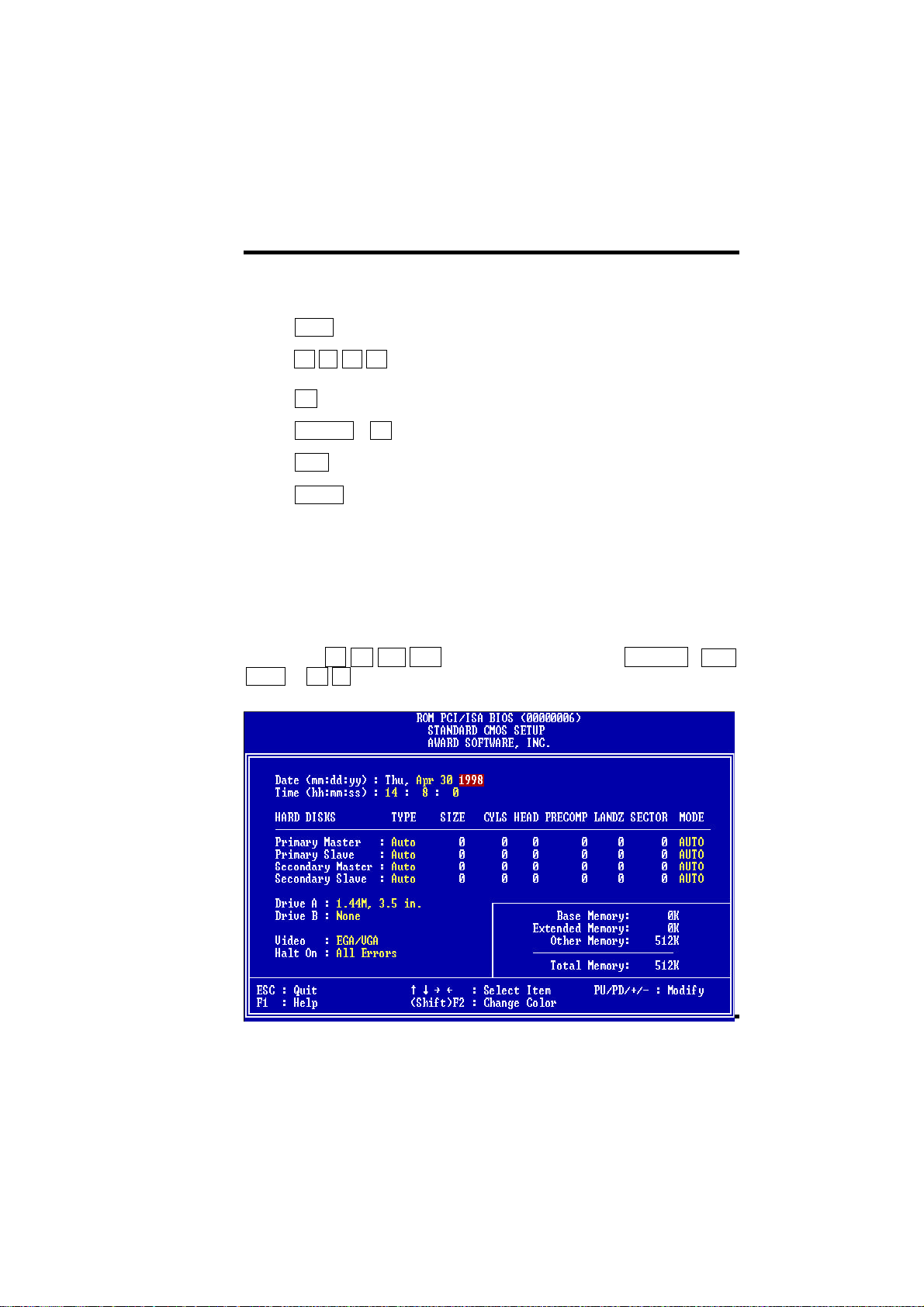

3-2 Standard CMOS Setup...............................3-2

3-3 BIOS Features Setup .................................3-5

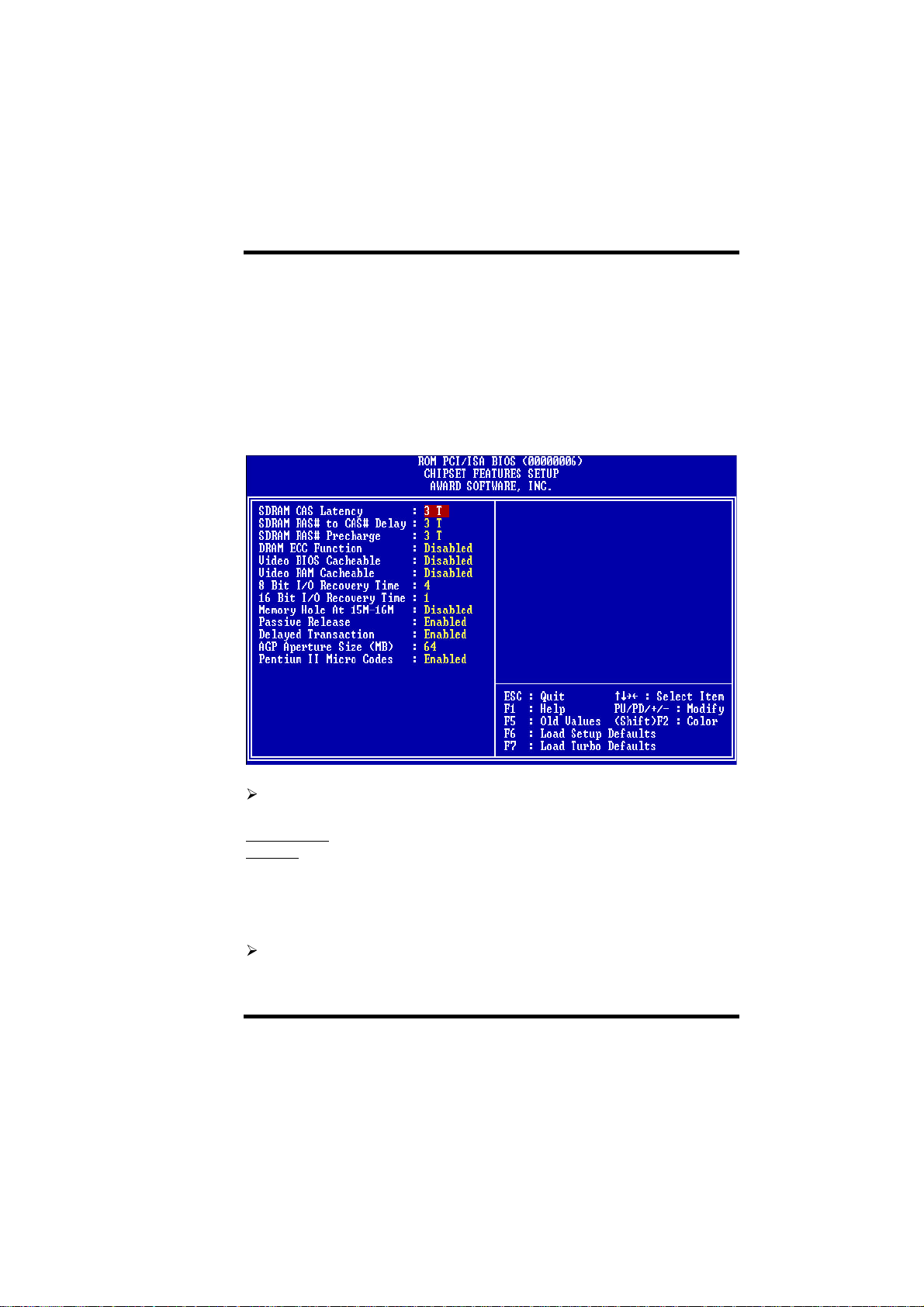

3-4 Chipset Features Setup...........................3-10

3-5 Power Management Setup.......................3-14

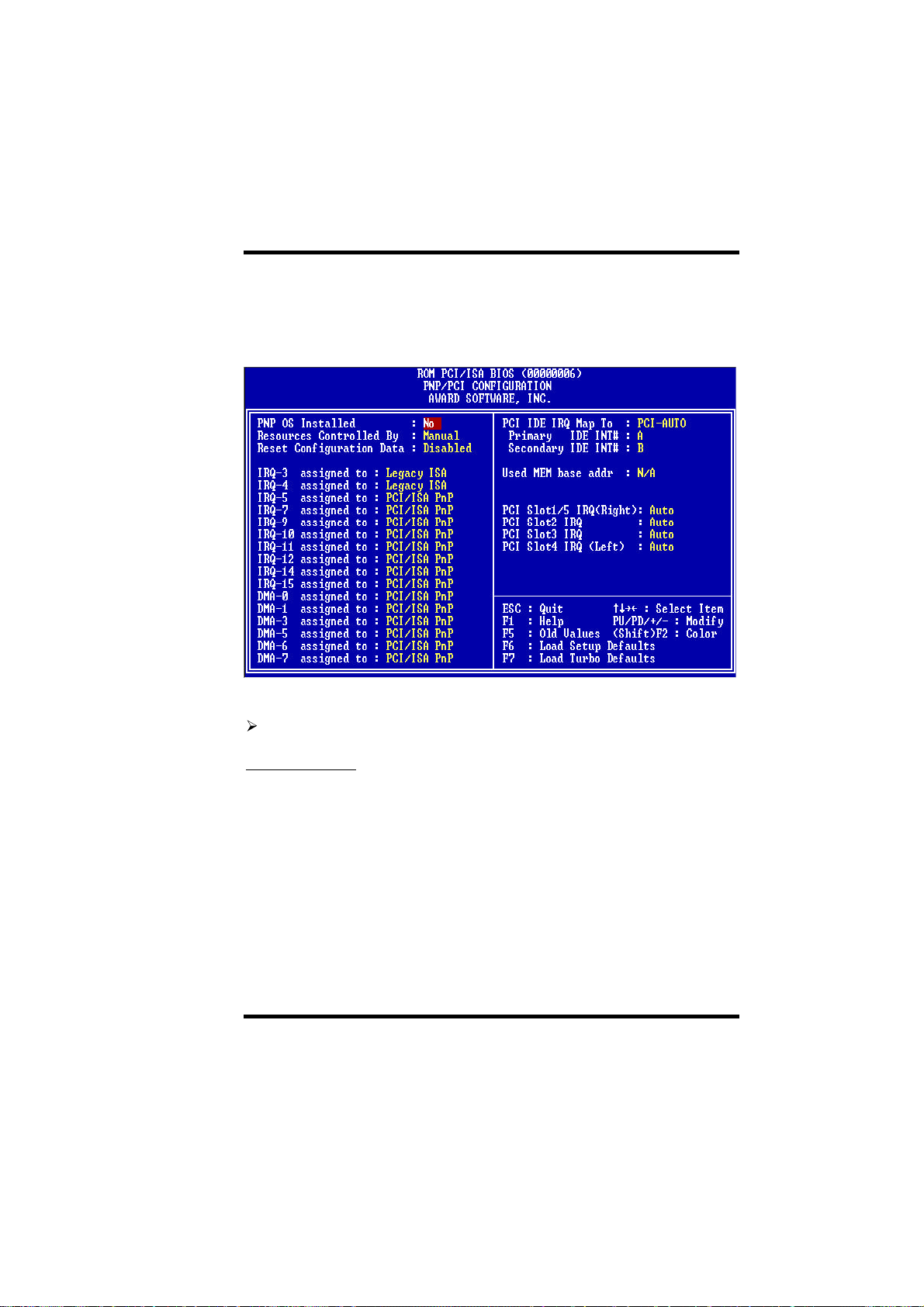

3-6 PNP/PCI Configuration............................3-20

3-7 Load Setup Defaults ................................3-24

V

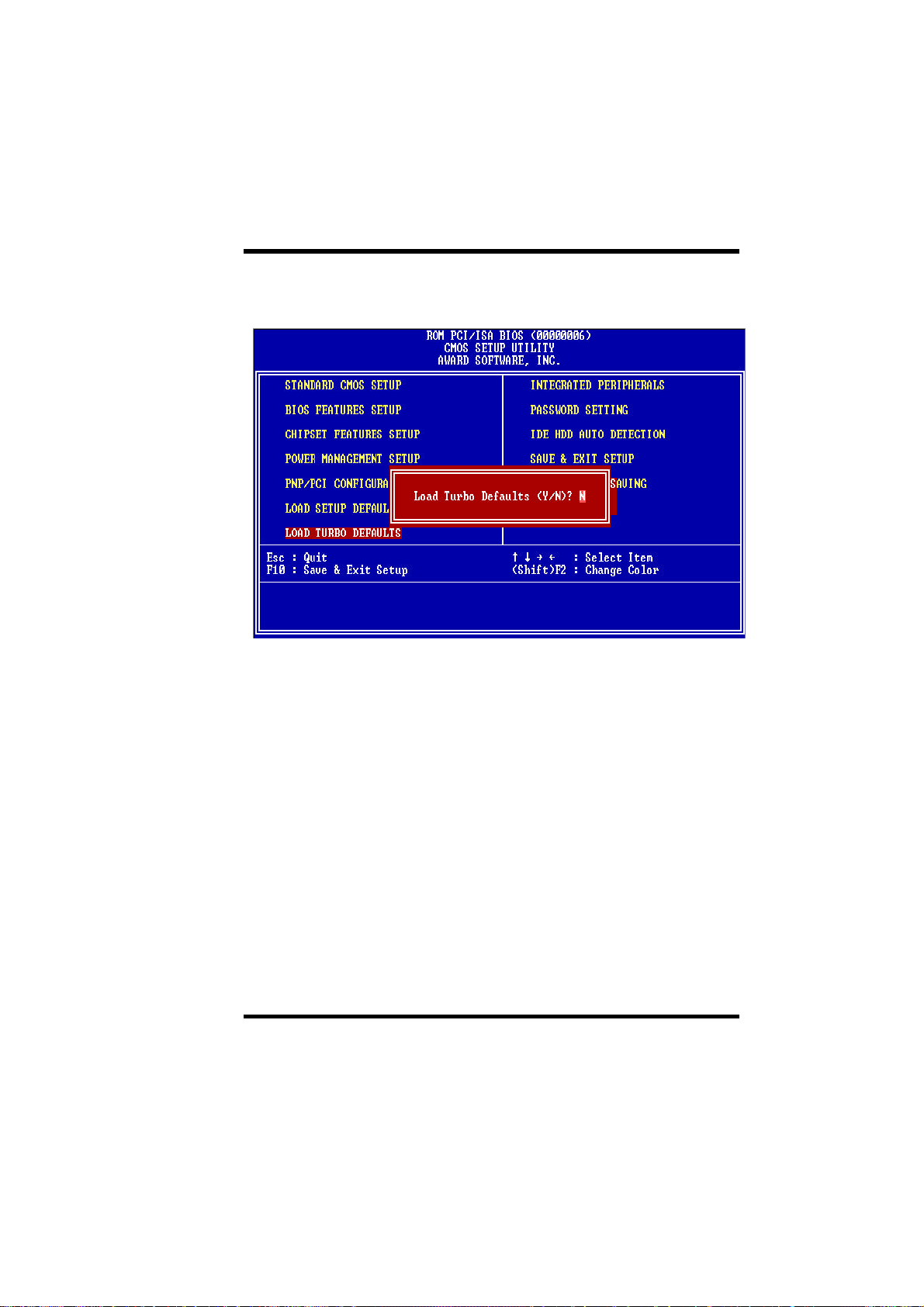

3-8 Load Turbo Defaults................................3-25

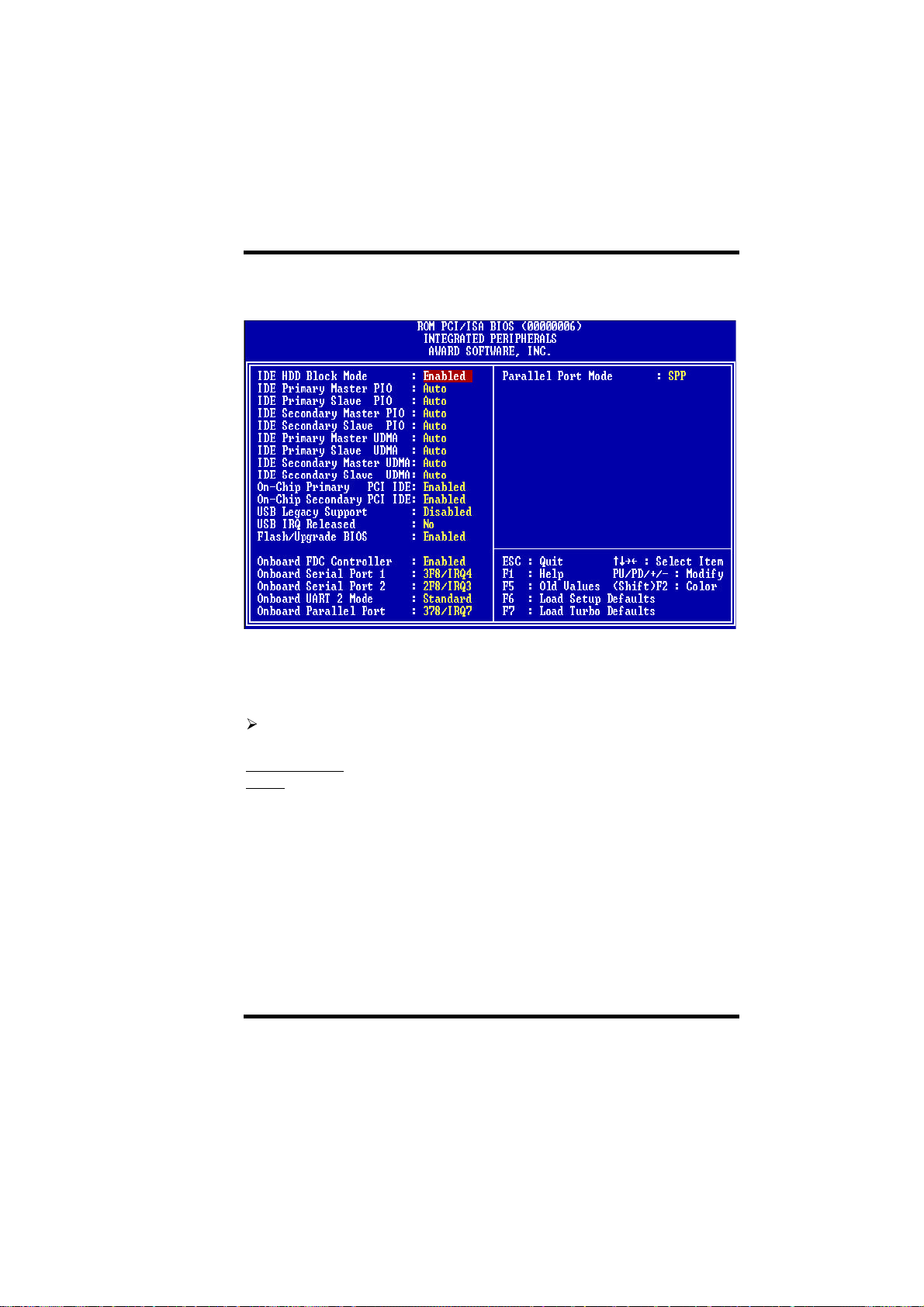

3-9 Integrated Peripherals .............................3-26

3-10 Password Setting………................…..……3-

31
3-11 IDE HDD Auto Detection

32
3-12 Save & Exit Setup

32

3-13 Exit with Saving………….……......….….….3-

32

SECTION 4: BIOS/SOFTWARE UTILITY

4-1 Flash Utility Maxflash.exe..........................4-1

4-2 BIOS Flash/Upgrade Protection ......

2

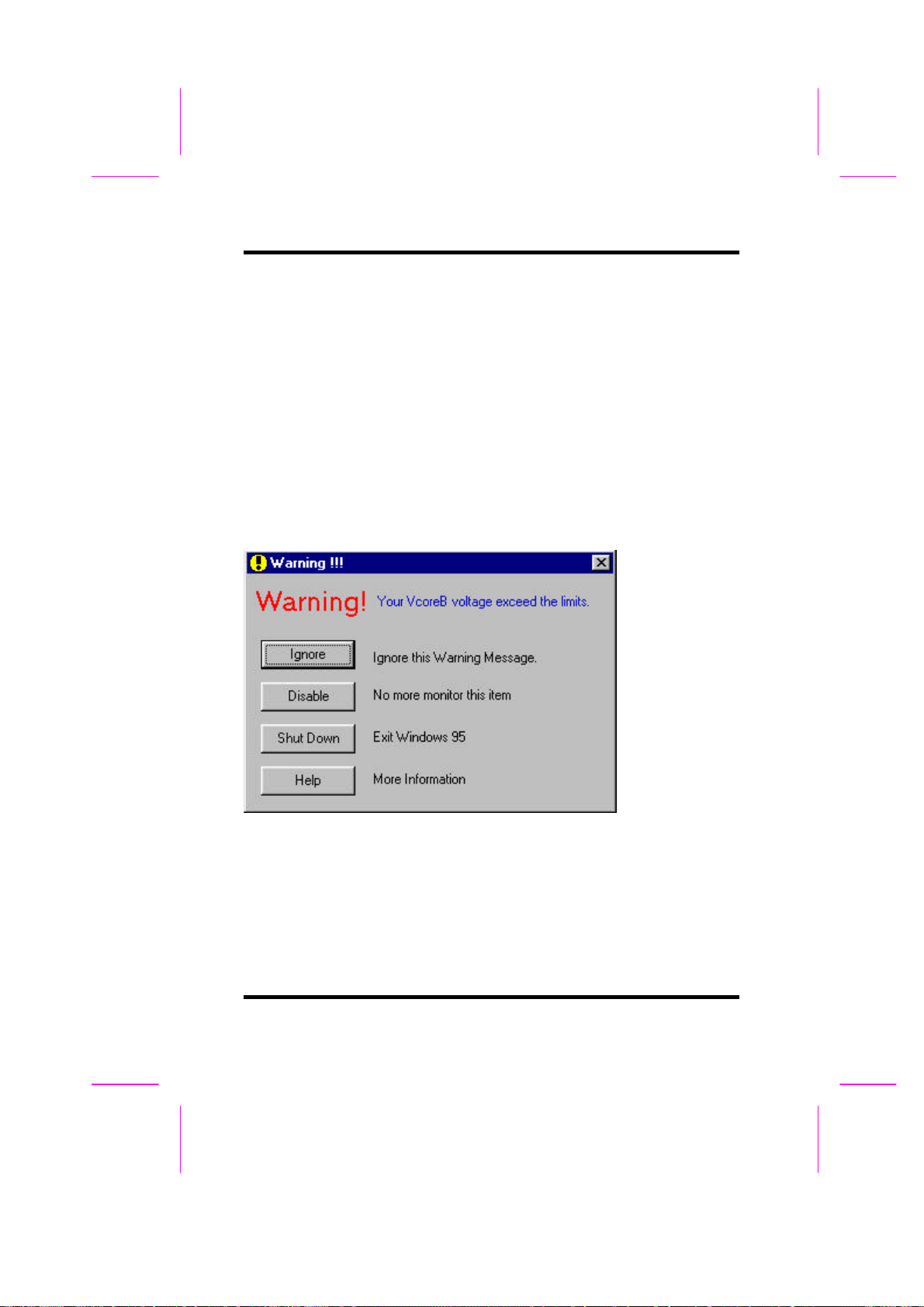

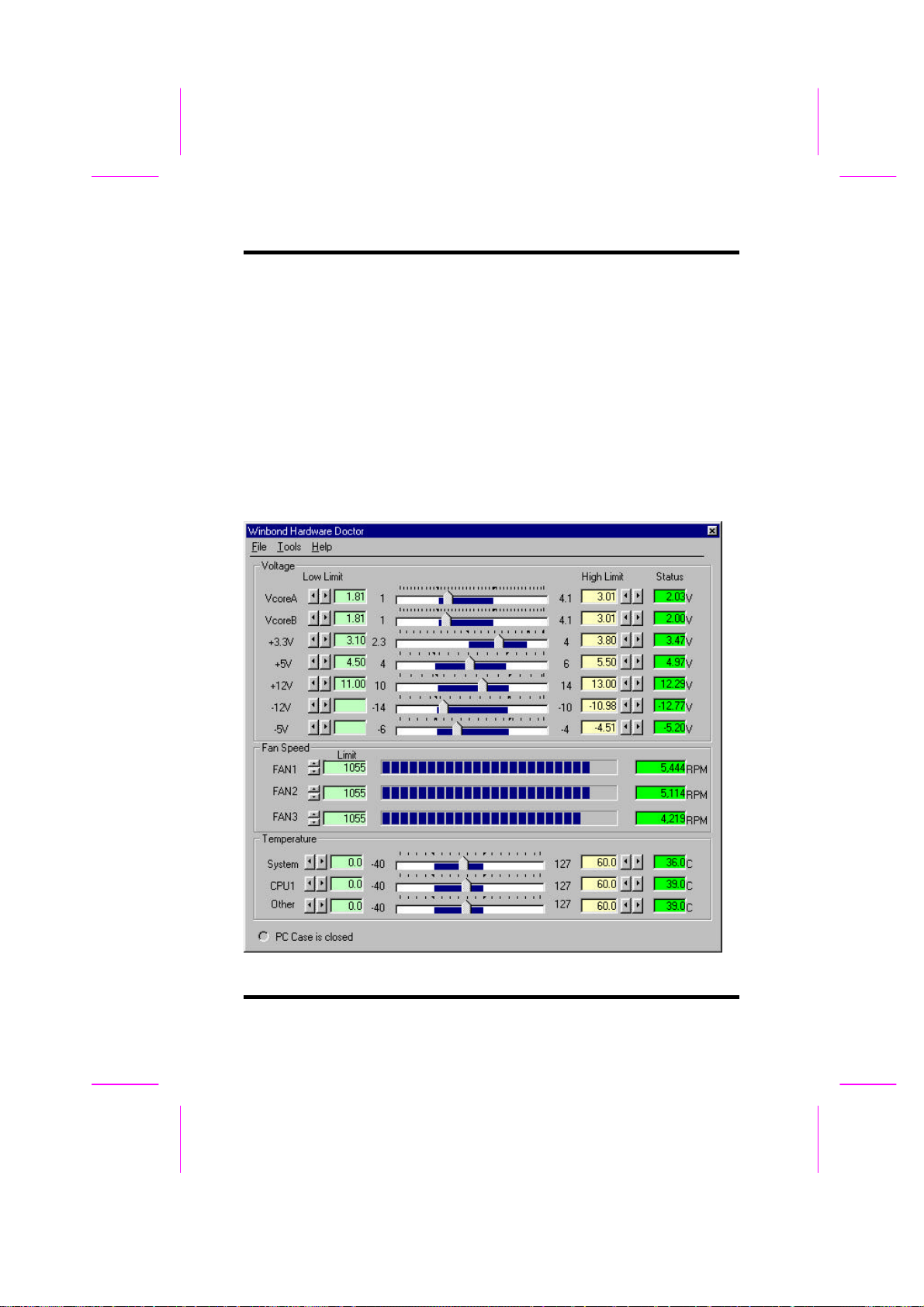

4-3 Hardware Monitor (Optional) ...........….…....4-

3

VI

SECTION 1.
PRODUCT INFORMATION

Thanks for purchasing BXAD Dual Pentium II mainboard.
This user’s manual contains all the information and features that show you

how to use the BXAD mainboard. Please take a moment to familiarize
yourself with the design and organization of this manual.

1-1 Manual Features

This manual is divided into the following four sections:

Section 1: Product Information

A brief overview of what comes in the mainboard package, the mainboard
layout and the specification it appears.

Section 2: Hardware Installation

Tell you the usage of the mainboard jumpers and the connectors.

Section 3: CMOS Setup Utility

A summary of the mainboard CMOS (BIOS) Setting.

Section 4: BIOS/Software Utility

Introduction of mainboard BIOS flash utility.

1-2 Package Check List

This BXAD mainboard package contains the following items. Please
inspect the package contents and confirm that everything is there. If
anything is missing or damaged, call your vendor for instructions before
operating.

BXAD USER’S MANUAL 1-1

I. PRODUCT INFORMATION

The package includes:

One BXAD Mainboard
Two Pentium II Retention Module
One Floppy Interface Cable
One IDE Interface Cable
One CD Title including Bus Master IDE Driver and Utilities
One User’s Manual

1-3 Mainboard Specification

Form Factor
Board Size
CPU

System Memory

Chipset
Expansion Slots

Serial Port

Parallel Port

Floppy Interface

ATX form factor

22.86 cm x 30.5 cm
Supports Dual Pentium II CPUs up to 350~450

MHz
DIMM 168-pin x 4 , SDRAM maximum 1GB
Supports 64M-bit SDRAM technology
Intel 440BX AGP Chipset
1 x AGP bus
2 x ISA bus
5 x PCI bus with Bus master mode
Two serial ports UART 16C550 compatible
Sets serial port 2 to operate in normal mode , IrDA

or ASKIR

One parallel port supports :

SPP-standard parallel port
EPP-enhanced parallel port
ECP-extended capabilities port

Supports drives inches/format with:

3.5 inches—720KB/1.44MB/2.88MB

1-2 BXAD USER’S MANUAL

IDE Interface

USB Interface

PS/2 Mouse
Keyboard
Fuse

RTC and Battery

Wake up function

Synchronous
Switching Regulator

Hardware Monitor
(Optional)

Power connector
BIOS

I. PRODUCT INFORMATION

5.25 inches—360KB/1.2MB
Dual PCI IDE interface support up to 4 x IDE HDD

or CDROM
Supports PIO mode 4 , DMA mode 2 and Ultra

DMA 33
Two USB ports supported
USB legacy keyboard function supported
PS/2 mouse supported by connector onboard
PS/2 keyboard by connector onboard
Supports recoverable fuse for USB and KB /

MOUSE
RTC build in chipset (south bridge PIIX4)
Lithium (CR-2032) battery
Modem ring wake up
LAN wake up
RTC Alarm wake up
High efficient synchronous switching regulator for

CPU core voltage from 2.0V to 3.5V
Supports over-voltage / over-current protection

function
Fan speed monitor--Three fan connectors , warning

when CPU or Housing fan is malfunction
Voltage monitor—Warning when system voltage

(5V,12V,3.3V,VCORE) are abnormal
CPU and system thermal monitor —Warning when

CPU and system temperature is higher than a

predefined value
Supports ATX(20-pin) power connector
Award BIOS
Year 2000 Compliance
PCI 2.1 Compliance
PnP BIOS v1.0a Compliance
APM v1.2 Compliance

BXAD USER’S MANUAL 1-
3

I. PRODUCT INFORMATION

DMI 2.0 compliance
Flash/Upgrade BIOS protection
Supports ACPI (Advanced Configuration and Power

Interface) and OS Directed Power Management
Supports SOFT power
Virus warning supported
Floppy drive swapping function supported

LED Indicator

SB-Link Connector

System power LED
HDD activity LED
Supports Creative PCI sound card

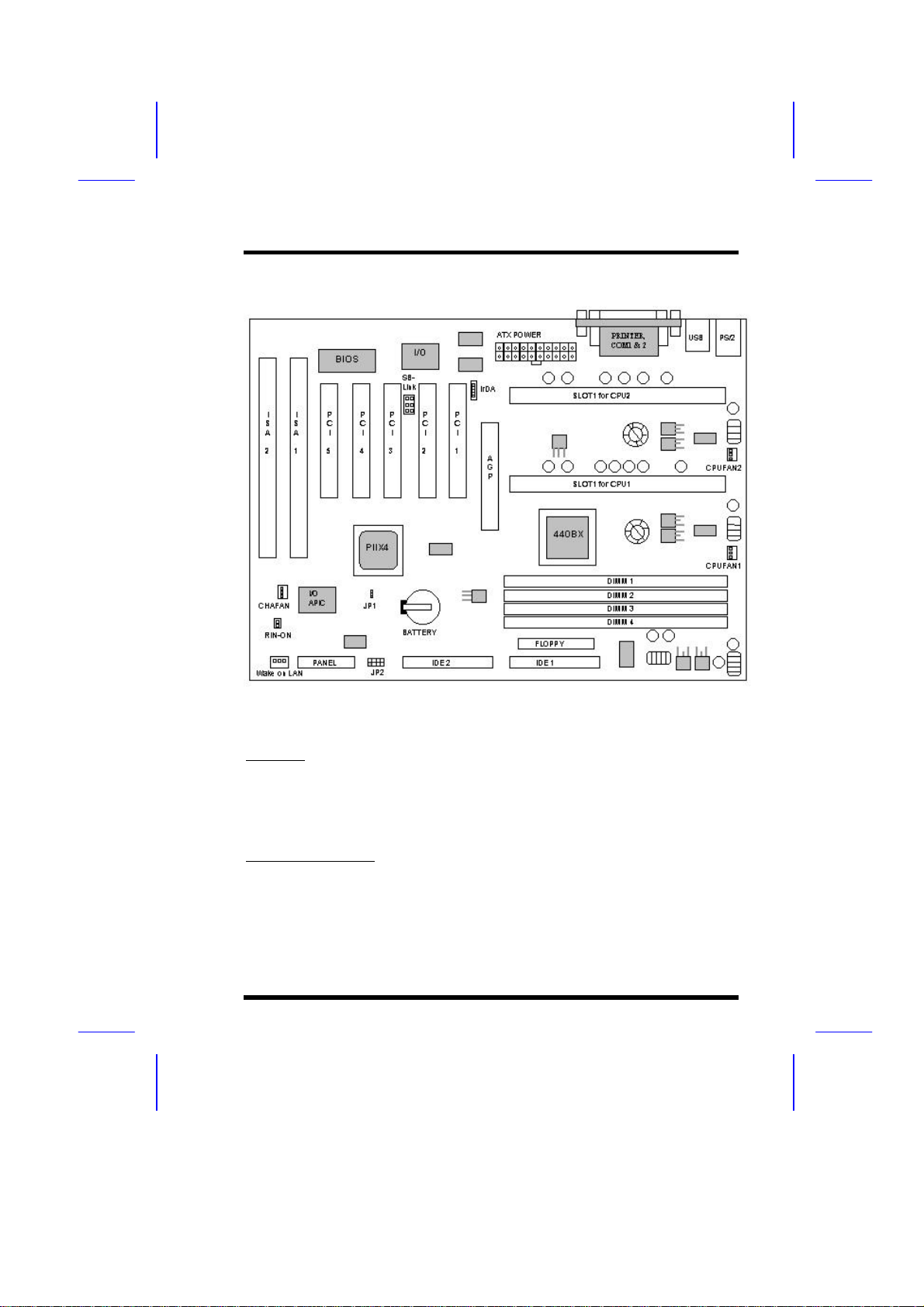

1-4 Mainboard Layout

1-4 BXAD USER’S MANUAL

I. PRODUCT INFORMATION

Jumpers

1. JP1

2. JP2

Expansion Sockets

1. DIMM 1 to DIMM 4

Clear CMOS (Real Time Clock)
CPU Clock Ratio & CPU Type

Support DIMM Memory

BXAD USER’S MANUAL 1-
5

I. PRODUCT INFORMATION

Expansion Slots

1. CPU1

2. CPU2

3. ISA Slot 1 & Slot 2

4. PCI Slot 1 to Slot 5

Connectors

1. PS/2 KB

2. PS/2 Mouse

3. USB

4. COM1/COM2

5. PRINTER

6. ATX POWER

7. CPUFAN1

8. CPUFAN2

9. CHAFAN

10. Floppy

11. Primary IDE

12. Secondary IDE

13. IR

14. RIN-ON

15. SB-LINK

16. Panel:

- PWR LED

- KBLCK

- SLP

- SPEAKER

- GRN LED

- HDD LED

- RESET

- PWR ON

Slot 1 for supporting Pentium II CPU
Slot 1 for supporting Pentium II CPU
16-bit ISA Bus Expansion Slot
32-bit PCI Bus Expansion Slot

PS/2 Keyboard Connector (6-pin female)
PS/2 Mouse Connector (6-pin female)
Universal Serial BUS Port 1 and Port 2
(two 4-pin female)
Serial Port 1 / Serial Port 2 (two 9-pin female)
Printer (Parallel) Port Connector (25-pin female)
ATX Mainboard Power Connector (20-pin block)
Pentium II CPU 1 Fan Connector (3 pins)
Pentium II CPU 2 Fan Connector (3 pins)
Chassis Fan Connector (3 pins)
Floppy Drive Connector (34 pins)
Primary IDE Connector (40 pins)
Secondary IDE Connector (40 pins)
Infrared Port Connector (5 pins)
Internal Modem Ring-On
Creative PCI Sound Card Link

ATX Power LED Connector (3 pins)
Keyboard Lock Switch Connector (2 pins)
Suspend Switch Connector (2 pins)
Chassis Speaker Connector (4 pins)
Green Status LED Connector (3 pins)
HDD LED Connector (4 pins)
Reset Switch Connector (2 pins)
ATX Power Switch Connector (2 pins)

1-6 BXAD USER’S MANUAL

I. PRODUCT INFORMATION

BXAD USER’S MANUAL 1-
7

SECTION 2.
HARDWARE INSTALLATION

This section gives you a step-by-step procedure on how to install your
system. Follow each section accordingly.

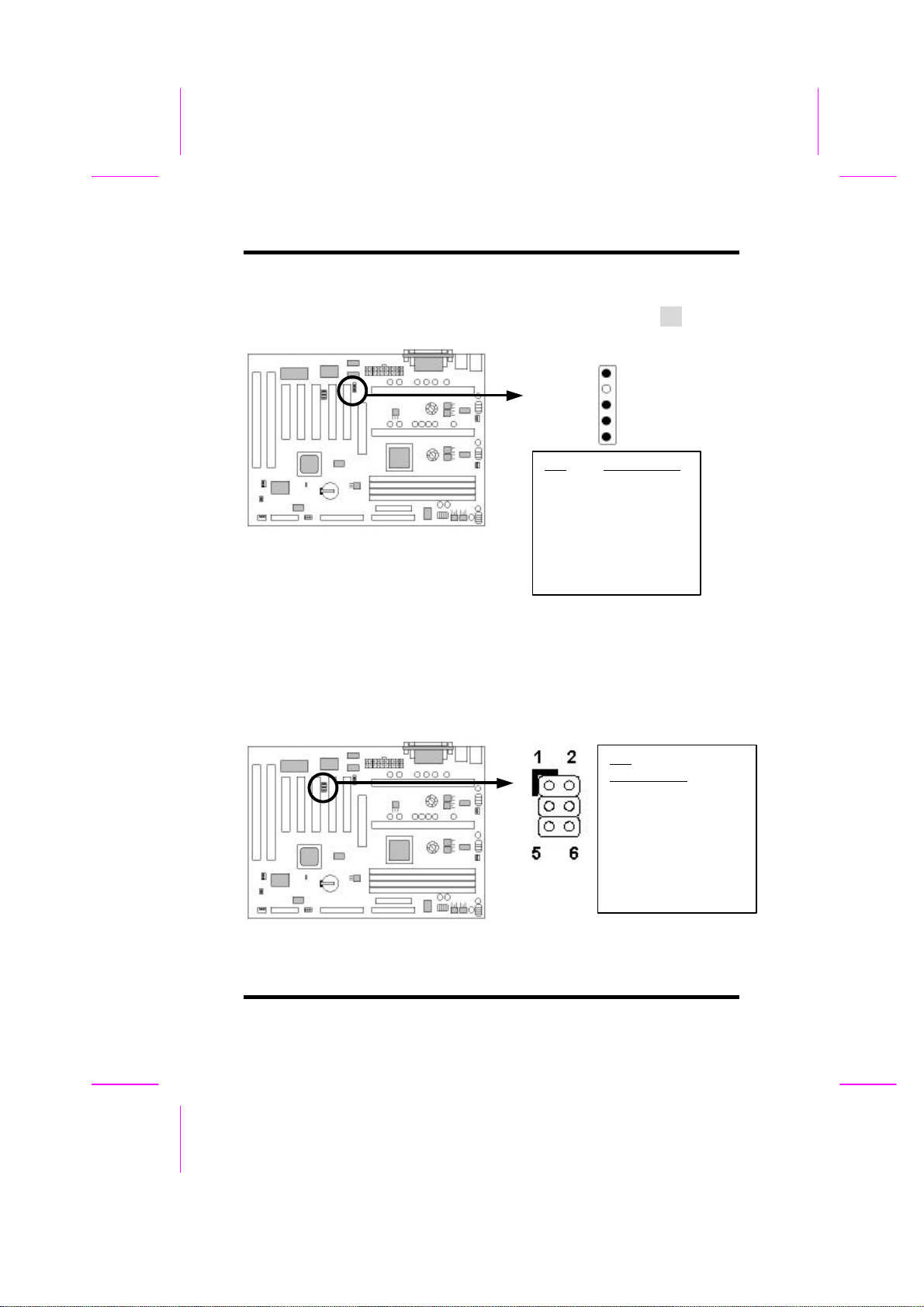

2-1 Jumper Settings

Please refer the following figures for the locations of the jumpers on the
mainboard.

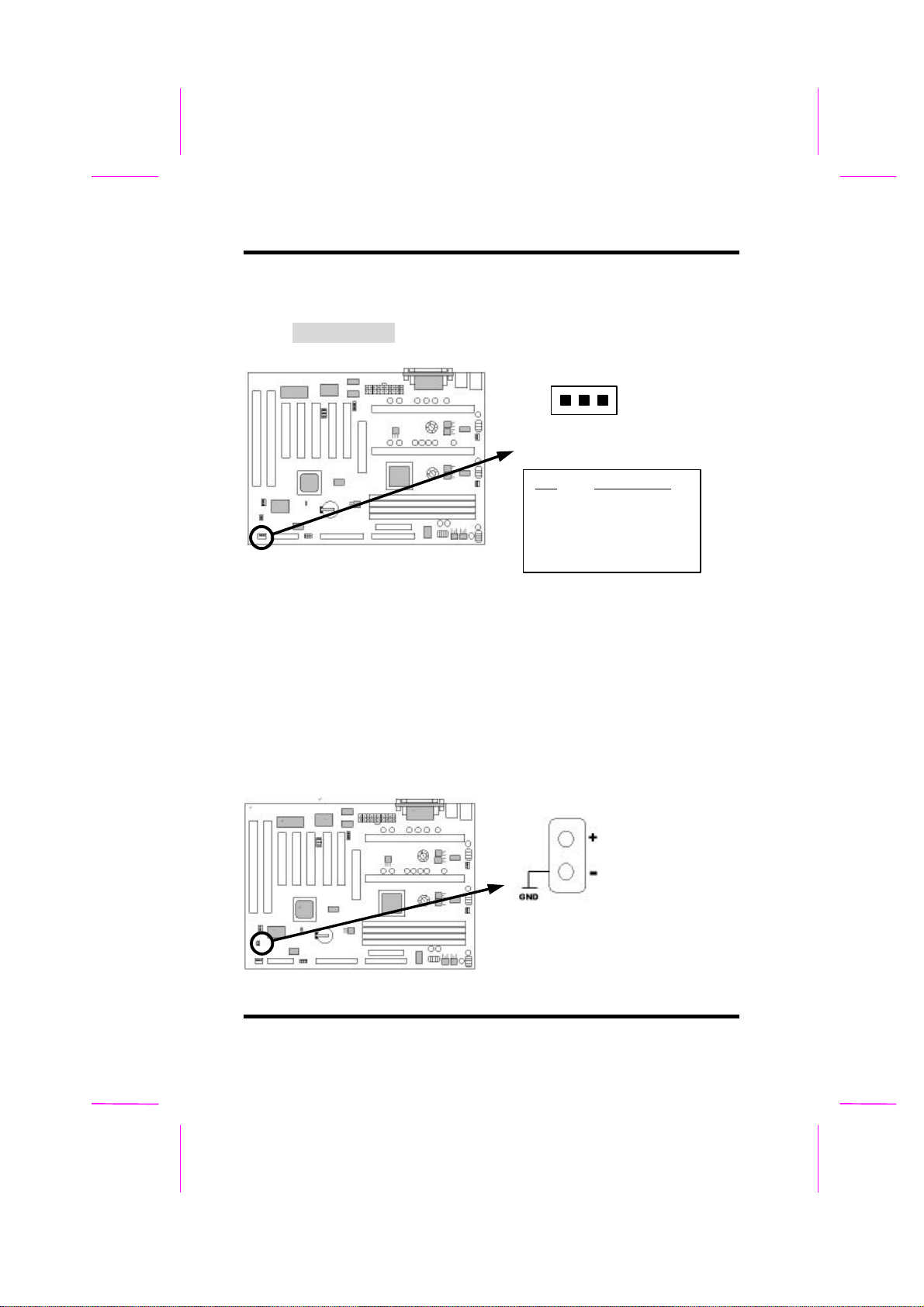

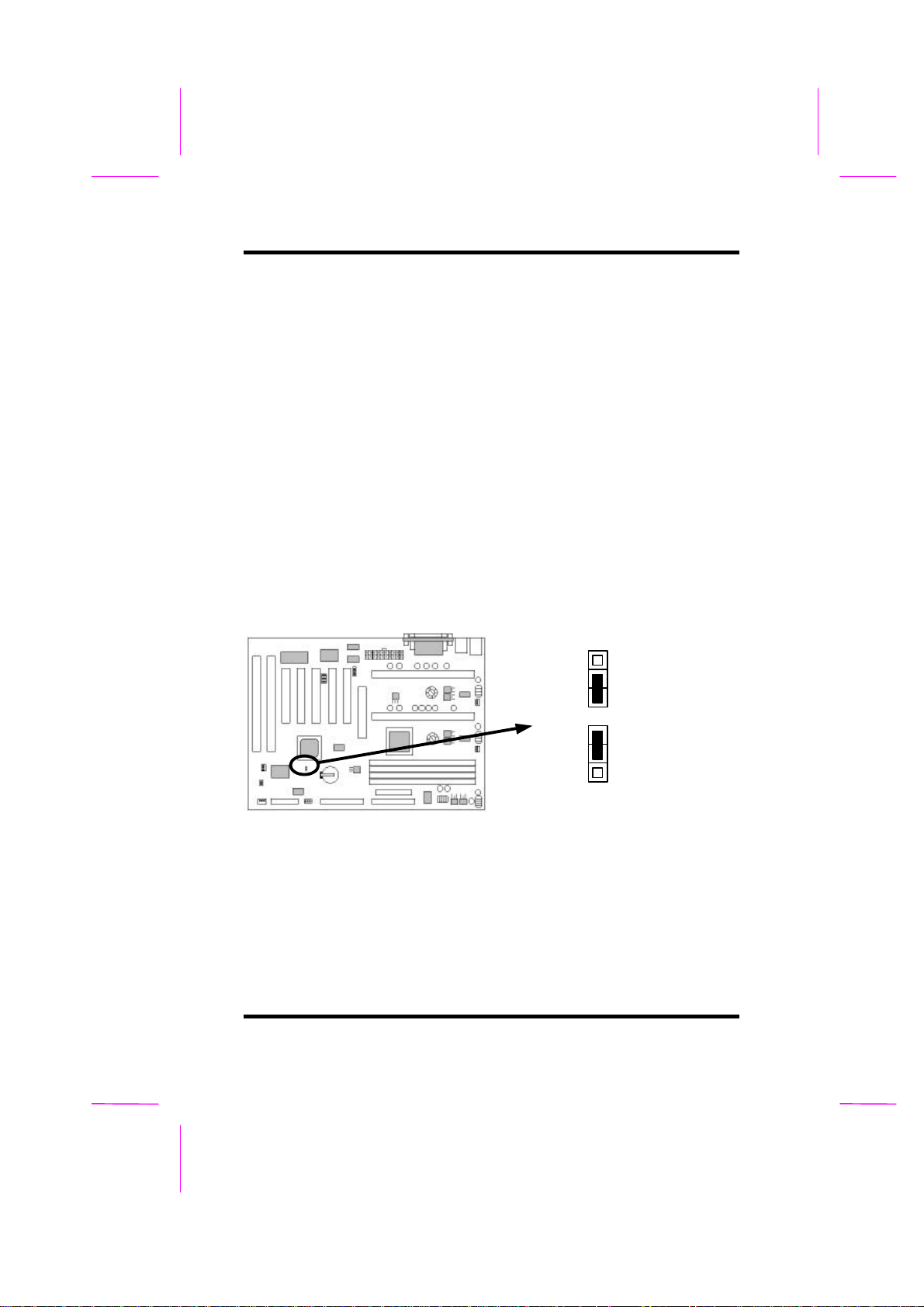

2-1.1 CMOS Clear Setting

JP1 CMOS

3
2
1

3
2
1

To clear CMOS, please follow the steps below:

1. Power off the system and unplug the chassis AC power cord.

2. Short JP1 at pin 2-3 for few seconds.

3. Set JP1 back to its Normal position at pin 1-2.

4. Plug the AC power cord to the chassis.

5. Power on the system and load the BIOS setup default.

Default
(Normal)

Clear CMOS

BXAD USER'S MANUAL 2-1

II.HARDWARE INSTALLATION

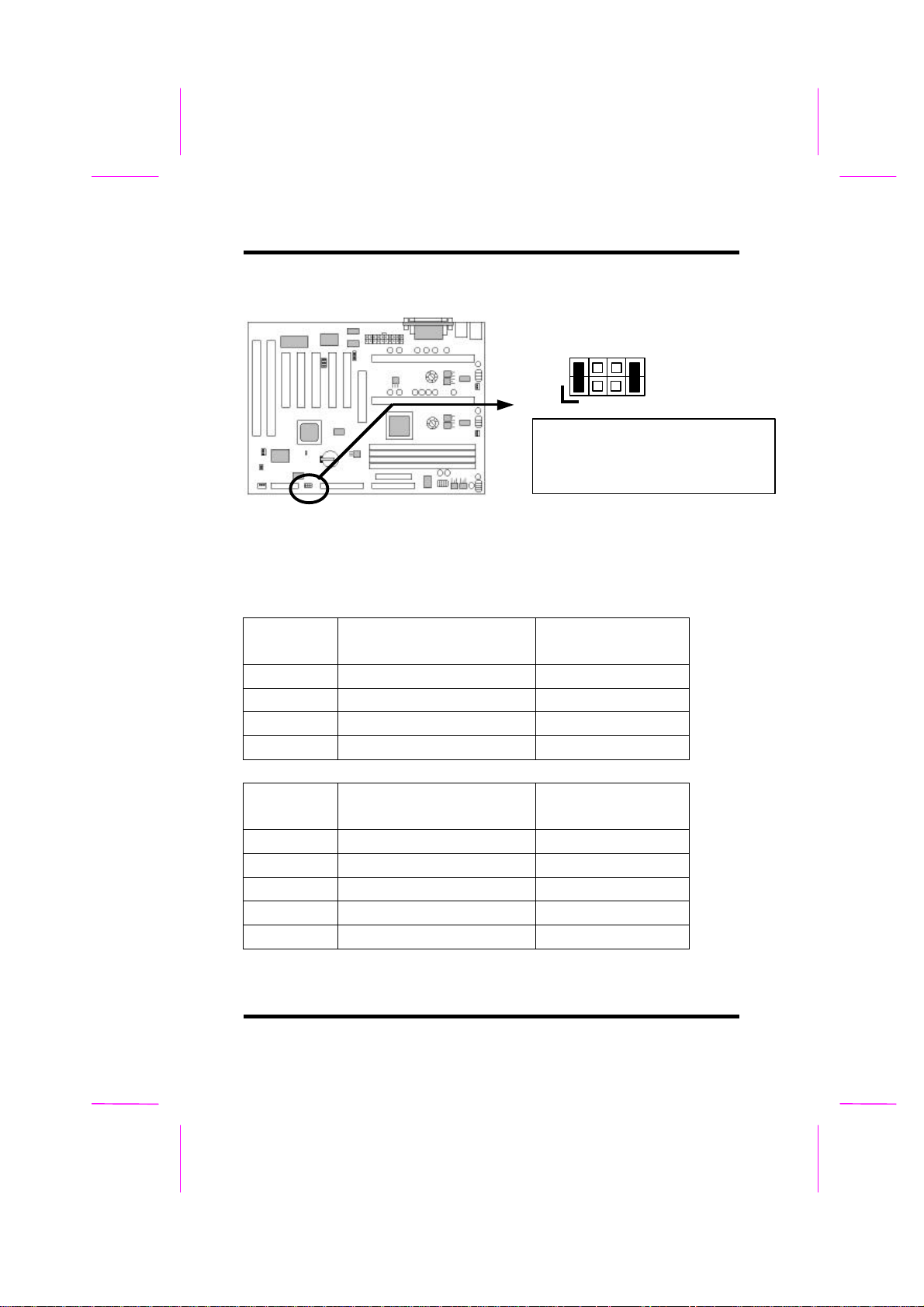

2-1.2 CPU Type Setting

JP2

2
1

CPU Type JP2
Default: 350MHz 1-2 & 7-

8

This mainboard supports Dual Pentium II CPU. However, mixing two different
CPU type is not allowed. That is, install the same CPU type if you have two
CPU in your system.

8
7

Clock Ratio CPU Type

With 66MHz Bus Clock
4X 266MHz 3-4 & 5-6 & 7-8
5X 333MHz 5-6 & 7-8

3.5X 233MHz 1-2 & 7-8

4.5X 300MHz 3-4 & 7-8

Clock Ratio CPU Type

With 100MHz Bus Clock
3X 300MHz 1-2 & 5-6 & 7-8
4X 400MHz 3-4 & 5-6 & 7-8
5X 500MHz 5-6 & 7-8

3.5X 350MHz 1-2 & 7-8

4.5X 450MHz 3-4 & 7-8

JP2 Setting

JP2 Setting

2-2 BXAD USER’S MANUAL

II.HARDWARE INSTALLATION

+

+-+-++-+--+

2-2 Connectors

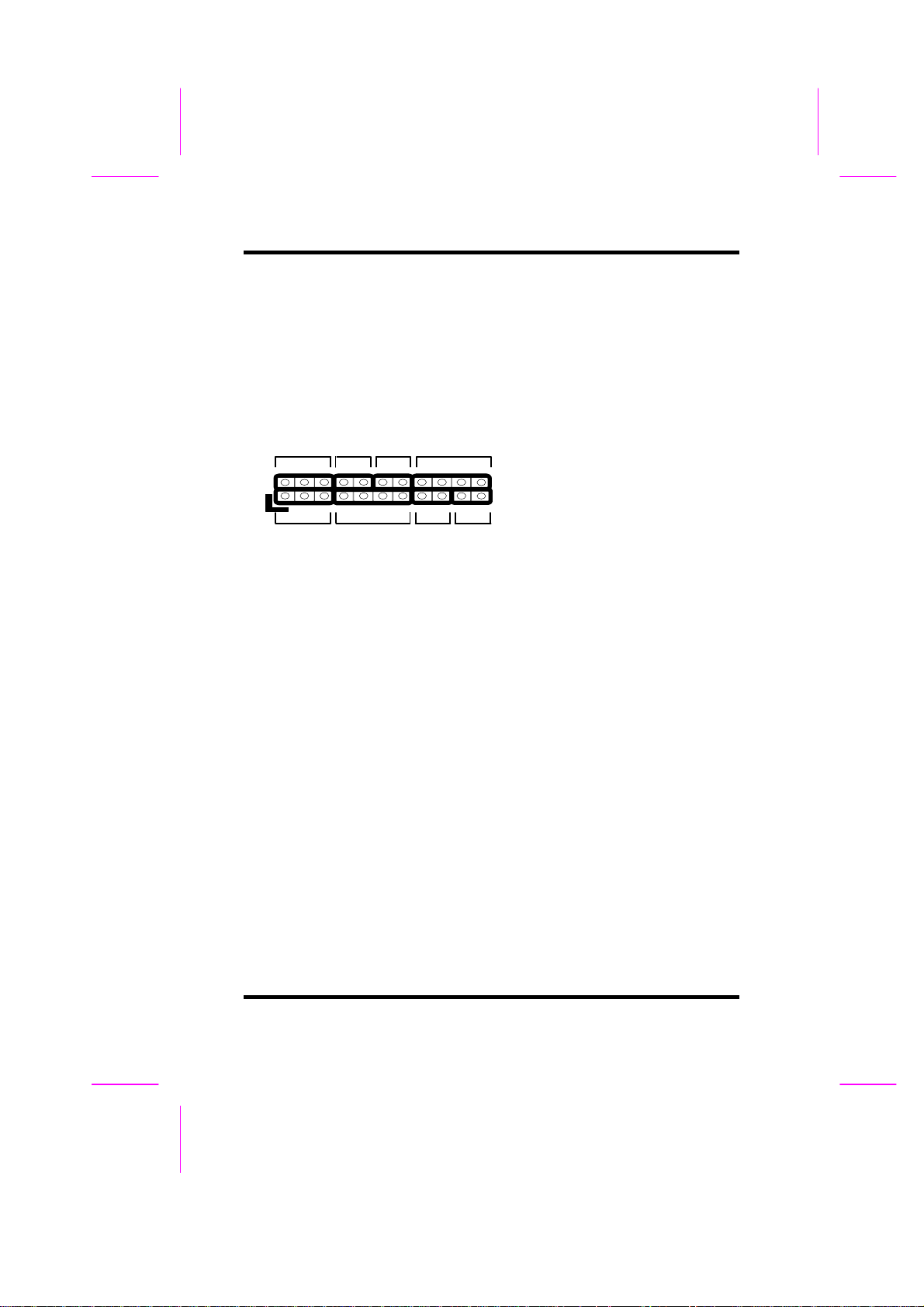

2-2.1 Panel Connector

LCK

GRN
LED

- PWR LED

- KBLCK

- SLP

- SPEAKER

- GRN LED

- HDD LED

- RESET

- * PWR ON

* PWR ON: ATX Power Switch and Suspend Switch Connector

Attach the ATX power button or suspend switch cable to this connector.
In the ATX power system, this connector will be not only an ATX power

button, but a suspend switch as well. Details are describes as below:
When the system is off, push the power button to turn the system on. When

the system is on, push the power button rapidly within 4 seconds to switch the
system to the suspend mode, and, by pushing and holding the button for
more than 4 seconds, it will turn the system completely off. When the system
is in the suspend mode, push the power button rapidly to turn the system on.

HDD
LED

RESET

PWR

ATX Power LED Connector (3 pins)
Keyboard Lock Switch Connector (2 pins)
Suspend Switch Connector (2 pins)
Chassis Speaker Connector (4 pins)
Green Status LED Connector (3 pins)
HDD LED Connector (4 pins)
Reset Switch Connector (2 pins)
ATX Power Switch Connector and Suspend Switch

Connector (2 pins)

BXAD USER'S MANUAL 2-3

II.HARDWARE INSTALLATION

+12v

Fan Connector

2-2.2 Power Connector

Connect the 20-pin ATX power supply cable to this power connector. Make
sure the right plug-in direction and the power supply is off before connecting
or disconnecting the power cable.

+5V

5V
Stand-by

+5V

3.3V

3.3V

2-2.3 Fan Connectors

Connect the CPU and Chassis Fan cables to the fan connectors shown below.
The fan connectors are marked as: CPUFAN1, CPUFAN2 and CHAFAN
on the mainboard.

SENSE

GND

CPUFAN1
CPUFAN2
CHAFAN

2-4 BXAD USER’S MANUAL

II.HARDWARE INSTALLATION

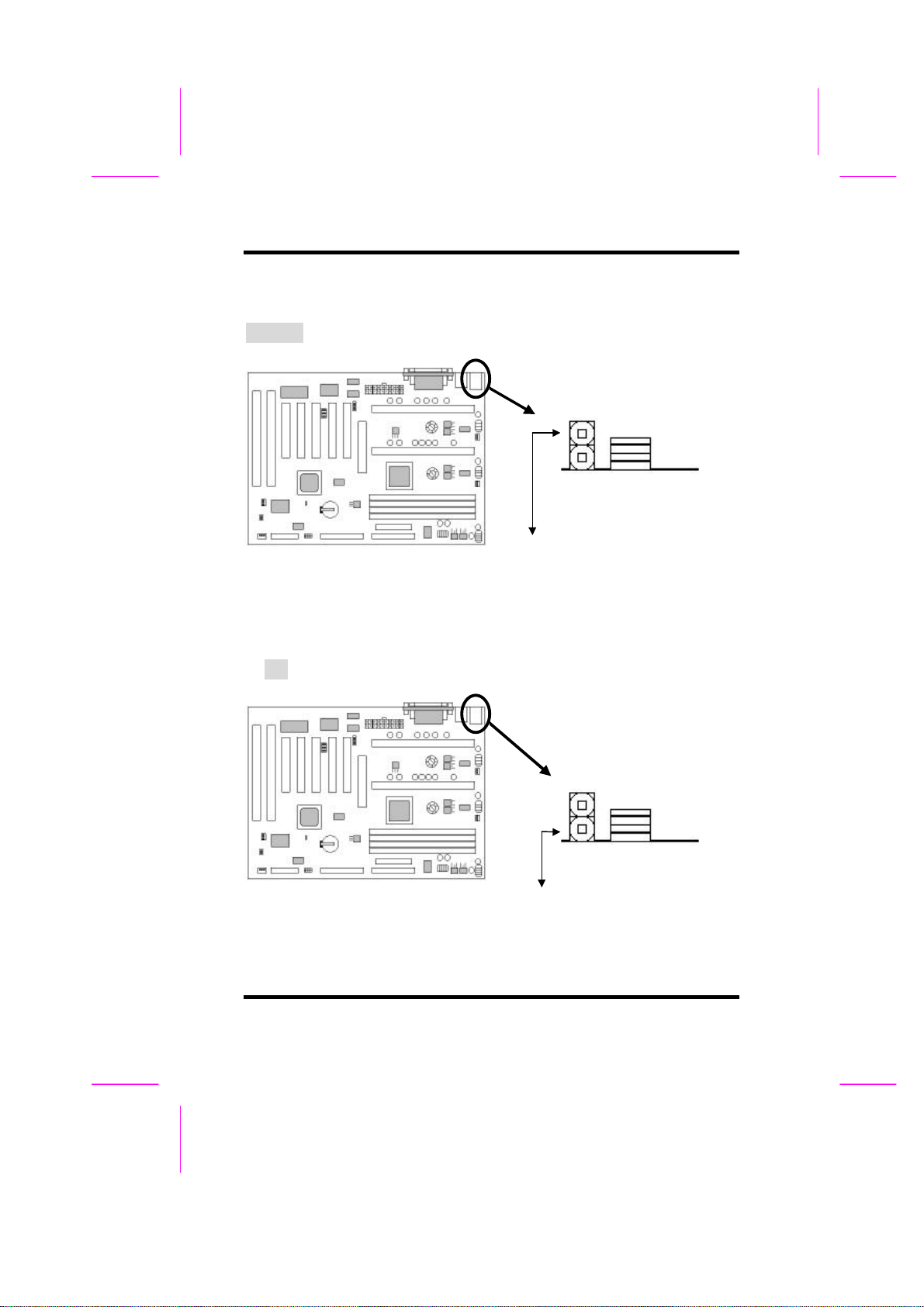

2-2.4 PS/2 Mouse Connector

Connect the PS/2 mouse to the onboard 6-pin Mini-Din connector marked as
MOUSE.

PS/2 Mouse

2-2.5 Keyboard Connector

Connect the PS/2 keyboard to the onboard 6-pin Mini-Din connector marked
as KB.

PS/2
Keyboard

BXAD USER'S MANUAL 2-5

II.HARDWARE INSTALLATION

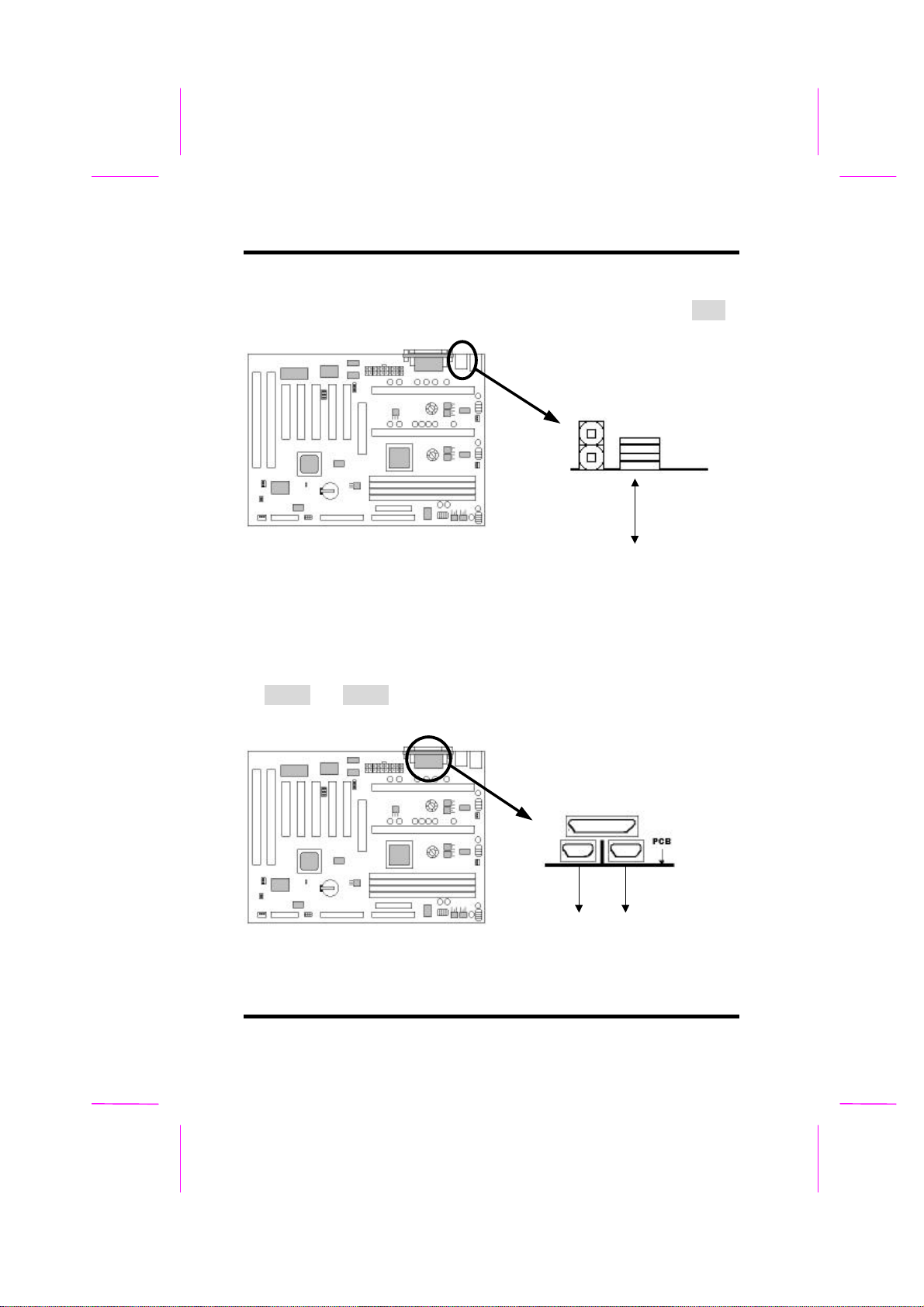

2-2.6 USB Device Connector

Connect your USB device(s) to the onboard USB connector marked as USB.

USB

2-2.7 Serial Device(COM1/COM2) Connectors

Connect your serial device(s) to the onboard 9-pin serial connectors marked
as COM1 and COM2.

COM1 COM2

2-6 BXAD USER’S MANUAL

II.HARDWARE INSTALLATION

FDD

2-2.8 Printer Connctor

Connect your local printer to the onboard 25-pin printer connector marked as
PRINTER.

PRINTER

2-2.9 Floppy Drive Connector

Connect the floppy drive cable to the onboard 34-pin floppy drive connector
marked as FDD.

BXAD USER'S MANUAL 2-7

II.HARDWARE INSTALLATION

2-2.10 IDE Hard Disk and CD-ROM Connector

Connect your IDE devices to the onboard 40-pin IDE connectors marked as
Primary and Secondary.

Secondary

Primary

Secondary IDE Cable

Secondary

Primary

It is suggested that you connect the IDE devices to your IDE cables as the
figure shown above. Each IDE channel, either Primary or Secondary, supports
two IDE devices which must be set differently to master mode and slave
mode.

(Refer to your hard disk and CD-ROM user s manual for detailed settings of
IDE master and slave mode.)

Slave

Primary IDE Cable

Slave

Master

Master

2-8 BXAD USER’S MANUAL

II.HARDWARE INSTALLATION

2-2.11 IrDA Connector

Connect your IR device to the onboard IrDA connector marked as IR.

1
2
3
4
5

Pin Description

1 +5V
2 NC
3 IRRX
4 GND
5 IRTX

2-2.12 SB-LINK Connector

If you have a Creative PCI sound card installed in your system, connect the
sound card to this SB-LINK connector for compatibility issue under DOS
environment.

IR

Pin
Description

1 GNTA
2 GND
3 NC

SB-LINK

4 REQA
5 GND

BXAD USER'S MANUAL 2-9

II.HARDWARE INSTALLATION

2-2.13 Wake on LAN Connector

This mainboard supports wake up on LAN function. To use this function, you
need a Wake on LAN supported network card and software.

Wake on LAN

1 2 3

Pin Description

1 +5V Standby
2 GND
3 Signal

2-2.14 Ring-On Connector

Connect the internal modem to this onboard RIN-ON connector to support the
modem ring-on function. To use this function, you need a ring-on supported
modem card.

RIN-ON

2-10 BXAD USER’S MANUAL

II.HARDWARE INSTALLATION

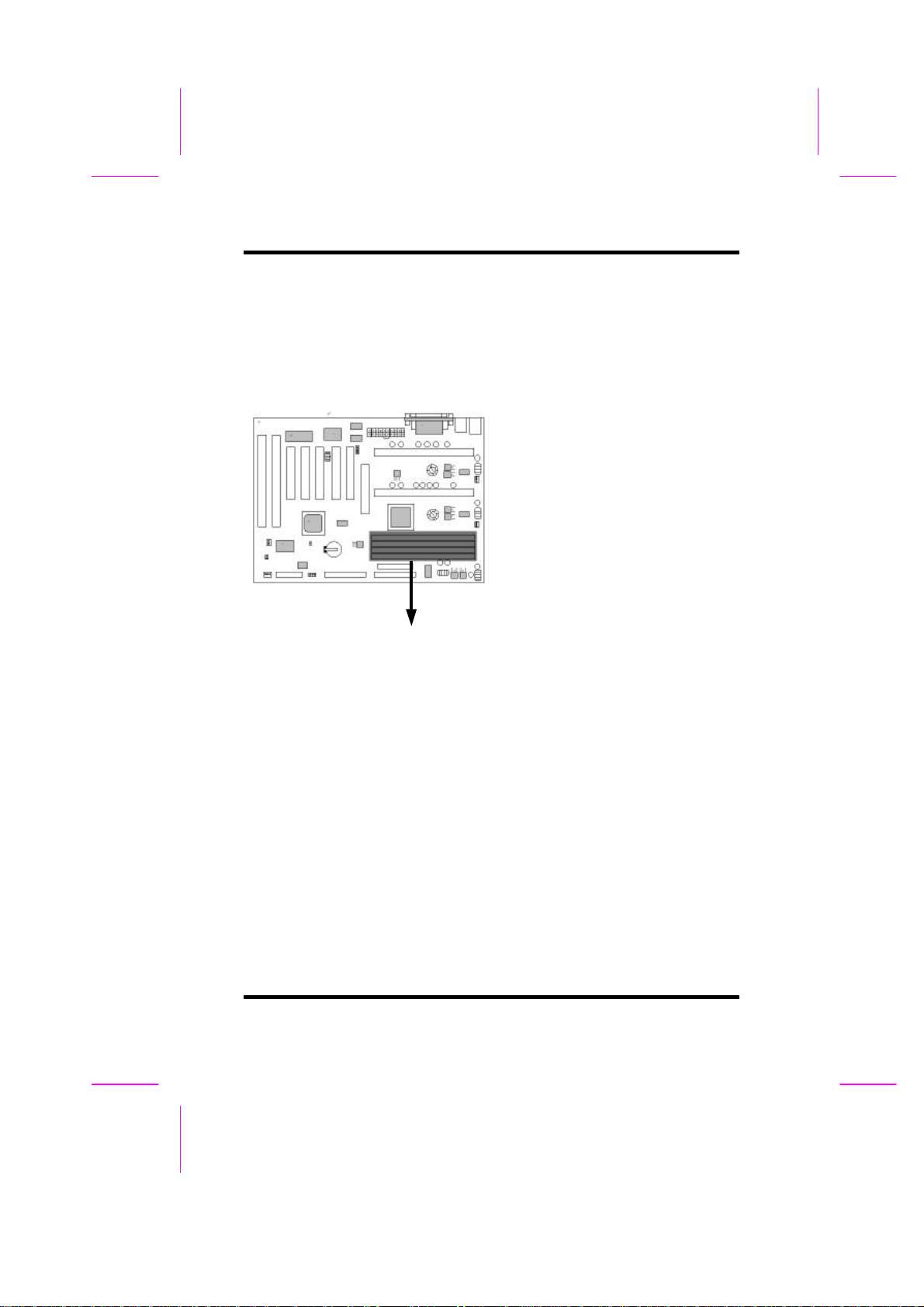

2-3 System Memory Installation

There are 4 pcs 168-pin DIMM (Dual Inline Memory Module) sockets on the
mainboard which support Synchronous DRAM and Registered SDRAM, and
allow you install system memory maximum up to IGB.

DIMM

2-3.1 Type

This mainboard supports Synchronous DRAM and Registered SDRAM.
However, mixing SDRAM and Registered SDRAM is not allowed. Install one
type only in your system for better compatibility.

2-3.2 Speed

The memory speed normally marked as: -15, -12, -10, -7, -8, PC-100.
The meaning is,

-15 = 15ns, and the maximum clock is 66MHz

-12 = 12ns, and the maximum clock is 83MHz

-10 = 10ns, and the maximum clock is 100MHz

BXAD USER'S MANUAL 2-11

II.HARDWARE INSTALLATION

-8 = 7ns, and the maximum clock is 125MHz

-7 = 8ns, and the maximum clock is 142MHz
PC-100 = New Intel specification for high memory speed
with 100MHz or above CPU Bus Clock.

This motherboard supports all the above memory speed. For better
system performance and reliability, we suggest that you use PC-100
SDRAM if 100MHz or above CPU Bus Clock is used in your system.

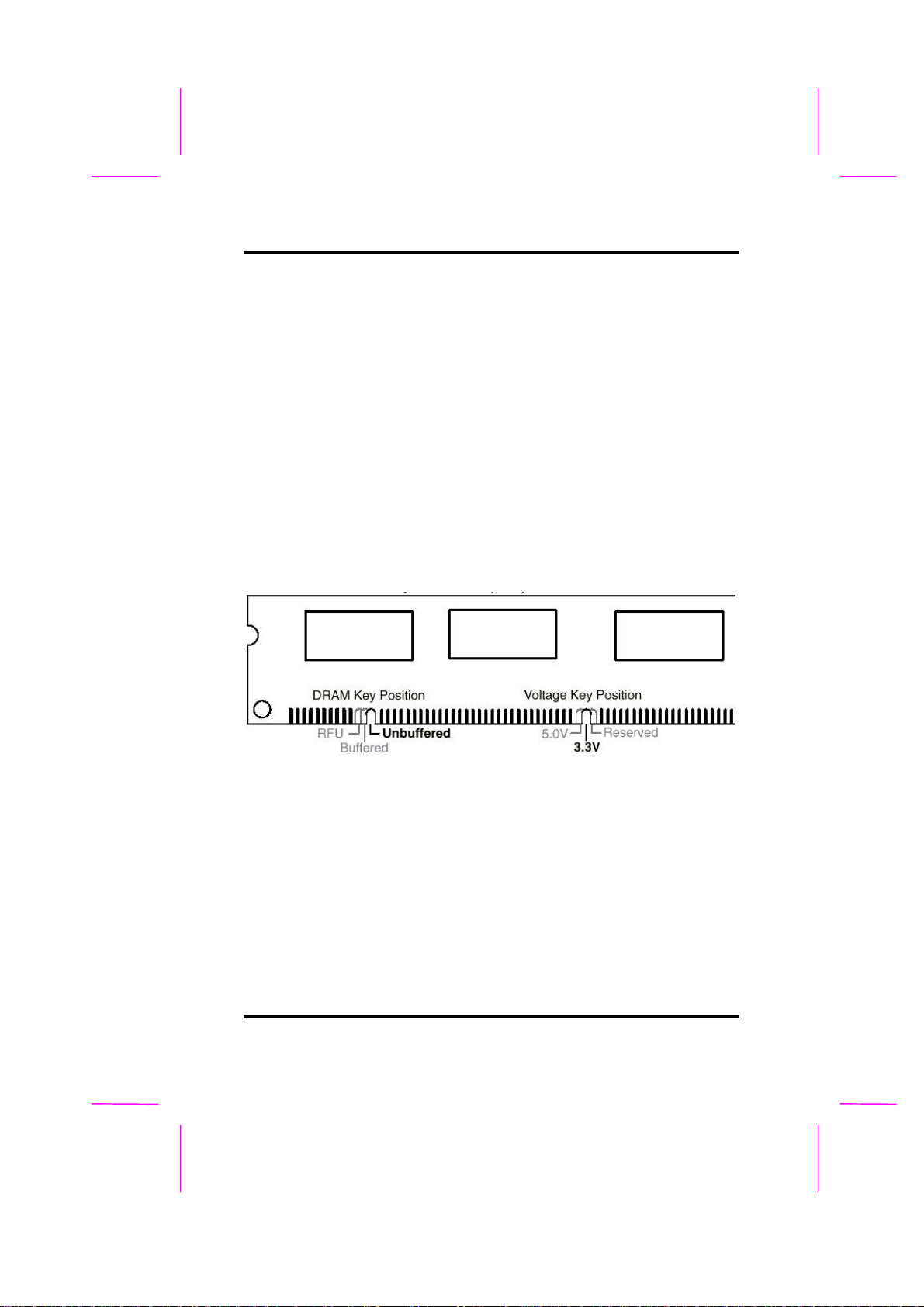

2-3.3 Buffered and Non-buffered

Only the non-buffered DIMM can be used in this mainboard.

The difference between buffered and non-buffered DIMM can be
identified by the notch position shown above.

2-3.4 2-clock and 4-clock signal

Both 2-clock and 4-clock SDRAM DIMM supported by this mainboard.

2-12 BXAD USER’S MANUAL

II.HARDWARE INSTALLATION

2-3.5 Parity and Non-parity

This mainboard supports standard 64 bit (Non-parity) and 72 bit
(Parity) DIMM modules.

2-3.6 Memory Auto detection by BIOS

This mainboard BIOS can automatically detect the DIMM memory size and
type, so you do not need to adjust any hardware or software settings.
The maximum memory size supported up to 1GB.

2-3.7 Suggested SDRAM combination

This mainboard supports the following SDRAM combination.

DIMM
Data Chip

1M by 16 1Mx64 Single side 4 8MB YES
1M by 16 1Mx64 Double side 8 16MB YES
2M by 8 2Mx64 Single side 8 16MB YES
2M by 8 2Mx64 Double side 16 32MB YES
2M by 32 2Mx64 Single side 2 16MB YES
2M by 32 2Mx64 Double side 4 32MB YES
4M by 16 4Mx64 Single side 4 32MB YES
4M by 16 4Mx64 Double side 8 64MB YES
8M by 8 8Mx64 Single side 8 64MB YES
8M by 8 8Mx64 Double side 16 128MB YES

Bit size
per side

Single/Double
side

No. of
chip

DIMM size Recommended

Total Memory Size = DIMM1 + DIMM2 + DIMM3 + DIMM4

BXAD USER'S MANUAL 2-13

II.HARDWARE INSTALLATION

2-14 BXAD USER’S MANUAL

SECTION 3.
CMOS SETUP UTILITY

3-1 BIOS Setup Main Menu

This section tells you how to configure the system by changing BIOS setup
options. To enter the BIOS Setup Utility, press DEL key during POST
(Power-On Self Test). The BIOS Setup Main Menu will appear as shown
below.

The main menu displays a table of items which defines basic information
about your system. Below are the keyboard function keys you can use under
the menu.

B MANUAL 3-

1

III. CMOS SETUP UTILITY

Menu function keys:

E S C

F 1
S H I F T + F 2
F 1 0
ENTER

3-2 Standard CMOS Setup

This "Standard CMOS Setup" sets the basic system settings such as the date,
time, and the hard disk type, Video display type and error handling. Use the

arrows keys to highlight an item and use Page Up / Page
Down or + - to set the value for each item.

To close the BIOS Setup Utility.
To move around the screen. An item is highlighted

if it is selected.
To displays information about the highlighted item

you selected.
To Change the color scheme.
To save the changes before exit the BIOS Setup

Utility.
To select or enter a submenu.

3-2 BXAD USER’S MANUAL

III. CMOS SETUP UTILITY

Date

To set the date, highlight the date area. Press + / - or Page Up / Page

Down to set the current date. The date format is month: Jan. ~ Dec ., date:
1 ~ 31, and year: 1994 ~ 2079.

Time

To set the time, highlight the time area. Press + / - or Page Up / Page

Down to set the current time. The time format is hour: 00 ~ 23, minute: 00 ~
59, and second: 00 ~ 59.

Hard Disks Primary Master
Hard Disks Primary Slave
Hard Disks Secondary Master
Hard Disks Secondary Slave

TYPE:

- Auto

- User

- None

MODE:

- AUTO

- NORMAL

- LBA

- LARGE

This item lets you set your system IDE hard disk type.
Select Auto to let BIOS automatically detect the installed
hard disk when system boot up. Select User if you prefer
manually enter the hard disk type. The available
parameters are SIZE(HDD Size), CYLS(No. of Cylinder),
HEAD(No. of Head), PRECOMP(Pre-compensation),
LANDZ(Landing Zone), SECTOR(No. of Sector) and
MODE(HDD Mode). Select None if there is no hard disk
connected to the system.

Default: Auto

Select NORMAL for IDE HDD smaller than 528MB.
Select LBA for IDE HDD over than 528MB and support
LBA(Logical Block Addressing) mode. Select LARGE
for IDE HDD over than 528MB and do not support LBA
mode.

Note: We recommend that you set both IDE HDD TYPE
and MODE to AUTO to let BIOS automatically detect
the hard disk drives for you

Default: Auto

.

BXAD USER’S MANUAL 3-3

III. CMOS SETUP UTILITY

Floppy Drive A
Floppy Drive B

Drive A / B:

- None

- 360KB - 5.25"

- 1.2MB 5.25"

- 720KB 3.5"

- 1.44MB 3.5"

- 2.88MB 3.5"

Video

Video:

- EGA/VGA

- CGA40

- CGA80

- Mono

Halt On

Halt On:

- All Errors

- No Errors

- All, But Keyboard

- All, But Diskette

- All, But Disk/Key

Select the floppy drive type installed in your system.
The available options for Drive A and Drive B are:
360KB 5.25”, 1.2MB 5.25”, 720KB 3.5”, 1.44MB 3.5”,

2.88MB 3.5” and None.

Default: Drive A => 1.44MB 3.5 ”

Drive B => None

Select the video display card type installed in your system.
The available types are: EGA/VGA, CGA 40, CGA 80 and
Mono.

Default: EGA/VGA

This item defines the operation of the system
POST(Power On Self Test). You can use this item to
select which kind of errors will cause the system to halt
during POST.

Default: All Errors

3-4 BXAD USER’S MANUAL

III. CMOS SETUP UTILITY

3.3 BIOS Features Setup

This "BIOS Features Setup" option allows you to setup and improve your
system features and performance.

Virus Warning

Virus Warning:

- Enabled

- Disabled

BXAD USER’S MANUAL 3-5

When this item is enabled, it provides some protection
against viruses which try to write to the boot sector and
partition table of your hard disk drive. The default setting is
Disabled so that you can install an operating system or
software application. We recommend that you enable Virus
Warning as soon as you have installed an OS in your hard
disk drive.

Default: Disabled

III. CMOS SETUP UTILITY

External Cache

External Cache:

- Enabled

- Disabled

This item controls Enable/Disable the external L2 cache.

CPU L2 Cache ECC Checking

CPU L2 Cache ECC
Checking:

- Enable

- Disabled

This item can be used to enable ECC (Error Checking and
Correcting) function of the CPU level-2 cache memory.
When the item is enabled, BIOS will automatically check if
CPU support L2 ECC function. This item will not be
displayed if CPU does not support L2 ECC.

Power-On Self-Test

Quick Power-on
Self-test:

- Enable

- Disabled

This item can be used to start operating system quickly by
skip some normal POST checking items.

Boot Sequence

Boot Sequence:

- A,C,SCSI

- C,A,SCSI

- C,CDROM,A

- CDROM,C,A

- D,A,SCSI

- E,A,SCSI

- F,A,SCSI

- SCSI,A,C

- SCSI,C,A

- C only

- LS/ZIP,C

This item defines where the system will look for an
operating system, and the order of priority. The boot up
search sequence shown as left.

Default: Enabled

Default: Enabled

Default: Enabled

Default: A, C, SCSI

3-6 BXAD USER’S MANUAL

Swap Floppy Drive

III. CMOS SETUP UTILITY

Swap Floppy Drive:

- Enabled

- Disabled

If you have two floppy drives in your system, This item
allows you to swap around the assigned drive letters so
that drive A becomes drive B, and drive B becomes drive
A. Default:

Disabled

Boot Up Floppy Seek

Boot Up Floppy
Seek:

- Enabled

- Disabled

This item controls the system to seek floppy drive during
boot up POST.

Boot Up NumLock Status

Boot Up NumLock
Status:

- On

- Off

This item defines if the keyboard NumLock key is active
when your system is started.

Boot Up System Speed

Boot-up System
Speed:

- High

- Low

This item allows the system boot up with High or Low
speed.

Default: Disabled

Default: On

Default: High

Typematic Rate Setting

Typematic Rate
Setting:

- Enabled

- Disabled

BXAD USER’S MANUAL 3-7

To Enable or Disable the speed of keyboard to send
repeat keystrokes.

Default: Disabled

III. CMOS SETUP UTILITY

Typematic Rate (Chars/Sec)

Typematic
Rate:

- 6

- 8

- 10

- 12

- 15

- 20

- 24

- 30

This item provides typematic rate setting, which allows you to
control the repeated keystrokes speed.

Typematic Delay (Msec)

Typematic Delay:

- 250

- 500

- 750

- 1000

This item provides typematic delay setting, which
allows you control the delay time between the first and
the second keystroke.

Security Option

Security Option:

- Setup

- System

This item is for password request in entering setup or boot
up.

Default: 6

Default: 250

Default: Setup

PCI/VGA Palette Snoop

PCI/VGA Palette
Snoop:

- Enabled

- Disabled

Set this item to Enabled to reduce display problem when
both PCI VGA and some graphic accelerator devices
such as MPEG/Video capture cards are installed in your
system.

3-8 BXAD USER’S MANUAL

Default: Disabled

III. CMOS SETUP UTILITY

MPS V1.4 For Single CPU

MPS V1.4 For
Single CPU:

- Enabled

- Disabled

MPS V1.4 is Intel’s Multiprocessor Specification. Set
this item to disabled if your operating system does not
support MPS V1.4. Currently, not much multiprocessor
operating system supporting the MPS V1.4.

OS Select for DRAM > 64MB

OS Select for
DRAM > 64MB:

- OS/2

- Non-OS/2

This item is to patch that can not report correct
memory size for more than 64 MB. Set it to OS/2 if you
have an O/S installed and have over 64MB system
memory.

Video BIOS Shadow

Video BIOS
Shadow:

- Enabled

- Disabled

This item defines if you leave default setting, video
BIOS memory will be copied from ROM into DRAM
area to enhance system performance as DRAM access
time is faster than ROM.

C8000-CBFFF Shadow to DC000-DFFFF Shadow

Default: Disabled

Default: Non-OS/2

Default: Enabled

C8000-CBFFF to
DC000-DFFFF
Shadow:

- Enabled

- Disabled

BXAD USER’S MANUAL 3-9

Set Enabled if you know the address that your add on
card ROM used to shadow them. If the item is Enabled,
BIOS will copy the selected area from ROM to RAM to
increase system performance.

Default: Disabled

III. CMOS SETUP UTILITY

3-4 Chipset Features Setup

This option display a table of items which define timing parameters of the
mainboard components including the graphic system, memory, and the
system logic. In general rule, you should leave the items on this page at the
default values unless you are familiar with the technical specifications of your
hardware. If you change the values, you may introduce fatal errors or
recurring instability into your system.

SDRAM CAS Latency

SDRAM CAS
Latency:

- 2T

- 3T

- Auto

This item defines the latency between SDRAM read
command and the actual data time.

It is an important SDRAM parameter. If your SDRAM
has unstable problem, try set this item to 3T.

SDRAM RAS# to CAS# Delay

3-10 BXAD USER’S MANUAL

Default: 3T

III. CMOS SETUP UTILITY

SDRAM RAS# to
CAS# Delay:

- 2T

- 3T

- Auto

This item defines the latency between SDRAM active
command and the read/write command.

It is an important SDRAM parameter. If your SDRAM
has unstable problem, try set this item to 3T.

SDRAM RAS# Precharge Time

SDRAM RAS#
Precharge:

- 2T

- 3T

- Auto

This item defines the waiting time after issuing a
SDRAM Precharge command.

DRAM ECC Function

DRAM ECC
Function:

- Enabled

- Disabled

This item enables/disables ECC(Error Checking and
Correction) for the main memory. We recommend
that you leave this item at Enabled if you have verified
that your memory modules support ECC. To use this
function, you need 72 bits(64+8 bit parity) DIMM.

Default: 3T

Default: 3T

Default: Disabled

Video BIOS Cacheable

Video BIOS
Cacheable:

- Enabled

- Disabled

This item allows the video BIOS to be cached for
faster video performance.

Default: Disabled

Video RAM Cacheable

BXAD USER’S MANUAL 3-11

III. CMOS SETUP UTILITY

Video RAM
Cacheable:

This item allows the Video RAM to be cached for
faster video performance.

- Enabled

- Disabled

8 Bit I/O Recovery Time
16 Bit I/O Recovery Time

8 Bit I/O Recovery
Time:

- 1

- 2

- 3

- 4

- 5

- 6

- 7

- 8

- NA

16 Bit I/O Recovery Time:

- 1

- 2

- 3

- 4

- NA

This two items set timing parameters for 8-bit and 16­bit ISA expansion cards.

Memory Hole At 15M-16M

Memory Hole At
15M-16M:

- Enabled

- Disabled

This item can be used to reserve memory space for
some ISA cards that require it.

Default: Disabled

Default: 8-Bit I/O Recovery Time => 4

8-Bit I/O Recovery Time => 1

Default: Disabled

Passive Release
Delayed Transaction

3-12 BXAD USER’S MANUAL

III. CMOS SETUP UTILITY

Passive Release,
Delayed Transaction:

- Enabled

- Disabled

These two items make the PCI Bus Compliant with
the PCI Specification ver. 2.1.

AGP Aperture Size (MB)

AGP Aperture Size
(MB):

- 4

- 8

- 16

- 32

- 64

- 128

- 256

This item defines the effective memory size of the
AGP Aperture.

Pentium II Micro Codes

Pentium II Micro
Codes:

- Enabled

- Disabled

This item defines the Pentium II Micro Codes which
are used to resolve Pentium II CPU bugs. We
recommend that you leave this item at the default
value for better reliability.

Default: Enabled

Default: 64

Default: Enabled

3-5 Power Management Setup

This option displays a table of items which lets you control the power
management of the system. Modern operating system take care of much of
the routine power management. This mainboard supports ACPI (Advanced
Configuration and Power Interface).

BXAD USER’S MANUAL 3-13

III. CMOS SETUP UTILITY

Power Management

Power Management:

- Max Saving

- Mix Saving

- User Define

- Disabled

Mode Doze Standby Suspend HDD Power Down
Min Saving
Max Saving

This item allows you to set the default parameters of
power-saving modes. Set to Disable to disable power
management function. Set to User Define to define
your own parameters.

Default: User Define

1 hour 1 hour 1 hour 15 min
1 min 1 min 1 min 1 min

PM Controlled by APM

PM Controlled by
APM:

- Yes

- No

This item works when "Max Saving" is selected. Set to
Yes to transfer power management control to APM
(Advanced Power Management) and enhance power
saving function.

Default: Yes

Video Off After

Video Off After:

- N/A

- Doze

- Standby

- Suspend

To select the power down mode option to turn off
video monitor.

Default: Standby

Doze Mode

3-14 BXAD USER’S MANUAL

III. CMOS SETUP UTILITY

Doze Mode:

- Disabled

- 1 Min

- 2 Min

- 4 Min

- 8 Min

- 12 Min

- 20 Min

- 30 Min

- 40 Min

- 1 Hour

This item lets you set the time after which the system
enters into Doze mode from Working mode. The
system event is detected by monitoring the IRQ
signals or other I/O events.

Default: Disabled

BXAD USER’S MANUAL 3-15

III. CMOS SETUP UTILITY

Standby Mode

Standby Mode

- Disabled

- 1 Min

- 2 Min

- 4 Min

- 8 Min

- 12 Min

- 20 Min

- 30 Min

- 40 Min

- 1 Hour

Suspend Mode

Suspend Mode:

- Disabled

- 1 Min

- 2 Min

- 4 Min

- 8 Min

- 12 Min

- 20 Min

- 30 Min

- 40 Min

- 1 Hour

This item lets you set the time after which the system
enters into Standby mode from Doze mode.

In this mode, the monitor power-saving feature
activates. Any activity detected returns the system to
normal full power mode. The system activity is
detected by monitoring the IRQ signals or other I/O
events.

Default: Disabled

This item lets you set the time after which the system
enters into Suspend mode from Standby mode. The
system activity is detected by monitoring the IRQ
signals or other I/O events.

Default: Disabled

HDD Power Down

HDD Power Down:

- Disabled

- 1 Min

- .....

- 15 Min

This item allows you specify the IDE HDD idle time
before the device enters the power down state. This
item is independent from the power states, Standby
and Suspend Mode.

3-16 BXAD USER’S MANUAL

Default: Disabled

Modem Wake Up

III. CMOS SETUP UTILITY

Modem Wake Up:

- Enabled

- Disabled

LAN Wake Up

LAN Wake Up:

- Enabled

- Disabled

Throttle Duty Cycle

Throttle Duty Cycle:

- 12.5%

- 25.0%

- 37.5%

- 50.0%

- 62.5%

- 75.0%

VGA Active Monitor

VGA Active Monitor:

- Enabled

- Disabled

To enable or disable Modem Wake Up function.

Default: Disabled

To enable or disable LAN Wake Up function.

Default: Disabled

This item defines the CPU clock slowing ratio in a
given time at the Doze/Standby state of power saving
mode.

Default: 62.5%

To enable or disable the detection of VGA activity for
power saving mode.

Default: Enabled

Power Button Override

BXAD USER’S MANUAL 3-17

III. CMOS SETUP UTILITY

Power Button
Override:

- Enabled

- Disabled

When set to Enabled, the power switch on the front
panel can be used to control power On/Suspend/Off.

Press switch System status
Less than 4 seconds Suspend mode
Longer than 4 seconds Power off

When set to Disabled, the power switch is only used
to control On/Off, no Suspend mode function.

RTC Wake Up Timer

RTC Wake Up
Timer:

- Enabled

- Disabled

To enable or disable the RTC Wake Up function.

WakeUp Date (of Month)

WakeUp Date (of
Month):

- 0

- 1

- .....

- 31

This item displayed only when you enable the RTC
Wake Up Timer item.

You can use this item to specify the date you want to
wake up the system. For Example, if you set to 18,
the system will wake up on the 18th day of every
month. If set to 0, the system will wake up on the
specified time every day.

WakeUp Time (hh:mm:ss)

Default: Enabled

Default: Disabled

WakeUp Time
(hh:mm:ss):

- hh:mm:ss

This item is displayed only when you enable the RTC
Wake Up Timer item. You can use this item to specify
the time you want to wake up the system.

IRQ 8 Clock Event

3-18 BXAD USER’S MANUAL

III. CMOS SETUP UTILITY

IRQ 8 Clock Event:

- Enabled

- Disabled

IRQ [3-7,9-15],NMI

IRQ [3-7,9-15],NMI:

- Enabled

- Disabled

Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
Floppy Disk
Serial Port
Parallel Port

Primary/Secondary
IDE 0/1, Floppy,
Serial & Parallel
Port:

- Enabled

- Disabled

OS/2 has periodically IRQ8 RTC(Real Time Clock)
event. When set this item to enabled, OS/2 may has
problem to go into Doze/Standby/Suspend mode.

Default: Disabled

To enable or disable the detection of IRQ3-7, IRQ9­15 or NMI interrupt events for power saving mode.

Default: Enabled

These items enable or disable the detection of IDE,
Floppy, Serial and Parallel port activities for power
saving mode.

Default: Serial Port => Enabled

Others => Disabled

BXAD USER’S MANUAL 3-19

III. CMOS SETUP UTILITY

3-6 PNP/PCI Configuration Setup

This option display a table of items that configures how PNP (Plug and Play)
and PCI expansion cards operates in your system.

PnP OS Installed

PnP OS Installed:

- Yes

- No

Normally, BIOS will allocate the PnP resources during
POST (Power-On Self Test). Set this item to Yes if
you have a PnP operating system such as Windows
95, BIOS will bypass PNP device initial except of boot
device (VGA/IDE or SCSI) and PNP operating system
will do these PNP devices resource allocation. If this
item is set to No, BIOS will handle all PNP devices.

3-20 BXAD USER’S MANUAL

Default: No

III. CMOS SETUP UTILITY

Resources Controlled By

Resources Controlled
by:

- Auto

- Manual

Basically, BIOS will allocate the IRQ/DMA resources
automatically for these PNP/PCI and onboard
devices. The exception might be encountered when
legacy ISA devices are installed, which occupies
resources that BIOS can not know. Therefore, this
option is for BIOS to know in advance that IRQ/DMA
is occupied by legacy ISA devices if Manual is
selected.

Default: Manual

Reset Configuration Data

Reset Configuration
Data:

- Enabled

- Disabled

When this item is set to Enabled, BIOS will turn it
Disabled again in the next boot up. This item is for
clearing ESCD data. The only reason to clear is the
data loosing the confidence. The engineering test is a
good reason to change the default setting.

Default: Disabled

IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, IRQ12, IRQ14,

IRQ15

IRQ 3-5, 7, 9-12,
14-15:

Legacy ISA
PCI/ISA PnP

BXAD USER’S MANUAL 3-21

Set the selected IRQ to Legacy ISA if your ISA card is
not PnP compatible card and requires a special IRQ
to make it function.

These options provide IRQ resources allocation for
Legacy ISA or PCI/ISA PnP card.

Default: IRQ 3~4 => Legacy ISA

Others =>PCI/ISA PnP

III. CMOS SETUP UTILITY

DMA 0
DMA 1
DMA 3
DMA 5
DMA 6
DMA 7

DMA 0,1,3,5-7:

- Legacy ISA

- PCI/ISA PnP

Set the selected DMA channel to Legacy ISA if your ISA
card is not PnP compatible card and requires a special DMA
channel to make it function.

PCI IDE IRQ Map To

PCI IDE IRQ Map
To:

- ISA

- PCI-Slot1

- PCI-Slot2

- PCI-Slot3

- PCI-Slot4

- PCI-Auto

Primary IDE INT#
Secondary IDE INT#

Primary/Secondary
IDE INT#:

- A

- B

- C

- D

Default: PCI/ISA PnP

This is a complement for the case that an ISA or PCI
add-on IDE card is installed. Since most of PCI add­on IDE cards are not PCI Compliant, a location and
INT# inputs are necessary for acknowledging to
BIOS.

Set this item to PCI-Auto to allow BIOS to
configure the installed PCI IDE card automatically .

Default: PCI-Auto

Each PCI slot has four PCI interrupts (INT) aligned as
listed , A, B, C, D. You should specify the slot in the
"PCI IDE IRQ Map To", and set the PCI interrupt
(INT) here to the interrupt connection on the card.

Use this item to specify the interrupt of the primary/
secondary channel of the PCI IDE add-on card.

Default: Primary IDE INT# => A

Secondary IDE INT# => B

3-22 BXAD USER’S MANUAL

Used MEM Base Addr

III. CMOS SETUP UTILITY

Used MEM base
addr:

- N/A

- C800

- CC00

- D000

- D400

- D800

- DC00

This item lets you set a memory space for non-PnP
ISA card and specifies the memory base of the
reserved memory space.

Used MEM Length

Used MEM Length:

- 8K

- 16K

- 32K

- 64K

This item is displayed when the above Used MEM
base addr option is not set to N/A.

If your ISA card is not PnP card and requires special
memory space to make it function, use item to set
the memory size to inform the PnP BIOS to reserve
the specified memory space for installing legacy ISA
card.

PCI Slot1/5 IRQ (Right) to PCI Slot4 IRQ (Left)

PCI Slot 1 to PCI
Slot4 IRQ:

- 3

- 4

- 5

- 7

- 9

- 10

- 11

- 12

- 14

- 15

- Auto

These items allow you manually assign an specified
IRQ to each PCI slot.

Leave this item at default “Auto”, BIOS will
automatically assign an available IRQ to the device
on each PCI slot.

Default: N/A

BXAD USER’S MANUAL 3-23

III. CMOS SETUP UTILITY

3.7 Load Setup Defaults

This option allows you load BIOS optimized settings for optimum system
performance. We recommend you to use the Optimal settings if your system
has large memory size and fully loading with add-on cards.

To load Setup Default, press Y key to confirm the operation when you see the
above display.

3-24 BXAD USER’S MANUAL

III. CMOS SETUP UTILITY

3-8 Load Turbo Defaults

This option provides better performance than optimal setup values. Load the
turbo values if you have light system loading, that is, few add-on cards and
memories.

If your system has heavy loading (more add-on cards and memories), you
may manually set the parameters in the "Chipset Features Setup" to get
proper setting to get the best system performance. Before changing any
settings in the "Chipset Features Setup", be sure that you understand the
functions of every item.

BXAD USER’S MANUAL 3-25

III. CMOS SETUP UTILITY

3-9 Integrated Peripherals

This option allows you to configure the I/O features.

IDE HDD Block Mode

IDE HDD Block
Mode:

- Enabled

- Disabled

3-26 BXAD USER’S MANUAL

This BIOS supports the enhanced IDE specification
and allow multiple sectors access in a time when
read/write. If set this item to disabled, IDE runs in
single sector access.

Default: Enabled

III. CMOS SETUP UTILITY

IDE Primary Master PIO
IDE Primary Slave PIO
IDE Secondary Master PIO
IDE Secondary Slave PIO

IDE
Primary/Secondary
Master/Secondary
PIO:

- Auto

- Mode 1

- Mode 2

- Mode 3

- Mode 4

Set these items to Auto to auto-detect the HDD
speed. The PIO mode specifies the data transfer rate
of HDD.

IDE HDD Mode Transfer Rate
Mode 0 3.3MB/s
Mode 1 5.2MB/s
Mode 2 8.3MB/s
Mode 3 11.1MB/s
Mode 4 16.6MB/s.

Set to slower mode if your hard disk performance
becomes unstable.

IDE Primary Master UDMA
IDE Primary Slave UDMA
IDE Secondary Master UDMA
IDE Secondary Slave UDMA

IDE
Primary/Secondary
Master/Slave UDMA:

- Auto

- Disabled

These items allows you to set the Ultra DMA/33 mode
supported by the IDE hard disk drive installed in your
system.

Default: Auto

Default: Auto

BXAD USER’S MANUAL 3-27

III. CMOS SETUP UTILITY

On-Chip Primary PCI IDE
On-Chip Secondary PCI IDE

On-Chip
Primary/Secondary
PCI IDE:

- Enabled

- Disabled

To enable or disable the IDE device connected to the
Primary/Secondary IDE connector.

USB Legacy Support

USB Legacy Support:

- Enabled

- Disabled

This BIOS simulates USB keyboard in legacy mode,
which means during POST or under operating
system, you can use a USB keyboard without loading
USB driver. Note you can not use both USB driver
and USB legacy keyboard at the same time. Set
disabled if you have USB driver in the operating
system.

USB IRQ Released

USB IRQ Released:

- Yes

- No

This item allows you to release USB controller IRQ if
you do not have any USB device or your system IRQ
are not enough for add-on cards allocation.

Default: Enabled

Default: Disabled

Default: No

Flash/Upgrade BIOS

Flash/Upgrade BIOS:

- Enabled

- Disabled

This item allows you to protect your mainboard BIOS
being flashed/upgraded by MAXFLASH.EXE flash
utility if you set this item disabled.

You can specify the BIOS password to avoid that
someone can change your setting.

3-28 BXAD USER’S MANUAL

Default: Enabled

III. CMOS SETUP UTILITY

Onboard FDC Controller

Onboard FDC
Controller:

- Enabled

- Disabled

To enable or disable the onboard floppy disk
controller. Set to disabled if you want to use a
separate floppy disk controller card.

Onboard Serial Port 1
Onboard Serial Port 2

Onboard Serial Port
1 & 2:

- Auto

- 3F8/IRQ4

- 2F8/IRQ3

- 3E8/IRQ4

- 2E8/IRQ3

- Disabled

This item allows you to select the I/O port and IRQ
used by the onboard serial ports.

Onboard UART Mode

Onboard UART
Mode:

- Standard

- IrDA

- ASKIR

This item is selectable only when the onboard serial
port 2 is enabled. The available mode selections for
the serial port 2 are Standard, IrDA, and ASKIR.

Standard: Configures serial port as normal mode.
IrDA: Set to this setting if there is an infrared device

connected on the onboard IrDA connector. The
maximum baud rate of this setting is: 115K baud.

ASKIR: Set to this setting if there is an infrared device
connected on the onboard IrDA connector. The
maximum baud rate of this setting is: 19.2K baud.

Default: Enabled

Default: Onboard Serial Port 1=> Auto

Onboard Serial Port 2=> Auto

Default: Standard

Onboard Parallel Port

BXAD USER’S MANUAL 3-29

III. CMOS SETUP UTILITY

Onboard Parallel
Port:

- 3BC/IRQ7

- 378/IRQ7

- 278/IRQ7

- Disabled

Parallel Port Mode

Parallel Port Mode:

- SPP

- EPP

- ECP

- ECP + EPP

ECP Mode Use DMA

This item controls the onboard parallel port address
and interrupt.

Default: 378/IRQ7

This item allows you to set the parallel port mode.

1. SPP (Standard Parallel Port): IBM AT and PS/2
compatible mode

2. EPP (Enhanced Parallel Port): To enhances the
parallel port by directly write/read data to/from
parallel port without latch.

3. ECP (Extended Parallel Port): ECP supports DMA
and RLE (Run Length Encoded) compression and
decompression.

Default: SPP

ECP Mode Use DMA:

- 3

- 1

This item displayed when select the ECP mode above
for the parallel port. You can set the DMA channel of
ECP mode.

Default: 3

3-10 Password Setting

Password prevents unauthorized use of your computer. If you set a password,
the system prompts for the correct password before boot or access to Setup,

3-30 BXAD USER’S MANUAL

III. CMOS SETUP UTILITY

the steps as follows,

1. Highlight the item Password Setting on the main menu and press ENTER.

2. The password dialog box will appear.

3. If you are installing a new password, carefully type in the password.
Press ENTER after you have typed in the password. If you are deleting a
password that is already installed just press ENTER when the password
dialog box appears.

4. The system will ask you to confirm the new password by asking you to
type it in a second time. Carefully type the password again and press
ENTER, or just press ENTER if you are deleting a password that is
already installed.

5. If you typed the password correctly, the password will be installed.

[Note]

If you forget your password, or you want to cancel your password, you can do
the steps as the following,

(1) Password forgotten:

i> Turn off the system
ii> Short JP1 at Pin 2-3 for a few seconds to clear CMOS.
iii> Set the JP1 back to Pin 1-2.
iv> Power on the system.

(2) Clear Password:
Clear your password by key-in the password you installed before,
then go to PASSWORD SETTING to press ENTER twice.

BXAD USER’S MANUAL 3-31

III. CMOS SETUP UTILITY

3-11 IDE HDD Auto Detection

This item automatically detects and installs any hard disk drives installed on
the primary and secondary IDE channel. Most modern drives can be detected.
If you are using a very old drive that can be detected, you can install it
manually using the Standard CMOS Setup option. Setup will check for two
devices on the primary IDE channel and then two devices on the secondary
IDE channel. At each device, the system will flash an N in the dialog box.
Press Enter to skip the device and proceed to the next device. Press Y, then
Enter to tell the system to accept the BIOS auto-detected device type.

3-12 Save & Exit Setup

Highlight this item and press ENTER to save the changes that you have made
in the setup utility and exit the setup program. When the Save and Exit dialog
box appears, press Y to save and exit, or press N to return to the setup main
menu.

3-13 Exit without Saving

Use this option to exit Setup Utility without saving the CMOS value changes.

3-32 BXAD USER’S MANUAL

SECTION 4.
BIOS/SOFTWARE UTILITY

4-1 Flash Utility MAXFLASH.EXE

This section tells you a step-by-step procedure on how to use the flash utility,
“maxflash.exe”, upgrade your mainboard BIOS.

To upgrade your motherboard BIOS, please follow the following:

1. For Win95 system, press F8 before Win95 boot-up, and select

“Safe mode command prompt only”.
For Non-Win95 system, boot-up the system into DOS prompt with a
bootable floppy disk.

!!!DO NOT load any memory manager like EMM386.EXE,
QEMM386.EXE under config.sys.!!!

2. Run A:>maxflash biosfile.bin

3. After loading the new BIOS code, the utility will prompt you to save

original BIOS code into your HDD or floppy. Please press "Y" to
store

it as "BIOS.OLD".

4. After the old BIOS has been successfully saved, press "Y" to

replace

BIOS.

5. After the flashing process, reboot the system by turn off the power.

!!! DO NOT TURN OFF THE POWER DURING THE FLASHING
PROCESS. !!!

6. Press "DEL" key to enter BIOS setup during POST. Reload the

"BIOS SETUP DEFAULT" and reconfigure other items as your previous

set

7. Then save and exit.

BXAD USER MANUAL 4-1

IV.BIOS/SOFTWARE UTILITY

4-2 BIOS Flash/Upgrade Protection

This mainboard supports BIOS Flash/Upgrade protection which allows you
protect your system BIOS being flashed by flash utility. We suggest you use
this feature with Password Setting in BIOS to prevent your BIOS being flashed
by flash utility.

To active the BIOS Flash/Upgrade protection, follow the steps below:

1. When the system boot up at POST (Power On Self- Test), press <Del> key

to enter BIOS Setup Utility.

2. Set the “Flash/Upgrade BIOS” item in the “Integrated Peripherals” to

Disabled.

3. Save the changes and exit Setup Utility.

, are so new, Win95 did not support them on Aug. of 1995

4-3 Remove Question Marks “?” in Win95
Device Manager

Since some of Intel 440LX/EX latest technologies, like
which is the moment Win'95 formal released.

To solve this problem, please use the Win95 patch utility
can find this utility in the bundled CD title.

For using this utility, run winp2x4.exe in the Win95 DOS prompt and refer the
proper Windows directory for the updated files to be copied.

4-4 Install Bus Master IDE (Ultra DMA/33)
Driver

The Bus Master IDE (Ultra DMA/33) driver is available in the bundled CD title.
You may run setup.exe directly to install the driver.

After installation, you will see following devices under Win95 Device Manager:

--- Hard Disk Controllers

4-2 BXAD USER’S MANUAL

IV.BIOS/SOFTWARE UTILITY

Intel 82371AB PCI Bus Master IDE Controller
Primary Bus Master IDE Controller
Secondary Bus Master IDE Controller

4-5 Hardware Monitor (Optional)

If your mainboard supports hardware monitor function, the hardware monitor
utility is available in the bundled CD title. You may run setup.exe directly to
install the driver.

After installation, you will see following screen if the program is active. Set the
suggested low/high limit of system voltage, fan speed and temperature to
monitor your system operating status.

BXAD USER MANUAL 4-3

IV.BIOS/SOFTWARE UTILITY

Voltage

1. VcoreA

2. VcoreB

3. +3.3V

4. +5V

5. +12V

6. –12V

7. –5V

Fan Speed

1. FAN1

CPU1 Voltage
Suggested Low-High Limit: 1.81 to 3.01V
CPU2 Voltage
Suggested Low-High Limit: 1.81 to 3.01V

+3.3V System Voltage
Suggested Low-High Limit: 3.10 to 3.80V

+5V System Voltage
Suggested Low-High Limit: 4.50 to 5.50V

+12V System Voltage
Suggested Low-High Limit: 11.0 to 13.0V

-12V System Voltage
Suggested Low-High Limit: N/A to -10.98.0V

-5V System Voltage
Suggested Low-High Limit: N/A to

CPU1 Fan Speed
Suggested Limit: 1055RPM

2. FAN2

3. FAN3

Temperature

CPU2 Fan Speed
Suggested Limit: 1055RPM

CHASSIS Fan Speed
Suggested Limit: 1055RPM

4-4 BXAD USER’S MANUAL

IV.BIOS/SOFTWARE UTILITY

1. System

2. CPU1

3. Other

If any of the item is abnormal working or over the suggested low/high limit,
there will be a “Warning Message” like below to warn user.

System Temperature
Suggested Low-High Limit: 0.0 to 60.0C

CPU1 Temperature
Suggested Low-High Limit: 0.0 to 60.0C

CPU2 Temperature
Suggested Low-High Limit: 0.0 to 60.0C

BXAD USER MANUAL 4-5
