PITTS 12 R/C SPORT-SCALE AIRCRAFT

ASSEMBLY AND INSTRUCTION MANUAL

Page 2

Warning:

This radio controlled model is not a toy. It requires skill to fly and is not recommended for use by beginners.

It should not be operated by children without the supervision of a suitably experienced adult.

Max-Thrust reserves the right to modify the specification of this model at any time.

Safety Precautions

1. Do not attempt to repair or modify this aircraft with non-factory parts.

2. Never fly this model over roads, railway lines, near to power lines, airports, do not fly this model in

excessively strong winds, in the rain, or thunderstorms.

3. Do not fly or launch the model towards people.

4. Keep hands and face away from rotating propellers at all times.

5. We strongly recommend that all fixings and fasteners used in the construction of this model are

checked regularly for integrity. Failure to do so could cause a crash, injury to yourself or others around you.

6. We only recommend the use of 2.4GHz radio equipment with this model

Disclaimer

1. This radio controlled model is not a toy. Used incorrectly it is capable of inflicting serious injury to

persons or damage to property. The owner/pilot assumes all responsibility for any damage to persons or property resulting from the use of this product.

2. The manufacturer and distributor decline all responsibility for any liability arising from use of this product.

3. It is very important that you follow all instructions for assembling and setting up of this model. Failure to do so could result in a loss of control and possibly a crash.

“EPOFLEXY”

“EPOFLEXY” is a very tough and durable material perfect for the manufacture of model aircraft. When using

screwed fixings with “EPOFLEXY” components it is important to tighten the screws sufficiently to provide a firm fixing.

Excess tightening could result in the foam material becoming compressed, possibly damaging or distorting the part. Take care to ensure that all screws are tightened sufficiently to provide a firm fixing, but do-not over tighten. We recommend that all fixings are checked regularly for security and safety purposes.

Page 3

Contents

1. Fuselage Assem

bly

2. Wings

3. Fin & Rudder

4. Canopy

5. Horizontal Tail-Plane

6. Main Landing Gear

13. Accessory Pack

14. Rigging Wires

15. Rigging Springs

16. Tail Wheel Assembly

17. Wing Spars

7. Adhesive

8. Prop Adaptor

9. Propeller & Spinner

10. Dummy Exhausts

11. Cabane Struts

12. Plastic Parts

Overview

Thank-you for purchasing this MAX-THRUST Pitts 12 radio controlled model aircraft. The Pitts 12 offers a stunning combination of terrific looks and sensational flight performance. Manufactured from “EPOFLEXY” it is extremely robust, however, in the event of a “less than perfect” arrival, we supply a range of spares to get you flying again in the shortest time. It is capable of an impressive range of aerobatic manoeuvres to thrill the expert pilot, but with reduced control throws it provides a solid and predictable flight performance, perfect for the experienced sports flyer.

We are certain you will enjoy your new model, please take the time to read this manual thoroughly and understand its contents completely prior to commencing assembly.

Wingspan:

1600mm (63”)

Length: 1490mm (58.7”) Weight: 4500g Motor: 5060 390KV Out-Runner Brushless ESC: 120A ~ 150A (Not Included) Servos: 4 x 9g 2 x 40g Battery Required: 3700 ~ 6000mAh 22.2v 6S Li-Po (Not Included)

Recommended Battery: Power-Tech 6000mAh 22.2v 33C (Order Code: PT-B-3360006S)

Specification

Page 4

1. Main Gear

Release the screw holding the main gear

cover to the fuselage.

Remove the cover and insert the pre-bent undercarriage legs into the moulded recess in the fuselage.

Secure in place with the 4 x metal retaining plates and 8 x M3 x 12mm screws, (images 1 & 2)

Replace the cover and the fixing screw, (image 3).

2. Tail Wheel

Fix the tail wheel assembly in position using the 4

x M2.5 x 25mm screws, (image 4). Place the other components supplied in the bag with the tail wheel assembly to one side. These will be fitted at a later stage.

3. Horizontal Tail

Plane

Fix a control horn to the underside of the elevat

or as

shown, (image 5) using 4 x M2 x 25mm screws. Make certain that the horn is securely fixed in position with a backing plate in the moulded recess on the top side of the elevator, (image 6).

Secure the horizontal tail

plane to the fuselage

using 2 x M3 x 40mm screws, (image 7). Make certain that you have the tail-plane the correct way-up, and that it is positioned squarely on the fuselage.

Page 5

Horizontal Tail

Plane (continued)

Make certain the elevator servo is centred and

connect the plastic elevator clevis to its control horn, (image 8). Minor adjustment to obtain perfect neutral positions of the control surfaces can be achieved by rotating the plastic link on the threaded portion of the control push-rod. Make certain the plastic link is securely “snapped”

closed when connected to the contr

ol horn.

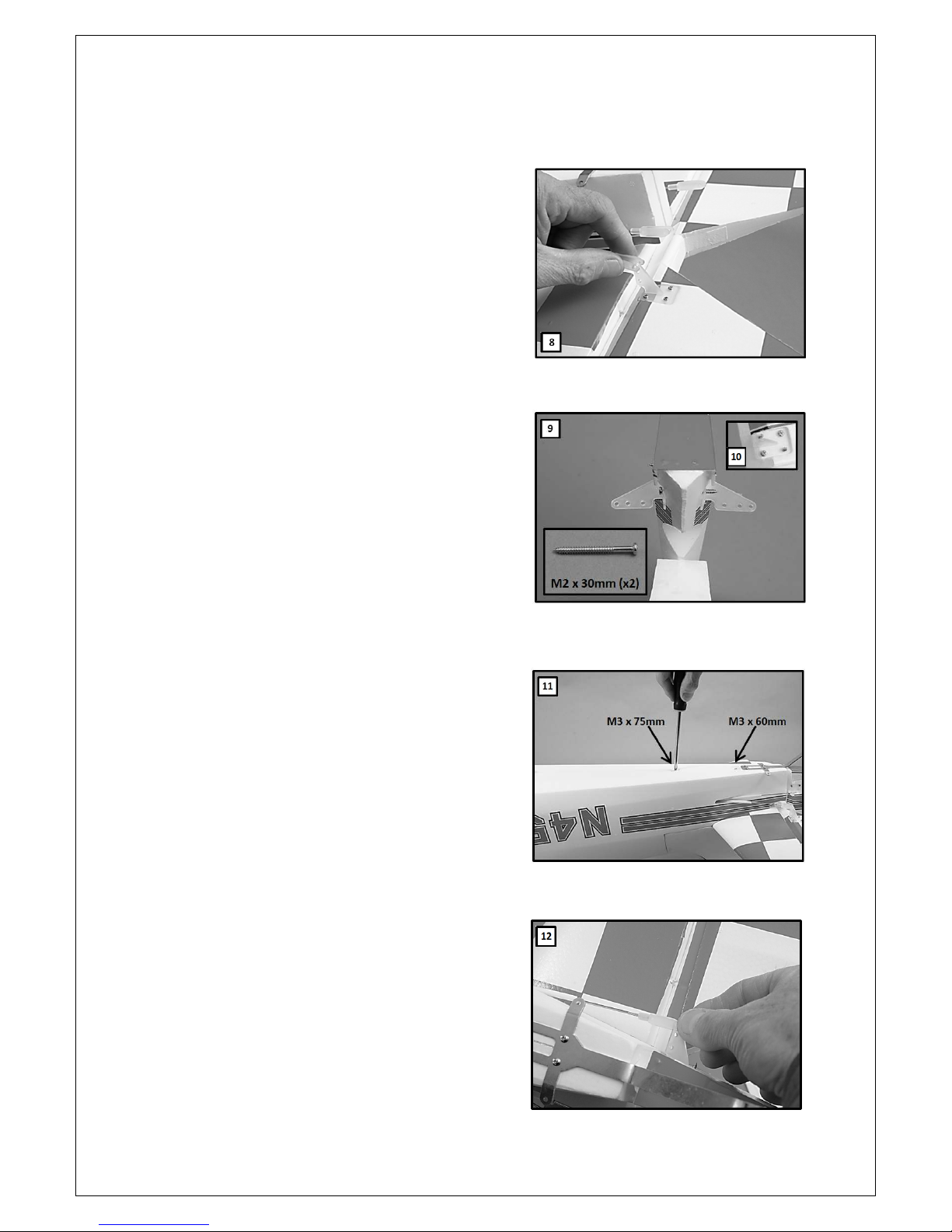

4. Vertical Fin & Rudder

Fix two control horns to the rudder using 2 x

M2 x 30mm screws, (image 9). For maximum security the screws go from both sides as shown in image 10.

Push the vertical fin assembly into the moulded

recess in the fuselage tail. Secure in position from the fuselage underside using 1 x M3 x 75mm & 1 x M3 x 60mm screw, (image 11). The longer screw is used in the forward hole.

Centre the rudder se

rvo and connect the 2 x

plastic rudder clevises to their control horns, (image 12).

Make certain the plastic links are securely “snapped” closed when connected to the control horns.

Page 6

Vertical Fin & Rudder (continued)

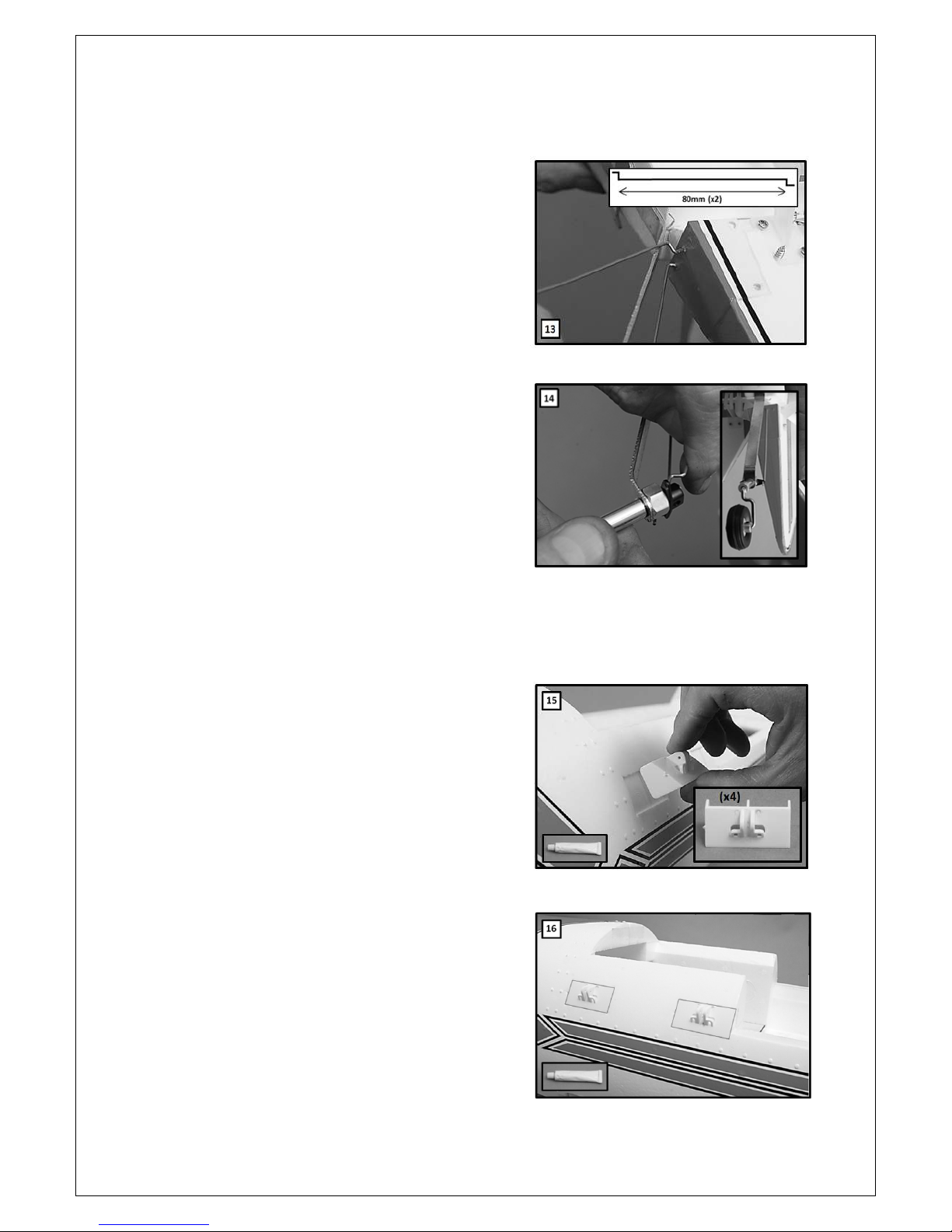

Connect the two 80mm long Z

bend control rods

to the pre-drilled holes in the base of the rudder, (image 13).

Connect the other end of the control rods to the

control horn on the steerable tail-wheel, (image

14).

Note: It may be necessary to induce a slight bend in the rod to enable the connection. Straighten the rods once they are connected.

5. Plastic Wing Supports

Install the four plastic wing strut supports to the

fuselage using the supplied adhesive, (image 15 & 16). The supports must be fitted the correct way up and will only follow the contour of the fuselage if installed correctly.

IMPORTANT!

The plastic wing strut supports are fixed to the fuselage and wings with the supplied adhesive. Please apply the adhesive sparingly in a thin film to both surfaces to achieve the best possible bond.

The adhesive will require at least 24 hours curing time before it reaches maximum strength.

Do not attempt to fly this model until the

adhesive is fully cured.

Page 7

Plastic Wing Supports (continued)

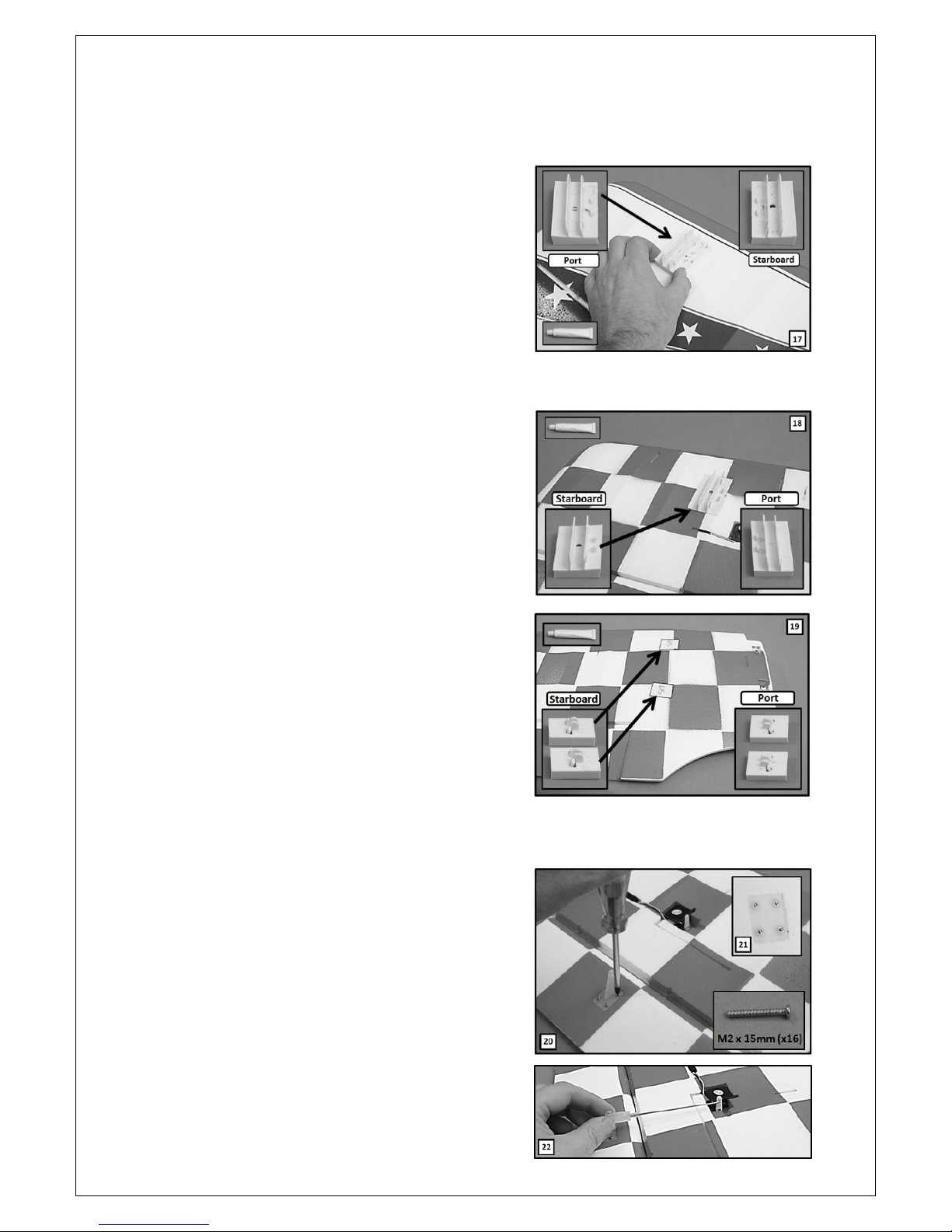

Install the plastic wing supports in the

lower

wing

panels using the adhesive supplied, (image 17). Please be aware that these parts are handed and must be installed correctly.

Note: Port is the left hand side viewed from the rear of the model.

Lower Wing

Upper Wing

Install the plastic wing supports in the

upper

wing

panels using the adhesive supplied, (images 18 &

19). Please be aware that these parts are handed and must be installed correctly.

Note: Starboard is the right hand side viewed from the rear of the model.

6. Wing Assembly

Fit the remaining four control horns to the ailerons

using 16 x M2 x 15mm screws, (image 20). Remember to use the plastic backing plates and make certain they are securely fixed, (image 21).

Centre the servos, connect the control linkages to

the aileron servos and control horns, (image 22). Make certain the plastic links are securely “snapped” closed when connected to the control horns.

Page 8

Wing Assembly (continued)

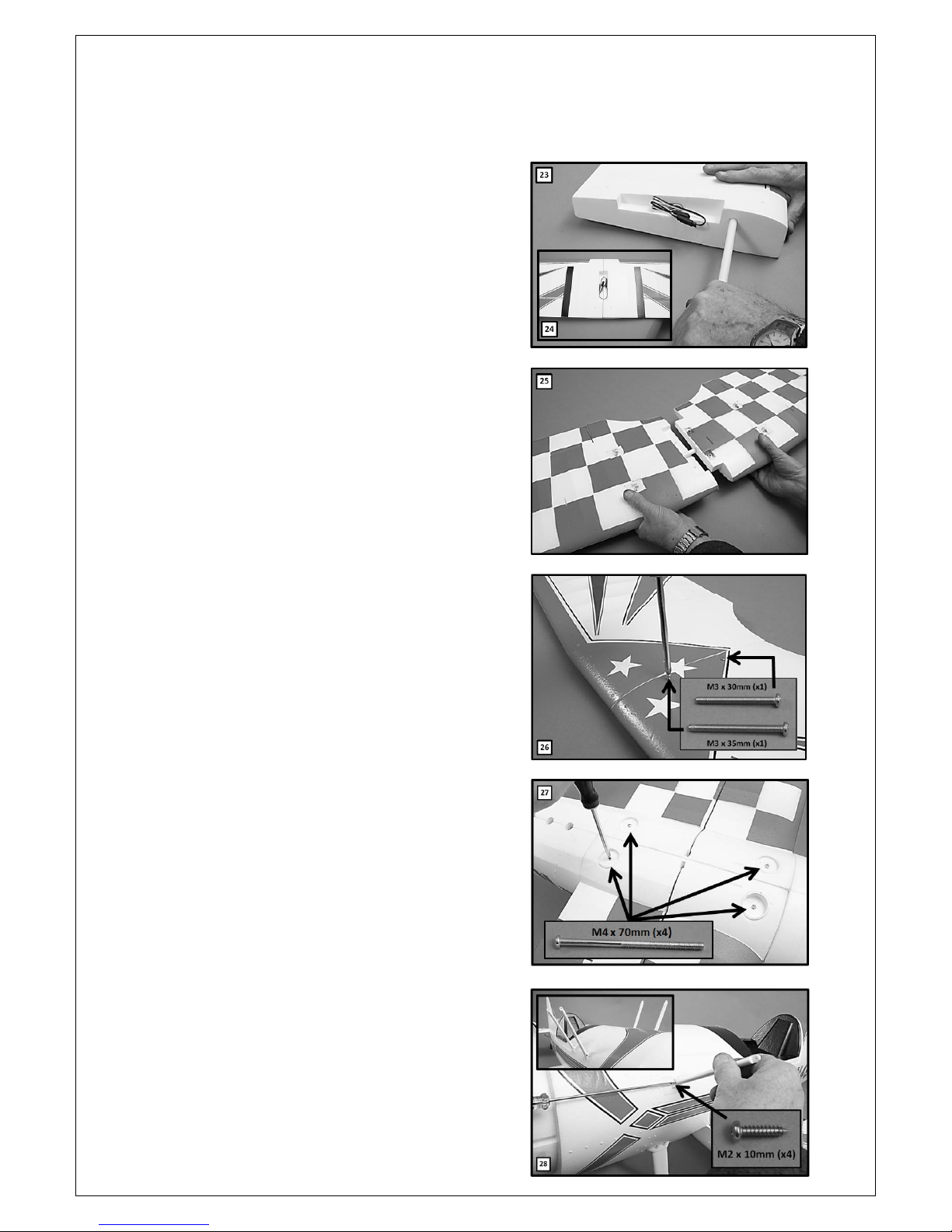

Insert a wing spar half way into one of the lower

wing panels, (image 23). Then carefully slide the remaining lower wing panel onto the exposed spar until the roots of the panels meet, (image 24). Ensure that the control leads from the aileron servos do not get trapped.

Insert a wing spar half way into one of the upper

wing panels, (image 25). Then carefully slide the remaining upper wing panel onto the exposed spar until the roots of the panels meet.

The upper wing panels are secured together with

two M3 screws, (image 26). The 35mm long screw is used for the fixing nearest the leading edge of the wing, with the 30mm screw used closest to the trailing edge.

Fit the lower wing assembly to the fuselage

using the four M4 x 70mm screws, (image 27). Be careful not to trap any control leads in the wing seat area.

Fit the four upper wing supports to the

fuselage with the M2 x 10mm screws as shown, (image 28). The screws for the front supports enter the pre drilled holes from the front of the fuselage, the screws for the rear supports enter from the rear of the fuselage.

Page 9

Wing Assembly (continued)

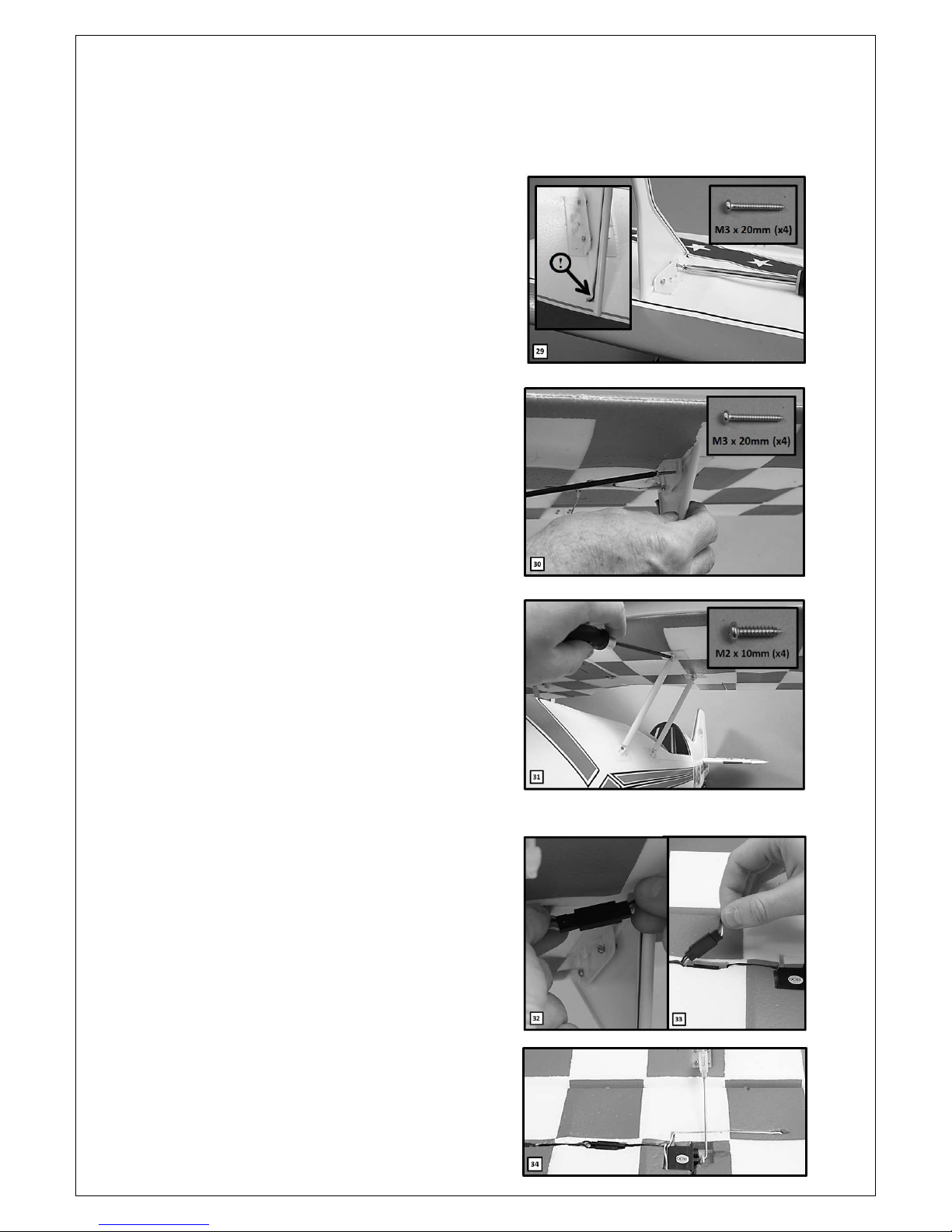

Attach

the cabane struts to the lower wing

panels using the four M3 x 20mm screws, (image

29). The servo control leads pass through the wings as shown. Do not over tighten the screws as this will distort the cabane mount.

Carefully place the upper wing on the cabane

and fuselage struts. Secure the top wing in position using four M3 x 20mm screws, (image

30).

Secure the upper wing to the fuselage struts

using four M2 x 10mm screws, (image 31).

7. Final Assembly

Connect the top wing servo control leads to

the extension leads routed around the cabane struts, (image32).

Connect the other ends of the extension leads to the female connectors located in the lower wing assembly, (image 33).

There is sufficient space around the servos to “lose” any excess cable, enabling a neat and tidy installation, (image 34).

Page 10

Final Assembly (continued)

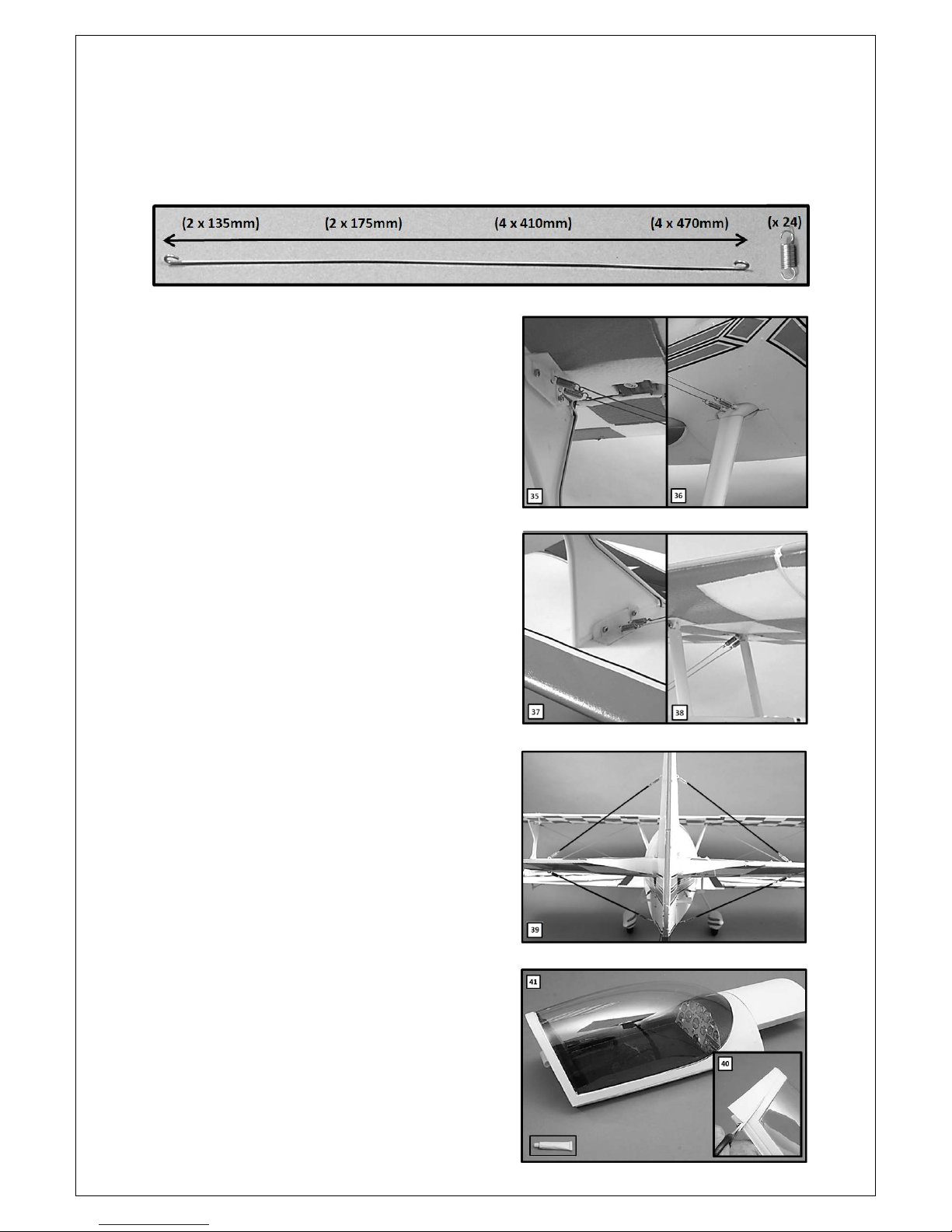

Rigging Wires

Attach a rigging spring to each eyelet on the

top of the cabane strut, (image 35). Attach a rigging spring to each of the eyelets positioned on the main gear, (image 36).

Join the springs with two of the 470mm rigging wires. Repeat the process for the other side of the model.

Attach a rigging spring to each eyelet on the

bottom of the cabane strut, (image 37). Attach a rigging spring to each eyelet on the rear fuselage wing support, (image 38).

Join the springs with two of the 410mm rigging wires. Repeat the process for the other side of the model.

Attach rigging springs to each of the eyelets

positioned on the vertical fin and tail-wheel bracket. Connect the springs using 175mm length rigging wires above the horizontal stabiliser and 135mm length rigging wires below it, (image 39).

Carefully trim the clear canopy to the

moulded line, (image 40). If you wish to fit a pilot figure to your model do so now. Using the supplied adhesive attach the clear canopy to the foam fuselage deck, (image

41). Use the adhesive sparingly and place to one side to dry thoroughly before attempting to fit to the model.

Note:

We recommend that the open ends of

the springs are “crimped” closed, to avoid the possibility of one becoming dislodged in-flight.

Page 11

Final Assembly (continued)

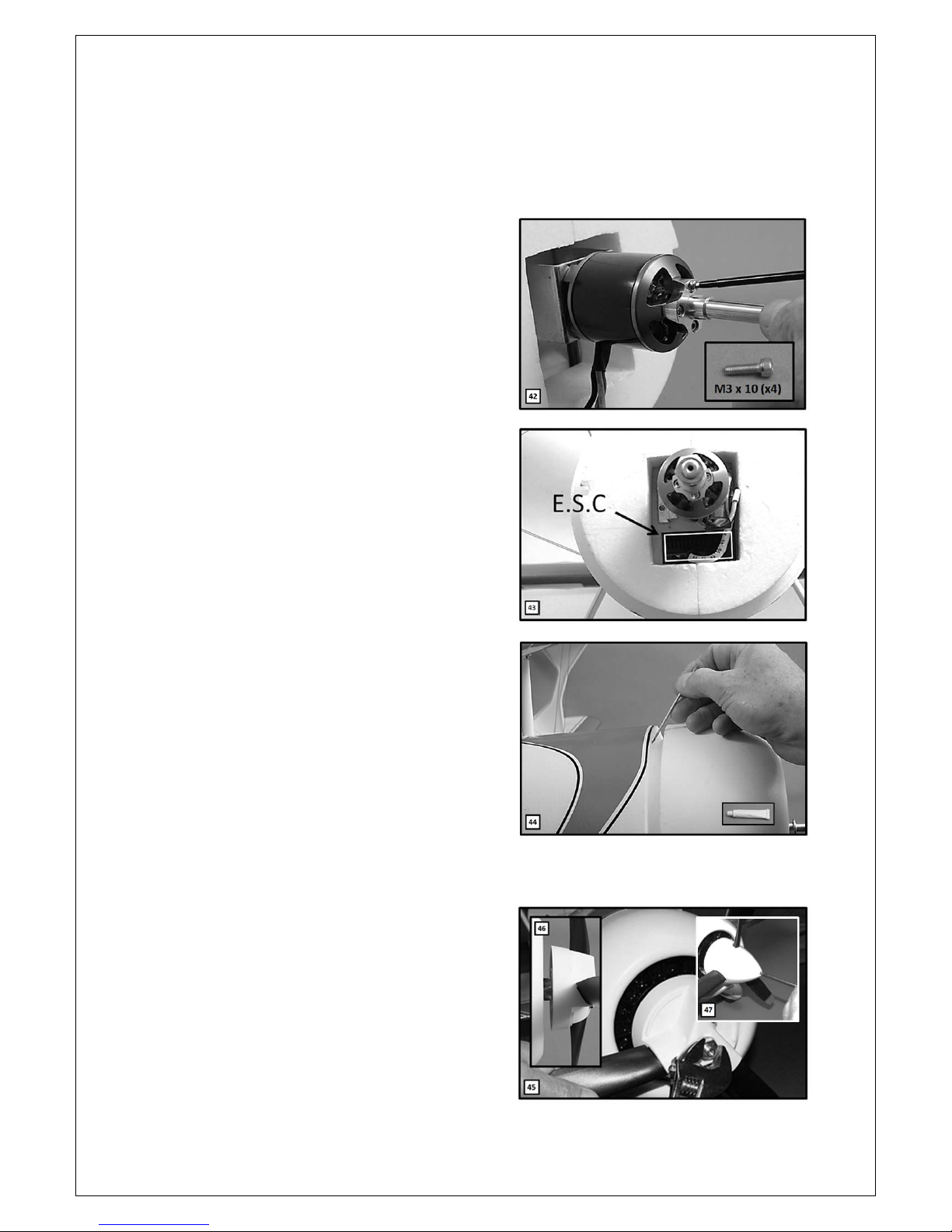

Motor

Fit the aluminium propeller adaptor to the

motor using the 4 x M3 x10mm cap head screws, (image 40). It is very important that these fixings are tightened securely. We recommend the use of a thread-locking compound, used very sparingly to ensure it does not come into contact with the internal components of the motor.

Install your electronic speed controller, (not

included) in the recess below and behind the motor. Make the necessary connections to the motor, (image 43). Fix the ESC in place securely.

The cowling for this model is secured with

magnets; however we suggest for additional security you add a few small spots of the supplied adhesive.

Be mindful that you may wish to remove the cowling at a later date!

Cowling

Propeller

Slide the propeller onto the prop adaptor.

Note: The prop adaptor has a flat or “key”. The propeller must be rotated on the shaft until it fits flush as shown, (image 46). Fit the washer and nut & fix securely, (image 45). Fit the spinner cone in position and secure with the screw provided, (image 47).

Page 12

Final Assembly (continued)

Receiver Installation

Connect the speed controller to the throttle channel of your receiver, (not included). T

his

wire is easily identified; it is the only one that is routed from the front of the model.

Connect the two aileron servo control leads to the supplied “Y” lead, (No.1) and plug into the aileron output on your receiver. Connect the rudder, (No.4) and elevator servo, (No.2) servos to the corresponding channel outputs of the receiver.

You must adhere to the receiver manufacturer recommendations regarding positioning

and aerial routing.

We recommend that it should be securely positioned with self-adhesive “Velcro”.

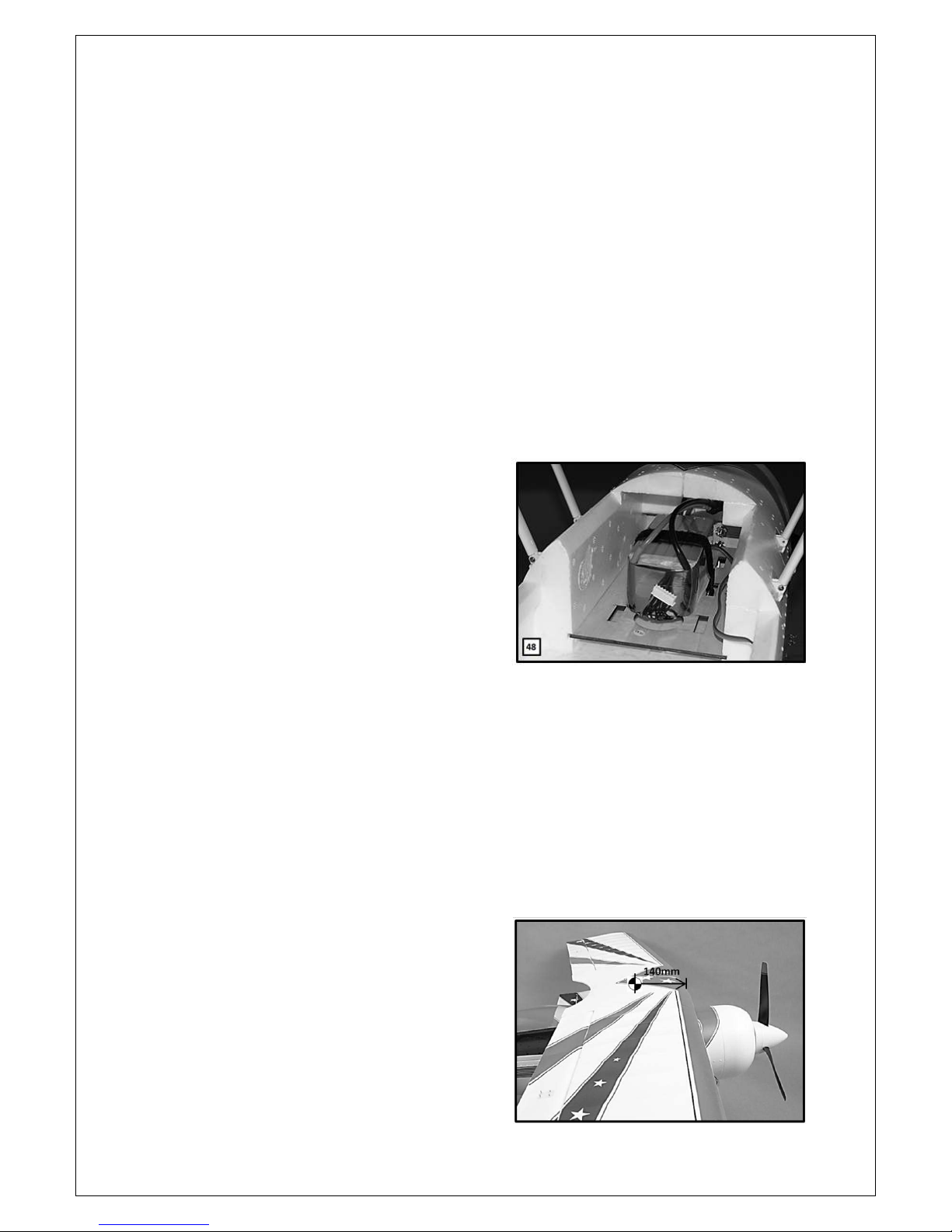

Your flight battery, (not included) needs to be

firmly secured in the battery compartment to prevent it from moving in flight, (image 48). The model includes one battery positioning strap, however the battery will require an additional method of fixing to provide adequate security.

8. Flight Battery

Because most experienced pilots will have a preferred method of battery retention, this has

not been included with the model. We recommend the use of additional straps combined with self-adhesive “Velcro”.

9. Control Movements

We make the following recommendations for control surface deflections. Experienced pilots

may wish to increase these movements after initial flight testing.

Ailerons: 10mm deflection each way. Elevator: 10mm deflection each way. Rudder: 12mm deflection each way.

10. Centre of Gravity

It is vital that you check that the centre of

gravity is correct. Failure to do so could result in a complete loss of control. We recommend the balance point of the model, complete with flight battery, should be 140mm back from the centre of the leading edge of the top wing, (image 49).

Page 13

Check that all c

ontrol surfaces are centred and responding correctly to transmitter inputs.

Adjustments can be made to control surface centres by carefully rotating the plastic control horns on the threaded portion of the metal control rods. Use the servo reversing function on your transmitter for any control that is not responding in the correct sense to control inputs. Make certain that all plastic links are securely “snapped” closed and that all control surface hinges are secure. Use a small amount of foam glue if any hinges are not firmly attached.
