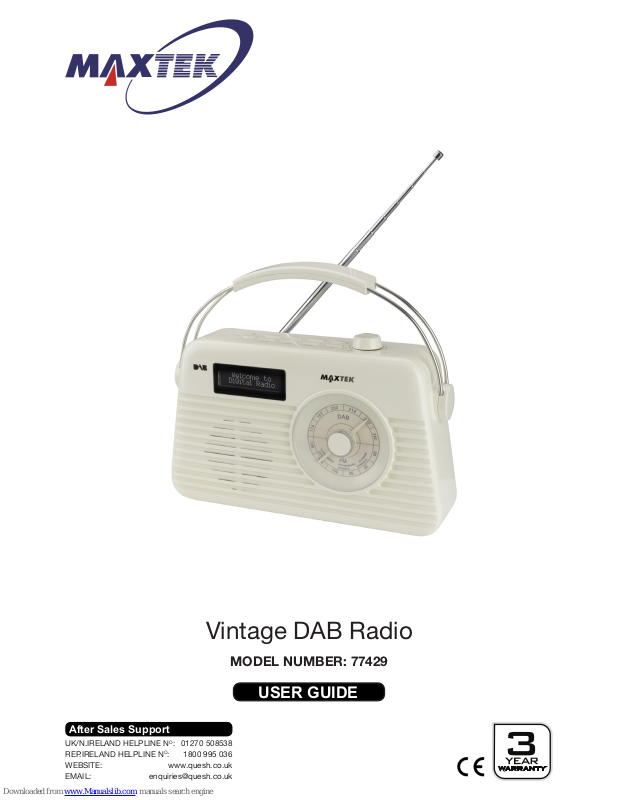

MAXTEK 77429 User Manual

USER GUIDE

Vintage DAB Radio

MODEL NUMBER: 77429

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Contents

1.

2-3.

4.

5.

6.

7.

8-12.

Welcome Section

Information & Safety Instructions

Contents & Features

Controls & Layout

Setup

• Out Of The Box

Control Method

• Using The Button

• Using The Dial

On/Off

• Turning The Radio On

• Turning The Radio Off

• Standby

DAB Mode

• DAB Mode

• Tuning In A Station

• DAB Scan

• Preset Store

• Preset Recall

• DAB Menu

• Full Scan

• Manually Tune

• DRC

• Prune

• System

13-15.

16-25.

26.

FM Mode

• FM Mode

• Auto Scan

• Manual Tune

• Preset Store

• Preset Recall

• Scan Settings

• Audio Settings

• System

System

• System Menu

• Sleep

• Setting The Alarm

• Turning The Alarm On/Off

• Alarm Snooze

• Time

• Time - Time/Date

• Time - Auto Update

• Time - Set 12/24 Hour

• Time - Set Date Format

• Backlight

• Backlight - Time Out

• Backlight - On Level

• Backlight - Dim

• Inactive Standby

• Language

• Factory Reset

• SW Ver.

Specications

Welcome Section

Congratulations!

You have made an excellent choice with the purchase of this quality

MAXTEK

®

product.

By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the

high quality standards of Quesh Ltd.

We want you to be completely satised with your purchase, so this

MAXTEK® product is backed by a comprehensive manufacturer’s

3 year warranty and outstanding after sales service through our

dedicated helpline.

We hope you enjoy using this product for many years to come.

If you require technical support or in the unlikely event that your

purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 3 year warranty

period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt safe).
This does not affect your statutory rights. However be aware that the
warranty will become null and void if the product is found to have
been deliberately damaged, misused and/or disassembled.

1

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Information &
Safety Instructions

This radio is powered by 4 x ‘C’ size alkaline batteries (not included).
Do not leave batteries in this radio while it is in storage.
Do not dispose of batteries in your household waste.

Please contact your local authority for details on safe disposal.

• Never throw batteries into a re or expose to excessive heat sources.

• If batteries are swallowed, please seek immediate medical attention.

• Always ensure correct +/- battery polarity when installing batteries.

• Do not recharge non-rechargeable batteries.

Equipment, which is marked with the WEEE logo

(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.

Electrical and electronic equipment (WEEE) contains materials, parts and
substances, which can be dangerous to the environment and harmful to
human health if the waste of electrical and electronic equipment (WEEE) is not

disposed of correctly.

Equipment, which is marked with the WEEE logo

(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

2

Adaptor Care

To get the best out of your adaptor please observe the following:

• Always remove the adaptor by holding the body of the plug or by holding the
connector’s body and not the wire.

• Do not wrap the cable around the body of the adaptor. This can cause harm to
the cable. Instead bunch the cable up as it was presented in the package.

• Always secure any loose trailing cable to avoid accidents.

• Always try batteries to conrm any possible power issues with the adaptor.

To prevent possible hearing damage, do not

use at high volume levels for long periods.

3

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

General Information &
Safety Instructions

Please read the following safety information before use.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

C A U T I O N

•

To avoid risk of electric shock do not attempt to open this appliance.

• Keep away from re.

• Do not expose the appliance to water, rain or dampness.

• Keep this appliance away from direct sunlight and other heat sources.

• Keep this appliance away from strong magnets.

• Never cover the ventilation slots on the underside or back of the appliance.

• Avoid placing heavy objects on top of the appliance.

• Always disconnect the appliance from mains power before cleaning.

• Clean the exterior of the appliance with a soft cloth only.

• The instructions for use shall state that the appliance shall not be exposed to

dripping or splashing liquids, and that no objects lled with liquids such a

vases, cups, etc, shall be placed on the appliance.

• CAUTION: Danger of explosion if the battery is incorrectly replaced. Replace

only with the same equivalent type.

• Where the MAINS plug or appliance coupler is used the device shall remain

readily operable.

• Where an all-pole MAINS SWITCH is used as the disconnection device, the

function of the switch shall remain readily operable.

NO USER SERVICEABLE PARTS INSIDE

NEVER LEAVE CHILDREN UNATTENDED WITH

ELECTRICAL EQUIPMENT

4

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Contents & Features

Contents

1 x DAB & FM Radio
1 x 5V Mains Adaptor

Features

• DAB receiver (174MHz - 240MHz)

• FM receiver (87.5MHz - 108.00MHz)

• Stores 10 FM presets

• Stores 10 DAB presets

• Powered by 4 x C alkaline batteries (not included)

• 5v mains adapter (included)

• Auto adjusting clock

• Black LCD backlight display

• Mono sound (1 x 3W speaker)

• Telescopic aerial

• 3.5mm headphone port

• Sleep

• Dual Alarms

• Dimable Display

Please Note:

It is recommended to remove batteries when not in use to save battery power.
Where available please use the mains adaptor.

DAB in Ireland

To check coverage and available services in Ireland please got to:
http://www.digitalradio.ie/can-i-get-dab/

5

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Controls & Layout

Scan

Button

Alarm

Button

Preset

Button

Tune -

Button

Mode

Button

Info

Button

Menu

Button

Tune +

Button

On/Off/Standby

Button

Vol +/-

Select/Snooze

Dial

Headphone

Port

DC/5V

Port

Battery

Cover

Telescopic

Aerial

Please remove the screen protector on the LCD screen before use.

6

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Setup

Out Of The Box

Once you have removed the radio from the packaging, connect the
5V/1A mains adaptor (supplied) to a suitable mains outlet.
To use the radio with batteries, install 4 x ‘C’ batteries into the
battery bay at the back of the radio. Fully extend the telescopic aerial
and press the button to turn the radio on.
A welcome splash will show followed by the radio rst scan for the
available DAB stations in your area.

After the rst scan has been completed the radio will automatically
display the date and time. Press the button to turn the radio on
and bring it out of standby mode.

If you see the message ‘Time is not set’, give the button a quick
press to bring the radio out of standby mode. This should start the

DAB process and set the date and time.

If the display shows ‘No Signal’ then the radio is not receiving a DAB
signal. This can be down to the service available in your area, the
radio being too close to large electrical devices (microwaves, etc) or
digital interference cause by large buildings, trees and/or hills.

In this instance please use the radio in FM mode.

You can set the date and time manually, see page 19.

7

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Control Method

Using The Button

All the button actions are just a quick press unless otherwise stated
in the required action. This includes the button function of the dial.

Using The Dial

The dial on this radio is dual action. This means you can use it to

scroll through available options and press it for required button

actions.

On/Off/Standby

Turning On

If the display is blank and not lit, press the button to turn the radio
on to standby. You will see the welcome splash. Press the same
button again to turn on the radio.

Turning Off

When the display is lit and showing information, press and hold the

button until the ‘Bye Bye’ splash is seen. The display will turn off.

Standby

When the radio is playing press the button to put the radio into
standby mode. The date and time will show on the display.

To bring the radio out of standby mode press the button.

The radio will tune into the last station listened to.

8

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

DAB

Tuning In A Station

All the available stations are saved by the radio in alphabetical order.
To select a station press the ‘Tune+’ or ‘Tune-’ button repeatedly to

cycle through the station list until you get to a station you would like

to listen to, then press the ‘Select/Snooze’ to connect the radio to it.

DAB Scan

If you move your radio to a new location or you are suffering with
poor reception or bad interference, it is advisable to re-scan the
station list. To do this press the ‘Scan’ button. The radio will refresh

the station list and correct any tuning issues.

The number to the right of the scanning splash indicates the amount

of stations found and stored. The squares indicate the progress of
the scan. Once the scan is completed the radio will connect to the

rst alphabetically listed station.

DAB Mode

The radio, when turned on, is usually in DAB mode. If is not,

repeatedly press the ‘Mode’ button until DAB shows on the display.

Please Note:

You will have to wait 3 seconds after tuning a station on to change the volume.

9

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

DAB

Preset Store

To save a preset, connect the radio to the required station so it is
playing (Tune In A Station - Page 8). Press and hold the ‘Preset’
button for 2 seconds. You will see ‘Preset Store’, press the tune +/­to cycle through the available preset slots. Press the dial to save the

station in the selected slot.

There are 10 preset slots available. The display splash
‘Preset # Stored’ will show if the save is successful.

If there is no station saved in a preset slot it will show up as ‘(Empty)’.
You can save a new station by saving over the one listed in the slot.

Preset Recall

Press the ‘Preset’ button. You will see ‘Preset Recall’, press the
tune +/- button to cycle through the saved stations and press the
dial to recall the saved station.

If there is no station saved in a preset slot it will show up as ‘(Empty)’.

10

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

DAB Menu

Press the ‘Menu’ button to enter the DAB menu.
The rst option on the screen will be ‘Full Scan’.

DAB

Using the tune +/- button, you can cycle through the DAB menu

options and press the dial to select your option.

Options: Full Scan > Manual Tune > DRC > Prune > System*

(System* - see page 17)

Press the ‘Menu’ button to exit the menu.

Full Scan

To retune the DAB frequencies of the radio, press the ‘Menu’ button
to enter the DAB menu. The rst option will be ‘Full Scan’, press the

dial to start scanning.

Please Note:

The scan button also does the same function as this option.

11

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Manual Tune

Press the ‘Menu’ button to enter the DAB menu. The rst option will
be ‘Full Scan’, press the tune +/- button to cycle through the menu to
‘Manual Tune’, then press the dial to access the manual tune

options.

Press the tune +/- button to nd a channel to tune and press the
dial to start ne tuning the frequency in. Press the tune +/- button

to change the tuning manually, then press the dial once the signal is

clear. This can help to clear poor signal. You can save the frequency

as a preset as directed on page 9, Preset Store.

Press the ‘Menu’ button to return to the radio.

DAB

DRC

DRC or Dynamic Range Compression is a feature that some DAB

stations use to even out the audio levels between quiet and loud
segments of a broadcast.
Press the ‘Menu’ button to enter the DAB menu. The rst option will
be ‘Full Scan’, press the tune +/- button to cycle through the menu
to ‘DRC’, then press the dial to select the feature.

Choose between Off, High and Low options by pressing the tune
+/- button to cycle through the options and the dial to conrm your

chosen option. The asterisk in the top right indicates the current

selected option in use. Press the ‘Menu’ button to return to the radio.

12

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Prune

You can remove any station from the station list that is marked with
a ‘?’ in front of the name listing.
To delete a station, connect the radio to the required ‘?’ listed station
so it is active (Tune In A Station - Page 8).
Press the ‘Menu’ button to enter the DAB menu. The rst option will
be ‘Full Scan’, press the tune +/- button to cycle through the menu
to ‘Prune’, then press the dial to select the feature.

Use the tune +/- button to change between the options of ‘Yes’ and
‘No’, then press the dial to conrm the action. Press the ‘Menu’
button to return to the radio.

DAB

System

Please see page 16.

13

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

FM

Auto Scan

Press the tune +/- button for 2 seconds to start the FM auto scan in

either direction along the frequency range.

The scan will stop at the next strongest signal it picks up. If the scan

continues without stopping you will need to manually tune the radio.

FM Mode

The radio, when turned on, is usually in DAB mode. To enter the FM

mode, press the ‘Mode’ button. FM will show on the display.

Manual Tune

Press the tune +/- button repeatedly to cycle through the FM
frequency range. The FM frequency tuning progresses in 0.05MHz

increments.

You can save the channel as a preset following directions on page

14, Preset Store.

You can save the channel as a preset following directions on page

14, Preset Store.

Please Note:
The best auto scan results occure if the scan setting is set to ‘all stations’
See page 15.

14

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

FM

Preset Store

To save a preset, connect the radio to the required station so it is
playing. Press and hold the ‘Preset’ button for 2 seconds. You will
see ‘Preset Store’, press the tune +/- to cycle through the available
preset slots. Press the dial to save the station in the selected slot.

There are 10 preset slots available. The display splash
‘Preset # Stored’ will show if the save is successful.

If there is no station saved in a preset slot it will show up as ‘(Empty)’.
You can save a new station by saving over the one listed in the slot.

Preset Recall

Press the ‘Preset’ button. You will see ‘Preset Recall’, press the
tune +/- button to cycle through the saved stations and press the
dial to recall the saved station.

If there is no station saved in a preset slot it will show up as ‘(Empty)’.

15

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

FM

Scan Settings

Scan settings will allow you to change how the radio auto scans. As
default the scan setting is set to strong stations.

Press the ‘Menu’ button to enter the FM menu. The rst option will
be ‘Scan Setting’, press the dial to access this feature.

Use the tune +/- button to cycle through the two options and then

press the dial to conrm. An asterisk in the top right will indicated the
current selected option.

Please Note:
For the best auto scan results, please change this option to ‘All Stations’.

Audio Settings

Audio settings will allow you to change whether the radio will play

stereo where available or keep the output on mono for all stations.
Press the ‘Menu’ button to enter the FM menu. The rst option will
be ‘Scan Setting’, press the tune +/- button to cycle through the
menu to ‘Audio Setting’, then press the dial to access this feature.

Use the tune +/- button to cycle through the two options and then

press the dial to conrm. An asterisk in the top right will indicate the
current selected option.

System

Please see page 16.

16

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

System

System Menu

It is possible to access the system menu through both modes.
Press ‘menu’ button, then press the ‘Tune-’ to cycle the menu to
‘System’ and press the dial to access it.

Using the tune +/- button, you can cycle through the system menu
options available.

Sleep > Alarm > Time > Backlight > Inactive Standy >

Language > Factory Reset > SW Version

Sleep

You can set the radio to turn itself to standby mode after a

preselected amount of time. Once in the system menu list, press the

tune +/- button repeatedly until you get to ‘Sleep’ and then press the

dial to access this feature.

Press the ‘Tune+’ button to cycle through the available options and

press dial to select one.

The options are:

Sleep off > 15 > 30 > 45 > 60 > 90 (minutes)

Press the ‘Menu’ button to return to the radio.

Once the timer has expired, the sleep timer remains off and will
need resetting again next time you want to use this feature.

17

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

System

Setting The Alarm

There are 2 alarms that can be set on this radio.
Once in the system menu list, press the tune +/- button repeatedly
until you get to ‘Alarm’ and then press the dial to set this feature.

When you are in the alarm feature, press the tune +/- button
repeatedly to change between alarm 1 and 2, then press the

dial to select the alarm to set.

Time:

Duration:

Alert:

*If ‘DAB’ or ‘FM’ selected:

Repeat:

*If ‘Once’ selected:

Volume:

Alarm:

Hour > Minutes
15 > 30 > 45 > 60 > 90 (Minutes)
Buzz > *DAB > *FM
Last Listened > Preset (1-10)
Daily > *Once > Weekday > Weekend
Day > Month > Year
Select Volume Level

On > Off

The process is controlled by using the ‘Tune+’ and ‘Tune-’ button
to cycle through the available options/values and press the dial to
conrm the option/value selected.

Process ow:

The ‘alarm saved’ screen will show to conrm the alarm details
have been saved. However this does not mean the alarm is active.

Please Note:

The lowest alarm volume is 4

18

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

System

Turning The Alarm On/Off

The alarm can be set or disabled with the last option when
setting the alarm (See page 17, Setting The Alarm).

To check which alarm(s) have been set press the button to put the
radio into standby mode and check the display.

The bell icon and number indicate alarm 1 or 2 is active and the
double bell icon indicates that both alarms are active.

You can enable or disable the alarms when the radio is in standby
mode. This can be done by pressing the ‘Alarm’ button repeatedly.

Once you have the option required press the dial to save the

selection.

Alarm Snooze

When the alarm is sounding press the dial to activate a 5 minute
count down. The count down will be shown on the screen. Once the
counter reached zero the alarm will sound again.

Please Note:

Only a 5 minute snooze period is available.

19

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Time

From here you can set the date and time manually, update it from
different sources, change the time format and the date format.

Once in the system menu list, press the tune +/- button repeatedly
until you get to ‘Time’ and then press the dial to select this feature.

In this sub menu you can choose from the following:

• Set Time/Date

• Auto Update

• Set 12/24 Hour

• Set Date Format

Once in the Time sub menu list, press the tune +/- button to cycle
through the available options and then press the dial to set the

selected option.

Time - Set Time/Date

Manually set the date and time with this option.

The process is controlled by using the tune +/- button to cycle
through the available options/values and press the dial to conrm
the option/value selected.

Process ow:

Time:

Date:

Hour > Minutes
Day > Month > Year

The date format will change depending on the current selected
date format.

System

20

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Time - Auto Update

With this option you can auto update the time and date information
from a DAB or FM signal.

Once in the Time sub menu list, press the ‘Tune+’ button repeatedly
until you get to ‘Auto Update’ and then press the ‘Select/Snooze’ to

set this feature.

Select the update source by using the tune +/- button to cycle
through the available options and press the dial to conrm.

Your source options are:

Update Any > Update From DAB > Update From FM > No Update

Press ‘Menu’ a few times to exit this menu option to the radio.

Time - Set 12/24 Hour

Change the presented format of the time with this option.

Once in the Time sub menu list, press the tune +/- button repeatedly
until you get to ‘Set 12/24 Hour’ and then press the dial to set this

feature.

Select the update source by using the tune +/- button to cycle
through the available options and press the dial to conrm.

Your time format options are:

Set 12 Hour > Set 24 Hour

Press ‘Menu’ a few times to exit this menu option to the radio.

System

21

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

System

Time - Set Date Format

With this option you can change the displayed format of the date.

Once in the Time sub menu list, press the tune +/- button repeatedly
until you get to ‘Set Date Format’ and then press the dial to set this

feature.

Select the update source by using the tune +/- button to cycle
through the available options and press the dial to conrm.

Your time format options are:

DD MM YYYY > MM DD YYYY

Press ‘Menu’ a few times to exit this menu option to the radio.

In this sub menu you can choose from the following:

• Time Out

• On Level

• Dim Level

Backlight

The active and standby backlight for the radio can be adjusted with
this menu option. Once in the system menu list, press the tune +/­button repeatedly until you get to ‘Backlight’ and then press the dial

to select this feature.

22

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

System

Backlight - Timeout

This option will allow you to set the length of time in seconds before
the screen dims. Once in the Backlight sub menu list, press the
tune +/- button repeatedly until you get to ‘Timeout’ and then press

the dial to select this feature.

Select the update source by using the tune +/- button to cycle
through the available options and press the dial to conrm.

Your timeout options are:

(seconds) 10 > 20 > 30 > 45 > 60 > 90 > 120 > 180 > On

The asterisk in the top right indicates the current setting.

Press ‘Menu’ a few times to exit this menu option to the radio.

Backlight - On Level

On level is the brightness of the display when the radio is being
interacted with i.e. button presses. Once in the Backlight sub menu
list, press the tune +/- button repeatedly until you get to ‘Timeout’

and then press the dial to select this feature.

In this sub menu you can choose from the following:

High > Med > Low

The asterisk in the top right indicates the current setting.

Press ‘Menu’ a few times to exit this menu option to the radio.

23

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

System

Backlight - Dim Level

Dim level is the brightness of the display when the radio has timed
out i.e. no buttons pressed (unless ‘On’ has been selected in the
timeout options). Once in the Backlight sub menu list, press the
tune +/- button repeatedly until you get to ‘Dim Level’ and then press

the dial to set this feature.

In this sub menu you can choose from the following:

High > Med > Low

The asterisk in the top right indicates the current setting.

Press ‘Menu’ a few times to exit this menu option to the radio.

Inactive Standby

This option will allow you to set the length of time in hours before the
radio turns off. Once in the system menu press the tune +/- button
repeatedly until you get to ‘Inactive Standby’ and then press the dial

to select this feature.

Select the amount of time required by using the tune +/- button to
cycle through the available options and press the dial to conrm.
Your Inactive Standby options are:

OFF > 2 > 4 > 5 > 6 (Hours)

The asterisk in the top right indicates the current setting.

Press ‘Menu’ a few times to exit this menu option to the radio.

24

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Factory Reset

From here you can restore the radio with a soft factory reset. This
function will delete all presets and the station list for DAB as well as
restore all default setting to the radio.

Once in the system menu list, press the tune +/- button repeatedly
until you get to ‘Factory Reset’ and then press the dial to set this

feature.

System

Select the update source by using the tune +/- to cycle through the
available options and press the dial to conrm.

Your Language options are:

English > French > German > Italian > Spanish

The asterisk in the top right indicates the current setting.

Press ‘Menu’ a few times to exit this menu option to the radio.

Language

It is possible to change the menu language for the menu systems.
Once in the system menu list, press the tune +/- button repeatedly
until you get to ‘Language’ and then press the dial to select this

feature.

Select the update source by using the tune +/- button to cycle
through the available options and press the dial to conrm.

25

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

System

SW Version

This option displays the radio’s rmware version installed on the

chipset.

Once in the system menu list, press the tune +/- button repeatedly
until you get to ‘SW Version’ and then press the dial to display this

information.

Press ‘Menu’ a few times to exit this menu option to the radio.

26

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Specification

4 x ‘C’ 1.5V (not supplied)
8 Hours (at 50% volume)

Up to 100 Hours

Battery

Battery Type:

Talk/Play Time:

Standby Time:

Frontier
900g

250mm x 145mm x 65mm

5V/1A

General

Chipset/Solution:

Approx Weight:

Approx Dimentions:

Mains Adaptor:

Vintage DAB & FM Radio

76mm
Mono

1 x 3W

5W

Speaker

Speaker Size:

Speaker Channels:

Speaker Watts:

Max Speaker Output:

87.5MHz - 108MHz
174MHz - 240MHz

Telescopic

Radio

FM Frequency Range:

DAB Frequency Range:

Aerial Type:

Quesh Ltd hereby declares that this radio is in compliance

with the essential requirements and other relevant

provisions of Directive 1999/5/EC.

27

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

INTENTIONALLY LEFT BLANK

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Warranty

This product is warranted to be free from defects in workmanship and parts for a period of 36 months

from the date of purchase. Defects that occur within this warranty period, under normal use and care,

will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and
labour. The benets conferred by this warranty are in addition to all rights and remedies in respect of
the product the consumer has under existing U.K. laws.

Proof of Purchase

This warranty is valid for the original purchase and is not transferable.

Please keep your purchase receipt as proof of purchase and as proof of the date of when the purchase

was made. The receipt must be presented with the warranty card when making a claim under this

warranty.

Service during the Warranty Period

Please ensure the product is properly packaged so as to ensure that no damage occurs in transit. Also

make sure that you have included a detailed explanation of the problem.

Extent of the Warranty

This warranty is limited to defects in workmanship or parts. All defective products or parts will be
repaired or replaced. This warranty does not extend to accessories.

Normal Wear and Tear

This warranty does not cover normal wear and tear of the product or parts.

Exclusions

This warranty does not cover the following:

• Any defect caused by accident, misuse, abuse, improper installation or operation, lack or reasonable

care, unauthorised modication, loss of parts, tampering or attempted repair by a person not
authorised by the distributor.

• Any product that has been damaged by lightning strike either directly or indirectly, or on a main’s

or vehicle outlet power surge or liquid ingress.

• Any product that has not been installed, operated or maintained in accordance with the

manufacturer’s operating instructions provided with the product.

• Any product that has been used for purposes other than domestic use.

• The product if it is located outside of the U.K. and Ireland

• Any damage caused by improper power input or improper cable connection.

Your statutory rights are not affected.

Warranty Certificate

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Warranty Card

Vintage DAB Radio

Please keep your purchase receipt together with your warranty card

Fault Description:

Name:
Address:

Date of purchase:

Location of purchase:

We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this

warranty card and keep it for your reference. In the event of a product fault, please call the After Sales
Support team. Please ensure that you have the product details (as shown on this card) to hand so that
the support team are able to respond as quickly and efciently as possible.

Model Number: 77429

Warranty Service Address

QUESH LTD,
B7, FIRST BUSINESS PARK
FIRST AVENUE, CREWE, CHESHIRE.
CW1 6BG
