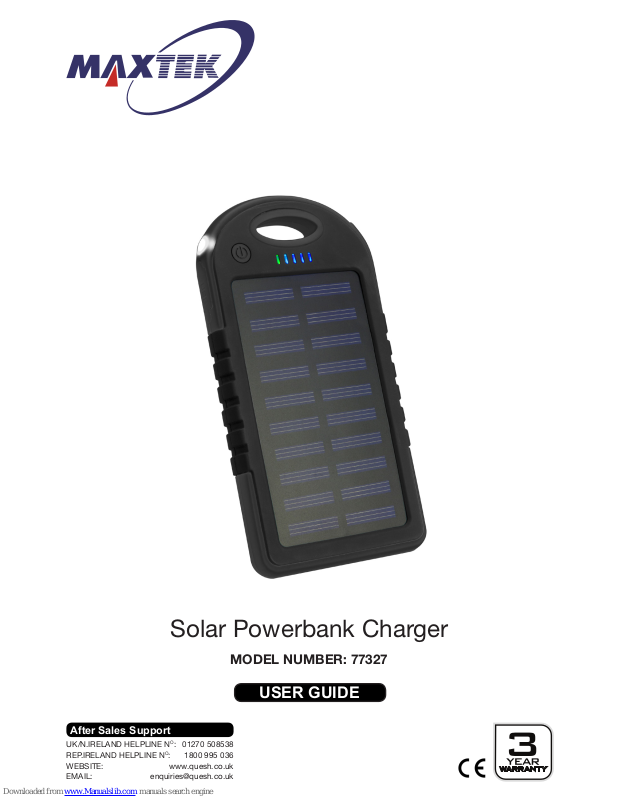

MAXTEK 77327 User Manual

USER GUIDE

Solar Powerbank Charger

MODEL NUMBER: 77327

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

1.

2.

4.

5.

6.

7.

8.

9.

Welcome Section

General Information & Safety Instructions

Contents & Features

Powerbank Layout

Checking The Adaptor

• Adaptor Information

Charging The Powerbank

• Charging From Power

• Charging From Solar Panel

Using The Powerbank

• Charging A Device

• Checking The Capacity

Using The Torch

•Turning On/Off

Specications

Contents

Welcome Section

Congratulations!

You have made an excellent choice with the purchase of this quality

MAXTEK

®

product.

By doing so you now have the assurance and peace of mind which

comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the
high quality standards of Quesh Ltd.

We want you to be completely satised with your purchase so this
MAXTEK® product is backed by a comprehensive manufacturer’s

3 year warranty and outstanding after sales service through our

dedicated helpline.

We hope you enjoy using this product for many years to come.

If you require technical support or in the unlikely event that your

purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 3 year warranty

period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt safe).
This does not affect your statutory rights. However be aware that the
warranty will become null and void if the product is found to have

been deliberately damaged, misused and/or disassembled.

1

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

2

General Information &
Safety Instructions

This powerbank is powered by a 5000mAh lithium battery.

Do not dispose of batteries in your household waste.

Please contact your local authority for details on safe disposal.

• Never throw batteries into a re or expose to excessive heat sources.

• If batteries are swallowed, please seek immediate medical attention.

• Always ensure correct +/- battery polarity when installing batteries.

• Do not recharge non-rechargeable batteries.

Equipment, which is marked with the WEEE logo

(as shown on the left), should not be thrown away with your household waste.

Contact your local authority waste disposal department, as they will be able to

provide details of the recycling options available in your area.

Electrical and electronic equipment (WEEE) contains materials, parts and
substances, which can be dangerous to the environment and harmful to
human health if the waste of electrical and electronic equipment (WEEE) is not

disposed of correctly.

Equipment, which is marked with the WEEE logo

(as shown on the left), should not be thrown away with your household waste.

Contact your local authority waste disposal department, as they will be able to

provide details of the recycling options available in your area.

Quesh Ltd hereby declares that this solar powerbank charger is in compliance with the essential

requirements and other relevant provisions of Directive 1999/5/EC and 2014/53/EU.

The full text of the EU declaration of conformity is available at: www.quesh.co.uk

3

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Battery Care

To get the best out of the battery, fully charge and use till at for the rst 5-6 times.

Then use till at and fully charge at least once a month.

Prolonged storage without charge may cause damage to the battery and result in

poor to no charge. It is recommended you fully charge the battery every 6 months

for long term storage to keep the battery in good condition.

General Information &
Safety Instructions

• Children should not be allowed to play with this product.

• Do not expose this Powerbank to damp or moist conditions.

• Avoid contact with any liquid which may leak into the USB charge ports.

• Never attempt to open the Powerbank.

• The Powerbank should be protected in heat and freezing temperatures!

• Ensure that the Powerbank is stored in the correct environment and at the

correct temperatures.

• Do not leave the Powerbank in air tight space like a car where conditions can
exceed 45°C

• The Powerbank may become damaged if used incorrectly.

• Only charge the Powerbank through the directed methods in the user guide.

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

4

Contents & Features

Contents

1 x Solar Powerbank Charger
1 x Charge Cable
1 x Carabiner

Features

• 5000mAh rechargeable lithium battery

• 2 x 1 amp USB port

• Solar panel charging

• Power source charging

• LED torch

• Compatible with most mobile phones & tablets

5

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Powerbank Layout

USB Port

Charge Port

Dust Cover

Charge Port

Dust Cover

LED Torch

On/Off/Torch

Power/Solar LED

Solar Panel

Solar Charge LED

25% Capacity LED

50% Capacity LED

75% Capacity LED

100% Capacity LED

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

6

Checking The Adaptor

Adaptor Information

Before using a USB mains adaptor please check the “Output”
information on the plug face label.

For This device 5V/1A or 5V/1000mAh is the maximum output

required to charge the battery. Using a stronger output can damage
the battery and/or product.

Please note:

Tablets and some large smart phones use 2.1A or 2100mAh outputs and above.

7

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Charging From Power

Open the larger dust cover to reveal the micro USB charge port.
Connect the charge cable (supplied) to the micro USB port and the

other end to a PC/Laptop USB port or an appropriate USB mains

adaptor that is no greater the 5V/1A (see page 5).

Each Blue LED indicator represents the battery’s capacity level,

25%, 50%, 75% and 100%.

You can check the power level by pressing the ‘ON/OFF’ button.

A complete charge will take approximately 8 hours.

Warning:

Using a USB mains adaptor can cause damage to the powerbank.

This is to ensure correct charging and longevity of the powerbank.

Charging From Solar Panel

The solar panel provides the battery with a 5V/280mAh charge.

The green LED will light up to indicate that the panel is producing a

charge from the Solar panel. You can expect a 30% charge

after 9 hours of normal sunlight. 20 hours of strong sunlight will fully
charge the powerbank.

Do not charge the powerbank via the solar panel if the blue LEDs
are showing 75% (3 blue LEDs) or more. Turn the device over.

Please Note:
In all instances of charging the solar powerbank please remove all attached
devices. The powerbank will shut off the solar panel if the battery is very low to
prevent a deep discharge and will take about 3 minutes before it can output any
charge.

Charging the Powerbank

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

8

Turning On/Off

This powerbank is equipped with an LED torch.
To use the torch press the button twice in quick
succession to turn on or off the LED torch.

Using the Torch Function

Charging A Device

Open up either dust cover to reveal a USB port and connect one
end of devices manufacturers cable to the powerbank and the
other to the device itself. Press the button to start charging your
device. If the powerbank doesn’t detect a draw on the battery it will
turn itself off after approximately 30 seconds.

Please Note:
You can charge two devices at the same time. One connected to each USB port.

Checking The Capacity

To check the capacity of the battery press the button.
This will light up the blue LEDs. Each blue LED represents 25%.

After approximately 30 seconds the LEDs will turn off.

Using The Powerbank

9

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Specification

Quesh Ltd hereby declares that this Powerbank is in compliance

with the essential requirements and other relevant

provisions of Directive 1999/5/EC.

Rechargeable Li-ion

5000mAh

4-5 Hours (Power Outlet)
20 Hours (Strong Sunlight)
5V/500mAh
5V/1A

Micro USB port

Battery

Battery Type:

Battery Capacity:

Charge Time:

Solar Charge Time:

Charging Requirements Min:

Charging Requirements Max:

Charging Port Type:

145mm x 74mm x 14mm

145g

Upto 5V/280mAh

General

Size:

Approx Weight:

Solar Panel Power:

Solar Powerbank Charger

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

10

DELIBERATELY LEFT BLANK

11

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

DELIBERATELY LEFT BLANK

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Warranty

This product is warranted to be free from defects in workmanship and parts for a period of 36 months
from the date of purchase. Defects that occur within this warranty period, under normal use and care,
will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and

labour. The benets covered by this warranty are in addition to all rights and remedies in respect of the
product the consumer has under existing U.K. laws.

Proof of Purchase

This warranty is valid for the original purchase and is not transferable.

Please keep your purchase receipt as proof of purchase and as proof of the date of when the purchase
was made. The receipt must be presented with the warranty card when making a claim under this
warranty.

Service during the Warranty Period

Please ensure the product is properly packaged so as to ensure that no damage occurs in transit. Also

make sure that you have included a detailed explanation of the problem.

Extent of the Warranty

This warranty is limited to defects in workmanship or parts. All defective products or parts will be
repaired or replaced. This warranty does not extend to accessories.

Normal Wear and Tear

This warranty does not cover normal wear and tear of the product or parts.

Exclusions

This warranty does not cover the following:

• Any defect caused by accident, misuse, abuse, improper installation or operation, lack of reasonable

care, unauthorised modication, loss of parts, tampering or attempted repair by a person not
authorised by the distributor.

• Any product that has been damaged by lightning strike either directly or indirectly, or on a main’s

or vehicle outlet power surge or liquid ingress.

• Any product that has not been installed, operated or maintained in accordance with the

manufacturer’s operating instructions provided with the product.

• Any product that has been used for purposes other than domestic use.

• The product if it is located outside of the U.K. and Ireland

• Any damage caused by improper power input or improper cable connection.

This warranty does not affect your statutory rights.

Warranty Certificate

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Warranty Card

Solar Powerbank Charger

Please keep your purchase receipt together with your warranty card

Fault Description:

Name:
Address:

Date of purchase:

Location of purchase:

We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this

warranty card and keep it for your reference. In the event of a product fault, please call the After Sales
Support team. Please ensure that you have the product details (as shown on this card) to hand so that

the support team are able to respond as quickly and efciently as possible.

Model Number: 77327

Service Helpline

QUESH LTD,
B7, FIRST BUSINESS PARK

FIRST AVENUE, CREWE, CHESHIRE.

CW1 6BG
