MAXTEK 72601 User Manual

USER GUIDE

Wireless Charger

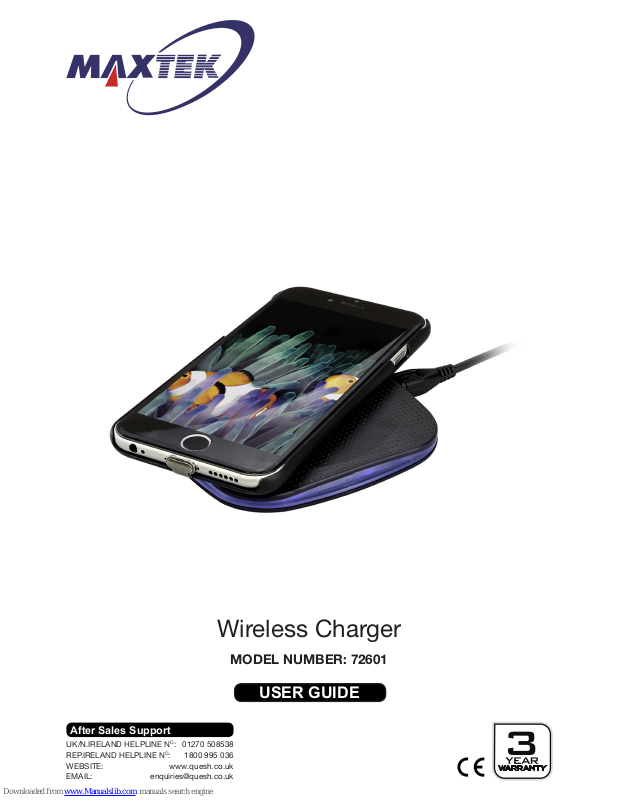

MODEL NUMBER: 72601

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

1.

2-3.

4.

5.

6.

7.

8.

9.

Welcome Section

General Information & Safety Instructions

Contents & Features

Layout

Setup

• Wireless Charging Case

• Wireless Charger

Charging A Device

• Using The Case

• Compatible Charging

Qi Ready Smart Phones

Specications

Contents

Welcome Section

Congratulations!

You have made an excellent choice with the purchase of this quality
MAXTEK

®

product.

By doing so you now have the assurance and peace of mind which

comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the

high quality standards of Quesh Ltd.

We want you to be completely satised with your purchase so this

MAXTEK® product is backed by a comprehensive manufacturer’s
3 year warranty and outstanding after sales service through our
dedicated helpline.

We hope you enjoy using this product for many years to come.

If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 3 year warranty

period will be repaired or replaced free of charge provided that you

have a satisfactory proof of purchase (keep your receipt safe).

This does not affect your statutory rights. However be aware that the
warranty will become null and void if the product is found to have
been deliberately damaged, misused and/or disassembled.

1

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

2

The EU Declaration of Conformity

can be downloaded from www.quesh.co.uk.

General information &
Safety Instructions

Please read the following safety information before use.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

C A U T I O N

• To avoid risk of electric shock do not attempt to open this appliance.

• Keep away from re.

• Do not expose the appliance to water, rain or dampness.

• Keep this appliance away from direct sunlight and other heat sources.

• Keep this appliance away from magnets.

• Never cover the underside or back of the appliance.

• Avoid placing heavy objects on top of the appliance.

• Always disconnect the appliance from mains power before cleaning.

• Clean the exterior of the appliance with a soft cloth only.

• The instructions for use shall state that the appliance shall not be exposed to
dripping or splashing and that no objects lled with liquids such as vases,
cups, etc, shall be placed on the appliance.

• Where the MAINS plug or appliance coupler is used the device shall remain

readily operable.

• Where an all-pole MAINS SWITCH is used as the disconnection device, the

function of the switch shall remain readily operable.

NEVER LEAVE CHILDREN UNATTENDED WITH

ELECTRICAL EQUIPMENT

3

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

General information &
Safety Instructions

Please read the following safety information before use.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

C A U T I O N

• Do not place items other than the intended charging device on the wireless

charging surface.

• Magnetic strip cards, storage devices such as SD cards, USB pen drives,
external storage, etc are at high risk of being corrupted or damaged if the item

is placed on the wireless charging surface.

• CAUTION: Make sure the charger and device are not overheating while in use.
Immediately disconnect the power to the wireless charger if either device show
signs of excessive heat

• CAUTION: Medical implants need to be kept at least a minimum distance of

15.3cm. IF you suspect that the wireless charger has interfered with your
implant, consult the relevant medical personal.

USE A USB MAINS ADAPTOR THAT PRODUCES AN

OUTPUT OF 5V/1.5A-2A ONLY

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

4

Contents & Features

Contents

1 x Wireless charger
1 x Wireless charging case

1 x USB cable

Features

• Wireless charging station
(compatible with Qi ready devices)

• Wireless charging case

• Base LED charge light indicator

5

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Layout

Charge LED Micro USB

Charge Port

Charge Plate

Power LED

Wireless Charge CaseCharge Connector

Wireless Charger

Wireless Charging Case

Wireless Charging Case

To t the phone into the case pull the charge connector out and
drop it down. Insert the phone into the case and make sure it is
securely snapped in place. Raise the charge connector and slide it

back into the case and into the phones charge port.

Setup

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

6

Wireless Charger

Place the wireless charger on a hard, at and level surface.

Connect the charge cable (supplied) to the micro USB charge port
and the other end to a suitable 5V / 1.5-2A power source.

Please Note:

You can cause damage to the wireless charger and/or the device
you are charging if the power supply exceeds the power
requirements of the wireless charger.

7

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Using The Case

Once the wireless charger has been set up correctly, check the

small LED in the centre of the pad is lit red. This will indicate the
wireless charger has power. Place the phone in the case on the

middle of the charging pad. The LED in the wireless charger’s base
will turn blue to indicate it is in contact and charging a device.
The phone’s charging icon will appear on the screen when it is

charging.

Compatible Charging

If your phone is Qi compatible the you can also use the wireless
charger to recharge your device (see page 8 for compatible list).
Check the charge requirements of the device before charging.

You can cause damage to the device you are charging if the
wireless charger exceeds the power requirements.

The phone’s charging icon will appear on the screen when it is

charging.

CAUTION:

• If the wireless charger or case/device gets hot immediately
disconnect the power to prevent possible damage.

Charging A Device

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

8

Samsung

Brand Model

S6

Samsung S6 Edge

Samsung

S7Samsung

Note5Samsung

S6 Edge Plus

Nokia 930

Nokia 830

Nokia

920Nokia

928Nokia

735

1520Nokia

Google

Nexus5Google

Nexus6Google

Nexus4

Nexus7 TabletGoogle

LG

G3LG

G4LG

G2

G ProLG

Z3VSony

Qi Ready Smart Phones

9

After Sales Support

UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE N

O

:
WEBSITE:
EMAIL:

01270 508538

1800 995 036

www.quesh.co.uk

[e-mail]

Specification

Wireless Charger

Charging distance:
Input:
Output:
Power:
Charge Efciency:
Operating Temperature:
Operating Humidity:

Qi Compatibility:

Wireless Charger Case

Charging distance:

Output:

Qi Compatibility:

≤ 10mm

DC 4.3V - 5.5V / 1.5-2A
DC4.3v - 5.5V / 800-1000mAh

5W
>73%
0° - 40°C
45-85%RH

Ver. 1.0 & Ver. 1.1 WPC

≤ 10mm

DC5V / 1000mAh
Ver. 1.0 & Ver. 1.1 WPC
